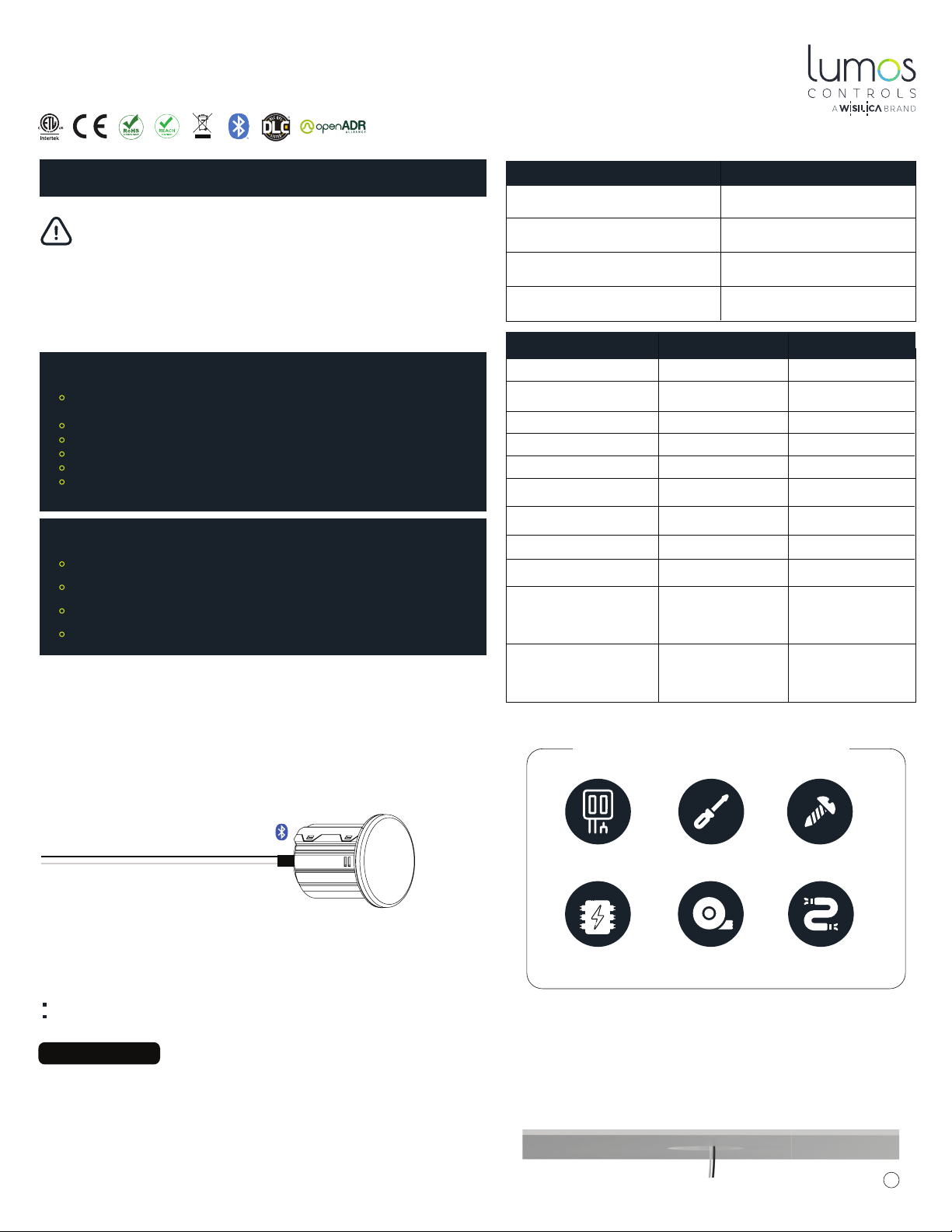

WiSilica LUMOS Cyrus AM User manual

AC Powered Wireless Microwave Motion & Light Sensor
Cyrus AM
WARNING AND GUIDELINES!!!
DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so that
no parts should have been damaged during transit. Inspect to confirm. Any part
damaged or broken during or after assembly should be replaced.
WARNING : TURN THE POWER OFF AT THE CIRCUIT
BREAKER BEFORE WIRING
REQUIRED TOOLS & SUPPLIES
INSTALLATION INSTRUCTIONS
Turn o the power before wiring and installing the device
Power the sensor by connecting the AC Line and Neutral wires from the mains supply to the Line (Black color), and Neutral (White color) from the sensor.
Make a hole of 78mm diameter in the false ceiling where the sensor
is to be installed and take out the main supply wires
Wiring the sensor
Read and follow all safety instructions!!
Do’s
Installation should be performed by a
qualified electrician
Dont's
Don't use outdoors
Installation shall be in accordance with
all applicable local and NEC codes
Avoid input voltage exceeding
maximum rating
Turn the power OFF at circuit breakers
before wiring
Don't disassemble the products
Observe the correct polarity of output
terminal
-
Electrostatic Discharge (ESD): ESD can damage product(s). Personal grounding
equipment should be worn during all installation or servicing of the unit
Do not stretch or use cable sets that are too short or are of insucient length
Do not modify the product
Do not mount near gas or electric heater
Do not change or alter internal wiring or installation circuitry
Do not use product for anything other than its intended use
WARNING: Risk of Product Damage
Verify that supply voltage is correct by comparing it with the product
information
Make all electrical and grounded connections in accordance with the National
Electrical Code (NEC) and any applicable local code requirements
All wiring connections should be capped with UL approved recognized wire
connectors
All unused wiring must be capped
WARNING - Risk of Electric Shock
Ceiling mount: Sensor can be installed in the false ceiling using the flush
mounted accessory, such as the clips, as given in the steps below
CEILING MOUNT
Mounting sensor on false ceiling
Specifications Value Remarks
Input voltage 90–277VAC
Input current 9mA@230VAC
15mA@90VAC
Inrush current 4A
4kV
0–80ºC (32 to 176°F)
2.3 X 2.5in
(59.8 X 63.1mm)
85g (3.0oz)
70°C (158°F)
ABS Plastic
Rated input voltage
_
_
_
_
_
Diameter x Height
In grams
White
INSTALLATION AND QUICK START SHEET
PRODUCT OVERVIEW
Cyrus AM is a BLE5.2 controllable high bay Microwave motion and daylight sensor. This
sensor operates on a 90-277VAC input voltage range adopts a 5.8GHz Microwave sensing
technology for accurate motion detection. It can be mounted at a maximum height of
12m(39.4ft) and provides a maximum detection range of 17m(55.8ft) diameter. The sensor
can be mounted to the ceiling or at the surface using ceiling or surface mount accessories.
It can be quickly commissioned, configured, and controlled from any mobile device and
can be connected to Lumos Controls cloud for data analytics and configuration
management
Wire connector Screwdriver Screws
Double sided
electrical tape
Electrical wires
Surge rating
Operating temperature
Case temperature
Case material
Dimensions
(Excludes accessories)
Diameter x Height
Dimensions
(Ceiling mount accessories)
Diameter x Height
Dimensions
(Surface mount accessories)
Net weight
(Excludes accessories)
Line
Neutral
1.
78mm
1
Electrical box
WMAM-CMK
WMAM-SMK
3.53 x 2.62in
(89.7 x 66.8mm)
4.32 x 2.80in
(109.8 x 71.2mm)

Line
Neutral
Connect the Line (Black) and Neutral (White) wires from the device
with the external mains supply wires using wire connectors and
terminate the same inside the junction box.
2.
Press and hold the spring clips (on both sides of the device) and
insert the sensor into the mounting hole. Release the spring clips so
that the sensor will fit in and remain intact.
3.
To remove the sensor
from the ceiling,
hold and pull the
sensor down
Rotate the lens clockwise to
connect to the case and rotate
anti-clockwise to dismantle
from the case
Note
Note
3
3
1&2
4
2
Removing Lens
Position the sensor mounting base to fix and take out the mains wire through the hole
given at the mounting base.
Mount the base on the selected position using screws
To power the sensor, connect the AC Line and Neutral wires from the
mains supply to the sensor Line (Black) and Neutral (White) wires using
wire connector. Terminate the wires within the sensor mount.
Connect the sensor unit case with the Mount base (that is already fixed
in step 2) by rotating the case clockwise.
To remove the sensor unit case from the mount
base, apply pressure towards ceiling and rotate the
sensor case anti-clockwise.
SURFACE MOUNT
Mounting sensor on false ceiling
1.
2.
3.
4.
WIRING DIAGRAM
Head: CSK Slotted Length
38mm 8.3mm 3.7mm
Head Diameter Screw Diameter
Rotate the lens clockwise to connect to the case

5-year limited warranty
Please find warranty terms and conditions
Note: Specifications may change without notice
Actual performance can vary due to end-user environment and application
WARRANTY
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by WiSilica Inc. is under license. Other trademarks and trade names are those of their respective owners.
All Rights Reserved WiSilica Inc
www.lumoscontrols.com
20321 Lake Forest Dr D6,
Lake Forest, CA 92630
[phone]
Ver 1.0 Sep 2022
Lights are not
responding to
Motion
TROUBLESHOOTING
Lights are not
responding to
Daylight
Check whether the Sensor is powered ON
Check whether the Sensor association
configured in the Group is correct
Check whether the Sensor is powered ON
Check whether the Sensor association
configured in the Group is correct
Check whether the Daylight Sensor Settings
(for the Sensor displayed under Devices tab)
configured is correct
Please visit Help center
for more details
Once powered up, the device will be ready to be commissioned via the Lumos Controls mobile app,
available for free download on iOS and Android. To begin commissioning, click the ‘+’ icon from the
top of the ‘Devices’ tab. The app allows you to preset certain configurations which will be loaded after
the device is added. The pre-configurations made using 'Commissioning Settings' will be sent to the
devices being commissioned.
Once commissioned, the device will be displayed in the ‘Devices’ tab and you can configure Sensitivity
from the device settings.
COMMISSIONING
LUMOS CONTROLS
APPLICATION
Download the ‘Lumos Controls’ application
from Play Store or App Store
OR
Scan the QR codes to download the
‘Lumos Controls’ application
AC lines
Driver
Light Fixture
Controller
APPLICATION
Cyrus AM
