WiSilica lumos CONTROLS ENOR E Operator's manual

Gateway With Real Time Clock (RTC)
ENOR E
WARNING AND GUIDELINES!!!
DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so that
no parts should have been damaged during transit. Inspect to confirm. Any part
damaged or broken during or after assembly should be replaced.
WARNING : TURN THE POWER OFF AT THE CIRCUIT
BREAKER BEFORE WIRING
Required tools &
supplies
INSTALLATION INSTRUCTIONS
Installation Steps
Option
Read and follow all safety instructions!!
Do’s
Installation should be performed by a
qualified electrician
Don'ts
Don't use outdoors
Installation shall be in accordance with
all applicable local and NEC codes
Avoid input voltage exceeding
maximum rating
Turn the power OFF at circuit breakers
before wiring
Don't dissemble the products
Observe the correct polarity of output
terminal
-
Electrostatic Discharge (ESD): ESD can damage product(s). Personal grounding
equipment should be worn during all installation or servicing of the unit
Do not stretch or use cable sets that are too short or are of insucient length
Do not modify the product
Do not mount near gas or electric heater
Do not change or alter internal wiring or installation circuitry
Do not use product for anything other than its intended use
WARNING: Risk of Product Damage
Screwdriver
Step 1: Ensure the gateway is in range with Lumos Controls devices.
You can place it on a table or mount it on the wall.
Verify that supply voltage is correct by comparing it with the product
information
Make all electrical and grounded connections in accordance with the National
Electrical Code (NEC) and any applicable local code requirements
All wiring connections should be capped with UL approved recognized wire
connectors
All unused wiring must be capped
WARNING - Risk of Electric Shock
Step 2: Connect to power.
Specifications TypeMin Max Unit  Remarks
Input Voltage 5
2
3
VMicro-USB/DC Adaptor
Micro-USB/DC Adaptor
Input current A
Input Voltage for RTC V CR2032 coin-cell battery
Frequency Band
2400
_2480 MHz
dBm
IEEE 802 Part 11b/g/n
Output Power 12
_
_
_
_
_
_
13 14 11n, MCS7
Speed
17.5 18.5 20 dBm 11b mode
Operating Temperature
10 _ 100 Mbps 10/100 Ethernet port
supports PoE
Storage Temperature
-20 _
_
55 ºC _
_
Relative Humidity
-20 85 ºC
Dimensions
0_
_
85 % _
Dimensions
120 x 120 x 29.5
_
_
_
4.7 x 4.7 x 1.2
mm
in
L x W x H
L x W x H
INSTALLATION AND QUICK START SHEET

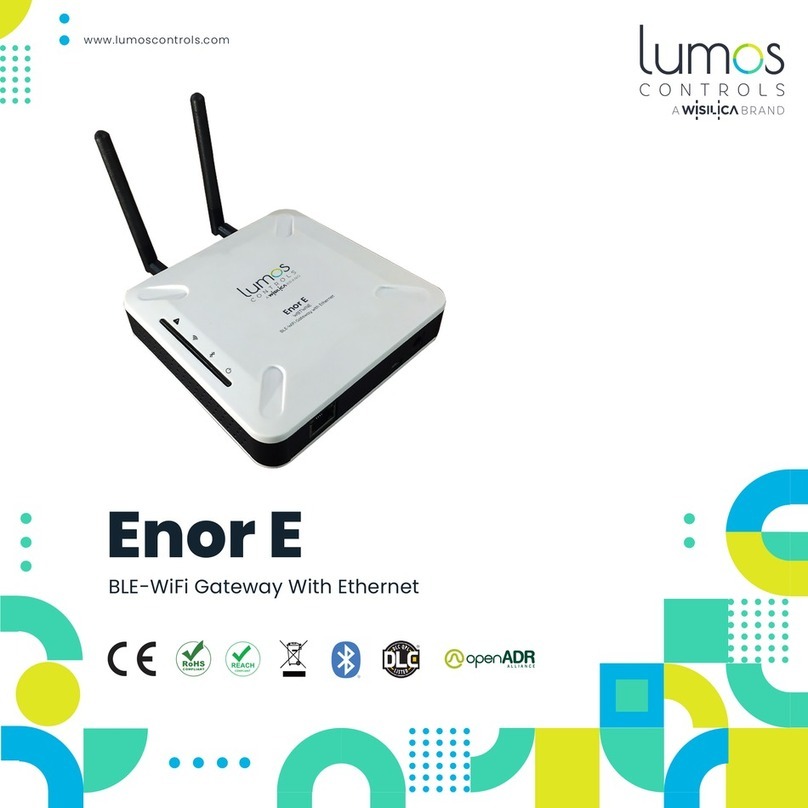

Product Overview
ENOR E is an enterprise gateway
providing cloud connectivity to your
smart lighting network. The device
comes with an Ethernet port that
supports zero-downtime Over-the-Air
(OTA) firmware updates for mesh
devices. RTC delivers highly accurate
data on time and date for various
end applications.
It is a part of Lumos Controls
ecosystem, which includes controllers,
sensors, switches, modules, drivers,
gateways, and analytical
dashboards.
Note:
Ensure that the antenna is positioned parallel to the wall
Make sure you have a stable INTERNET connection
Ethernet
Mini-USB
5V DC
Bluetooth Status
-Blue LED
Wi-Fi Status
-Green LED
Power Status
-Red LED
1

2
Step 1: Attach the screws onto the wall
Step 2: Mount your device to the wall
Please visit - Help center for more details
When returning from a
Power Outage, lights go
back to ON state.
This is normal operation. Our device has a
fail-safe feature forcing the device to go to
50% or 100% and 0-10V at the full output on
the loss of power. Alternatively, the device will
return to its previous state after the power is
restored, as configured using the Lumos
Controls mobile app.
Once powered up, the device will be ready to be commissioned via the Lumos Controls mobile app,
available for free download on iOS and Android. To begin commissioning, click the ‘+’ icon from the top
of the ‘Devices’ tab. The app allows you to preset certain configurations which will be loaded after the
device is added. The pre-configurations made using 'Commissioning Settings' will be sent to the devices
being commissioned.
Once commissioned, the device will be displayed in the ‘Devices’ tab and you can perform individual
operations like ON/OFF/dimming from this tab.
Commissioning
Troubleshooting
Use Case
Device doesn't operate
immediately after power ON
Check whether you have set up a
transition time
Lights flickering The connection is not appropriate
The wires are not secured firmly with
connectors
Lights did not turn ON Circuit breaker tripped
Fuse has blown
Inappropriate wiring
All Rights Reserved WiSilica Inc
www.lumoscontrols.com
23282 Mill creek Dr #340
Laguna Hills, CA 92653 USA
[phone]
5-year limited warranty
Please find warranty terms and conditions
Note: Specifications may change without notice
Actual performance can vary due to end-user environment and application
Warranty
Ver 1.0 Mar 2022
Remote device operation Sensor data to Cloud
Router Router
Gateway Gateway
Lighting application Sensor device
LED Lighting application
ScenesDevices Groups Spaces
Search
Classroom 1
38Devices
Classroom 2
19Devices
Library
58Devices
Cafeteria
41Devices
ConferenceRoom- Silver
18Devices
More
ZoneOne
ScenesDevices Groups Spaces
Search
Classroom 1
38Devices
Classroom 2
19Devices
Library
58Devices
Cafeteria
41Devices
ConferenceRoom- Silver
18Devices
More
ZoneOne
12
Option
