Witter Towbar Systems ZEKAD001CN User manual

AUDI
Technical Support No:
01244 284584 1/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
Part No. ZEKAD001CN
A5 Coupe 06/07 A5 Cabriolet 05/09 A5 Sportback 09/09
Installation of the towing electrics kit must be undertaken
by a specialist workshop or an appropriately qualified
person. Before starting work, you must read the installation
instructions through completely. After installing the towing
electrics kit, the installation instructions should be kept
with the vehicle service documentation.
All claims under the guarantee will lapse in case of improper use or
modification of the towing electrics kit or any of its component parts.
When driving without a trailer or load carrier, any adapter installed
must be removed from the electrical socket. We reserve the right to
alter the design, content or colour. We accept no liability for any
errors in these instructions. All details and illustrations are non-
binding.

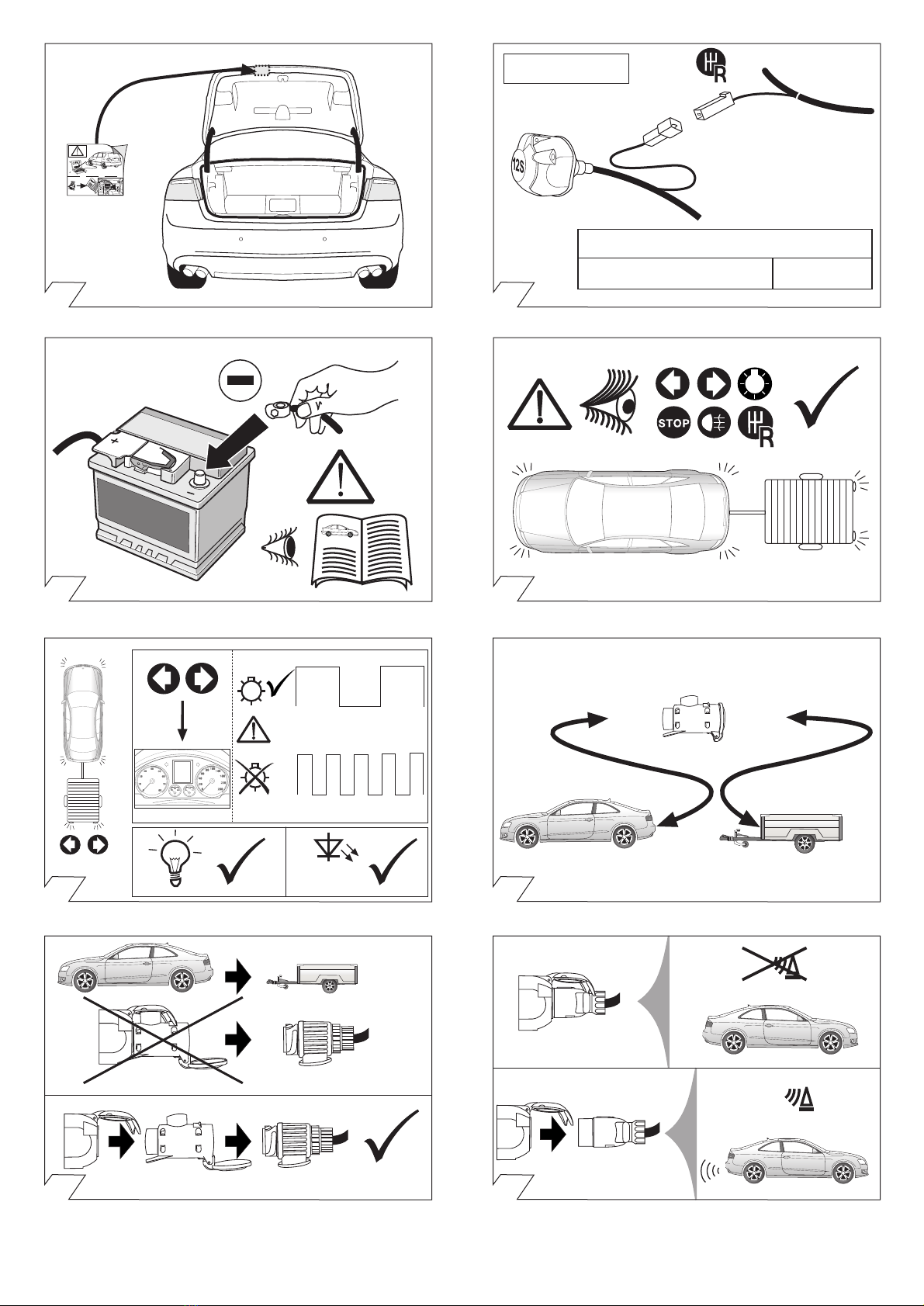

Fitting instructions
In case of missing a rear fog lamp on the trailer, it should be retrofitted.
We accept no responsibility and give no guarantee for technical and
electrical modifications made after the initial operation of the towing
electrics kit by the vehicle manufacturer and which may lead, for
example to malfunction of the trailer socket or its peripheries.
The trailer module is not diagnostics-capable. If the manufacturer’s
diagnostics processes or software-supported test mechanisms
generate error reports directly or indirectly linked with trailer operation,
the trailer module must be disconnected from the leads to the trailer
socket and a new diagnostic process initiated.
Electric wiring kit for towbars / 7-pin / 12N / 12 Volt / ISO 1724
IMPORTANT!

Technical Support No:
01244 284584 2/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
5-12
13-27
MANUAL
3x 10x 5x3x
2x
2x
90270328
15A
2x
3x

1
Technical Support No:
01244 284584 3/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
90010216
Co
Co
ATTENTION!
The vehicle's cooling capacity may have to be increased when retrofitting a trailer coupling! You must observe the
manufacturer's instructions!!
ATTENTION!
MANUAL
In order to avoid mal-functions and damage to the vehicle’s electrical system the earth terminal must be disconnected
from the vehicle’s battery before starting work!
Both the trailer module and the vehicle’s control unit for the electrical system can be damaged during work on the
CAN data bus connections if the battery is not disconnected!
Please pay attention to the manufacturer’s instructions when disconnecting and reconnecting the vehicle’s battery!
SYMBOL EXPLANATION
Reverse
B+/30
20A
left (58-L) respectively
right (58-R) tail light
stop light (54) /
high mounted, third stop light (54)
turn signal indicator left
turn signal indicator right
rear fog light(s)
reversing light(s)
trailer / trailer recognition
Permanent current power supply
Ground or Earth (31)
ground connection battery terminal lug
positive connection battery terminal lug
fuse / fuse capacity 20 Ampère
12
V
P
cigarette lighter /
accessory socket
loudspeaker / buzzer
Park Distance Control
switch / source of function
Connect together
Disconnect
Look at / See further information
Look carefully at selected area
Present / Occupied / OK
Not present / Not occupied / Not OK
left
right
acoustic indication
attention / important advice
B+/30
Permanent power supply /
13pin socket, chamber 9
charging wire for trailer battery /
13pin socket, chamber 10
everse

2
1
2
34
5
6
1
23
4
5
3
Technical Support No:
01244 284584 4/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
Sportback
Coupe

5 6
7 8
4
1
3
4
2
Technical Support No:
01244 284584 5/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
90500513
90010219
Cabrio

9
12
13
10 11
Technical Support No:
01244 284584 6/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
Belegung der Steckdose / Maximale Ausgangsleistung
Socket configuration / Maximum power output
Correspondance des contacts de la prise / Puissance de sortie maximale
Abbinamento della presa / Uscita di alimentazione massima
Indeling van de stekkerdoos / maximaal uitgangsvermogen
ISO 1724
5/58-R
6/54
1/L
4/R
2
3/31
BK/WT
WT
BK/GN
BR
GY/RD
BK/RD
7/58-L
GY/BK
21W
42W
21W
52W
63W
52W
Ausgangsseite wählen
Choose direction
D FGB I
E
RD
BK
GN
OR
VT
PK
BL
YL
WT
BR
GY
Black Schwarz Negro Noir Nero
Red Rot Rojo Rouge Rosso
Green Grün Verde Vert Verde
Orange Orange Naranja Orange Arancione
Violet Violett Violeta Violet Viola
Pink Pink Pink Rose Rosa
Blue Blau Azul Bleu Blu
Yellow Gelb Amarillo Jaune Giallo
White Weiss Blanco Blanc Bianco
Brown Braun Marr ó n Brun Marrone
Grey Grau Gris Gris Grigio
NL NP S
DK
Preto Zwart Sort Svart
Vermelho Rood R ød R ød R öd
Verde Groen Gr øn Gr ønt Gr ön
Laranja Oranje Orange Orange Orange
Violeta Violet Violet Fiolett Violett
Cor-de-Rosa Paars Pink Pink Rosa
Azul Blauw Bl å Bl ått Bl å
Amarelo Geel Gul Gult Gul
Branco Wit Hvid Hvitt Vit
Marrom Bruin Brun Brunt Brun
Cinzento Grijs Gr å Gr ått Gr å
CZFIN H
Musta Cerná Fekete
Punainen Cervená Piros
Vihre ä Zelená Z öld
Oranssi Narancs
Violetti Fialová Ibolya
Pinkki Ruzová R ózsaszín
Sininen Modrá Kék
Keltainen Zlutá S árga
Valkoinen Bílá Fehér
Ruskea Hnedá Barna
Harmaa Sedá Szürke
PL
Czarny
Czerwony
Zielony
Pomaranczowy
Fioletowy
R ózowy
Niebeski
Zólty
Bialy
Brazowy
Szary
Svart
Oranzová
90500580
90500516
Sportback

14
15
16
Technical Support No:
01244 284584 7/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
17-18,
27-39
OPTION 1
OPTION 2
19-39
Vehicles without trailer preparation
Vehicles with trailer preparation
RD
Coupe
Cabrio
Coupe Cabrio
Sportback
Coupe Cabrio
Sportback

17
19
18
Technical Support No:
01244 284584 8/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
15A
15A
F3
F4
OPTION 1
OPTION 2
OPTION 1
RD
Coupe Cabrio
Sportback

21
20
1.
2.
3.
Technical Support No:
01244 284584 9/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
90270327
OR/GN (chamber 19)
OR/BR (chamber 20)
Connector 32-pin (BK)
OR/BR
OR/GN
OR/BR
OR/GN
OR/BR
OR/GN
OR/BR
OR/GN
CAN-Data Wire
Sportback
Coupe
Sportback
Important!

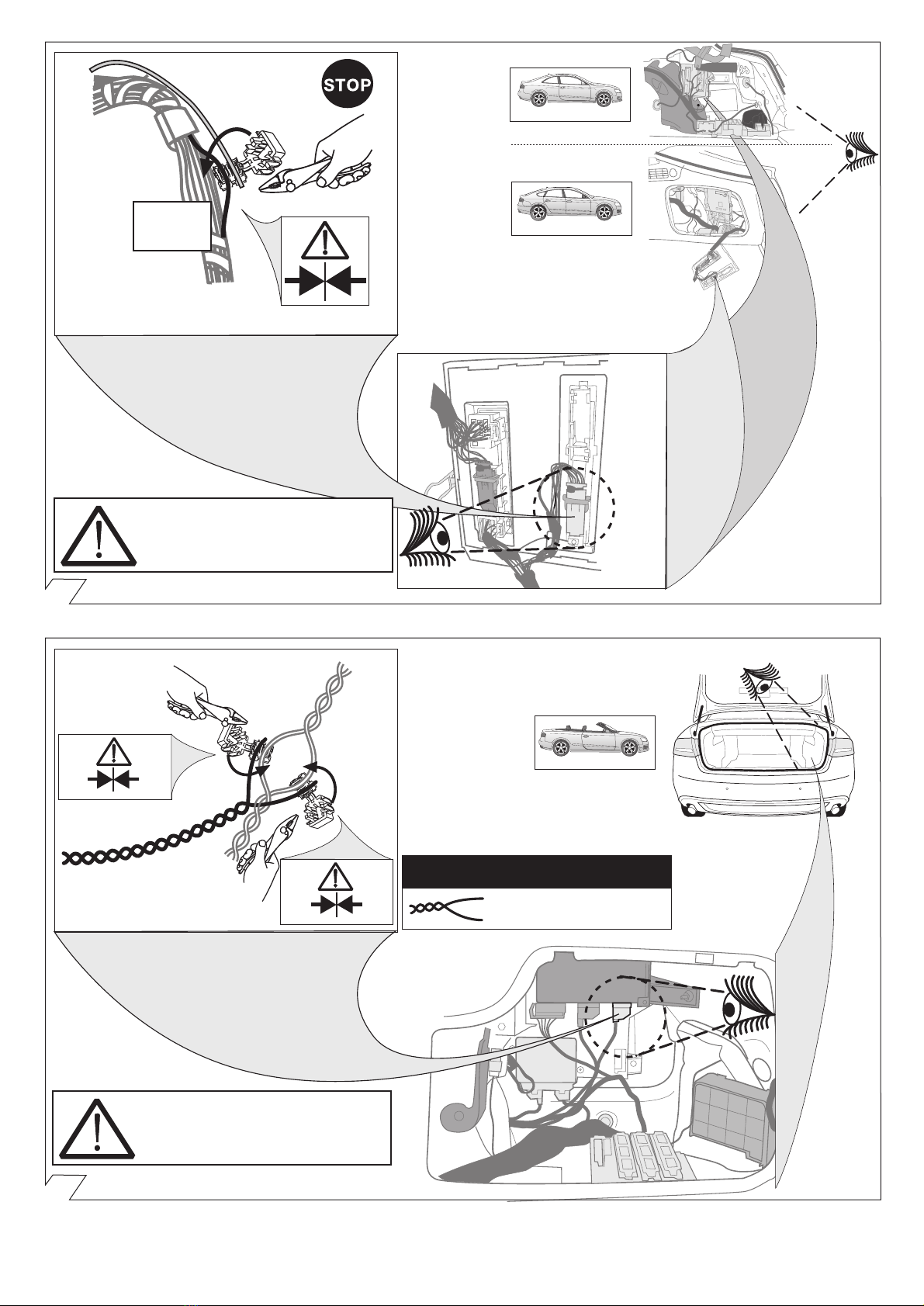

Please note informations in picture 1!

23
22
Technical Support No:
01244 284584 10/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
90270327
OR/GN (chamber 1)
OR/BR (chamber 2)
Connector 16-pin (BR)
90270327
Connector 32-pin (GY)
OR/BR
OR/GN
OR/BR
OR/GN
OR/BR
OR/GN
OR/BR
OR/GN
CAN-Data Wire
RD/BK
RD/BK
(chamber 2)
Cabrio
Coupe
Sportback
Important!
Please note informations in picture 1!
Important!
Please note informations in picture 1!

24
25
Technical Support No:
01244 284584 11/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
90270327
RD/BK
RD/BK
Cabrio
Coupe
Cabrio
Sportback
Open secondary lock!
BK
Important!
Please note informations in picture 1!
Fusebox

26
27
X00000000
ooooooooooooooooo
Technical Support No:
01244 284584 12/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
RD 1.
2.
90010199
RD/BL
RD/YL
F3
F4
15A
15A
F3
F4
Coupe CabrioSportback
28
Important!
Please note informations in picture 1!
Close secondary lock!
Fusebox
MANUAL
SERVICE
AUDI
AUDI
SERVICE
AUDI
AUDI
90270310
MANUAL

Technical Support No:
01244 284584 13/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
P
P
13-pin
7-pin
MANUAL
Optional: Adapter socket 62400001
MANUAL
90500004 90500507
everse
90500652
Supplementary harness
12S
38400501
BL/YL
OPTIONAL
everse
29
32
31
30
35 36
33 34
LED

Technical Support No:
01244 284584 14/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
Set up trailer operation
SETUP
1x
P
1. 2. 3.
4.
ON
L
O
C
K
Ignition ON
P
39
Please effect coding as follows:
Guided troubleshooting
Skip
• Function / component selection
• Select the “Direct input of AM code for vehicle alteration”
(Direkteingabe AM-Code fur Fahrzeugumbau) testing programm from within
Action Management (AM).
Done
• Enter AM code
The necessary AM code can be found in the "Coding sheet" in the Audi dealer
portals (incl. ServiceNet, ELSA-System, ETKA-System).
38
OPTIONAL
Part-no.
50400521C
everse
Trailer Simulator
for 7- and 13-pin
Sockets
everse
Permanentpower supply Chargingwire for
trailerbattery
Dauerstrom Ladeleitung
everse
PIN 9 PIN 10
37

Technical Support No:
01244 284584 15/15
87010874 / 10.01.2013
© ConWys AG DROME ROAD DEESIDE INDUSTRIAL PARK DEESIDE FLINTSHIRE CH5 2NY
GN
GN
b
c
No CAN-Data
Standby /
Sleepmode
=
a
GN
RD
Diagnosis function of control LEDs
Lamp substitution if the trailer indicators fail
The failure of a trailer indicator (right left or both sides) is reported to the driver in the towing vehicle's combi-instrument
via a text message in the display, an increase in the flashing frequency and/or a control lamp for light failure
coming on.
If an indicator fails the left or right rear tail light compensates for the faulty indicator by flashing at the correct frequency!
If the indicator is activated, the corresponding rear tail lamp on the trailer becomes the indicator
(lamp substitution): NOTE! The lamp substitution does not work if the Hazard warning lights have been
activated.
e2 x B+/30: PIN 2 + 4
RD
d
/31: PIN 1
CAN-Data Wire
RD
or
RD
PIN 13+14
