WMB TE-076 Instruction Manual

V.09.19
OPERATING INSTRUCTIONS USER MANUAL
MANUAL DE INSTRUCCIONES
TE-076
TOWERLIFT
TORRE ELEVADORA
ENES DE
TRAVERSENLIFT
BEDIENUNGSANLEITUNG

LIFTING TOWER TE-076
TORRE ELEVADORA TE-076
PRO LIFTS S.L.
C/ Ciudad de Barcelona Nº19
Pol.Ind. Fuente del Jarro
46988 Paterna (Valencia)
Tlf Export: [phone]
Tlf Nacional: 96 171 81 83
[email protected] - www.prolifts.es
Manufacturer - Fabricante
Este manual de usuario y catálogo anexo de piezas de repuesto es propiedad de PRO LIFTS S.L.
Queda prohibida su reproducción total o parcial por cualquier medio que la tecnología actual permita.
Deposito legal y copyright 2014. Todos los derechos reservados.
MADE IN SPAIN (EU)
BGV-C1
BGG-912
EC Conformity Declaration Directive 2006/42/EC of the European
Parliament and the Council of17 May 2006 on machinery, and
amending Directive 95/16/EC
Find a copy of the BGV-C1 certifications at the end of this booklet.
Puede ver una copia de las certificaciones BGV-C1 al final del manual.
CERTIFICATIONS / CERTIFICACIONES

Depósito legal y copyright 2014. Todos los derechos reservados. 3PRO LIFTS S.L.
TE-076
T
VV
S
ALS-1
ALS-2
ALS-3
ALS-4
A
ALS..............Automatic security lock / Gatillo automático seguridad
A.................. Red VMB knob / Palomilla presión roja VMB
S...................Transport compartment / Alojamiento de transporte
T...................Transport wheels / Ruedas de transporte
V...................Working compartment / Alojamiento de trabajo

Depósito legal y copyright 2014. Todos los derechos reservados. 4PRO LIFTS S.L.
TE-076
R
H
Q
W
P
L
S
N1 N2

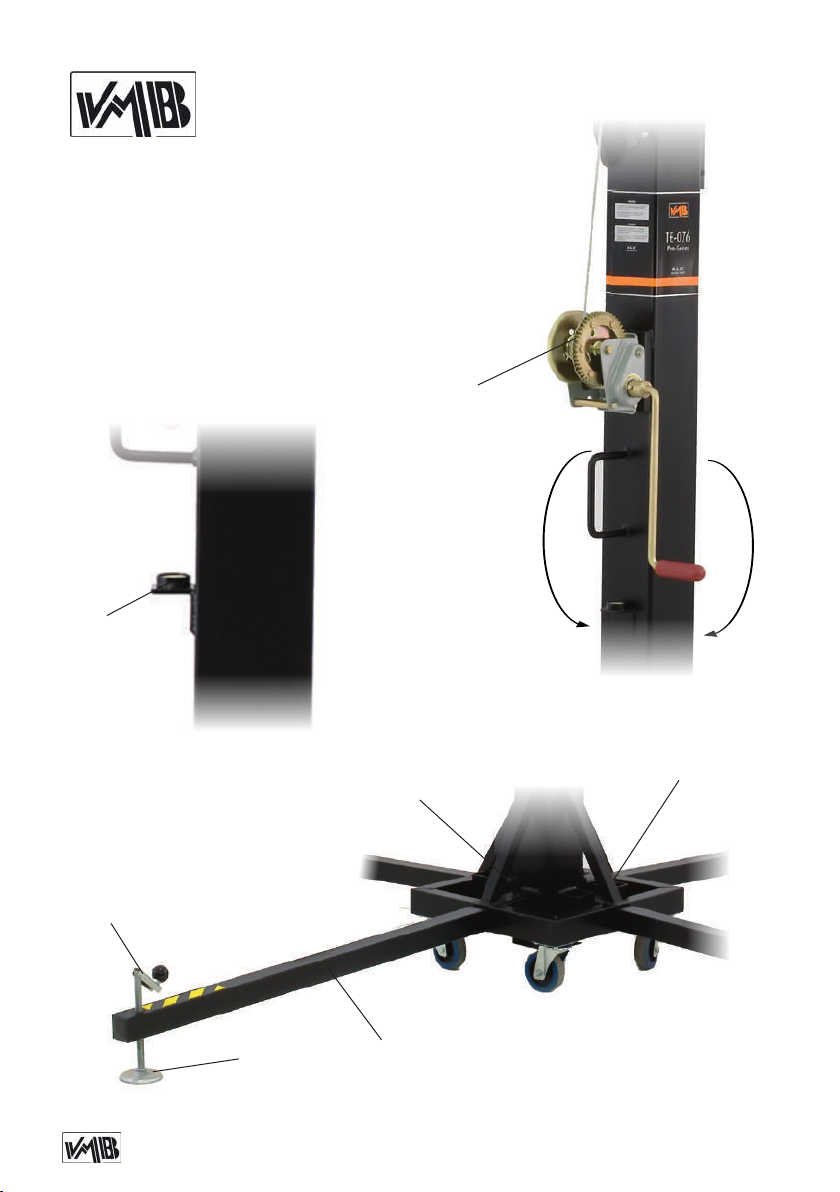

H............... Handle / Manivela
L................Spirit level / Nivel de burbuja
N............... Force on hand crank / Fuerza sobre manivela
P................Leg / Pata
Q............... Stabilizer / Estabilizador
R............... Catch pawl / Gatillo bloqueo patas
S................Transport compartment / Alojamiento de transporte
W...............Winch / Cabrestante

Depósito legal y copyright 2014. Todos los derechos reservados. 5PRO LIFTS S.L.
Quick operation guide ENGLISH
CONTENTS
1. Introduction.
2. Technical information.
3. Safety precautions.
4. Operation.
5. Maintenance.
6. Guarantee.
1. INTRODUCTION
Dear customer,
In order to ensure a safe and reliable ope-
ration of the TE-076 towerlift please follow
the instructions in this booklet carefully.
Before operating the lift, read the instruc-
tions completely and please note the te-
chnical information contained within this
manual.
All VMB products undergo very rigorous
testing, under strict conditions and they
are monitored continuously during the ma-
nufacturing process.
In order to guarantee the lifts function and
safety, only original parts from the manu-
facturer must be used. If any parts other
than those of the manufacturer are used,
or the product is modied in any way, the
user forfeits all warranty rights to claim.
VMB reserves the right to modify the pro-
duct specications without prior notice.
The model type, production year and se-
rial number must be quoted in any queries
or orders for spare parts.
2. TECHNICAL INFORMATION
2.1 - TE-076 Towerlift.
2.2 - Designed to lift loads, such as trus-
sing and lighting, vertically up to di󰀨erent
heights.
2.3 - Maximum load : 220 Kg (485 lb).
2.4 - Minimum load : 25 Kg (55 lb).
2.5 - Maximum height : 6.5 m (21.3’).
2.6 - Folded height : 1.83 m (6’).
2.7 - Transport surface: 0.47x0.47x1,83m
(1.54’x1.54’x6’).
2.8-Shippingdimension:0.49x0.49x1,86m
(1.61’x1.61’x6.1’).
2.7 - Work surface : 1.85 x 1.85 m
(6.1’ x 6.1’).
2.8 - Unit weight : 95 Kg (209 lb).
2.9. - Adaptator: Ø 35 mm
(PSU-06/PSA-01).
2.10 - Construction material :
Steel proles DIN 2394.
2.11 - Five telescopic prole system ope-
rated by steel cable and guided by chan-
nelled steel pulleys with ball bearings.
2.12 - Winch: 900 Kg. maximum load with
automatic brake. Certication CE and
GS TÜV.
2.13 - Cable : Steel DIN 3060. Quality 180
Kg/mm2twist resistant.
Cable diameter : 6 mm.

Depósito legal y copyright 2014. Todos los derechos reservados. 6PRO LIFTS S.L.
Quick operation guide ENGLISH
3. SAFETY PRECAUTIONS.
2.14 - Exclusive ALS system (Auto-Lock
Security), pat. pen. 200501056.hed in sa-
tin polyester.
2.15 - Adjustable stabilizing feet with ruber
non-slip supports.
2.16 - Safety catches to anchor the legs.
2.17 - Antirust protection, primed paint
with cured polyester dust cover. The tower
can be supplied with natural aluminium
nish or black (version B).
2.18 - Spirit level to adjust the tower ver-
tically.
2.19 - Swivel wheels to transport the lift
when folded.
3.1 - The TE-076 is a machine designed to elevate
loads upwards in a vertical direction, It should NEVER
be used as a platform to elevate people.
3.3 - The maximum load indicated on the characteristics
label and the instructions manual should not be excee-
ded.
3.4 - This lift should NEVER be used to elevate a load
that has not been properly checked. It is necessary to
verify that the load is correctly supported and centred
on the appropriate lift support so that the weight of the
load will only elevate in a vertical direction.
3.2 - Only place the lift on hard, at surfaces always
checking that it is in a vertical position by using the bub-
ble level indicator (L) found on the base section. Adjust
the leg stabilizers (Q) by turning the handles (H) to level
if necessary. NEVER use wedges or other foreign ob-
jects to balance the lift.

Depósito legal y copyright 2014. Todos los derechos reservados. 7PRO LIFTS S.L.
Quick operation guide ENGLISH

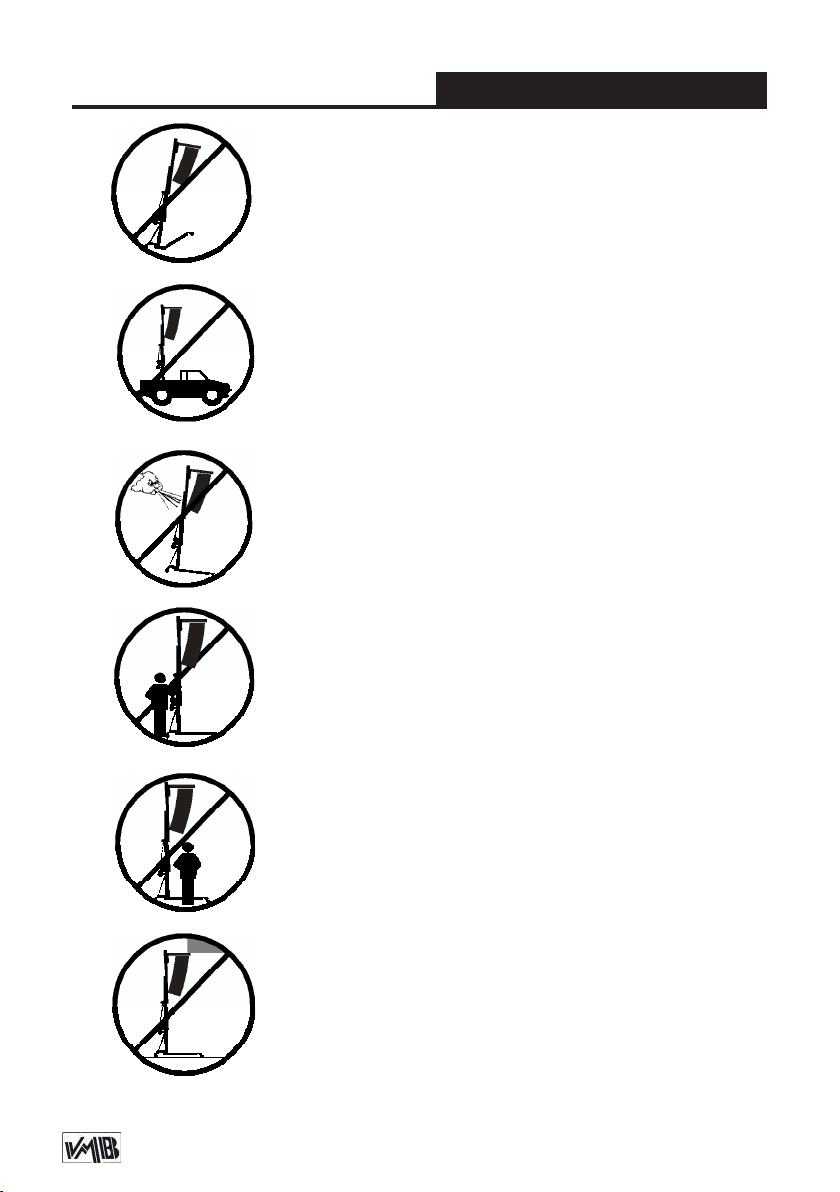

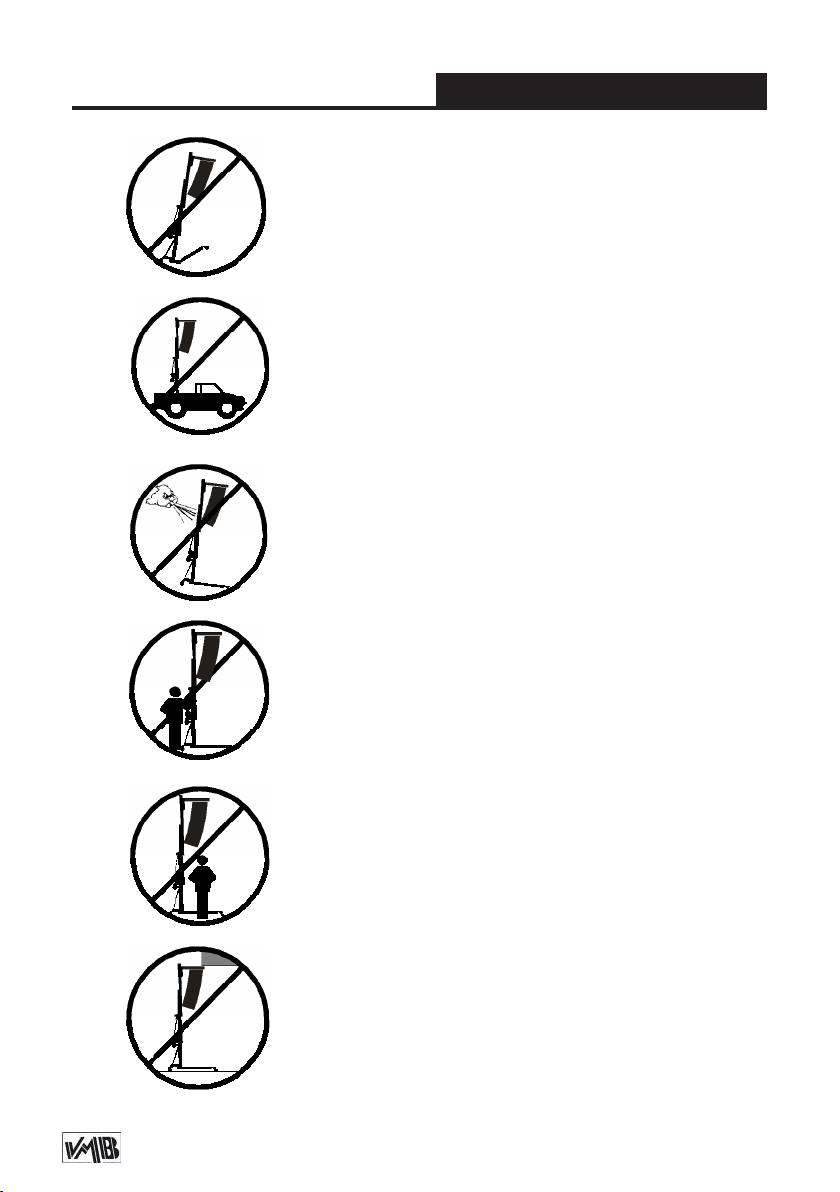

3.6 - NEVER use the lift on a vehicle or any other mobile
surface.
3.7 - If there is a possibility of strong winds or gusts,
place the lift on the ground rmly and secure it with the
use of straps. NEVER attach a strap to a vehicle or any
other object that can possibly be moved.
3.8 - NEVER move the lift whilst it is carrying a load. It
is not advisable to carry out any type of horizontal mo-
vement even small positional adjustments.
3.9 - NEVER allow any team member below the load or
anybody else in the lifts operating zone.
3.10 - Take care with all obstacles above the lift and
its extension zone such as cornices, balconies, and
luminous signboards. It is very important to avoid the
presence of all types of cables below the extended lift.
3.5 - Check that the legs (P) are placed and set-up co-
rrectly with their safety pins (R) inserted and locked.

Depósito legal y copyright 2014. Todos los derechos reservados. 8PRO LIFTS S.L.
Quick operation guide ENGLISH

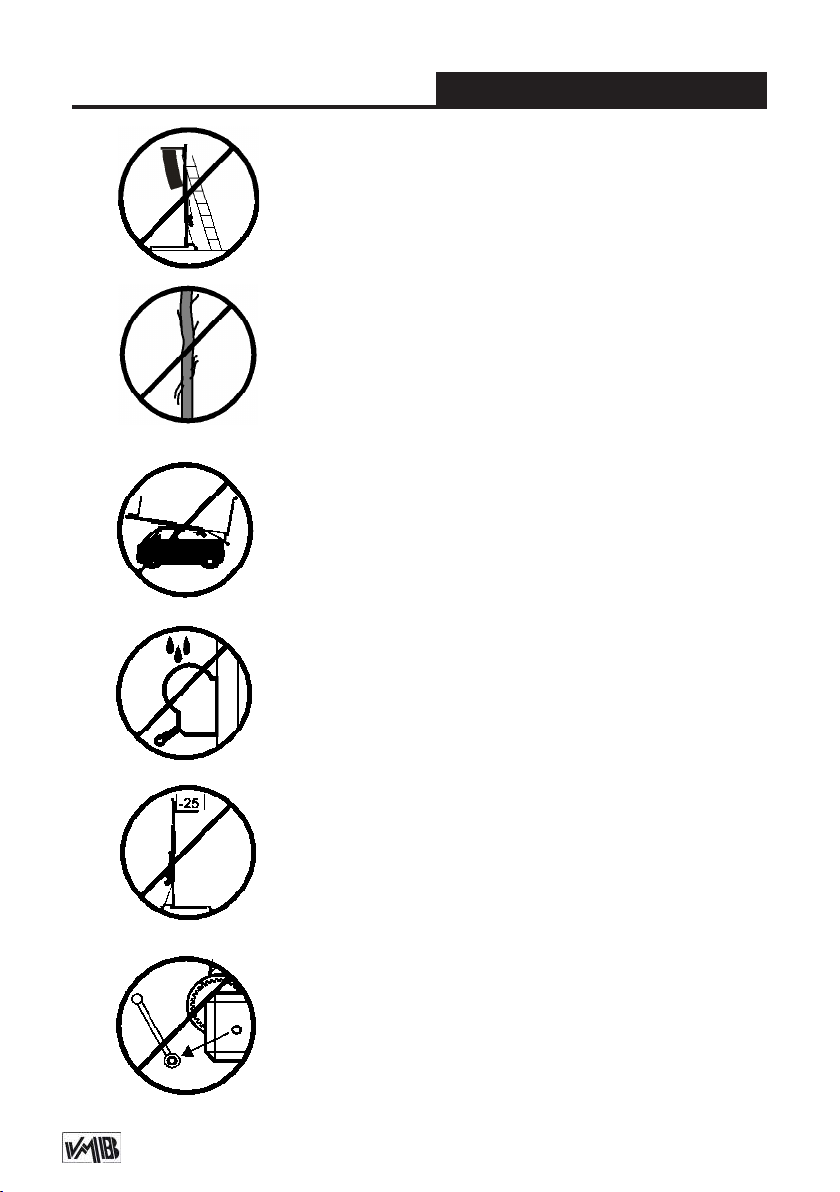

3.11 - Do not use stepladders on the lift or use it as a
support for them.
3.12 - Before using the lift, check the condition of the
cable. The cable should not have broken threads or
show any signs of crushed/attened areas. NEVER use
faulty cables, always change them if there is any doubt.
Only use VMB steel cables; reference: DIN 3060.
Quality: 180KG/mm and torsion resistant.
3.14 - Do not grease or lubricate the winch’s braking
mechanism. The brake disks have been greased with
a special heat and pressure resistant solution. Other
products should not be used to avoid negative e󰀨ects
regarding the braking mechanism.
3.15 - The minimum load to avoid problems regarding
the braking mechanism is 25Kg. Without this load the
brake will not work.
3.16 - NEVER take apart the crank of the winch when
the lift is carrying a load or extended.
3.13 - All sections must be lowered rst, and the legs
placed in its transport position, before transportation.

Depósito legal y copyright 2014. Todos los derechos reservados. 9PRO LIFTS S.L.
Quick operation guide ENGLISH
4. USER INSTRUCTIONS.
4.1 - Place the lift on its working position,
in a rm, at surface with the help of the
swivel wheels (T).
4.2 - Remove the legs from their trans-
port supports (S) and fully insert them into
their working positions (V) checking that
they are xed by the catches (R). Check
that the lift is in vertical position using the
spirit level (L) at the base prole, adjust
the stabilizer (Q), turning the handle (H)
if necesary.
4.3 - THE MAXIMUM LOAD IS 220 Kg
(485 lb). The lift should NEVER be over-
loaded (over 220 Kg). Safety at work is
the most important issue. Untighten the
screw (A) and place the load onto the lift
using an adequate support according to
the need, use so that the weight of the
load will only be elevated in a vertical di-
rection. The minimum load is 25 Kg.
4.4 - Elevation: Turn the winch crank
clockwise (N1) to lift the tower, the red
ALS lock enable the lift to rise and auto-
matically block the proles whilst rising,
ensuring that the load will never fall.
4.5 - Blocking: Once the system is eleva-
ted to its required height, gently turn the
handle in an anti-clockwise (N2) direction
to introduce the ALS locks in its corres-
ponding hole and block the proles. The
ALS lock will take the pressure of the load
and release strain applied on the cable.
Security system ALS
The TE-076 incorporates the patented
security system ALS (Automatic Lock
Security). This VMB red trigger system
automatically blocks the tower in the posi-
tion it is left in. Each section of lift has an
ALS that blocks the section in the unlikely
event of the cable breaking.
4.6 - Lowering: To bring the lift down you
need to rst turn the winch handle slightly
clockwise (N1) and at the same time pull
the red ALS-1 lock out. This releases the
blocking systems. Then turn the handle
anti-clockwise (N2), whilst maintaining
the ALS-1 lock pulled out until the prole
has been completely lowered. All red ALS
locks should be pulled out one by one
whilst the handle is turned anti-clockwise
and the proles are brought down, one by
one.
CAUTION
When two towers are used to elevate a
bridge, down truss or many towers to ele-
vate a structure of any type, it is almost
3.17 - Only original replacement parts should be used.
ORIGINAL

Depósito legal y copyright 2014. Todos los derechos reservados. 10PRO LIFTS S.L.
Quick operation guide ENGLISH
to use, the gearing, the axis bearings, the
spiral of the crank, and the sections.
5.3 - All lifts should undergo an annual
technical inspection carried out by an
authorized VMB dealer to check the cer-
tications and general condition of all the
lift’s elements and security systems invol-
ved in the lift’s use.
5.4 - Only use original spare parts to gua-
rantee a continued security level. The
user loses all rights to warranty if any spa-
re parts other than originals are used or
carries out any modication or alteration
to the towerlift.
5.5 - To request a spare part please in-
dicate the corresponding code which can
be found in this manual together with the
lift’s serial number and year of manufac-
ture.
6. GUARANTEE.
The warranty period for this lift is 2 years
from the date of purchase.
PRO LIFTS S.L. promises, that from the
date of purchase and during the warranty
period to resolve any faults that may oc-
cur, produced through defect material or
fabrication. Damage caused by improper
use, product modication, third party ma-
nipulation or accidental re are not cove-
red by this warranty.
impossible that two or more people co-or-
dinate the winches elevating or lowering
the loads, at exactly the same pace. At a
certain point each tower will be extended
to a height di󰀨erent to that of the others.
For this reason it is necessary that the
structure does not stretch and allows
for these di󰀨erences. With a rigid xa-
tion and if the level di󰀨erence is signi-
cant, the force generated from the handle
of the winch will deform the structure and
apply a lateral force to the lifts causing
them to break and block.
4.7 - Transport:
For the transport of the tower is necessary
to fold the machine lowering every prole
completely. Once the towerlift is comple-
tely folded, place the legs in their trans-
port compartment (S) and the lift is ready
to be transported.
5. MAINTENANCE.
5.1 - Regularly check the state of the ca-
ble. If the cable has broken threads, or if
it shows any signs of crushed/attened
areas, it should be changed and replaced
immediately with a new one. Do not use
the lift if the cables are in bad condition.
Only use VMB steel cables reference: DIN
3060 torsion resistant.
5.2 - The lift is supplied from the factory
completely greased. However, it is recom-
mended to periodically grease according
