Wohler HDM-320-4K-TT User manual

HDM-320-4K-TT
32” UltraHD Video Tabletop Monitor
User Guide
User Guide
Part Number 821823, Revision A

Page 2
© 2018 Wohler Technologies, Inc. All rights reserved.
This publication is protected by federal copyright law. No part of this publication may be copied or
distributed, stored in a retrieval system, or translated into any human or computer language in any
form or by any means electronic, mechanical, manual, magnetic, or otherwise, or disclosed to third
parties without the express written permission of Wohler Technologies.
Reproduction
Licensed users and authorized distributors of Wohler Technologies, Inc. products may copy this
document for use with Wohler Technologies., Inc. products provided that the copyright notice above
is included in all reproductions.
Customer Support
Wohler Technologies, Inc.
31055 Huntwood Avenue
Hayward, CA 94544 www.wohler.com
Phone: [phone]
FAX: [phone]
US Toll Free: 1-888-596-4537 (1-888-5-WOHLER)
Web: www.wohler.com Sales: [e-mail]
Support: [e-mail]
Disclaimers
Even though Wohler Technologies, Inc. has tested its equipment and software, and reviewed the
documentation, Wohler Technologies, Inc. makes no warranty or representation, either express or
implied, with respect to software, documentation, their quality, performance, merchantability, or
fitness for a particular purpose.
In no event will Wohler Technologies, Inc. be liable for direct, indirect, special, incidental, or
consequential damages resulting from any defect in the hardware, software, or its documentation,
even if advised of the possibility of such damages.
Some states do not allow the exclusion or limitation for incidental or consequential damages, so the
above exclusion or limitation may not apply to you.
Printing
This document looks best when printed on a color printer since some images may be indistinct when
printed on a black and white printer.
PDF
All text strings underlined in this shade of blue are hyperlinks within this document.
Other Technologies and Products
Google Chrome is a registered trademark of Alphabet Inc. Microsoft Windows and Internet Explorer
are registered trademarks of Microsoft Corporation. TSL is a registered trademark of TSL
Professional Products, Limited. ImageVideo is a registered trademark of Image Video.
Last Update
July 17, 2018

Page 3
TABL OF CONT NTS
Contents
User Guide..........................................................................................1
TABLE F C NTENTS............................................................................3
Contents .........................................................................................................3
CHAPTER 1: Installation ........................................................................4
Introduction ....................................................................................................4
verview...............................................................................................4
Features ...............................................................................................4
Safety.............................................................................................................4
Instructions ...........................................................................................4
Safety Symbols......................................................................................5
Mounting...............................................................................................5
Heat Dissipation.....................................................................................6
Sympathetic Vibration.............................................................................6
Mechanical ............................................................................................6
Electrical Interference .............................................................................6
Power ...................................................................................................6
Compliance .....................................................................................................7
FCC ......................................................................................................7
ICES-003 ..............................................................................................7
CHAPTER 2: Local peration ..................................................................8
Front Panel ......................................................................................................8
n-Screen Display Features...............................................................................9
Rear Panel.....................................................................................................11
Rear Panel Connectors ....................................................................................12
Using the Quick Menu and the SD Menus ........................................................13
Quick Menu .........................................................................................13
SD Menus .........................................................................................14
SD Menus ...................................................................................................15
CHAPTER 3: Technical Info ................................................................ 24
Supported Video Formats ................................................................................26
CHAPTER 4: Using Network Control ...................................................... 27
Web Browser / Control Device .........................................................................27
First Time- IP Assignments ..............................................................................27
Management Interface ....................................................................................28

Page 4
CHAPT R 1: Installation
Introduction
verview
The HDM-320-4K-TT monitor sets a new standard in UltraHD LCD monitors for
broadcast and professional video applications. It provides a 32”, 3840 x 2160
resolution, 16:9 format, 60Hz refresh, anti-glare IPS LCD screen. All video formats
are scaled to fit on the screen in the highest quality using 12-bit digital processing,
precision scaling and gamma correction to produce the best images possible.
Features
The HDM-320-4K-TT audio/video monitor is designed for confidence monitoring of
four 3G/HD/SD-SDI inputs. 2SI Interleave or Quad-Link 4K video can be monitored
using the four HD-SDI inputs together. Input signals are easily selected and
displayed. Two to sixteen audio channels may be selected for visual monitoring on
bar graph style level meters. n screen marker displays can be enabled on this full-
featured monitor. Stereo speakers provide audio monitoring. A headphone jack is
also provided for external audio monitoring.
Parameters are selected and adjusted using an n Screen Display ( SD) Menu.
Monitor management settings can also be made with a web browser over Ethernet
using the integral web server. The monitor can contain up to four user definable
configurations which can easily be recalled whenever necessary.
Safety
Instructions
1. Read, keep, and follow all of these instructions; heed all warnings.
2. Do not use this equipment near water.
3. Use only a dry cloth to clean the equipment.
4. Do not block any ventilation openings.
5. Do not install near any heat source such as a radiator, heat register, amplifier, or
stove.
6. Do not attempt to plug the unit into a two-blade outlet (with only two prongs of
equal width).
Important:
By design, this monitor will only plug into a three
-
prong outlet for
your safety. If the plug does not fit into the outlet, contact an
electrician to replace the obsolete outlet.

Page 5
7. Protect the power cord from being walked on or pinched, particularly at plug
connection on the equipment and at the socket.
8. Use only the attachments/accessories specified by the manufacturer.
9. Unplug the equipment during lightning storms or when unused for long periods
of time.
10. Refer all servicing to qualified service personnel. Servicing will be required
under all of the following conditions:
a. The equipment has been damaged in any way, such as when the power-
supply cord or plug is damaged.
b. Liquid had been spilled or objects have fallen onto the equipment.
c. The equipment has been exposed to rain or moisture.
d. The equipment does not operate normally.
e. The equipment has been dropped.
Safety Symbols
Mounting
The HDM-320-4K-TT is designed to be placed on a tabletop or other flat surface.
Position either unit at ear/eye level for best high frequency response and visual
observation of the display screen. Please adhere to the following clearances:
Table 1-1: Recommended Clearances
Clearance Surface
24” Front
3” Rear
2” Sides
1.75” Top and Bottom (if near other equipment)
0” Top and Bottom (if no other equipment)
The symbol to the left warns of electric shock hazard inside the unit.
Disconnect the power cord before removing access panels when
installing upgrades. nly qualified service personnel are to operate
the equipment with covers removed, and are to exercise caution to
avoid personal injury.

Page 6
Heat Dissipation
The ambient temperature near the product should not exceed 40° Celsius (104°
Fahrenheit). When rack mounting, adjacent devices can be rack mounted in
proximity to the unit if this temperature is not exceeded. therwise, allow a 1RU
(1.75”/44.45mm) space above and below the unit for air circulation. For table top
operation, in warm environments, allow an inch of space above and below the unit
for air circulation.
Sympathetic Vibration
Sympathetic vibration from other equipment (cables, etc.) in the rack may be
serious enough to interfere with the unit’s sound quality. If you experience
sympathetic vibrations, use thin card stock, felt, foam, or weather-stripping
between the vibrating surfaces. Tie loose cables securely with cable ties.
Mechanical
The sturdy chassis is very shallow from front to back making it very stable on its
table stand. It can be tilted forward or backward for viewing, if necessary. The
weight of internal components is distributed fairly evenly around the unit.
Electrical Interference
Be careful to avoid mismatched cable types and other similar causes of undesired
reflections in digital signal systems. If severe enough, such reflections can result in
corruption of the digital data stream. As with any audio equipment, maximum
immunity from electrical interference requires the use of shielded cable; however,
satisfactory results can sometimes be obtained without it. The internal circuitry
ground is connected to the chassis.
Power
The unit connects to an AC mains power source (44W, 100 to 240 VAC, ±10%,
50/60Hz) with a supplied power cord using the IEC connector provided on the unit.
When the mains plug or appliance coupler is used as the disconnect device, the
disconnect device should remain operable.
Important
:
To reduce noise, the monitor does not have any fans. As a
result, the heat generated by the audio amplifiers, power
supplies, and other components is vented by slots in the back
of
the unit. Therefore, as a safety precaution, you must allow
proper ventilation on these surfaces.

Page 7
Compliance
FCC
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
peration of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at
their own expense.
ICES-003
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada.

Page 8
CHAPT R 2: Local Operation
The controls, indicators, and connections on the HDM-320-4K-TT front and rear
panels are described in this chapter.
Front Panel
Figure 2–1: Front Panel Layout
1. LCD Screen: The LCD screen displays the audio meters, menus, and SD
features over the video.
2. Power: The Power button turns the LCD screen to n or Standby mode. The
adjacent Power Indicator glows green to indicate n and red to indicate
Standby.
3. Input: The Input button selects the video/audio input to be monitored from the
various connectors on the rear panel. The currently selected input source is
indicated when the Input button is pressed. Repeated presses change the input
source. Either 2SI 4-Way Interleave or Quad Division Square input formats can
be selected for 4K video monitoring. Refer to Table 2-6.

Page 9
4. Function Keys: Press F1, F2, F3, or F4 to activate the assigned function. The
default assignments are as listed in Table 2-1. The action of each Function Key
can be selected from a wide variety of actions in the User Config Menu as
described in Table 2-8.
Table 2-1: Default Function Key Actions
Key Default Action
F1 Color Comparison
F2 Scan
F3 Aspect
F4 Blue nly
5. OK: Press this button to display the SD Menu. When the SD Menu is
displayed, pressing this button accepts selections in the menus and sub-menus.
Refer to the OSD Menus section of this chapter for operation and content of
these menus.
6. Left: When the SD Menu is not being displayed, pressing this button displays
the Quick Menu, and cycles through frequently used volume and image controls.
Refer to the Quick Menu section of this chapter. When the SD Menu is
displayed, the Left button navigates horizontally through the sub-menu
selections.
7. Down: When the SD Menu is displayed, the Down button navigates down
through the menu and sub-menu selections and can be used to adjust the
settings. It also adjusts the items in the Quick Menu.
8. Up: When the SD Menu is displayed, the Up button navigates down through
the menu and sub-menu selections and can be used to adjust the settings. It
also adjusts the items in the Quick Menu.
9. Right: When the SD Menu is displayed, the Right button navigates
horizontally through the sub-menu selections.
10. Spkr: These are the locations of the left and right speakers.
11. Headphone: An 1/8" jack for a stereo headphone appears on the front panel. A
headphone is not supplied.
On-Screen Display Features
Functions and parameters can be selected and adjusted using the n Screen
Display ( SD) Menu. Refer to the OSD Menus section of this chapter.
verlays can be added by the operator for Area & Safety Markers, Center
Marker, and to display names as IMD (In Monitor Display) for identification.
Video effects such as Monochrome, Blue Only, and other features can be used to
assist setup. For convenience and quicker access, these and other features can be
assigned to the Function Keys.
Audio level meter displays, for up to sixteen channels, can be displayed at the left
or right sides of the display. They can show VU, PPM (PK) or both and have
assignable -20db or -18db reference levels.

Page
10
The de-embedded Timecode from the HD/SD-SDI source displays on the lower
part of the screen.
Figure 2-2: Display Features
1. Input Status: Displays the detected input and video parameters of the
signal: vertical active line count, (i)nterlaced or (p)rogressive, and
field/frame rate in Hz.
2. Area Marker: Used to mark an alternate aspect ratio area of the image. You
can set whether to display it, the brightness, and the matte mode in the User
Config Menu. Refer to Table 2-8.
3. Safety Marker: This is used to mark a percentage area, inside of the image,
safe for titles to be located. You can set whether to display it, as well as its
display mode, in the User Config Menu. Refer to Table 2-8.
4. Center marker: Cross hairs are displayed in the center of the screen,
marking the center of the image. You can set whether to display them in the
User Config Menu. Refer to Table 2-8.
5. IMD: The IMD Menu provides settings to customize the IMD (In Monitor
Display) text area to show a static line of characters, numbers, and certain
symbols or to receive dynamic messages to be displayed. Refer to Table 2-9.
6. Audio Level Meters: Levels for the audio channels are displayed on up to
sixteen bar graph meters as left/right pairs. The meters can appear in
selectable positions on the screen. Refer to Table 2-8.
7. Timecode: The de-embedded timecode from the HD/SD-SDI source displays
on the lower part of the screen.

Page
11
Rear Panel
Figure 2-3: Rear Panel Layout
1. SDI 1 In: This input connector accepts 3G/HD/SD-SDI video signals. It is
compliant with SMPTE 424M, SMPTE 259M, SMPTE292M/ITU-R BT601. It can
be viewed using the SDI1 selection on the Input button menu.
2. SDI 2 In: This is the second 3G/HD/SD-SDI video signal input. This
connection is compliant with SMPTE 424M, SMPTE 259M, SMPTE292M/ITU-R
BT601. It can be viewed using the SDI2 selection on the Input button menu.
Important:
The monitor and power adapter have been tested as a combined
apparatus to verify compliance with applicable safety and
electromagnetic compliance standards. Use of another power adapter
provided by the user may negate the compliance or not perform
properly. Wohler Technologies cannot accept any responsibility for the
outcome in such ca
ses.
Important
:
By design, the supplied AC mains power cord will only plug into a
three-prong grounded outlet for your safety. If the plug does not fit
into the outlet, contact an electrician to replace the obsolete outlet.
The symbol to the left warns of electric shock hazard inside or outside
the unit. Disconnect the power cord before removing access panels.

Page
12
3. SDI 3 In: This is the third 3G/HD/SD-SDI video signal input. This
connection is compliant with SMPTE 424M, SMPTE 259M, SMPTE292M/ITU-R
BT601. It can be viewed using the SDI3 selection on the Input button menu.
4. SDI 4 In: This is the fourth 3G/HD/SD-SDI video signal input. This
connection is compliant with SMPTE 424M, SMPTE 259M, SMPTE292M/ITU-R
BT601. It can be viewed using the SDI4 selection on the Input button menu.
5. RS-485 In/Out: These RJ-45 jacks are used for dynamic Tally/IMD controls.
Two jacks are provided for in & out daisy chain arrangements. They are
wired identically. Refer to Figure 2-4 below for the pinout and to Table 2-3
for terminal connections. These connections are also used for system
software upgrades. Either CAT5 or CAT6 cables may be used for these jacks.
6. thernet: The 10/100M Ethernet connector is used to connect with a
computer to modify the display settings remotely. CAT5 network cables are
recommended for medium distances. CAT6 twisted pair shielded cables are
recommended for longer distances.
7. DC Power Connector: 14 to 19VDC at 3A power supply connects to this
XLR connector to power the monitor when AC power is not available.
8. Power Switch: This switch removes all power from the product. Normally,
since this switch is on the rear panel, it is left in the 1 (On) position and the
front panel Power button is used to start and stop product operation.
9. AC Power Connector: The supplied 100 to 240VAC power cord connects to
this IEC connector.
Rear Panel Connectors
The following figure and table details the connections of the RS-485 connectors on
the rear panel. The table is also silkscreened on the rear panel of the unit for your
convenience.

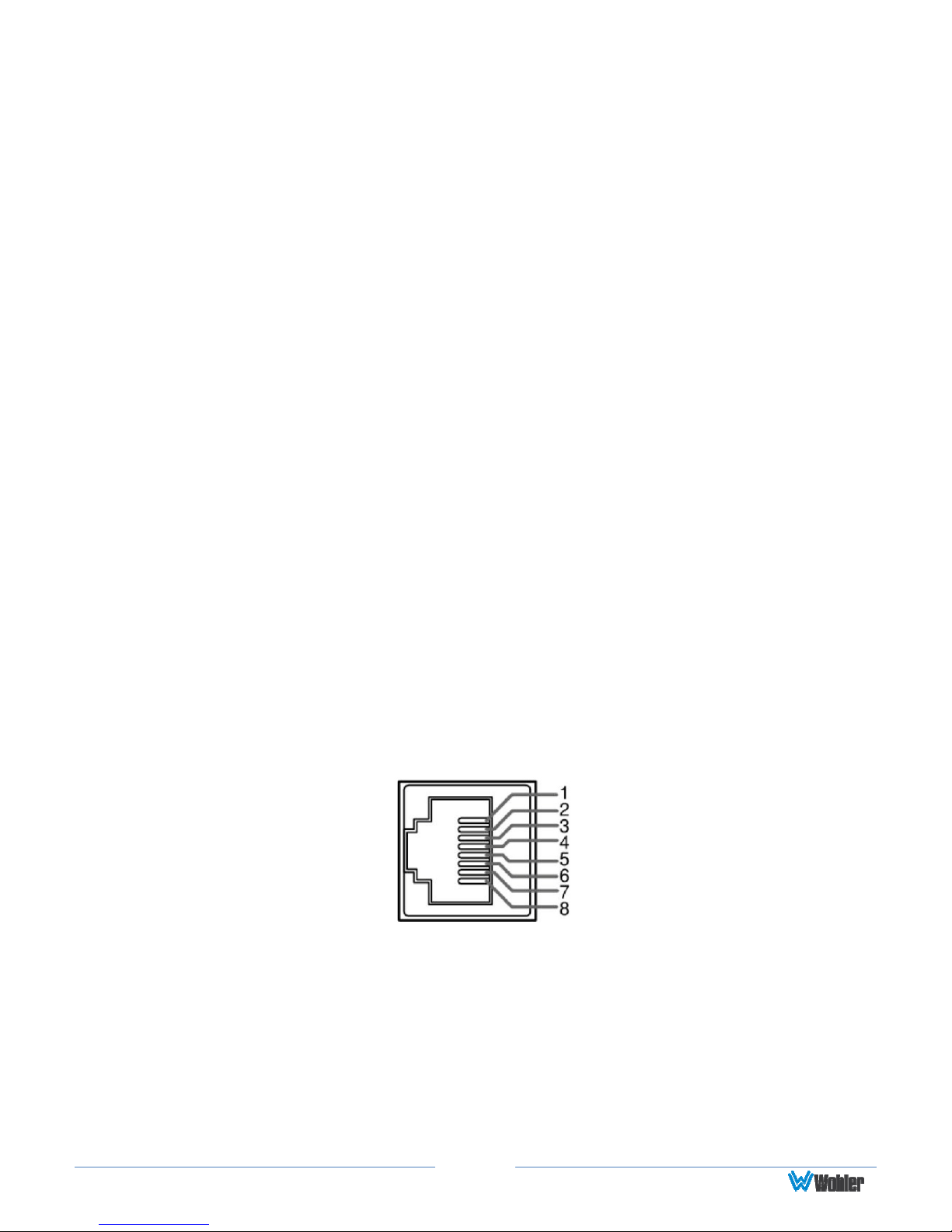

Figure 2-4: RS-485 I/ Pin- ut

Page
13
Table 2-3: RS-485 I/ Connections
Pin RS-485 Terminal Name
1, 2 GND
3 Tx- (pair A)
4 Rx+ (pair B)
5 Rx- (pair B)
6 Tx+ (pair A)
7, 8 NC
Using the Quick Menu and the OSD Menus
In the following descriptions, refer to Figure 2-5 for the location of each control
button.
Figure 2-5: Screen Control Buttons
Quick Menu
The Quick Menu provides quick access to a few commonly used features, as listed
in Table 2-4. The Quick Menu appears as shown in Figure 2-6.
Figure 2-6: Quick Menu - Volume Setting
The following is a description of how to use the Quick Menu:
1. Press the Left button to display the Quick Menu and the first item that can
be adjusted.
2. Use the Up and Down buttons to change the value for the item displayed.
3. Press the Left button again to display the next adjustable item.
4. The Quick Menu will time out with no button presses. Alternatively, you may
press the Left button repeatedly when finished until the menu disappears.

Page
14
Table 2-4: Quick Menu
Parameters Default Value Domain Range
V LUME 16 0 - 31
BRIGHTNESS 50 0 - 100
C NTRAST 50 0 - 100
INTENSITY 50 0 - 100
APERTURE 0 0 - 63
SD Menus
The SD Menus allow you to adjust a wide variety of control parameters for the
monitor. Refer to Table 2-5 through Table 2-10 for typical values and domain
ranges. The following is a description of how to use the SD Menus:
1. Press the Menu button to display the Main Menu.
2. Use the Up and Down buttons to navigate through the submenus.
3. Press the nter button to enter the parameter selections in the chosen
submenu.
4. Use the Up or Down buttons to cycle through the submenu selections.
5. When the desired option is highlighted, press the nter button to select it.
6. Use the Up or Down buttons to adjust the parameter value up or down,
make a selection, or turn a function on or off.
7. Press the nter button to accept your parameter change -or- press the
Menu button to cancel your change.
8. Press the Menu button to back out of any submenu, and finally to remove
the SD Menus from the screen.

Page
15
OSD Menus
The following tables describe the information and settings available in the SD
Menu system. Use the instructions in the previous section to navigate the menus.
Table 2-5: Status Menu Structure
Status
Parameters Default Value Domain Range Description
INPUT SDI-1
SDI-1
SDI-2
SDI-3
SDI-4
Selected input
SIGNAL F RMAT N SIGNAL Input signal format
C L R RANGE 64~940 Current color range
YCbCr C L R
MATRIX ITU-R BT.709 Current color matrix
C L R TEMP D65
D93
D65
D61
D55
DCI
DCI XYZ
USER1
USER2
Current color temperature
C L R SPACE ITU601 Current color space
E TF 2.2 Show E TF
Menu Page 2
USER PRESET USER1
USER1
USER2
USER3
USER4
Current user preset
M DEL HDM-320-3G-TT
SERIAL NUMBER
S FTWARE VERSI N

Page
16
Table 2-6: Input Menu Structure
Input Config
Parameters Default Value Domain Range Description
SDI 1 N FF, N
SDI 2 FF FF, N
SDI 3 FF FF, N
SDI 4 FF FF, N
Enables or disables
the input choices
available in the
Input Select Menu
IMAGE DIVISI N 2SI
2SI
QUAD DIVISI N
When using QUAD
LINK signal format:
2SI displays a 4K
interleaved signal
using all four
3G/HD/SD/SDI
inputs.
QUAD DIVISI N
combin
es 4 images
into a 4K image
using all four
3G/HD/SD-SDI
inputs.
SIGNAL F RMAT AUT
AUT
4:2:2 YCbCr 10 BIT
4:2:2 YCbCr 12 BIT
4:4:4 YCbCr 10 BIT
4:4:4 YCbCr 12 BIT
4:4:4 RGB 10 BIT
4:4:4 RGB 12 BIT
4:4:4 XYZ 10 BIT
4:4:4 XYZ 12 BIT
Input signal format
Menu Page 2
C L R RANGE 64 - 940 64 - 940 64 - 1023
0 - 1023
Set color range
YCbCr C L R
MATRIX AUT AUT
ITU-R BT.709
ITU-R BT.2020
Set YCbCr color
matrix

Page
17
Table 2-7: Color Temp Menu Structure
Color Temp
Parameters Default Value Domain Range Description
C L R TEMP D65
D93
D65
D61
D55
DCI
DCI XYZ
USER1
USER2
Set the color
temperature.
RED GAIN
GREEN GAIN
BLUE GAIN
512 0 to 512
RED BIAS
GREEN BIAS
BLUE BIAS
0 -100 to +100
Set the gain and
offset for each
color. Available
only when C L R
TEMP is set to
USER1 or USER2.
C PY FR M D65
D93
D65
D61
D55
DCI
DCI XYZ
Copies this set of
color parameters to
USER.
RESET Resets Gain and ffset to Factory Default
Menu Page 2
FIRST C L R
SPACE EBU
NATIVE
SMPTE-C
EBU
ITU709
ITU2020
P3
S-GAMUT/S-GAMUT3
S-GAMUT3.CINE
Set the color space
for the first channel
FIRST E TF 2.2
1.8, 2.2, 2.4, 2.6, 2.8
BT.1886
HLG
S-L G2
S-L G3
SMPTE ST.2084
Set the
gamma/E TF for
the first channel
OTF HDR
HLG 100-1200
S-L G2 100-1500
S-L G3 100-3800
FIRST HDR RANGE ---
SMPTE
ST.2064 100-10000
Set the HDR range
for the first
channel. nly
available for E TF
(HDR)

Page
18
C L R
C MPARIS N* FF FF N
Enable / Disable
color comparison of
the two channels
SEC ND C L R
SPACE EBU
NATIVE
SMPTE-C
EBU
ITU709
ITU2020
P3
S-GAMUT/S-GAMUT3
S-GAMUT3.CINE
Set the color space
of the second
channel
SEC ND E TF 2.2
1.8, 2.2, 2.4, 2.6, 2.8
BT.1886
HLG
S-L G2
S-L G3
SMPTE ST.2084
Set the
gamma/E TF for
the second channel
OTF HDR
HLG 100-1200
S-L G2 100-1500
S-L G3 100-3800
SEC ND HDR
RANGE ---
SMPTE
ST.2064 100-10000
Set the HDR range
for the second
channel. nly
available for E TF
(HDR)
* When COLOR COMPARISON is set to N, the video effects of the values set in
the First and Second settings will be shown on the left and right halves of the
screen. The First settings will affect the video on the left side of the screen and the
Second settings will affect the video on the right side of the screen.

Page
19
Table 2-8: User Config Menu Structure
User Config
Parameters Default Value Domain Range Description
USER PRESET USER1
USER1
USER2
USER3
USER4
Select a
USER PRESET
F1 C L R
C MPARIS N
Set up the F1
Function key
action.
F2 SCAN
Set up the F2
Function key
action.
F3 ASPECT
Set up the F3
Function key
action.
F4 BLUE NLY
C L R C MPARIS N
LUT SWAP
BLUE NLY
M N
MARKER
AUDI METER
TIMEC DE
SCAN
NATIVE
ASPECT
MUTE
IMD DISPLAY
UNDEF (none)
Set up the F4
Function key
action.
Menu Page 2
AUDI EBD EBD: EMBEDDED SIGNAL EXT: EXTERNAL SIGNAL
FF: N SIGNAL
SPEAK UT L EBD CH1 WHEN AUDI S URCE IS EBD, THE RANGE IS EBD
CH1 - CH16
Select the
audio channel
to be routed
to the left
speaker
SPEAK UT R EBD CH2 WHEN AUDI S URCE IS EBD, THE RANGE IS EBD
CH1 - CH16
Select the
audio channel
to be routed
to the right
speaker
AUDI METER FF FF
N
Set whether
to display
audio meters

Page
20
METER SELECT CH 1-2
CH 1-2
G1
G2
G3
G4
G1 + G2
G1 + G3
G1 + G4
G2 + G3
G2 + G4
G3 + G4
G1-G4
Select
channels or
groups to be
metered on
the video
screen
METER
P SITI N LEFT LEFT RIGHT
Select screen
position of
meters
TRANS-
PARENCY 0
0 = 100%
1 = 75%
2 = 50%
3 = 25%
Set meter
appearance
REF LEVEL -20dB -20dB
-18dB
Set meter
reference
level
VER LEVEL -10dB
-10dB
-8dB
-6dB
-4dB
-2dB
Set meter
overload level
Menu Page 3
MARKER FF FF
N
Turn all
markers N
or FF
ASPECT
MARKER FF
16:9
4:3
15:9
14:9
13:9
1.85:1
2.35:1
VARIABLE
FF
Set aspect
ratio marker
VARIABLE
ASPECT 3.00 1.00 - 3.00 IN .01 STEPS
When the
Aspect
Marker is set
to Variable,
set the ratio
here
CENTER
MARKER FF FF N
Set whether
center
marker
displays
