Wolf M Series Guide

Design Guide
ICB REVISED 7/2022

Features and specifications are subject to change at any
time without notice.
Throughout this guide, dimensions may vary by ± 3 mm.
Contents
3M Series Ovens
16 E Series Ovens
24 Convection Steam Ovens
31 Speed Ovens
36 Warming Drawers
41 Induction Cooktops
46 Gas Cooktops
50 Module Cooktops
58 Coee Systems
63 Cup Warming Drawers
67 Vacuum Seal Drawer
71 Dual Fuel Ranges
76 Induction Ranges
80 Sealed Burner Rangetops
84 Outdoor Grills | Modules | Accessories
95 Cooktop Ventilation
102 Downdraft Ventilation
106 Pro Ventilation
110 Ventilation Suggestions
114 Wolf Warranties
Contents

subzero.com | 3
M Series Built-In Ovens
Four striking looks are just the beginning. Superior
performance features include our dual convection fan
system, touch-screen controls, convenient preset cooking
programs, and improved interior lighting. There is more
usable space inside for deliciousness on a grand scale.
M Series Ovens can be installed in a standard or flush inset
application.
M Series Ovens
UPPEROVEN LOWEROVEN
M SERIES OVENS
TRANSITIONAL
ICBSO30PM/S/PH
ICBSO30CM/B
ICBSO30TM/S/TH
ICBDO30PM/S/PH
ICBDO30CM/B
ICBDO30TM/S/TH
PROFESSIONAL
CONTEMPORARY
ICBSO30CM/S
ICBDO30CM/S

4 | English
M Series Built-In Ovens
TRANSITIONAL SINGLE OVEN
TRANSITIONAL DOUBLE OVEN
OPEN OVEN DOOR
584 mm
BEHIND FRAME
723
mm
686
mm
65
mm
46 mm
543
mm
22
mm
36 mm
CONDUIT
CHANNEL
218
mm
51 mm
759 mm
724 mm
OPEN OVEN DOOR
584 mm
BEHIND FRAME
1291
mm
1254
mm
65
mm
46 mm
543
mm
22
mm
36 mm
CONDUIT
CHANNEL
218
mm
51 mm
759 mm
724 mm
M Series Ovens

subzero.com | 5
M Series Built-In Ovens
PROFESSIONAL SINGLE OVEN
OPEN OVEN DOOR
584 mm
BEHIND FRAME
723
mm
686
mm
83
mm
46 mm
543
mm
22
mm
36 mm
CONDUIT
CHANNEL
218
mm
51 mm
759 mm
724 mm
OPEN OVEN DOOR
584 mm
BEHIND FRAME
1291
mm
1254
mm
759 mm
46 mm
543
mm
83
mm
22
mm
36 mm
CONDUIT
CHANNEL
218
mm
51 mm
724 mm
PROFESSIONAL DOUBLE OVEN
M Series Ovens

6 | English
OPEN OVEN DOOR
584 mm
BEHIND FRAME
1291
mm
1254
mm
46 mm
543
mm
22
mm
36 mm
CONDUIT
CHANNEL
218
mm
51
mm
759 mm
724 mm
OPEN OVEN DOOR
584 mm
BEHIND FRAME
723
mm
686
mm
46 mm
543
mm
22
mm
36 mm
CONDUIT
CHANNEL
218
mm
51
mm
759 mm
724 mm
M Series Built-In Ovens
CONTEMPORARY STAINLESS STEEL SINGLE OVEN
CONTEMPORARY STAINLESS STEEL DOUBLE OVEN
M Series Ovens

subzero.com | 7
OPEN OVEN DOOR
584 mm
BEHIND FRAME
1291
mm
1254
mm
46 mm
543
mm
25
mm
36 mm
CONDUIT
CHANNEL
218
mm
51 mm
759 mm
724 mm
OPEN OVEN DOOR
584 mm
BEHIND FRAME
723
mm
686
mm
46 mm
543
mm
25
mm
36 mm
CONDUIT
CHANNEL
218
mm
51 mm
759 mm
724 mm
M Series Built-In Ovens
CONTEMPORARY BLACK GLASS SINGLE OVEN
CONTEMPORARY BLACK GLASS DOUBLE OVEN
M Series Ovens

8 | English
Planning Information
The M Series Oven can be installed in a standard or flush
inset application. If a cooktop is installed above an oven, a
minimum of 6 mm is required between the units. Loca-
tion of the electrical supply within the oven opening may
require additional cabinet depth.
Finish the edges of the opening. They may be visible when
the door is open.
For standard installations, the face trim will overlap stiles
and rails. Refer to the chart below.
For flush inset installations, a minimum 3 mm reveal is
required on all sides. To ensure consistent reveals, each
corner of the opening must be exactly 90°.
INSTALLATION REQUIREMENTS
BASE SUPPORT MIN
Single Oven 115 kg
Double Oven 181 kg
TRIM OVERLAP
Top 25 mm
Bottom 0 mm
Sides 18 mm
DUAL INSTALLATION
Two 76 cm single M Series Ovens can be installed side by
side in a standard or flush inset application. A dual instal-
lation kit is required. To maintain appropriate airflow, the
ovens must be installed into one opening. Any cosmetic or
structural material placed between the ovens will impede
airflow and is not recommended. Refer to the illustrations
on the following pages.
The dual installation kit is available through an authorized
Wolf dealer.
M Series Ovens

subzero.com | 9
M Series Ovens
Planning Information
ELECTRICAL REQUIREMENTS
Installation must comply with all applicable electrical
codes and be properly grounded (earthed).
Locate the electrical supply flush with the back wall and
within the shaded area shown in the illustration for your
specific installation on the following pages. For ease of
installation, the electrical supply for the oven can be
placed in an adjacent cabinet within reach of the conduit.
Performance may be compromised if the electrical supply
is less than 220 volts.
The oven is supplied with a single phase and 3-phase
convertible power inlet box. The wiring diagram covering
the control circuit is provided with the oven.
ELECTRICAL REQUIREMENTS—SINGLE OVEN
ELECTRICAL SUPPLY
Single Phase 220–240 V AC, 50/60 Hz
3-Phase 380–415 V AC, 50 Hz
MAX CONNECTED LOAD
Single Phase 4.2–4.8 kW
3-Phase 3.0–3.6 kW
ELECTRICAL REQUIREMENTS—DOUBLE OVEN
ELECTRICAL SUPPLY
Single Phase 220–240 V AC, 50/60 Hz
3-Phase 380–415 V AC, 50 Hz
MAX CONNECTED LOAD
Single Phase 8.4–9.6 kW
3-Phase 4.2–4.8 kW

10 | English
M Series Single Oven
STANDARD INSTALLATION
724 mm
OPENING WIDTH
E
127
mm
E
E
102
mm
FRONT VIEW
SIDE VIE
W
NOTE: Location of electrical supply within opening may require additional cabinet depth.
591 mm
OPENING
DEPTH
TOP VIEW
699 mm
OPENING
HEIGHT
M Series Ovens

subzero.com | 11
M Series Single Oven
FLUSH INSET INSTALLATION
E
127
mm
102
mm
FRONT VIEW
SIDE VIE
W
*2
5 mm minimum depth. Shaded areas will be visible and should be finished to match cabinetry.
**
22 mm for transitional, professional and contemporary stainless steel models and 25 mm for contemporary black glass model.
***Dimension provides minimum reveals.
NOTE: Location of electrical supply within opening may require additional cabinet depth.
730 mm
FLUSH INSET
HEIGHT***
29 mm
3 mm
21 mm
610 mm
FLUSH INSET
DEPTH
22 mm
OR
25 mm**
FINISHED
CLEATS*
765 mm
FLUSH INSET WIDTH***
TOP VIEW
E
E
M Series Ovens

12 | English
M Series Double Oven
STANDARD INSTALLATION
E
127
mm
102
mm
E
E
FRONT VIEW
SIDE VIE
W
NOTE: Location of electrical supply within opening may require additional cabinet depth.
1267 mm
OPENING
HEIGHT
591 mm
OPENING
DEPTH
432 mm
TYPICAL
TOP VIEW
724 mm
OPENING WIDTH
M Series Ovens

subzero.com | 13
M Series Double Oven
FLUSH INSET INSTALLATION
E
127
mm
102
mm
FRONT VIEW
SIDE VIE
W
*2
5 mm minimum depth. Shaded areas will be visible and should be finished to match cabinetry.
**
22 mm for transitional, professional and contemporary stainless steel models and 25 mm for contemporary black glass model.
***Dimension provides minimum reveals
.
NOTE: Location of electrical supply within opening may require additional cabinet depth.
1299 mm
FLUSH INSET
HEIGHT***
29 mm
3 mm
21 mm
610 mm
FLUSH INSET
DEPTH
22 mm
OR
25 mm**
FINISHED
CLEATS*
432 mm
TYPICAL
TOP VIEW
E
E
765 mm
FLUSH INSET WIDTH***
M Series Ovens

14 | English
E
127
mm
E E
10 2
mm
E
127
mm
10 2
mm
FRONT VIEW
SIDE VIE
W
NOTE: Location of electrical supply within opening may require additional cabinet depth. A dual installation kit is required fo
r this installation.
591 mm
OPENING
DEPTH
TOP VIEW
699 mm
OPENING
HEIGHT 1486 mm
OPENING WIDTH
M Series Single Oven
DUAL STANDARD INSTALLATION
M Series Ovens

subzero.com | 15
E
127
mm
102
mm
E
127
mm
102
mm
FRONT VIEW
SIDE VIE
W
TOP VIEW
EE
FINISHED
CLEATS*
*2
5 mm minimum depth. Shaded areas will be visible and should be finished to match cabinetry.
**
22 mm for transitional, professional and contemporary stainless steel models and 25 mm for contemporary black glass model.
***Dimension provides minimum reveals.
NOTE: Location of electrical supply within opening may require additional cabinet depth. A dual installation kit is required fo
r this installation.
730 mm
FLUSH INSET
HEIGHT***
29 mm
3 mm
21 mm
610 mm
FLUSH INSET
DEPTH
22 mm
OR
25 mm**
1527 mm
FLUSH INSET WIDTH***
M Series Single Oven
DUAL FLUSH INSET INSTALLATION
M Series Ovens

16 | English

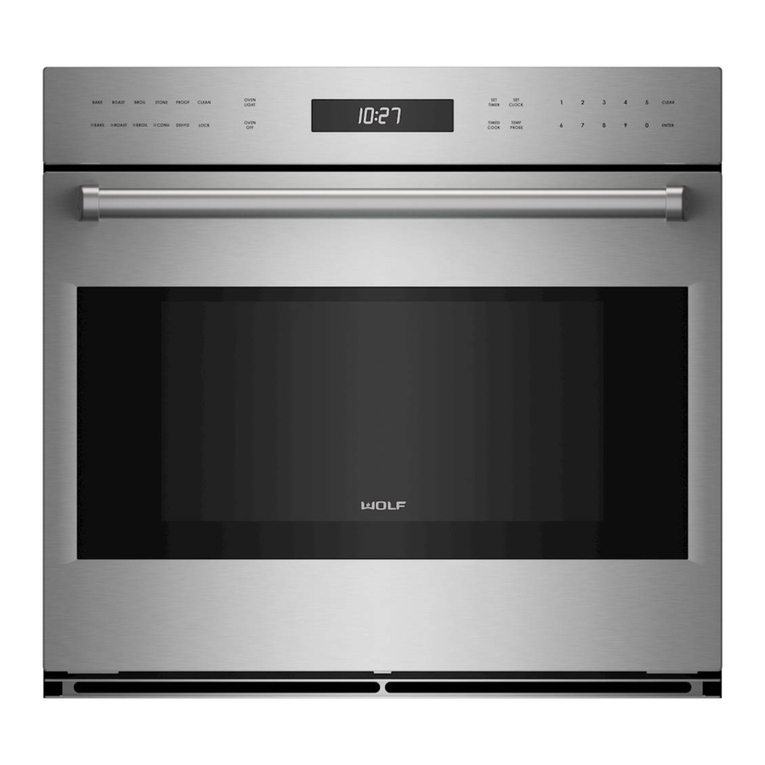

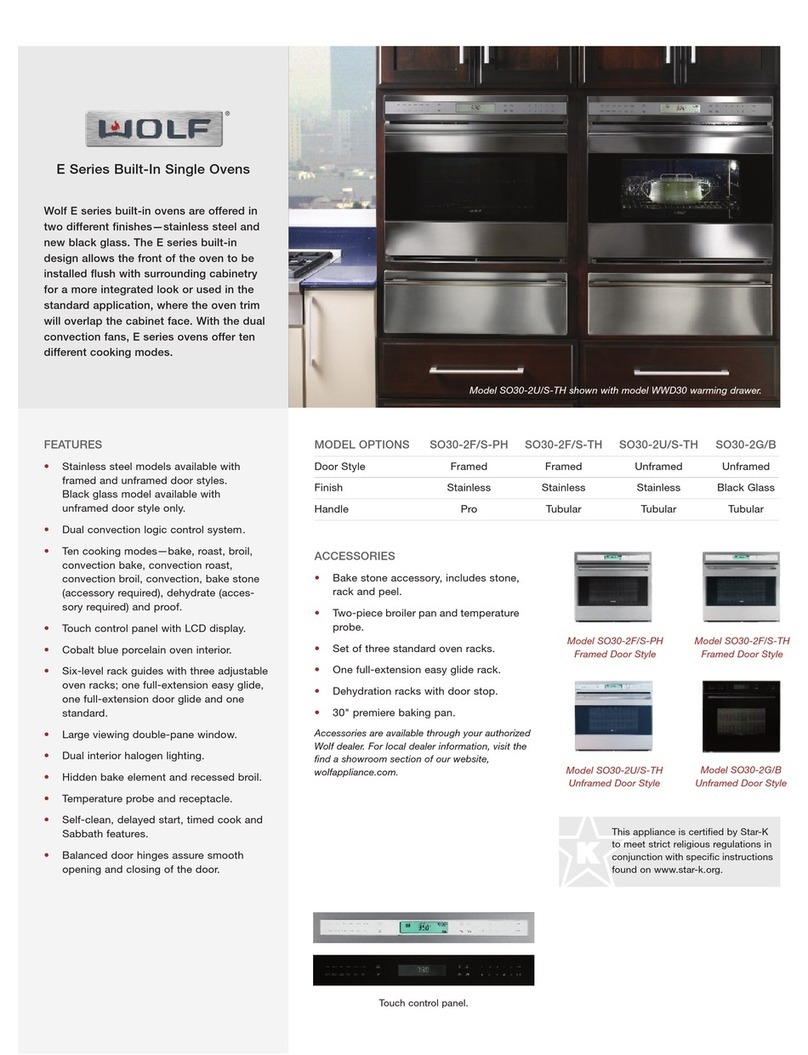

E Series Built-In Ovens
The Wolf E Series Convection Oven has two fans and four
heating elements. Ten cooking modes allow you to select
the one precisely suited to the dish you’re preparing. The
oven is self-cleaning. E Series Ovens are crafted of stain-
less steel. The handles match the rest of the Wolf cooking
appliance oering, providing a more cohesive look.
E Series Ovens can be installed in a standard or flush inset
application.
E Series Ovens
ICBSO3050TE/S/TH
ICBSO3050PE/S/PH
PROFESSIONAL
E SERIES OVENS
TRANSITIONAL
ICBSO2450TE/S/T

subzero.com | 17
E Series Ovens
60 cm E Series Oven
TRANSITIONAL
OPEN
OVEN DOOR
546 mm
BEHIND FRAME
597
mm
591
mm
64
mm
546
mm
460
mm
22 mm
597 mm

18 | English
E Series Ovens
76 cm E Series Ovens
TRANSITIONAL
PROFESSIONAL
OPEN OVEN DOOR
584 mm
BEHIND FRAME
723
mm
686
mm
65
mm
46
mm
543
mm
22
mm
36 mm
CONDUIT
CHANNEL
218
mm
759 mm
724 mm
51
mm
86
mm
OPEN OVEN DOOR
584 mm
BEHIND FRAME
723
mm
51
mm
759 mm
686
mm
22
mm
36 mm
CONDUIT
CHANNEL
218
mm
46
mm
543
mm
724 mm

subzero.com | 19
Planning Information
The E series oven can be installed in a standard or flush
inset application. If a cooktop is installed above an oven, a
minimum of 6 mm is required between the units. The loca-
tion of the electrical supply within the oven opening may
require additional cabinet depth.
Finish the edges of the opening. They may be visible when
the door is open.
For standard installations, the face trim overlaps stiles and
rails. Refer to the chart below.
For flush inset installations, a minimum 3 mm reveal is
required on all sides. To ensure consistent reveals, each
corner of the opening must be exactly 90°.
INSTALLATION REQUIREMENTS
BASE SUPPORT MIN
60 cm Oven 68 kg
76 cm Oven 115 kg
TRIM OVERLAP 60 cm OVEN 76 cm OVEN
Top 6 mm 25 mm
Bottom 0 mm 0 mm
Sides 17 mm 18 mm
ELECTRICAL REQUIREMENTS—60 cm OVEN
Installation must comply with all applicable electrical
codes and be properly grounded (earthed).
For ease of installation, the electrical supply for the oven
should be placed in an adjacent cabinet within reach of the
conduit. Performance may be compromised if the electri-
cal supply is less than 230 volts.
The oven is supplied with a conduit consisting of two hot
lead conductors and a ground conductor. The wiring dia-
gram covering the control circuit is provided with the oven.
ELECTRICAL REQUIREMENTS—60 cm OVEN
Electrical Supply grounded, 230 VAC, 50 Hz
Service 20 amp dedicated circuit
Conduit 1.2 m
Total Amps 16
Max Connected Load 4.2 kW
ELECTRICAL REQUIREMENTS—76 cm OVEN
Installation must comply with all applicable electrical
codes and be properly grounded (earthed).
Locate the electrical supply flush with the back wall and
within the shaded area shown in the illustrations on the
following pages. For ease of installation, the electrical
supply for the oven can be placed in an adjacent cabinet
within reach of the conduit. Performance may be compro-
mised if the electrical supply is less than 240 volts.
The oven is supplied with a single phase and 3-phase con-
vertible power inlet box. The wiring diagram covering the
control circuit is provided with the oven.
ELECTRICAL REQUIREMENTS—76 cm OVEN
ELECTRICAL SUPPLY
Single Phase 220–240 V AC, 50/60 Hz
3-Phase 380–415 V AC, 50 Hz
Maximum Connected Load 4.8 kW
Total Amps 20
Maximum Amps per Line 15
E Series Ovens

20 | English
E
FRONT VIEW
SIDE VIE
W
591
mm
OPENING
HEIGHT
584 mm
OPENING
DEPTH
TOP VIEW
553 mm
OPENING WIDTH
NOTE: Location of electrical supply within opening may require additional cabinet depth.
E
E
E Series Ovens
60 cm E Series Oven
STANDARD INSTALLATION
