Wolf DF304 User manual

Dual Fuel Ranges Installation Guide

DUAL FUEL RANGES
Contents
3Safety Precautions
4Specications
7Installation
11 Troubleshooting
Features and specications are subject to change at any
time without notice. Visit wolfappliance.com/specs for the
most up-to-date information.
2 | Wolf Customer Care 800.222.7820
Important Note
To ensure this product is installed and operated as safely
and efciently as possible, take note of the following types
of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially
important.
CAUTION indicates a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specied.
IMPORTANT NOTE: Save these instructions for the local
electrical inspector.

wolfappliance.com | 3
SAFETY PRECAUTIONS

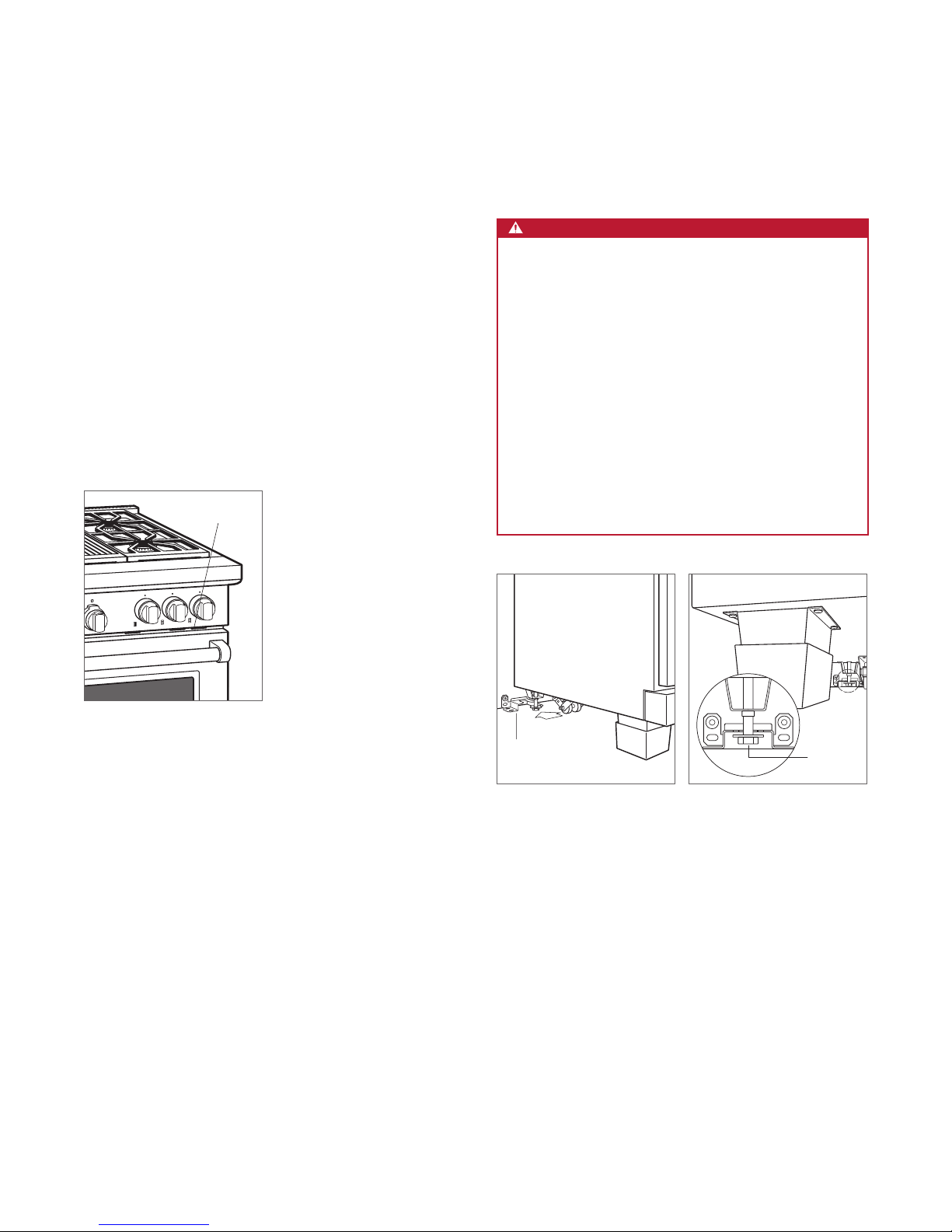

Product Information
Important product information including the model and
serial number are listed on the product rating plate. The
rating plate is located on the bottom of the control panel
assembly, at the far right, just above the oven door. Refer
to the illustration below.
If service is necessary, contact Wolf factory certied service
with the model and serial number. For the name of the
nearest Wolf factory certied service or for questions
regarding the installation, visit the contact & support section
of our website, wolfappliance.com or call Wolf customer
care at 800-222-7820.
Rating plate location.
RATING PLATE
IMPORTANT INSTRUCTIONS
WARNING
A child or adult can tip this appliance and be
killed.
Verify the anti-tip device has been properly
installed and engaged. Ensure the anti-tip device
is re-engaged when this appliance is moved. Refer
to the illustrations below for how to verify correct
installation.
Do not operate this appliance without the anti-tip
device in place and engaged. Failure to do so
can result in death or serious burns to children or
adults.
To reduce the risk of burns, do not move this
appliance while hot.
•This appliance is equipped with casters on two
or more legs and must be installed on 1/8"(3) thick
commercial grade vinyl composition oor nishing
materials or equivalent.
•This appliance is not approved for downward air-
ow ventilation or air curtain equivalent.
ANTI-TIP
DEVICE
ANTI-TIP
DEVICE
ENGAGED
Anti-tip device location. Anti-tip device engaged.

4 | Wolf Customer Care 800.222.7820

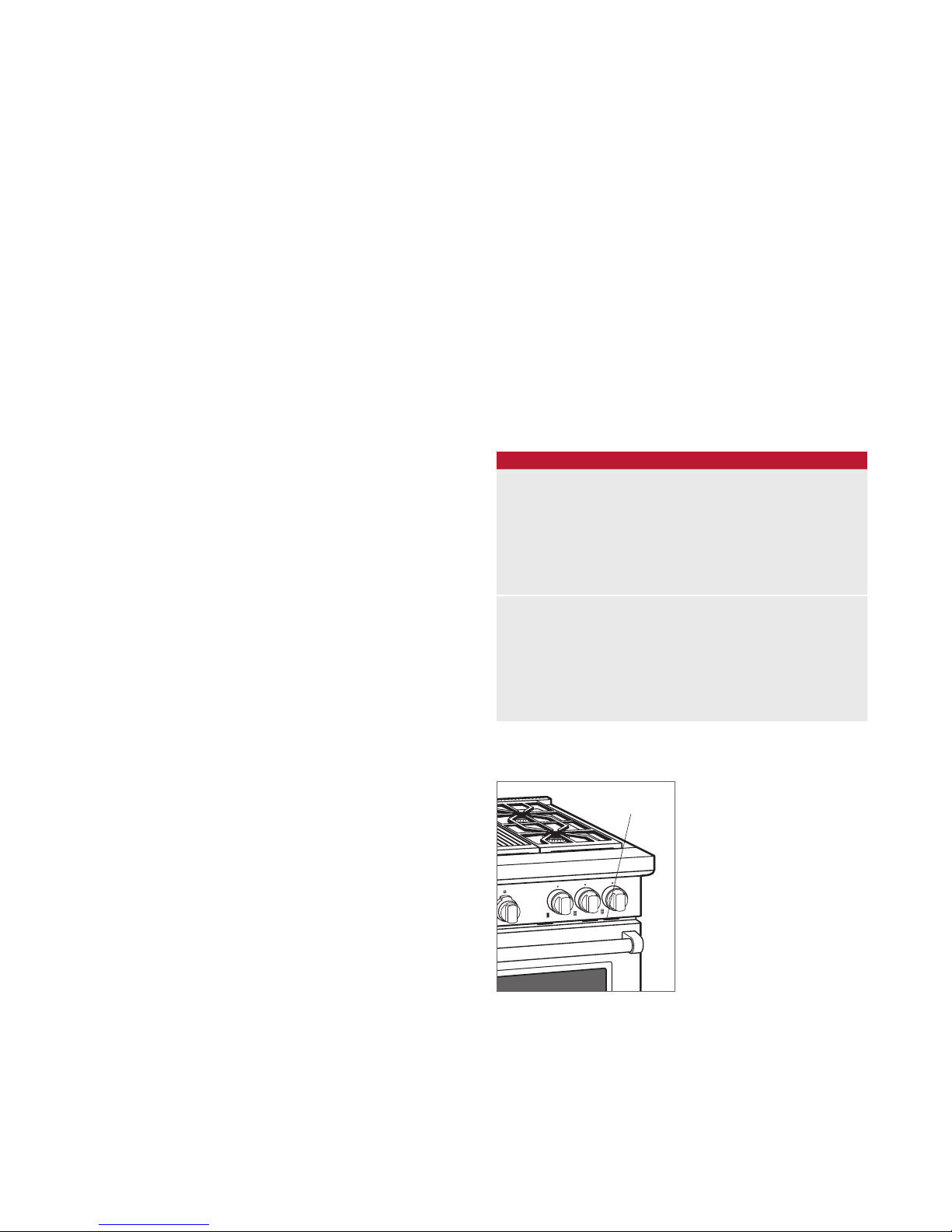

Installation Requirements
IMPORTANT NOTE: When installing against a combustible
surface, a minimum 10" (254) riser is required for a 36" (914)
dual fuel range with charbroiler or griddle and all 48" (1219)
and 60" (1524) models.
SPECIFICATIONS
Electrical
Installation must comply with all applicable electrical codes.
Locate the electrical supply ush with the wall or oor and
within the shaded area shown in the illustration on page 6.
If a power supply cord is being used, the cord must be
designated for use with ranges and rated for 240 V, 30 or
50 amps (refer to the chart below), and must include 3 or 4
conductors. A 4-conductor cord is required for installations
where grounding through the neutral is prohibited.
Performance may be compromised if the electrical supply is
less than 240 volts.
ELECTRICAL REQUIREMENTS
SINGLE OVEN RANGE
Electrical Supply grounded, 240/208 V AC, 60 Hz
Service 30 amp dedicated circuit
Total Amps 21
Max Connected Load 5.2 kW
Min Supply Wire L1, L2, ground—12 AWG
neutral—16 AWG
DOUBLE OVEN RANGE
Electrical Supply grounded, 240/208 V AC, 60 Hz
Service 50 amp dedicated circuit
Total Amps 42.5
Max Connected Load 10.2 kW
Min Supply Wire L1, L2—8 AWG, ground—10 AWG
neutral—12 AWG
Rating plate location.
RATING PLATE

wolfappliance.com | 5
Gas Supply
Installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code.
Locate the gas supply within the shaded area shown in the
illustration on page 6.
The range is equipped for use with natural or liquid propane
(LP) gas. It is design certied by the Canadian Standards
Association (CSA) for natural or LP gases. The product
rating plate has information on the type of gas that should
be used. For rating plate location, refer to the illustration on
page 3. If this information does not agree with the type of
gas available, check with the local gas supplier.
GAS SUPPLY REQUIREMENTS
NATURAL GAS
Gas Supply Pressure 5" (12.5 mb) WC
Min Line Pressure 7" (17.5 mb) WC
Max Pressure to Regulator 14" (34.9 mb) WC, .5 psi (3.5 kPa)
LP GAS
Gas Supply Pressure 10" (25 mb) WC
Min Line Pressure 11" (27.4 mb) WC
Max Pressure to Regulator 14" (34.9 mb) WC, .5 psi (3.5 kPa)
SPECIFICATIONS
The range must be connected to a regulated gas supply.
The supply line must be equipped with an approved external
gas shut-off valve located near the range in an accessible
location. Do not block access to the shut-off valve. Refer to
the illustration below.
A gas supply line of 3/4"(19) rigid pipe must be provided to
the range. If local codes permit, a certied, 3' (.9 m) long,
1/2"(13) or 3/4"(19) ID exible metal appliance connector is
recommended to connect the units 1/2" NPT female inlet to
the gas supply line. Pipe joint compounds, suitable for use
with natural or LP gas should be used.
Wolf natural gas ranges will function up to 10,250' (3124 m)
in altitude without adjustment and LP gas ranges will func-
tion up to 8,600' (2621 m). If the installation exceeds these
elevations, contact your authorized Wolf dealer for a high
altitude conversion kit.
SHUT-OFF VA LVE
OPEN POSITION
GAS SUPPLYTO APPLIANCE
Gas shut-off valve.

6 | Wolf Customer Care 800.222.7820
SPECIFICATIONS

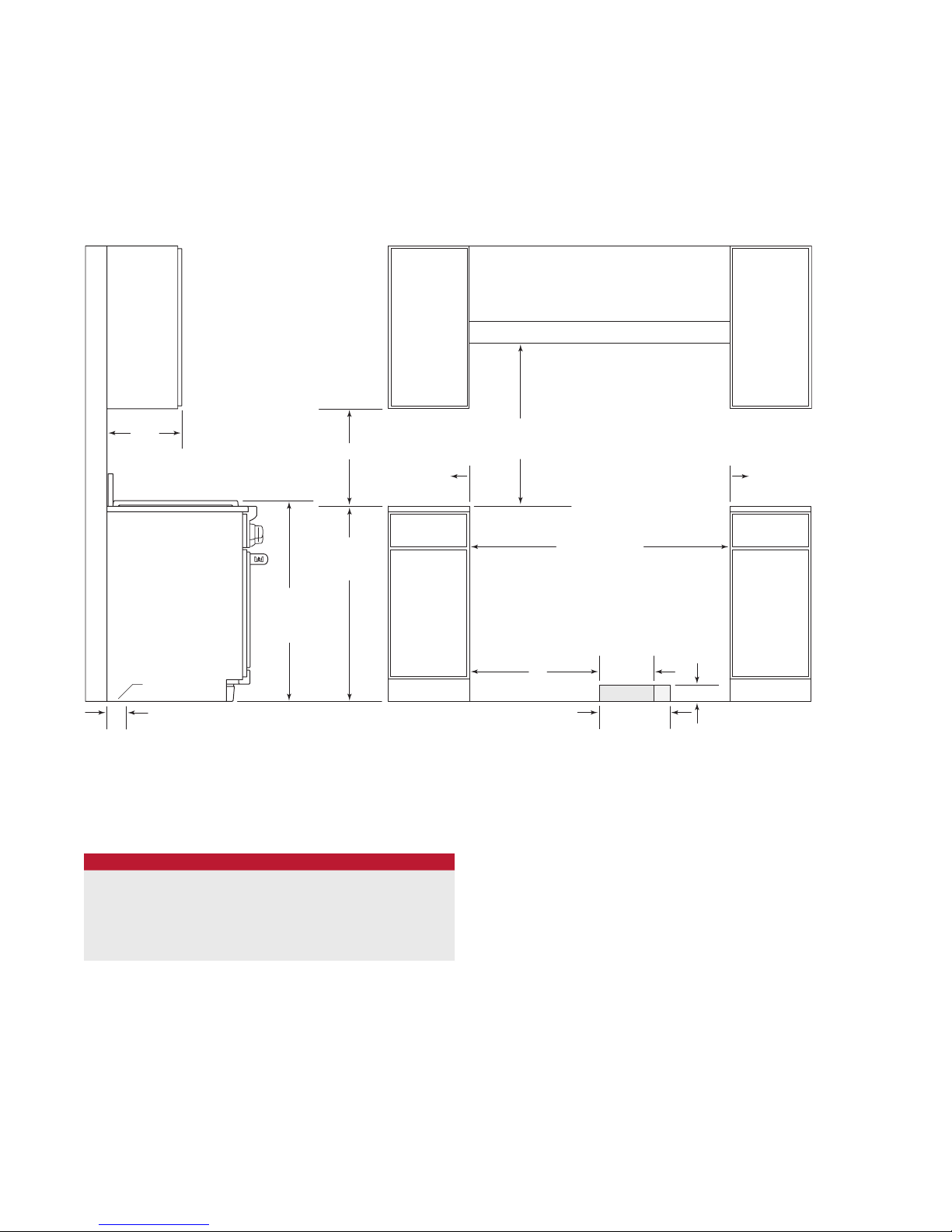

Dual Fuel Range
INSTALLATION
13" (330)
ELECTRICAL
OPENING WIDTH
A
31/4" (83)
10" (254)
GAS
*Minimum clearance from rough opening to combustible materials up to 18" (457) above countertop.
**36" (914) minimum clearance, 44" (1118) for charbroiler, from countertop to combustible materials without ventilation hood.
NOTE: For island installations, 12" (305) minimum clearance from back of range to combustible rear wall above countertop.
6" (152) TO
COMBUSTIBLE*
6" (152) TO
COMBUSTIBLE*
18" (457) min
36" (914)
FLOOR TO
COUNTERTOP
36 7/8"
(937) TO
COOKING
SURFACE
13" (330)
max
21/4"
(57)
LOCATION OF GAS AND
ELECTRICAL EXTENDS
ON FLOOR
FRONT VIEWSIDE VIEW
30" (762) TO 36" (914)
TO BOTTOM OF
VENTILATION HOOD**
DUAL FUEL RANGE
WIDTH OPENING WIDTH A
30" Range 30" (762) 81/2"(216)
36" Range 36" (914) 131/2"(343)
48" Range 48" (1219) 24" (610)
60" Range 601/4"(1530) 31" (787)

wolfappliance.com | 7
Preparation
Before moving the range, protect any nished ooring and
secure oven door(s) closed to prevent damage.
To lighten the load or to t through a door way, the oven
door(s) can be removed. Only remove if necessary. Do not
remove griddle or any other component. Door removal
should only be done by a certied installer or service
technician.
For removal, a hinge pin will be inserted into the appropriate
hinge shown in the illustrations below. The pin(s) are located
inside the oven door. For single oven ranges, the hinge pin
must be inserted in the right hinge. For double oven ranges,
the pins must be placed in the outer two hinges.
CAUTION
Failure to insert the hinge pin in the appropriate hinge
arm will cause damage to the range.
INSTALLATION

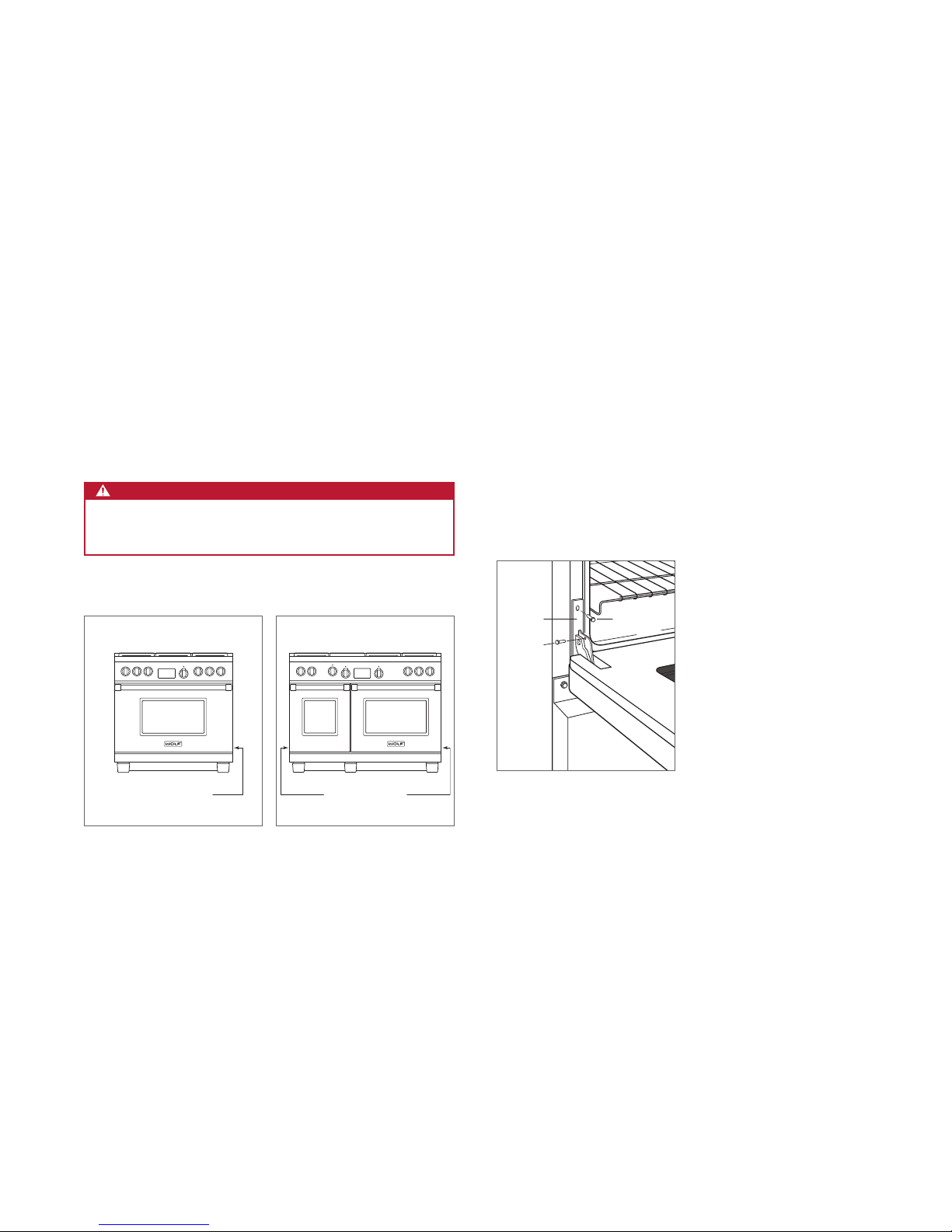

OVEN DOOR REMOVAL
1Insert the hinge pin into the appropriate hinge.
2Remove the lower kickplate assembly to access the
lower hinge retainer mounting screws.
3Open the oven door and remove both upper and lower
hinge retainer mounting screws. The oven gasket may
have to be moved slightly to access the bottom screws.
4Move the hinge retainer plate forward slightly. The hinge
retainer plate will remain on the door hinge after the
mounting screws have been removed.
5Carefully close the oven door to approximately 60°, then
lift the door up and out. A slight rocking motion may be
required for removal.
KICKPLATE
UPPER
MOUNTING
SCREW
HINGE
RETAINER
PLATE
HINGE
PIN
Oven door removal.
SPRING HINGES
SPRING HINGE
SPRING HINGES
SPRING HINGE
Single oven ranges. Double oven ranges.

8 | Wolf Customer Care 800.222.7820
INSTALLATION
Placement
Do not lift or carry the oven door by the door handle. The
range has rear casters which allow for easy movement by
lifting the front of the unit.
Use an appliance dolly to move the unit near the opening.
Remove and recycle packing materials. Do not discard the
anti-tip bracket supplied with the range.
If a riser has been specied, refer to the installation instruc-
tions packaged with the riser. The riser must be installed
before the range is installed.
Anti-Tip Bracket
Raise the unit to its desired height by adjusting the front
legs and rear casters. Use a 3/4" socket to adjust the rear
casters. The front legs can be adjusted by rotating the hex-
agonal leg clockwise to raise and counterclockwise to lower.
To ensure the anti-tip bolt engages the bracket, refer to the
chart and illustration below to determine proper placement.
ANTI-TIP BRACKET
WIDTH A
30" Range 3/16"(5)
36" Range 9/16"(14)
48" Range 3/16"(5)
60" Range 5/16"(8)
A
ANTI-TIP
BRACKET
Anti-tip bracket location.

wolfappliance.com | 9
Anti-Tip Bracket
INSTALL BRACKET
Drywall application |After properly positioning the anti-tip
bracket, mark holes, then use a Philips screwdriver or a low
rpm power drill to drive the wall anchor into the surface of
the wallboard until ush. Pre-drill holes if needed. For hard
wallboard or double-board construction, use a 1/4" drill bit.
For solid plaster, use a 7/16" drill bit. Refer to the illustration
below. Use #8 screws and at washers to fasten the bracket
to the wall.
Wood oor application |After properly positioning the
anti-tip bracket, drill 3/16"(5) pilot holes through the oor.
Use #12 screws and at washers to secure the bracket to
the oor.
Concrete oor application |After properly positioning
the anti-tip bracket drill 3/8"(10) holes into the concrete a
minimum of 11/2"(38) deep. Use 3/8" wedge anchors to
secure the bracket to the oor.
ANTI-TIP BOLT ADJUSTMENT
Once the bracket is secure, adjust the anti-tip bolt so the
top of the washer is 7/8"(22) maximum from the oor. Slide
the range into the opening and verify the anti-tip bolt is
engaged. Refer to the illustrations below.
ANTI-TIP
BRACKET
WALL
ANCHOR
Wall anchor installation.
INSTALLATION
7/8" (22) MAX
ANTI-TIP
BOLT
ANTI-TIP
DEVICE
ENGAGED
Anti-tip bolt adjustment. Anti-tip bolt engaged.

10 | Wolf Customer Care 800.222.7820
Electrical Connection
The terminal block on the back of the range allows for a
3-wire or 4-wire installation. For a 4-wire installation, the
ground strap from the unit to the terminal block must be cut.
Two concentric knockouts are provided to allow for perma-
nent or cordset wiring of the unit.
THREE-WIRE ELECTRICAL SYSTEM
1Where local codes permit, connect the ground appliance
wire to the neutral (white) supply wire.
2Connect the ground and white appliance wires to the
neutral (white) supply wire in the electrical box.
3Connect the black appliance wire to the black (L1) power
supply wire in the electrical box.
4Connect the red appliance wire to the red (L2) power
supply wire in the electrical box.
FOUR-WIRE ELECTRICAL SYSTEM
1Separate the ground and white appliance wires.
2Connect the white appliance wire to the neutral (white)
supply wire in the electrical box.
3Connect the black appliance wire to the black (L1) power
supply wire in the electrical box.
4Connect the red appliance wire to the red (L2) power
supply wire in the electrical box.
5Connect the ground appliance wire to the green/ground
house grounding wire in the electrical box.
INSTALLATION
Gas Supply Connection
All connections to the gas piping must be wrench-tightened.
Do not overtighten or allow pipes to turn when tightening.
If a exible metal connector is being used, verify it is not
kinked, then attach the gas supply line to the regulator on
the range. Open the valve and check for leaks by placing a
liquid detergent solution onto all gas connections. Bubbles
around connections indicate a gas leak. If a leak appears,
close the shut-off valve and adjust connections.

Troubleshooting
IMPORTANT NOTE: If the range does not operate properly,
follow these troubleshooting steps:
•Verify electrical power is supplied to the range.
•Verify the gas supply shut-off valve is in the open
position.
•If the range does not operate properly, contact Wolf
factory certied service. Do not attempt to repair the
range. Wolf is not responsible for service required to
correct a faulty installation.
TROUBLESHOOTING
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc. Sub-Zero, Sub-Zero &
Design, Dual Refrigeration, Constant Care, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trademarks and service marks
of Sub-Zero, Inc. (collectively, the “Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
wolfappliance.com | 11

WOLF APPLIANCE, INC. P.O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820
822583 REV-A 4/2013
