Cooktop Ventilation Hoods Installation Guide

COOKTOP VENTILATION HOODS
Contents
3Cooktop Ventilation Hoods
4Specications
6Installation
10 Troubleshooting
Features and specications are subject to change at any
time without notice. Visit wolfappliance.com/specs for the
most up-to-date information.
2 | Wolf Customer Care 800.222.7820
Important Note
To ensure this product is installed and operated as safely
and efciently as possible, take note of the following types
of highlighted information throughout this guide:
IMPORTANT NOTE highlights information that is especially
important.
CAUTION indicates a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specied.
IMPORTANT NOTE: Save these instructions for the local
electrical inspector.

wolfappliance.com | 3
Product Information
Important product information including the model and
serial number are listed on the product rating plate. The
rating plate is located under the left side of the hood, above
the lters (lters must be removed). Refer to the illustration
below.
If service is necessary, contact Wolf factory certied ser-
vice with the model and serial number. For the name of
the nearest Wolf factory certied service or for questions
regarding the installation, visit the contact & support section
of our website, wolfappliance.com or call Wolf customer
care at 800-222-7820.
COOKTOP VENTILATION HOODS
RATING PLATE
Rating plate location.

4 | Wolf Customer Care 800.222.7820
Electrical
Installation must be electrically grounded in accordance
with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70.
For wall hoods, locate the electrical supply within the
shaded area shown in the illustration below. Allow a
minimum 12" (305) Romex®wire for connection. For island
hoods, locate the electrical supply on the ceiling inside the
top of the hood. Allow a minimum 6' (1.8 m) Romex®wire for
connection. A separate circuit, servicing only this appliance
is required.
ELECTRICAL REQUIREMENTS
Electrical Supply grounded, 110/120 VAC, 60 Hz
Service 15 amp dedicated circuit
SPECIFICATIONS
Installation Requirements
Wolf cooktop ventilation hoods are recommended for use
with Wolf induction, electric and gas cooktops and inte-
grated modules. For ranges and rangetops, a Wolf pro venti-
lation hood is recommended.
These hoods have a telescopic chimney ue. A ue exten-
sion is available through an authorized Wolf dealer.
Installation of the cooktop hood should be 30" (762) to
36" (914) from the bottom of the hood to the countertop.
Wall and island hoods require an internal, in-line or remote
blower assembly, available through an authorized Wolf
dealer. For local dealer information, visit the nd a show-
room section of our website, wolfappliance.com.
Consult a qualied HVAC professional for specic installa-
tion and ducting applications.
E
18"
(457)
30"
(762) TO 36" (914) BOTTOM EDGE TO COUNTERTOP
LOCATE
ELECTRICAL
WITHIN
SHADED AREA
Electrical location—all wall hoods.

wolfappliance.com | 5
SPECIFICATIONS
Ductwork
WARNING
To reduce the risk of re, use only metal ductwork.
6" (152) round, rigid metal duct is recommended for cooktop
ventilation hoods.
A straight, short run is most effective and will ensure proper
operation. For best results, the duct run should not exceed
50' (15 m). For runs exceeding 50' (15 m), a higher CFM
blower may be required to maintain proper air ow and
performance. A remote blower installed on a short duct run
may increase the potential for noise.
Internal and in-line blowers require a roof or wall cap (not
provided). Connect ductwork to the cap and work back
towards the hood. Use sheet metal screws and aluminum
tape or high temperature duct tape to seal joints between
ductwork sections.
Wall and island hoods include a backdraft damper. Local
codes may require the use of an additional backdraft and/or
make-up air damper. Contact your local HVAC professional
for specic requirements.
A make-up air damper is available through an authorized
Wolf dealer. For local dealer information, visit the nd a
showroom section of our website, wolfappliance.com.

6 | Wolf Customer Care 800.222.7820
INSTALLATION
2Place the mounting tabs over the mounting screws. Use
the leveling adjustment screws to ensure the hood is
level. Refer to the illustration below.
3Mount the electrical plate to the wall using screws
provided.
4Place the backdraft damper on the round discharge then
install 6" (152) round metal ducting (not provided) to the
damper and seal with aluminum tape.
5Make wiring connections. Refer to page 9.
6Once wiring connections are complete, secure the upper
chimney ue to the mounting brackets using screws
provided. Refer to the illustration below. Place the lower
chimney ue over the upper, then lower until it rests on
the hood.
Installation
WALL HOOD
If an internal blower is being installed, install the blower prior
to mounting the hood. Refer to page 8 for internal blower
installation.
1Mark the center line for location of two mounting holes
using dimensions shown in the chart and illustration
below. Additional wall framing is recommended in this
location. If wall framing is not available, the use of wall
anchors is recommended. Install the mounting screws
so there is approximately 1/4"(6) gap between the screw
head and wall. Position the two mounting brackets for
the chimney ue, then install using two mounting screws
per bracket. Refer to the illustration below.
MOUNTING LOCATION
SCREW LOCATION A
Black Hood 123/4"(324)
Stainless Hood 163/8"(416)
Glass Hood 129/16"(319)
BOTTOM OF HOOD
CEILING
A
91/8"
(232)
171/16"
(433)
3/4"
(19)
Mounting location.
MOUNTING
TA B
LEVELING
SCREW
Mount and level hood. Install telescopic ue.

wolfappliance.com | 7
INSTALLATION
wolfappliance.com | 7
4Place the damper on the support frame then attach duc-
twork to the damper.
5Slide the upper chimney ue onto the support frame and
attach to the support frame using screws provided. Refer
to the illustration below. Slide the lower chimney ue
over the upper and temporarily secure in this position
using adhesive tape.
6Raise the hood to the support frame and connect the
hood to the support frame with four screws provided.
Refer to the illustration below.
7Make wiring connections. Refer to page 9.
8Once wiring connections are complete, remove the
adhesive tape securing the lower chimney ue, then
lower until it rests on the hood.
Installation
ISLAND HOOD
If an internal blower is being installed, install the blower prior
to mounting the hood. Refer to page 8 for internal blower
installation.
1Mark the center line for location of four mounting holes
using dimensions shown in the illustration below. Use
the template provided to mark the mounting support
locations, then use a 11/4" drill bit to create a hole for the
electrical power supply.
2Place four mounting screws into the ceiling, then posi-
tion the support frame on those screws. Once the sup-
port frame is in place, tighten screws.
3Determine the desired height of the support frame and
adjust the height by removing four screws. Once the
desired height is achieved, reinstall and tighen screws.
85/8"
(219)
ELECTRICAL
LOCATION
11"
(279)
Mounting location. Support frame.
MOUNTING
SCREW
UPPER
FLUE
MOUNTING
SCREW
Install telescopic ue. Mount hood.

8 | Wolf Customer Care 800.222.7820
Installation
INTERNAL BLOWER
If an internal blower will be used, it should be installed prior
to mounting the hood. Refer to additional instructions pro-
vided with the internal blower.
1Insert the three-prong plug from the blower wire into the
hood receptacle. Refer to the illustration below.
2Insert the blower by aligning the round discharge on the
blower with the discharge on the hood.
3Insert the plug from the blower wire into the receptacle
on the blower. Refer to the illustration below.
4Secure the blower to the hood using the two mounting
screws provided.
INSTALLATION
RECEPTACLE RECEPTACLE
MOUNTING
SCREW

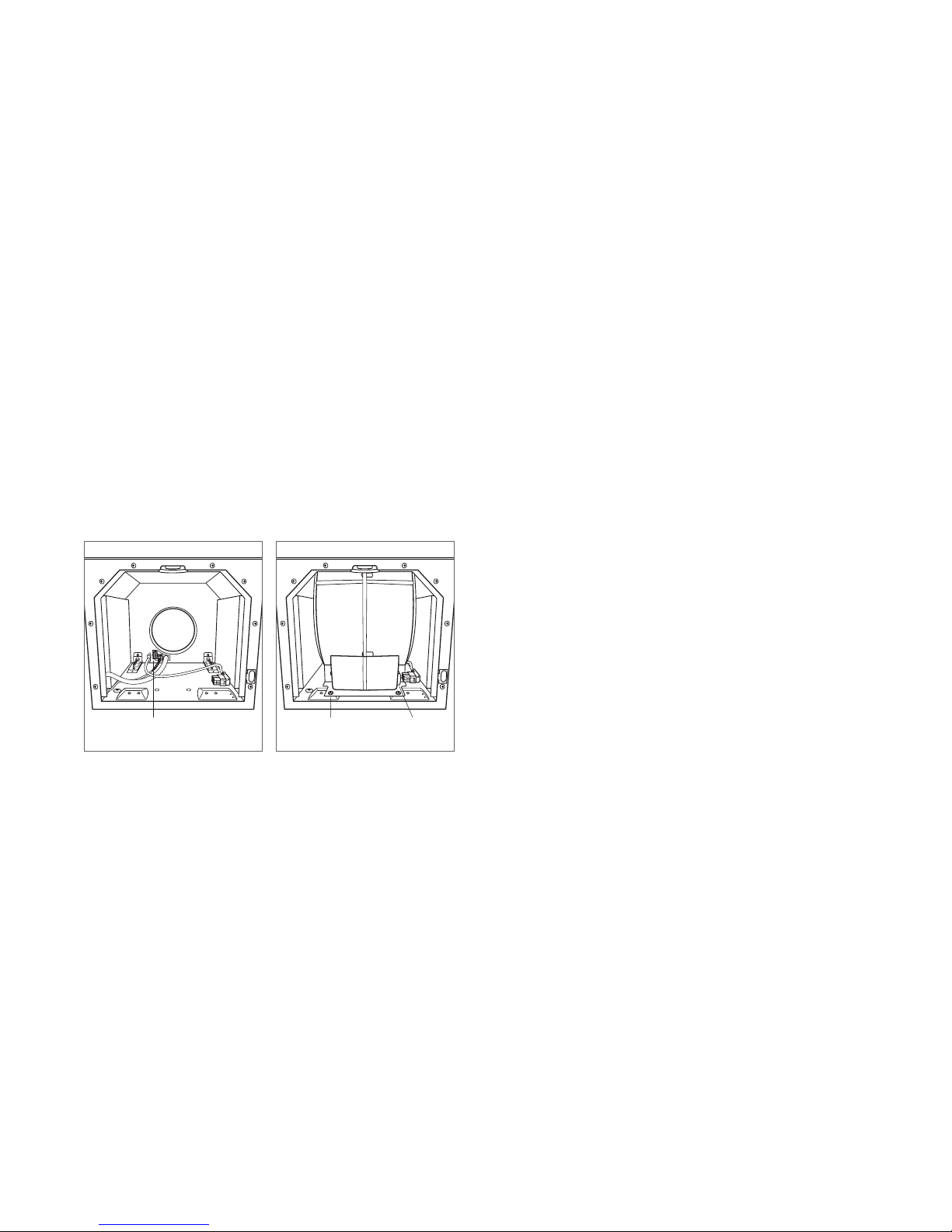

Hood receptacle. Mount blower.

wolfappliance.com | 9
Wiring Connections
INTERNAL BLOWER WIRING
1Remove the top cover of the electrical box by extracting
two screws. Refer to the illustration below.
2Remove the two existing wires from the left side of
the terminal block and transition them to the right and
secure. Refer to the illustration below.
3Place all wiring connections inside the electrical box and
reinstall the cover. Make sure all wires are secure and not
pinched between the cover and electrical box.
4Secure the junction box supplied with the hood to the
wall, then connect to the (Romex®) power supply from
the home. Once the connection has been made, insert
the plug into the receptacle on the hood.
MOVE WIRES
HERE
COVER
BLUE
BROWN
BLUE
BROWN
TO INTERNAL
BLOWER
BLUE
BROWN
Wiring location. Internal blower wiring.
INSTALLATION
IN-LINE / REMOTE BLOWER WIRING
1Remove the top cover of the electrical box by extracting
two screws. Refer to the illustration below.
2Remove one of the round knockouts using a at blade
screwdriver.
3Insert Romex®wire from the blower through the
knockout and secure using an approved cord stain relief.
4Connect white to blue, black to brown and green to
ground. Refer to the illustration below.
5Place all wiring connections inside the electrical box and
reinstall the cover. Make sure all wires are secure and not
pinched between the cover and electrical box.
6Secure the junction box supplied with the hood to the
support frame, then connect to the (Romex®) power
supply from the home. Once the connection has been
made, insert the plug into the receptacle on the hood.
KNOCKOUT
COVER
WHITE
BLACK
GREEN
GROUND
BLUE
BROWN
TO IN-LINE/REMOTE
BLOWER
BLUE
BROWN
Wiring location. In-line / remote blower wiring.

10 | Wolf Customer Care 800.222.7820
Troubleshooting
IMPORTANT NOTE: If the ventilation hood does not operate
properly, follow these troubleshooting steps:
•Verify electrical power is supplied to the ventilation hood.
•Verify proper wiring connections.
•If the ventilation hood does not operate properly, contact
Wolf factory certied service. Do not attempt to repair
the hood. Wolf is not responsible for service required to
correct a faulty installation.
TROUBLESHOOTING
