Wolo 336 User manual

Your purchase of a WOLO horn is a perfect choice to compliment your vehicle. Our horns are manufactured
with the finest of materials. Each horn is bench tested before it is packaged to assure workmanship and quali-
ty so you will have many years of reliable service.
IMPORTANT: THIS HORN SHOULD NOT BE USED AS A REPLACEMENT FOR VEHICLE ORIGINAL
EQUIPMENT HORN. ADDITIONALLY IT IS NOT TO BE USED AS A WARNING DEVICE. MODEL 336 JUKE
BOX IS FOR OFF THE ROAD AND SHOW USE.
MOUNTING CONTROL KEYBOARD
1. Select a mounting location that will not interfere with air bags or drivers vision.
2. Using the double-sided foam adhesive tape provided mount the keyboard to selected location. Make sure
that mounting surface is free from dust wax etc. A clean surface is necessary so that double-sided tape will
hold properly. IMPORTANT: ADHESIVE HOLDING POWER BECOMES MAXIMUM IN ABOUT 24 HOURS.
LIMIT MOVING OR PUTTING PRESSURE ONTO THE KEYBOARD UNTIL THEN.
MOUNTING SPEAKER
3. Select a convenient location in the engine compartment that is dry and safe from the engines exhaust man-
ifold heat. Always face the speaker in a downward position. This will help prevent water from entering into the
speaker. Using the speakers mounting bracket as a template mark hole locations (3) and drill using a 1/8 inch
drill bit. Secure speaker with self tapping screws provided (3). Make sure that the speakers opening is not
blocked by any components which could reduce its loudness.
WIRING

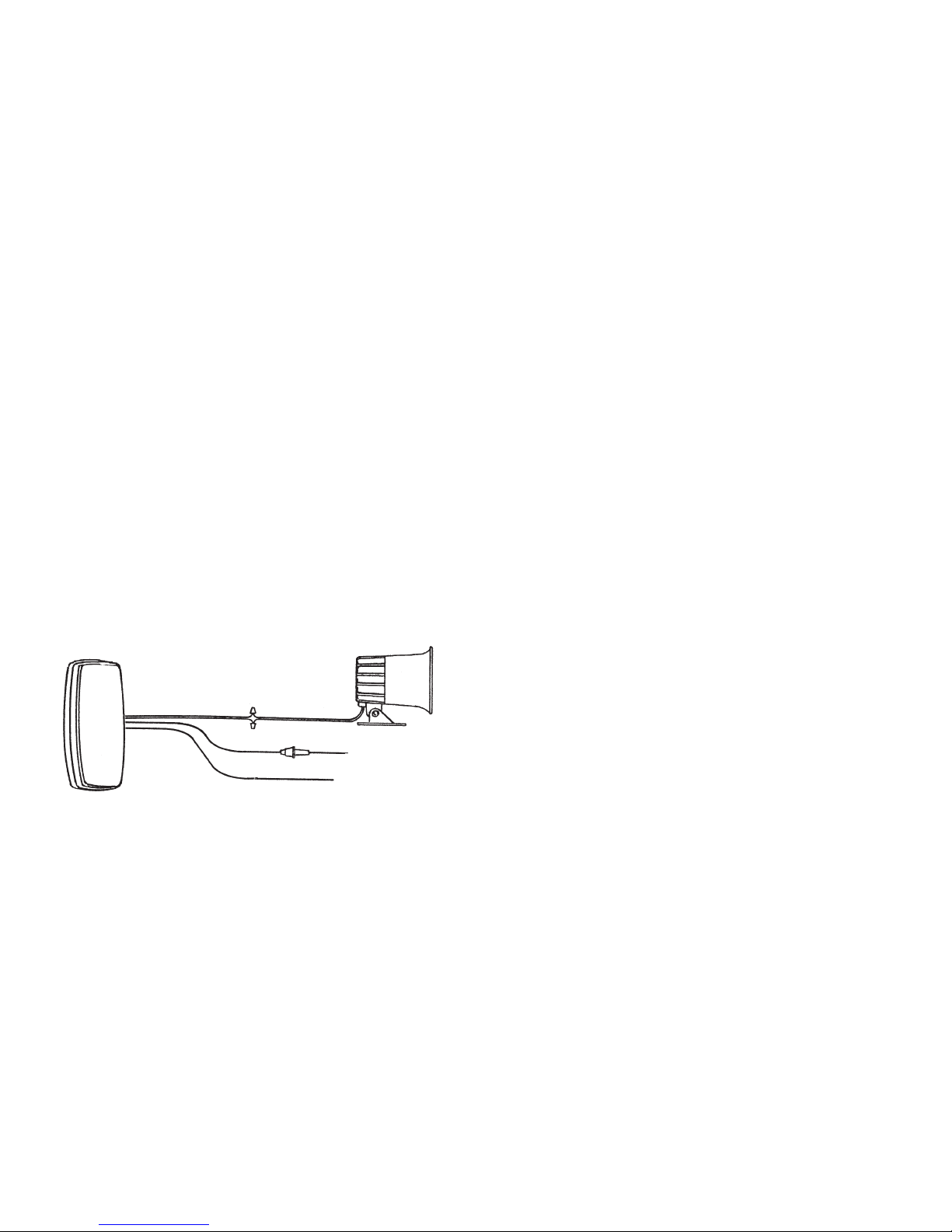

4. TWIN BLACK is connected to the speaker in the
engine compartment. Route wires through fire wall to
speaker. Connect either wire to one of the speaker wires.
Then connect remaining wire to other speaker wire.
5. RED WIRE is connected to the fuse-block or a under dash
wire that has power (+) 12 volts when the ignition is on.
6. SINGLE BLACK WIRE is grounded. Secure wire under a
bolt in the dashboard area make sure that the METAL sur-
face around the bolt is clean of rust and paint to make a good electrical connection.
TESTING
7. Make sure all wires are secured and connections are properly taped.
8. Put the vehicles ignition on to power your JUKE BOX during testing.
9. Turn the JUKE Box’s VOLUME control to the right. The green L.E.D. power indicator will light to show that
the horn is now ON.
OPERATION
A. TO PLAY MUSIC: Press the red button marked SELECT once. The Juke Box will beep and the yellow
orange L.E.D. marked m sic will be illuminated. Using buttons numbered 1-17 you can now play your
desired musical tune. Use the on/off VOLUME knob to control loudness.
B. TO PLAY PIANO: Press the button marked PIANO the yellow L.E.D. marked PIANO will be illuminated.
(I L.E.D. does not turn on press the select button then the piano button). Buttons numbered 1-17 can be used
as a piano keyboard using the musical notes above each button. Use the on/off VOLUME knob to control
loudness.
Installation and Operatin Instructions for
MODEL 336 JUKE BOX
ELECTRONIC HORN
TWIN BLACK
RED FUSE
3 AMP
12VOLTS +
GROUND
BLACK

C. TO RECORD: Press the button marked RECORD the red L.E.D. marked RECORD will be illuminated. (I
L.E.D. does not turn on press the select button then the record button). Buttons numbered 1-17 can be used
as a piano keyboard. Using the musical notes above each key you can record up to 48 notes. To start record-
ing press any musical key followed by the one of the beat key’s on the right side of the keypad (1/4 1/2 3/4 1
or 2). The beat keys programs how long each musical note will play. Repeat procedure until you finish record-
ing tune. Press the PLAY button to hear recorded tune. Use the
VOLUME knob to control loudness. IMPORTANT: Your recorded musical tune will remain in the Juke Box’s
memory until the horn or the vehicles ignition is turned off.
D. TEMPO: To change the speed of a song press the TEMPO button before playing music or recorded tune.
E. FULL: To play all of the 34 programmed songs consecutively press the FULL button.
Our technicians are available to answer your questions Monday through Friday from 8 AM to 4 PM EST 1-888-
550-HORN (4676).
WARRANTY
Wolo Manufacturing Corporation (“Wolo”) warranties to the original purchaser for three months from the date of pur-
chase that this product is free from defects in workmanship and materials. If there is such a proven defect Wolo at
its option will either repair or replace the item free of charge if it is returned to Wolo within three months from the
date of purchase together with proof of purchase as described below. Wolo reserves the right to inspect any defect
prior to settling any warranty claim by repair or replacement. This warranty is limited as above provided and Wolo will
not be responsible for fire or other casualty or accident due to neglect abuse abnormal use modifications faulty
installation of this product or natural causes.
ANY EXPRESSED WARRANTY NOT PROVIDED HEREIN IS EXCLUDED AND DISCLAIMED. THE IMPLIED WAR-
RANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO
A TERM OF THREE (3) MONTHS. UNDER NO CIRCUMSTANCES SHALL WOLO BE LIABLE TO PURCHASER OR ANY
OTHER PERSON FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES WHETHER ARISING OUT OF BREACH OF
WARRANTY OR OTHERWISE.
To obtain warranty service return the product prepaid and include the original bill of sale showing the date of purchase.
Provide with the return a brief description of the problem. Also include with the return a check or money order in the
amount of $10.00 to cover return shipping. Mail to:
Wolo Manufacturin Corp. • One Saxwood Street, Deer Park, NY 11729
Attn: Warranty Service
E-mail: tech@wolo-mf .com
©2006 Wolo Mfg. Corp.
All Rights Reserved
