WOLTURNUS Amasis User manual

User’s Manual
for Amasis
Wolturnus A/S recommends that you read this manual before using the wheelchair.
GB

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Content Content
User’s manual
1 Introducon 8
1.1 Foreword ............................................................................................................................. 8
1.2. Intended Use...................................................................................................................... 8
1.3 Usage................................................................................................................................... 9
1.4 Service................................................................................................................................. 9
1.5 CE Compliance................................................................................................................... 10
1.6 Liability .............................................................................................................................. 10
1.7 Returns .............................................................................................................................. 10
2 Safety 12
2.1 Symbols ............................................................................................................................. 12
2.2 Standards and Direcves................................................................................................... 12
2.3 General Safety Instrucons............................................................................................... 13
2.4 Safety Requirements for Transport, Assembly and Storage.............................................. 13
2.5 Safety Requirements in Usage........................................................................................... 13
2.6 User requirements............................................................................................................. 14
2.7 Type Labels........................................................................................................................ 16
3 Product Descripon 18
4 Delivery and Preparaons before Usage 20
4.1 Delivery ............................................................................................................................. 20
4.2 Preparaon before Usage ................................................................................................. 20
21
5 Transport and Storage 22
5.1 Transport .......................................................................................................................... 22
5.2 Transfer ............................................................................................................................. 22
6 Adjustments and Setup 24
6.1 Adjustable Features........................................................................................................... 24
6.2 Tools.................................................................................................................................. 24
6.3 Adjustment of the Back Angle........................................................................................... 26
Handbikes2 3Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Content Content
7 Accessories and Equipment 30
7.1 Front bumper..................................................................................................................... 30
7.2 Wireless computer............................................................................................................. 30
7.3 Bolecage.......................................................................................................................... 30
7.4 Neck support ..................................................................................................................... 30
7.5 Cushion for seat................................................................................................................. 30
7.6 Flag .................................................................................................................................... 30
7.7 Safety belt.......................................................................................................................... 31
7.8 Mirror ................................................................................................................................ 31
8 Cleaning and Maintenance 34
8.1 Maintenance ..................................................................................................................... 34
8.2 Cleaning and Disinfecon ................................................................................................ 35
8.3 Changing a Tire.................................................................................................................. 36
9 Troubleshoong 38
10 Technical Specicaons 40
11 Instrucons for Reuse 42
11.1 Instrucons for Reuse...................................................................................................... 42
11.2 Disposal ........................................................................................................................... 42
12 Environment 43
13 Manufacturer and Service Locaons 44
Handbikes4 5Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Content Content
Handbikes6 7Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Introducon
Introducon
1.3 Usage
The wheelchairs are of modular design and versality makes it suitable for users who have dif-
cules walking or who have a mobility handicap as a result of:
• Paralysis
• Loss of limbs (leg amputaon)
• Limb defects or deformies
• Damaged or defecve limbs
• Other illnesses
When adapng the wheelchair for the user, the following should be taken into account:
• Body, height and weight (max. load 120 kg.)
• Physical and mental constuon
• Age
• Residenal circumstances
• Surroundings
1.4 Service
In the event of quesons or problems that cannot be solved using this user´s manual, please
contact Wolturnus A/S customer service at ([phone].
Wolturnus A/S strives to provide full assistance to its customers in every respect. For Woltur-
nus A/S contact informaon and a list of service locaons - go to secon 13 in this manual.
If the wheelchair has to be returned for repairs we oer to loan you a temporary
wheelchair. For further informaon, please contact Wolturnus A/S.
Risk of injury with incorrect use
To avoid the risk of ngers geng caught in the wheel spokes or wheel locks, and to avoid
the risk of the chair pping, children should not play with the wheelchair.
WARNING!
Service and repairs to the wheelchair must only be carried out by authorised personnel trained by Wolturnus
A/S. In the event of problems, please contact the dealer that you bought the wheelchair from.
INFORMATION
1 Introducon
1.1 Foreword
This user´s manual provides users and helpers with essenal informaon about the design,
funcons, use and maintenance of the Wolturnus Racerwheelchair, for children and adults. The
manual contains the informaon necessary to ensure safe use of any of these wheelchairs. It
contains troubleshoong informaon with soluons (where/if applicable). The wheelchairs are
all easy-propulsion acve sport wheelchairs made with high-strength aluminum. The wheel-
chairs design make for an easy to use and operate wheelchairs, which can be worked indepen-
dently. The wheelchairs are ideal for users who want to have an acve life, outdoors on and o
roads (depending on the model and its wheels).
The instrucons in this manual are essenal for safe and correct use of the wheelchair. Before
using the wheelchair, read these instrucons carefully - pay special aenon to the safety
instrucons. Furthermore, The informaon provided ensures that the user gets the opmum
advantage of the wheelchairs features and funcons. Keep this user´s manual throughout the
lifeme of the wheelchair: it contains informaon for future quesons and it contains guide-
lines for adjusng and adapng the wheelchair.
This user´s manual has been produced in accordance with DS EN82079-1 ’Preparaon of in-
strucons for use - Structuring, content and presentaon’. It is divided into secons. The
heading on each page contains the tle of the overall secon. The footer of each page displays
the page number, year, and site of origin of the user´s manual. It also includes the wheelchair´s
model.
1.2. Intended Use
The Wolturnus wheelchairs are designed for individual mobility outdoors. It is only suitable for
persons who are unable to walk or have a mobility problem. Only equipment specied in this
user´s manual may be used with the wheelchairs, and vice versa.
Wolturnus A/S does not guarantee this product if it is used with accessories or products from
manufacturers other than those specied as part of the modular system.
Use of the wheelchairs for any purpose other than the aforemenoned will be considered in-
correct. In the event of incorrect use, the user - i.e. not the manufacturer - is liable for resulng
damage to persons or property.
These wheelchairs may only be used by experienced users. For personal protecon and in
order to ensure that the wheelchairs are used safely and correctly, it is a requirement that the
user and helpers receive training and instrucons prior to use of the wheelchairs.
To ensure that the wheelchairs are used correctly it has to be operated exclusively as described
in this user´s manual. The user bears nal responsibility for accident-free use.
Handbikes8 9Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Introducon
Introducon
1.5 CE Compliance
The wheelchairs meet the requirements of the European Commission Direcve 93/42/EEC for
medical devices. The product is classied as a Class 1 on the basis of the classicaon criteria
for medical devices in accordance with secon lX of the direcve. It follows that Wolturnus A/S
has therefore, as manufacturer with sole liability, made a declaraon of conformity in accor-
dance with appendix Vll of the direcve.
1.6 Liability
Wolturnus A/S’ warranty only applies if the product is used in accordance with the specied
circumstances, purpose and instrucons. The frame is covered by a 5-year warranty. Other
parts manufactured by Wolturnus are covered by a 2-year warranty. Parts that are designed
and manufactured by a third-party manufacturer and mounted on a Wolturnus wheelchair are
covered by a Wolturnus A/S warranty that is equal to the warranty provided to Wolturnus A/S
by the third-party manufacturer.
Wolturnus A/S is not liable for injury or damage caused by:
• Components and parts that are not authorised by Wolturnus A/S.
• Alteraon to the original surface treatment.
• Repairs or alteraons to the wheelchair that are not carried out by Wolturnus A/S. All war-
ranty repairs has to be carried out by Wolturnus A/S.
• Incorrect use of the wheelchair (e.g. playing basketball or rugby), or loads that exceed the
construcon or specied maximum for the wheelchair (in accordance with direcve 93/42/
EEC for medical devices).
• Circumstances in which the wheelchair is used by any party other than the original owner/
user.
• Circumstances involving bad weather or dangerous situaons, or in general all types of
predictable negligence.
• Lack of maintenance.
• Cleaning with agents that contain acid or alkaline products, with high-pressure equipment
or similar.
To keep updated about this product e.g. regarding new features, satefy noce, product recalls
check www.wolturnus.dk. Contact informaon and overview concerning all of Wolturnus’s
products are available at the website - or by contacng Wolturnus A/S customer service at
([phone].
1.7 Returns
In the event that the wheelchair has to be returned to the supplier or to Wolturnus A/S, e.g. for
repairs, it must be transported in its original packaging for opmum protecon. It follows that
Wolturnus A/S recommends that the original packaging is retained throughout the lifeme of
the wheelchair.
Handbikes10 11Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Safety
Safety
2 Safety

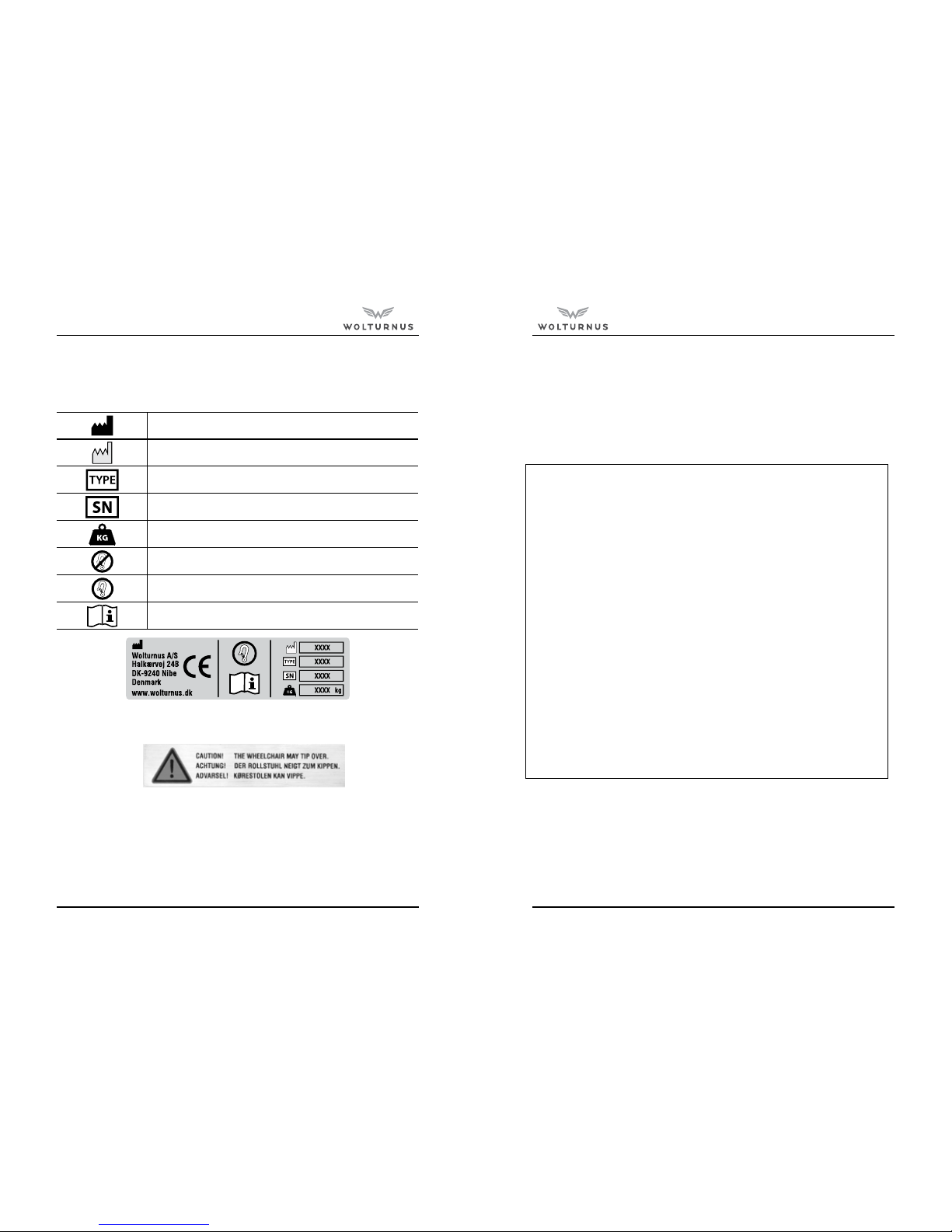

2.1 Symbols
2.2 Standards and Direcves
All safety informaon in this user´s manual is based on applicable naonal laws and regulaons
in the EU. For other countries, a declaraon of conformity with applicable laws and naonal
regulaons is required.
In addion to the safety instrucons contained in this user´s manual, the user must be fami-
liar with and must comply with applicable regulaons from professional associaons, concer-
ning accident prevenon and regarding environmental protecon. All informaon contained
in this user´s manual must be complied at all mes without limitaons. The wheelchairs are
constructed in accordance with applicable regulaons. The wheelchairs safety level is
approved by CE cercaon and a declaraon of conformity.
2.3 General Safety Instrucons
• The wheelchair may p over.
• The wheelchair must only be used according to instrucon in this manual.
• The wheelchair must only be used by trained users and must not be used by any other
person than the user.
• The wheelchair must only be used to transport one person at a me.
• All safety instrucons in this user´s manual and all other relevant documentaon must be
kept and complied with throughout the lifeme of the wheelchair. The user´s manual must
always be available to the user.
• The back and seat upholstery is re-resistent, but can be ignited. Therefore extreme care
must be taken when in vicinity of ammable items and re i.e. lit cigarees.
• To avoid discomfort when using the wheelchair, damaged back or seat upholstery should be
replaced as soon as possible.
• Do not force the wheelchair over obstacles when using it on slopes.
• The wheelchair must not be used on stairs.
• Avoid geng in or out of the wheelchair while on slopes.
• Do not park on slopes that exceed 7°, even when the brake pads are acvitated.
2.4 Safety Requirements for Transport, Assembly and Storage
• Only suitable liing mechanisms must be used when transporng the wheelchair.
• When adjusng and adapng the wheelchair, all aachment features - such as screws and
nuts - must be fastened according to the instrucons in this manual.
• The wheelchair is not intended to be used as a seat when in a motor vehicle.
2.5 Safety Requirements in Usage
• The user and helpers must always ensure that the wheelchair and its safety features are in a
proper and safe condion before using the wheelchair.
• The wheelchair must be inspected by a Wolturnus-authorised specialist at least once a year
in order to ensure that the wheelchair is in proper working order and safe to use.
• The wheelchair must immediately cease to be used if any feature is defecve or not opera-
onal or if any other circumstance arises which could lead to injury.
• Before starng to use the wheelchair, all mechanical adjustments (posioning the seat,
accessories, etc.) must be carried out in accordance with the user’s individual preferences,
prerequirements and abilies. These adjustments may only be carried out by by specialists
authorized by Wolturnus.
• 120 kg is the maximum load for the wheelchair. It must not be exceeded.
• The wheelchair res must be inspected visually before use to ensure that there is sucient
tread depth and correct re pressure. The correct pressure is printed on the re.
Warning concerning danger of serious accident or injury
WARNING!
Operaonal and service informaon
INFORMATION
Warning concerning danger of accident or injury
CAUTION!
Warning concerning danger of technical damage
NOTICE
Handbikes12 13Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Safety
Safety
• When used on public roads, the user must obey applicable trac rules.
• The wheelchair should not be used on slippery surfaces (e.g. ice) or on very rough terrain
(e.g. on gravel or small stones).
• When geng in and out of the wheelchair, the user’s full weight should not be placed on
the steering wheel. These cannot bear full body weight.
• Change direcon at reduced speed only.
• The wheelchair must only be lied by gripping the frame parts. Do not grip the steering
components or gears to li the wheelchair.
• The wheelchair must not be exposed to extreme temperatures, to high humidity or to
environments with chlorine (e.g. in saunas or at swimming pools).
• The wheelchair’s surface temperature can raise if it is exposed to extreme heat, e.g. in
strong sunlight for an extended period of me. There is also a risk of very low surface tem-
perature in the event of extremely cold weather.
• Never place ngers between the wheel spokes or between the rear wheel and the wheel
locks. Cauon is advised when travelling through narrow passages.
2.6 User requirements
• Before starng to use the wheelchair, the user and any helpers must read the user´s ma-
nual thoroughly and be familiar with its contents.
• The wheelchair must only be used by trained users. To ensure this, the user and any hel-
pers has to receive instrucon in use of the chair from Wolturnus-authorised specialists.
Handbikes14 15Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Safety
Safety
2.7 Type Labels
A type label is aached to the wheelchair. The type label includes the following informaon:
Manufacturer and producon site
The wheelchairs year of producon
The Model or the type name of wheelchair
The serial number of the wheelchair
The maximum allowed weight of the user
The wheelchair is not intended to be used as a seat in a motor vehicle
The wheelchair is intended to be used as seat in a motor vehicle
Read the user´s manual before using the wheelchair
The type label is placed on the cross tube under the seat facing forward as shown on Fig. 1
Fig. 1 Locaon of the Type Label
Handbikes16 17Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Product descripon
Product descripon
3 Product Descripon
Amasis is the ulmate bid for maximum transfer of the athlete’s forces. In athlecs as well as in
long distance races, Amasis racist chair since 2004 has won many victories for the Paralympic
physician and beat world records.
Amasis has a frame in tempered 7020 lightweight aluminum. With its extra-thick frame, the
racing wheelchair becomes rigid and robust, thus transferring all the athlete’s forces to energy
and propulsion.
Amasis is tailored to the individual user’s needs and wishes. Wolturnus oers several upgrade
opons, which will be menoned in secon 7. Accesories and Equipment.
Fig. 2 Handwheelchairs
Handbikes18 19Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Delivery and preparaon for use
Delivery and preparaon for use
4 Delivery and Preparaons before Usage
4.1 Delivery
The delivery covers:
• The wheelchair with main components
• The user´s manual
• Selected accessories (Accessories range. Go to secon 7 in this manual)
Wolturnus A/S delivers the wheelchair ready for use. All conguraons that are part of the
order have been made or will be set up upon delivery by the supplier or a consultant. The
wheelchair is adapted to meet the user’s personal preferences and requirements.
The wheelchair’s funcons can be tested by following the instrucons in secon 6 in this ma-
nual.
Troubleshoong: see secon 9.
4.2 Preparaon before Usage
Before starng to use the wheelchair, it must be inspected to ensure that it is complete (Fig.
3) and that all funcons and features are in proper working order. Wolturnus A/S delivers the
wheelchair ready for use.
Main Components (Image 3):
1. Front wheel
2. Front fork
3. Brake handle
4. Steering handle
5. Cage/Seat
6. Strap mount
7. Brake
The range of accesories are determined by the product conguraon that the user chooses
when ordering the wheelchair.
INFORMATION
Fig. 3 Main Components
The wheelchair may p over during corners.
WARNING!
8
5
7 9 10 11
654
32
1
8. Compensator
9. Track control steering handle
10. Pushrim
11. Rear wheel
Handbikes20 21Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Transport and storage
Transport and storage
5 Transport and Storage
5.1 Transport and storage
For transport or storage, the rear wheels can be removed. This makes it easy to handle and
saves space. While in storage keep the wheelchair in a clean and dry environment.
5.2 Transfer
The method of transfer between chair and wheelchair is individually selected reecng the
preferences of the user. The most common method is transferring from the side.
The following descripon is based on transfer without third-party help and from one
wheelchair to the wheelchair.
Geng into the wheelchair (Fig. 8-9)
• Park the wheelchair next to the racechair in a slight angle.
• Tip one leg over and into the cage, while keeping your balance. Use the two wheelchair
frames as support for the transfer.
• slowly drop down into the wheelchair cage.
Geng out of the wheelchair (Fig. 8-9)
• Park the wheelchair next to the race wheelchair, with the wheelchairs front towards the
side of the race wheelchair.
• Li your body over the side of the race wheelchair, and slowly drop down into the wheel-
chair.
• Pull your legs out of the race wheelchair, and place them on the footrest of the wheelchair.
Risk of damage due to overload.
When geng in and out of the chair, the user must neither place full body weight on the
footrest nor the armrests.
CAUTION!
The wheel locks must be applied during transfer.
CAUTION!
Handbikes22 23Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Adjustment and set-up
Adjustment and set-up
6 Adjustments and Setup
6.1 Adjustable Features
The wheelchair can be adjusted in various ways.
When delivered, the height, width and angle of the seat and the back have been posioned in
accordance with the customer’s order as received by Wolturnus A/S.
The Following is Adjustable By the User:
• The back height, depth and angle
• The seat height, depth and angle
• The footrest´s height and angle
• The height of the an-p device
• The wheel lock posion
6.2 Tools
The following tools (Image 16) are necessary for adjustments and sengs described in this
secon:
• A 4 mm Allen key
• A 5 mm Allen key
• 8 mm Allen key
• A 10 mm single-head wrench
• A 13 mm single-head wrench
• A torque wrench
• A measuring tape, a foot rule or a ruler
• A bubble level
Risk of accident due to loose screws
Aer loosening any threaded screws, they must be replaced with new screws or secured
once more with a medium-strength thread paste (e.g. EuroLock A24.20). Aer making
adjustments to the wheelchair, all screws and all nuts must be ghtened correctly.
CAUTION!
Damaged tools or incorrect use of tools can result in injury or in damage to the chair.
NOTICE
Image 4 Tools
Handbikes24 25Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Adjustment and set-up
Adjustment and set-up
6.3 Adjustment of the Back and Seat
The seat and back consst of straps, these straps and be ghten or loosened to personal per-
ferenses, to ensure comfort for the user as well as opmal power output of the chair. Aer
changing the sengs make sure to have an assistent close while trying out the chair, as the
balancepoint can be changed as well, and therefore the risk of pping back is increased. 6.3
When the seat and/or the back upholstery straps have been adjusted, the wheelchair’s point
of gravity may have shied, which may create a risk of backward pping. Therefore, aer
adjusng the seat and/or bthe ack upholstery, check the point of gravity and, if necessary,
adjust it before using the chair. (See secon 6.10).
WARNING!
Ensure that the back angle is adjusted equally on both sides and that, aer adjustment, the
back locks correctly into place.
WARNING!
During strap adjustment of the seat and/or back upholstery, the wheelchair’s point of
gravity may have shied, which may create a risk of backward pping. Therefore, aer ad-
jusng the back, check the point of gravity and. If necessary, adjust it before using the chair.
(See secon 6.10).
WARNING!
For safety reasons, the wheelchair is delivered with the rear axle placed far back. New users
should not adjust this unl they are experienced in using the chair.
CAUTION!
6.4 Adjustment of the Track Control Steering Handle
The track control handle can be dismounted and placed either on top or on the boom of the
frame. The track control handle can be adjusted by doing following.
• Adjust the one springbolt for strait, making it so that when the handle it pushed in, the
chair will go strait.
• Adjust the second bolt to the needed angle, so that when it is pushed out, it will force the
biek to make the turn with the need angle.
6.5 Set-up of Pushrim on Spokes
When mounng the pushrim on the spokes, make sure to mount the screws behind the spo-
kes, to make sure the pushrims aren’t pushed of the spokes.
Handbikes26 27Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Accessories and equipment
Accessories and equipment
7 Accessories and Equipment
A wide range of accessories and equipment are available for Wolturnus acve wheelchairs.
The most popular accessories are described in this secon. To see the full range of accessories
and order informaon go to www.wolturnus.com.
7.1 Wheels
The Amasis race wheelchair have a few wheel opons, such as spoke- or carbon wheels. The
wheels can also be either bolted or clamp fastened, according the user’s wishes. For more op-
ons and informaon go to Woltunus’ A/S webpage www.wolturnus.dk.
7.2 Footrest
The Amasis race wheelchair come either with or without footrest, depending on the needs and
wishes of the user.
Fig. 5 Wheels Fig. 6 Footrest
Handbikes28 29Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Cleaning and maintenance
Cleaning and maintenance
8 Cleaning and Maintenance
8.1 Maintenance
Each me the wheelchair is used, operaonal parts, and parcularly wheel locks, should be
checked to ensure that they are in proper working order. Aer being loosened 2-3 mes when
making adjustments or changing parts, self-locking nuts should be replaced.
The following table gives an overview of how to maintain the wheelchair.
Component Funcons and Inspecon daily month 1/4
year
Tires Tires visibly pumped
Tires undamaged
Test/adjust re pressure (see side of re)
Check thread depth (min. 1 mm)
X
X
X
X
Rear wheel Direconal stability during use
Wheels rotate freely without misalignment
Nuts on rear wheel mounng bracket are ght
X
X
X
Front wheel No front fork obstrucon
Wheels rotate freely without misalignment
Axle bolts correctly ghtened
Cap bolts correctly ghtened
X
X
X
X
Footrest All locking mechanisms are in working order
No obstrucons or damage
X
X
Upholstery No damage or wear to upholstery
Securing straps funcon
Seat and back upholstery correctly posioned
X
X
X
Wheel brakes Wheel brakes in working order
Correct pressure on wheel
X
X
Screws All nuts and screws are ghtened X
In the event of faults or missing parts, contact the supplier or Wolturnus A/S. Contact informa-
on, go to secon 13.
Wolturnus A/S recommends that the wheelchair is serviced at least once a year by the sup-
plier or Wolturnus A/S.
8.2 Cleaning and Disinfecon
The wheelchair should be cleaned regularly according to how oen it is used and how dirty it
is.
Clean the frame, plasc parts and wheels with a mild cleaning agent. Aer cleaning, dry all
parts with a dry cloth.
Clean cushions and upholstery with warm water and washing-up liquid. Remove stains with a
sponge or a so brush. Rinse aerwards with clean water and allow the parts to dry before
mounng and using.
To disinfect, use water-based agents and follow the manufacturer’s instrucons.
Do not use corrosive cleaning agents, solvents or hard brushes.
NOTICE
Do not wet-wash. Do not use high-pressure equipment or a water jet. The wheelchair com-
ponents must not be put in a washing machine.
NOTICE
Clean the seat and back upholstery, cushions, handles and armrest before disinfecng.
NOTICE
The wheelchair must not be used in salt water. Avoid geng salt, sand and other dirt that
can cause damage to the wheel bearings, the caster mounng bracket or the rear wheels.
Should this occur, the bearings must be replaced.
NOTICE
Handbikes30 31Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Cleaning and maintenance
Cleaning and maintenance
8.3 Changing a Tire
If a re is punctured, the user or a helper may be able to change it without assistance.
The procedure requires having strong hands, praccal ability and suitable tools. It is advisable
to have a puncture repair kit and an air pump for emergencies (excluding situaons with punc-
ture proof res). Suitable air pumps, puncture repair kits or puncture sprays that ll the re
with expanding foam can be purchased at most bicycle shops.
Removing res and tubes
• Gently pull the re edge over the edge of the rim with a re lever (or two, if it is sing very
ghtly). Take care not to damage the rim or the tube (Image 61).
• Screw o the valve nut and pull the valve out from the rim and the rim tape.
• Pull out the tube from between the re and the rim (Image 62).
Repair and check-ups
• Repair the tube according to the instrucons in the repair kit or replace it with a new tube.
• Before remounng the re and tube, make sure that no foreign objects that may have
caused the puncture are caught in the rim or re.
• Ensure that the rim tape is intact. It protects the tube against damage from the spokes.
• Push the tube into place between the re and the rim.
Mounng res
• Gently pull the clear re edge over the edge of the rim. Starng with the valve.
• Check that there are no twists at all in the tube, otherwise air can get out.
• Work the whole way around unl the last secon of the re edge is taut and can be edged
into place with one or two levers.
Pumping res
• Check on both sides that the tube is not caught between the re edge and rim.
• Push the valve lightly in and pull It out again to make sure that it is not caught on the re
edge.
• Fill the re with air to the point where it is sll possible to press it in with a thumb. If the
control lines on both sides of the re indicate the same distance to the rim edge, the re
is centred. If the re is not centred, let some air out and adjust the re unl it is centred.
Now pump up the re to its maximum working pressure (see the side of re) or at least 3.5
bars (350 kPa). Then screw the dust cap on, ghtly.
Ensure that the res have the correct pressure before using the chair.The maximum air pres-
sure limit is marked on the side of the re. It must always be on a minimum of 3.5 bars (350
kPa) on the rear wheels.Like push wheel locks, the knee-lever wheel locks are only eecve
when the air pressure is suciently high and when they are correctly posioned.(When
locked, the brake pad should push the re in 5mm (allowing for technical alteraons).
CAUTION!
Image 61 Pull the re edge over the rim Image 62 Pull out the tube
NB: Pneumac res give a good driving experience. Solid res can be used in work situaons
where risks of punctures due to grit or other objects might occur.
INFORMATION
Handbikes32 33Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Troubleshoong
Troubleshoong
9 Troubleshoong
During roune maintenance, it may be necessary to make adjustments or repair faults. In most
cases, the soluon to the problem can be found on the following list:
Problem Soluon Reference
The caster
makes noise or is
resistant
Check if there is dirt between the fork and caster or
dirt in the fork ball-bearings.
Clean o the dirt and ghten the screws. If they do
not roll freely, change the ball-bearings.
Secon 6.17
Secon 6.18
The front fork
shakes
Loosen and remove the bearing housing cap. Then
ghten the nut to a degree where the front fork
with wheel can sll rotate easily.
Make sure that the caster is vercal.
Secon 6.18
The rear wheel
makes a loud
clicking noise
Check and ghten the spokes and the push rim
mounng screws. Only to be done by professionals!
Check that nothing is pushing against the rear
wheel or the rear wheel´s spokes.
Rear wheel resi-
stance
Check if the rear wheel is misaligned.
Check re pressure
Check if, for example, the side panel or another
part is pushing against the rear wheel.
Check if the rear wheel bearings are worn down
and need replacement.
Loud clicking
noise
Check and ghten the screws in the rear wheel and
caster mounng brackets
Secon 6.17
Secon 6.18
The footrest is
lopsided
Check that the foot plate is horizontal and adjust
the footrest height. Secon 6.10-12
The wheel locks
do not work
properly
Check that both wheel locks are correctly
posioned.
Inspect the rear wheel res for wear and tear, and
for faulty re pressure.
Secon 6.14
Secon 8.3
If the problem cannot be solved with the aid of the troubleshoong secon, contact the sup-
plier or Wolturnus A/S. Contact informaon, go to secon 13.
Handbikes34 35Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Technical Specicaons
Technical Specicaons
10 Technical Specicaons
The technical data can be found in the orderform.
Handbikes36 37Handbikes

Wolturnus - wheelchair for acv use - user manual 2017 Wolturnus - wheelchair for acv use - user manual 2017
Environment
Instrucons for reuse
11 Instrucons for Reuse
11.1 Instrucons for Reuse
The wheelchairs are suitable for reuse by a subsequent new owner. It is essenal that the
wheelchair´s measurements and equipment are tailored to suit the new user. It follows that it
is important to ensure that the wheelchair’s funcons and features have not been altered to a
degree that could create a safety risk for the new user or any third pares during the lifeme
of the chair.
Based on market studies and on its knowledge of contemporary technology, Wolturnus A/S
has calculated that the wheelchair, when used, serviced and maintained in accordance with the
original instrucons, has a lifeme of 5 years (excluding me kept in storage by an authorised
dealership or the user). Note that with careful care and proper use, the wheelchair can be used
for a longer period than the dened lifeme.
Prior to reuse, the wheelchair must be carefully cleaned and disinfected. Then the product
must be inspected by an authorised specialist to assess its condion, wear and tear, and da-
mage. All worn or damaged parts and components that do not suit or are not designed for the
new user must be replaced. This user´s manual includes a service plan (see maintenance chart
secon 8) and detailed informaon about the wheelchair.
11.2 Disposal
If the wheelchair is delivered in a brown cardboard box, that can be handed into to recycling
centres or cardboard collecon points. The protecve bubble wrap on the frame must be dis-
posed of as combusble waste. The aluminum frame must be disposed of as metal. The uphol-
stery and side panels must be disposed of as combusble waste.
12 Environment
Wolturnus A/S strives to respect the environment as far as possible. An assessment has been
done to determine the wheelchairs eect on the environment during its life cycle. During de-
velopment, materials and forms are chosen that minimise waste of energy and material during
producon.
Wolturnus A/S has a unique approach to individual user´s measurement and to the subse-
quent special design of the chair to meet the user’s needs, preferences and requirements.
Combined with the wheelchair’s mechanical quality, this ensures that the user can use the
wheelchair for many years. The wheelchair lifeme is calculated to be approximately 5 years
if maintained according to the instrucons in this user´s manual. The long lifeme limits the
wheelchair´s eect on the environment.
Furthermore, meculous quality control throughout the producon process ensures that
faults are rare, which limits the need to use superuous resources on repairs or replacement
products.
Generally, all funcons, working processes and labor at Wolturnus A/S are carried out with
respect for the environment. Aluminum residue aer the producon process is collected
in containers and delivered for recycling. During the mounng process, the usage of hazar-
dous agents is kept to a minimum. Furthermore all work processes meet occupaonal safety
requirements (APV). The usage of all materials is connually opmized to ensure minimum
waste.
Handbikes38 39Handbikes
