Wonbo Smart Doorbell A3 User manual

Owner'sManual
DoorbellWonbo Smart

WiFi Video Doorbell
English...............................................................01
Deutsche...........................................................15
Français............................................................30
Español.............................................................46
Italiano..............................................................60
日本語...............................................................74

1
1.Products Structure
Front
Back Retainer plate

2
2. Basic Instructions
2.1 PIR(Pyroelectric Infrared Sensor): A message or a call will be sent to mobile
phone if somebody moves in front of the device.
2.2 IR night vision : It will turn on when illuminance less than 2Lux.
2.3 Mic: Sound collecting and voice intercom.
2.4 Button: Turn on the device, notify visitor to the user and connect Dingdong.
2.5 Lens: Video collecting.
2.6 Indicator:
(1)The system is waiting for WIFI connecting when blue indicator slow blinks.
(2)The system is working correctly after pressing the doorbell and blue indicator
flashes 5S.
(3) The system connected with WIFI failed after pressing the doorbell and red
indicator flashes 5S.
2.7 Speaker: System prompt and voice intercom.
2.8 Anti-theft Screw: To avoid the device be disassembled.
2.9 Reset: To reset the device in the case of a system jam or crash.
2.10 Battery: Install 18650 battery.
2.11External Power: Connect the external power hole to get electricity.
2.12USB: Charge the device.
2.13External power hole: Connect it with AC power inside wall to supply power to
the device.
2.14 Slot: Install the device to the bracket.
2.15 Fixed hole: Install the bracket to the wall with screw.
How to connect the external power cable:
(1) Insert the AC/DC 8V-24V negative wire and positive wire to the fixed hole
and tighten it.
(2) Fix the back cover of doorbell and install the doorbell after punching 4
holes on the wall or door.
(3) Tighten the bell with fixed cover.

3
3. Installation
S
te
p 1 : T
a
k
e o
u
t th
e b
a
c
k c
o
v
e
r
.
Step 2: Fix the back cover of doorbell on the wall.
(1) Install the back cover on the wall by
screw (Standard Accessories) or paste it
on the glass with 3M sticker(not included
in standard accessories).
(2) Connect the AC(8-24V) wire (not
included in standard accessories) to the
external power hole by electric
conduction screw.

4

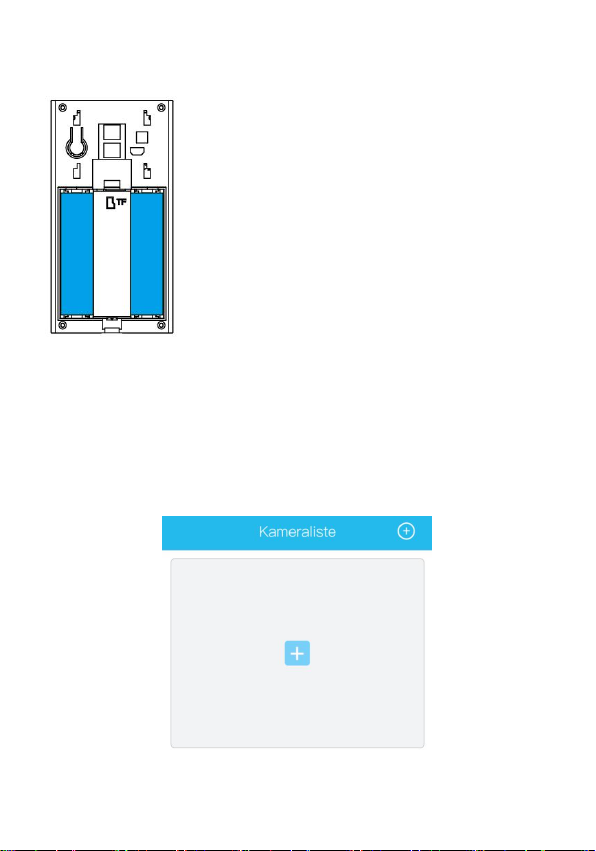

Step 3: Install the battery
(1) Take out the battery cover , insert Micro SD card
(Class 6 or above, not included in standard
accessories) and install 18650 battery(not included in
standard accessories).
(2) Press the Reset button 5S , and waiting for blue
indicator slow flash.
(3) Tighten the battery cover and screw. Install the device
and bracket.
4.Connect the device.
(1) Download the APP “Anyhome” from the mobile application market, open
the APP. (In order to let the users have a better using experiences, please
turn on all the notifications to avoid the notifications get failure. ) Open the
App, click the “+” in the middle to enter into the next step.
(2) Please make sure that you have connected the wifi successfully, choose
the second one “Install the smart device” .
Note: Your phone should be connected with WIFI successfully.

5
(3) Make sure the device is under configuration status when starts to set.
When the device get the power and enter into the configuration status,
there is a voice prompt” Enter into the configuration status”.
(4) If you didn’t hear the voice prompt, please press the button on the video

6
doorbell and wake up the device. Long press the reset key for 3 seconds
and release it till the blue LED light on, the device will restart and enter into
the configuration status.
(5) The wifi network name will be automatically obtained and then please input
the password. And Turn the phone’s volume up to maximum.(The device
supports 2.4G wifi network only, do not support 5G network.)
Note: Please do not turn off the phone’s voice prompt, otherwise it will cause to
pair failure.

7
(6) The phone emits sound waves, please keep quiet at the moment, place the
phone within 30cm from the device and wait for the device configuration
network.
(7) The device already connected to the network, please input the device name
and password, the password requires more than 8, including capital letters,
lowercase letters and numbers. And please select the network location
which the device connected.

8
(8) Setup finish.
5.Operation
Click on the icon “Device settings” to enter setting page.
Reminder
Silence: Mobile phone will receive the notifications .
Notification: Application will send messages to Mobile phone when someone
press the doorbell or there is a call.
Call in: Application will call you when someone presses the doorbell or there is a
call.

9
QR code:
Send the QR code and share it with your friends.
Delete the camera:
Mobile phone will not receive the notifications after you delete the camera.
But the camera still works and other connected mobile phones can also receive
the notifications.
PIR function (Pyroelectric Infrared Sensor)
Click on “PIR detection” to enter the next settings.
Disabled: Turn off the PIR function.
Low: The device will take videos and send an alert to mobile phone if the device
detected someone moving last for 7S.
Middle: The device will take videos and send an alert to mobile phone if the
device detected someone moving last for 5S.
High: The device will take videos and send an alert to mobile phone if the device
detected someone moving last for 1S.
Note：Please turn off or set the “Infrared detection ” to “low ” in a crowed
environment to extend battery life.

10
6. Memory Management
There are two kinds of storage modes for the doorbell, cloud storage and external
SD card storage, respectively.
The doorbell comes with the cloud storage function. When opened, it will
save the video for the last 7 days and save 20 videos each day of system default.
The video can be viewed whenever and wherever possible via the “Anyhome”
APP.
Note: Only the ringing and PIR triggered video will be saved.
The External SD card storage:
The doorbell supports an external SD card and supports up to 32GB of external
memory card. Ringing and PIR triggered videos are saved to the SD card. Manual
recording/photographing of videos and pictures will also be saved on the memory
card. The video can be viewed on the "Anyhome" APP.

11
7. Specification
Resolution: 1280x720
Lens: 166-degree.
IR night vision: 6 pieces 850mm
WIFI: Support 802.11b/g/n
Audio: Support talkback
Record: Micro SD card
Memory: Support 8GB/16GB/32GB
Battery: 2 pieces 18650 batteries
Notification: Within 2S
Wake-up time: Within 600ms
Wake-up: Mode Button / PIR wake-up / Mobile phone wake-up
Power Consumption: 200uA
Working current:: 170mA
Waterproof: IP68 Waterproof
8.Trouble shooting
Q: Can not connect WIFI or the doorbell can’t be pared with phones successfully?
A: 1. Please make sure mobile phone is connected 2.4G WIFI, not 5G WIFI.
2.Please make sure the blue indicator slow blinks when it is pared with phone.
3.Please make sure the password is right and there is no space between
letters.
Q: Mobile phone can not receive the notifications when device is online and
detected something is happening.
A: Turn on “Autostart” and ” Notifications”. Turn off “Battery saver” .
Q: What power supply mode the device support?
A: 1. Battery.
2.AC(8/24V)external Power .
3. Charge with USB cable.

12
9.Instruction Manual (Plug-in Chime)
Thank you for choosing our Plug-in Chime.Please read this instruction carefully before
assembling & using the product.Please Keep this manual carefully for future reference.
Safety Instructions:
1. Please install your Chime according to this manual to avoid any malfunction or
damage.
2.The Chime is designed for indoor use only.
3.The Chime is not user serviceable, this is a danger of electric shock if opened.
4.Do not expose it directly to rain/dripping of immerse in water.
5.Do not mount it close to a fireplace or expose to high temperature.
6.Never use any cleaning chemicals or wet cloth to clean the unit. Only use a dry, clean
and soft cloth/micro fiber cloth.
What is inclued in your kit:
1*plug-in Chime
1*Instruction manual
Specifications:

13
Working
Voltage:
AC 90-250V Working Frequency: 433.92MHz ±
-280KHz
Power
Consumption:
10mW Transmit Power: 0dbm
Sensitivity: -110dbm N.W: 92G
Volume: Up to 110db Chime Size: 82*82*20/82*82*19mm
Note:
Diagrams are only for reference, please in kind prevail.
Installation:
WIFI video doorbell installation (refer to your wifi video doorbell instruction manual.)
Installing plug-in Chime:
Plug into any regular household socket.
Melody Selection:
This Chime provide 52 different melodies. When it is plugged in, press the forward key to
play previous music and backward key to play next music until you hear the chime you
like.
Sound Volume Selection:
Press the volume control repeatedly until the desired volume is achieved-5levels are
available as a circle, lowest level is mute.
Pairing with your WIFI video doorbell:
Press and hold volume button for 4 seconds until the LED indicator lights up, WIFI
enters into pairing mode.Then press the button on the WIFI video doorbell within 5
seconds, pairing is completed once LED indicator on the chime is rapid blinking. When
above procedures are finished, pairing mode is finished and quits automatically.
1. Two or more WIFI video doorbells choosing the same music or same chime: Long
press volume key for 4 seconds to enter pairing mode. Press the first WIFI video
doorbell within 5 seconds to get connection, once LED indicator on chime is rapid
blinking, pairing is completed. Repeat this operation to get each required WIFI video
doorbell connect with same music or same chime unit.When above procedures are

14
finished, pairing mode is finished and quits automatically.
2. Two or more WIFI video doorbells pairing with different music: Long press volume
key for 4 seconds to enter pairing mode.Choose one favorite melody, then press the first
WIFI video doorbell to pair. Press music button to change melody and pair different WIFI
video doorbell one by one. When above procedures are finished, pairing mode is
finished and quits automatically.
3. Two or more chimes pairing with same WIFI video doorbell: Long press volume key
for 4 seconds to enter pairing mode. Then press the button on the WIFI video doorbell
within 5 seconds to connect. Repeat above operations to pair WIFI video doorbell with
required chime one by one.
4 ALL pairing memory clearance: Press and hold volume button for 10 seconds until the
blue light stop blinking, which means all pairing memories has been erased and setting
is successful.Program will return to default then.

15
1.Produkte Struktur
Vorderseite
Zurück Halteplatte

16
2. Grundlegende Anweisungen
2.1 PIR(Pyroelektrischer Infrarotsensor): Es wird eine Nachricht oder ein Anruf an das
Mobiltelefon gesendet, wenn sich jemand vor dem Gerät bewegt.
2.2 IR-Nachtsicht: Sie schaltet sich ein, wenn die Beleuchtungsstärke kleiner als 2Lux
ist.
2.3 Mikrofon Tonaufnahme und Gegensprechanlage.
2.4 Taste: Schalten Sie das Gerät ein, benachrichtigen Sie den Besucher und
verbinden Sie Dingdong.
2.5 Objektiv: Videosammlung.
2.6 Anzeige:
(1) Das System wartet auf eine WIFI-Verbindung, wenn die blaue Anzeige langsam
blinkt.
(2) Das System funktioniert nach dem Drücken der Türklingel und des blauen Blinkers
5S einwandfrei.
(3) Das mit WIFI verbundene System ist nach Drücken der Türklingel und des roten
Blinkers 5S ausgefallen.2.7 Speaker: System prompt and voice intercom.
2.8 Diebstahlsicherung: Um zu vermeiden, dass das Gerät zerlegt wird.
2.9 Zurücksetzen: Um das Gerät bei einem Systemstau oder Absturz
zurückzusetzen.
2.10 Batterie: Batterie 18650 einsetzen.
2.11Externe Macht: Schließen Sie das externe Netzteil an, um Strom zu erhalten.
2.12USB: Laden Sie das Gerät auf.
2.13Externes Stromloch: Schließen Sie das Gerät an die Steckdose an, um das Gerät
mit Strom zu versorgen.
2.14 Steckplatz: Gerät an der Halterung befestigen.
2.15 Festes Loch: Befestigen Sie die Halterung mit einer Schraube an der Wand.
Tipps:
Ding Dong Bell: Diese Türklingel unterstützt die externe Klingel. (Ding Dong Glocke
muss zusätzlich gekauft werden.)
So schließen Sie das externe Netzkabel an:
1.AC/DC 8V-24V Minuskabel und Pluskabel in die feste Bohrung einführen und

17
festziehen.
2.Befestigen Sie die hintere Abdeckung der Klingel und montieren Sie die Klingel nach
dem Stanzen von 4 Löchern an der Wand oder Tür.
3.Ziehen Sie die Glocke mit festem Deckel an.
3.Installieren
Schritt 1: Nehmen Sie die hintere Abdeckung heraus.
Schritt 2: Befestigen Sie die hintere Abdeckung der Türklingel
an der Wand.
(1)Montieren Sie die Rückwand an der Wand mit einer
Schraube (Standardzubehör) oder kleben Sie sie mit einem
3M-Aufkleber auf das Glas (nicht im Lieferumfang enthalten).
(2)Schließen Sie die AC(8-24V)-Leitung (nicht im
Standardzubehör enthalten) über eine elektrische

18
Leitungsschraube an die externe Stromquelle an.
Schritt 3: Einlegen der Batterie
(1)Nehmen Sie die Batterieabdeckung heraus, legen Sie die
Micro-SD-Karte ein (Klasse 6 oder höher, nicht im
Standardzubehör enthalten) und installieren Sie die Batterie
18650 (nicht im Standardzubehör enthalten).
(2)Drücken Sie die Reset-Taste 5S, und warten Sie, bis die
blaue Anzeige langsam blinkt.
(3) Ziehen Sie den Batteriedeckel an und schrauben Sie ihn
fest. Installieren Sie das Gerät und die Halterung.
4.Schließen Sie das Gerät an.
1. Bitte laden Sie die "Anyhome" im Apple Store oder Google Play Store
herunter.(Bitte stimmen Sie allen Benachrichtigungen zu, um eine bessere
Benutzererfahrung zu erhalten.) Starten Sie die Anwendung "Anyhome" und klicken Sie
auf "Gerät hinzufügen".
2.Schließen Sie das Gerät an das Stromnetz an und warten Sie auf die
