Wonbo L5 User manual

Owner's Manual

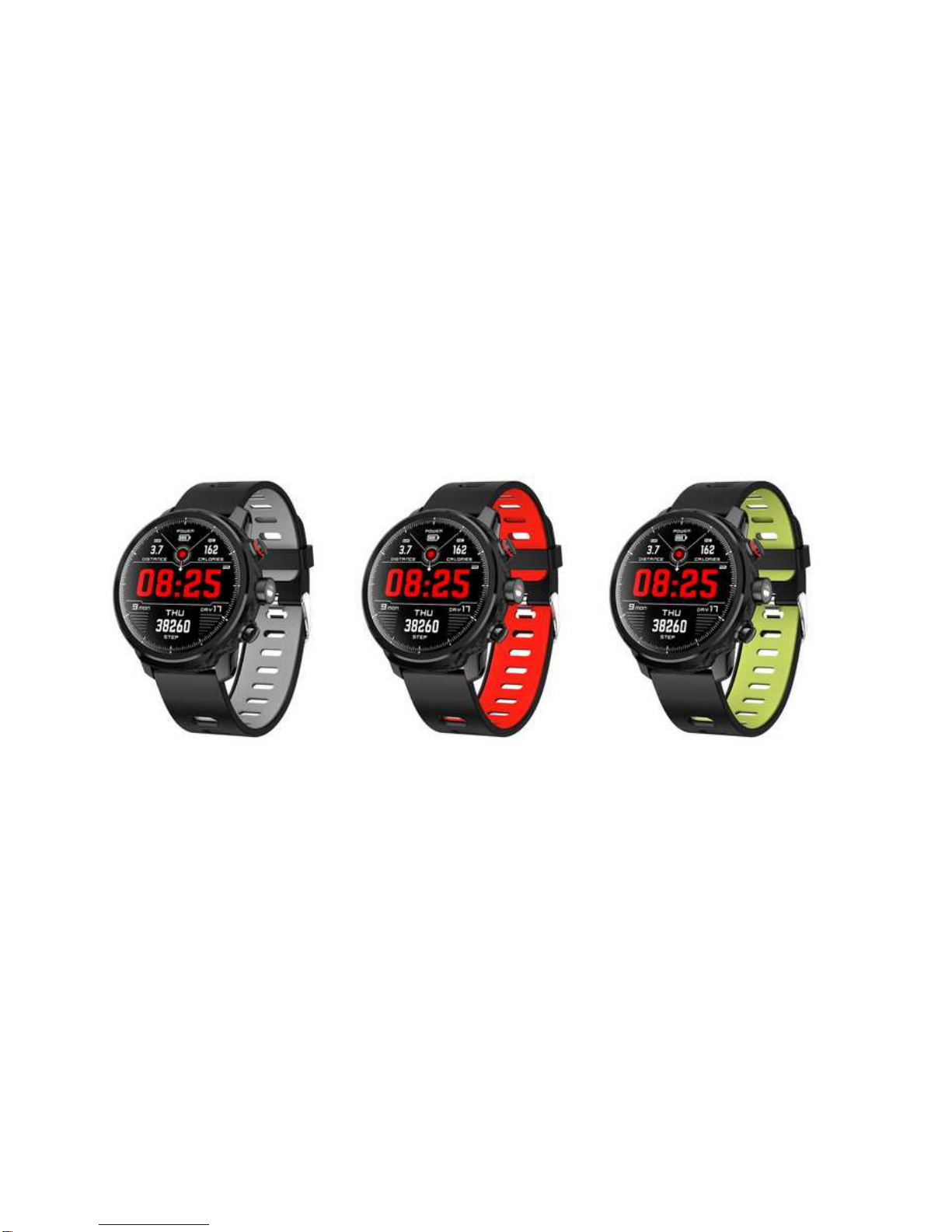

Smart Watch L5

Thank you for choosing our product! To have a comprehensive understanding and using this device, to know all the features and simple operation

method, please read this manual first.

Part 1: Packing List

Check all the accessories if they are complete.

Item No. Accessories Quantity

1 Wonbo Smart Watch L5 1

2 User Manual 1

3 Charging Cable 1

Part 2: Buttons Instruction

Switch button: long press to switch on/off the device, short press to on/off the screen; short press in the operate interface to back homepage.

Torchlight: Switch light on/off.

Touch instructions: tap to select and enter a menu, slip right to return. At the home slide down into status bar; slide right into notification center; slide

left to enter the main menu.

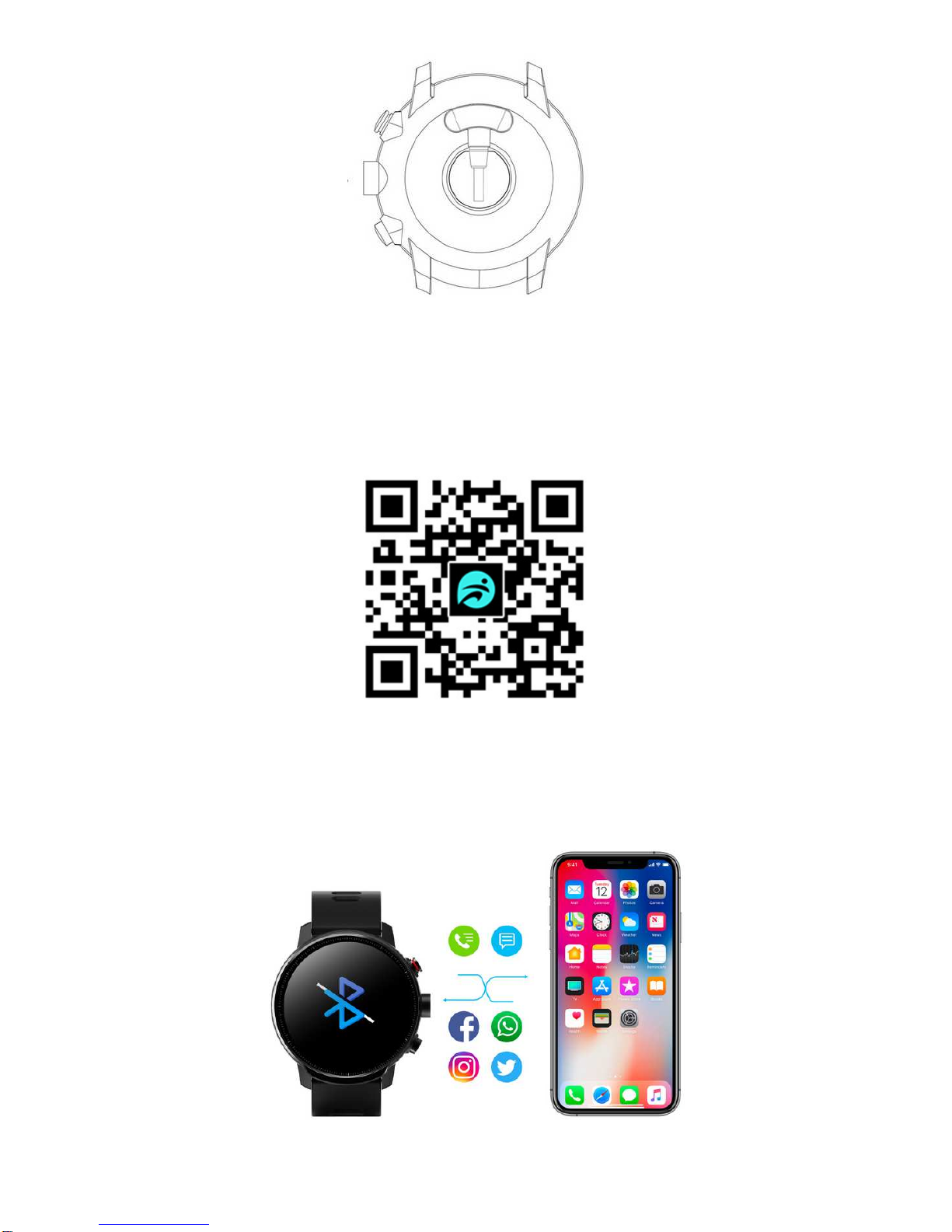

Part 3: Charging instruction

This product adopts magnetic force charging. Put the charging point connect to the back of the device charging pins, it will charge automatically. It

usually takes 2 hours to full charging, device standby time up to 30 days, 5-7 days for working. Do not use the watch when charging.

Caution: Do not make the magnetic charging cable any 2 pins connect with conducting material at same time, it may cause short circuit.

Part 4: Setting Up the Watch

Watch connect to Cellphone, you need yo download the App "Fundo" inthe cellphone at very first, see below 2 methods.

Method 1:

Scan the QR code in the watch (“Setting”-App download) or scan following QR code image to Download “Fundo”.

Method 2:

Search "Fundo" in Google Play Store or Apps Store.

After installation, turn on cellphone Bluetooth and Fundo App, confirm the notifications and others permission Apps asks are enabled, and fill up

personal information. Tap “Add device”, search “L5XXX” device (turn onthe GPS in the smart phone before binding) and tap connect.

Firmware upgrade: When Bluetooth connected, in same interface of “Fundo”, click “More- “Updates”, if there is new firmware available, clickto update

to the latest watch firmware version.

Notice: If it is unsuccessful to upgrade, please reconnect the Bluetooth and try to upgrade again.

As the Bluetooth protocol is different between all the mobile phone brands. Sometimes the Bluetooth connection will be instability between mobile

phone and smart watch. Please restart the Bluetooth, and then try to connect again. Some settings on the phone need to be done for the data

transmission work smoothly.

Part 5: Main function

1. Language/Time/Date:

It will synchronize the date & time from the phone when Bluetooth is connecting.

2. Standby interface:

There are couples of dials for options, long press 2 seconds on the home button to change when on the homepage.

3. Status Bar:

pull-down from the standby state screen. There will show Bluetooth connection status; power percent information and brightness

adjust. Slide left in status bar to enter weather information, data sync from App, need keep phone GPS and network on.

4. Notifications:

synchronous all the phone notifications, such as Facebook, WhatsApp, SMS, Email etc., if you want to display the notifications with

contents, need to setup to displaythe details of Facebook and WhatsApp notice function in the Apps in the phone, it can show the latest 5 notifications,

you can read the details, slide to read next message. It will vibrate for incoming calls and messages. Press the Home Button to stop the vibration.

5. Activity info:

Showing the healthdata including Steps, Mileage, Calories of the day and it will be saved at 12 o’clock every night then reset to 0 in

the coming day. In the histories you can find all the data that saved inside.

6. Exercise:

Select a sport mode to record your work out. It will pause when press the power button, then can choose to save, delete or continue the

measuring. It will record calories and heart rate in all the modes, you can check the details by sliding the screen.

7. Health:

Tap to enter, there are Heart rate and SPO2H, slide down to check history.

Heart rate: Waiting 2 seconds to startmeasuring and record the heart rate data by scanning the surface capillary of the skin by green optical, slide to

other menus to stop measuring. Normally it will be 60-90 bpm, professional athletes may less than 60 bpm. When doing strenuous exercise,the date

may up to 200 bpm. Keep exercising can increase heart and lung.

Blood Oxygen: SPO2H, it is the percent of oxygen in blood, normal rate is 94-99%.

8. Sleep monitor:

The smart watch will turn on it automatically from 10p.m to 8a.m. You can check the details ofsleep quality by connecting Apps in

the phone.

9. Stopwatch:

Press the start and pause, again press for stop.

10. Remote control music:

Play the music at phone side, control at the watch side.

11. More

Alarm: Set several alarm clocks through the App in the phone.

Sedentary Reminder: You can set time to remind yourself stand up.

Find your phone: Tap it and phone makes a ringtone alert.

Wrist bright screen: Set it in the App, it takes more power consumption when it is on.

Units Setup: Metric or British system。

Data transmission: All the data will be saved in the device. No matter pedometer, heart rate, sleep quality, and multi-sport mode, the data all can be

transmitted to the APP in the phone.

12. Settings
