Wonderfire Lincoln BR517S Assembly instructions

INSTALLER GUIDE
For
MODEL BR517S
(G.C. 32-032-12)
Side Fan Flued Inset
Gas Fire
with
LINCOLN
Front
Please keep in a safe place for future reference
600B416/02

2
This Installer Guide gives sufficient details to enable the appliance to be installed
and maintained. If further information is required our Wonderfire service
department will be pleased to help.
Please phone us on 0121 386 6203
In the republic of Ireland call 353 183 75114
Please leave this Installer Guide with the user
A
s supplied, this appliance is for use with natural gas
(G20)
When converted using conversion kit no.591149 this
appliance is for use with propane gas (G31)
This appliance is for use in the United Kingdom (GB)
and the Republic of Ireland (IE) only.
CUSTOMER CARE

3
1. APPLIANCE DATA.............................................................................................................................................4
2. GENERAL INSTALLATION REQUIREMENTS.......................................................................................5
3. UNPACKING........................................................................................................................................................9
4. PREPARING APPLIANCE FOR INSTALLATION................................................................................10
4.1 Cut the fan cable...............................................................................................................................................................10

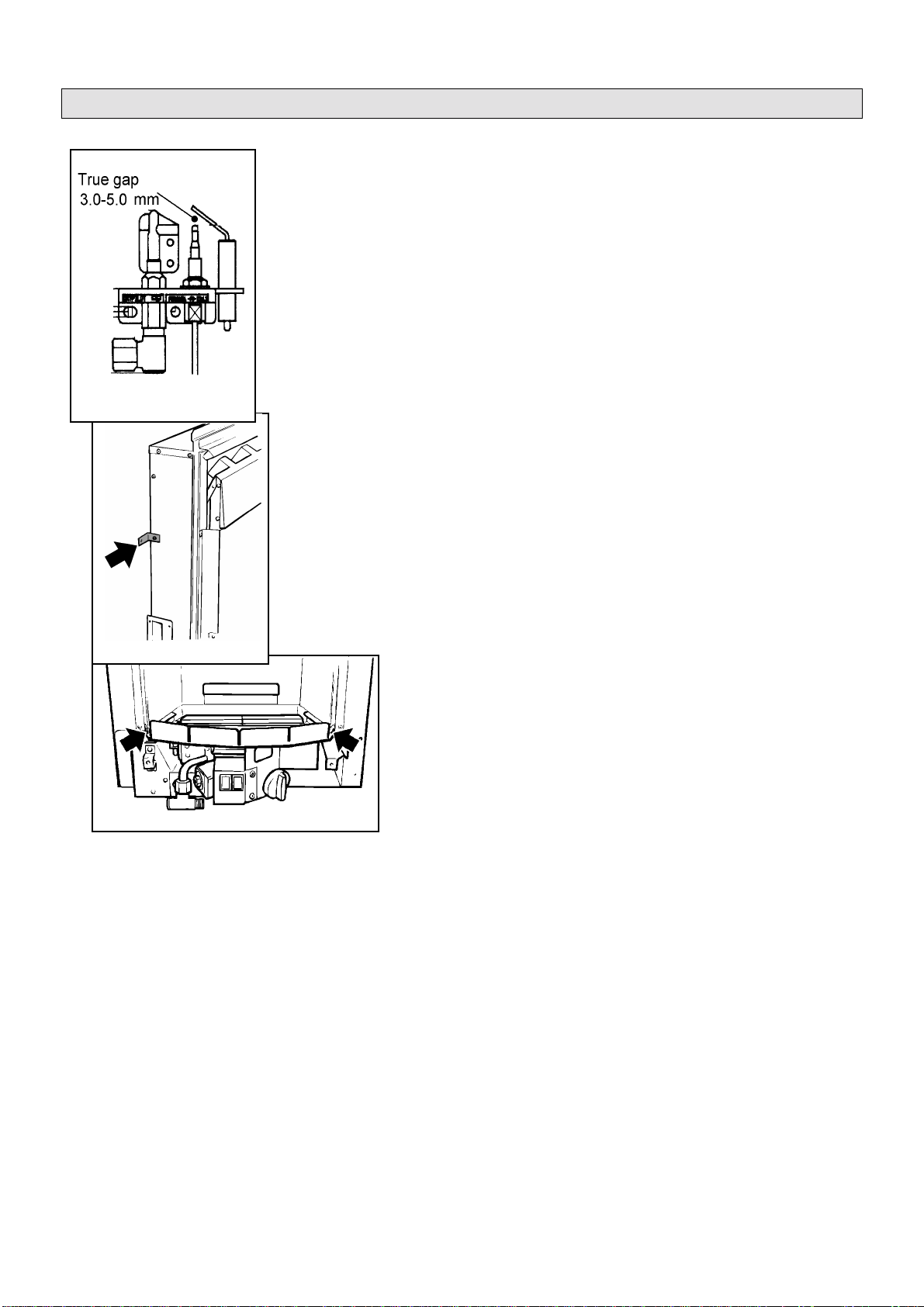

4.2. Check ignition spark ........................................................................................................................................................10
4.3. Detaching fittings.............................................................................................................................................................10
5. ELECTRICAL INSTALLATION...................................................................................................................11
6. GAS SUPPLY & FLUE SITING......................................................................................................................12

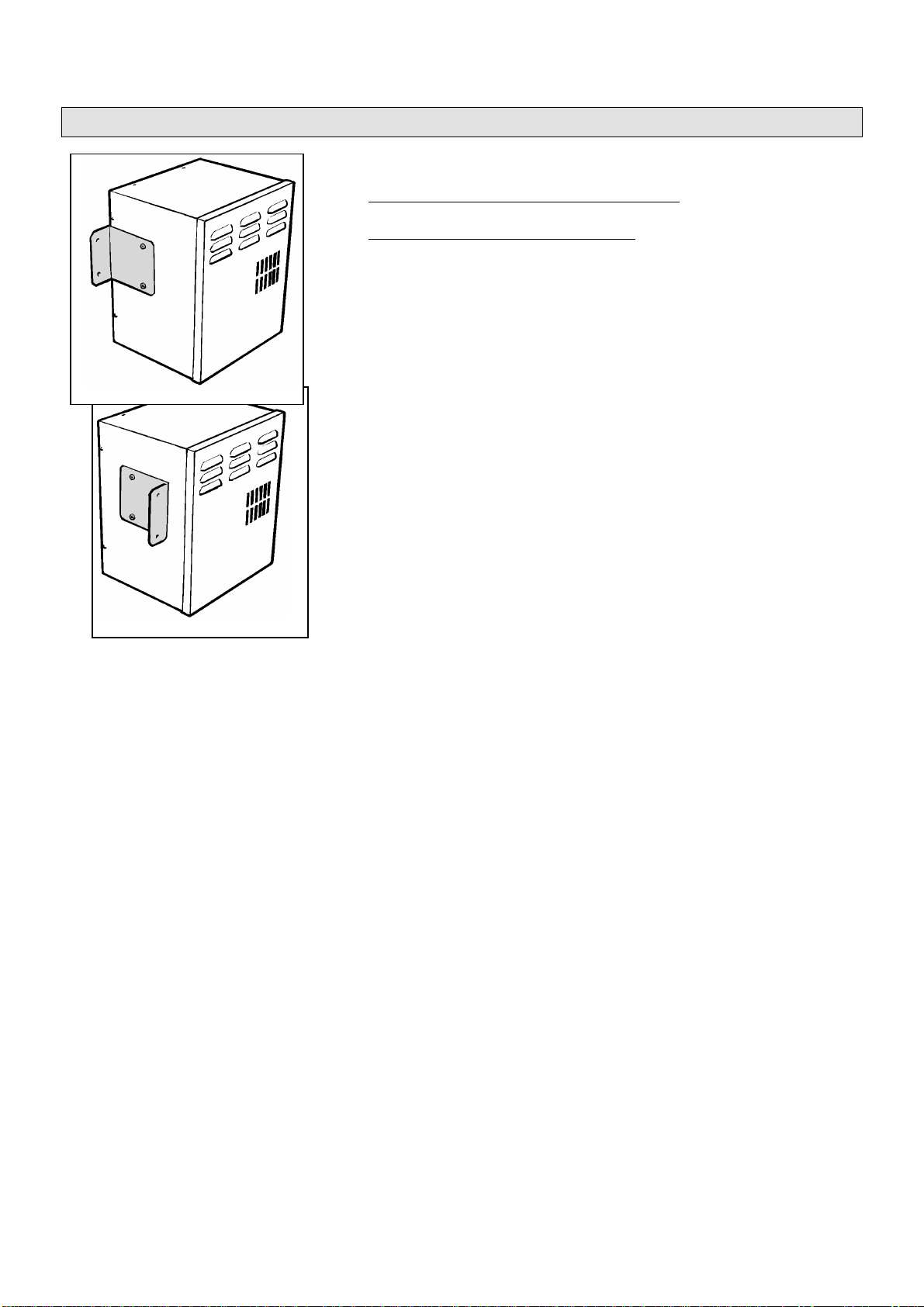

7. FAN BOX INSTALLATION...........................................................................................................................14
8. FLUE DUCTING INSTALLATION.............................................................................................................15
9. ELECTRICAL TEST .........................................................................................................................................18
10. TERMINAL GUARDING................................................................................................................................19
11. INSTALLING THE CAST IRON FIREFRONT........................................................................................20
12. GAS SUPPLY INSTALLATION....................................................................................................................21
13. CERAMIC COALS & WALL INSTALLATION.........................................................................................22
14. FULL OPERATING CHECKS .......................................................................................................................23
15. FINAL REVIEW...................................................................................................................................................25
16. SERVICING & PARTS REPLACEMENT...................................................................................................26
16.1 To Replace Burner Plaques (See Figure 44)...................................................................................................................26
16.2. To Remove The Front Surround....................................................................................................................................27
16.3. To Remove The Pilot Unit.............................................................................................................................................27
16.4. To Completely Remove The Burner Unit....................................................................................................................27
16.5. To Remove The Gas Tap/F.S.D & Solenoid Assembly................................................................................................28
16.6. To Remove The Piezo Generator...................................................................................................................................28
16.7. To Remove The Main Burner Injector..........................................................................................................................28
16.8. To Remove an “On” or “Off” Fan Switch.....................................................................................................................28
16.9. For Access to the Electrical Control Components........................................................................................................29
16.10. To Remove the Distribution block.................................................................................................................................29
16.11 To Remove the Air Pressure Switch...............................................................................................................................29
16.12. To Remove the Fan..........................................................................................................................................................30
17. SHORT LIST OF SPARES...............................................................................................................................31
CONTENTS

4
1. APPLIANCE DATA
This product uses fuel effect pieces, burner back wall and gaskets containing Refractory
Ceramic Fibres (RCF), which are man-made vitreous silicate fibres. Excessive exposure to
these materials may cause temporary irritation to eyes, skin and respiratory tract.
Consequently, it makes sense to take care when handling these articles to ensure that the
release of dust is kept to a minimum. To ensure that the release of fibres from these RCF
articles is kept to a minimum, during installation and servicing we recommend that you
use a HEPA filtered vacuum to remove any dust and soot accumulated inand around the
fire before and after working on the fire. When replacing these articles we recommend
that the replaced items are not broken up, but are sealed within a heavy duty polythene
bag, clearly labelled as RCF waste. This is not classified as “hazardous waste” and may be
disposed of at a tipping site licensed for the disposal of industrial waste. Protective clothing
is not required when handling these articles, but we recommend you follow the normal
hygiene rules of not smoking, eating or drinking in the work area and always wash your
hands before eating or drinking.
This appliance does not contain any component manufactured from asbestos or asbestos
related products.
The appliance data label and wiring diagram are on a tie below the burner and are visible
whenthe bottom front cover is removed.
Gas Natural (G20) Propane (G31)*
Inlet Pressure 20mbar 37mbar
Input - Max. (Gross) 6.0kW (20,500Btu/h) 6.1kW (20,800Btu/h)
Input - Min. (Gross) 2.2kW (7,500Btu/h) 3.6kW (12,280Btu/h)
Output - Max. 3.12kW (10,600Btu/h) 3.6kW (12,280Btu/h)
Output - Min 1.1kW (3,750Btu/h) 1.8kW (6,140Btu/h)
Burner Test Pressure
(Cold) 18.2±0.75mbar (7.3±0.3in w.g.) 35.6±0.75mbar (14.3±0.3in w.g.)
Gas Connection 8mm pipe 8mm pipe
Burner Injector Bray Cat. 18 Size 360 Bray Cat. 18 Size 170
Pilot & Atmosphere
Sensing Device SIT Ref. OP9044 SIT Ref. OPLPG9222
Ignition Piezo Electric. Integral
with Gas Tap Piezo Electric. Integral with Gas Tap
Aeration Non-adjustable Non-adjustable
Electrical supply 230V ~50Hz AC 230V ~50Hz AC
Fan motor rating 55W 55W
Fuse rating 3A 3A
*When converted using kit 591149.

5
2. GENERAL INSTALLATION REQUIREMENTS
2.1 The installation must be in accordance with these instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances are
installed by competent persons in accordance with the current edition of the Gas Safety
(Installation and Use) Regulations. Failure to install the appliance correctly could lead to
prosecution. The Council for the Registration of Gas Installers (CORGI) requires its
members to work to recognised standards.
In the United Kingdom, all electrical supply installation must be installed in accordance
with the current edition of the IEE Wiring Regulations (BS7671).
In the United Kingdom the installation must also be in accordance with:
a) All the relevant parts of local regulations.
b) The current edition of the Building Regulations issued by the Department of the
Environment and the Welsh Office or the Building Standards (Scotland) Regulations
issued by the Scottish Development Department.
c) All relevant codes of practice.
d) The relevant parts of the current editions of the following British Standards:-
BS 5440 Part 1
BS 5871 Part 2
BS 6891
In the republic of Ireland the installation must also conform with:
a) The current edition of IS 813.
b) All relevant national and local rules in force.
c) The current ETCI National Rules for Electrical Installation.
2.2 Electrical isolation of the unit should be by means of a switched fuse spur that
should be readily accessible to the user, easily identifiable and preferably sited adjacent to
the appliance. It should only connect this appliance.
2.3 This fire is a fan flued appliance. This appliance is designed for installation in a
room which does not have a purpose built flue or chimney and where it is intended to be
against a wall where the fanned flue can not be sited directly behind the heater.
2.4 The appliance is suitable for the following flue duct arrangements:-
i. A straight horizontal run up to a maximum of 4.5m. For normal timber frame
buildings a straight run will not be possible. See section 2.5.
ii. A horizontal run up to a maximum of 3m including one or two bends.
Minimum wall thickness 90mm.
iii. A verticalrun up to a maximum of 3m (two bends are required for a vertical
installation). Minimum wall thickness 90mm.
The above run lengths are the total measurements from the rear of the fan box to the duct
connection at the side of the appliance
The flue duct can be fitted to either side of the appliance.

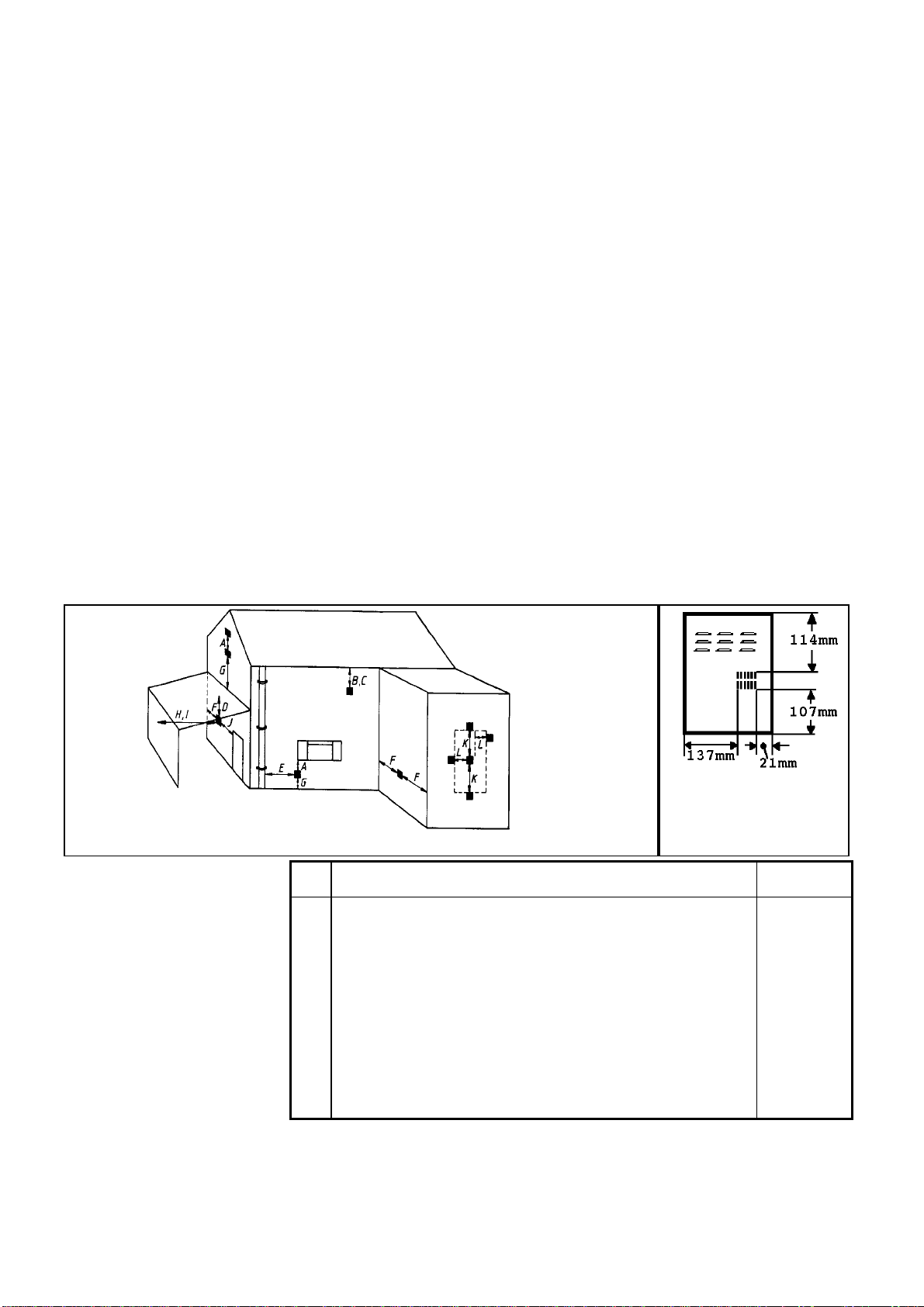

Figure 1 shows the critical installation dimensions.
The standard appliance is supplied with a total of 3m of straight ducting.
The following optional extra kits are available:
Kit No. 517IBK - Internal elbow bend kit
Kit No. 517EBK - External elbow bend kit.
Kit No. 517 FDK - 1.5m extra flue duct length with covers.
Kit No. 517DK - 1.5m extra flue duct length without covers.

6
Figure 1 General Installation Dimensions

7
2.5 This appliance is suitable for installation in conventional buildings
constructed of brick, stone etc. and in timber framed buildings.
Installation in timber framed buildings should be in accordance with the relevant
sections of The Institute of Gas Engineers publication IGE/UP/7 “Gas
installations in timber frame buildings”. Please note that advice should be sought
before installing in a timber frame building since the alterations required may nullify
any NHBC cover relating to the property. If in doubt, guidance should be requested
from your local authority planning or building department.
In timber framed installations an annular non-combustible sleeve should be fitted
around the flue tube where it passes through the combustible inner wall. There
should be a minimum 25mm air gap between the flue tube and the sleeve. The
gap shallbe sealed toprevent the passage of air, heat and moisture. The space
between the flue ducts and the wall on which the appliance is mounted is less
than 25mm. Elbow bends will therefore be necessary to allow the annular sleeve
to clear of the wall on which the appliance is mounted.
2.6 This appliance must be mounted with a non-combustible hearth (n.b
conglomerate marble hearths are considered as non-combustible). The fire box
must be mounted on a non-combustible surface. The hearthmust project at least
345mm forward of the convection box front and be at least 620mm wide (See figure 1).
The hearth material must be at least 12mm thick. The periphery of the hearth (or fender)
should be at least 50mm above floor level to discourage the placing of carpets or rugs over
it.
The surface of the hearth must be sufficiently flat to enable the bottom of the front
surround, the burner bracket and the bottom front cover casting to be aligned
horizontally. Any excessive unevenness (uneven tiles, Cotswold stone, etc.) should be
rectified.
The appliance must not stand on combustible materials or carpets.
2.7 The appliance must not be fitted directly against a combustible wall. If
the appliance is to be fitted against a wall with combustible cladding, such materials must
be removed from the area covered by the metal outer surround of the appliance (see figure
1). We suggestthat the actualsurround is used as a template to mark the area for
combustible cladding removal.
The appliance can be fitted to a purpose made proprietary class “O” 150°C surround.
2.8 The minimum allowable distance from the outside edge of the metal front
surround of the appliance to a corner wall having combustible materials is 178mm at
either side (see figure 2).
2.9 The minimum height from the top surface of the hearth to the underside of any
shelf made from wood or other combustible materials is as follows (See figure 2):-
For a shelf up to 150mm deep
Minimum height = 750mm.
For a shelf deeper than 150mm
Minimum height = 750mm + 12.5mm for every 25mm depth over 150mm.
2.10 Note that soft wall coverings (e.g. embossed vinyl, etc.)are easily affected by heat.
They may scorch or become discoloured when close to a heating appliance. Please bear
this in mind when installing.
2.11 The appliance must not be installed in any room which contains a bath or shower
or where steam is regularly present.
2.12 An extractor fan may only be used in the same room as this appliance, or in any
area from which ventilation for the appliance is taken, if it does not affect the safe
performance of the appliance. Note the spillage test requirements detailed further on in
this manual. If the extractor fan is likely to affect the appliance, the appliance must not be
installed unless the fan is permanently disconnected.
Fig. 2

8
2.13 A fan-powered flue system tends to depressurise the room containing the
appliance. In the United Kingdom no additional ventilation should normally be required.
In the Republic of Ireland permanent ventilation must comply with the rules in force. In
exceptional circumstances however, the spillage check (See further on in this guide) may
indicate a need for further ventilation in order to ensure that there is adequate air
replacement. If necessary seek expert advice.
2.14 Make sure that the damp course or any electrical wiring, piping etc in the wall is
not affected when cutting the flue box or spigot installation hole.
2.15 Any gas supply pipe installed in the wall, floor or cavity of a cavity wall must be
continuous and enclosed in a factory fitted gas tight sleeve (Ref: Gas safety (Installation &
Use) Regulations 1994 as amended & Certificate of exemption no.1 1996).
2.16 Propane gas appliances must not be installed in a room which is built entirely
below ground level (see BS 5871 Part 2).
2.17 A concealed gas supply connection can be made through grommet near the right
corner of the rear panel. Visible front connection can be from the left or right side.
2.18 Electrical connection to the isolating switched fused spur is from the left side.
2.19 The flue terminalshould be located so that the wind can blow freely across it at
all times and where any blockage due to leaves, snow, etc. is unlikely. The minimum
allowable distances from the terminal are shown in the following table and figure 3. Note:
The distances are from the edge of the vertical exit slots in the terminal not from the edges of the
rectangular box (See figure 3a).
Terminal Position Minimum
Distance
ADirectly below an opening, air brick, windows, etc. 300mm
BBelow gutters, soil pipes or drain pipes 75mm
CBelow eaves 200mm
DBelow balconies or car port roof 200mm
EFrom a verticaldrain pipe or soil pipe 75mm
FFrom an internal or external corner 200mm
GAbove ground, roof or balcony level 300mm
HFrom a surface facing the terminal 600mm
IFrom a terminal facing the terminal 1200mm
JFrom an opening in a car port (e.g. door, window) into dwelling 1200mm
KVertically from a terminal on the same wall 1500mm
LHorizontally from a terminal on the same wall 300mm
MProjection outwards from wall 50mm
2.20 This appliance is supplied with a terminalguard. In England and Wales, the
Building Regulations require that the terminal guard is fitted if the flue terminal can come
in contact with people near the building or be subject to damage. Even if the regulations
do not demand it, we recommend that the guard is fitted to prevent damage or blockage
of the flue system by leaves etc.
Fig. 3
Minimum distances for
terminal positions shown in the
table are from slot openings
Fig. 3a

9
3. UNPACKING
This appliance is contained in three packs. The packs contain the following (see figure 4).
Pack 1 contains:
1 Burner & convection box unit
1 Fan & flue box unit (with wall
mounting brackets attached)*.
1Terminalguard.
1 Flue duct connector unit &
gasket.
1 Flue duct Z coupling.
1 Nut & olive for 8mm inlet
pipe.
1 Ceramic back wall.
1Frontbasecoal
1Rearbasecoal.
1 Pack of 9 loose coals.
1 Pipe bending template.
1 Surround cutting metal
template.
1 Smoke match tube.
1 Terminal weather shield.
1 Junction box with cable clip,
earth lead sleeve & fixings.
1Packoffixings
1 Literature pack.
1 Strip gasket & sealing tape (For
surround insulation)
Pack 2 contains:
1Castironfirefront
1Ashpancover
Pack 3 contains:
2 1.5m long flue ducts.
2 1.5m long duct backing plates.
2 1.5m long duct front covers.
4 Duct support brackets
4 Machine screws & nuts
4 Spring clips (for cable).
3 Joint covers.
1 Duct bridging tube
4 Woodscrews, plastic washers &
wall plugs
2 Lengths sealing tape
Figure 4

10
4. PREPARING APPLIANCE FOR INSTALLATION
4.1. Cut the fan cable
The appliance is supplied with the fan supply cable linking the fan box to the convection
box unit. To enable the fan unit to be installed to the wall, the cable willhave to be cut. A
junction box is supplied for reconnecting the cable after installation of the fan unit and
ducting. The junction box is intended to be fixed to the wall at the side of the appliance. It
should be positioned so that it will be behind the fireplace surround.
Cut the cable at the point suitable for reconnecting to the junction box. This will usually
be just past the end of the grey abrasion resistant insulation sleeve.
!Always cut the cable before the mains cable is connected to the electricity
supply system.
4.2. Check ignition spark
Before attempting to install, it is worth checking that the piezo electric spark ignition
system operates satisfactorily.
To initiate the spark, depress the control knob and while keeping it depressed, turn
anticlockwise through approximately 60° to the “PILOT/IGN” position. A spark should
track from the electrode pin to the thermocouple tip. If there is no spark or incorrect
tracking, check the spark gap between the electrode wire and thermocouple tip (see figure
5). If the spark gap is correct, check the ignition wiring.
4.3. Detaching fittings
4.3.1 Detach the terminal guard and other fittings from the back of the convection box
by removing two screws and washers. The two screws are for transit purposes only but the
washers will be required to fit the guard to the fan box outlet - Do not discard them.
4.3.2 For transit purposes the wall fixing brackets are fitted to the convection box
facing inwards. Remove the brackets and refit them with the long legs facing outwards
(see figure 6).
4.3.3 In the majority of cases temporary removal of mains cable will
make connection to the isolating switch easier. To allow this, the burner
unit will need to be detached. Detach the burner unit from the convection
box by removing two screws (see figure 7).
Figure 7 Burner Removal Points
Figure 6
Figure 5 Pilot Ignition
System

11
5. ELECTRICAL INSTALLATION
5.1 Install a power supply at a switched fuse havinga minimum separation of 3mm
at all poles. The spur should be readily accessible to the user, easily identifiable and
preferably sited adjacent to the appliance. It should only connect this appliance.
5.2 To simplify installation of the cable supplied, it may be most convenient to
disconnect it from the appliance as described below, install it to the wall and then
reconnect to the appliance:
To disconnect the cable:
1. Detach the burner (See section 4.3).
2. Detach the control unit from the convection box left side flange by removing two
screws (see figure 8). Carefully pull the unitslightly forward.
3. Detach the control unit cover by removing one screw (See figure 9).
4. Remove the cable by releasing the cable clamp and detaching the leads from
the terminal block and earth contact tag.
5.3 When installing the cable, leave a minimum of 200mm of the cable
slack at the cable clamp end to allow installation of the appliance after
reconnection to the control box and to allow future removal of the control box
for servicing.
5.4 If the spur is at the right side of the appliance, run the cable under the
hearth. The cable must not run directly under or behind the appliance.
!WARNING: Do not switch on the power supply until after the
fan cable has been correctly connected to the junction box - See
part 8.
Figure 9 Control cover fixing
Figure 8 Electrical control unit
fixings

12
6. GAS SUPPLY & FLUE SITING
6.1 If the gas supply pipe is to enter through the concealed rear opening, pierce the
grommet. If the supply pipe is sleeved, trim the sleeve back where it enters the appliance
and seal the sleeve to the pipe.
If the supply pipe is to run from the side of the appliance and enter through the concealed
rear opening, the wall will usually have to be chased to accommodate the pipe at the back
of the heater.
6.2 An installation template is supplied which includes a diagram for forming the
pipe so that it avoids various components below the burner.
6.3 This appliance is designed for installationwith a 114mm. (4.5in.) deep fire
surround or false chimney breast. For horizontal duct installations the skirting board will
have to be removed from behind the hearth and along the total length of the flue duct run.
If the skirting is not removed the depth of the fire surround will need to be
increased accordingly.
6.4 Place the hearth in its proper location. Place the appliance on the hearth
in its proper location. Mark the position of the wall fixing brackets. Note: If a
surround deeper than 114mm is to be installed, spacers will be needed behind the wall
mounting brackets.
6.5 Remove the appliance. Drill holes at the marked positions using a no.10
drill and plug.
6.6 For duct connection from the right side:
6.6.1 Remove the flue aperture cover and gasket and fit them to the left side (see
figure 10). Be careful not to damage the gasket.
6.6.2 Remove the fan cable clamp from the rear left of the convection box. Replace
the screw thus removed into the convection box. Clamp the cable at one of the screws
at the right side of the box (see figure 11).
6.7 Fit the flue duct connector to the open side of the convection box with four
tapping screws. The narrow edge of the connecting plate must be at the back (see
figure 12).
6.8 Place the appliance back in position. Secure it to the wall through the two side
brackets using two woodscrews provided.
6.9 For horizontal duct installations: Fit the “Z” shaped duct coupling to the
duct connector pushing firmly to ensure a good seal. Rotate the coupling so that its
open end is as low as possible (see figure 13).
6.10 For vertical duct installations: Fit an elbow bend duct to the duct connector
pushing firmly to ensure a good seal. (see figure 14).
6.11 Mark the wall at the centre line of the flue duct (54mm above the hearth for
horizontal installations, 200mm from theside of the convectionbox for vertical
installations). Draw a line at this position alongthe wall from the heater to where the
fan box hole will be drilled.
6.12 Drill the flue hole through the wall. The hole centre should be on the flue duct
centre line. For buildings constructed of brick, stone etc use a 3½in. (89mm) core drill.
For timber framed buildings a sleeved 25mm gap is required between the flue duct and
the combustible leaf. For horizontal installations, elbow ducts will be required to keep the
gap clear of the wall on which the appliance is mounted (see section 2.5.1). Drill a 5in
(127mm) dia. hole. The interior surface of the wall where the hole is exposed must be
finished with non-combustible materials.
Figure 14
Figure 13
Figure 12
Figure 11
Figure 10

13
6.13 If it is intended to recess the fan box into the outer wall, make a
rectangular opening as shown in figure 15. The depth of the recess is 145mm
leaving the 50mm minimum projection required outside the wall.
Note that the fan box is not designed to be recessed into a timber framed building.
Figure 15

14
7. FAN BOX INSTALLATION
7.1 For transit purposes the fan mounting brackets are supplied fitted to the fan
box facing inwards. Remove them and refit as described below.
7.1.1 If the fan box is to be sited totally outside the wall fit the brackets with the
short flanges flush withthe air intake end of the fan box (see figure 16).
7.1.2 If the fan box is to be recessedinto the wall fit the brackets with the short legs
50mm from the air outlet face of the fan box (see figure 17).
7.2 Place the fan box in position with the duct connection spigot in the hole in
the wall and, if applicable, the fan box inthe recess. Push the box inso that the fixing
brackets are against the wall and mark the screw fixing positions on the wall.
7.3 Remove the fan box. Drill the marked positions using a no.10 drill and plug
the holes.
7.4 Push the fan cable through the hole in the wall into the room.
7.5 Replace the fan box in position on the wall. Make sure when inserting the
duct connection spigot that its end does not cut into the cable.
7.6 Secure the fan box to the wall with the wood screws supplied.
7.7 Make good around the flue box ensuring that there are no gaps between the
fan box and wall.
Figure 17 For box recessed in wall
Figure 16 For box totally outside wall

15
8. FLUE DUCTING INSTALLATION
8.1 The fireplace surround will have to be cut away at the side where the duct
connects to the appliance. A template is supplied to aid accurate cutting. It will be simpler
if the side is cut before assembling the top to the sides. Place the template against the
surround side as shown in figure 18. Mark the shape of the opening on the surround. Cut
the opening.
8.2 Cut the backing plates to length. Note that the appliance end of the backing plate
should abut against the outside face of the fireplace surround side. It does not go inside the
surround.
For corner installations the ends of the plates must be mitred and butted together even
when covered by the elbow front covers. Small children could touch the hot ducting if
there are any gaps between the top horizontal flanges or bottom angled flanges of the
backing plates.
8.3 Measure the length of the duct run between the intersection of the horizontal
and sloping sections of the “Z” coupling (“A” in fig. 19), fan box spigot and, if
applicable, elbows. The ducts must run from within 10mm of the intersection”A” and
enter the fan box spigot or elbow by a minimum of 40mm and a maximum of 70mm.
A bridging tube is supplied to aid manipulation of the ducts while installing. The
swaged end of one duct (the end with the seal) can be cut to allow a gap of up to
125mm to be bridged (see figure 20).
Cut the ducts to suit the installation.
8.4 Align the backing plates so that the centres of the fixing holes are at the height of
the duct centre line drawn on the wall (see section 6.11). Mark the wall through two of
the slotted holes in each backing plate. Usually the best fixing positions will be those
which are closest to the ends of the backing plates.,
Figure 20
Figure 19
Figure 18

16
8.5 Remove the backing plates. Drill the wall at the marked positions using a no. 10
drill. Fit the wall plugs supplied.
8.6 Fit two plastic duct support brackets to each backing plate through the round
holes with the machine screws and nuts supplied. The screw heads must be on the outside
(back) face of the backing plates (see figure 21).
The brackets should be fitted so that they will support the ducts as near as practical to the
ends of the ducts. Note, however
•The brackets will not go over the swaged ends of the ducts.
•The brackets will not go over the bridging tube.
•The bottom angled edges of the backing plates should not catch in the cable
clip slots inthe brackets.
8.7 Fix the backing plates to the wall. The plastic spacing washers must be fitted
between the backing plates and the wall. Fit using the wood screws provided (see
figure.22).
8.8 Place the flue ducts in position. Fit the bridging tube over one of the ducts.
Locate the ducts to the “Z” coupling, flue box and, if applicable, elbows. The flue ducts
snap into the plastic support brackets (see figure 23).
If the alignment of the backing plates and ducts is not quite right, remove the ducts,
slacken the screws holding the backing plates to the wall and realign them. Refit the
ducts.
8.9 Slide the bridging tube so that it overlaps each duct by a minimum of 50mm.
Seal each end of the bridging tube to the ducts with the tape supplied (see figure 20) .
8.10 Fit the fan cable into the “C” sections at the bottom of the support brackets
(see figure 24).
8.11 Further support for the fan cable (especially at corners) can be provided
using the spring cable clips supplied in the pack. Fit the clips to the bottom edge of
the backing plates and attach the cable (see figure 25).
8.12 Select a suitable location for the fan cable junction box. Fit the box and
connect the cables as follows (see figure 26):
8.12.1 Remove the screw from the centre of the junction box. Remove the cover.
8.12.2 Place the junction box in position. Mark the wall through the two holes in the
box.
8.12.3 Drill the wall and fit the wall plugs supplied.
8.12.4 Fix the junction box to the wall with the two screws provided.
8.12.5 If necessary shorten the cable attached to the fan box to a suitable length so
that it does not need to be coiled up.
8.12.6 Strip the ends of the wires. Cut the earth lead sleeve (yellow & green) into two
pieces so that they will cover the exposed ends of the earth
wires. Slide a length over the bare earth wire in each cable.
8.12.7 Connect the leads to the junction box as shown in
figure 26. Ensure that the colours of the leads in the fan cable
connect with the matching colours in the appliance cable.
8.12.8 Fit the cable clip over both cables as shown in figure
26. Place the clip in position against the wall. Mark the wall
through the fixing hole. Move the cables and clip out of the
way. Drill and plug the wall. Replace the clip. Screw the clip to
the wall making sure that the two cables are firmly clamped.
Refit the junction box cover.
Figure 26
Figure 25
Figure 24
Figure 23
Figure 22
Figure 21

17
8.13 When installed in a fire surround made of wood or other “combustible” material,
the ducting must be insulated from the surround where it passes through the aperture in
surround side. Wrap the insulating gasket round the duct and secure with the sealing tape
supplied as shown in figure 27.
8.14 For horizontal duct installations:
8.14.1 Size and cut the duct front covers and, if applicable, the elbow front covers. Note
that the appliance end of the duct front cover should abut against the outside face of the
fireplace surround side. It does not go inside the surround.
8.14.2 Secure the covers in front of the ducts by springing them over the location
channels in the support brackets (see figure 28).
8.14.3 Where applicable, snap fit the joint covers over the joints between the duct
covers and snap fit elbow covers at the corners.
8.15 For vertical duct installations:
Normally a false chimney breast will be constructed to hide the ducting. The duct
front covers will not, therefore, be required for these installations, but there must be
at least 25mm space between the duct pipes and any combustible surfaces. If,
however, the ducting will be visible, fit the front covers as described for horizontal
installations (section 8.14).
8.16 Install the fireplace surround or complete the false chimney breast.
Important: The appliance must not be left with the customer in a condition where
it can be turned on unless the hearth and surround (or false chimney breast) are
completely installed.
8.17 The backing plates, front covers and joint covers can all be painted to
suit the room decor with any of the widely available primer and finishing
paints suitable for coating metal surfaces.
8.18 Do not block the gap between the top horizontal flange of the duct
backing plates and the top rear edge of the front covers (see figure 29).
Figure 29
Figure 28
Figure 27

18
9. ELECTRICAL TEST
9. 1 Switch on power supply. The red indicator
light at the left side of the burner should be on .
9.2 Press and hold in the “on” switch. Within
two seconds, the Fan motor should start and the
indicator light should go out.
9.3 Release the “on” switch. The fan should
continue to run.
9.4 Press the “off” switch. The fan should stop
and the indicator light should come on.
9.5 The fan has a “boost” speed intended to
clear any minor exhaust obstructions. To check its
operation:
i) Switch the fan on (9.1 to 9.3 above).
ii) Go outside the building and place a hand over the rectangular
exhaust outlet of the terminal. The fan should be heard to increase to
“boost” speed within approximately two seconds.
iii) Remove the hand. The fan should revert to normal speed after
approximately three seconds.
9.6 The unit includes a blocked flue sensor system. To check its
operation:
i) Switch the fan on (9.1 to 9.3 above).
ii) Block off the rectangular exhaust outletof theterminal. The
system should shut down and the indicator should light within ten
seconds.
iii) After checking remove the flue blockage.
If the above tests are not satisfactory, refer to the servicing section of this manual.
Note: At times of very windy weather or low voltage conditions the fan may switch between boost and
normal speeds. A click from the atmospheric pressure sensor may be heard as the fan switches speeds.
Figure 31 Controls
Figure 30 Wiring diagram

19
10.TERMINAL GUARDING
Fit the weather shield and guard to the back of the flue unit as detailed below (see
figures 32 & 33).
10.1 Remove the two screws near the sides of the terminal end just below the
louvres. Remove the screw near the bottom of the terminal end.
10.2 Place the weather shield in position aligning the holes in the shield with
those at the sides of the end plate. Secure with the two screws previously removed.
see figure 32.
10.3 Fit the terminal guard (see figure 33). Secure the guard at the bottom and at
the top between the two right hand columns of louvres using screws included in
the fixings pack and the washers which were holding the guard to the convection
box for transit (see section 4.3).
Figure 33 Terminal Guard Installation
Figure 32 Weather Shield Installation

20
11.INSTALLING THE CAST IRON FIREFRONT
9.1 Warning! The Lincoln front is
cast iron weighing around 20kg
(44lbs). To avoid any risk of injury, if
you have any doubt of your ability to
easily lift this front ask someone to
assist you. Having assistance when
installing this front will also reduce the risk
if damaging the front or anything nearby.
We suggest that parts of the cardboard
packaging, or similar, is used to protect the
hearth and fireplace surround.
9.2 The front has a location plate at
the rear of the mantle shelf and a lug at the
rear of eachvertical column. These locate
into the convection box. Carefully lift the
cast front into position square with the
convection box taking care not to damage
the slide control mechanism.
Holding the cast front a little above the top
surface ofthe convection box, locate the
two lugs into the lower case support brackets and the upper location plate into
the two slots in the upper case front support. Gently lower the cast front onto
the hearth making sure that it causes no damage to the hearth or fireplace
surround. The cast front should sit squarely on the hearth and against the
vertical surface of the fireplace. See figure 34.
Note: If the gas supply is across the hearth, make sure that the supply pipe
is located through the purpose provided slot in the front casting – See figure
35.
Fig. 35 Side supply pipe entry
Fig. 34 Lincoln front installation
