Wonjin Muslan POWER-Q2100 User manual

User’s Manual
Product Name : Compressible Limb Therapy System
Model : POWER-Q2100 / POWER-Q2200

Contents
1. Product Name, Model, Descriptions 3
2. Indications 3
3. Purpose 3
4. Name of Each Parts 4~5
5. Pre Cautions 6~9
6. Preparation before use 10
7. How to use 11~14
8. General Information 15
9. Custody and Management 16
10. Temporary action taken during usage 17
11. WARRANTY 18

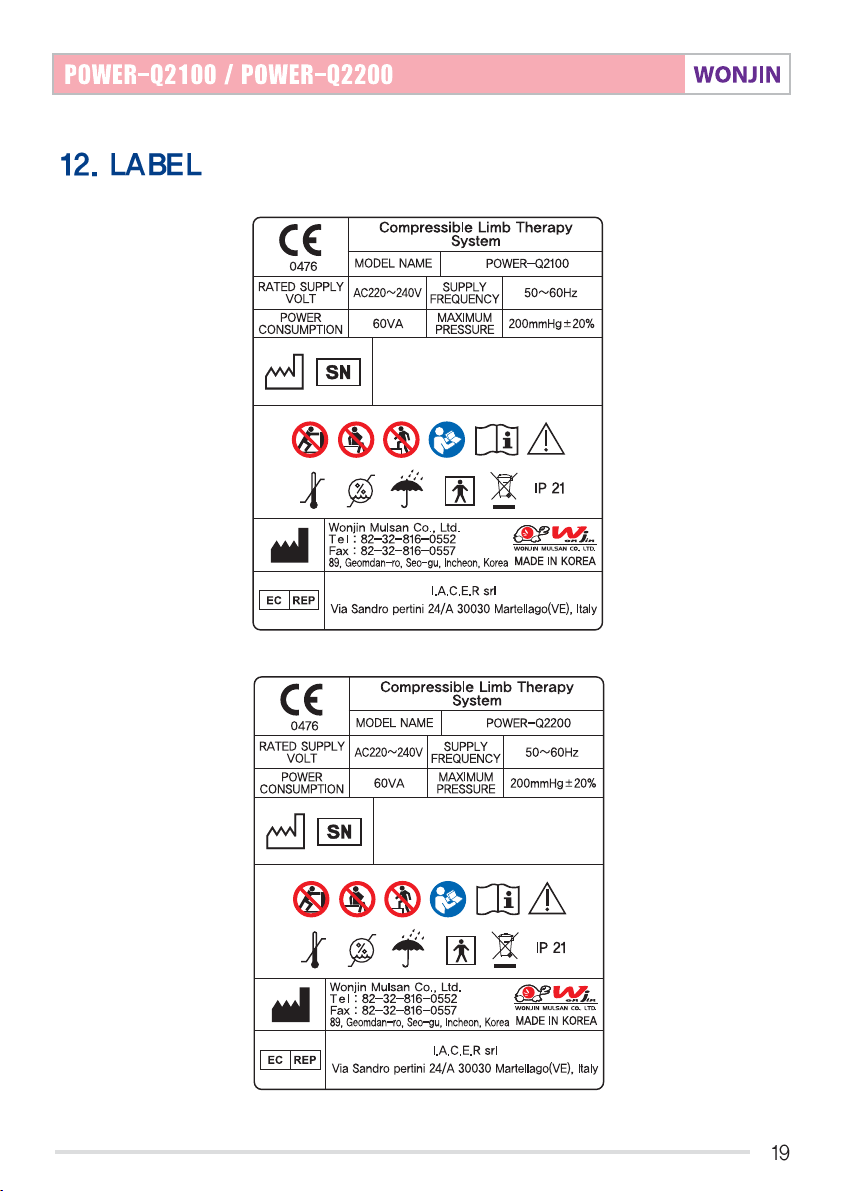

12. LABEL 19

Product Name
Model Name
Dimensions
Rated Voltage
Power consumption
Time (Selectable)
Maximum Pressure
Weight [Main Body]
Compressible Limb Therapy System
POWER-Q2100 / POWER-Q2200
290(L) X 260 (W) X 172(H) (mm)
AC 220 ~240V, 50/60Hz
60 VA
15 min , 30 minutes
200mmHg 20%
3.1 kg
This device is intended for use by medical professionals and patients at home, who are
under medical supervision, in treating many conditions, such as:
Primary lymphedema
Edema following trauma and sport injuries
Post-immobilization edema
Venous insufficiencies
Lymphedema.
Compressible Limb Therapy System is a pneumatic pressure treatment system
that repeats expansion sleeves to help blood circulation and prevent blood clots or clogs.
This machine has two air outlets ( A & B ) and two cuffs will be inserted and used into
each air outlet at the same time.
If you can use only a cuff , you have to block the other air outlet with air blocked plug.

It has 3 kinds of cuff.
- Leg cuffs (Right, Left ), Waist cuff (pad), Arm cuff
These cuffs are consisted in a machine as an optional goods according to
user's purchase order or as a whole set (all of them).
Extension zipper is necessary for bigger user
( Fig 1. Two hoses connection)
POWER-Q2100
POWER-Q2200
Leg Cuff
Arm Cuff
Waist Cuff Single Hose
Extension Zipper
Power Cord
Foot Pad
Double Hose Blocked Jack
( Fig 2. One hose connection)

Name plate,

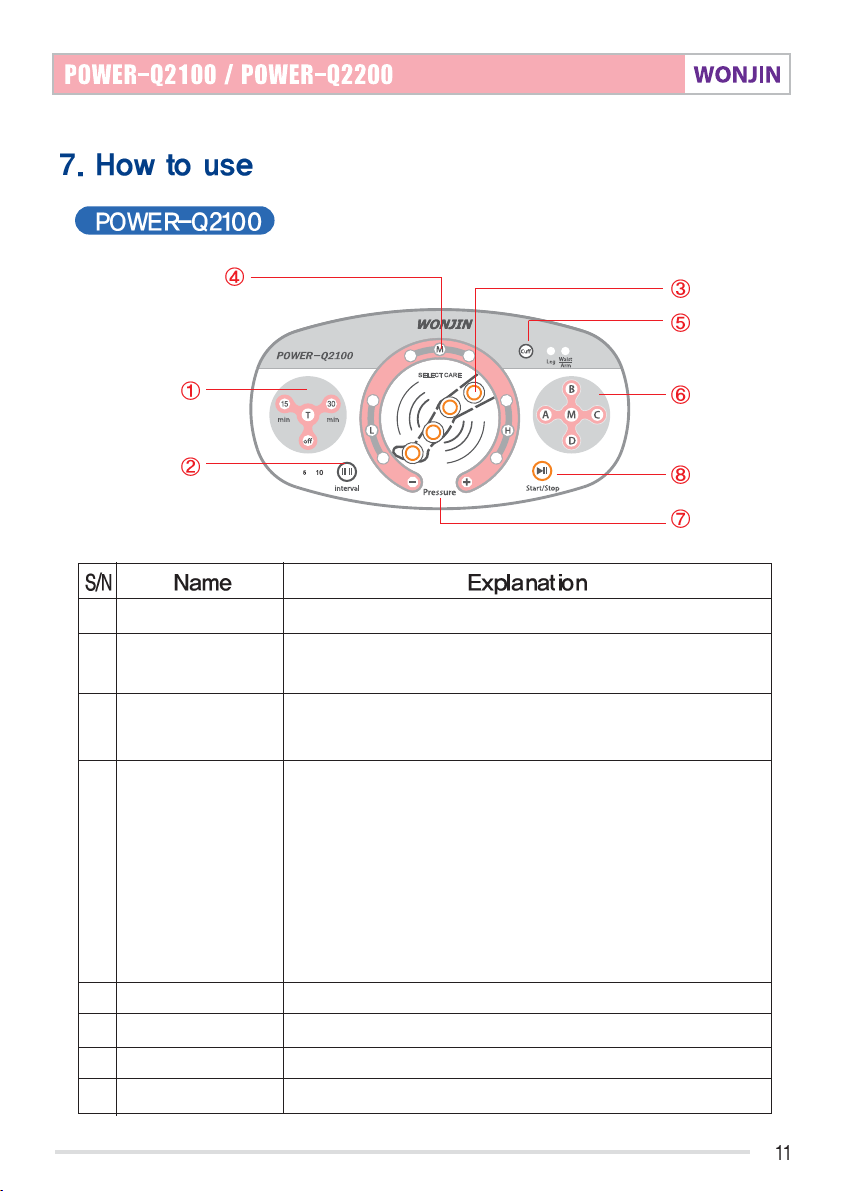

Control button
1
Function command word is shown on the name plate.
Press the command word ( Pressure , T(Time),
Interval, Select care , M (Mode), Start/Stop ) to be
selected.

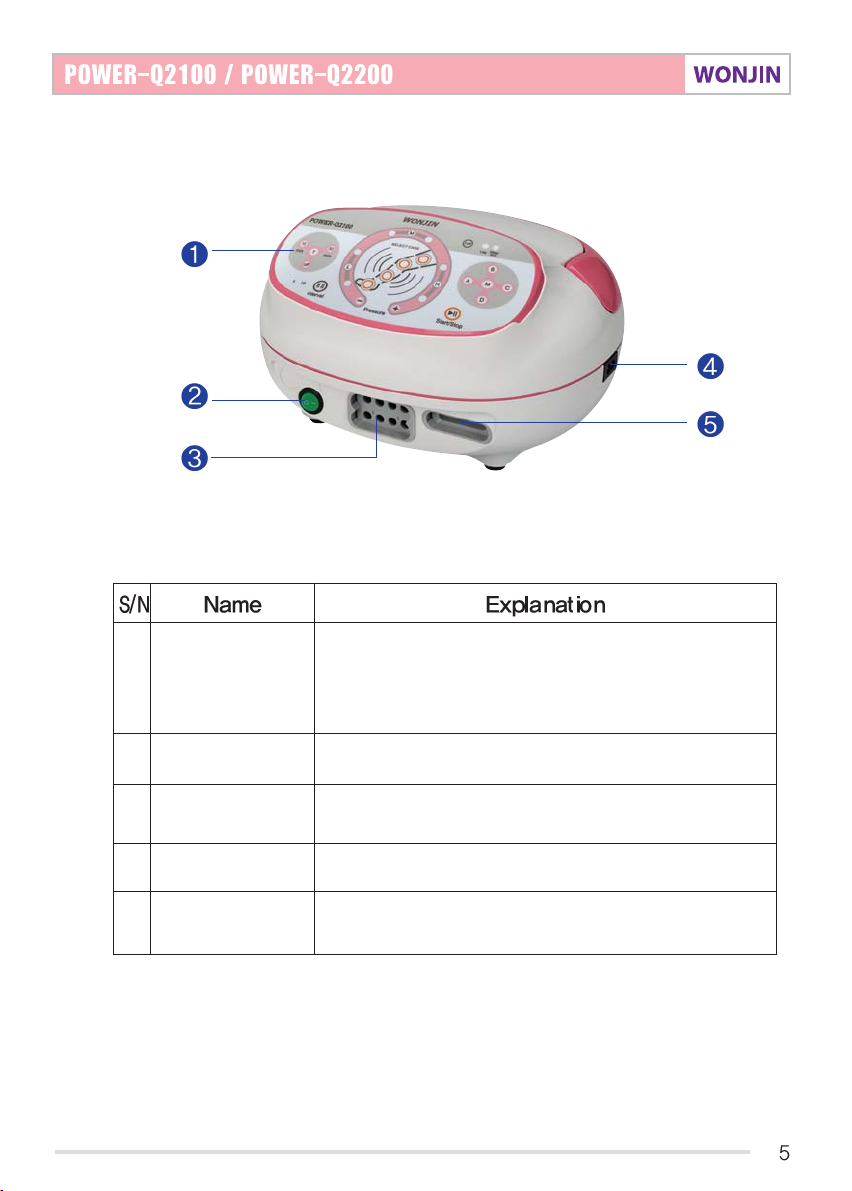

Power switch
2Input power turns ON/OFF.
INLET
4Connected Input power cord
Air outlet
3Compressed air is coming out from the main body and
flowing into the cuff through the Hose
Plugged space
for blocked jack
5If you do not use blocked jack,
plugged into the blocked jack here.

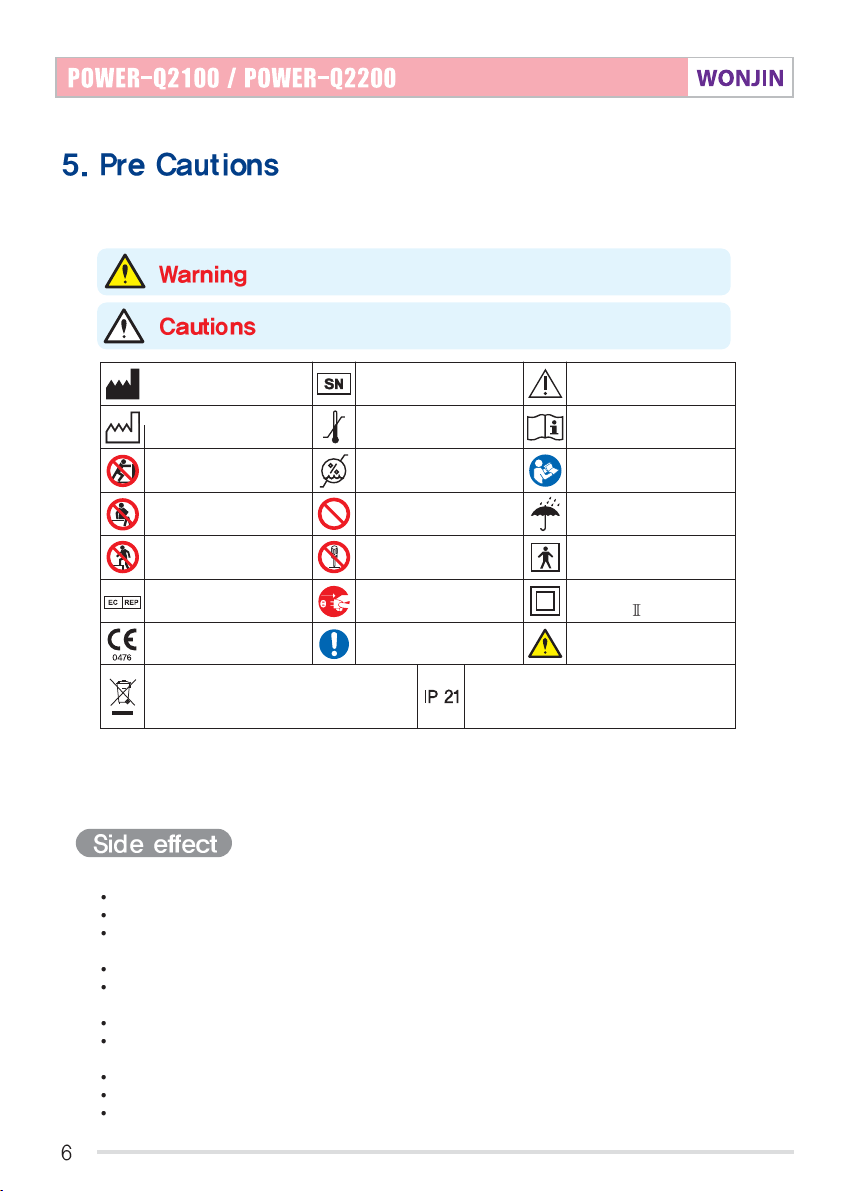

- This is for user safety and prevention against the property damage.
Please read it carefully prior to using the product.
- This device is used only in hospital.
- Patients should wear clothes before wearing cuffs.
- Operator-enabled: This device should be used by professional or trained personnel.
- Environment: This device should be used in the hospital and should not be used for users in any
environment outside of a professional healthcare facility.
These people can cause side effects.
Using medical electronic implant device (artificial heart)
A person who is in pulmonary edema, heart disease, vein cancer, high blood pressure, high fever.
A person who have skin disease such as skin burn, dermatitis, bedsore, purulent disease, malignant
tumor and etc.
A person who took skin surgery (skin graft) on the part of use.
A person who has blood vessel disease such as serious artery hardening or other angina, cardiac
infarction and etc.
Cases the suspected blood clot presence
A person who has extreme malformation or a person who inserted pin on using part
(artificial joint, beads, metal, slicon and so on)
Right after the operation a s varicose veins
Recovering patients since after the surgery, pregnant woman, children
In the case of increasing of pain after use this machine
In case of not following the instructions, the user may
suffer from Injury or death.
Manufacturer
MFG. DATE
Pushing prohibited
Sitting prohibited
Stepping prohibited
Serial Number
Temperature limit
Humidity limit
Caution
Operating Instruction
Keep dry
BF Type
Follow the instructions
for use
2 Level Insulation
(classe )
KIWA CERMET
(NB no. 0476)
Please do not throw any electrical
equipment (including hose marked
with this symbol in your bin
1. Protection against vertically falling water drops
2. Protected against solid foreign objects of
12.5 mm and greater
General mandatory
Action sign General warning sign
This means not to take
the device apart
This means to unplug
the power cord
Authorized representative in
the European community
General prohibition sign and template
for constructing a prohibition sign
In case of not following the instructions, the user may
suffer from Injury or property damage.

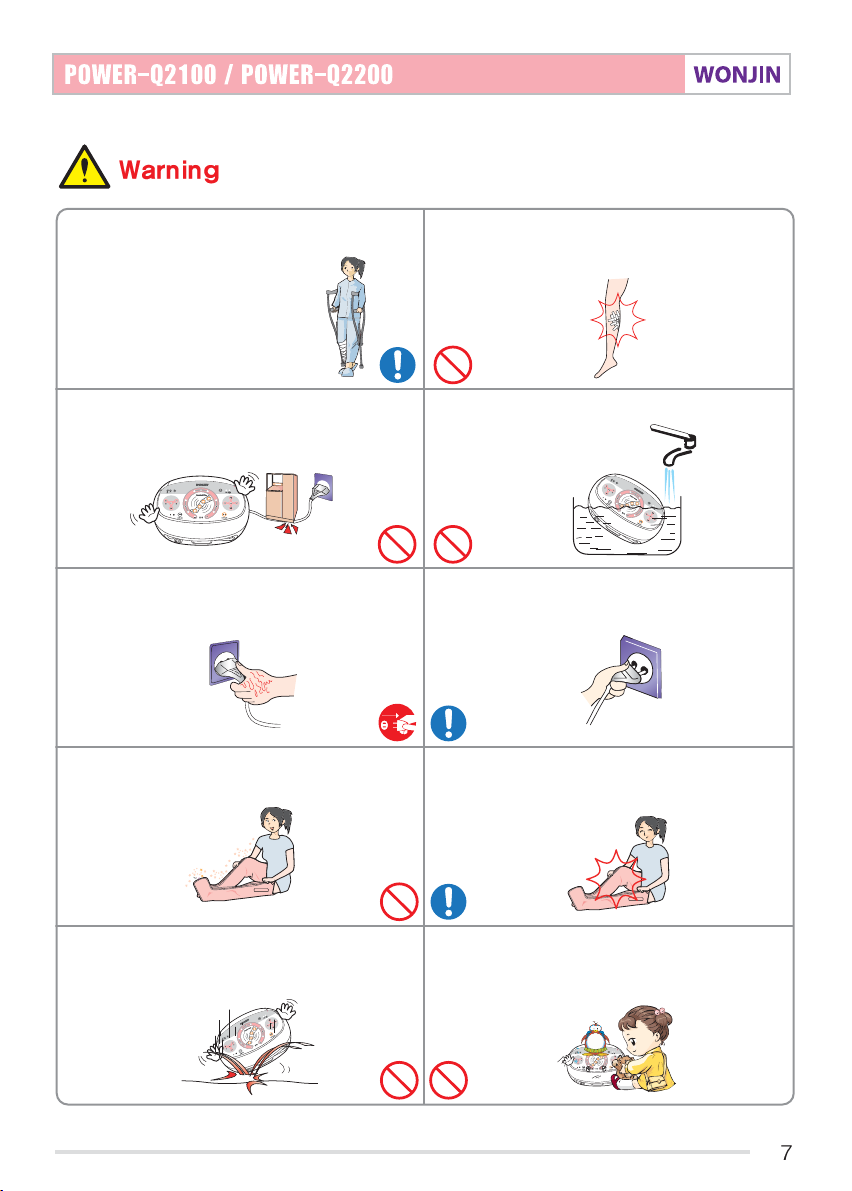

Please avoid same time with medical equipments for
artificial life preservation, installation style medical
equipments
like electrocardiograph etc.
Please avoid to user's the device to
whom in too high blood pressure or
obstacle in blood circulation.
Do not use this product if you are experiencing
inflammation, an infection, pain of unknown origin, or
bleeding [Internal or external] at near the site of
application.

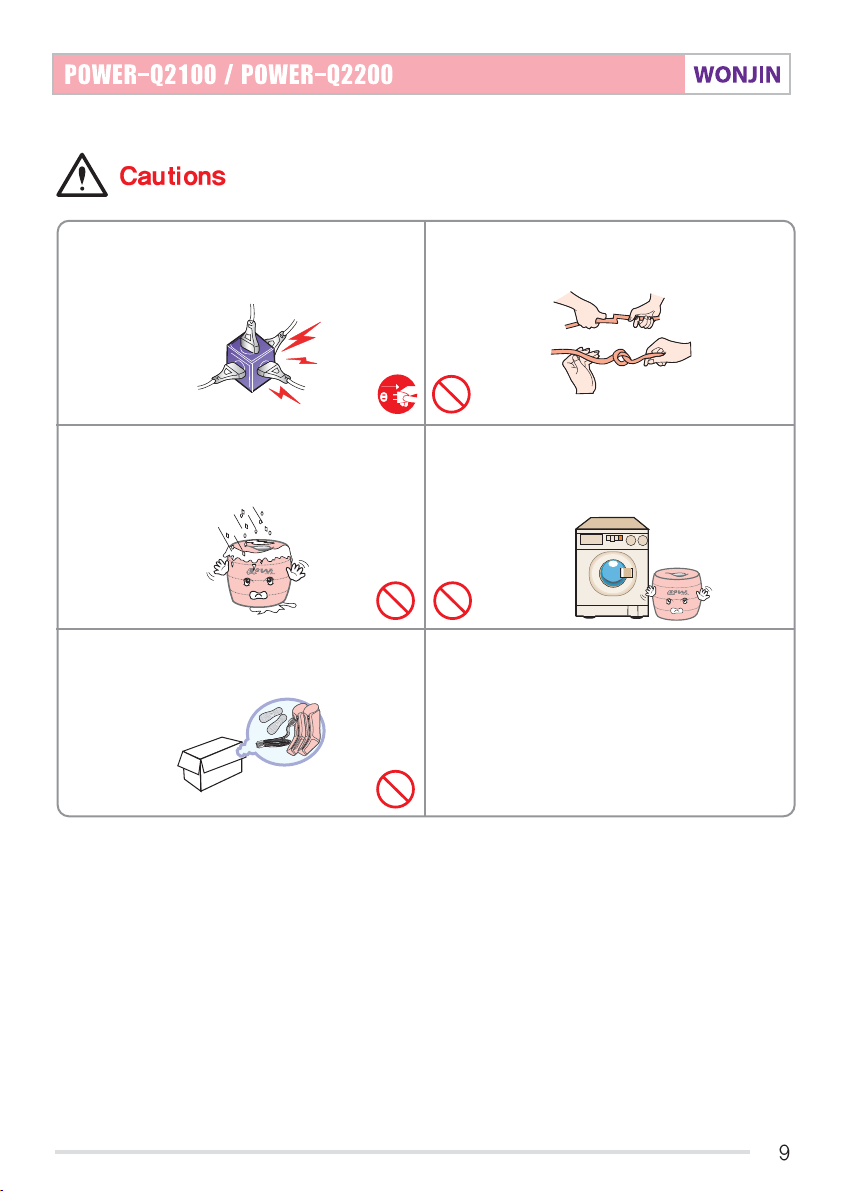

Do not place the heavy things on the power cord. Also,
do not press it with a table or a chair.
(It may. Cause an electric shock, an electric leakage, or
fire.)
Do not soak the device in the water because it is an
electrical product.
When plugging or un plugging the power cord from the
wall outlet, please remove moisture from hands.
(It may cause the electric shock, electric leakage or fire.)
Check up the suitable voltage to be used and use the
device. (The user may be burned, get shocked or be
injured.)
Please use after wearing underwear or sportswear not
to touch directly in skin with the cuffs or pad.
Do not use the device if you feel pain or make you feel
uncomfortable. Stop the use immediately.
Be careful when you zip up the cuff. Clothes, hair or
skin may get stuck
in the zipper.
Try not to drop the device on the floor because it might
be much vibration or shock on it.
(The device may be damaged.)
Do not use by purpose except massage.
Keep infants and children away from this device due to the
risk of electric shock or other injuries.

Do not use it in an environment with too much
electromagnetic wave.
It may cause damage to the device and/or cause
malfunctioning.
Do not store the garments near a stove, cigarette or
other heat generating device as this is a fire hazard. Do
not store the garments near needles, scissors or other
sharp objects as they may damage the garments.
Be careful that water or other substance cannot be
inserted inside of the device.
If this device should malfunction or fail to operate, do
not attempt to open, repair, or disassemble the main
unit or this device. (It may lead to a risk or fire,
electric shock, or injury to the user.)
While using this product, remain stationary and do not
attempt to walk or move arround.
Use the device within 20 minutes when using it once.
(At first, start from 5 minutes, and increase the time
slowly consudering your physical strength. "If you use
it continuously for a long time, it may have a reverse
effect on you")
If you have not used the device for a long time, or if
you wise to use it in cold areas.
* The device may not operate normally. In this case, use
the device after
operating it three
or four
times at the
strength of
Low-Medium-High
in regular sequence.
Keep the product out of the
direct rays of the sun or heating
equipments including gas stove.
It may cause the product
modification or discoloration.
When cleaning the product, wipe off with a dry cloth
without any chemical substance or detergent.
It may cause the product external damage such as
discoloration and peeling off.
Please dispose the product according to the waste
procedure. It may cause the environmental pollution.

Please use the exclusive power outlet and do not plug
several cords at once.
It may cause the fire, electric shock or other injuries.
Be careful about air hose not to be twisted or bent.
Do not keep the device at too low temperature in
winter time. It may be hardened and damaged
Do not machine wash the cuffs or submerge them in
water. The cuffs may be gently wiped with a
moistened towel or cloth. If necessary, a mild
detergent may be used.
If you wish to keep the device for a long time,
place it in its box.

Select proper cuff or pad to use. ( Leg cuff , Waist pad, Arm cuff )
Connect hose to the cuff or pad and insert an air plug into the air outlet
Wear a cuff or a pad to use if hose and plug is connected properly.
- Use leg cuffs in condition of unfolded leg.
- The waist pad could be used through abdomen and hip.
- Put the Arm cuff and stick a cuff using fixed band in a part of the
- shoulder and chest . you may feel a pain wrapping the region of chest.
Connect hose ( plug ) to the main body.
A hose has two plugs.
One side plug of the air hose will be inserted to the main body and the other side plug will be inserted to the cuff.
If an air outlet of the main body will be connected to the air hose plug,
The other side air outlet should be blocked using air blocked jack to prevent air leakage.
When user use an air hose,
Air hose plug will be inserted to the air outlet of the
main body and the other is inserted using air blocked
jack
When user use two air hose,
Two air hose plug will be inserted to the air outlet of the
main body and air blocked jack will be inserted to the
storage location.
When user connect air hose plug to main body or cuff,
User should check the mark on the plug case and
connect them.
- Mark on plug case should be placed in the top side
when user insert air plug to the main body.
- Mark on plug case should be placed in the same side
when user insert air plug to the cuff.
( connection between main body and cuff ) (Air hose connection to main body)

Select a working time of device. ( 15 min , 30 min )
Select a interval time for rest during each cycle.
( A,B MODE : 5 sec, 10 sec, 30 sec , C,D mode: 30 sec fixed)
Each room will be skipped if you turn off the LED
of each room you don't want to use.
Select a Pressure (Soft, Medium, Strong )
(1) A , B MODE:
(Strong : 200 mmHg, M : 130 mmHg ,Soft : 80 mmHg )
(2) C MODE :
(Strong : 130 mmHg, M : 100 mmHg , Soft : 60 mmHg )
(3) D MODE : B + C (MIXED)
(4) Tolerance : 20%
Select a cuff to use
Select a working mode to use
Pressure value will be selected to press select button ( + or - )
Device is worked by Start/stop button
Time
Interval time
Pressure selectable
for each room
Pressure
Cuff
Mode
Pressure select button
Start/Stop
1
2
3
4
5
6
7
8

Select a working time of device. ( 15 min , 30 min )
Select a interval time for rest during each cycle.
( A,B MODE : 5 sec, 10 sec , C,D mode: 30 sec fixed)
Each room will be skipped if you turn off the LED
of each room you don't want to use.
Applied pressure will be shown on the name plate and adjusted
select button ( + or - ).
- Pressure : 20 ~ 200 mmHg
- Tolerance : 20%
Select a working mode to use
Pressure value will be selected to press select button ( + or - ).
Device is worked by Start/stop button
Time
Interval time
Pressure selectable
for each room
Pressure
Mode
Pressure select button
Start/Stop
1
2
3
4
5
6
7

This device has 4 types compression mode program ( , , , ).
User can select proper mode according to patient's condition.
AC input is connected to main body and power is turns on, initial working mode is mode.
When power of this device is ON, initial mode (A) is set automatically;
- To select the mode
- Press Mode Button
- Stop the button at the mode you want to use.
- LED light will be shown
Mode : Compressed air in cuff is moving from foot to Thigh in sequential.
After pressure time is finished, extra 3 seconds hold the compressed air in each room.
( hold time of 3 seconds will gives a overlap effect )
Mode : Compressed air in cuff is moving from foot to Thigh in sequential.
Mode : Compressed air in cuff is moving from foot to Thigh in sequential.
But Compressed air doesn't leak in each room until working of 4th room will be terminated
Mode : This mode is mixed mode B and mode
Press Interval Button
Stop the button at the time you want to use.
- A,B MODE : 5 sec, 10 sec, 30 sec selectable
- C, D MODE : 30 seconds (fixed)
LED light will be shown
- LED light on the Interval button is 30 seconds.

Press Pressure Button (+ or -)
Stop the button at the place you want to use. (Strong, Medium, Soft )
LED light will be shown
Press Menu Button
Stop the button at time you want to use.
LED light will be shown
Press the Cuff button
Check the LED light
LEG : 2 cuffs, - ARM : 1 cuff , - BOTH : 3 cuffs
LED light will be shown
If user want to skip any part(chamber),
press the button on the each room to turn on/off.
Then, compression does not work at setting chamber.
Look at the Leg drawing
Button at each chamber will be shown .
If you don't want to use any chamber,
you just press the button and find a LED light.
- LED ON : working
- LED OFF : No working
Press Pressure Button (+ or -)
Stop the button at pressure value you want to use.
LED light will be shown

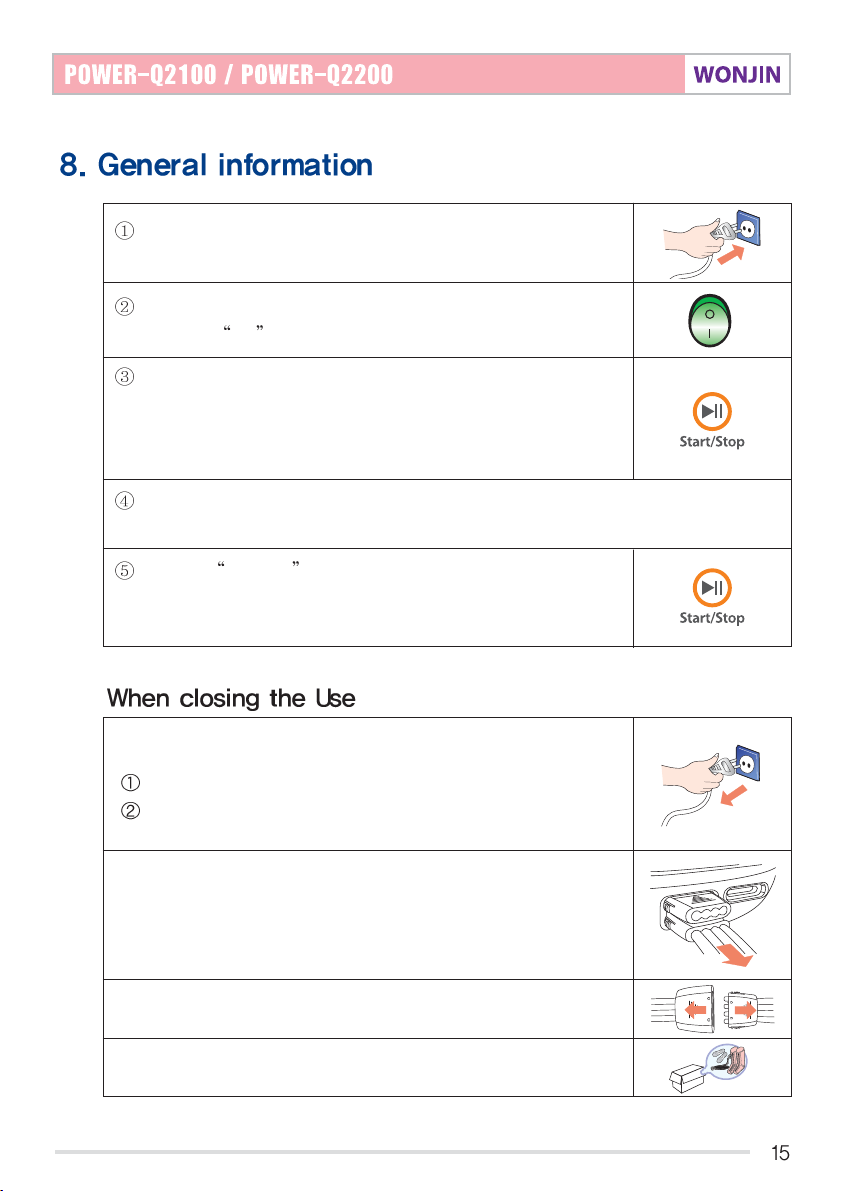

Insert the power plug into the power outlet.
- Check up the suitable voltage to be used and use the device.
Turn on the Power.
- Press the ON button
If you want to use a setting value, you just press (start) button.
If you want to change the setting value,
You can select a setting value by using each functional button.
After setting the value of function, you just press start button.
Regulate the Mode to be used.
A mode is a initial setting mode from the factory.
Press the start/stop button to stop the device.
- If operating time is terminated, the operation is stopped
automatically.
After opearation is terminated,
turn off the power switch
pull out the power plug from the power outlet.
Remove the connector from the main body.
[Caution] When you pull off the power plug or connector,
pull off it holding the plug, not the cord
Disconnect the hose connector from the cuffs [pad].

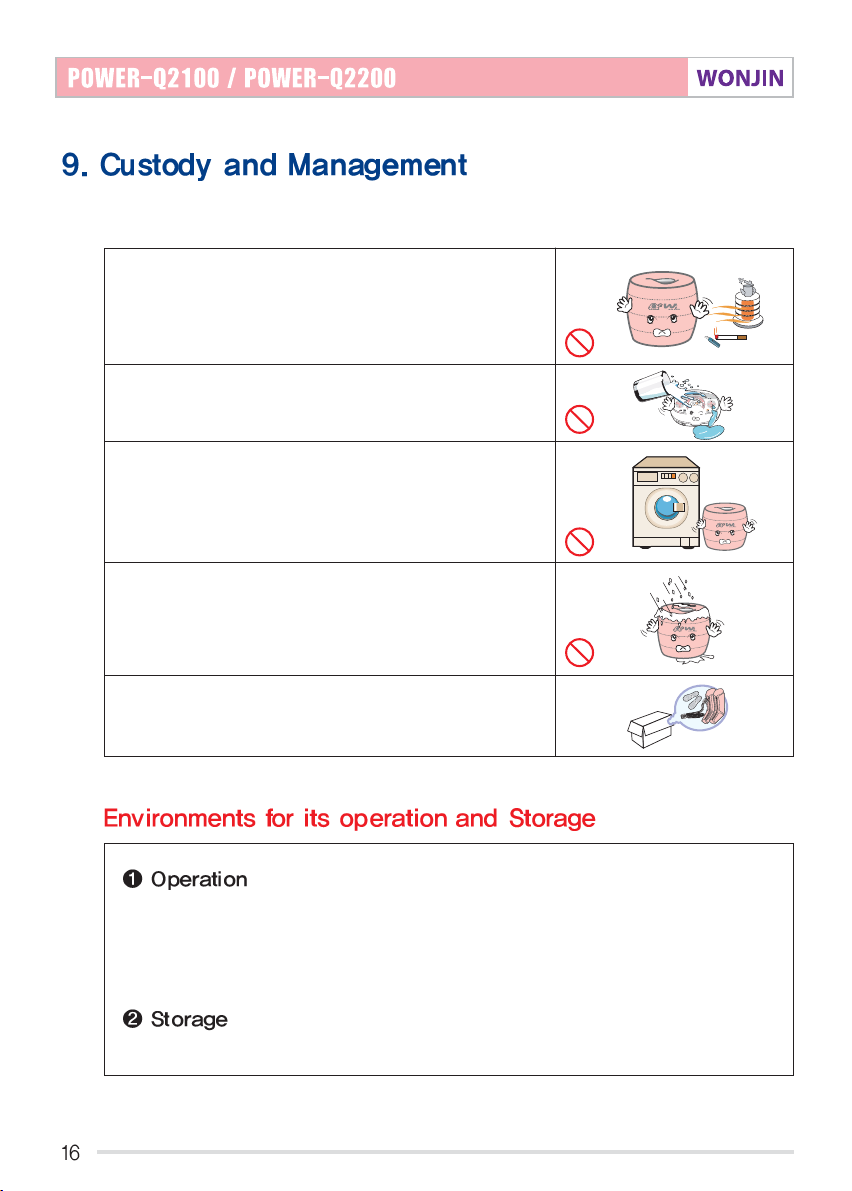

If you wish to keep the device for a long time, place it in its box

Operate and keep the device in clean place at normal temperature
[Temperature: 10~40_, Humidity: 30~85%.]
- Do not use it outdoors.
[Temperature: -20~70°…, Humidity: 0~90%.]
Do not place the cuff near the sharp things such
as furnaces, needles, scissors, etc.
Keep it in the dry place where there is no water or
humidity
Do not machine wash the cuffs or submerge them in
water.
The cuffs may be gently wiped with a moistened towel
or cloth. If necessary, a mild detergent may be used
Do not keep the device at too low temperature in winter
time
[ It may be hardened and damaged. ]
If you wish to keep the device for a long time, place it in
its box
All the cuffs are not to be repaired as consumption goods. Be always careful.

Check up if you have plugged it in.
Turn on the power switch.
Check up if there is any problem in the power Cord
(Check up the voltage).
Check up if you have set the timer select
Check up if there is any damage in the connecting hose
and connector.
Check up if you have connected the connector with the
device.
Check up if the connecting hose is pressed or bent.
Check up if you have connected the connector with the
device.
Check up if any heavy stuffs are placed on
The connecting hose or it is bent.

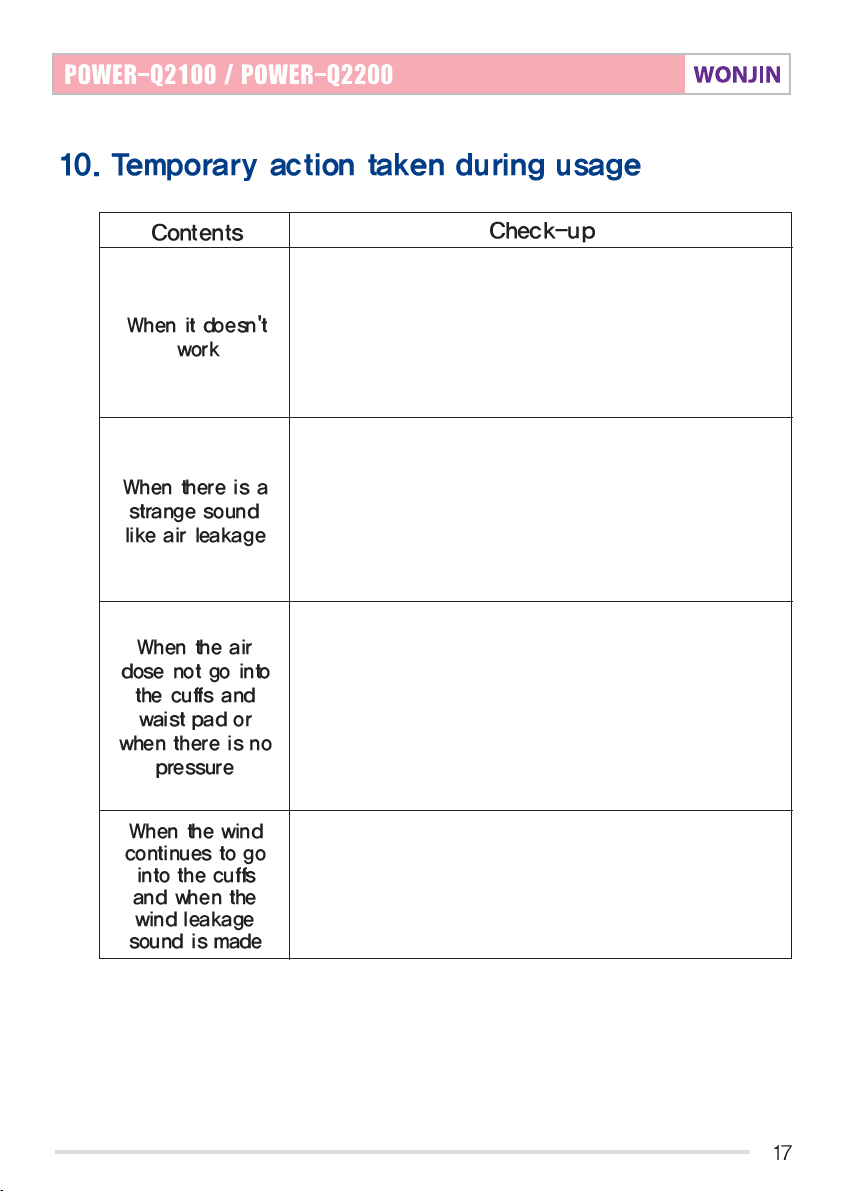

Check up if the connecting hose is properly connected with
the pad groove with a rhythmical sound.
Check up where the wind leakage is there in the cuffs. If
there is no wind leakage, turn off the power, and then, turn
on the power again and check up if it does work properly.
(cuffs and each pad are consumption goods.)

Manufacturer: Wonjin Mulsan Co., Ltd.
Address : 2F, 89, Geomdan-ro, Seo-gu, Incheon, Rep. of KOREA
A/S telephone : + 82-32-816-0552
WARRANTY
Compressible Limb
Therapy System POWER-Q2100
POWER-Q2200
Body : 1Year
Cuffs(Consumption Goods)
: 3Months(Work Place)
About Our Service
This is a product that we, Wonjin Mulsan Co., Ltd. manufactured though its own strict quality
management and inspections process after obtaining the permission and approval of the
Korean Food and Drug Administration and the Safety Authentication System for Electrical
Good.
Paid Services
Please be careful about the fact that the service fee will be charged even within the warranty
period if the consumer requests the service due to his/her carelessness or if no defects are
found in it.
In case of faults due to the consumer’s mistake (When the faults occur due to consumer’s
carelessness or wrong repair)
When the fault occurs due to the wrong use for the electrical capacity.
When the fault occurs because the consumer has fallen down the device during the transfer
after installation.
When the fault occur because the consumer has used the consumption and optional goods
that we did not designated.
When the fault occurs because other companies’ repairman has repaired the product
concerned
When the fault occurs because the consumer has used the product in the prohibited
area(outdoors) or beyond the original use, because the consumer has disassembled,
alternated and repaired at his/her discretion.
When the consumer has not Abide by the matters that require attention in this instruction
manual (Please red the matters that require attention carefully.)
Other cases
In case of natural disasters(fire, damage from sea wind, flood damage, thunder, lightening,
earthquake, etc.)
Where the consumption goods are used up or their warranty period has already lapsed.
