Wonjin Muslan POWER-Q6000II User manual

WONJIN
POWER-Q6000II
Page 1/ 21
User’s Manual
Subject: Compressible Limb Therapy System
Model: POWER-Q6000Ⅱ

WONJIN
POWER-Q6000II
Page 2/ 21
Contents
1. Product Name, Model, Descriptions. ------------------------------------ 3
2. Country, Manufacturer, Address, A/S Center. --------------------------- 4
3. Indications. ---------------------------------------------------------- 4
4. Purpose, Name of Each Parts. ------------------------------------------ 5
5. Cautions. ------------------------------------------------------------- 6~9
6. Preparation before use. ----------------------------------------------- 10
7. How to use. ----------------------------------------------------------- 10~16
8. General Information. --------------------------------------------------- 16~17
9. Custody and Management. ----------------------------------------------- 18
10. Temporary action taken. ---------------------------------------------- 19
11. WARRANTY. ------------------------------------------------------------ 20
12. LABEL. --------------------------------------------------------------- 21

WONJIN
POWER-Q6000II
Page 3/ 21
1. Product Name, Model, Descriptions
Descriptions
Product Name
Compressible Limb Therapy System
Model
POWER-Q6000Ⅱ
Size
420 ㎜(L) X 310 ㎜(W) X 230 ㎜(H)
Rated Voltage
AC 230V~, 50/60Hz
Power consumption
150VA
Adjustable Time
5~99 minutes
Maximum Pressure
240mmHg ±20%
Weight [Main Body]
12.0 kg
2. Country, Manufacturer, Address, A/S Center
①Country :Republic of Korea
②Manufacturer : Wonjin Mulsan Co., Ltd.
③Address : 89 Geomdan-ro , Seo-gu , Incheon , Korea
Tel : [phone] Fax : [phone]
www.wonjininc.net
④A/S Center : [phone]

WONJIN
POWER-Q6000II
Page 4/ 21
3. Indications
1. Lymph edema
2. Limb paralysis [Cerebral infarction]
3. Limb convulsion [Pain clinic]
4. Pregnant woman’s limb management
5. Chronic disease by the venous cause
6. Fat dissolution
7. Rheumatoid art arthritis
8. Improvement of intestines, dissolution Constipation
9. Benumbed feet and hands Settlement of stress
10.Effect of exercise
11.The old and the weak, fatigue, bore dome, insomnia
12.Person who want to be elastic skin and a healthier body
13.DVT[Deep vein thrombosis/PE] pneumatic embolism
14.varicose vein therapy and prevention
- Characteristics of this product-
This system adopts TFT LCD display and has two air pump inside.
Two air outlet of 6 chambers will be applied.
This system will be used for one person or two person simultaneously by
operating “CH”button.
“CH 1 and CH 2”will be used simultaneously or separately by user’s operation
command.
CH1 & CH2 are divided into two parts on the LCD display and
all functions will be programmed and operated separately.
“CH 3”are divided into two parts on the LCD display but
operating and programming methods is controlled such like a program
At this time, Left air regulator does not work for air adjustment.
Only right air regulator works for air adjustment.
“CH 4”makes 12 chambers in a line ( left 6 chambers plus right 6 chambers ).
and user can find a 12 chamber graphics on a display.
There are several operational mode ( A1,A2,B,C,D1,D2,D3,D4,D5,D6) and some set
values ( PRESSURE, INTERVAL, TIME ) will be adjusted by user selection.

WONJIN
POWER-Q6000II
Page 5/ 21
4. Purpose, Name of Each Parts
①Purpose
Compressible Limb Therapy System is a pneumatic pressure treatment system
that repeats expansion and shrinkage sleeves with sequential pneumatic pressure
to help blood circulation and prevent blood clots or clogs.

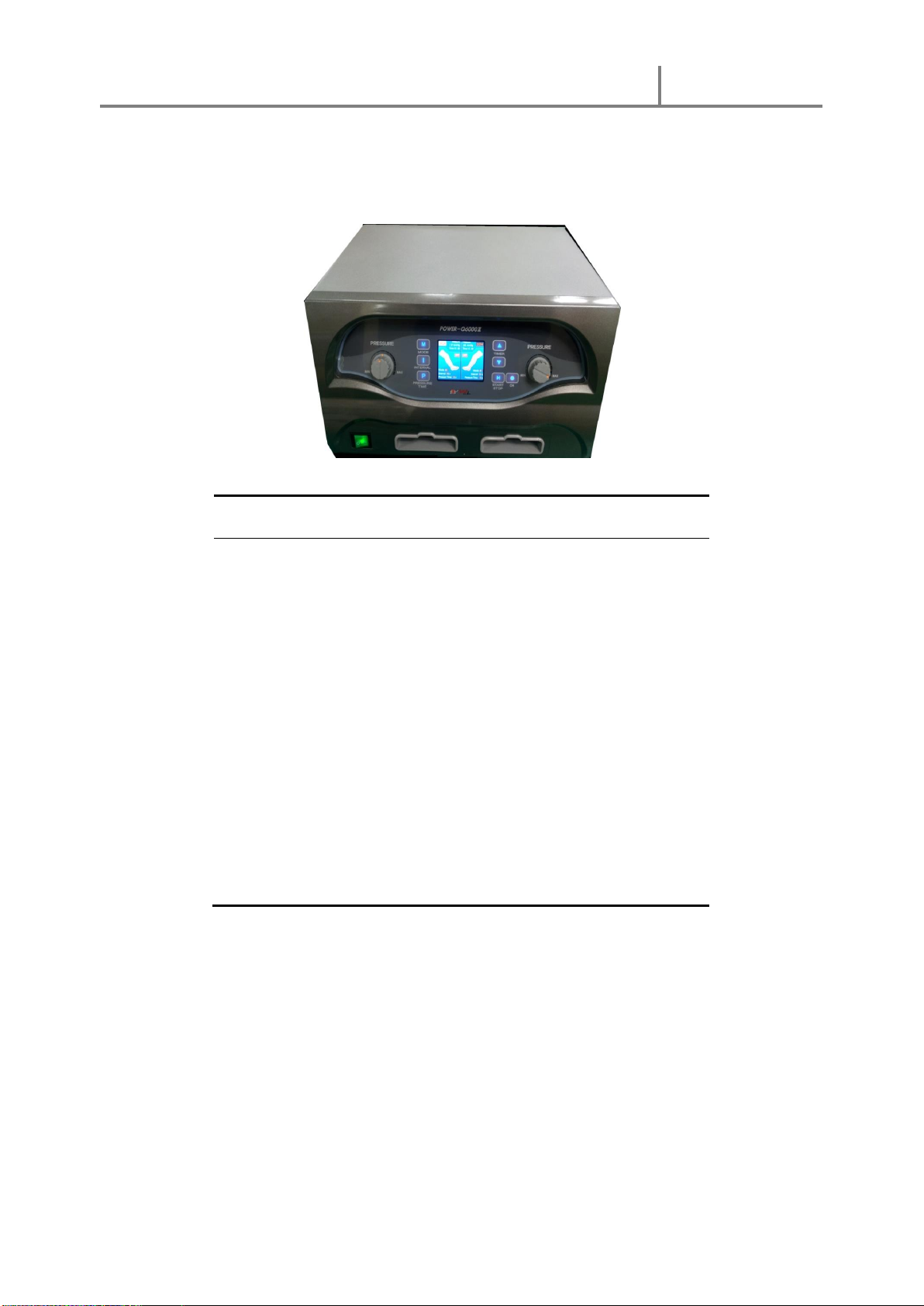

②Name of Each Parts

WONJIN
POWER-Q6000II
Page 6/ 21
5. Cautions
- This is for user safety and prevention against the property damage.
Please read it carefully prior to using the product.
Warning
[In case of not following the instructions, the user may suffer from Injury or
death.]
Cautions
[In case of not following the instructions, the user may suffer from Injury or
property damage.]
Indications
This is a restriction indication.
This is an indication for not disassembling.
This is an indication for unplugging the power cord from the wall outlet.
This is an indication for following properly.
Manufacturer
MFG. DATE
BF Type
2 Level Insulation
Serial Number

WONJIN
POWER-Q6000II
Page 7/ 21
Warning
The women in pregnancy or menstruation are certainly
Required to use after consultation with doctor.
Please avoid same time with medical equipments for artificial
life preservation, installation style medical equipments like
electrocardiograph etc.
Please avoid to user’s the device to whom in too high blood
pressure or obstacle in blood circulation.
Do not use this product if you are experiencing inflammation,
an infection, pain of unknown origin, or bleeding
[Internal or external] at near the site of application.
When plugging or un plugging the power cord from the wall
outlet, please remove moisture from hands.
(It may cause the electric shock, electric leakage or fire.)
Check up the suitable voltage to be used and use the device.
(The user may be burned, get shocked or be injured.)
Do not place the heavy things on the power cord.
Also, do not press it with a table or a chair.
(It may. Cause an electric shock, an electric leakage, or
fire.)

WONJIN
POWER-Q6000II
Page 8/ 21
Do not soak the device in the water because it is an
electrical product.
Do not fall down the device not to receive too much vibration
and shock.
(The device may be damaged.)
Do not use by purpose except massage.
Keep infants and children away from this device.
Please use after wearing underwear or sportswear not
to touch directly in skin with the cuffs or pad.
If you experience pain at any time while using, this product,
stop using it immediately.
If this device should malfunction or fail to operate, do not
attempt to open, repair, or disassemble the main unit or this
device. (It may lead to a risk or fire, electric shock, or
injury to the user.)

WONJIN
POWER-Q6000II
Page 9/ 21
Cautions
While using this product, remain stationary and do not
attempt to walk or move around.
Use the device within twenty [20] minutes when using it once.
(At first, start from five [5] minutes, and increase the
time slowly considering your physical strength. *If you use
it continuously for a long time, it may have a reverse effect
on you.*)
If you have not used the device for a long time, or if you
wise to use it in cold areas.
* The device may not operate normally. In this case, use the
device after operating it three or four times at the strength
of Low-Medium-High in regular sequence.
Be careful about the air hose not to be twisted or bent.
Forbids the machinery and tools which occurs the
electromagnetic waves and a parallelism use.
There is a possibility becoming the cause of machinery and
tools malfunction.

WONJIN
POWER-Q6000II
Page 10 / 21
6. Preparation before use
①Select proper cuff or pad to use.

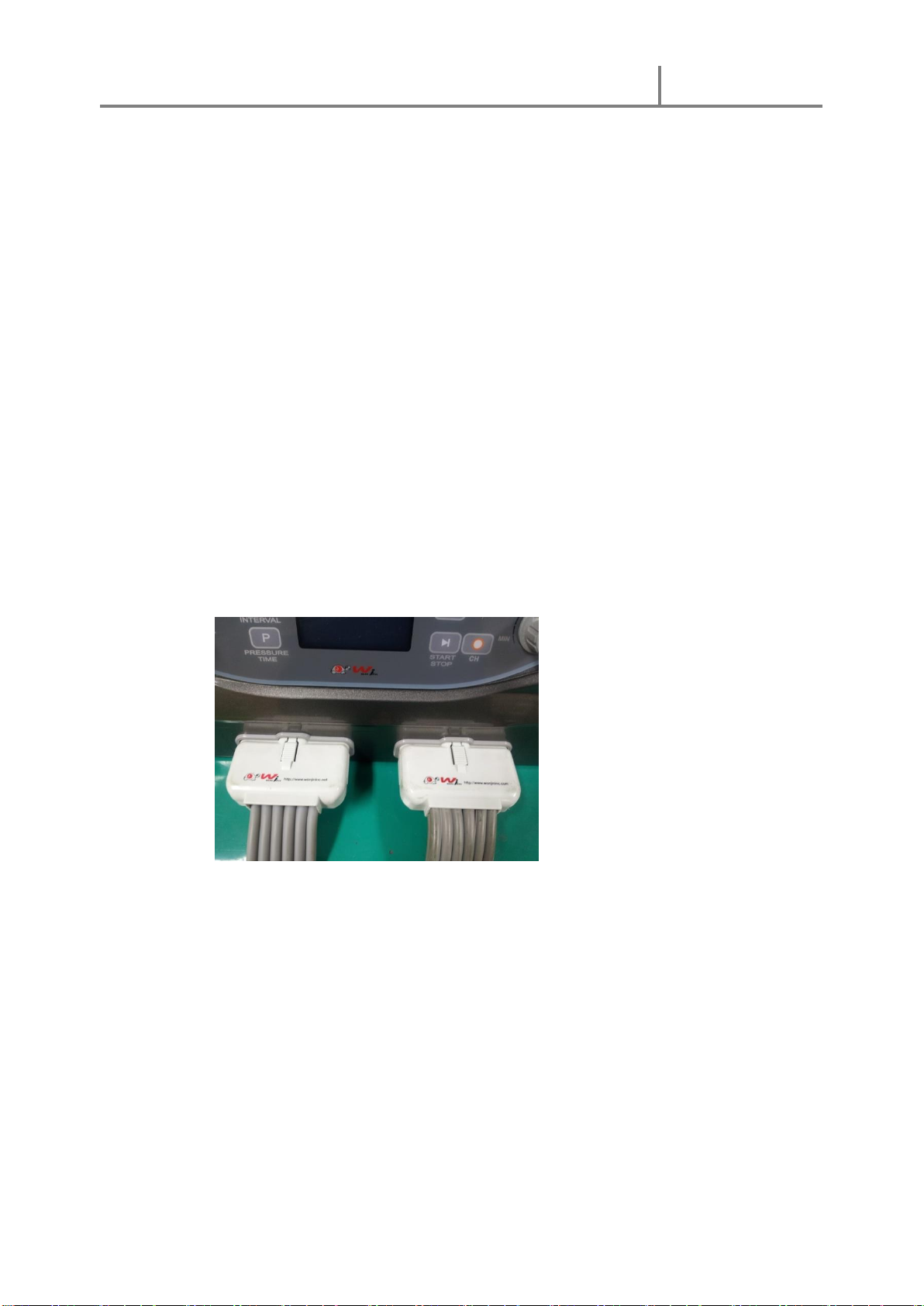

②Connect hose to the cuff or pad and insert a air plug into the air outlet
③Wear a cuff or a pad to use if hose and plug is connected properly.
-Use leg cuffs in condition of unfolded leg.
-The waist pad could be used through abdomen and hip, you may feel a pain
wrapping the region of chest.
-Put the Arm cuff and stick a cuff using fixed band in a part of the
shoulder and chest .
④Connect hose ( plug ) to the main body.

WONJIN
POWER-Q6000II
Page 11 / 21
7. How to use

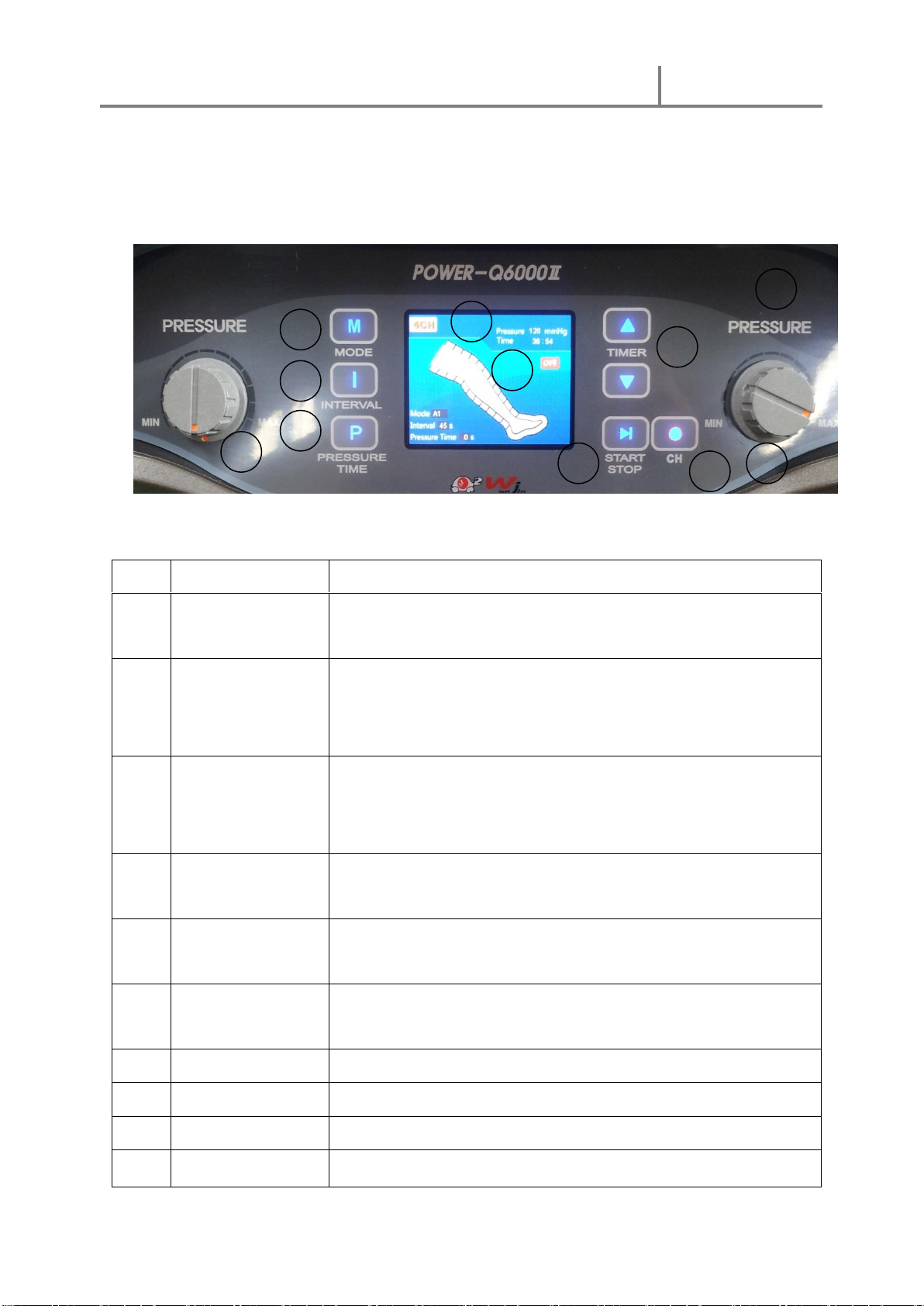

7-1. Explanation of each part
NO
NAME
Explanation
1
Regulator (Left)
It adjust Air pressure (0~240 mmHg) of “CH 1”
and the set value of air pressure is shown in the LCD.
2
Regulator (Right)
It adjust Air pressure (0~240 mmHg) of “CH 2, CH 3,
CH 4 (0~120 mmHg)”
and the set value of air pressure is shown in the LCD.
3
Mode
It changes Operational Mode by button touching.
(A1,A2,B,C,D1,D2,D3,D4,D5,D6 for CH1 ~ CH3)
Mode of D7 ~ D12 is added in CH 4.
4
Interval
To relax between every cycle, Interval is set by
5 ~ 60 seconds dividing by every 5 seconds
5
Pressure Time
It gives additional pressure time after air fill up the cuff.
It gives 0 ~ 5 seconds set time.
6
Timer
Operating time will be set using up/down button
and it provides 0 ~ 99 minutes
7
Start/Stop
This button controls start or stop of this system
8
CH
This button changes the operational mode among CH1 ~ CH4
9
TFT LCD
It shows operating condition and setting value.
10
Name Plate
Name plate
1
2
3
4
5
6
7
8
9
10
11

WONJIN
POWER-Q6000II
Page 12 / 21
11
Pressure
CH 1 ~ CH 3 : 0 ~ 240 mmHg
CH 4 : 0 ~ 120 mmHg
7-2. How to use
1) Features
1-1) 10 mode program for CH 1, CH2, CH3.
This device has 10 types compression mode program
( A1,A2,B,C,D1,D2,D3,D4,D5,D6)
* 16 mode Program for CH 4
For CH 4, this device has 16 modes as below
(A1,A2,B,C,D1,D2,D3,D4,D5,D6,D7,D8,D9,D10,D11,D12)
User can select proper mode according to user’s condition.
1-2) Pressure adjustment
If user want to adjust the air pressure ( during or before) use,
user can adjust the air pressure using rotary regulator.
This device has two regulators for air pressure adjustment.
1) For CH 1, user can use regulator in the left side
and the variable range is 0 ~ 240 mmHg.
2) For CH 2 & CH 3, user can use regulator in the right side
and the variable range is 0 ~ 240 mmHg.
3) For CH 4, user can use regulator in the right side
and the variable range is 0 ~ 120 mmHg.
1-3) Pressure time , Interval, Timer
The pressure time, Interval & Time of each Channel can be set
independently according to user’s condition.
1) Pressure Time can be set in the range of 0 ~ 5 seconds
2) Interval can be set in the range of 5 ~ 60 seconds
dividing by every 5 seconds.
3) Operating Time can be set in the range of 0 ~ 99 minutes
dividing by every 5 seconds.
1-4) 2 Person usage
This device is designed which one or two persons is possible to use
at the same time.
It has two motors and two pressure sensors inside .

WONJIN
POWER-Q6000II
Page 13 / 21

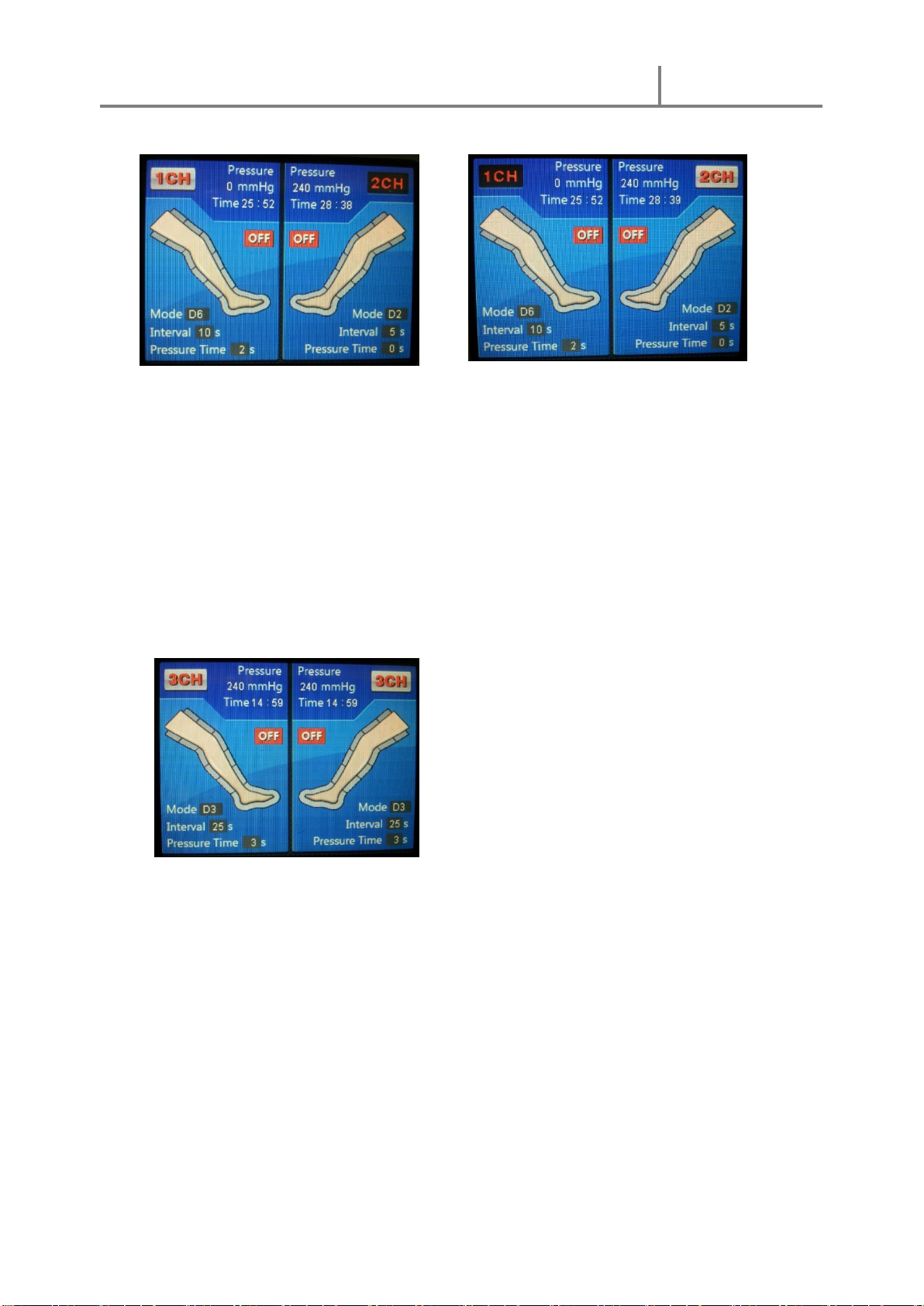

CH 1 and CH 2 works separately and two persons or two each cuffs
will be used to insert a air tubing into each air outlet ( 6 chambers).
“CH 1 and CH 2”will be used simultaneously or separately by user’s
operation command.
CH1 & CH2 are divided into two parts on the LCD display and
all functions will be programmed and operated separately.
“CH 3”are divided into two parts on the LCD display but
operating and programming methods is controlled such like a program
At this time, Left air regulator does not work for air adjustment.
Only right air regulator works for air adjustment.

WONJIN
POWER-Q6000II
Page 14 / 21
CH 4 provides 12 chambers to mix CH 1 & CH 2 and
two air outlet will be provided 12 chambers in a line ( 1~6, 7~12 )
“CH 4”makes 12 chambers in a line ( left 6 chambers plus right 6 chambers ).
and user can find a 12 chamber graphics on a display.
At this time, you should put 2 hoses into the two air outlet for this
mode operation.
If not, air leaks from a outlet without hose connection.
1-5) Operational Mode
1) Mode of CH 1 , CH 2 & CH3. ( 6 chambers )

WONJIN
POWER-Q6000II
Page 15 / 21

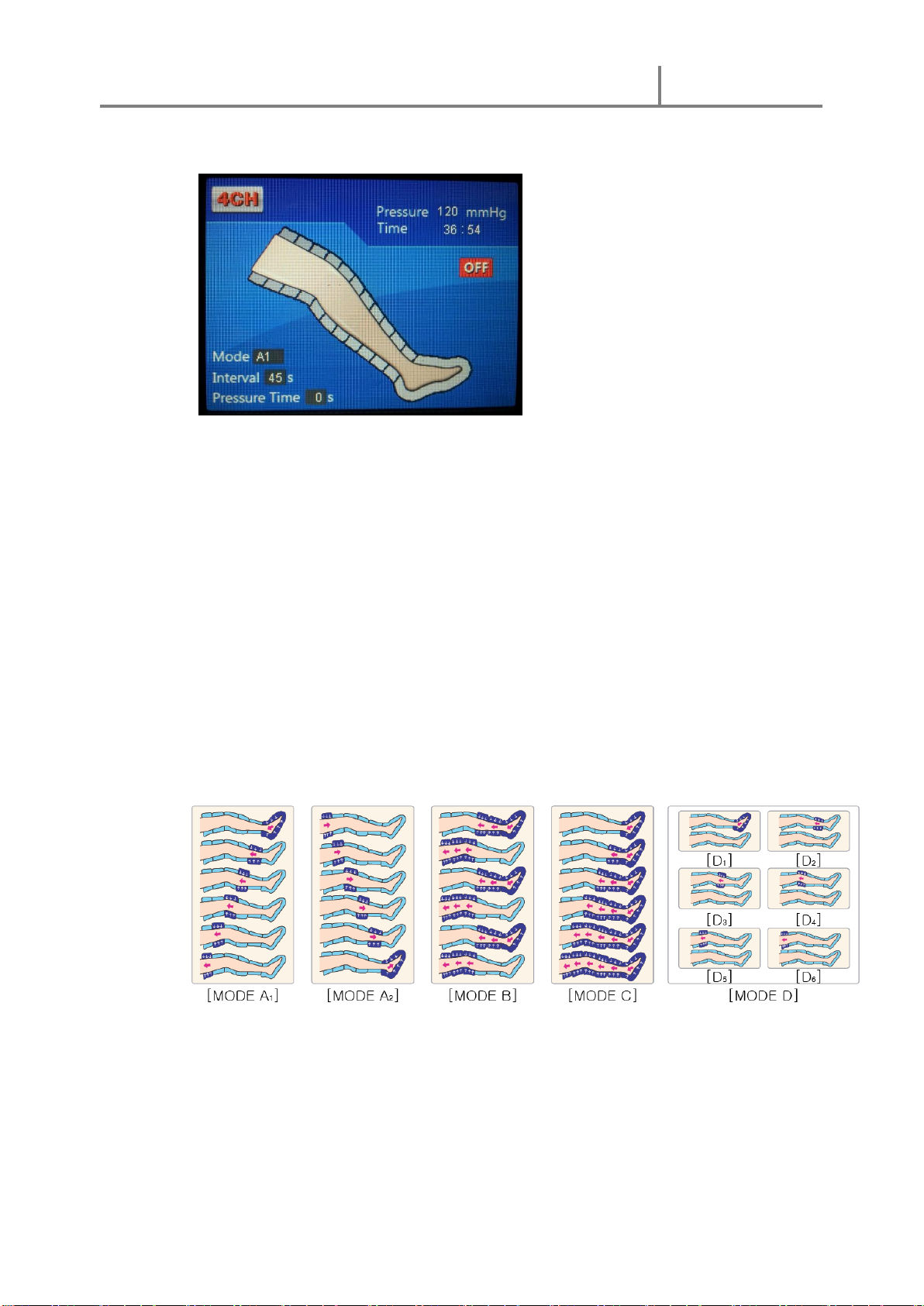

2) Mode of CH 4 ( 12 chambers )
2) How to set
1) How to set the MODE (A1,A2,B,C,D1~D6)
When power of this device is ON, initial mode (A1) is set automatically;
To set the mode
1> Press Mode Button
2> Press the Mode button continuously to be selected “Mode”
2) How to set the INTERVAL ( 5~60 seconds )
1> Press Interval Button
2> Press the Interval button continuously to be selected “Interval time”..
3) How to set the PRESSURE TIME ( 0~5 seconds )
1> Press “Pressure Time”Button
2> Press the “Pressure time”button continuously to be selected “Pressure time”..

WONJIN
POWER-Q6000II
Page 16 / 21
4) How to set the TIMER ( 0~99 minutes )
1> Press”Timer”Button (UP/DOWN)
2> Press the UP/DOWN Button of TIMER to be selected “Operating Time”
5) How to set the CHannel ( CH1, CH2, CH3, CH4)
1> Press “CH”Button
2> Press the “CH”button to be selected “CH”
6) How to set the PRESSURE
1> Pressure value is shown in the LCD DISPLY
2> Pressure value is controlled and adjusted by Regulator.
Two regulators are on the front panel in the left and right side of LCD.
Left regulator adjusts the pressure value of CH 1 ( 0~240 mmHg)
Right regulator adjusts the pressure value of CH 2, CH 3 ( 0~240 mmHg)
Right regulator adjusts the pressure value of CH 4 ( 0~120 mmHg)
8. General information
①Insert the power plug into the power outlet.
-Check up the suitable voltage to be used and use the
device.)
②Turn on the Power.
-Press the “ON”button.
③If you want to change setting value,
you just press the command button
( MODE, PRESURE TIME, INTERVAL, TIMER)
When you need a change a pressure value, you just use a
Rotary type Regulator and turns it

WONJIN
POWER-Q6000II
Page 17 / 21

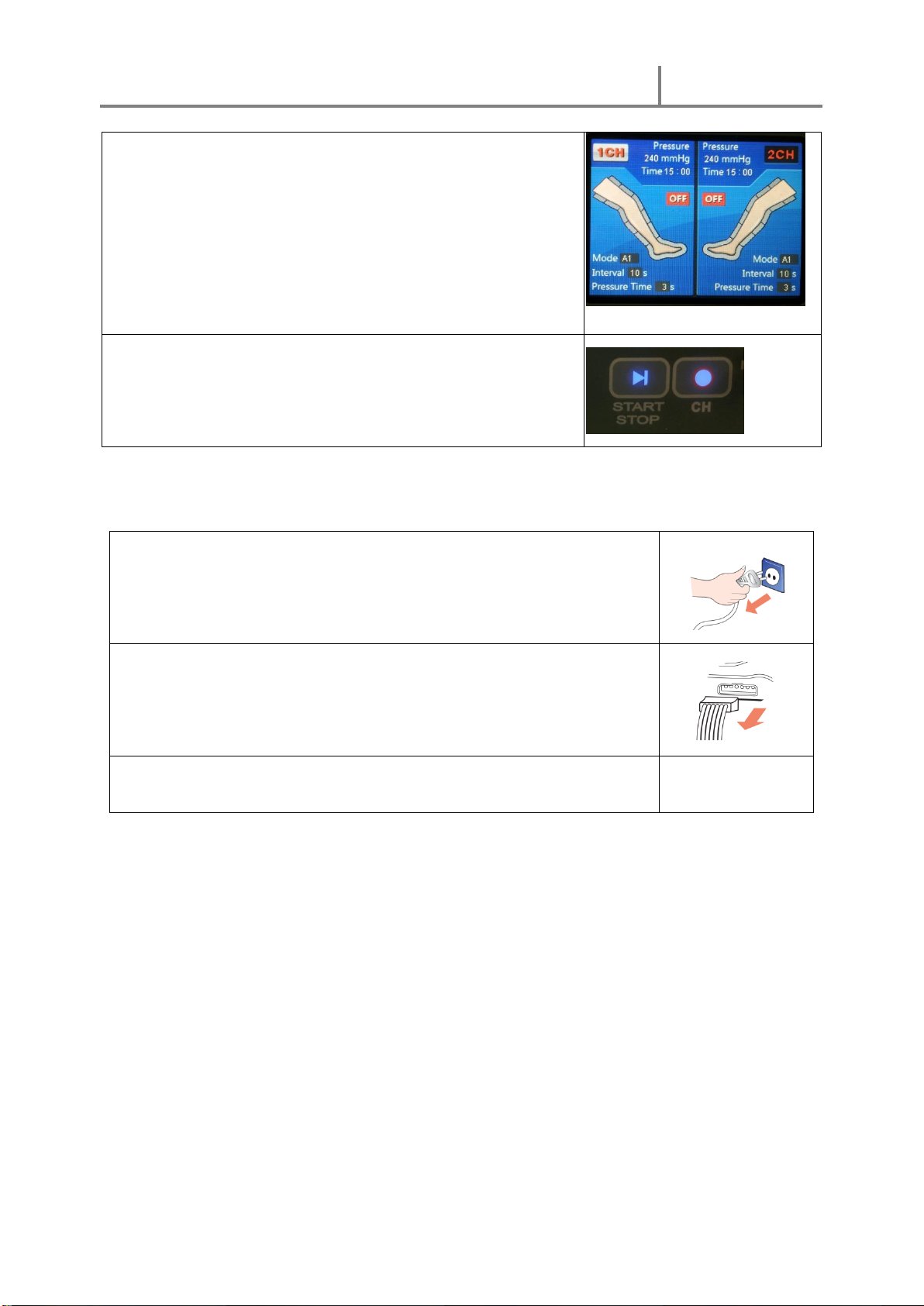

④A1 mode is a initial setting mode from the factory.
This display shows basic set up :
Mode : A1 Pressure : 240 mmHg
Time : 15 minutes Interval : 10 seconds
Pressure time : 3 seconds
⑥Press the start/stop button for beginning or stop
the device.
-If operating duration time is terminated,
the operation is stopped automatically.
When closing the Use
After opearation is terminated,
1) turn off the power switch
2) pull out the power plug from the power outlet.
Remove the connector from the main body.
[Caution] When you pull off the power plug or connector, pull
off it holding the plug, not the cord
Disconnect the hose connector from the cuffs [pad].

WONJIN
POWER-Q6000II
Page 18 / 21
9. Custody and Management
All the cuffs are not to be repaired as consumption goods.
Be always careful.
Do not place the cuff near the sharp things such
as furnaces, needles, scissors, etc.
Keep it in the dry place where there is no water or
humidity
Do not machine wash the cuffs or submerge them in
water.
The cuffs may be gently wiped with a moistened towel
or cloth. If necessary, a mild detergent may be used
Do not keep the device at too low temperature in
winter time [It may be hardened and damaged.]
If you wish to keep the device for a long time, place
it in its box
Environments for its operation and custody
Operate and keep the device in clean place at normal temperature
[Temperature: 10~40℃, Humidity: 30~85%.]
Do not use it outdoors.

WONJIN
POWER-Q6000II
Page 19 / 21
10. Temporary action taken
Contents
Check-up
When it doesn’t work
Check up if you have plugged it in.
Turn on the power switch.
Check up if there is any problem in the power Cord
(Check up the voltage).
Check up if you have set the timer select
When there is a strange
sound like air leakage
Check up if there is any damage in the connecting hose
and connector.
Check up if you have connected the connector with the
device.
Check up if the connecting hose is pressed or bent.
When the air Dose not
go into the cuffs and
waist pad or when there
is no pressure
Check up if you have connected the connector with the
device.
Check up if any heavy stuffs are placed on
The connecting hose or it is bent.
Check up if the connecting hose is properly connected
with the pad groove with a rhythmical sound.
When the air continues
to go into the cuffs and
when the air leakage
sound is made
Check up where the air leakage is there in the cuffs. If
there is no wind leakage, turn off the power, and then,
turn on the power again and check up if it does work
properly.
(cuffs and each pad are consumption goods.)

WONJIN
POWER-Q6000II
Page 20 / 21
11. WARRANTY
Name of products
Compressible Limb
Therapy System
Applicable Model
POWER-Q6000II
Date of Purchase
Serial No.
Agent of
Purchase
Warranty Period
Body : 1Year
Cuffs(Consumption Goods)
: 3 Months(Work Place)
About Our Service
This is a product that we, Wonjin Mulsan Co., Ltd. manufactured though its own strict quality management and
inspections process after obtaining the permission and approval of the Korean Food and Drug Administration and
the Safety Authentication System for Electrical Good.
Paid Services
Please be careful about the fact that the service fee will be charged even within the warranty period if the
consumer requests the service due to his/her carelessness or if no defects are found in it.
In case of faults due to the consumer’s mistake (When the faults occur due to consumer’s carelessness or wrong
repair)
When the fault occurs due to the wrong use for the electrical capacity.
When the fault occurs because the consumer has fallen down the device during the transfer after installation.
When the fault occur because the consumer has used the consumption and optional goods that we did not
designated.
When the fault occurs because other companies’repairman has repaired the product concerned
When the fault occurs because the consumer has used the product in the prohibited area(outdoors) or beyond
the original use, because the consumer has disassembled, alternated and repaired at his/her discretion.
When the consumer has not Abide by the matters that require attention in this instruction manual (Please red
the matters that require attention carefully.)
Other cases
In case of natural disasters(fire, damage from sea wind, flood damage, thunder, lightening, earthquake, etc.)
Where the consumption goods are used up or their warranty period has already lapsed.
Manufacturer: Wonjin Mulsan Co., Ltd.
89 Geomdan-ro , Seo-gu , Incheon , Korea
A/S : 82-32-816-0552
