Woods Alitec AB720-2, Alitec AB840-2 User manual

OPER ATOR'S MANUAL
MAN0731
ANGLE BROOM
AB720-2, AB840-2
AB720-2 S/N 1187272 And Before
AB720H-2 S/N 1240349 And Before
AB840-2 S/N 1237452 And Before
AB840H-2 S/N 1240351 And Before
(Rev. 5/15/2014)

2 Introduction
Gen’l (Rev. 3/28/2012)
TO THE DEALER:
Assembly and proper installation of this product is the responsibility of the Woods
®
dealer. Read manual instructions
and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Operator’s Manual
are completed before releasing equipment to the owner.
The dealer must complete the online Product Registration form at the Woods Dealer Website which certifies that
all Dealer Check List items have been completed. Dealers can register all Woods product at
dealer.WoodsEquipment.com under Product Registration.
Failure to register the product does not diminish customer’s warranty rights.
TO THE OWNER:
Read this manual before operating your Woods equipment. The information presented will prepare you to do a better
and safer job. Keep this manual handy for ready reference. Require all operators to read this manual carefully and
become acquainted with all adjustment and operating procedures before attempting to operate. Replacement manuals
can be obtained from your dealer. To locate your nearest dealer, check the Dealer Locator at
www.WoodsEquipment.com, or in the United States and Canada call 1-800-319-6637.
The equipment you have purchased has been carefully engineered and manufactured to provide dependable and
satisfactory use. Like all mechanical products, it will require cleaning and upkeep. Lubricate the unit as specified.
Observe all safety information in this manual and safety decals on the equipment.
For service, your authorized Woods dealer has trained mechanics, genuine Woods service parts, and the necessary
tools and equipment to handle all your needs.
Use only genuine Woods service parts. Substitute parts will void the warranty and may not meet standards required for
safe and satisfactory operation. Record the model number and serial number of your equipment in the spaces
provided:
Model: _______________________________ Date of Purchase: _____________________
Serial Number: (see Safety Decal section for location) ____________________________________
Provide this information to your dealer to obtain correct repair parts.
Throughout this manual, the term NOTICE is used to indicate that failure to observe can cause damage to equipment.
The terms CAUTION, WARNING, and DANGER are used in conjunction with the Safety-Alert Symbol (a triangle with
an exclamation mark) to indicate the degree of hazard for items of personal safety.

Introduction 3
MAN0731 (9/19/2008)
TABLE OF CONTENTS
INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SAFETY DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
OWNER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
DEALER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
DEALER CHECK LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PARTS LISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
QUICK COUPLER CHARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
HYDRAULIC FITTING TORQUE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . .32
BOLT TORQUE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
BOLT SIZE CHART & ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . .34
PRODUCT WARRANTY . . . . . . . . . . . . . . . . . . . . . . . INSIDE BACK COVER
REPLACEMENT PARTS WARRANTY . . . . . . . . . . . . . . . . . . BACK COVER

4 Introduction
MAN0731 (9/19/2008)
GENERAL INFORMATION
The purpose of this manual is to assist you in oper-
ating and maintaining your angle broom. Read it
carefully. The information and instructions will help
you achieve years of dependable performance.
These instructions have been compiled from exten-
sive field experience and engineering data. Some
information may be general in nature due to
unknown and varying operating conditions. How-
ever, through experience and these instructions,
you should be able to develop procedures suitable
to your particular situation.
The illustrations and data used in this manual were cur-
rent at the time of printing, but due to possible inline
production changes, your angle broom may vary
slightly in detail. We reserve the right to redesign and
change the angle broom as may be necessary, without
notification.
Throughout this manual, references are made to right
and left directions. These are determined by standing
behind the equipment facing the direction of forward
travel.
SPECIFICATIONS
BRUSH HEAD
AB720-2 AB840-2
Approximate Weight with SAE J2513 Mounting 852 lbs 915 lbs
Maximum Length at 0° Articulation 71 inches with SAE J2513 mounting
Maximum Width at 0° Articulation 82.5 inches 94.5 inches
Maximum Length at Full Articulation 82.5 inches 85.5 inches
Maximum Width at Full Articulation 82 inches 93 inches
Sweeping Width at 0° Articulation 72 inches 84 inches
Sweeping Width at Full Articulation 64 inches 75 inches
Range of Hydraulic Flow 12 - 25 gpm 12 - 25 gpm
Maximum Hydraulic Oil Pressure 3000 psi 3000 psi

Safety 5
Alitec Broom Safety Rules (7/15/2005)
INSTALLATION
Hydraulics must be connected as instructed in
this manual. Do not substitute parts, modify, or
connect in any other way.
After connecting hoses, check that all control
lever positions function as instructed in the Opera-
tor's Manual. Do not put into service until control
lever and equipment movements are correct.
TRAINING
Safety instructions are important! Read all
attachment and power unit manuals; follow all
safety rules and safety decal information. (Replace-
ment manuals and safety decals are available from
your dealer. To locate your nearest dealer, check
the Dealer Locator at www.WoodsEquipment.com,
or in the United States and Canada call 1-800-319-
6637.) Failure to follow instructions or safety rules
can result in serious injury or death.
If you do not understand any part of this manual
and need assistance, see your dealer.
Know your controls and how to stop engine and
attachment quickly in an emergency.
 Operators must be instructed in and be capable
of the safe operation of the equipment, its attach-
ments, and all controls. Do not allow anyone to
operate this equipment without proper instructions.
 Keep hands and body away from pressurized
lines. Use paper or cardboard, not hands or other
body parts to check for leaks. Wear safety goggles.
Hydraulic fluid under pressure can easily penetrate
skin and will cause serious injury or death.
 Make sure that all operating and service person-
nel know that if hydraulic fluid penetrates skin, it
must be surgically removed as soon as possible by
a doctor familiar with this form of injury or gan-
grene, serious injury, or death will result. CON-
TACT A PHYSICIAN IMMEDIATELY IF FLUID
ENTERS SKIN OR EYES. DO NOT DELAY.
 Never allow children or untrained persons to
operate equipment.
PREPARATION
 Check that all hardware is properly installed.
Always tighten to torque chart specifications
unless instructed otherwise in this manual.
 Counterweight ballast may be required for
machine stability. Check your power unit manual or
contact your dealer.
 Air in hydraulic systems can cause erratic oper-
ation and allows loads or equipment components
to drop unexpectedly. When connecting equipment
or hoses or performing any hydraulic maintenance,
purge any air in hydraulic system by operating all
hydraulic functions several times. Do this before
putting into service or allowing anyone to
approach the equipment.
 After connecting hoses, check that all control
lever positions function as instructed in the Opera-
tor's Manual. Do not put into service until control
lever and equipment movements are correct.
 Protective hose sleeves must cover all hydrau-
lic hoses within 20 inches of the operator and be
secured onto metal hose fittings. Replace hoses or
sleeves if damaged or if protective sleeve cannot
be properly positioned or secured.
 Make sure all hydraulic hoses, fittings, and
valves are in good condition and not leaking before
starting power unit or using equipment. Check and
route hoses carefully to prevent damage. Hoses
must not be twisted, bent sharply, kinked, frayed,
pinched, or come into contact with any moving
parts. Operate moveable components through full
operational range to check clearances. Replace
any damaged hoses immediately.
(Safety Rules continued on next page)
Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our
efforts to provide safe equipment can be wiped
out by an operator’s single careless act.
In addition to the design and configuration of
equipment, hazard control and accident preven-
tion are dependent upon the awareness, con-
cern, judgement, and proper training of
personnel involved in the operation, transport,
maintenance, and storage of equipment.
It has been said, “The best safety device is an
informed, careful operator.” We ask you to be
that kind of operator.
SAFETY RULES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

6 Safety
Alitec Broom Safety Rules (7/15/2005)
(Safety Rules continued from previous page)
 Always wear relatively tight and belted clothing
to avoid getting caught in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropriate.
 Be sure attachment is properly secured,
adjusted, and in good operating condition. Coupler
lockpins must be fully extended and properly
engaged into attachment retaining slots.
 Power unit must be equipped with ROPS and
seat belt/operator restraint. Keep seat belt/operator
restraint securely fastened/engaged. Falling off
power unit can result in death from being run over
or crushed. Keep ROPS systems in place at all
times.
 Make sure all safety decals are installed.
Replace if damaged. (See Safety Decals section for
location.)
 Make sure shields and guards are properly
installed and in good condition. Replace if damaged.
 Inspect and clear area of stones, branches, or
other hard objects that might be thrown, causing
injury or damage.
OPERATION
 Only engage power when equipment is at
ground operating level. Always disengage power
when equipment is raised off the ground.
 Improper operation can cause the machine to
tip or roll over and cause injury or death.
• Keep power unit lift arms and attachment as
low as possible.
• Do not travel or turn with power unit lift arms
and attachment raised.
• Turn only on level ground.
• Go up and down slopes, not across them.
• Keep the heavy end of the machine uphill.
• Do not overload the machine.
 Never use attachment to carry loads that exceed
the rated operating capacity or other specifications
of the power unit. Check your power unit manual or
see your dealer for rated operating capacity.
Exceeding this capacity can cause machine to tip,
roll over, or present other hazards that can cause
injury or death.
 Do not allow bystanders in the area when oper-
ating, attaching, removing, assembling, or servic-
ing equipment.
 Keep brush away from intense heat or flame.
Brush material can ignite and burn.
 Contact with high voltage, overhead power
lines, underground cables, gas lines, and other
hazards can cause serious injury or death from
electrocution, explosion, or fire.
 Keep bystanders away from equipment.
 Never direct discharge toward people, animals,
or property.
 Do not operate or transport equipment while
under the influence of alcohol or drugs.
 Operate only in daylight or good artificial light.
 Keep hands, feet, hair, and clothing away from
equipment while engine is running. Stay clear of all
moving parts.
 Always comply with all state and local lighting
and marking requirements.
 Do not allow riders. Do not lift or carry anybody
on the power unit or attachments.
 Always sit in power unit seat when operating
controls or starting engine. Securely fasten seat
belt/operator restraint, place transmission in park
or neutral, engage brake and ensure all other con-
trols are disengaged before starting power unit
engine.
 Look down and to the rear and make sure area
is clear before operating in reverse.
 Use extreme care when working close to fences,
ditches, other obstructions, or on hillsides.
 Do not operate or transport on steep slopes.
 Do not stop, start, or change directions sud-
denly on slopes.
 Use extreme care and reduce ground speed on
slopes and rough terrain.
 Watch for hidden hazards on the terrain during
operation.
 Stop power unit and implement immediately
upon striking an obstruction. Dismount power unit,
using proper procedure. Inspect and repair any
damage before resuming operation.
 Before leaving operator's seat, lower lift arms
and put attachment on the ground. Engage brake,
stop engine, remove key, and remove seat belt.
SAFETY RULES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Safety 7
Alitec Broom Safety Rules (7/15/2005)
MAINTENANCE
 Your dealer can supply original equipment
hydraulic accessories and repair parts. Substitute
parts may not meet original equipment specifica-
tions and may be dangerous.
 To prevent contamination during maintenance
and storage, clean and then cover hose ends, fit-
tings, and hydraulic ports with tape.
 Do not operate the pump with pressure over
3000 psi. Higher pressures can rupture hydraulic
components and can cause personal injury.
 Adjustment of system relief pressure must be
done by a qualified, experienced dealer. Incorrect
adjustment can result in system failures and seri-
ous personal injury.
 Always wear relatively tight and belted clothing
to avoid getting caught in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropriate.
 Do not allow bystanders in the area when oper-
ating, attaching, removing, assembling, or servic-
ing equipment.
 Do not modify or alter or permit anyone else to
modify or alter the equipment or any of its compo-
nents in any way.
 Never go underneath equipment (lowered to the
ground or raised) unless it is properly blocked and
secured. Never place any part of the body under-
neath equipment or between moveable parts even
when the engine has been turned off. Hydraulic
system leak down, hydraulic system failures,
mechanical failures, or movement of control levers
can cause equipment to drop or rotate unexpect-
edly and cause severe injury or death. Follow Oper-
ator's Manual instructions for working underneath
and blocking requirements or have work done by a
qualified dealer.
 Be sure attachment is properly secured,
adjusted, and in good operating condition. Coupler
lockpins must be fully extended and properly
engaged into attachment retaining slots.
 Never perform service or maintenance with
engine running.
 Keep all persons away from operator control
area while performing adjustments, service, or
maintenance.
 Tighten all bolts, nuts, and screws to torque
chart specifications. Check that all cotter pins are
installed securely to ensure equipment is in a safe
condition before putting unit into service.
 Make sure all safety decals are installed.
Replace if damaged. (See Safety Decals section for
location.)
 Make sure shields and guards are properly
installed and in good condition. Replace if damaged.
 Do not disconnect hydraulic lines until all sys-
tem pressure is relieved. Lower unit to ground,
stop engine, and operate all hydraulic control
levers.
STORAGE
 Follow manual instructions for storage.
 Keep children and bystanders away from stor-
age area.

SAFETY RULES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

8 Safety MAN0731 (9/19/2008)

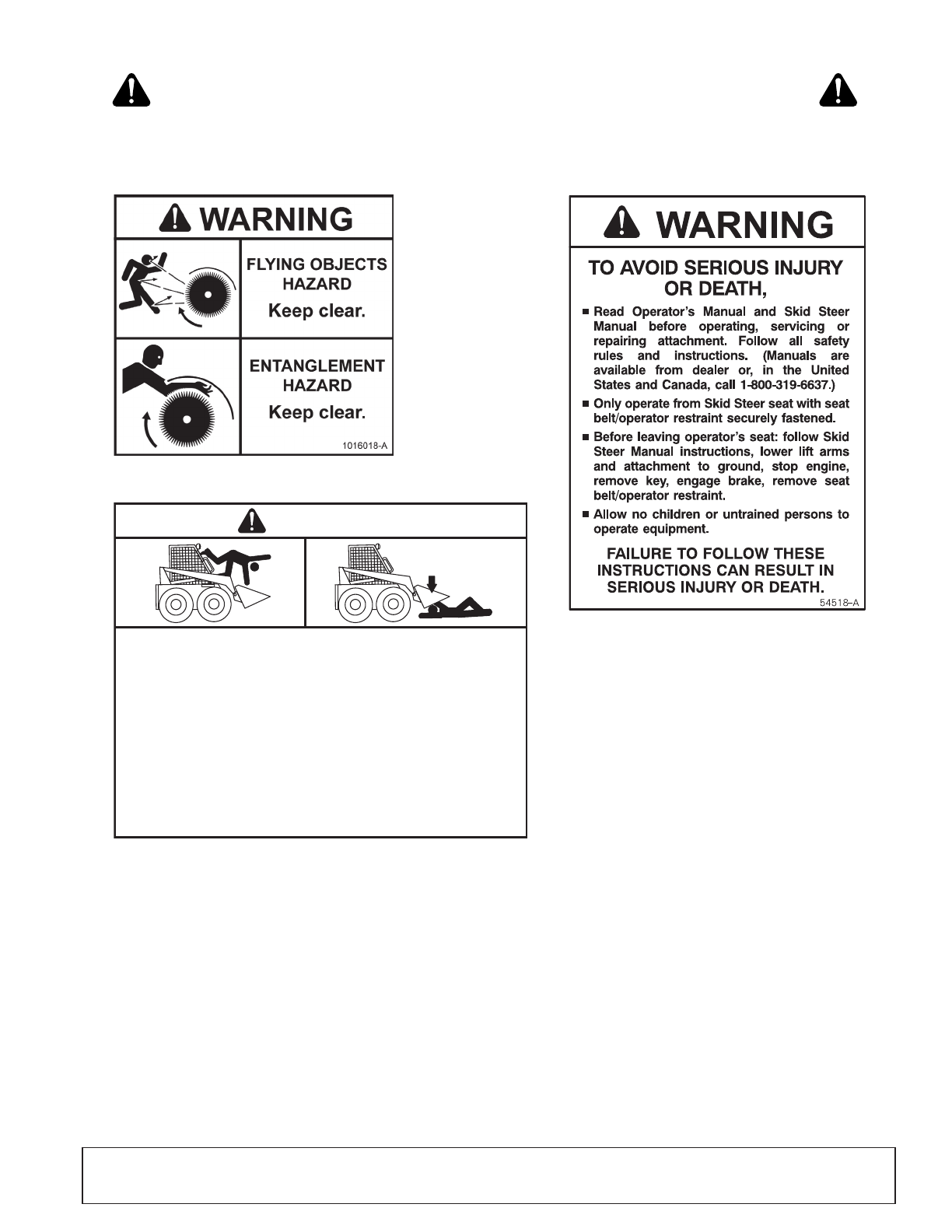

SAFETY & INSTRUCTIONAL DECALS
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Replace Immediately If Damaged!
A
3 - PN 1016019
2 - PN 1016017
4 - PN 1015363
1 - SERIAL NUMBER PLATE
MODEL NO. SERIAL NO.
Woods Equipment Company
Oregon, Illinois, U.S.A.

Safety 9
MAN0731 (9/19/2008)
SAFETY & INSTRUCTIONAL DECALS
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Replace Immediately If Damaged!
B
7 - PN 54518
BE CAREFUL!
Use a clean, damp cloth to clean safety decals.
Avoid spraying too close to decals when using a pressure washer; high-pressure water can
enter through very small scratches or under edges of decals causing them to peel or come off.
Replacement safety decals can be ordered free from your Woods dealer. To locate your nearest
dealer, check the Dealer Locator at www.WoodsEquipment.com, or in the United States and
Canada call 1-800-319-6637.
WARNING
54519-B
FALLING OFF CAN RESULT IN BEING RUN OVER.
■ Skid steer must have ROPS and seat belt/operator restraint.
Keep seat belt/operator restraint securely fastened.
■ Never allow riders.
RAISED EQUIPMENT CAN DROP AND CRUSH.
■ Never go under raised equipment or raised skid steer lift
arms. They can drop from hydraulic or mechanical failure, or
moving control levers.
■ Service work does not require going under equipment. Read
manual instructions.
FALLING OFF OR GOING UNDER MACHINE CAN RESULT IN
SERIOUS INJURY OR DEATH.
6 - PN 54519
5 - PN 1016018

10 Operation
MAN0731 (9/19/2008)
OPERATION
The operator is responsible for the safe operation of
this equipment. Operators must be instructed in and be
capable of the safe operation of the equipment, its
attachments and all controls. Do not allow anyone to
operate this equipment without proper instructions.
The Angle Broom is designed for removing dirt, snow
and small debris, and for thatching. Skid steers must
be equipped with an auxiliary hydraulic system capable
of supplying continuous flow for hydraulic motor opera-
tion.
 Safety instructions are important! Read all
attachment and power unit manuals; follow all
safety rules and safety decal information. (Replace-
ment manuals and safety decals are available from
your dealer. To locate your nearest dealer, check
the Dealer Locator at www.WoodsEquipment.com,
or in the United States and Canada call 1-800-319-
6637.) Failure to follow instructions or safety rules
can result in serious injury or death.
 Never allow children or untrained persons to
operate equipment.
 Power unit must be equipped with ROPS and
seat belt/operator restraint. Keep seat belt/operator
restraint securely fastened/engaged. Falling off
power unit can result in death from being run over
or crushed. Keep ROPS systems in place at all
times.
 Never go underneath equipment (lowered to the
ground or raised) unless it is properly blocked and
secured. Never place any part of the body under-
neath equipment or between moveable parts even
when the engine has been turned off. Hydraulic
system leak down, hydraulic system failures,
mechanical failures, or movement of control levers
can cause equipment to drop or rotate unexpect-
edly and cause severe injury or death. Follow Oper-
ator's Manual instructions for working underneath
and blocking requirements or have work done by a
qualified dealer.
 Before leaving operator's seat, lower lift arms
and put attachment on the ground. Engage brake,
stop engine, remove key, and remove seat belt.
ATTACH ANGLE BROOM TO SKID STEER
Read the skid steer operator's manual connecting and
removing instructions.
Position hydraulic hoses so they will not be pinched
when connecting the angle broom.
The skid steer coupler handles (handles up) should be
in the unlocked position and the lock pins retracted.

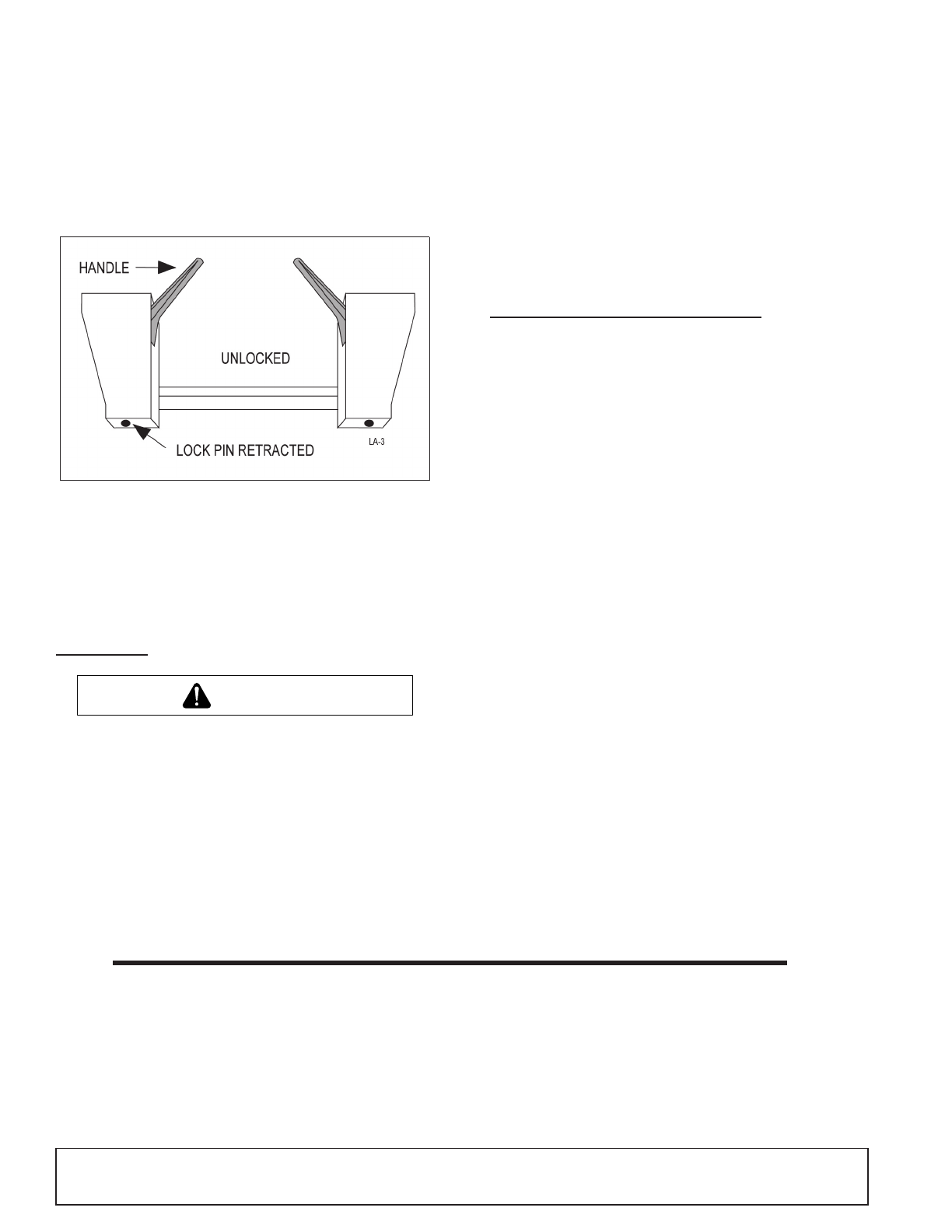

Figure 1. Skid Steer Coupler Handles - Unlocked
Move to the skid steer operator seat and start engine.
Lower skid steer lift arms to their lowest position.
Carefully move and align the skid steer to the angle
broom. The top of the skid steer coupler must slide into
the angle broom flange, Figure 2.
Figure 2. Attaching Angle Broom to Skid Steer
Roll the skid steer coupler into the angle broom so the
coupler handles can be engaged.
Set brake, shut off the engine, and remove key. Dis-
mount the skid steer.
Move the skid steer coupler handles to the locked posi-
tion (handles down). The lock pins must be completely
extended and secured into the slots provided on the
angle broom, Figure 3 and Figure 4.
Connect hydraulic hoses to skid steer auxiliary quick
couplers.
WARNING
WARNING

Operation 11
MAN0731 (9/19/2008)
Figure 3. Skid Steer Coupler Handles - Locked
Figure 4. Back of Attachment - Slot Locations
ADJUSTMENT
Leveling Brush Head
The angle broom must be level for even brush wear
and efficient sweeping.
Figure 5. Measure Brush Frame Distance
1. Move the angle broom to a flat, level surface.
2. Position the brush head straight ahead and lower it
so the brush is two inches above the ground.
3. Place a bubble level on the swing assembly and
level the brush front to back using the skid steer.
4. Set parking brake and shut off skid steer.
5. On each side, measure from the brush frame to the
ground. See Figure 5.
6. If adjustment is required: loosen hardware that
attaches the swing assembly to the brush head
assembly (Figure 6); lower the high side of the
brush head until both sides are equal distance from
the ground. Tighten hardware.

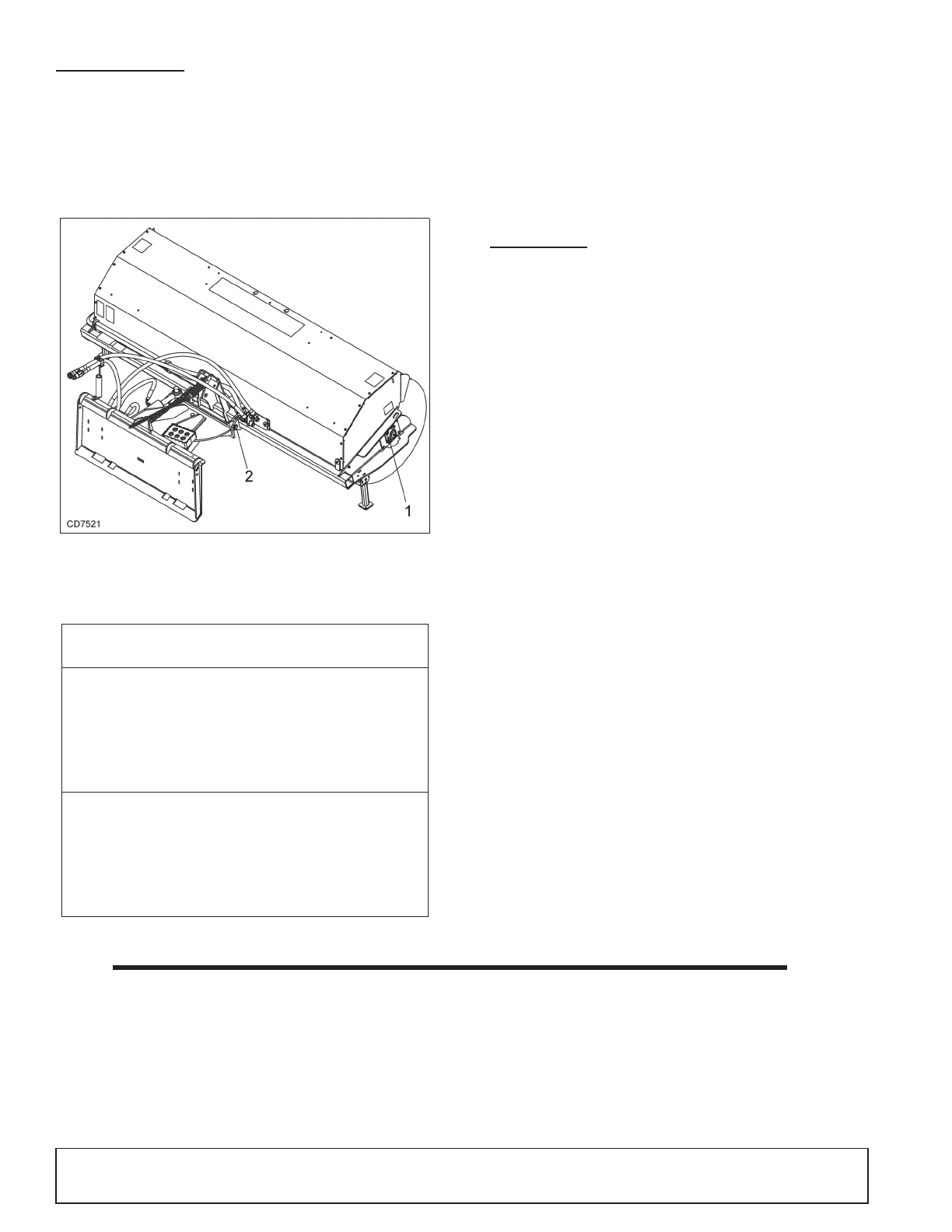

Figure 6. Swing Assembly Hardware
7. Angle the brush head to the right. Measure again
as shown in Figure 5. If measurements are equal,
no adjustment is required. If they are not equal,
check the level of the mounting assembly and
repeat the following steps, if necessary.
NOTE: The mounting assembly must be vertical.
Adjust the mounting chain to compensate.
8. After checking the mounting assemblies to see if
they are level, check the brush head assembly and
level as required.
Adjust Brush Pattern
A properly adjusted brush offers the best sweeping
performance. To check the brush pattern, move the
angle broom to a dusty, flat surface. Set the skid steer
parking brake and leave the engine running.
1. Start the broom at a low speed; then, lower it so the
bristle tips touch the ground. Run the broom in a
stationary position for ten seconds.
2. Raise the broom and back away. Switch off the
engine and remove the key.
3. The brush pattern left in the dust should be two to
three inches wide, running the length of the brush.
Compare the swept area with Figure 7.

12 Operation
MAN0731 (9/19/2008)

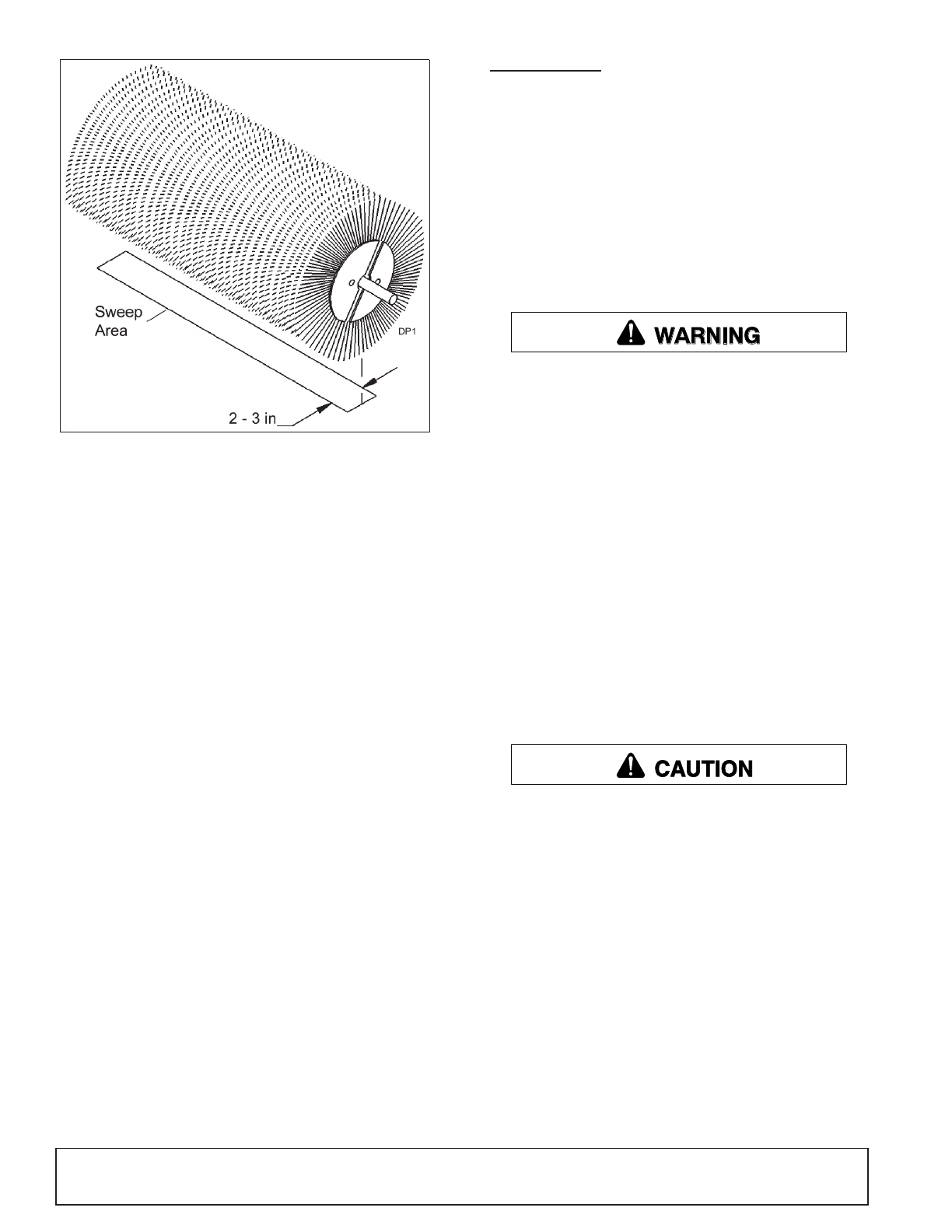

Figure 7. Brush Pattern
4. Adjust the brush pattern as necessary according to
instructions found in Adjusting the Spring-Chain
Assembly.
Adjusting the Spring-Chain Assembly
The spring-chain assembly allows the brush head to
pivot up and down.
To adjust brush pattern:
1. Lower the broom to take tension off the transport
chain.
2. Shorten the transport chain and raise the broom.
Transport chain should support the weight of the
broom.
3. Move the spring chain forward (lengthen), in the
swing assembly chain holder, to lower the brush
head; move chain backward (shorten) in the holder
to raise it.
Adjust Transport Chain
The transport chain supports the weight of the brush
head assembly during transport between work sites
and during adjustment of the spring-chain assemblies.
To adjust the transport chain:
1. Rotate the brush head forward.
2. Tighten the transport chain.
3. Retract the loader arms. Lower the broom so the
transport chain supports the weight of the broom.
OPERATION
Read and understand the angle broom and skid steer
operator's manuals before operating the angle broom.
Failure to do so may result in death, serious personal
injury or property damage.
Never raise the angle broom more than a few inches
off the ground when traveling from job site to job site.
Carry the broom low to the ground so that the operator
has good visibility and stability. Avoid any sudden
movements.
 Improper operation can cause the machine to
tip or roll over and cause injury or death.
• Keep power unit lift arms and attachment as
low as possible.
• Do not travel or turn with power unit lift arms
and attachment raised.
• Turn only on level ground.
• Go up and down slopes, not across them.
• Keep the heavy end of the machine uphill.
• Do not overload the machine.
 Look down and to the rear and make sure area
is clear before operating in reverse.
 Never direct discharge toward people, animals,
or property.
 Only engage power when equipment is at
ground operating level. Always disengage power
when equipment is raised off the ground.
 Keep brush away from intense heat or flame.
Brush material can ignite and burn.
Directing Debris
Avoid excessive downward pressure on the brush sec-
tions to prevent excessive wear. A two- to three- inch
wide pattern is sufficient for most applications. Make
sure the adjustment bolts are equal in order to prevent
an uneven wear pattern. To adjust brush pattern see
Adjust Brush Pattern, page 11.
Direct debris by angling the brush in the desired direc-
tion.
Observe wind direction. Sweeping with the wind makes
sweeping more effective and helps keep debris off the
operator.
WARNING
CAUTION

Operation 13
MAN0731 (9/19/2008)
Manual Angle Broom
1. Remove the lock pin from the swing assembly.
2. Position the brush head at the desired angle, align
holes between swing plate and mounting frame.
3. Insert lock pin and close.
Sweeping
1. Start the skid steer at idle speed and raise the
brush head.
2. Engage the brush head and lower it to the ground.
3. Increase skid steer engine rpm to sweeping speed.
Travel forward at 5 mph or less.
Operating tips
Brush, Engine & Travel Speed
Vary brush, engine and travel speed to match sweep-
ing conditions.
Large Areas
When sweeping a large area, such as a parking lot,
make a path down the middle and sweep to both sides.
This reduces the amount of debris that the sweeper
must move to one side.
Snow
High broom speeds and slow ground speeds are
needed to sweep snow effectively. Start at 3/4 throttle
and the lowest speed of the skid steer. For wet and/or
deep snow, increase broom speed to almost full throt-
tle. This helps keep snow from packing up inside the
brush hood.
In deep snow you may need to make more than one
pass to get down to a clean surface.
To keep snow from blowing back onto a swept area,
always sweep so the wind is at your back, or so it fol-
lows the brush angle.
Dirt and Gravel
To keep dust at a minimum, plan your sweeping for
days when it is overcast and humid, or after it has
rained. Also, sweep so the wind blows at your back or
in the direction the brush head is angled.
Low brush speeds and moderate ground speeds work
best for cleaning debris from hard surfaces. Brush
speeds that are too fast tend to raise dust because of
the aggressive sweeper action.
To sweep gravel, use just enough brush speed to roll
gravel, not throw it.
Heavy Debris
For two inches or more of heavy debris, medium/high
and ground speeds of less than five mph are recom-
mended.
Sweep path less than the full width of the broom.
Increase engine speed if debris becomes very heavy.
Thatch
For two inches or more of heavy debris, medium/high
and ground speeds of less than five mph are recom-
mended.
To prevent the broom from pulling itself into the ground,
adjust the spring-chain assembly so the bristle tips
barely touch the grass.
If the broom pulls into the grass and stalls while sweep-
ing, use the lift to raise the broom. Do not increase
throttle to override a stall out.
Use a combination of brush speeds and ground speeds
that roll up a neat windrow.
To keep thatch from blowing back into a swept area,
sweep with the wind at your back or in the direction the
brush is angled.
REMOVE BROOM FROM SKID STEER
 Do not allow bystanders in the area when oper-
ating, attaching, removing, assembling, or servic-
ing equipment.
 Do not disconnect hydraulic lines until all sys-
tem pressure is relieved. Lower unit to ground,
stop engine, and operate all hydraulic control
levers.
On a hard level surface, lower parking stands and
lower attachment to the ground.
WARNING

14 Operation
MAN0731 (9/19/2008)
Set brake, shut off engine, remove key, remove seat
belt and release operator restraint before leaving the
skid steer operator's seat.
Disconnect hydraulic hoses from quick couplers. Install
dust plugs and couple hoses together for storage.
Move skid steer coupler handles to the unlocked posi-
tion, Figure 8. Lock pins must be disengaged from
attachment retaining slots.
Figure 8. Skid Steer Coupler Handles - Unlocked
Move to the skid steer operator seat, fasten seat belt,
disengage operator restraint, and start engine.
Release brake and roll skid steer coupler until it is dis-
engaged from the attachment. The attachment should
be placed in storage position.
STORAGE
 Keep brush away from intense heat or flame.
Brush material can ignite and burn.
 Keep children and bystanders away from stor-
age area.
NOTICE
■ Do not store polypropylene brushes in direct
sunlight. The material can deteriorate and crumble
before the bristles are worn out.
NOTICE
■ Do not store the broom with weight on the
brushes. Weight will deform them, destroying the
sweeping effectiveness. To avoid this problem, use
optional storage stands.
Inspect the angle broom thoroughly and prepare for
storage. Repair or replace any damaged components.
Remove the angle broom as described in Removing
Angle Broom from Skid Steer" above.
PRE-OPERATION CHECK LIST
(OWNER'S RESPONSIBILITY)
___ Review and follow all safety rules and safety
decal instructions on page 5 through page 9.
___ Check that all safety decals are installed and in
good condition. Replace if damaged.
___ Check that all shields and guards are properly
installed and in good condition. Replace if dam-
aged.
___ Check that all hardware and cotter pins are prop-
erly installed and secured.
___ Check that equipment is properly and securely
attached to skid steer.
___ Do not allow riders.
___ Check and keep all bystanders away from equip-
ment working area.
___ Check all lubrication points and grease as
instructed in lubrication, page 16.
___ Check that all hydraulic hoses and fittings are in
good condition and not leaking before starting
skid steer. Check that hoses are not twisted, bent
sharply, kinked, frayed or pulled tight. Replace
any damaged hoses immediately.
___ Make sure skid steer ROPS and seat belt are in
good condition. Keep seat belt securely fastened
during operation.
CAUTION


Owner Service 15
MAN0731 (9/19/2008)
OWNER SERVICE
The information in this section is written for operators
who possess basic mechanical skills. Should you need
help, your dealer has trained service technicians avail-
able. For your protection, read and follow all safety
information in this manual.
Regular preventive maintenance and immediate repair
of broken or worn parts will insure maximum efficiency
and long life.
 Never go underneath equipment (lowered to the
ground or raised) unless it is properly blocked and
secured. Never place any part of the body under-
neath equipment or between moveable parts even
when the engine has been turned off. Hydraulic
system leak down, hydraulic system failures,
mechanical failures, or movement of control levers
can cause equipment to drop or rotate unexpect-
edly and cause severe injury or death. Follow Oper-
ator's Manual instructions for working underneath
and blocking requirements or have work done by a
qualified dealer.
 Before leaving operator's seat, lower lift arms
and put attachment on the ground. Engage brake,
stop engine, remove key, and remove seat belt.
 Do not allow bystanders in the area when oper-
ating, attaching, removing, assembling, or servic-
ing equipment.
 Never perform service or maintenance with
engine running.
 Make sure shields and guards are properly
installed and in good condition. Replace if damaged.
 Make sure that all operating and service person-
nel know that if hydraulic fluid penetrates skin, it
must be surgically removed as soon as possible by
a doctor familiar with this form of injury or gan-
grene, serious injury, or death will result. CON-
TACT A PHYSICIAN IMMEDIATELY IF FLUID
ENTERS SKIN OR EYES. DO NOT DELAY.
 Make sure all hydraulic hoses, fittings, and
valves are in good condition and not leaking before
starting power unit or using equipment. Check and
route hoses carefully to prevent damage. Hoses
must not be twisted, bent sharply, kinked, frayed,
pinched, or come into contact with any moving
parts. Operate moveable components through full
operational range to check clearances. Replace
any damaged hoses immediately.
 Do not modify or alter or permit anyone else to
modify or alter the equipment or any of its compo-
nents in any way.
 Make sure all safety decals are installed.
Replace if damaged. (See Safety Decals section for
location.)
 Your dealer can supply original equipment
hydraulic accessories and repair parts. Substitute
parts may not meet original equipment specifica-
tions and may be dangerous.
 Always wear relatively tight and belted clothing
to avoid getting caught in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropriate.
WARNING
WARNING
CAUTION

16 Owner Service MAN0731 (9/19/2008)
LUBRICATION
Grease Fittings
The following fittings should be greased daily. See Fig-
ure 9 for locations.
1. Core bearing (1 fitting)
2. Brush head pivot (2 fittings)
Figure 9. Grease Fitting Locations
Pre Operation Check
Inspect for leaks and correct as necessary.
Run engine at a slow idle, checking for leaks.
Operate broom to ensure it is working properly.
Check the fluid level in skid steer reservoir and add
fluid as required.
CLEANING
After Each Use
● Remove large debris such as clumps of dirt, grass,
crop residue, etc. from machine.
● Inspect machine and replace worn or damaged
parts.
● Replace any safety decals that are missing or not
readable.
Periodically or Before Extended Storage
● Clean large debris such as clumps of dirt, grass,
crop residue, etc. from machine.
● Remove the remainder using a low-pressure water
spray.
1. Be careful when spraying near scratched or torn
safety decals or near edges of decals as water
spray can peel decal off surface.
2. Be careful when spraying near chipped or
scratched paint as water spray can lift paint.
3. If a pressure washer is used, follow the advice
of the pressure washer manufacturer.
● Inspect machine and replace worn or damaged
parts.
● Sand down scratches and the edges of areas of
missing paint and coat with Woods spray paint of
matching color (purchase from your Woods
dealer).
● Replace any safety decals that are missing or not
readable (supplied free by your Woods dealer).
See Safety Decals section for location drawing.
Procedure Daily 50
Hours
Level Brush Head assembly
✔
Check brush pattern
✔
Clean air filter, skid steer
✔
Hydraulic fittings and hoses, tighten
✔
Grease fittings
✔
Check hydraulic fluid level
✔
Tighten hardware
✔
Grease swing plate
✔


Troubleshooting 17
MAN0731 (9/19/2008)
TROUBLESHOOTING
BRUSH HEAD
PROBLEM POSSIBLE CAUSE SOLUTION
Brush rotates wrong direction. Hoses installed incorrectly. Switch hoses at brush head tubes.
Brush slows or stops when sweeping. Brush pattern too wide. Adjust brush pattern to 2-3 inches
(51-76 mm) wide: see Adjust Brush
Pattern, page 11.
Travel speed too fast. Travel no more than 5 mph (8 kph)
while sweeping (2-3 mph
recommended).
Trying to sweep too much material at
once.
Make several passes with sweeper.
Relief pressure set too low. Set relief pressure to 2000 psi (138.0
bars).
Filter plugging. Change or clean filter.
Brush head assembly "bounces"
during sweeping.
Spring-chain assembly too loose. Adjust spring-chain assembly: see
Adjusting the Spring-Chain Assembly,
page 12.
Travel speed too fast and/or brush
speed too slow.
Find correct combination of ground
and brush speeds: do not travel at
more than 5 mph (8 kph).
Brush wears into cone shape. Sweeper is not level. Level sweeper before each use: see
Leveling Brush Head, page 11.
Tires on prime mover at different
pressures or are different sizes.
Check tire sizes and rating: make
corrections as necessary.
Brush wears very quickly. Brush pattern too wide. Adjust brush pattern to 2-3 inches
(51-76 mm) wide: see Adjust Brush
Pattern, page 11.
SPRING-CHAIN ASSEMBLY
Springs on spring-chain assemblies
stretching.
Transport chain too loose when
traveling between job sites.
Adjust according to Adjust Transport
Chain, page 12.
Travel speeds too fast when
sweeping.
Do not travel at speeds over 5 mph
(8 kph).
HYDRAULIC SYSTEM
Hydraulic system overheats. Hydraulic oil level too low. Add hydraulic oil to tank until it comes
to two inches (51 mm) from top.
Restriction in hoses. Remove bends in hoses; remove
obstructions inside hoses.
Hose pump flow rate exceeds
maximum rate of broom.
Contact hose manufacturer for proper
flow control method.
Hydraulic motor seals leak. Back pressure exceeds 1000 PSI. Contact Woods Technical Support.
Motor is failing. High number of hours on motor;
contact dealer to rebuild or replace.

18 Dealer Service
MAN0731 (9/19/2008)
DEALER SERVICE
The information in this section is written for dealer ser-
vice personnel. The repair described here requires
special skills and tools. If your shop is not properly
equipped or your mechanics are not properly trained in
this type of repair, you may be time and money ahead
to replace complete assemblies.
 Never go underneath equipment (lowered to the
ground or raised) unless it is properly blocked and
secured. Never place any part of the body under-
neath equipment or between moveable parts even
when the engine has been turned off. Hydraulic
system leak down, hydraulic system failures,
mechanical failures, or movement of control levers
can cause equipment to drop or rotate unexpect-
edly and cause severe injury or death. Follow Oper-
ator's Manual instructions for working underneath
and blocking requirements or have work done by a
qualified dealer.
 Do not allow bystanders in the area when oper-
ating, attaching, removing, assembling, or servic-
ing equipment.
 Do not modify or alter or permit anyone else to
modify or alter the equipment or any of its compo-
nents in any way.
 Do not disconnect hydraulic lines until machine
is securely blocked or placed in lowest position
and system pressure is released by operating
valve levers.
 Make sure attachment is properly secured,
adjusted, and in good operating condition.
 Make sure all safety decals are installed.
Replace if damaged. (See Safety Decals section for
location.)
 Make sure shields and guards are properly
installed and in good condition. Replace if damaged.
 Always wear relatively tight and belted clothing
to avoid getting caught in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing, and head;
and respirator or filter mask where appropriate.
REPLACING THE BRUSH SECTIONS
1. Remove motor mount screws. Keep hardware for
reinstallation. Remove motor mount.
2. Remove bearing mounting plate screws from side.
Keep hardware for reinstallation.
3. Remove core from brush assembly.
4. Remove retaining plate from core assembly.
5. Remove old sections.
Install New Sections
1. Slide the first section onto the core. Make sure that
the drive pins straddle the tube (rail) to prevent the
section from spinning on the core (Figure 10).
Figure 10. Number Tubes
2. Place the second section on the core with the drive
pins rotated 180° from those on the first section
(Figure 11).
3. Slide sections on until the core is full,. Make sure to
alternate each tube.
WARNING
CAUTION

Dealer Service 19
MAN0731 (9/19/2008)
Figure 11. Second Section
Assemble Unit
1. Attach the section retainer and bearing mounting
plate with previously removed hardware.
2. Lay core on the ground. Lower frame over core.
3. Attach bearing mounting plate with previously
removed hardware.
4. Attach motor mount with hardware previously
removed.
NOTES


20 Dealer Check Lists
MAN0731 (9/19/2008)
DEALER CHECK LISTS
PRE-DELIVERY CHECK LIST
(DEALER’S RESPONSIBILITY)
Inspect the equipment thoroughly after assembly to
ensure it is set up properly before delivering it to the
customer.
The following check lists are a reminder of points to
inspect. Check off each item as it is found satisfactory
or after proper adjustment is made.
___ Check that all safety decals are installed and in
good condition. Replace if damaged.
___ Check that shields and guards are properly
installed and in good condition. Replace if dam-
aged.
___ Check lock bars on attachment carrier to make
sure they are in place.
___ Check all bolts to be sure they are tight.
___ Check that all cotter pins and safety pins are
properly installed. Replace if damaged.
___ Check and grease all lubrication points as identi-
fied in lubrication, page 16.
DELIVERY CHECK LIST
(DEALER’S RESPONSIBILITY
___ Show customer how to make adjustments.
___ Instruct customer how to lubricate and explain
importance of lubrication.
___ Point out the safety decals. Explain their meaning
and the need to keep them in place and in good
condition. Emphasize the increased safety haz-
ards when instructions are not followed.
___ Present Operator's Manual and request that cus-
tomer and all operators read it before operating
equipment. Point out the manual safety rules,
explain their meanings and emphasize the
increased safety hazards that exist when safety
rules are not followed.
___ Explain to customer the potential crushing haz-
ards of going underneath raised equipment.
Instruct customer that service work does not
require going underneath unit and never to do so.
___ Show customer the safe, proper procedures to be
used when mounting, dismounting, and storing
equipment.
___ Explain to customer that when equipment is
transported on a road or highway, safety devices
should be used to give adequate warning to oper-
ators of other vehicles.
___ Make customer aware of optional equipment
available so that customer can make proper
choices as required.
___ Point out all guards and shields. Explain their
importance and the safety hazards that exist
when not kept in place and in good condition.

