Woodworm Cruise User manual

Woodworm Cruise

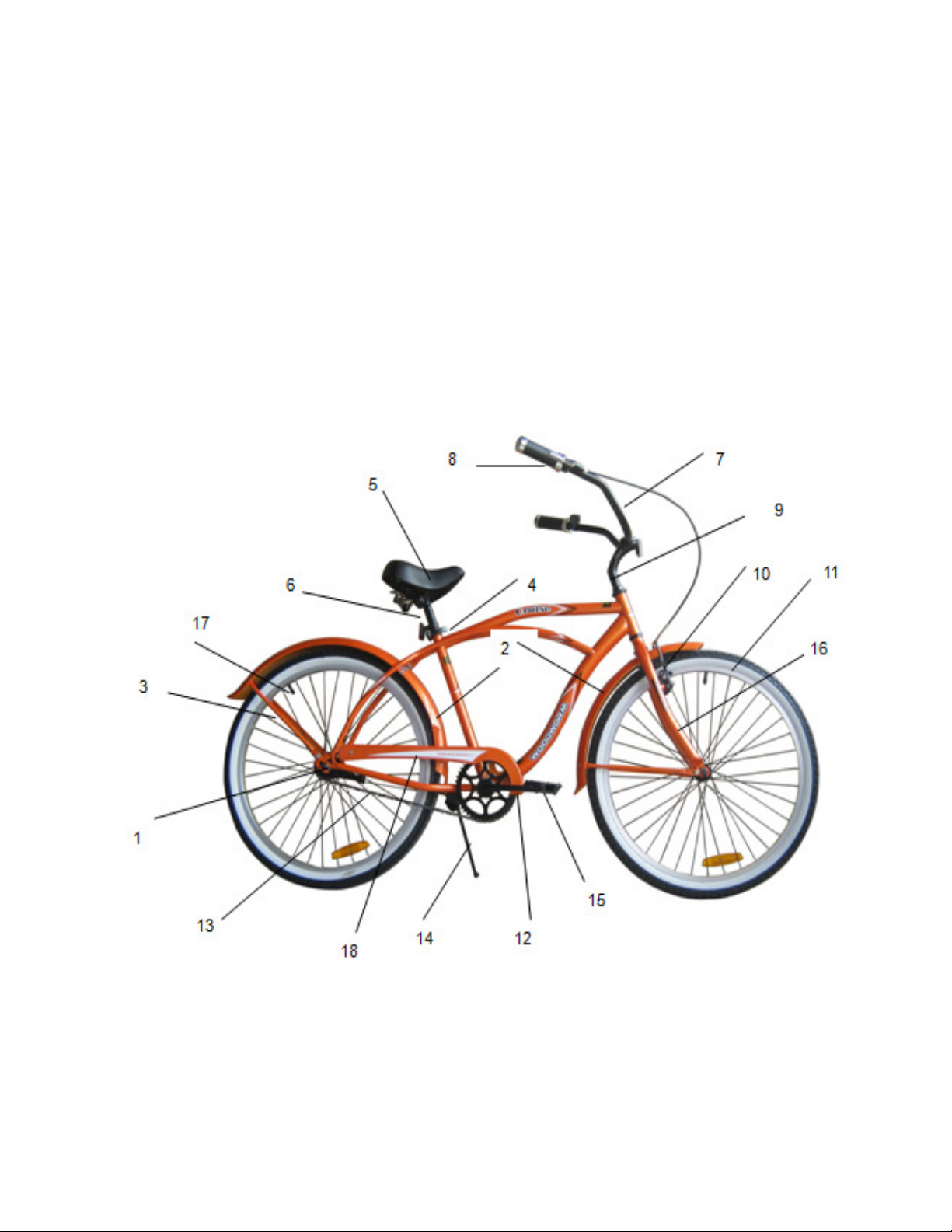

Parts List
1. Free Wheel with
Rear Hub
2. Fenders
3. Fender Stay
4. Quick Release

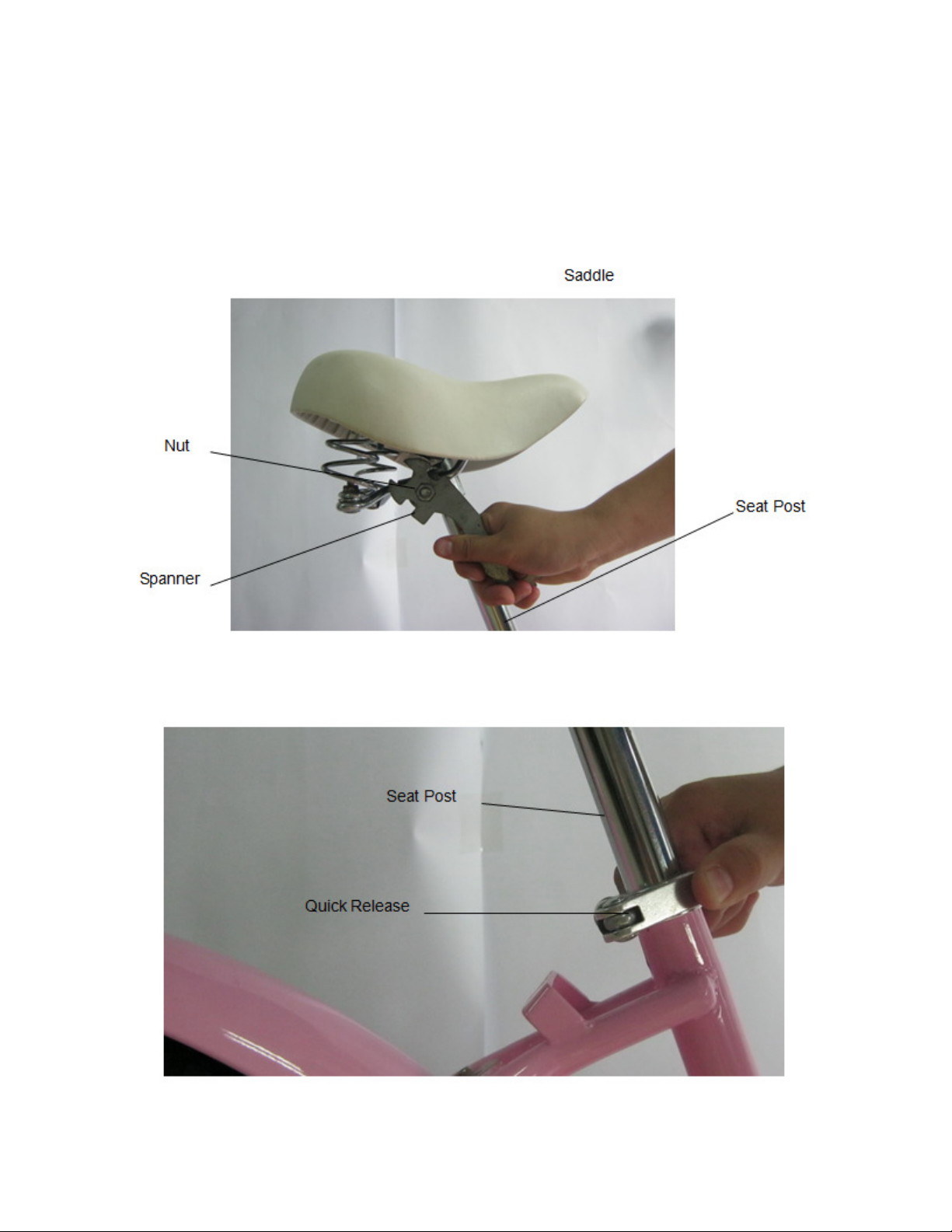

5. Saddle
6. Seat Post
7. Handlebars
8. Grips
9. Handlebar Stem

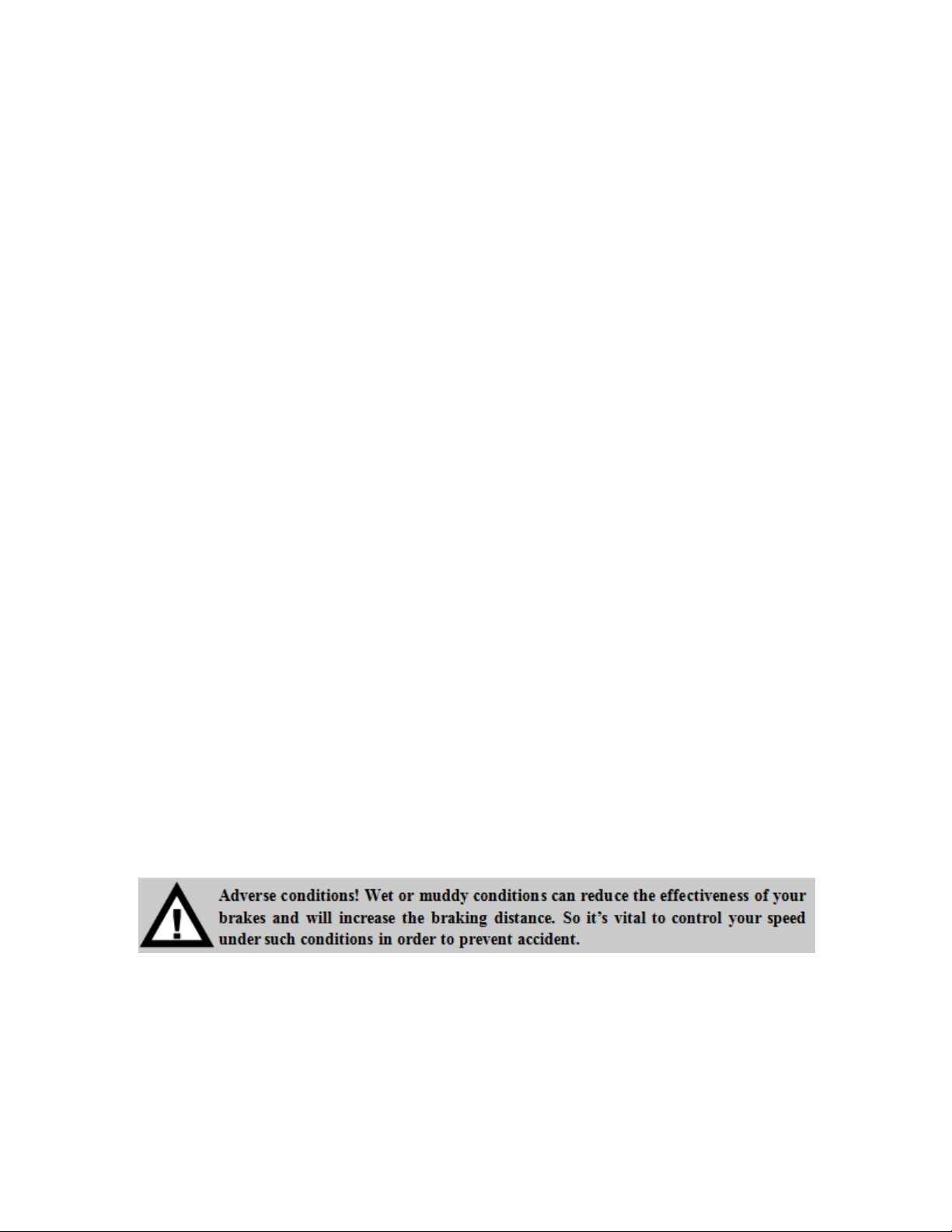

10. Front Brake
11. Front Wheel
12. Crank
13. Chain
14. Kick Stand
15. Pedal
16. Front Fork
17.Valve
18. Chainguard

Handlebar Assembly
1. Open the handlebar stem using the Allen key provided
2. Place the handlebars inside the stem fitting and tighten the screws using the
Allen Key.

3. Now insert the handlebar stem into the neck ensuring that it passes the minimum
insertion mark.
4. Now fasten the handlebars in place using the Allen key.

Front Wheel Assembly
1. Make sure the brakes are loose enough to allow the wheel to pass through the
brake pads easily.
2. Place the wheel into the fork dropouts.
3. Install the Retaining Washers with the raised lip pointed towards the fork and
insert into the small hole of the fork blade. Note: Some bikes may have step
retaining washers in place of the retaining washer. If so, install the step retaining
washer with the raised portion sliding into the fork dropouts.
4. Install the Alex Nut and tighten, make sure that the wheel is centred between the
fork and the brakes.
5. Spin the wheel to make sure that it is centred and clears the brake shoes.
Tighten the brakes if necessary.
6. Turn the Woodworm Cruise upright using the kickstand to support it.
Alex
Nut
nut
Retaining
Washer Alex
Hub
Step
Retaining
Washer
Front dropout Con Nut
