Woody 115 HD User manual

Woody Equipment Inc., 205 rue Commercial, Saint-Odilon-de-Cranbourne, Quebec, Canada G0S3A0
T.[phone] F.[phone] Email: [e-mail] <mailto:[e-mail]>
Website: www.equipementswoody.com <http://www.equipementswoody.com/> Facebook: Equipements Woody
Woody Log Loader
Operator’s Manual
Pignon Models 115-
130- 150- 170 HD and
telescopic models.

Woody Equipment Inc.
Owners: Jerome and Sebastien Labbe
205 rue Commerciale
Saint-Odilon-de-Cranbourne
Beauce-Nord, Quebec,
Canada G0S 3A0
T. [phone]
F. [phone]
Email: [e-mail]
<mailto:[e-mail]>
Website: www.equipementswoody.com
<http://www.equipementswoody.com/>
Facebook: Les Equipements Woody
Woody Equipment Inc.
C All Rights Reserved: Woody Equipment Inc. of Saint-Odilon-de-Cranbourne.
No part of this manual may be reproduced in any form without the written permission of Woody Equipment Inc.

Table des matières
Introduction........................................................................1
Avertissement....................................................................2
Caractéristiques de la machine 115HD..........................3
Table premier niveau 115HD............................................
Caractéristiques de la machine 130HD..........................5
Table premier niveau 130HD............................................6
Caractéristiques de la machine 130HDT.........................7
Table premier niveau 130HDT..........................................8
Caractéristiques de la machine 150HDT........................9
Table premier niveau 150HDT........................................10
Caractéristiques de la machine 170HDT......................11
Table premier niveau 170HDT........................................12
Caractéristiques de la machine 170HD........................13
Table premier niveau 170HD..........................................1
Caractéristique grappin 36''...........................................15
Caractéristique grappin 52''...........................................16
Caractéristique treuil 6000lbs.........................................17
Caractéristique conduite simple....................................18
Caractéristique conduite double...................................19
Sécurité générales...........................................................20
Utilisation sécuritaire...................................................21-30

Introduction
Congratulations on your purchase of a Woody Log Loader. Woody Equipment
designs and manufactures equipment according to very strict criteria. This
equipment is intended for professional use in the agricultural and forestry sectors.
Even if you have experience with this type of product, we recommend that you
read these instructions carefully. These instructions contain important information
on safety and efficiency and to ensure the validity of the factory guarantee.
Woody Equipment reserves the right to modify and / or improve its equipment
and maintenance instructions, as well as to revise data without notice.
Write down the serial number, model number, purchased date, dealer name, and
sales representative’s name. Keep this information available for ordering parts as
well as for any technical assistance or warranty issue.
Serial number
Model number
Purchased date
Dealer
Sales representative
1

The following symbols used in this manual are to warn the operator of the dangers

connected to the use of this machinery. Follow the safety instructions to avoid any
risk of serious injury or death.
Warning
2

22
DETAIL C
SCALE 2 : 29
2327
3

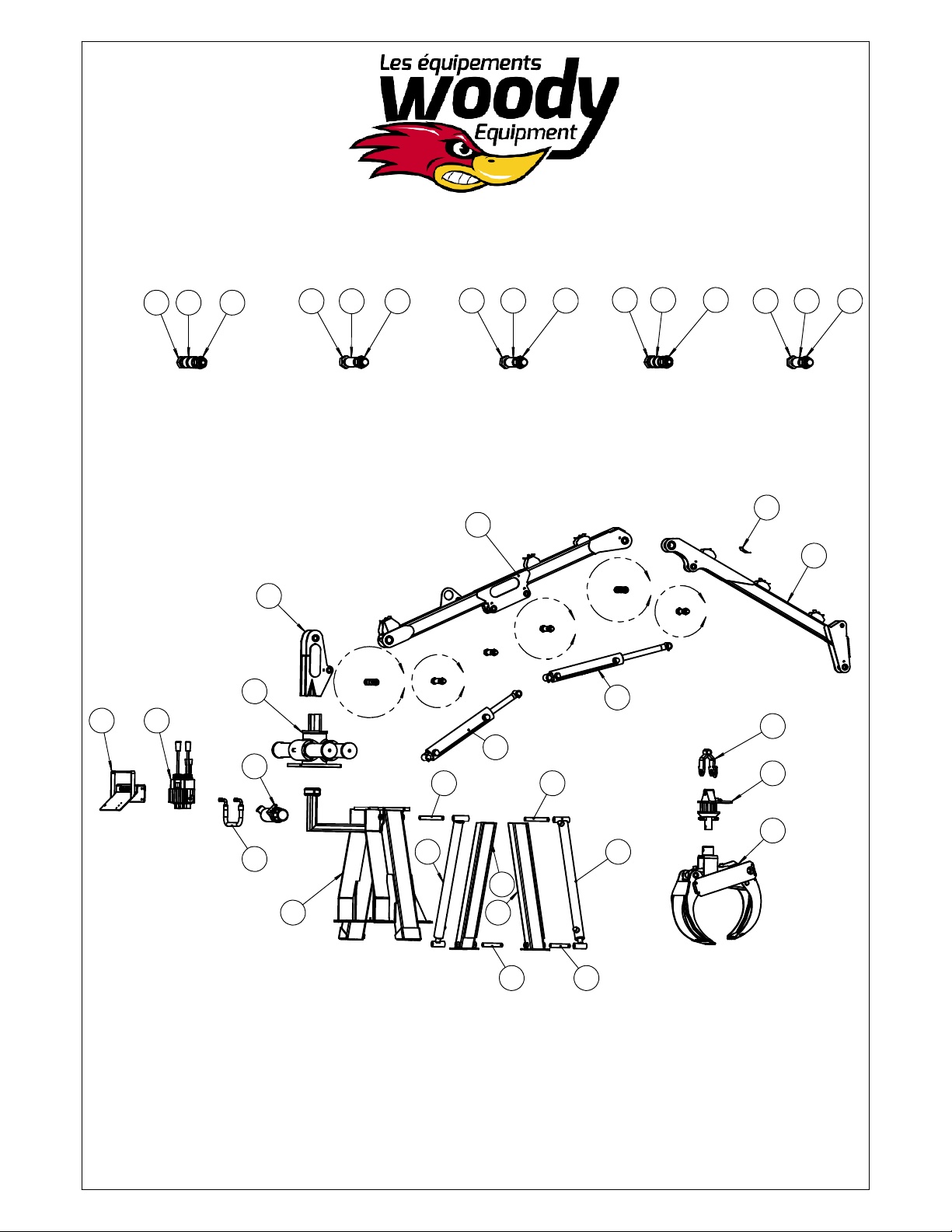

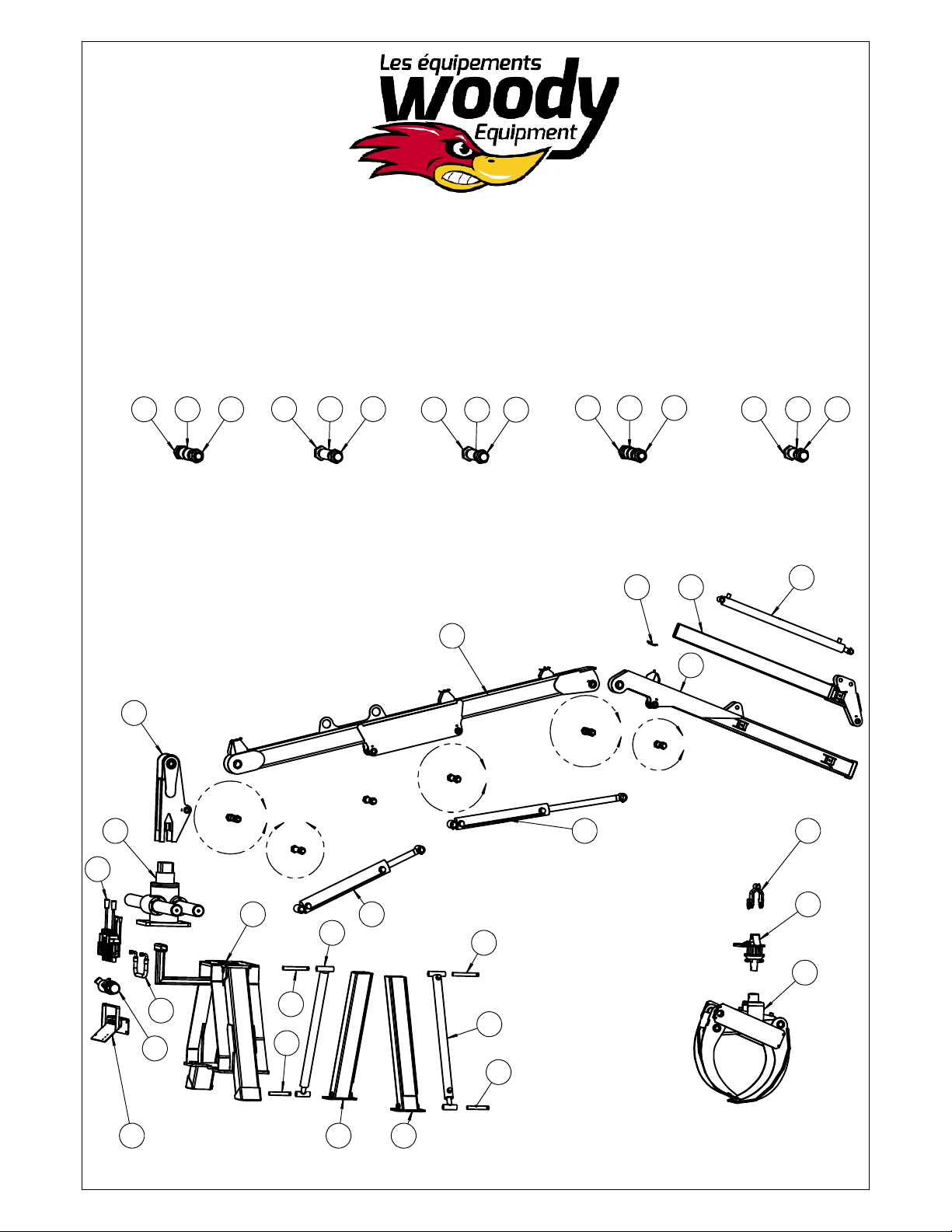

115 HD Loader models pinion
Parts list
C
D
E
F
G
10
6
5
2
11
31
19
149
16
17
13
15
12
18
3
18
4
1
30 30
2929
8
DETAIL D
SCALE 2 : 29
2326
21
DETAIL E
SCALE 2 : 29
2325
20
DETAIL F
SCALE 2 : 29
2324
7
DETAIL G
SCALE 2 : 29
2328

115 HD Loader models pinion
Parts list
Item Part # Description Qty
1 60-044-01 Loader A-Frame 1
2 60-044-02 Loader column 1
3 60-012-05 Loader stabilizers 1
4 60-012-06 Loader stabilizers 1
5 60-044-04 Loader main boom 1
6 60-021-04 Loader stick boom 1
7 60-012-08 Loader main boom pin 115-
125 1
8 60-012-07 Loader stick boom pin 115-
125 1
9 60-010-04
Loader control valve
support 115, 125, 130 ,150
& 170
1
10 60-000-060 Hose lock 6
11 60-044-03 Pinion 1
12 57-002 36'' grapple 1
13 57-000-04 Grapple yoke 1
14 130240 Anti-shock Q30/7 control 1
15 199309 GR30 Rotator 1
16 120483 Hydraulic Cylinder 3" x 16"
stroke 1
17 120322 Hydraulic Cylinder 2 1/2" x
16" Stroke 1
18 120212 Hydraulic Cylinder 2" x 30"
Stroke 2
19 140040-020-100600-100600 Assembly Hose 1/2'' - 20''
Long 1
20 300340 Bolt 1"-8 x 7" 1
21 300330 Bolt 1"-8 x 6 1/2" 2
22 300320 Bolt 1"-8 x 6" 1
23 301500 Nylon nut 1"-8 6
24 89-20-16-52-D26-00 Plastic tubing 1 1/4" O.D. 1
25 89-20-16-44-D22-00 Plastic tubing 1 1/4" O.D. 2
26 89-24-20-48-D24-00 Plastic tubing 1 1/2" O.D. 1
27 89-20-16-36-D18-00 Plastic tubing 1 1/4" O.D. 1
28 89-24-20-56-D28-00 Plastic tubing 1 1/2" O.D. 1
29 86-16-92-E08-00 Rod 1" O.D. 2
30 86-16-112-E08-00 Rod 1" O.D. 2
31 400500 Document holder 1
4

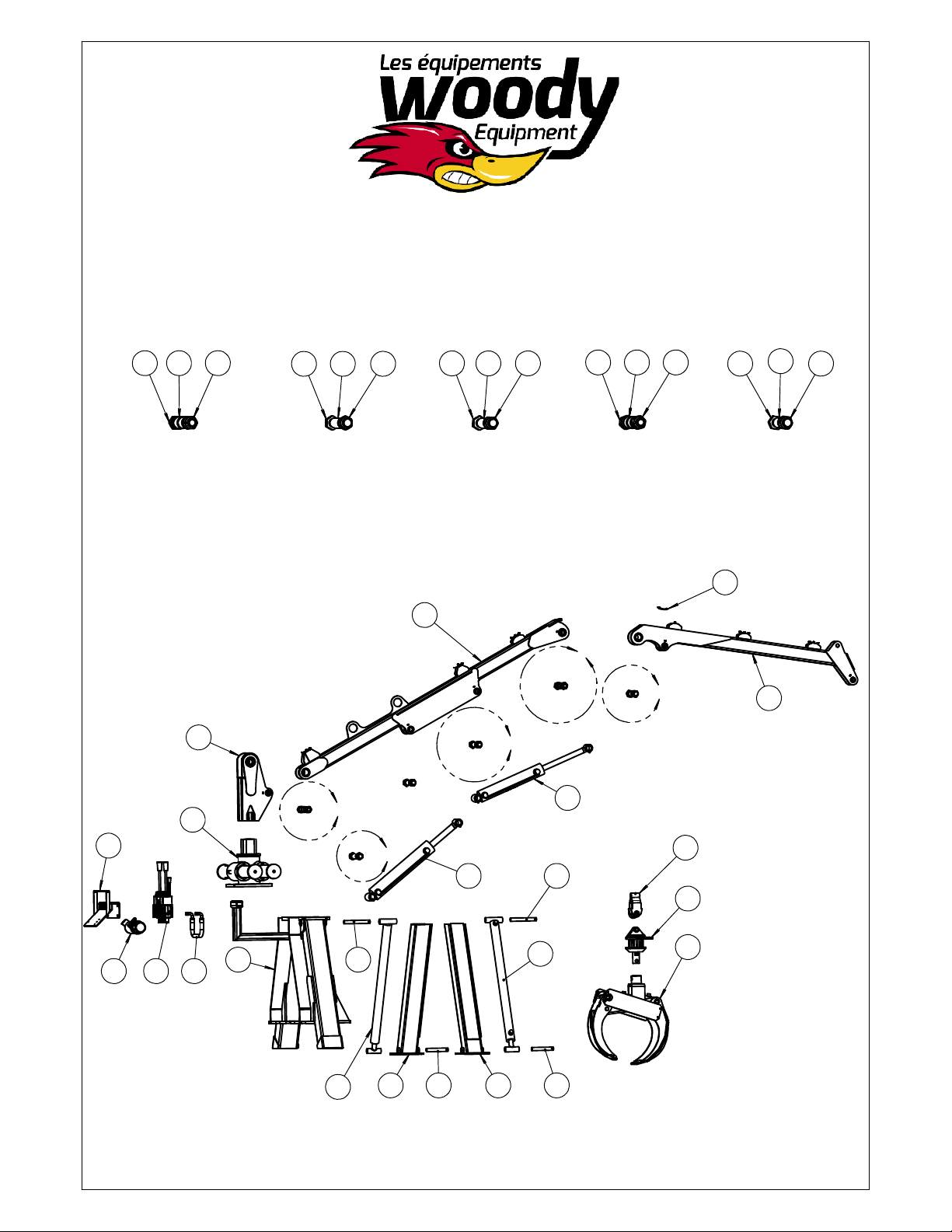

130 HD Loader models pinion
Parts list
5
H
J
K
L
M
10
3
2
1
18
17
12
15
11
19
87
19
6
13
9
31 14 16
30
30
2929
25
DETAIL J
SCALE 1 : 16
5 23 23
DETAIL H
SCALE 1 : 16
22 28
23
DETAIL K
SCALE 1 : 16
21 26
23
DETAIL M
SCALE 1 : 16
20 27
24
DETAIL L
SCALE 1 : 16
4 23

130HD Loader models pinion
Parts list
Item Part # Description Qty
1 60-036-03 Loader column 130HD 1
2 60-018-03 Loader main boom 130 HD 1
3 60-018-04 Loader stick boom 130HD 1
4 60-006-09 Loader main boom pin 130 ,150 & 170HD 1
5 60-006-08 Loader stick boom pin 130 ,150 & 170HD 1
6 60-036-01 Loader A-Frame 130 HD 1
7 60-018-05 Loader stabilizer 1
8 60-018-06 Loader stabilizer 1
9 60-010-04 Loader control valve support 115, 125, 130 ,150 & 170 1
10 60-000-060 Hose lock 6
11 57-002 36" grapple 1
12 57-000-04 Grapple yoke 1
13 110040 Pinion 270° 1
14 130240 Anti-shock Q30/7 control 1
15 199309 GR30 Rotator 1
16 140040-020-100600-100600 Assembly Hose 1/2'' - 20'' Long 1
17 120652 Hydraulic cylinder 3 1/2" x 18" Stroke 1
18 120482 Hydraulic cylinder 3" x 16" Stroke 1
19 120232 Hydraulic cylinder 2" x 36" Stroke 2
20 300290 Bolt 1 1/4"-12 x 9" 1
21 300281 Bolt 1 1/4"-12 x 8" 2
22 300280 Bolt 1 1/4"-12 x 7" 1
23 301530 Nylon nut 1 1/4"-12 6
24 89-28-24-80-D40-00 Plastic tubing 1 3/4" O.D. 1
25 89-28-24-64-D32-00 Plastic tubing 1 3/4" O.D. 1
26 89-24-20-60-D30-00 Plastic tubing 1 1/2" O.D. 2
27 89-24-20-76-D38-00 Plastic tubing 1 1/2" O.D. 1
28 89-24-20-44-D22-00 Plastic tubing 1 1/2" O.D. 1
29 86-16-108-E08-00 Rod 1" O. D. 2
30 86-16-130-E08-00 Rod 1" O. D. 2
31 400500 Document holder 1
6

N
P
R
T
U
11
14
10
7
16
15
17
639
2
1
128 13
28 18
7
130 HDT Loader models pinion
Parts list
23
DETAIL P
SCALE 1 : 15
225 21
DETAIL N
SCALE 1 : 15
2227
24
DETAIL T
SCALE 1 : 15
224 20
DETAIL R
SCALE 1 : 15
22
25
19
DETAIL U
SCALE 1 : 15
2226

130 HDT Loader models pinion
Parts list
ITEM Part # Description Qty
1 60-036-03 Loader column 1
2 60-030-02 Loader main boom 130 HDT 1
3 60-030-01 Loader stick boom 130 HDT 1
4 60-006-09 Loader main boom pin 130 ,150 & 170 1
5 60-006-08 Loader stick boom pin 130 ,150 & 170 1
6 60-030-09 Telescopic boom 1
7 60-061-01 Loader A-Frame 130HD 1
8 60-010-04 Loader control valve support 115, 125,
130 ,150 & 170 1
9 60-000-060 Hose lock 7
10 57-002 36" Grapple 1
11 57-000-04 Grapple yoke 1
12 110040 Pinion 270° 1
13 130240 Anti-shock Q30/7 control 1
14 199309 GR30 Rotator 1
15 120652 Hydraulic Cylinder 3 1/2" x 18" stroke 1
16 120482 Hydraulic Cylinder 3" x 16" stroke 1
17 120230 Hydraulic Cylinder 2" x 36" stroke 1
18 140040-020-100600-
100600 Hydraulic Hose 1/2'' - 20'' 1
19 300290 Bolt 1 1/4"-12 x 9" 1
20 300281 Bolt 1 1/4"-12 x 8" 2
21 300280 Bolt 1 1/4"-12 x 7" 1
22 301530 Nylon nut 1 1/4"-12 6
23 89-28-24-64-D32-00 Plastic Tube 1 3/4" O.D. 1
24 89-28-24-80-D40-00 Plastic Tube 1 3/4" O.D 1
25 89-24-20-60-D30-00 Plastic Tube 1 1/2" O.D. 2
26 89-24-20-76-D38-00 Plastic Tube 1 1/2" O.D. 1
27 89-24-20-44-D22-00 TPlastic Tube 1 1/2" O.D. 1
28 400500 Document holder 1
8

9
V
W
Y
AA
AB
18
54
9
3
2
10
1
17 16
15
12
14
11
828
13
150 HDT Loader models pinion
Parts list
26
DETAIL W
SCALE 2 : 37
227 21
DETAIL V
SCALE 2 : 37
2221
19
DETAIL AA
SCALE 2 : 37
22
23 20
DETAIL Y
SCALE 2 : 37
2224
27
DETAIL AB
SCALE 2 : 37
226

150 HDT Loader models pinion
Parts list
Item Part # Description Qty
1 60-052-01 Loader A-Frame 170 HD 1
2 60-058-03
Loader column 150 HDT
1
3 60-031-02 Loader main boom 150-HDT 1
4 60-031-01 Loader stick boom 150-HDT 1
5 60-031-06 Telescopic 1
6 60-006-09 Loader main boom pin 130
,150 & 170 1
7 60-006-08 Loader stick boom pin 130
,150 & 170 1
8 60-010-04 Loader control valve support
115, 125, 130 ,150 & 170 1
9 60-000-060 Hose lock 7
10 110070 Pinion 1
11 130240 Anti-shock Q30/7 control 1
12 199309 GR30 Rotator 1
13 140040-020-100600-100600 Hose 1/2'' - 20'' 1
14 57-004 52" Grapple 1
15 57-000-04 Grapple yoke 1
16 120512 Hydraulic Cylinder 3" x 24"
stroke 1
17 120672 Hydraulic Cylinder 3 1/2" x
24" stroke 1
18 120230 Hydraulic Cylinder 2" x 36"
stroke 1
19 300290 Bolt 1 1/4"-12 x 9" 1
20 300281 Bolt 1 1/4"-12 x 8" 2
21 300280 Bolt 1 1/4"-12 x 7" 1
22 301530 Nylon nut 1 1/4"-12 6
23 89-24-20-76-D38-00 Plastic tubing 1 1/2" O.D. 1
24 89-24-20-60-D30-00 Plastic tubing 1 1/2" O.D. 2
25 89-24-20-44-D22-00 Plastic tubing 1 1/2" O.D. 1
26 89-28-24-64-D32-00 Plastic tubing 1 3/4" O.D. 1
27 89-28-24-80-D40-00 Plastic tubing 1 3/4" O.D. 1
28 400500 Document holder 1
10

AC
AD
AE
AF
AG
20
7
5
11
6
2
14
15
33
21
10
1 17
18
19
3 4
19
13
16
12
31
31
32
32
11
24
DETAIL AC
SCALE 1 : 16
3026
23
DETAIL AE
SCALE 1 : 16
3025
170 HDT Loader models pinion
Parts list
28
DETAIL AD
SCALE 1 : 16
309
22
DETAIL AF
SCALE 1 : 16
3027
29
DETAIL AG
SCALE 1 : 16
308

170 HDT Loader models pinion
Parts list
Item Part # Description Qty
1 60-020-13 Loader A-Frame 170-HDT 1
2 60-020-12 Loader column 1
3 60-018-05 Loader telescopic stabilizers 1
4 60-018-06 Loader telescopic stabilizers 1
5 60-032-01 Loader stick boom 170-HDT 1
6 60-032-02 Loader main boom 170 HDT 1
7 60-032-07 Telescopic 170 HDT 1
8 60-006-09 Loader main boom pin 130 ,150 & 170 1
9 60-006-08 Loader stick boom pin 130 ,150 & 170 1
10 60-010-04 Loader control valve support 115, 125, 130 ,150 &
170 1
11 60-000-060 Hose lock 7
12 57-004 52" Grapple 1
13 57-000-10 Grapple yoke 1
14 110070 Pinion W170 1
15 130250 Anti-shock Q30/8 control 1
16 199309 GR30 Rotator 1
17 120672 Hydraulic Cylinder 3 1/2" x 24" Stroke 1
18 120512 Hydraulic Cylinder 3" x 24" Stroke 1
19 120232 Hydraulic Cylinder 2" Dia. x 36" Stroke 2
20 120230 Hydraulic Cylinder 2" x 36" Stroke 1
21 140040-020-100600-
100600 Hose 1/2'' - 20'' 1
22 300290 Bolt 1 1/4"-12 x 9" 1
23 300281 Bolt 1 1/4"-12 x 8" 2
24 300280 Bolt 1 1/4"-12 x 7" 1
25 89-24-20-60-D30-00 Plastic tubing 1 1/2" O.D. 2
26 89-24-20-44-D22-00 Plastic tubing 1 1/2" O.D. 1
27 89-24-20-76-D38-00 Plastic tubing 1 1/2" O.D. 1
28 89-28-24-64-D32-00 Plastic tubing 1 3/4" O.D. 1
29 89-28-24-80-D40-00 Plastic tubing 1 3/4" O.D. 1
30 301530 Nylon nut 1 1/4"-12 6
31 86-16-130-E08-00 Rod 1" O. D. 2
32 86-16-108-E08-00 Rod 1" O. D. 2
33 400500 Document holder 1
12

170 HDT Loader models pinion and
with seat Parts list
29
DETAIL AH
SCALE 2 : 37
262531
DETAIL AJ
SCALE 2 : 37
268
AH
AJ
AK
AL
AM
13
16
14
2210
12
69
5
34
11 17
2
18
35
15
1
19
20
33
32
21
43
21
33
32
13
30
DETAIL AL
SCALE 2 : 37
267 28
DETAIL AK
SCALE 2 : 37
2624
27
DETAIL AM
SCALE 2 : 37
2623

170 HDT Loader models pinion and
with seat Parts list
Item Part # Description Qty
1 60-020-13 Loader A-Frame 170-HDT 1
2 60-020-12 Loader column 1
3 60-018-05 Loader stabilizer 1
4 60-018-06 Loader stabilizer 1
5 60-020-14 Tray with seat and
control support 1
6 60-032-01 Loader stick boom 170-HDT 1
7 60-006-09 Loader main boom pin 130
,150 & 170 1
8 60-006-08 Loader stick boom pin 130
,150 & 170 1
9 60-020-03 Loader main boom 130HD-
150HD-170 HD 1
10 60-032-07 Telescopic 170 HDT 1
11 60-010-04 Loader control valve support
115, 125, 130 ,150 & 170 1
12 60-000-060 Hose lock 7
13 57-004 52" Grappel 1
14 57-000-04 Grappel yoke 1
15 110070 Pinion 1
16 199309 GR30 Rotator 1
17 130250 Anti-shock Q30/8 control 1
18 140040-020-100600-100600 Hose 1/2'' - 20'' 1
19 120672 Hydraulic Cylinder 3 1/2"
Dia. x 24" Strock 1
20 120512 Hydraulic Cylinder 3" Dia. x
24" Strock 1
21 120232 Hydraulic Cylinder 2" Dia. x
36" Strock 2
22 120230 Hydraulic Cylinder 2" x 36"
Strock 1
23 300290 Bolt 1 1/4"-12 x 9" 1
24 300281 Bolt 1 1/4"-12 x 8" 2
25 300280 Bolt 1 1/4"-12 x 7" 1
26 301530 Nylon nut 1 1/4"-12 6
27 89-24-20-76-D38-00 Plastic tubing 1 1/2" O.D. 1
28 89-24-20-60-D30-00 Plastic tubing 1 1/2" O.D. 2
29 89-24-20-44-D22-00 Plastic tubing 1 1/2" O.D. 1
30 89-28-24-80-D40-00 Plastic tubing 1 3/4" O.D. 1
31 89-28-24-64-D32-00 Plastic tubing 1 3/4" O.D. 1
32 86-16-108-E08-00 Rod 1" O. D. 2
33 86-16-130-E08-00 Rod 1" O. D. 2
34 108400 Seat 1
35 400500 Document Holder 1
14

Parts list
Grapple 36''
Item Parts # Description Qty
1 57-002-01 Grapple 36" center 1
2 57-002-02 Little finger grapple 1
3 57-002-03 Wide finger grapple 1
4 57-002-03 Side plate grapple 2
5 86-16-120 Rod 1'' O.D. 1
686-16-140-E14-00-
E126-00 Rod 1'' O.D. 1
786-16-154-E14-00-
E138-00 Rod 1" O.D. 1
8 120272 Hydraulic cylinder 2 1/2" Dia. x
6" stroke 1
15
2
4
1
6
5
7
4
3
8

?
?
4
1
2
1
10 10 9
3
8
8
6
5
7

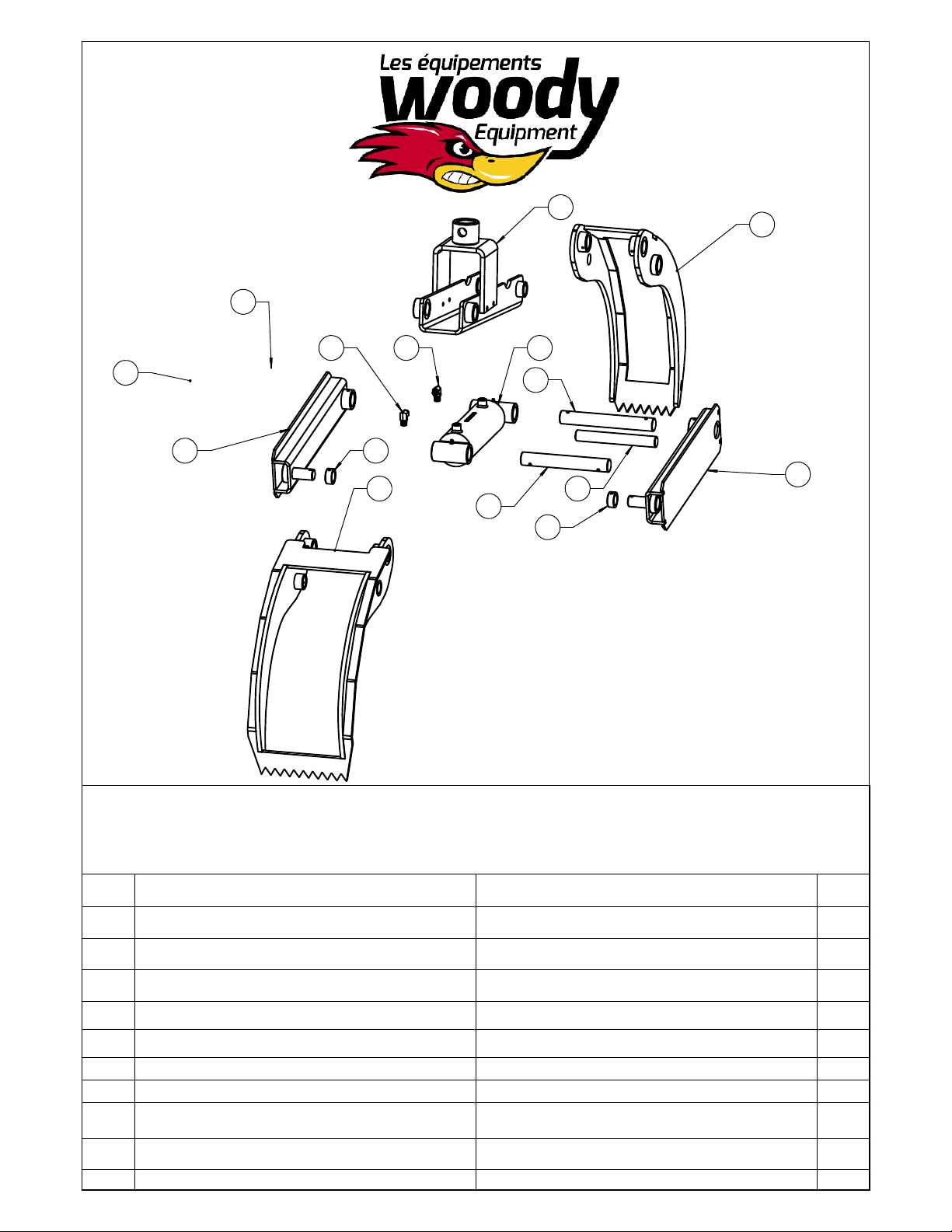

Parts list
Grapple 52''
Item Parts # Description Qty
1 57-004-04 Side plate grapple 2
2 57-004-01 Grapple 52'' center 1
3 57-004-13 Wide finger grapple 1
4 57-004-12 Little finger grapple 1
5 86-20-152 Rod 1 1/4" O.D. 1
6 86-24-166-E18-00-E148-00 Rod 1 1/2" O.D. 1
7 86-24-177-E14-00-E163-00 Rod 1 1/2" O.D. 1
8 96-28-20-12-E06-00 1 3/4" O.D. x .242" (1.266" I.D.) 2
9 120602 Hydraulic cylinder 3 1/2" Dia. x 8" stroke 1
10 100900 Elbow 90°- Male JIC 37°- Male NPT - 9/16" x 3/8" 2
16

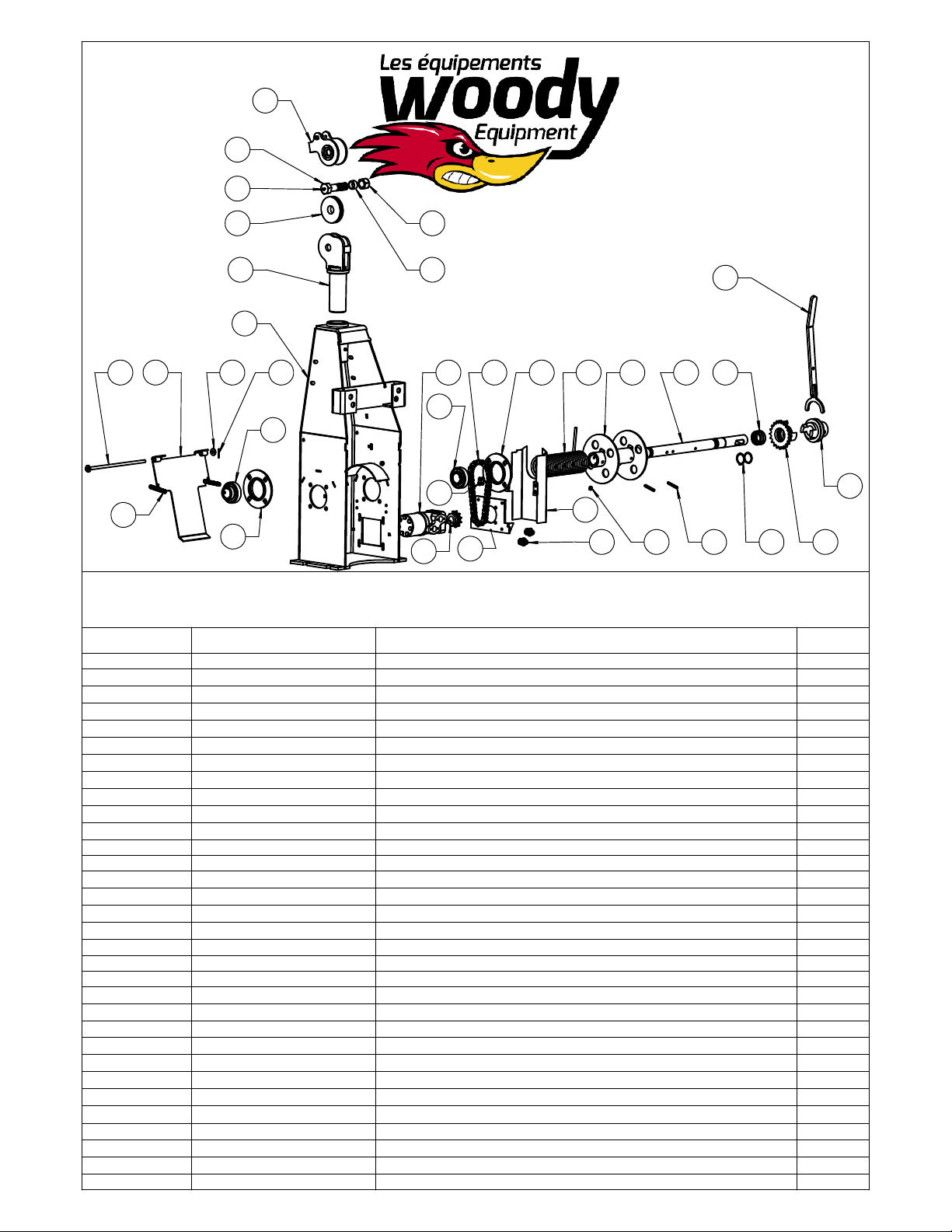

Parts list
Winch 6000lbs
Item Part# Description Qty
1 58-007-02 Winch head 1
2 58-000-04 Swivel head fixation- large, medium, small 1
3 58-000-05 Winch roller- large, Medium 1
4 58-007-03 Cable tensioner pin 1
5 58-000-06 Winch fixed cluth- Large, Medium, Small 1
6 58-000-07 Winch fixed cluth- Large, Medium, Small 1
7 58-000-08 Clutch arm- Large, Medium 1
8 58-000-01 Winch motor support- Large, Medium 1
9 58-007-05 Winch tensioner- Large, Medium 1
10 58-007-04 36'' Winch housing 1
11 58-000-024 Modified pulley 1
12 58-000-020 36'' Winch roller axis 1
13 58-000-006 Modified bolt 1
14 58-007-019 Plastic tubing 1 1/4" O.D. 1
15 58-005-011 Winch protector 1
16 307036 Snap-Ring 1 1/2" 2
17 301500 Nylon nut 1"-8 1
18 300700 Bolt 5/16"-18 x 1" 1
19 301350 Washer 3/8" 2
20 1RIV 50 Chaine series #50 - 36 rollers 1
21 150010 Gear wheel #50-11 teeth heavy duty 1
22 310020 Zote 1/4"-28 2
23 309030 Quik linck #50 1
24 108070 Hydraulic motor 315cc 1
25 150040 Bearing insert 2
26 150151 Flange bearing 2
27 309200 Spring 2
28 304010 Nylon cable 5/16'' x 110' long 1
29 195-145 Cotter pin 3/32 DIA. X 3/4" LG. 1
30 310880 Spring pin 5/16" O.D. x 2" 2
31 VSPC-06-08 Screw allen 3/8" Dia. X 1/2" Long 1
32 102710 Male 3/8" - JIC x Male 7/8" - ORB 2
16
2
17
14
13
22
11
1
10
4 9
27
19 29
25
26 32
24
25
20
23
26
8
21
15
31 30
328 12 5
16
7
5
6
