Woody 130 HD User manual
Woody Equipment Inc., 205 rue Commercial, Saint-Odilon-de-Cranbourne, Quebec, Canada G0S3A0
T.(418) 464-2748 F.(418) 464-2746 Email: ewoody@sogetel.net <mailto:ewoody@sogetel.net>
Website: www.equipementswoody.com <http://www.equipementswoody.com/> Facebook: Equipements Woody
Woody Log Loader
Operator’s Manual
Models: 130 HD - 150
HD - 170 HD
Woody Equipment Inc.
Owners: Jerome and Sebastien Labbe
205 rue Commerciale
Saint-Odilon-de-Cranbourne
Beauce-Nord, Quebec,
Canada G0S 3A0
T. (418) 464-2748
F. (418) 464-2746
Email: ewoody@sogetel.net
<mailto:ewoody@sogetel.net>
Website: www.equipementswoody.com
<http://www.equipementswoody.com/>
Facebook: Les Equipements Woody
Woody Equipment Inc.
C All Rights Reserved: Woody Equipment Inc. of Saint-Odilon-de-Cranbourne.
No part of this manual may be reproduced in any form without the written permission of Woody Equipment Inc.
Table of Contents
Introduction........................................................................1
Warning..............................................................................2
Caracteristic of the loader 130HD....................................3
130HD Loader parts list......................................................4
Caracteristic of the loader 130HDT..................................5
130HDT Loader parts list....................................................
Caracteristic of the loader 150HD...................................7
150HD Loader parts list.....................................................8
Caracteristic of the loader 150HDT.................................9
150HDT Loader parts list..................................................10
Caracteristic of the loader 170HD.................................11
170HD Loader parts list...................................................12
Caracteristic of the loader 170HDT...............................13
170HDT Loader parts list..................................................14
Parts list grapple 52''.......................................................15
Parts list 000lb winch.....................................................1
Parts list double hydraulic directional...........................17
Operation.........................................................................18
Safety Instructions......................................................19-28
1
Introduction
Congratulations on your purchase of a Woody Log Loader. Woody Equipment
designs and manufactures equipment according to very strict criteria. This
equipment is intended for professional use in the agricultural and forestry
sectors.
Even if you have experience with this type of product, we recommend that you
read these instructions carefully. These instructions contain important
information on safety and efficiency and to ensure the validity of the factory
guarantee.
Woody Equipment reserves the right to modify and / or improve its equipment
and maintenance instructions, as well as to revise data without notice.
Write down the serial number, model number, purchased date, dealer name,
and sales representative’s name. Keep this information available for ordering
parts as well as for any technical assistance or warranty issue.
Serial number
Model number
Purchased date
Dealer
Sales representative
2

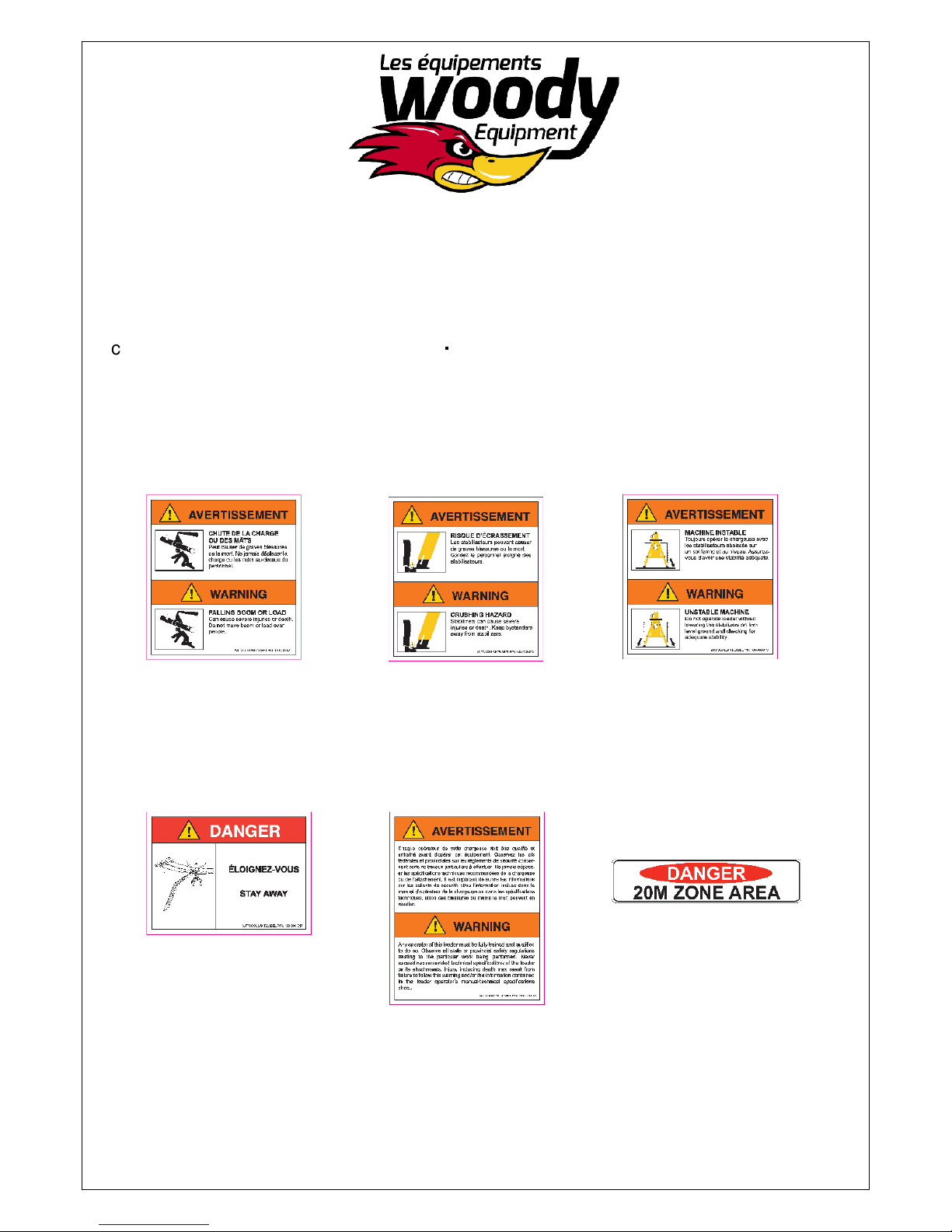

The following symbols used in this manual are to warn the operator of the dangers
connected to the use of this machinery. Follow the safety instructions to avoid any
risk of serious injury or death.
Warning
3
AW
BA
BB
BC BD
8 79
2 19 39
1
20
27
29
10
6
22
5
21 23
13
11
28
31
32
SCALE 1 : 16
DETAIL AW
30
18
3
SCALE 1 : 16
DETAIL BA
30
1525
SCALE 1 : 16
DETAIL BB
30
1626
SCALE 1 : 16
DETAIL BC
30
174
SCALE 1 : 16
DETAIL BD
30
1424
130-HD Loader
Parts List
4
130 HD Loader Parts List
Item Part # Description Qty
1 60-020-30
Loader swing slider 130,150 & 170
1
2 60-010-04
Loader control valve support 115, 125, 130,150 & 170
1
3 60-006-09
Loader main boom pin 130,150 & 170
1
4 60-006-08
Loader stick boom pin 130,150 & 170
1
5 60-018-06
Loader telescopic stabilizers
130,150 & 170
1
6 60-018-05
Loader stabilizer
1
7 60-018-04
Loader stick boom 130 HD
1
8 60-018-03
Loader main boom 130 HD
1
9 60-018-02
Loader column 130 HD & HDT
1
10 60-018-14
Loader A-Frame 130 HD
1
11 60-004-08
Rotation chain 130 & 150
2
12 60-000-060
Hose lock
6
13 200010
Rotation plastic sleeve
1
14 89-24-20-44-D22-00
Plastic tubing 1 1/2" O.D.
1
15 89-24-20-60-D30-00
Plastic tubing 1 1/2" O.D.
2
16 89-24-20-76-D38-00
Plastic tubing 1 1/2" O.D.
1
17 89-28-24-64-D32-00
Plastic tubing 1 3/4" O.D.
1
18 89-28-24-80-D40-00
Plastic tubing 1 3/4" O.D.
1
19 130240
Anti-shock Q30/7 control
1
20 121080
Double action hydraulic cylinder 3 1/2" X 19 1/2"
1
21 120652
Hydraulic cylinder 3 1/2" x 18" stroke
1
22 120232
Hydraulic cylinder 2" x 36" stroke
2
23 120482
Hydraulic cylinder 3" x 16" stroke
1
24 300280
Bolt 1 1/4"-12 x 7" long
1
25 300281
Bolt 1 1/4"-12 x 8" long
2
26 300290
Bolt 1 1/4"-12 x 9" long
1
27 306401
10000 lb. Hub, 8 nuts assembly
1
28 199309
GR30 Rotator
1
29 400500
Document holder
1
30 301530
Nylon nut 1 1/4"-12
6
31 57-002
36" Grapple
1
32 57-000-04
Grapple yoke
1

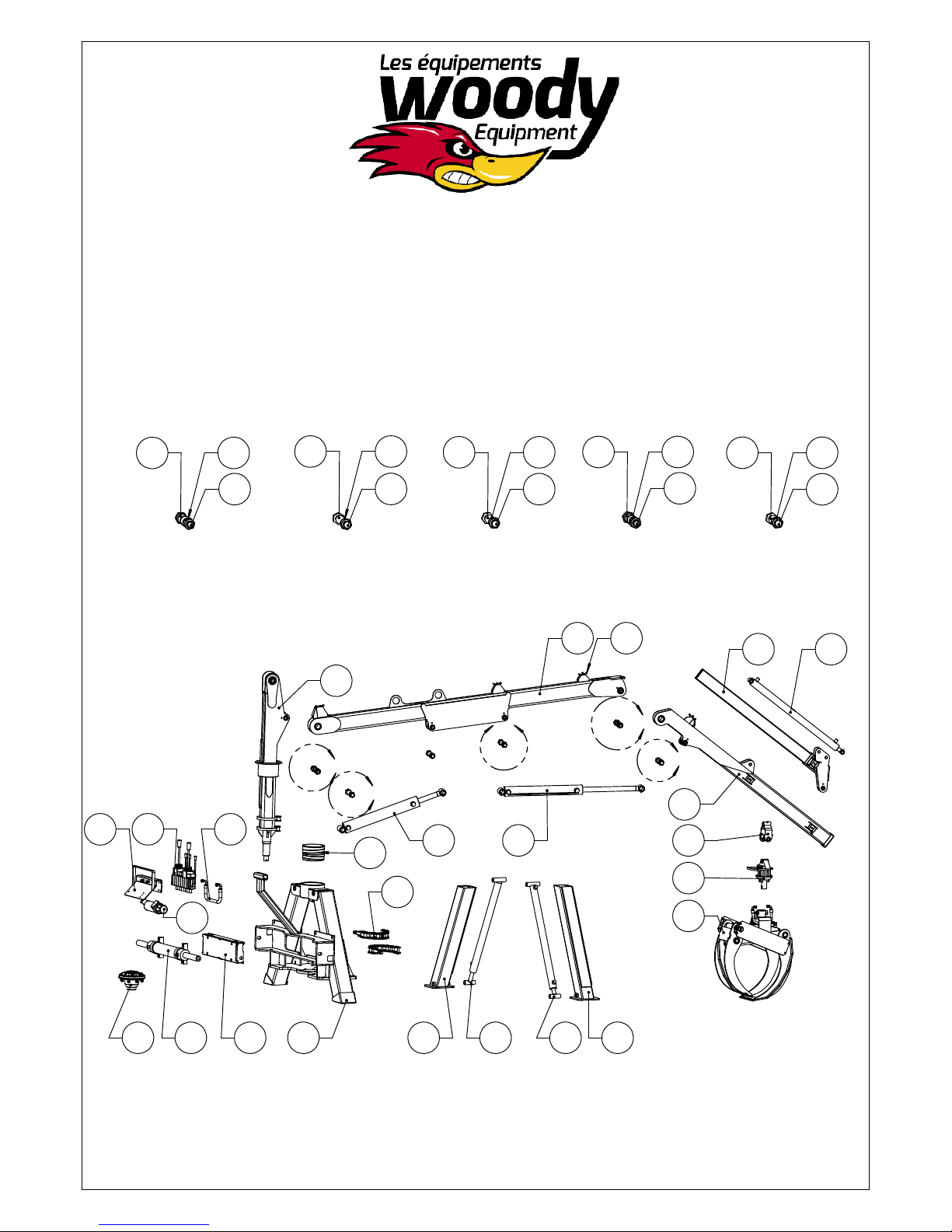

130 HDT Loader
Parts List
5
SCALE 1 : 16
DETAIL BF
16
33
23
SCALE 1 : 16
DETAIL BG
33
1724
SCALE 1 : 16
DETAIL BJ
20
33
3
SCALE 1 : 16
DETAIL BH
33
1825
BE
BF
BG
BH
BJ
34
28
7
10
9
31
11
30
12
15
5
13
29 6
29 8
32
22
1
27
2
21
26
14
35
19
SCALE 1 : 16
DETAIL BE
33
4
6
130 HDT Loader
Parts List
Item Part # Description Qty
1 60-020-30
Loader swing slider 130,150 & 170
1
2 60-010-04
Loader control valve support 115, 125, 130,150 & 170
1
3 60-006-09
Loader main boom pin 130,150 & 170
1
4 60-006-08
Loader stick boom pin 130,150 & 170
1
5 60-004-08
Rotation chain 130 & 150
2
6 60-018-06
Loader telescopic stabilizer 130,150 & 170
1
7 60-030-09
Telescopic boom 130
1
8 60-018-05
Loader telescopic stabilizer
1
9 60-030-01
Loader stick boom 130 HDT
1
10 120230
Hydraulic cylinder 2" x 36" stroke
1
11 60-030-02
Loader main boom 130 HDT
1
12 60-018-02
Loader column 130 HD & HDT
1
13 60-018-14
Loader A-Frame 130 HD
1
14 60-000-060
Hose lock
7
15 200010
Rotation plastic sleeve
1
16 89-24-20-44-D22-00
Plastic tubing 1 1/2" O.D.
1
17 89-24-20-60-D30-00
Plastic tubing 1 1/2" O.D.
2
18 89-24-20-76-D38-00
Plastic tubing 1 1/2" O.D.
1
19 89-28-24-64-D32-00
Plastic tubing 1 3/4" O.D.
1
20 89-28-24-80-D40-00
Plastic tubing 1 3/4" O.D.
1
21 130250
Q30/8 Control assembly
1
22 121080
Double action hydraulic cylinder 3 1/2" X 19 1/2"
1
23 300280
Bolt 1 1/4"-12 x 7" Long
1
24 300281
Bolt 1 1/4"-12 x 8" Long
2
25 300290
Bolt 1 1/4"-12 x 9" Long
1
26 140040-020-100600-100600
Hose assembly 1/2'' - 20'' long
1
27 400500
Document holder
1
28 199309
GR30 Rotator
1
29 120232
Hydraulic cylinder 2" x 36" stroke
2
30 120652
Hydraulic cylinder 3 1/2" x 18" stroke
1
31 120482
Hydraulic cylinder 3" x 16" stroke
1
32 306401
10000 lb. Hub, 8 nuts assembly
1
33 301530
Nylon nut 1 1/4"-12
6
34 57-002
36" Grapple
1
35 57-000-04
Grapple yoke
1

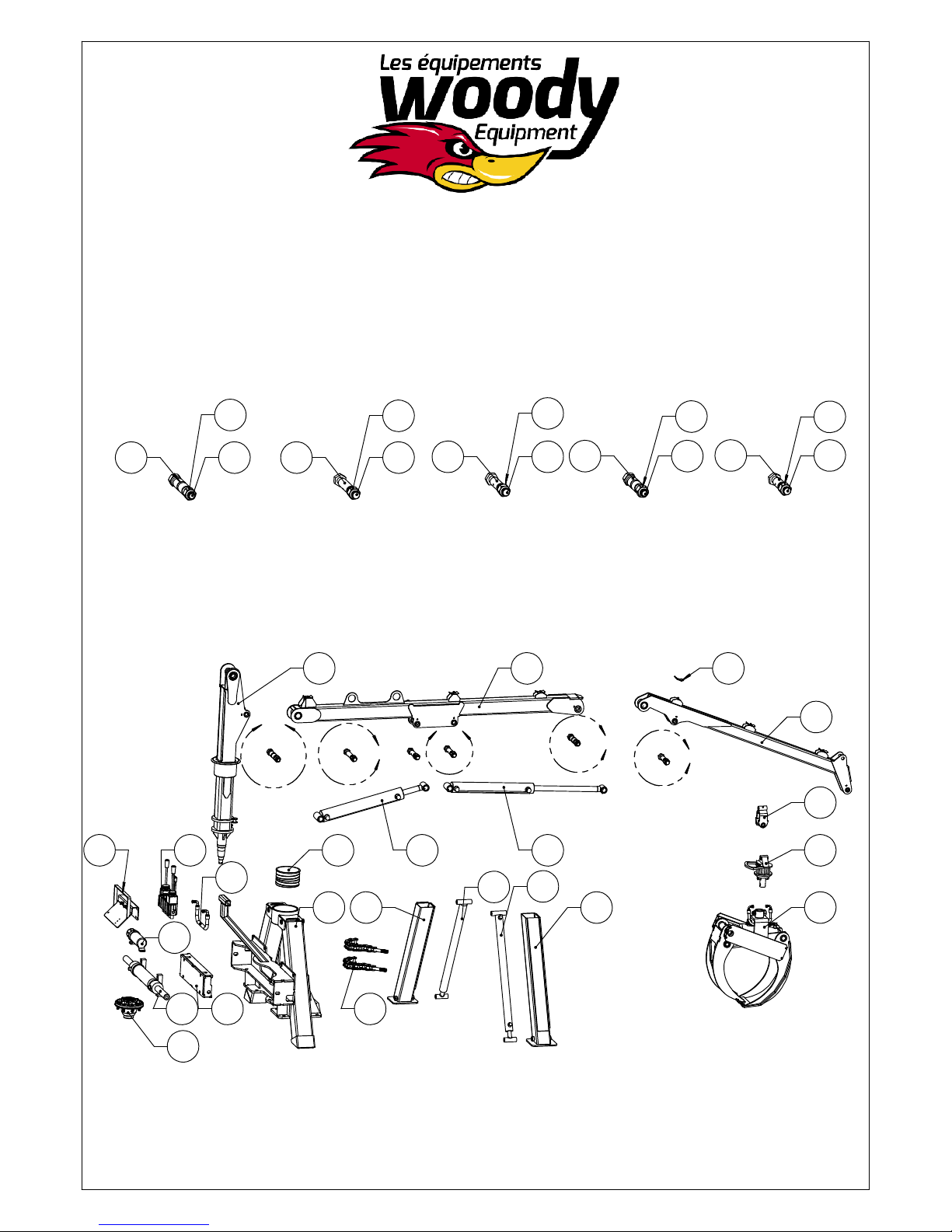

150-HD Loader
Parts List
7
BK
BL
BM
BN
BP
30
31
32
8
1176
202112
10
18
18
9
29
4
319
27
5 22
28
33
23
26
SCALE 1 : 18
DETAIL BM
14
23
25
SCALE 1 : 18
DETAIL BK
15
23
1
SCALE 1 : 18
DETAIL BL
16
23
SCALE 1 : 18
DETAIL BN
2413
SCALE 1 : 18
DETAIL BP
2
23
17
8
150-HD Loader
Parts List
Item Part # Description Qty
1 60-006-08 Loader stick boom pin 130,150 & 170 1
2 60-006-09 Loader main boom pin 130,150 & 170 1
3 60-020-30 Loader swing slider 130,150 & 170 1
4 60-019-11 Loader A-Frame 150 HD 1
5 60-010-04 Loader control valve support 115, 125, 130,150 & 170 1
6 60-019-02 Loader column 150 HD 1
7 60-019-03 Loader main boom 150 HD 1
8 60-019-04 Loader stick boom 150 HD 1
9 60-018-05 Loader telescopic stabilizer 1
10 60-018-06 Loader telescopic stabilizer 130,150 & 170 1
11 60-000-060 Hose lock 6
12 200010 Rotation plastic sleeve 1
13 89-24-20-76-D38-00 Plastic tubing 1 1/2" O.D. 1
14 89-24-20-60-D30-00 Plastic tubing 1 1/2" O.D. 2
15 89-24-20-44-D22-00 Plastic tubing 1 1/2" O.D. 1
16 89-28-24-64-D32-00 Plastic tubing 1 3/4" O.D. 1
17 89-28-24-80-D40-00 Plastic tubing 1 3/4" O.D. 1
18 120232 Hydraulic cylinder 2" x 36" stroke 2
19 121080 Double action hydraulic cylinder 3 1/2" X 19 1/2" 1
20 120512 Hydraulic cylinder 3" x 24" stroke 1
21 120672 Hydraulic cylinder 3 1/2" x 24" stroke 1
22 130240 Anti-shock Q30/7 control 1
23 301530 Nylon nut 1 1/4"-12 6
24 300290 Bolt 1 1/4"-12 x 9" long 1
25 300280 Bolt 1 1/4"-12 x 7" long 1
26 300281 Bolt 1 1/4"-12 x 8" long 2
27 306401 10000 lb. Hub, 8 nuts assembly 1
28 140040-020-100600-100600 Hose assembly 1/2'' - 20'' long 1
29 60-004-08 Rotation chain CH-130 & 150 2
30 57-004 52" Grapple 1
31 199309 GR30 Rotator 1
32 57-000-04 Grapple yoke 1
33 400500 Document holder 1

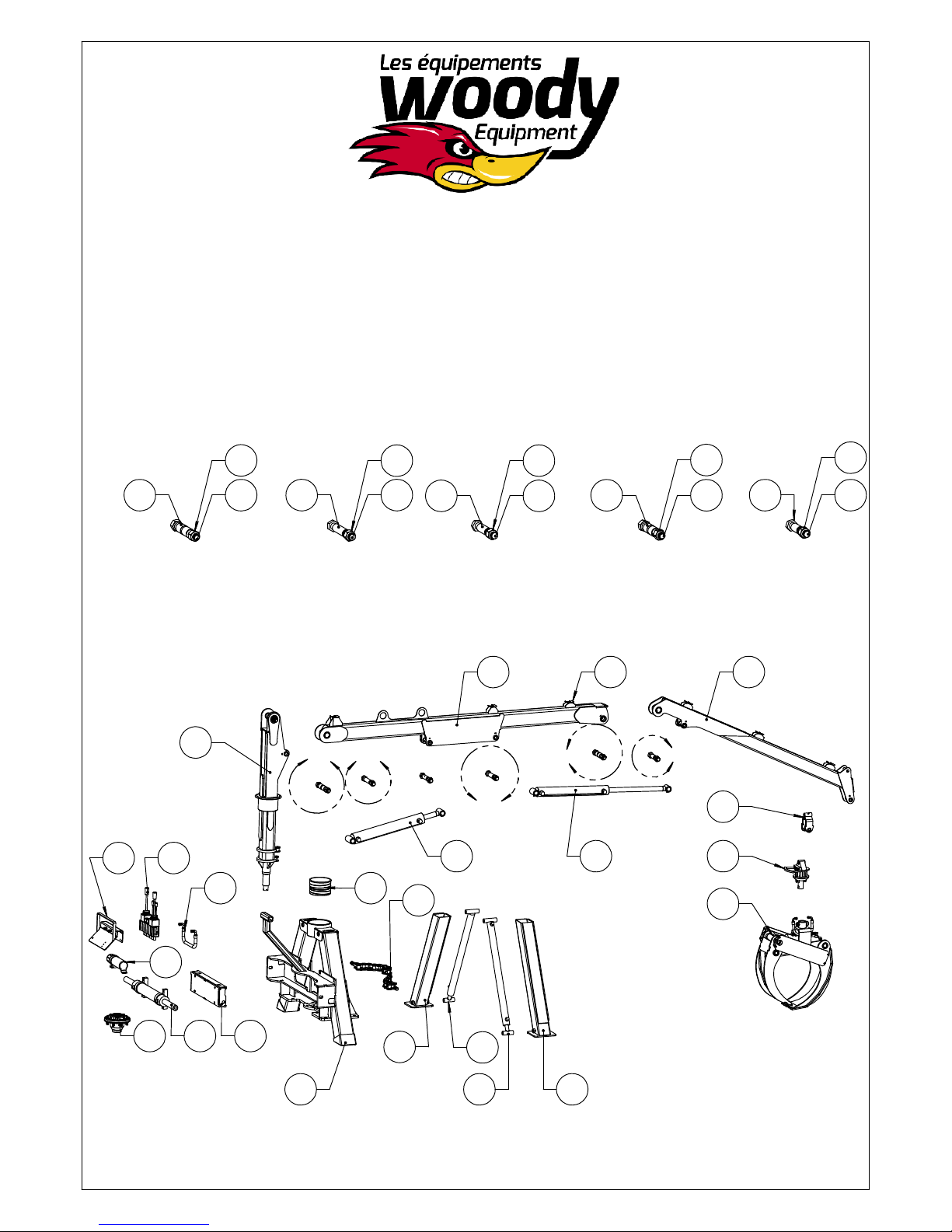

150 HDT Loader
Parts List
9
BU
BV
BW
BY
CA
33
3235
226
5
2421
4 133
14
12
7 23 23 819302034
2 25 31
SCALE 1 : 19
DETAIL BV
10
2618
26
SCALE 1 : 19
DETAIL BW
29
16 26
28
SCALE 1 : 19
DETAIL BU
17
26
SCALE 1 : 19
DETAIL BY
27
15
SCALE 1 : 19
DETAIL CA
26
11
19
150 HDT Loader
Parts List
Item Part # Description Qty
1 60-019-11
Loader A-Frame 150 HD
1
2 60-010-04
Loader control valve support 115, 125,
130,150 & 170
1
3 60-019-02
Loader column 150 HDT
1
4 60-031-02
Loader Main boom 150 HDT
1
5 60-031-01
Loader Stick boom 150 HDT
1
6 60-031-06
Telescope
1
7 60-018-05
Loader telescopic stabilizer
1
8 60-018-06
Loader telescopic stabilizer 130,150 & 170
1
9 60-020-30
Loader swing slider 130,150 & 170
1
10 60-006-08
Loader stick boom pin 130,150 & 170
1
11 60-006-09
Loader main boom pin 130,150 & 170
1
12 60-004-08
Rotation chain 130 & 150
2
13 60-000-060
Hose lock
6
14 200010
Rotation plastic sleeve
1
15 89-24-20-76-D38-00
Plastic tubing 1 1/2" O.D.
1
16 89-24-20-60-D30-00
Plastic tubing 1 1/2" O.D.
2
17 89-24-20-44-D22-00
Plastic tubing 1 1/2" O.D.
1
18 89-28-24-64-D32-00
Plastic tubing 1 3/4" O.D.
1
19 89-28-24-80-D40-00
Plastic tubing 1 3/4" O.D.
1
20 121080
Double hydraulic cylinder 3 1/2" X 19 1/2"
1
21 120672
Hydraulic cylinder 3 1/2" x 24" stroke
1
22 120230
Hydraulic cylinder 2" x 36" stroke
1
23 120232
Hydraulic cylinder 2" x 36" stroke
2
24 120512
Hydraulic cylinder 3" x 24" stroke
1
25 130250
Anti-shock Q30/8 control
1
26 301530 Nylon nut 1 1/4"-12 6
27 300290
Bolt 1 1/4"-12 x 9" long
1
28 300280
Bolt 1 1/4"-12 x 7" long
1
29 300281
Bolt 1 1/4"-12 x 8" long
2
30 306401
10000 lb. Hub, 8 nuts assembly
1
31 140040-020-100600-100600
Hose assembly 1/2'' - 20'' long
1
32 57-000-04
Grapple yoke
1
33 57-004
52" Grapple
1
34 400500
Document holder
1
35 199309
GR30 Rotator
1
10
CB
CC
CD
CECF
30
33
31
2718
18
26
3
10
281725
32
4 20
29
1619
2
1 9 5
8
170 HD Loader
Parts List
11
SCALE 1 : 20
DETAIL CB
23
21
23
21
SCALE 1 : 20
DETAIL CC
614
21
22
SCALE 1 : 20
DETAIL CE
13
21
24
SCALE 1 : 20
DETAIL CD
12
21
7
SCALE 1 : 20
DETAIL CF
15
170 HD Loader
Parts List
Item Part # Description Qty
1 60-020-03
Loader main boom 170 HD
1
2 60-020-02
Loader column 170 HD
1
3 60-020-10
Loader A-Frame 170
1
4 60-010-04
Loader control valve support 115, 125, 130,150 & 170
1
5 60-024-04
Loader stick boom 170 HD
1
6 60-006-08
Loader stick boom pin 130,150 & 170
1
7 60-006-09
Loader main boom pin 130,150 & 170
1
8 60-020-22
Loader rotation chain 170 HD
2
9 60-000-060
Hose lock
6
10 200010
Rotation plastic sleeve
1
11 89-24-20-44-D22-00
Plastic tubing 1 1/2" O.D.
1
12 89-24-20-60-D30-00
Plastic tubing 1 1/2" O.D.
2
13 89-24-20-76-D38-00
Plastic tubing 1 1/2" O.D.
1
14 89-28-24-64-D32-00
Plastic tubing 1 3/4" O.D.
1
15 89-28-24-80-D40-00
Plastic tubing 1 3/4" O.D.
1
16 120512
Hydraulic cylinder 3" x 24" stroke
1
17 121080
Double action hydraulic cylinder 3 1/2" X 19 1/2"
1
18 120232
Hydraulic cylinder 2" x 36" stroke
2
19 120672
Hydraulic cylinder 3 1/2" x 24" stroke
1
20 130240
Anti-shock Q30/7 control
1
21 301530 Nylon nut 1 1/4"-12 6
22 300290
Bolt 1 1/4"-12 x 9" long
1
23 300280
Bolt 1 1/4"-12 x 7" long
1
24 300281
Bolt 1 1/4"-12 x 8" long
2
25 306401
10000 lb. Hub, 8 nuts assembly
1
26 60-018-05
Loader telescopic stabilizer
1
27 60-018-06
Loader telescopic stabilizer 130,150 & 170
1
28 60-020-30
Loader swing slider 130,150 & 170
1
29 140040-020-100600-100600
Hose assembly 1/2'' - 20'' long
1
30 57-004
52" Grapple
1
31 57-000-04
Grapple yoke
1
32 400500
Document holder
1
33 199309
GR30 Rotator
1
12
170 HDT Loader
Parts List
13
CG
CH
CJ
CK
CL
87
6
34
35
33
4362230
12
14
23 24
131
2
392129
5 20 32
31
25
SCALE 2 : 39
DETAIL CG
27
15
25
SCALE 2 : 39
DETAIL CH
10
18
25
11
SCALE 2 : 39
DETAIL CL
19 25
SCALE 2 : 39
DETAIL CJ
28
16
25
26
SCALE 2 : 39
DETAIL CK
17
14
170 HDT Loader
Parts List
Item Part # Description Qty
1 60-032-02
Loader main boom 170 HDT
1
2 60-020-02
Loader column 170 HD
T 1
3 60-020-10
Loader A-Frame 170
1
4 60-018-06
Loader telescopic stabilizer 130,150 & 170
1
5 60-010-04
Loader control valve support 115, 125, 130,150 & 170
1
6 60-032-01
Loader stick boom 170 HDT
1
7 60-032-07
Telescope 170
1
8 120230
Hydraulic cylinder 2" x 36" stroke
1
9 60-020-30
Loader swing slider 130,150 & 170
1
10 60-006-08
Loader stick boom pin 130,150 & 170
1
11 60-006-09
Loader main boom pin 130,150 & 170
1
12 60-020-06
Rotation chain
2
13 60-000-060
Hose lock
7
14 200010
Rotation plastic sleeve
1
15 89-24-20-44-D22-00
Plastic tubing 1 1/2" O.D.
1
16 89-24-20-60-D30-00
Plastic tubing 1 1/2" O.D.
2
17 89-24-20-76-D38-00
Plastic tubing 1 1/2" O.D.
1
18 89-28-24-64-D32-00
Plastic tubing 1 3/4" O.D.
1
19 89-28-24-80-D40-00
Plastic tubing 1 3/4" O.D.
1
20 130250
Q30/8 Control assembly
1
21 121080
Double action hydraulic cylinder 3 1/2" X 19 1/2"
1
22 120232
Hydraulic cylinder 2" x 36" stroke
2
23 120672
Hydraulic cylinder 3 1/2" x 24" stroke
1
24 120512
Hydraulic cylinder 3" x 24" stroke
1
25 301530 Nylon nut 1 1/4"-12 6
26 300290
Bolt 1 1/4"-12 x 9" long
1
27 300280
Bolt 1 1/4"-12 x 7" long
1
28 300281
Bolt 1 1/4"-12 x 8" long
2
29 306401
10000 lb. Hub, 8 nuts assembly
1
30 60-018-05
Loader telescopic stabilizer
1
31 400500
Document holder
1
32 140040-020-100600-100600
Hose assembly 1/2'' - 20'' long
1
33 57-004
52" Grapple
1
34 57-000-04
Grapple yoke
1
35 199309
GR30 Rotator
1
Parts list
Grapple 52''
Item Parts # Description Qty
1 140030-009-100700-101820 Hose 3/8'' 1
2 140030-010-100700-101820 Hose 3/8'' 1
3 57-004-04 Side plate grapple 2
4 57-004-01 Grapple 52'' center 1
5 57-004-13 Wide finger grapple 1
6 57-004-12 Little finger grapple 1
7 86-20-152 Rod 1 1/4" O.D. 1
8 86-24-166-E18-00-E148-00 Rod 1 1/2" O.D. 1
9 86-24-177-E14-00-E163-00 Rod 1 1/2" O.D. 1
10 96-28-20-12-E06-00 1 3/4" O.D. x .242" (1.266" I.D.) 2
11 120602 Hydraulic cylinder 3 1/2" Dia. x 8" stroke 1
12 100900 Elbow 90°- Male JIC 37°- Male NPT - 9/16" x 3/8" 2
15
6
3
4
2
1
3
12 12 11
5
10
10
8
7
9
Parts list
Winch 6000lbs
Item Part# Description Qty
1 58-007-02 Winch head 1
2 58-000-04 Swivel head fixation- large, medium, small 1
3 58-000-05 Winch roller- large, Medium 1
4 58-007-03 Cable tensioner pin 1
5 58-000-06 Winch fixed cluth- Large, Medium, Small 1
6 58-000-07 Winch fixed cluth- Large, Medium, Small 1
7 58-000-08 Clutch arm- Large, Medium 1
8 58-000-01 Winch motor support- Large, Medium 1
9 58-007-05 Winch tensioner- Large, Medium 1
10 58-007-04 36'' Winch housing 1
11 58-000-024 Modified pulley 1
12 58-000-020 36'' Winch roller axis 1
13 58-000-006 Modified bolt 1
14 58-007-019 Plastic tubing 1 1/4" O.D. 1
15 307036 Snap-Ring 1 1/2" 2
16 301500 Nylon nut 1"-8 1
17 300700 Bolt 5/16"-18 x 1" 1
18 301350 Washer 3/8" 2
19 1RIV 50 Chaine series #50 - 36 rollers 1
20 150010 Gear wheel #50-11 teeth heavy duty 1
21 310020 Zote straight 1/4"-28 2
22 309030 Quik linck #50 1
23 108070 Hydraulic motor 315cc 1
24 150040 Bearing insert 2
25 150151 Flange bearing 2
26 309200 Spring 2
27 304010 Nylon cable 5/16'' x 110' long 1
28 195-145 Cotter pin 3/32 DIA. X 3/4" LG. 1
29 310880 Spring pin 5/16" O.D. x 2" 2
30 VSPC-06-08 Screw allen 3/8" Dia. X 1/2" Long 1
31 102710 Male 3/8" - JIC x Male 7/8" - ORB 2
32 58-005-011 Winch protector 1
16
2
16
14
13
21
11
1
10
4 9
26
18 28
24
25 31
23
24
19
22
25
8
20
32
30 29
327 12 5
15
7
5
6
55
5
5
4
7
10
6
11
10
7
7
10
10
73
3
2
199
8
12
13
Parts list
Double directional
Item Parts # Description Qty
1 59-076-23 Double directional frame 1
2 59-003-08 Hitch 1
3 59-076-09 Deck span 9.5 2
4 59-076-08 Pivot lock 1
5 59-076-04 Pivot lock 4
6 59-076-034 Washer 1
7 59-076-035 Washer 4
8 59-076-06 Pivot double directional 1
9 CU3008-0453 Hydraulic cylinder 3" Dia. x 8" Stroke 2
10 307063 Snap-Ring 1 1/4" 4
11 307075 Snap-Ring 2" 1
12 301020 Bolt 7/8"-9 x 3 1/2" 6
13 301590 Nylon nut 7/8"-9 6
17
This manual suits for next models
2
Table of contents
Other Woody Compact Loader manuals
