Woody Log Loader
Operator’s Manual
Models 90 HD - 95 HD
- 105 HD
Woody Equipment Inc., 205 rue Commercial, Saint-Odilon-de-Cranbourne, Quebec, Canada G0S3A0
T. [phone] F. [phone] Email: [e-mail] <mailto:[e-mail]>
Website: www.equipementswoody.com <http://www.equipementswoody.com/> Facebook:
Equipements Woody

Woody Equipment Inc.
Owners: Jerome and Sebastien Labbe
205 rue Commerciale
Saint-Odilon-de-Cranbourne
Beauce-Nord, Quebec,
Canada G0S 3A0
T. [phone]
F. [phone]
Email: [e-mail]
<mailto:[email protected]t>
Website: www.equipementswoody.com
<http://www.equipementswoody.com/>
Facebook: Les Equipements Woody
Woody Equipment Inc.
C All Rights Reserved: Woody Equipment Inc. of Saint-Odilon-de-Cranbourne.
No part of this manual may be reproduced in any form without the written permission of Woody Equipment Inc.

Table of Contents
Introduction.......................................................................1
Warning.............................................................................2
Caracteristic of the loader 90 HD...................................3
90 HD Loader Parts List.....................................................4
Caracteristic of the loader 95 HD...................................5
95 HD Loader Parts List.....................................................
Caracteristic of the loader 105 HD.................................7
105 HD Loader Parts List...................................................8

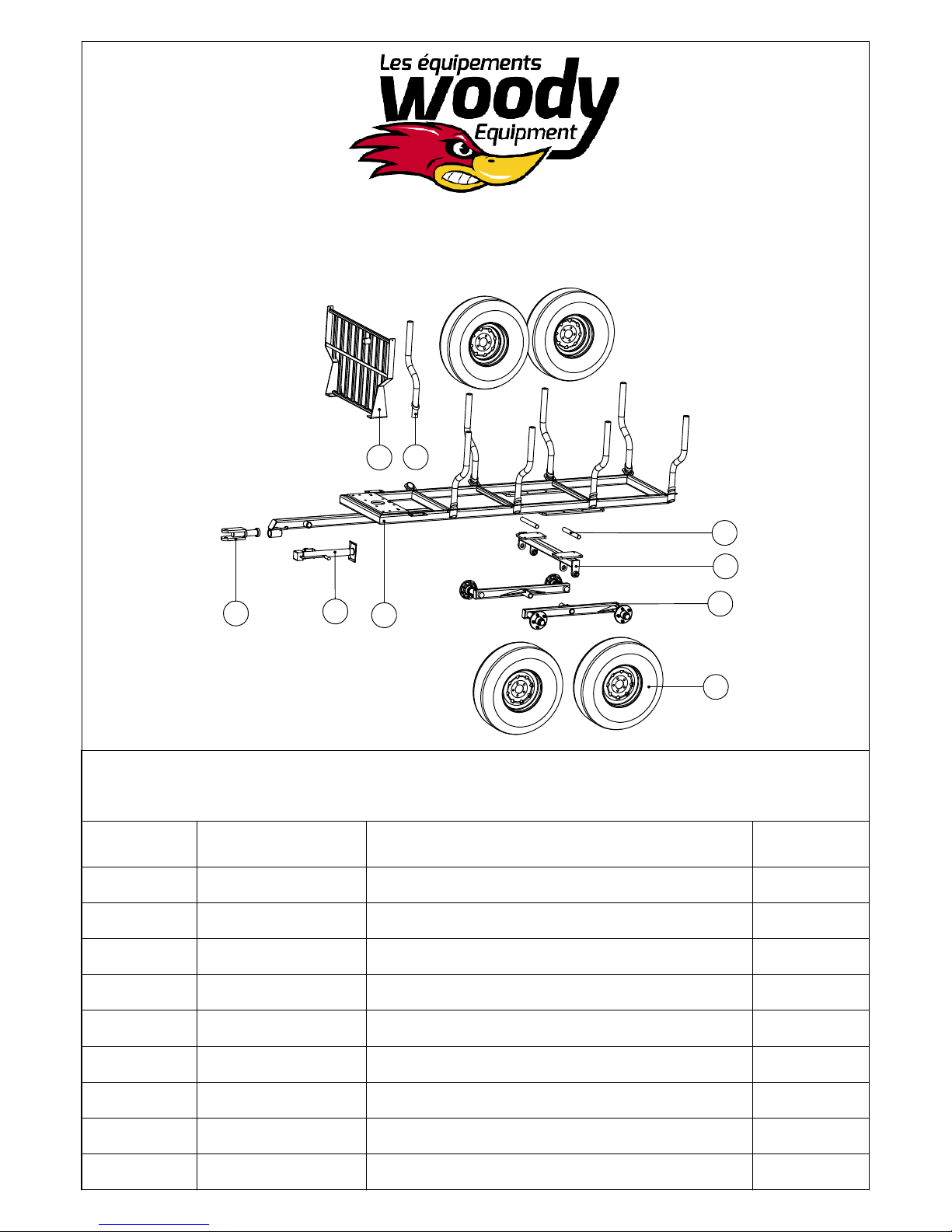

Caractetistic of the trailer 7-52.......................................9
Caracteristic of the trailer 8-58.....................................10
Caracteristic of the trailer 9-58.....................................11

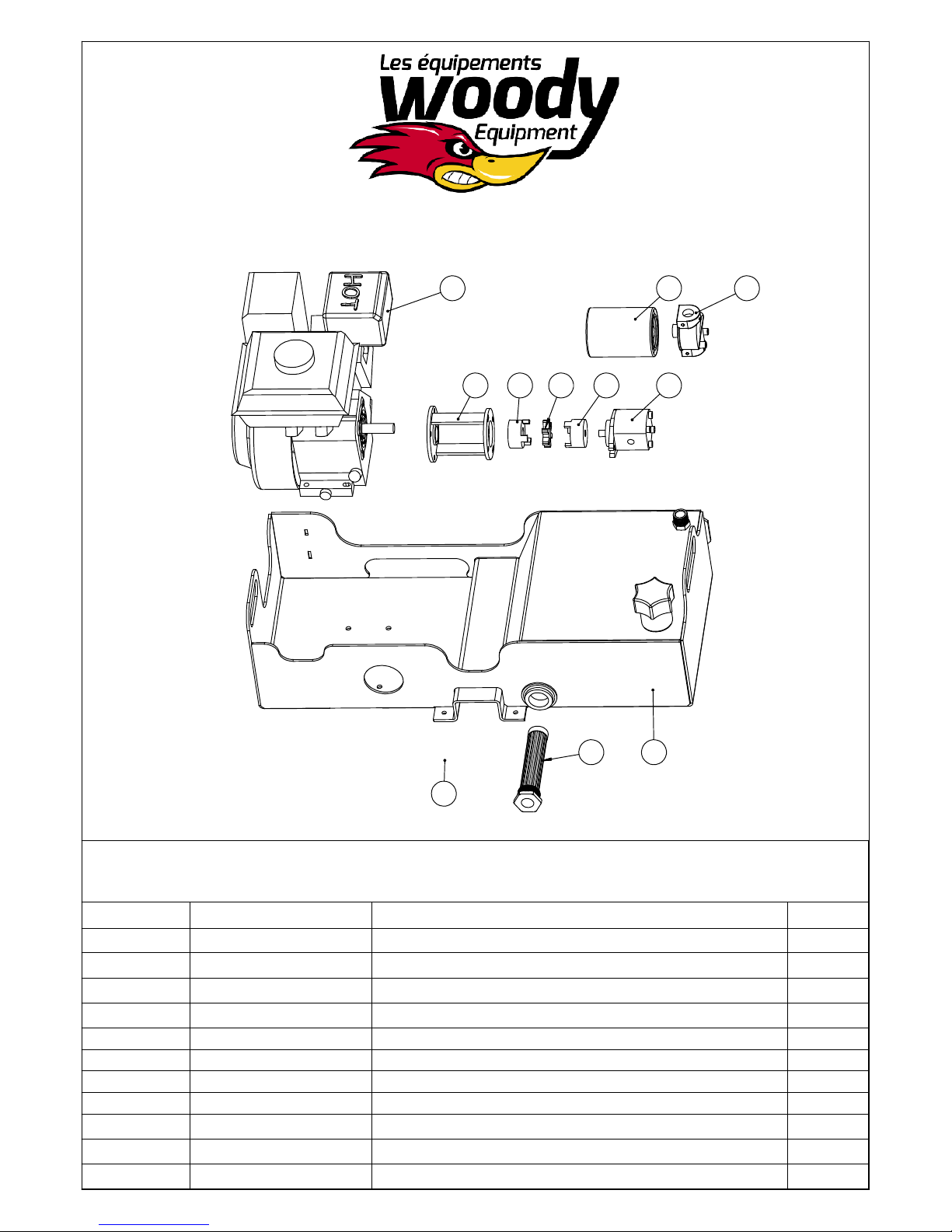

Caracteristic Hydraulic power unit 5.5........................12

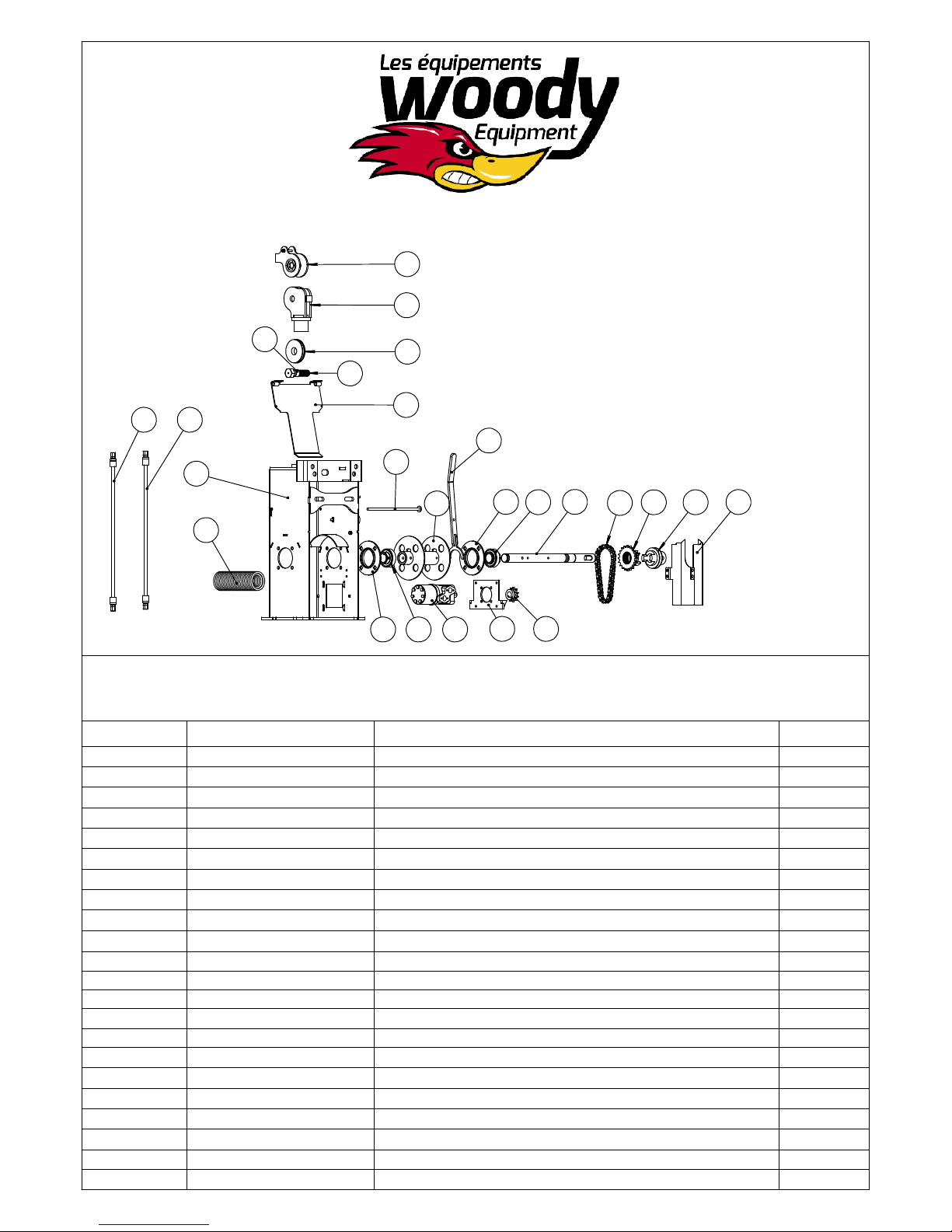

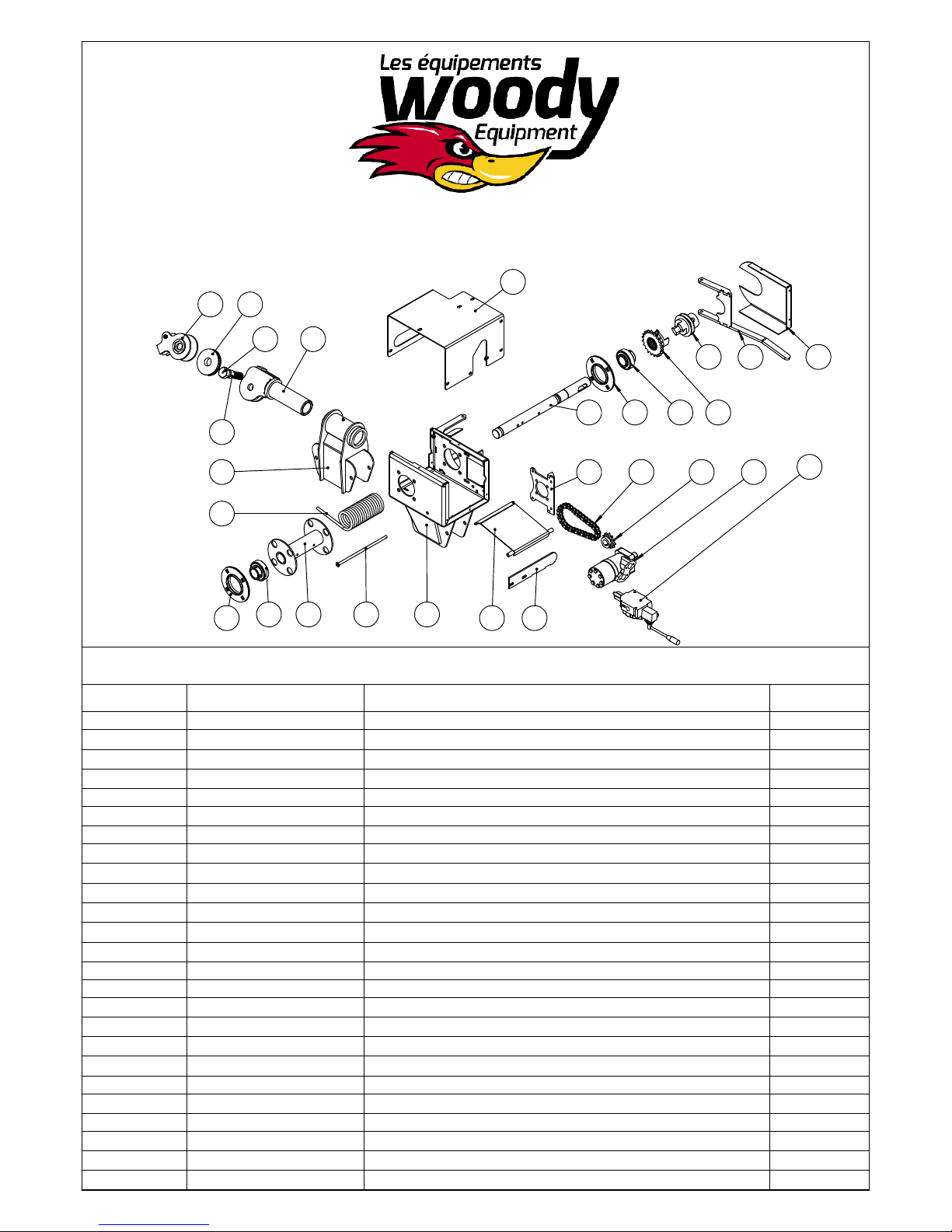

4000lb hydraulic winch parts list..................................13
000lb hydraulic winch parts list..................................14
Parts list grapple 28''......................................................15
Operation.......................................................................1
safety Instructions....................................................17-25

1
Introduction
Congratulations on your purchase of a Woody Log Loader. Woody Equipment
designs and manufactures equipment according to very strict criteria. This
equipment is intended for professional use in the agricultural and forestry sectors.
Even if you have experience with this type of product, we recommend that you
read these instructions carefully. These instructions contain important information
on safety and efficiency and to ensure the validity of the factory guarantee.
Woody Equipment reserves the right to modify and / or improve its equipment and
maintenance instructions, as well as to revise data without notice.
Write down the serial number, model number, purchased date, dealer name, and
sales representative’s name. Keep this information available for ordering parts as
well as for any technical assistance or warranty issue.
Serial number
Model
Purchased date
Dealer
Sales representative

The following symbols used in this manual are to warn the operator of the dangers
connected to the use of this machinery. Follow the safety instructions to avoid any risk
of serious injury or death.
Warning
2

C
D
E
F
G
16
20
21
13
14
126
2
15
5
12
11
1
3 4
10
3
Caracteristic of the loader
90-HD
8
DETAIL C
SCALE 1 : 11
17
18
19
DETAIL D
SCALE 1 : 11
18
9
19
DETAIL E
SCALE 1 : 11
18
7
19
DETAIL G
SCALE 1 : 11
18
719
DETAIL F
SCALE 1 : 11
18
9

90 HD Loader
Parts list
item Parts# Description Qty
1 60-024-04 Loader column 1
2 60-024-08 Pinion W-CR-850 1
3 60-024-05 Loader main boom 1
4 60-024-06 Loader stick boom 90 HD 1
5 60-024-02 Left stabilizer 1
6 60-024-01 Right stabilizer 1
789-20-16-44-D22-
00 Plastic tubing 1 1/4" O.D. 3
889-20-16-36-D18-
00 Plastic tube 1 1/4" O.D. 1
989-20-16-48-D24-
00 Plastic tube 1 1/4" O.D. 2
10 60-000-060 Hose lock 5
11 130260 8-section mono-block 1
12 120132 Hydraulic cylinder 2'' dia. x 10'' stroke 2
13 120152 Hydraulic cylinder 2'' dia. x 10'' stroke 1
14 120162 Hydraulic cylinder 2'' dia. x 16'' stroke 1
15 60-025-15 SALAMI hydraulic valve support 1
16 57-006 28" Grapple 1
17 20-024-07 Main boom cylinder lock 1
18 60-035-022 Washer 6
19 20-024-03 Main boom cylinder lock 5
20 199311 CR-100 Rotator 1
21 60-024-03 Grapple yoke 1
4

5
H
J
K
L
M
3
2
11
4
14
13
20
21
19
15
5
6
15
1
7
12
Caracteristic of the loader
95-HD
9
DETAIL H
SCALE 1 : 11
18 16
8
DETAIL K
SCALE 1 : 11
17 16
10
DETAIL L
SCALE 1 : 11
17 16 10
DETAIL J
SCALE 1 : 11
17 16
8
DETAIL M
SCALE 1 : 11
17 16

95-HD Loader
Parts list
ITEM Part # Description Qty
1 60-025-01 Pinion assembly 1
2 60-025-02 Loader main boom 95 HD 1
3 60-025-03 Loader stick boom 95 HD 1
4 60-025-04 Loader column 95 HD 1
5 60-025-05 Right stabilizer 95-HD 1
6 60-025-06 Left stabilizer 95-HD 1
7 60-025-15 SALAMI hydraulic valve support 1
8 89-20-16-44-D22-00 Plastic tubing 1 1/4" O.D. 3
9 89-20-16-36-D18-00 Plastic tubing 1 1/4" O.D. 1
10 89-20-16-48-D24-00 Plastic tubing 1 1/4" O.D. 2
11 60-000-060 Hose lock 5
12 130230 Anti-shock Q25/7 control 1
13 120162 Hydraulic cylinder 2'' dia. x 16'' stroke 1
14 120322 Hydraulic cylinder 2'' dia. x 16 stroke 1
15 120132 Hydraulic cylinder 2'' dia. x 10'' stroke 2
16 301500 Nylon nut 1"-8 6
17 300340 Bolt 1"-8 x 7" Long x 2 1/2" threads 5
18 300330 Bolt 1"-8 x 6 1/2" Long x 2 1/2" threads 1
19 57-006 28" Grapple 1
20 60-024-03 Grapple yoke 1
21 199311 CR-100 Rotator 1
6

7

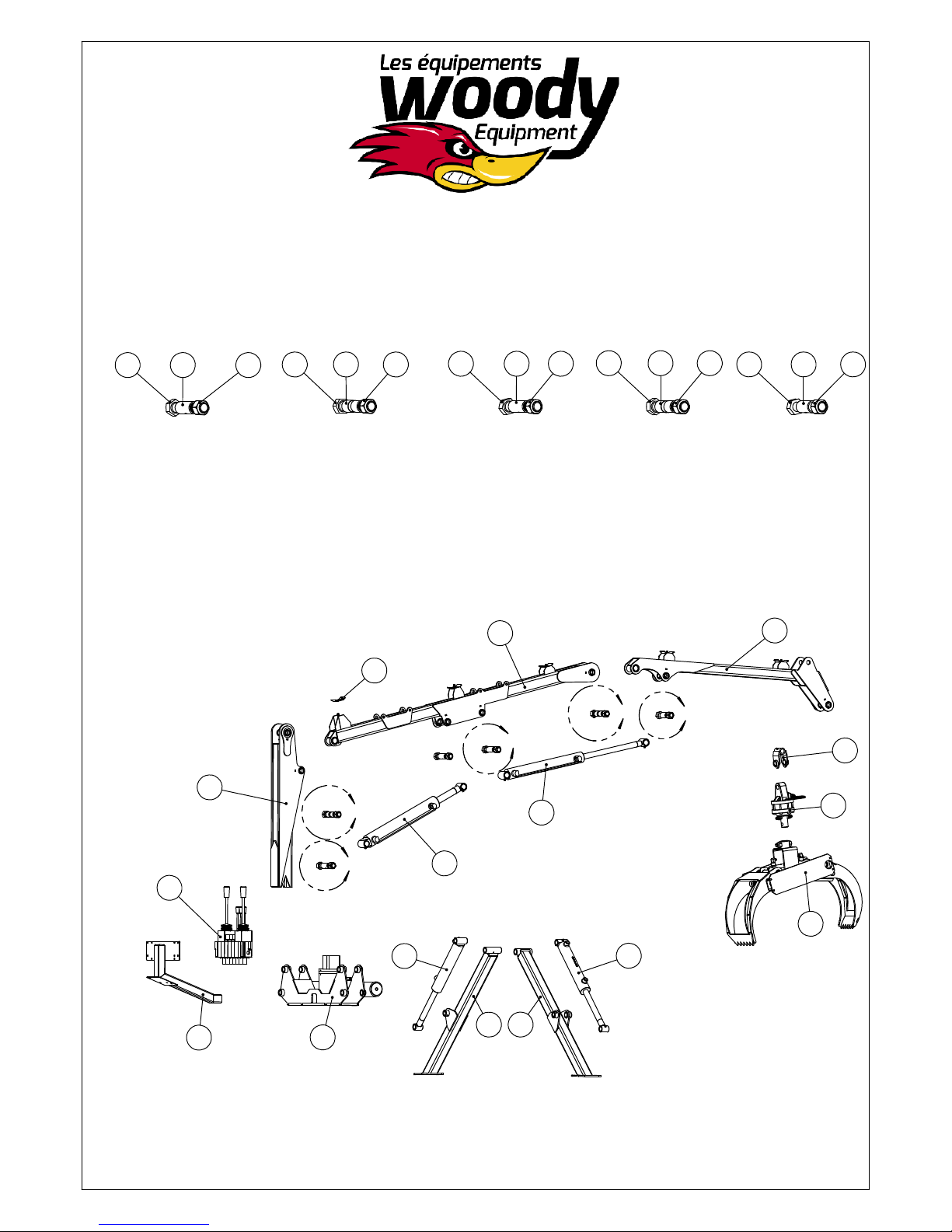

Caracteristic of the loader
105-HD
N
P
R
T
U
1613
13171
15
18
2
3
4
14
10
5
19
21
20
DETAIL T
SCALE 1 : 11
1289
DETAIL P
SCALE 1 : 11
1289 7
DETAIL N
SCALE 1 : 11
1211
DETAIL U
SCALE 1 : 11
6 129
DETAIL R
SCALE 1 : 11
1269
