Woody 115 HD User manual

Woody Log Loader
Operator’s Manual
Models 115 HD - 115
HDT - 125 LP
Woody Equipment Inc., 205 rue Commercial, Saint-Odilon-de-Cranbourne, Quebec, Canada G0S3A0
T.[phone] F.[phone] Email: [e-mail] <mailto:[e-mail]>
Website: www.equipementswoody.com <http://www.equipementswoody.com/>
Facebook: Équipements Woody

Woody Equipment Inc.
Owners: Jerome and Sebastien Labbe
205 rue Commerciale
Saint-Odilon-de-Cranbourne
Beauce-Nord, Quebec,
Canada G0S 3A0
T. [phone]
F. [phone]
Email: [e-mail]
<mailto:[e-mail]>
Website: www.equipementswoody.com
<http://www.equipementswoody.com/>
Facebook: Les Equipements Woody
Woody Equipment Inc.
C All Rights Reserved: Woody Equipment Inc. of Saint-Odilon-de-Cranbourne.
No part of this manual may be reproduced in any form without the written permission of Woody Equipment Inc.

table of contents
Introduction.......................................................................1
Warning.............................................................................2
Caracteristic of the loader 115HD..................................3
115HD Loader Parts List....................................................4
Caracteristic of the loader 115 HDT...............................5
115 HDT Loader Parts List.................................................
Caracteristic of the loader 125 LP..................................7
125 LP Loader Parts List....................................................8
Caracteristic of the trailer 10- tires 11L15..................9
Caracteristic of the trailer 10- tires 12.5L15.............10
Caracteristic of the trailer 10- LP tires 11L15.............11
Parts list grapple 3 ''......................................................12
Parts list 000lb winch hight..........................................13
Parts list 000lb winch low.............................................14
Parts list simple hydraulic directional..........................15
Operation.......................................................................1
Safety Instructions....................................................17-25

1
Introduction
Congratulations on your purchase of a Woody Log Loader. Woody
Equipment designs and manufactures equipment according to very strict
criteria. This equipment is intended for professional use in the agricultural
and forestry sectors.
Even if you have experience with this type of product, we recommend that
you read these instructions carefully. These instructions contain important
information on safety and efficiency and to ensure the validity of the factory
guarantee.
Woody Equipment reserves the right to modify and / or improve its equipment
and maintenance instructions, as well as to revise data without notice.
Write down the serial number, model number, purchased date, dealer name,
and sales representative’s name. Keep this information available for ordering
parts as well as for any technical assistance or warranty issue.
Serial number
Model number
Purchased date
Dealer
Sales representative

2

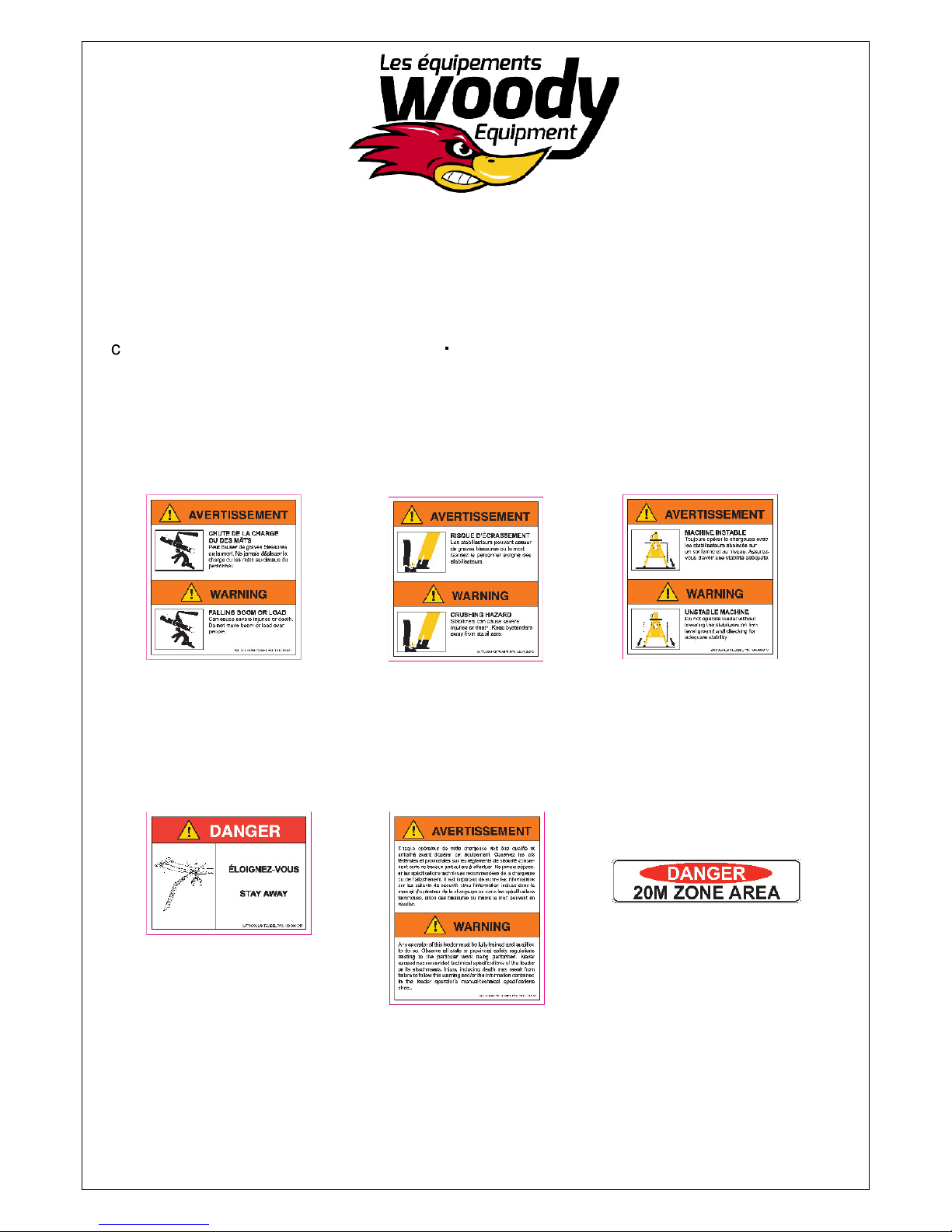

The following symbols used in this manual are to warn the operator of the dangers

connected to the use of this machinery. Follow the safety instructions to avoid
any risk of serious injury or death.
Warning

26
SCALE 1 : 15
DETAIL J
6
29
25
SCALE 1 : 15
DETAIL M
7
29
22
SCALE 1 : 15
DETAIL AA
30
29

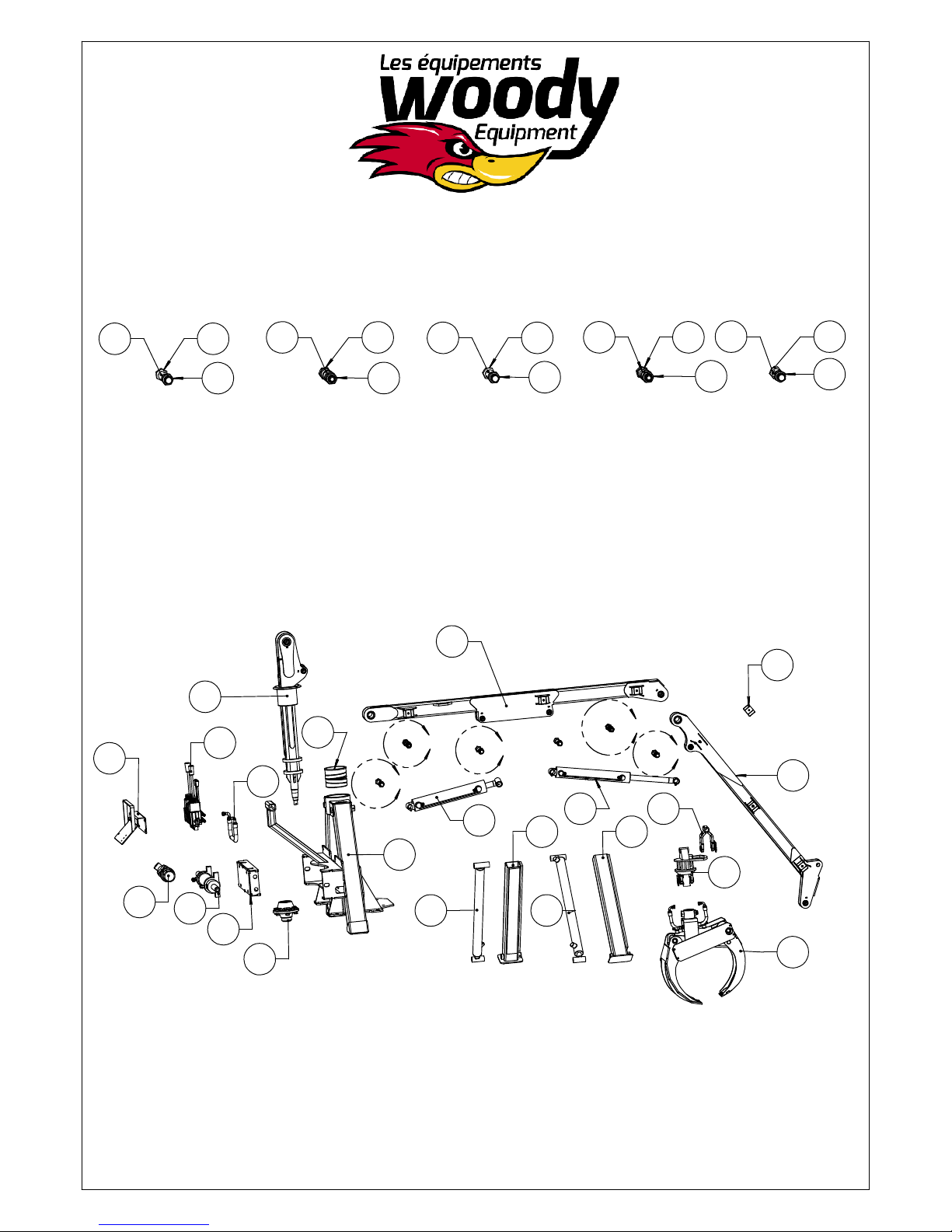

115 HD LOADER
PARTS LIST
J
K
M
R
AA
21
4
16
20
19
5
8
9
3
3
11
10
17
18
13
14
34
28
12
2
1
15
19
27
3
24
SCALE 1 : 15
DETAIL K
31
29
29
SCALE 1 : 15
DETAIL R
23
32

115 HD Loader
Parts List
Item Part # Description
Qty
1 140040-020-100600-100600 Hose assembly 1/2'' - 20'' long 1
2 60-012-06 Loader telescopic stabilizers 115,125 LP 1
3 60-003-08 Rotation chain 115, 125 2
4 60-010-04 Loader control valve support 115, 125, 130,150, 170 1
5 60-012-05 Loader telescopic stabilizers 115, 125 LP 1
6 60-012-07 Main boom loader pin 115, 125 1
7 60-012-08 Stick boom loader pin 115, 125 1
8 60-021-15 Loader A-Frame 115 HD 1
9 60-021-02 Loader column 1
10 60-021-03 Loader main boom 115 HD 1
11 60-021-04 Loader stick boom 115 HD 1
12 60-021-16 Loader swing slider 115, 125 1
13 57-000-04 Grapple yoke 1
14 199309 GR30 Rotator 1
15 306201 Wheel bearing 1
16 400500 Document holder 1
17 120322 Hydraulic cylinder 2 1/2" x 16" stroke 1
18 120483 Hydraulic cylinder 3" x 16" stroke 1
19 120212 Hydraulic cylinder 2" x 30" stroke 2
20 121090 Double action Hydraulic cylinder 3" X 16" 1
21 130240 Anti-shock Q30/7 control 1
22 89-20-16-36-D18-00 Plastic tubing 1 1/4" O.D. 1
23 89-20-16-52-D26-00 Plastic tubing 1 1/4" O.D. 1
24 89-20-16-44-D22-00 Plastic tubing 1 1/4" O.D. 2
25 89-24-20-56-D28-00 Plastic tubing 1 1/2" O.D. 1
26 89-24-20-48-D24-00 Plastic tubing 1 1/2" O.D. 1
27 60-012-028 Rotation plastic sleeve 1
28 60-000-060 Hose lock 6
29 301500 Nylon nut 1"-8 7
30 300320 Bolt 1"-8 x 6" long 1
31 300330 Bolt 1"-8 x 6 1/2" long 2
32 300340 Bolt 1"-8 x 7" long 1
34 57-002 Grappin 36" 1
4

SCALE 1 : 16
DETAIL AP
20 32
19
AP
AR
AT
AU
AV
24
14
13
29
12
8
23
5
16
15
28
1
6
27
27
9
25
26
7
7
17
18
2
4
33
3
115 HDT Loader
Parts List
5
SCALE 1 : 16
DETAIL AR
10 34
19
SCALE 1 : 16
DETAIL AT
21 31
19
SCALE 1 : 16
DETAIL AV
22 30
19
SCALE 1 : 16
DETAIL AU
11 35
19

115 HDT Loader
Parts List
Item Part # Description Qty
1 306201 Wheel bearing 1
2 199309 GR30 Rotator 1
3 400500 Document holder 1
4 57-002 36" Grapple 1
5 140040-020-100600-100600 Hose assembly 1/2'' - 20'' long 1
6 60-012-06 Loader telescopic stabilizer 115, 125 LP 1
7 60-003-08 Rotation chain 115, 125 2
8 60-010-04 Loader control valve support 115, 125, 130,150 & 170 1
9 60-012-05 Loader telescopic stabilizer 115, 125 LP 1
10 60-012-07 Stick boom pin 115, 125 1
11 60-012-08 Main boom pin - 115, 125 1
12 60-021-02 Loader column 1
13 60-027-02 Loader main boom 115 HDT 1
14 60-027-01 Loader stick boom 115 HDT 1
15 60-021-16 Loader swing slider 115-125 1
16 60-021-15 Loader A-Frame 115 HD 1
17 60-027-03 Telescope 115 1
18 57-000-04 Grapple yoke 1
19 301500 Nylon nut 1"-8 6
20 300320 Bolt 1"-8 x 6" long 1
21 300330 Bolt 1"-8 x 6 1/2" long 2
22 300340 Bolt 1"-8 x 7" long 1
23 130250 Anti-shock Q30/8 control 1
24 120190 Hydraulic cylinder 2" x 24" stroke 1
25 120322 Hydraulic cylinder 2 1/2" x 16" stroke 1
26 120483 Hydraulic cylinder 3" x 16" stroke 1
27 120212 Hydraulic cylinder 2" x 30" stroke 2
28 121090 Double action hydraulic cylinder 3" X 16" 1
29 60-000-060 Hose lock 7
30 89-20-16-52-D26-00 Plastic tubing 1 1/4" O.D. 1
31 89-20-16-44-D22-00 Plastic tubing 1 1/4" O.D. 2
32 89-20-16-36-D18-00 Plastic tubing 1 1/4" O.D. 1
33 60-012-028 Rotation plastic sleeve 1
34 89-24-20-48-D24-00 Plastic tubing 1 1/2" O.D. 1
35 89-24-20-56-D28-00 Plastic tubing 1 1/2" O.D. 1
6

SCALE 1 : 15
DETAIL AM
618
27
AJ
AK
AL
AM
AN
8
3
23
32
31 21
11
30
7
16
9
12
10
22 22
1 4
28
29
33
20
19
SCALE 1 : 15
DETAIL AJ
2415
27
17
SCALE 1 : 15
DETAIL AK
5
27
SCALE 1 : 15
DETAIL AL
2514
27
125 LP Loader
Parts List
7
SCALE 1 : 15
DETAIL AN
2613
27

125 LP Loader
Parts List
Item Part # Description Qty
1 60-012-06 Loader telescopic stabilizer 115, 125 LP 1
2 60-003-08 Rotation chain 115,125 2
3 60-010-04 Loader control valve support 115, 125, 130,150 & 170 1
4 60-012-05 Loader telescopic stabilizer 115, 125 LP 1
5 60-012-07 Loader stick boom pin 115, 125 1
6 60-012-08 Loader main boom pin 115, 125 1
7 60-033-01 Loader A-Frame 125 LP 1
8 60-033-02 Loader column 125 LP 1
9 60-033-03 Loader main boom 125 LP 1
10 60-033-04 Loader stick boom 125 LP 1
11 60-021-16 Loader swing slider 115, 125 1
12 60-000-060 Hose lock 6
13 89-20-16-52-D26-00 Plastic tubing 1 1/4" O.D. 1
14 89-20-16-44-D22-00 Plastic tubing 1 1/4" O.D. 2
15 89-20-16-36-D18-00 Plastic tubing 1 1/4" O.D. 1
16 60-012-028 Rotation plastic sleeve 1
17 89-24-20-48-D24-00 Plastic tubing 1 1/2" O.D. 1
18 89-24-20-56-D28-00 Plastic tubing 1 1/2" O.D. 1
19 120322 Hydraulic cylinder 2 1/2" x 16" stroke 1
20 120483 Hydraulic cylinder 3" x 16" stroke 1
21 121090 Double action hydraulic cylinder 3" X 16" 1
22 120212 Hydraulic cylinder 2" x 30" stroke 2
23 130240 Anti-shock Q30/7 control 1
24 300320 Bolt 1"-8 x 6" long 1
25 300330 Bolt 1"-8 x 6 1/2" long 2
26 300340 Bolt 1"-8 x 7" long 1
27 301500 Nylon n t 1"-8 6
28 57-000-04 Grapple yoke 1
29 199309 GR30 Rotator 1
30 306201 Wheel bearing 1
31 400500 Document holder 1
32 140040-020-100600-100600 Hose assembly 1/2'' - 20'' long 1
33 57-002 36" Grapple 1
8

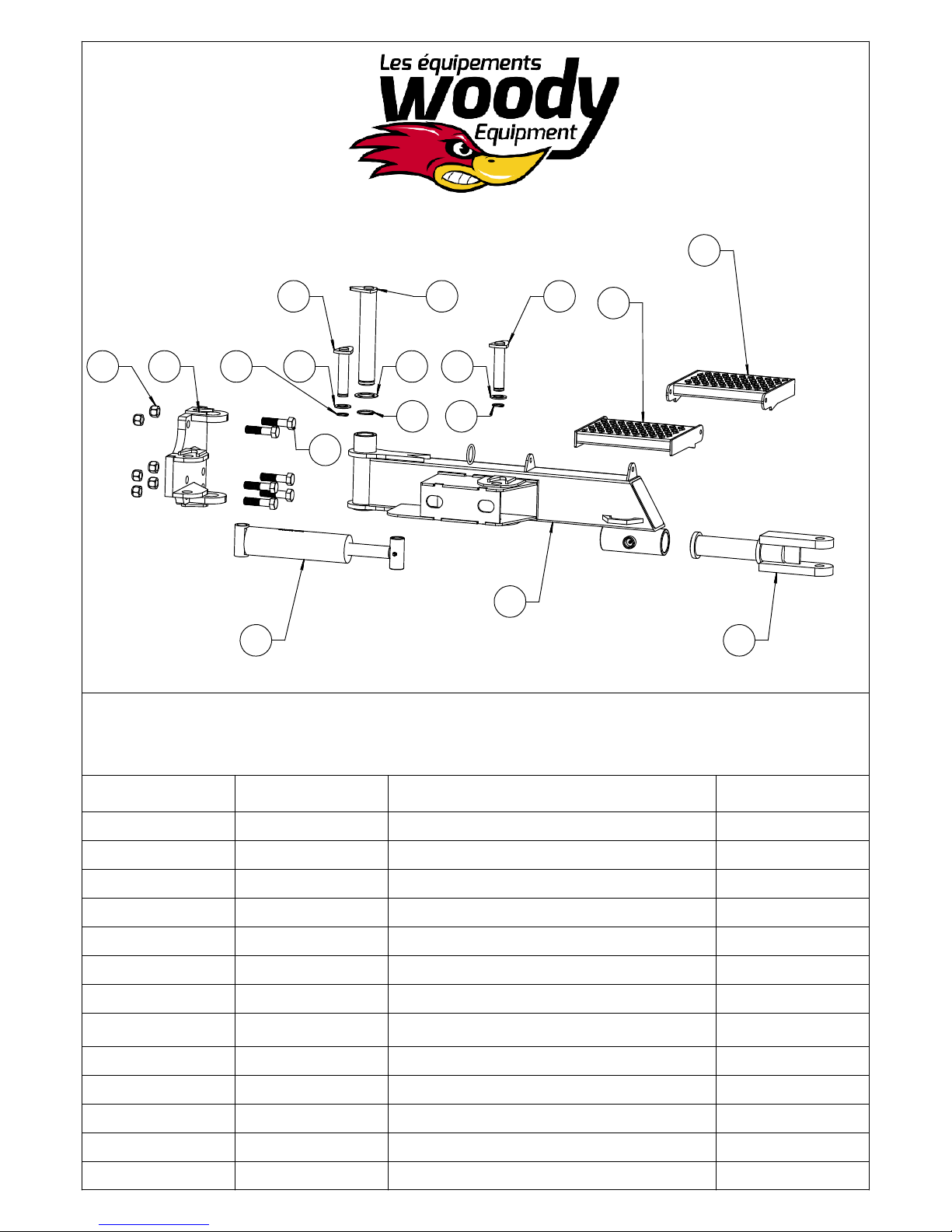

10-66 Forestry Trailer with 11L15 Tires
Parts List
10-66 Forestry Trailer with 11L15 Tires
Parts List
Item Part # Description Qty
1 59-00-04 10-66 Trailer post 10
2 59-000-05 Protective grid 38" wide x 38" high 1
3 59-026-03 Tandem trailer 2
4 59-011-01 10-66 Forestry trailer frame - 115 HD 1
5 86-31-285-F12-00 Shaft 1 15/16" O.D. 2
6 302010 11L15 Tire, 8-ply, 6 nuts, 5000 lb. 4
7 303020 Trailer Jack - 6000 or (5000) lb. 1
8 59-076-01 Removable drawbar 1
9
1
2
7
84
5
3
6

10-66 Forestry Trailer with 12.5L15 Tires Parts List
10-66 Forestry Trailer with 12.5L15 Tires
Parts List
Item
Part #
Description Qty
1
59-000-04
10-66 Trailer post
10
2
59-000-05 Protective grid 38" wide x 38" high
1
3
59-026-03 Tandem trailer
2
4
59-011-01 10-66 Forestry trailer frame - 115 HD
1
5
86-31-285-F12-00
Shaft 1 15/16" O.D. 2
6
302020 12.5L15 Tire, 10-ply, 6 nuts
4
7
303020 Trailer Jack - 6000 or (5000) lb.
1
8
59-076-01 Removable drawbar
1
10
127
8
4
53
6

9
8
21
7
5
3
4
10-66LP Forestry Trailer 11L15 Tires Parts List
10-66 Forestry Trailer with 11.5L15 Tires
Parts List
Item Part # Description Qty
1
59-000-33
10-66 trailer short post
10
2
59-000-32
Protective grid 38" wide x 38" high
1
3
59-026-03
Tandem trailer
2
4
59-175-01
10-66 Forestry trailer frame 125 HD
1
5
86-31-285-F12-00
Shaft 1 15/16" O.D. 2
6
301550
Nylon nut 3/8"-16 2
7
302010
11.5L15 Tire, 8-ply, 6 nuts, 5000 lb
4
8
303020
Trailer Jack - 6000 or (5000) lb.
1
9
59-076-01
Removable drawbar
1
11

Parts list
Grapple 36''
Item Parts # Description Qty
1 57-002-01 Grapple 36" center 1
2 57-002-02 Little finger grapple 1
3 57-002-03 Wide finger grapple 1
4 57-002-03 Side plate grapple 2
5 86-16-120 Rod 1'' O.D. 1
686-16-140-E14-00-
E126-00 Rod 1'' O.D. 1
786-16-154-E14-00-
E138-00 Rod 1" O.D. 1
8 120272 Hydraulic cylinder 2 1/2" Dia. x
6" stroke 1
12
2
4
1
6
5
7
4
3
8

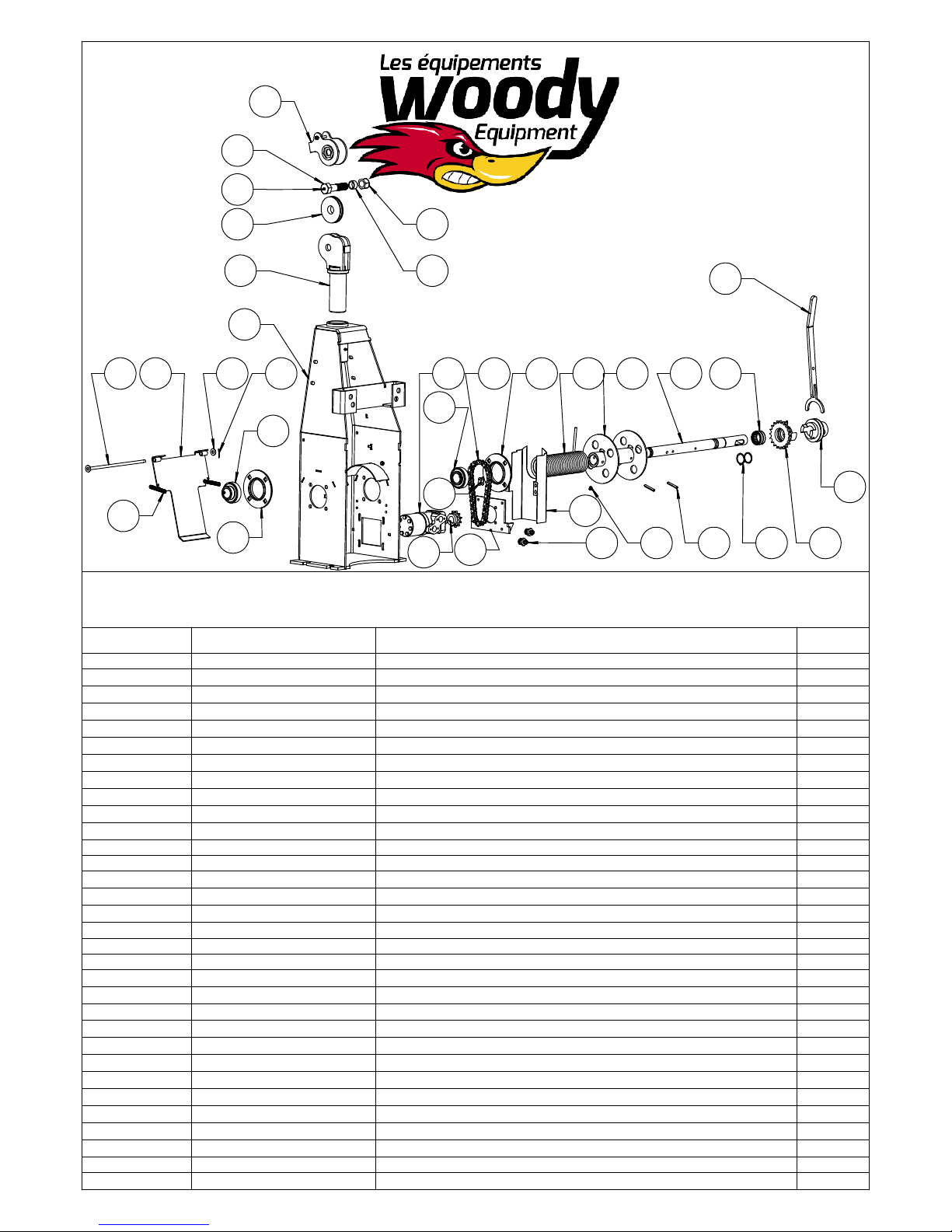

Parts list
Winch 6000lbs
Item Part# Description Qty
1 58-007-02 Winch head 1
2 58-000-04 Swivel head fixation- large, medium, small 1
3 58-000-05 Winch roller- large, Medium 1
4 58-007-03 Cable tensioner pin 1
5 58-000-06 Winch fixed cluth- Large, Medium, Small 1
6 58-000-07 Winch fixed cluth- Large, Medium, Small 1
7 58-000-08 Clutch arm- Large, Medium 1
8 58-000-01 Winch motor support- Large, Medium 1
9 58-007-05 Winch tensioner- Large, Medium 1
10 58-007-04 36'' Winch housing 1
11 58-000-024 Modified pulley 1
12 58-000-020 36'' Winch roller axis 1
13 58-000-006 Modified bolt 1
14 58-007-019 Plastic tubing 1 1/4" O.D. 1
15 307036 Snap-Ring 1 1/2" 2
16 301500 Nylon nut 1"-8 1
17 300700 Bolt 5/16"-18 x 1" 1
18 301350 Washer 3/8" 2
19 1RIV 50 Chaine series #50 - 36 rollers 1
20 150010 Gear wheel #50-11 teeth heavy duty 1
21 310020 Zote straight 1/4"-28 2
22 309030 Quik linck #50 1
23 108070 Hydraulic motor 315cc 1
24 150040 Bearing insert 2
25 150151 Flange bearing 2
26 309200 Spring 2
27 304010 Nylon cable 5/16'' x 110' long 1
28 195-145 Cotter pin 3/32 DIA. X 3/4" LG. 1
29 310880 Spring pin 5/16" O.D. x 2" 2
30 VSPC-06-08 Screw allen 3/8" Dia. X 1/2" Long 1
31 102710 Male 3/8" - JIC x Male 7/8" - ORB 2
32 58-005-011 Winch protector 1
13
2
16
14
13
21
11
1
10
4 9
26
18 28
24
25 31
23
24
19
22
25
8
20
32
30 29
327 12 5
15
7
5
6

3
2
11
13
14
6
1
20
218
7
15
12
18
19
9
4
5
1819 1610 17
22
22
6000 lb. Hydra liq e Winch
Parts list
Item part # Description Qty
1 58-013-01 26" Winch housing 1
2 58-013-04 Winch head 1
3 58-000-04 Swivel head fixation - Large, Medium, Small 1
4 58-000-05 Winch roller - Large, Medium 1
5 58-007-03 Cable tensioner pin 1
6 58-007-05 Winch tensioner - Large, Medium 1
7 58-000-06 Winch fixed clutch - Large, Medium, Small 1
8 58-000-07 Winch mobile clutch - Large, Medium, Small 1
9 58-000-08 Clutch arm - Large, Medium 1
10 58-000-01 Winch motor support - Large, Medium 1
11 58-000-024 Modified pulley 1
12 58-000-020 36" Winch roller axis 1
13 58-000-006 Modified bolt 1
14 Bush plast 1 1/4 ext x 1 int Plastic tubing 1 1/4" O.D. 1
15 1RIV 50 Chain series #50 - 36 rollers 1
16 150010 Gear wheel #50-11 teeth heavy-duty 1
17 108070 Hydraulic motor 315 cc 1
18 150040 Bearing insert 2
19 150151 Flange bearing 2
20 304010 Nylon cable 5/16'' x 110' long 2
21 58-005-011 Winch protector 1
22 140030-055-101820-101820 Hydraulic hose 2
14
000 lb. Hydraulic Winch
Parts list

Parts list
simple directional
Item Parts # Description Qty
1 59-003-08 Hitch 1
2 59-076-24 Simple directional frame 1
3 59-076-08 Pivot lock 1
4 59-076-09 Deck span 9.5 2
5 59-076-04 Pivot lock 2
6 59-076-02 Pivot simple directional 1
7 59-076-035 washer 2
8 120442 Hydraulic cylinder 3" Dia. x 16" Stroke 1
9 59-076-034 Washer 1
10 301020 Bolt 7/8"-9 x 3 1/2" 6
11 301590 Nylon nut 7/8"-9 6
12 307063 Snap-Ring 1 1/4" 2
13 307075 Snap-Ring 2" 1
15
4
4
1
2
8
535
79
1213
712
10
11 6

General safety rules:
Read this instruction manual carefully before starting the loader. The technical data in this manual contains important information. Improper use can result in
injury and damage to the machine .
Using a loader requires increased knowledge and experience. You must learn and know the behavior of the loader and practice using it. Study and practice
the movement patterns with small loads until you master the machine completely. Stop all operations immediately if any bystanders enter the work zone (20
m).
Woody loaders are intended for normal use in the agricultural and forestry sectors. They must be used only by persons trained in the handling of this type of
machinery.
. Before connecting the loader to the tractor's hydraulic system, you must read the tractor's instruction manual to ensure proper
connections.
. Be extremely careful when connecting the loader to the tractor or the trailer to the tractor, as well as when detaching it.
. When operating, make sure everyone remains in the safety zone, outside of the loader risk area. The operator must have full visibility of
the work zone.
. When operating, do not insert your hand or any other part of your body into the machine or under the load. Do not risk getting stuck
between the different parts of the log loader or between the tractor and the trailer.
. Do not forget to raise the stabilizers before moving the equipment.
. When loading, always engage the tractor handbrake.
. Never leave the boom in a raised position without having control of the loader.
. Never use the loader to pull, push or hit.
. Be particularly careful when loading and unloading heavy materials.
. Never use the loading device during transport.
. To stop the machine, lower the loader boom and grapple on a firm surface, turn off the engine, engage the handbrake and remove the
key from the ignition to prevent unauthorized use.
. The loader is not intended for lifting people.
. Be very careful when loading or unloading near high voltage lines. Keep a safe distance from live cables.
Operation
16

Safety Instructions
If the overload protection of the hydraulic system is not properly adjusted or certain system
functions are altered, safety cannot be ensured.
. Always lower the hydraulic stabilizers before each operation to avoid overturning.
. Always check that any unauthorized personnel remains outside the work risk area.
. Never stand under a suspended load.
. Make sure that the tractor and trailer are always on firm ground so that there is no risk of overturning.
When loading, use the stabilizers to prevent tilting of the loader
.
. Make sure you always have a visual view of the work area.
. Do not work in conditions where you may get your fingers caught or hurt yourself
.
When there is a risk of overturning, immediately lower the stick boom with the control lever.
. Hold the lever in this position until the load is on the ground. Do not interrupt the lowering movement as the risk of
overturning will increase if the load stops abruptly.
. If the tractor rolls over, follow the instructions in the cab. Do not jump out of the cab. You could end up
under the load during a fall or under the tractor.
Note: Even if the stabilizers have been lowered to the ground, the risk of overturning is greater when the trailer is
empty or partially loaded.
Cracks in hydraulic hoses
. In the event of pressure loss in the hydraulic fluid or cracks in the hydraulic hoses, you must immediately
shut down the tractor engine and lower the load to the ground. Stop the hydraulic flow. Repair the leak.
. If the main pressure hose between the tractor and the control system is cracked, you must interrupt the oil
flow by disconnecting the lever control associated with the tractor's hydraulic distributor or by shutting off
the engine with the OFF button.
17
