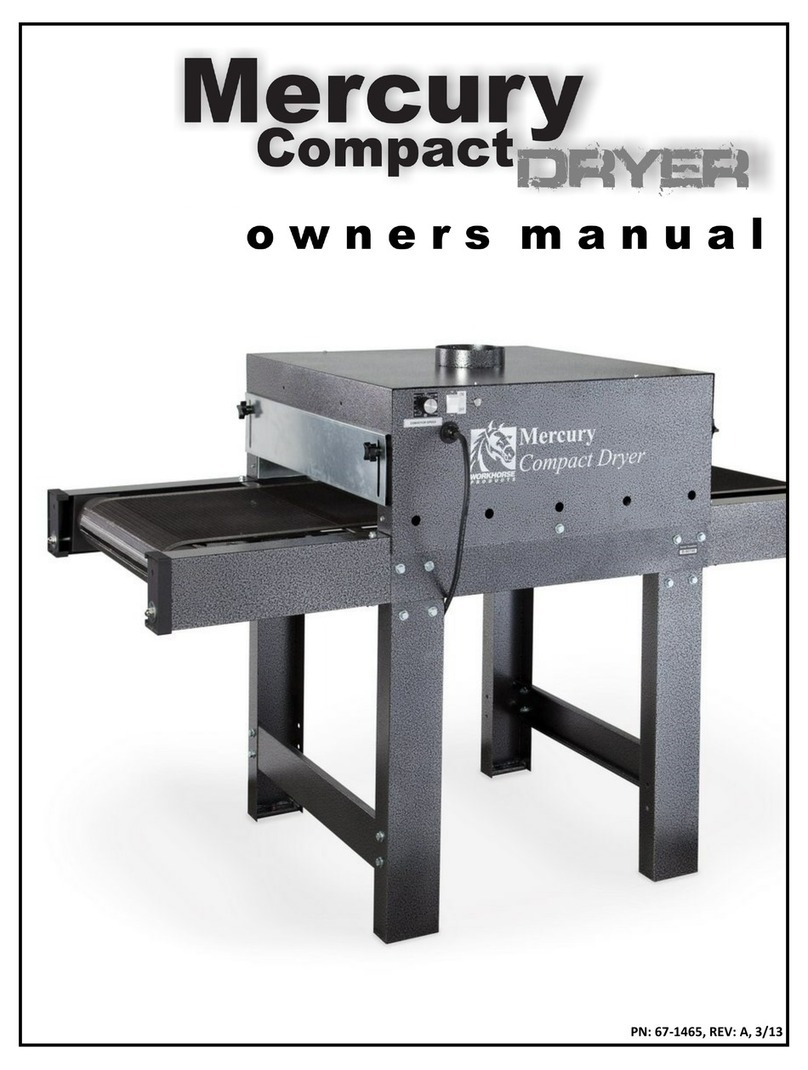

Workhorse Mercury compact series User manual

Mercury Compact Series

REV: 000

Table of Contents

Introducon 2

Standard Operang Guide 2

Features & Specs 2

External Layout 3 - 8

Internal Layout 9 - 12

Wiring Diagram 13

F.A.Q. 14 - 22

Comprehensive Parts List 23

Introducon:

The Mercury Compact Infrared Dryer is an economical and ideal dryer for any home based business or shop with a limited amount

of space or budget. Using a large IR heang panel and an adjustable belt speed, the Compact Dryer gives you the capability of

professional, long lasng prints. The Compact Dryer comes with a 20” wide belt capable of handling 72 pieces per hour. With

adjustable heat gates the Compact can handle just about any job.

Standard Operaons Guide:

Once the Mercury Compact Dryer is installed, it’s me to cure! The belt speed is crical to ensure the quality of the print and to

prevent the garments from burning. The surface of the IR element can reach temperatures of 600°f, with a curing temperature of

325°-350°f. The belt speed adjustment will allow most garments to pass safely thru the dryer. The heat gates allows the user to

control how much heat is contained or expelled from the dryer.

Features/ Specs:

 Power Opons

115v, Single Phase 50-60Hz at 2000Was, 17 amps

230v, Single Phase 50-60Hz at 3000Was, 14 amps

 Dimensions and Belt Size

Belt size, 20” x 11’

Dryer Dimensions; 30”W x 67”L x 32”H, The tunnel length is 30”

 Construcon

All steel construcon

Insulated, double wall heat chamber

 Features

Large IR heat panel

Power Exhaust

Adjustable vent doors

Adjustable belt speed

External Layout

Leg (All)

Part B

Part A

Cross Brace

Part C

Leveler Bolts

Leg Assembly / Cross Brace

Leg Foong

Leg to Cross Brace Assembly

Part E

Flat Washer

Part D

Hex Bolt

Part F

Flange Nut

Inner Brace View

Part D

Hex Bolt

Part E

Flat Washer

Part F

Flange Nut

Leg Aachment to Body

Internal View of Leg Aachment at Body

Part G

Rail End Cap

Part H

Fender Washer

Part I

Acorn Nut

Part J

Drive Roller

Part G

Rail End Cap

Part H

Fender Washer

Part I

Acorn Nut

Part L

Driven Roller

Drive Side

Driven Side

Part K

Belt

Part AP

Rail

Part AP

Rail

Vent Door

Vent Door Removed

Part N

Synch Knob

Part O

Vent Door

Part M

Screw

Part C

Hex Bolt

Part P

Hex Nut

Control Panel

Power Cord

Part R

Power Switch

Part S

Power Light

Part Q

Speed Control

Part T

Cord Clamp

Part U

Power Cord 115V

Part U

Power Cord 115v

Shown Above “Nema 6-15p”

This plug is standard on all 230v

models

Shown Above “Nema L5-30p”

This plug is standard on the 115V

models.

Part AQ

Knob Kit

Part AS

Power Cord 220v

Part AS

Power Cord 220v

Internal Layout

Part V

Fan 115V

Part W

Terminal Block

Part X

Speed Control Board

Top Cover Removal

Main Circuit and Components

Part AU

Fan 220V

WARNING!

RISK OF ELECTRICAL SHOCK! Turn ALL power to unit OFF before service.

All service should be done by or under the supervision of a trained technician

Part R

Power Switch

Part Q

Speed Control

Part S

Power Light

Back of Control Panel

Internal View of Element

Part Y

Silicone Grommet

Part Z

Inside Top Wall

Part Y

Silicone Grommet

Part AB

Element 115V

Part AA

Inner Side Wall Part AA

Inner Side Wall

Part AR

Element 230V

Motor

Gearbox Internal View

Part AE

Chain

Part AD

Roller Sprocket

Part AF

Motor Sprocket

Part M

Screw

Part AN

Adjustment Stud

(Motor Only)

Part AT

Chain Link

Part AO

Adjustment Stud

(Remaining 3 sides)

Motor

Part AC

Wiring Diagram: 115/220V Mercury Compact Dryer

NOTE: The diagrams for the 115V and 220V models are the same, with variaons in the components only. Shown Below with 115V

components ; Power Cord, Fan, Element.

P/N: 390743 REV:A

FAQ.

1. My dryer turns on but the belt isn't spinning.

Does the belt turn easily by hand? If yes, loosen the belt. (Image 1) Next, using pliers pull the belt pin to separate the two ends of

the belt (Image 2 and 3)

Image 1

Next unplug the belt drive motor (Image 4). Remove the motor and roller assembly and set it on a at surface (Image 5). With the

assembly now removed, inspect the chain and sprockets. If the chain has come o it will need to be put back on, however, there is

a reason it has come o. Inspect the sprockets for damage or missing teeth, the sprocket should look like the sprocket in Image 6.

If sprocket is good, next check sprocket alignment (Image 7). If sprockets are misaligned check the set screws on the bearings that

secure the roller sha (Image 9).

Image 2

Image 3 Image 4

Image 5 Image 6

Part AE

Chain

Part AD

Roller Sprocket

Part AF

Motor Sprocket

WARNING!

RISK OF ELECTRICAL SHOCK! Turn ALL power to unit OFF before service.

All service should be done by or under the supervision of a trained technician

If the bearings are loose on the motor side, reset the distance between the arms and the belt

tension bracket (Image 8). This will allow for the assembly to t properly into the arms. Secure

the bearing set screws (Image 9). If the bearings are ght, manually align the chain. Loosen the

set screws for the sprocket, take a measurement from the inside of the bracket to the chain.

Both drive and roller sprocket should be the same (Image 10).

Image 7 (Misaligned Sprocket View) Image 8

Image 9 Image 10

2. The chain is on, but my belt sll won’t turn.

Using a digital Volt/Ohm meter in the VDC seng (Image 11), check the voltage going to the belt motor. The motor operates on a

0v - 90v DC scale. Depending on where the speed control is set will determine the voltage reading. Unplug the belt motor, the side

of the plug with the white/black wires is the power side (Image 4). Insert the meter’s probes into the plug as show in image 12.

With the probes inserted take note of the reading on the meter, if it displays a negave reading, swap the probes and take another

reading.

Image 12


Part AG

Bearing

Part AH

Lock Washer

Part AI

Hex Bolt

With the probes inserted into the plug, set the belt speed control at 0, the meter should read zero or close to it. Then turn the

belt speed to 100, the meter should now read 90vdc. If the reading is 0 regardless of speed control seng its now me to open

the top of the dryer. There are 4 screws on the top and 2 on either side just above the vent doors, li o the top of the dryer and

set it to the side (Image 13 and 14)

Image 13 Image 14

Once the top is removed, the speed control board is now visible. (Image 15)

Image 15

Part W

Terminal Block

Part X

Speed Control Board

Part V

Fan 115V

Part AU

Fan 220V

(2 Connued)

Locate the ceramic resistor on the speed control board (Image 16)

Image 16

Once the Resistor is located, remove it. Using a piece of wire or paper clip, jump the two open terminals the resistor came out

of (Image 17) Image 17

Using the Digital meter in the VDC seng, repeat the tesng seen in images 11 and 12. Start at 0 and move the belt speed control

to 100, if the full range of voltage ( 0 - 90vdc) is reached, the resistor will need to be replaced. If no change is seen in the voltage

and the belt sll wont turn, either the speed control board or motor will need to be replaced.

Part AJ

Resistor

To test the Speed Control Board, use a digital Volt/Ohm meter set the dial to the ACV seng (ACV 200-1000 on a non auto-ranging

meter). With the Red probe from the meter, touch the circuit tab on L1, with the black probe touch the L2 (Image 18)

Image 18

Image 19

If the AC voltage coming into the board is correct (115/230 ACV) but there is no power coming out, the speed control board

will need to be replaced.

L1 L2

3. My Dryer Isn't Heang up

Remove the top of the dryer (Image 13 and 14). Locate the Power Switch (Image 20)

Image 20

Once the Switch is located, 2 large WHITE wires can be seen connected to the switch (Image 20). Using a digital Volt/Ohm meter

set the dial to the ACV seng (ACV 200-1000 on a non auto-ranging meter) , turn the dryer on and test the voltage across the

switch. The Dryer uses 115v or 230v, to verify check the voltage rang on the fan (Image 22).

Image 22 Image 22.1

Fan 220V

Part V

Fan 115V Part AU

If voltage reading is normal, the element is bad (Image 23). To verify the element is bad use a digital Volt/Ohm meter in the

resistance seng (Omega symbol Ω). With the dryer OFF, locate the terminal block. Check the 2 large WHITE wires leading to

the element . For connuity, the meter should have a low reading or produce a beep, if the meter reads zero or doesn’t produce a

beep, the element will need to be replaced.

Image 23

Duplicate Image

Part AB

Element

Part AA

Inner Side Wall Part AA

Inner Side Wall

Part Y

Silicone Grommet

Part Y

Silicone Grommet

Part Z

Inside Top Wall

Part P

Hex Nut

Part AL

Element Housing

Part AK

Element Housing End
