Worksaver Sspf-3755 Owner's manual

OWNER’S/

OPERATOR’S

MANUAL

MODEL NO.’s

PF-448

SSPF-3748

SSPF-3755/3760

SSPF-442

SSPF-448

SSPF-5548/5560

GLPF-442

GLPF-448

GLPF-5548/5560

JDPF-5442

JDPF-5448/5460

JDPF-6748/6760

JDPF-H48048

JDPF-H48060

JULY 2019

WS-PF001-OG

WHEN ORDERING REPAIR PARTS,

ALWAYS GIVE THE FOLLOWING INFORMATION:

1. PART NUMBER

2. PART DESCRIPTION

3. MODEL NUMBER

4. NAME OF ITEM

WORKSAVER, INC.

P.O. BOX 100 LITCHFIELD, IL 62056-0100 (217) 324-5973

WEB: http://www.worksaver.com E-MAIL: sales@worksaver.com

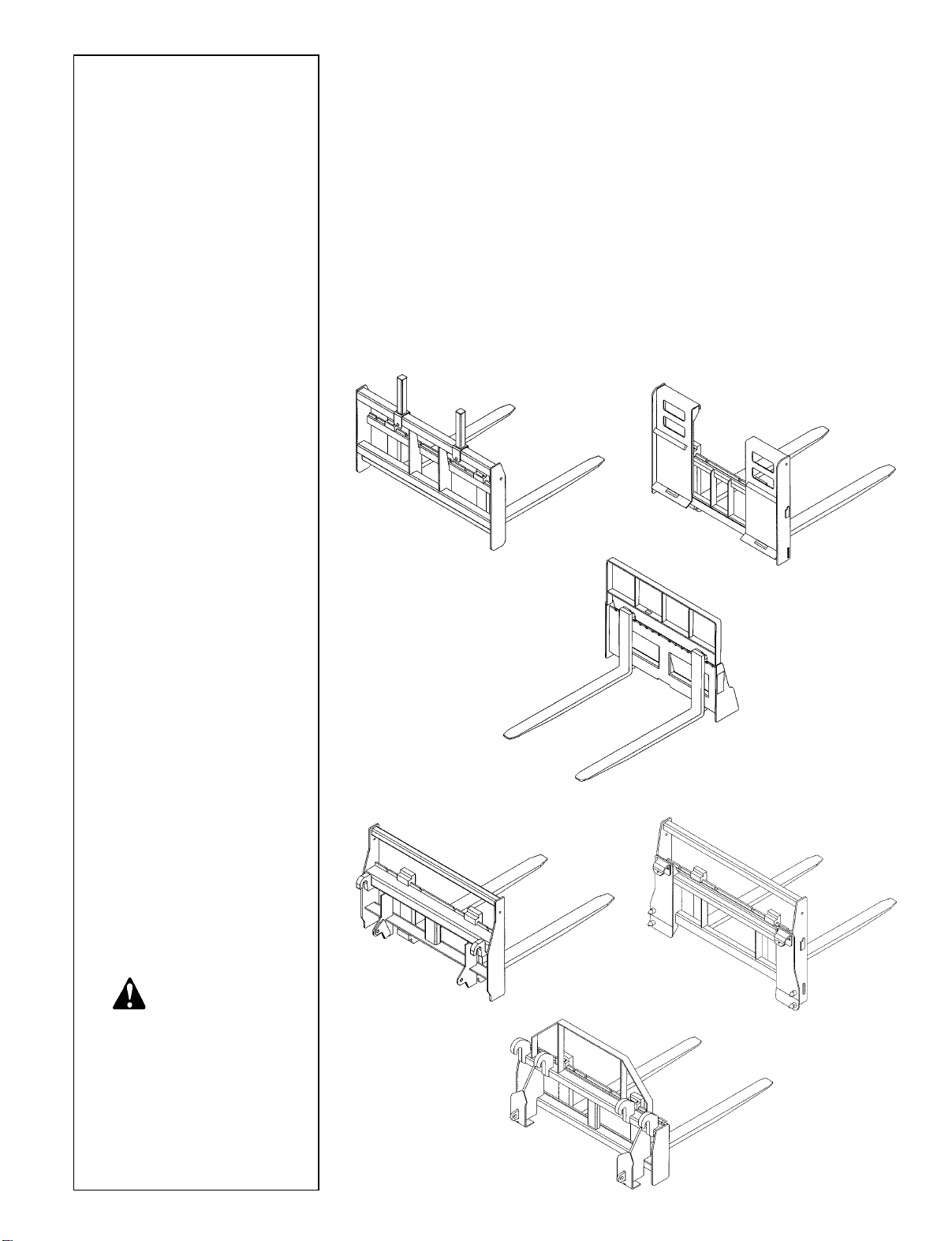

PALLET FORK

FOR SKID STEER

TRACTOR FRONT LOADERS

PALLET FORKS

FOR

TRACTOR FRONT LOADERS

AND

SKID STEER UNITS

Safety Instructions Assembly & Mounting

Tractor Preparation Maintenance

Operating Instructions Repair Parts

PF-448

SSPF-442/448/5548/5560

SSPF-3748/3755/3760

GLPF-448/5548/5560 JDPF-5442/5448/5460

JDPF-48048/48060

OWNER’S/

OPERATOR’S

MANUAL

MODEL NO.’s

PF-448

SSPF-3748

SSPF-3755

SSPF-3760

SSPF-442

SSPF-448

SSPF-5548

SSPF-5560

GLPF-442

GLPF-448

GLPF-5548

GLPF-5560

JDPF-5442

JDPF-5448

JDPF-5460

JDPF-6748

JDPF-6760

JDPF-H48048

JDPF-H48060

CAUTION

For Safe Operation

Read Rules And

Instructions Carefully

SI NO LEEINGLES, PIDA AYUDA

A AIGUIEN QUE SI LO LEA

PARA QUE LE TRADUZCA LAS

MEDIDAS DE SEGURIDAD.

Please work, drive, play, and live each day with care

and concern for your safety and that of your family and

fellow citizens.

•Machinery should be operated only by those who are

responsible and are authorized to do so.

•Stop the engine, lower all equipment, lock the brakes,

and remove the ignition key before dismounting from the

tractor.

•Never stand between tractor and implement while tractor

is being backed to hitch.

•Loose fitting clothing should not be worn, to avoid catch-

ing on various parts.

•Detach implement in area where children normally do not

play.

•When performing adjustments or maintenance on an

implement, first lower it to the ground or block it securely

at a workable height.

•Only a qualified operator should be permitted on tractor

when in operation; no riders allowed.

•Make certain everyone is in the clear before starting

tractor or raising or lowering equipment.

•Operate the tractor and implement only while seated in

the driver’s seat.

•

Reduce speed when transporting mounted implements

to avoid bouncing and momentary loss of steering

control.

•A heavy load can cause instability of the tractor. Use

extreme care during road travel.Slow down on turns and

watch out for bumps. Tractor may need front counter-

weights to counter-balance the weight of the implement.

•Reduce speed on hillsides or curves so there is no

danger of tipping.

•Avoid driving too close to the edge of ditches or creeks.

•Do not transport implement on public roads without

reflectors and slow moving vehicle emblem in daylight

and with approved warning lights at night and other

periods of poor visibility.

•Due to the width of some implements, use extra caution

on highways, farm roads, and when approaching gates.

•Always be sure the implement is in the proper position for

transport.

•Keep alert and watch the front as well as the rear when

working with the implement.

SAFETY REQUIREMENTS

AVOID ACCIDENTS BY FOLLOWING ALL OF THE SAFETY REQUIREMENTS LISTED BELOW.

TABLE

CONTENTS

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 10

SAFETY SIGNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 20

PARTS DRAWINGS/LISTS . . . . . . . . . . . . . . . . . . . . . . . 21 - 27

TO THE OWNER:

Read this manual before using your Pallet Fork. This manual is provided to give you the necessary operating

and maintenance instructions for keeping your Loader Fork in top operating condition. Please read this manual

thoroughly. Understand what each control is for and how to use it. Observe all safety signs on the machine and

noted throughout the manual for safe operation of implement. Keep this manual handy for ready reference.

Like all mechanical products, it will require cleaning and upkeep.

Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet stan-

dards required for safe and satisfactory operation. Record the model and serial number of your Pallet Fork here:

Model:________________________________________ Serial Number:_______________________________

RETAIL CUSTOMER’S RESPONSIBILITY

It is the Retail Customer and/or Operator’s responsibility to read the Operator’s Manual, to operate, lubri-

cate, maintain, and store the product in accordance with all instructions and safety procedures. Failure

of the operator to read the Operator’s Manual is a misuse of this equipment.

It is the Retail Customer and/or Operator’s responsibility to inspect the product and to have any part(s)

repaired or replaced when continued operation would cause damage or excessive wear to other parts or

cause a safety hazard.

It is the Retail Customer’s responsibility to deliver the product to the authorized Worksaver Dealer, from

whom he purchased it, for service or replacement of defective parts which are covered by warranty.

Repairs to be submitted for warranty consideration must be made within forty-five (45) days of failure.

It is the Retail Customer’s responsibility for any cost incurred by the Dealer for traveling to or hauling

of the product for the purpose of performing a warranty obligation or inspection.

SI NO LEEINGLES, PIDA AYUDA A

AIGUIEN QUE SI LO LEA PARA QUE

LE TRADUZCA LAS MEDIDAS DE

SEGURIDAD.

STATEMENT

OF POLICY

It is the policy of Worksaver,

Inc.to improve its products where

it is possible and practical to do

so. Worksaver, Inc. reserves the

right to make changes or

improvements in design and con-

struction at any time, without

incurring the obligation to make

these changes on previously

manufactured units.

NOTES

227

LIMITED WARRANTY

Worksaver warrants to the original purchaser of any new Pallet Fork (Models PF-448, SSPF-3748,

SSPF-3755, SSPF-3760, SSPF-442, SSPF-448, SSPF-5548, SSPF-5560, JDPF-5442, JDPF-5448,

JDPF-5460, JDPF-6748, JDPF-6760, JDPF-48048, JDPF-48060, GLPF-442, GLPF-448 and GLPF-

5548, GLPF-5560), that the equipment be free from defects in material and workmanship for a period of

six (6) months for non-commercial, state, and municipalities.Use sixty (60) days for commercial use from

date of retail sale.

Replacement or repair parts installed in the equipment covered by this warranty are warranted for sixty

(60) days from the date of purchase of such part or to the expiration of the applicable new equipment

warranty period, whichever occurs later.

Such parts shall be provided at no cost to the user during regular working hours. Worksaver reserves

the right to inspect any equipment or parts which are claimed to have been defective in material or

workmanship.

DISCLAIMER OF IMPLIED WARRANTIES & CONSEQUENTIAL DAMAGES

Worksaver’s obligation under this warranty, to the extent allowed by law, is in lieu of all warranties,

implied or expressed, including implied warranties of merchantability and fitness for a particular purpose

and any liability for incidental and consequential damages with respect to the sale or use of the items

warranted. Such incidental and consequential damages shall include but not be limited to: transporta-

tion charges other than normal freight charges; cost of installation other than cost approved by

Worksaver; duty; taxes; charges for normal service or adjustments; loss of crops or any other loss of

income; rental of substitute equipment, expenses due to loss, damage, detention or delay in the deliv-

ery of equipment or parts resulting from acts beyond the control of Worksaver.

THIS WARRANTY SHALL NOT APPLY:

1. To vendor items which carry their own warranties, such as hydraulic cylinders, tires, and tubes.

2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident.

3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole

judgement of Worksaver such use affects its performance, stability, or reliability.

4. If the unit has been altered or repaired outside of an authorized Worksaver dealership in a manner

which, in the sole judgement of Worksaver affects its performance, stability or reliability.

5. To normal maintenance service and normal replacement items such as bent forks, hydraulic fluid,

worn blades, or to normal deterioration of such things as belts and exterior finish, due to use or

exposure.

6. To expendable or wear items such as teeth, chains, sprockets, latch parts, springs and other items

that in the company’s sole judgement is a wear item.

NO EMPLOYEE OR REPRESENTATIVE OF WORKSAVER IS AUTHORIZED TO CHANGE THIS

WARRANTY IN ANY WAY OR GRANT ANY OTHER WARRANTY UNLESS SUCH CHANGE IS MADE IN

WRITING AND SIGNED BYWORKSAVER’S SERVICE MANAGER, POST OFFICE BOX 100, LITCHFIELD,

ILLINOIS 62056-0100.

MODELS JDPF-H48048 & JDPF-H48060

PARTS LIST

26 3

To the Owner/Operator/Dealer

All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera-

tor who recognizes the potential hazards and follows reasonable safety practices.The manufacturer has designed this

implement to be used with all its safety equipment properly attached to minimize the chance of accidents.

BEFOREYOU START!!

Read the safety messages on the implement and shown in your manual.

Observe the rules of safety and common sense!

THIS SAFETY ALERT SYMBOL IDENTIFIES IMPORTANT

SAFETY WARNING MESSAGES. CAREFULLY READ EACH

WARNING MESSAGE THAT FOLLOWS. FAILURE TO

UNDERSTAND AND OBEY A SAFETY WARNING, OR

RECOGNIZE A SAFETY HAZARD, COULD RESULT IN AN

INJURY OR DEATH TO YOU OR OTHERS AROUND YOU.

THE OPERATOR IS ULTIMATELY RESPONSIBLE FOR THE

SAFETY OF HIMSELF, AS WELL AS OTHERS, IN THE

OPERATING AREA OF THE TRACTOR AND EQUIPMENT.

THIS SYMBOL MEANS

– ATTENTION!

– BECOME ALERT!

–YOUR SAFETY IS INVOLVED!

Important Safety Information!

Working with equipment can lead to injuries. Read this manual, and the manual for your tractor, before assembly or

operating, to acquaint yourself with the machine. It is the equipment owner’s responsibility, if this equipment is used

by any person other than yourself, is loaned or rented, to make certain that the operator, prior to operating:

1. Reads and understands the operator’s manuals.

2. Is instructed in safe and proper use.

The use of this equipment is subject to certain hazards which cannot be protected against by mechanical

means or product design. All operators of this equipment must read and understand this entire manual, pay-

ing particular attention to safety and operating instructions, prior to using. If there is something in this manu-

al you do not understand, ask your supervisor, or your dealer, to explain it to you.

UNDERSTAND SIGNAL WORDS

Indicates an imminently hazardous situation that, if not avoided, WILL result in

DEATH OR VERY SERIOUS INJURY.

Indicates a imminently hazardous situation that, if not avoided, COULD result in

DEATH OR SERIOUS INJURY.

Indicates a imminently hazardous situation that, if not avoided, MAY result in

MINOR INJURY.

Identifies special instructions or procedures that, if not strictly observed, could

result in damage to, or destruction of the machine, attachments or the environment.

NOTE:

Identifies points of particular interest for more efficient and convenient operation or repair.

If you have questions not answered in this manual or require additional copies or the manual is damaged, please

contact your dealer or the manufacturer directly.

WARNING

DANGER

CAUTION

IMPORTANT

MODEL JDPF-6748 & JDPF-6760

PARTS LIST

425

SAFETY INSTRUCTIONS (continued)

Safety of the operator is one of the main concerns in designing and developing a new piece of equipment.

Designers and manufacturers build in as many safety features as possible. However, every year many

accidents occur which could have been avoided by a few seconds of thought and a more careful approach to

handling equipment.You, the operator, can avoid many accidents by observing the following precautions in this

section.To avoid personal injury, study the following precautions and insist those working with you, or for you,

follow them. Review the safety instructions with all users annually.

Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely, is in question –

DON’T TRY IT.

Do not modify the equipment in any way. Unauthorized modification may impair the function and/or safety and

could affect the life of the equipment.

In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment,

hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper

training of personnel involved in the operation, transport, maintenance, and storage of the machine.Refer also

to Safety Messages and Operation Instructions in each of the appropriate sections of the Tractor, Skid Steer,

and Implement Manuals. Pay close attention to the Safety Signs affixed to the Tractor, Skid Steer, and the

Implement.

Replace any CAUTION, WARNING, DANGER or instruction safety sign that is not readable or is missing.

Location of such safety signs is indicated in this booklet. Do not paint over, remove or deface any safety signs

or warning signs on your equipment. Observe all safety signs and practice the instruction on them.

Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating this

equipment. Consult your doctor about operating this machine while taking prescription medications.

This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a

responsible adult familiar with farm machinery and trained in this equipment’s operations. Do not allow per-

sons to operate or assemble this unit until they have read this manual and have developed a thorough

understanding of the safety precautions and of how it works.

EQUIPMENT SAFETY GUIDELINES

Know your controls and how to stop skid steer, tractor, engine, and loader quickly in an emergency. Read this

manual and the one provided with your tractor or skid steer.

Only use a power unit equipped with a ROPS cab or rollover protective structure. Keep foldable ROPS sys-

tems in “locked up” position at all times. Keep seat belt fastened.

MODELS JDPF-5442, JDPF-5448 & JDPF-5460

PARTS LIST

24 5

SAFETY INSTRUCTIONS (continued)

OPERATIONAL SAFETY

Be sure power unit is in good condition.Read all the safety precautions and make sure all operators are famil-

iar with the safety rules of operation.

Never leave the prime mover and implement unattended while the implement is in the lifted position.Accidental

operation of lifting lever or a hydraulic failure may cause sudden drop of unit with injury or death by crushing.

Keep all helpers and bystanders twenty-five feet (25’) from an operating power unit and attached equipment.

Only properly trained people should operate this machine. It is recommended the tractor be equipped with a

Rollover Protection System (ROPS) and a seat belt that is used. Always stop the tractor, skid steer, or forklift,

set brake, shut off the engine, remove the ignition key, and lower loader and attachment to the ground before

dismounting. Never leave equipment unattended with the engine running.

Please remember it is important that you read and heed the safety signs on the front loader attachment and

loader, and the safety rules set forth. Clean or replace all safety signs if they cannot be clearly read and under-

stood. They are there for your safety as well as the safety of others. The safe use of this machine is strictly

up to you, the operator.

The use of any loader attachment is NOT recommended on tractor with a tricycle wheel arrangement.Tricycle

type tractors are unstable for front loader use.

A heavy load can cause instability in driving a power unit. Make sure the front or rear of the power unit is

properly counter-balanced with weights.Always drive slowly – especially around turns. An unstable power unit

could steer badly and possibly tip over, causing injury or death.

Never allow children to play on or around prime mover or implement.Children can slip or fall off the equipment

and be injured or killed.Inadvertent contact with controls can cause the implement to shift or fall crushing them-

selves or others.

Always use two people to handle heavy, unwieldy components during assembly, installation, removal, or

moving the loader attachment.

Never place any part of your body where it would be in danger if movement should occur during assembly,

installation, operation, maintaining, repairing, removal, or moving the implement.

Start prime mover only when properly seated in the operator’s seat. Starting a prime mover in gear can result

in injury or death. Do not mount or dismount while the prime mover is moving. Mount or dismount only when

the prime mover and all moving parts are completely stopped.

Operate the prime mover and/or implement controls only while properly seated in the prime mover’s seat with

the seat belt securely fastened around you. Inadvertent movement of the tractor or implement may cause

serious injury or death.

Check that this attachment is securely mounted to the loader. Failure to install lock pins or have the latching

mechanism engage could result in injury or death.

MODELS GLPF-442, GLPF-448,

GLPF-5448 & GLPF-5560

PARTS LIST

623

SAFETY INSTRUCTIONS (continued)

OPERATIONAL SAFETY (continued)

Completely engage load before lifting.Fork length should be at least two-thirds of load length.It is recommend-

ed to keep lifting surface of the forks level at all times.When backward tilt is required to stabilize the load, use

extreme caution.

Keep alert and watch the rear as well as the front when working with the loader. Beware of lift clearance when

raising loader to maximum height.

Beware of low electrical wires when loader is raised. Serious injury or death can result if contact is made.

Before you operate any equipment, check over all pins, bolts and connections to be sure all are securely in

place. Replace any damaged or worn parts immediately.

Do not work under a raised loader unless it is securely blocked or held in position.Do not depend on the power

unit hydraulic system to hold the implement in place.

Use extra care when using 48” or 60” forks.The forks may extend beyond what you are handling causing dam-

age or tip material on the other side.

Operate the loader controls smoothly, avoiding jerky operation. Stop loader gradually when lowering or lifting

loads.

When handling material on a slope, always approach the material with the power unit facing uphill.

Do not lift round bales.

When stacking material, ALWAYS MAKE SURE MATERIAL IS PLACED SO THE STACK IS STABLE.

Keep all bystanders at a safe distance. REMEMBER FALLING ITEMS CAN ROLL OR TUMBLE.

Do not handle loads that exceed the weight limitations of the loader or forks.

Carry the loads slowly and as low as possible to the ground. Avoid excessive speed during operation.

Do not allow children or others to ride on the power unit with an operator. Riders are subject to injury such as

being struck by foreign objects or being thrown off.Riders obstruct the operator’s view resulting in unsafe oper-

ation. Never allow anyone to ride on the implement!

MODELS SSPF-3748, SSPF-3755 & SSPF-3760

PARTS LIST

22 7

SAFETY INSTRUCTIONS (continued)

When maneuvering close to buildings or passing through narrow areas, be sure to allow sufficient clearance

for the power unit, loader, and load. Drive slowly. Allow for additional length of loader and load on power unit

while turning.

Do not use the fork tines for prying or any purpose other than lifting.

Use extreme care when working on inclines and hillsides. Do not operate close to ditches, creeks or holes.

Slow down when operating over rough ground.

Keep load centered on attachment and loader. Unbalanced loads increase possibility of tipping or roll-over.

Secure the load properly. Unsecured loads can fall unexpectedly.

Never lift a load with one fork.

Be sure that people, livestock, or pets are not standing near the machine while operating. Never allow anyone

to walk or work under a raised loader.

Do not lift or carry anyone on loader or in bucket or on attachment. Do not use loader for a work platform.

ALWAYS lower loader to the ground or block securely before performing any maintenance work.

Always keep power unit on solid footing when operating loader.

Observe Safety Recommendations in loader instruction manual.

Inspect the entire machine periodically as indicated in the Maintenance Section of this manual. Look for loose

fasteners, worn or broken parts, pinched hydraulic hoses, and leaky or loose fittings. Make sure all pins have

cotter pins and washers. Serious injury may occur from not maintaining this machine in good working order.

OPERATIONAL SAFETY (continued)

Be certain the power unit is in neutral or park position before starting engine.

Always shut off power unit and shift to “Park” or set brakes when leaving unit. Always lower bucket or

attachment to ground, relieve all hydraulic pressure. Remove key when leaving equipment unattended. Park in

level area.

MODELS SSPF-442, SSPF-448,

SSPF-5548 & SSPF-5560

PARTS LIST

821

SAFETY INSTRUCTIONS (continued)

Comply with state and local laws governing highway safety and movement of farm machinery on public roads.

The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use.

Local laws should be checked for all highway lighting and marking requirements.

When driving the tractor and equipment on the road or highway under 20 mph (32 kph) at night or during the

day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem.

Always be sure the implement is in the proper raised position for transport.

Reduce speed when transporting mounted implements to avoid bouncing and momentary loss of steering

control.

Plan your route to avoid heavy traffic.

Do not drink and drive!

Watch for traffic when operating near or crossing roadways.

Turn curves or go up or down hills only at a low speed and at a gradual steering angle. Make certain that at

least 20% of the tractor’s weight is on the front wheels to maintain safe steerage. Slow down on rough or

uneven surfaces, and loose gravel.

Use extreme care and maintain minimum ground speed when transporting on hillside, over rough ground and

when operating close to ditches or fences. Be careful when turning sharp corners.

Never allow riders on either power unit or implement. Falling off can kill.

Be a safe and courteous driver.Always yield to oncoming traffic in all situations, including narrow bridges, inter-

sections, etc.

Do not exceed 20 mph (32 kph). Reduce speed on rough roads and surfaces.

Always disengage PTO before driving the tractor to transport the implement from one place to another.

TRANSPORT SAFETY

MODEL PF-448 PARTS LIST

20 9

SAFETY INSTRUCTIONS (continued)

Good maintenance is your responsibility. Poor maintenance is an invitation to trouble.

Do not use blocking made of concrete blocks, logs, buckets, barrels or any other material that could suddenly

collapse or shift positions. Use only good quality blocking material.

Before working on this machine, drive to a level area, disengage the PTO, lower implement or loader (or if

working underneath, raise and block securely), shut off the engine, relieve all hydraulic pressure, set the

brakes, and remove the ignition keys.

Never operate controls from the ground. Operate the controls only from the operator’s station.

Never work under equipment unless it is blocked securely. Never depend on hydraulic system to keep imple-

ment in raised position.

Always use personal protection devices such as eye, hand and hearing protectors, when performing any

service or maintenance.

Keep all persons away from operator control area while performing adjustments, service, or maintenance.

Periodically tighten all bolts, nuts and screws and check that all cotter pins are properly installed to ensure unit

is in a safe condition.

Openings in the skin and minor cuts are susceptible to infection from hydraulic fluid. If injured by escaping

hydraulic fluid, see a doctor at once. Gangrene and death can result. Without immediate medical treatment,

serious infection and reactions can occur.

MAINTENANCE SAFETY

Check to ensure all safety signs are installed and in good condition.

If equipment has been altered in any way from original design, the manufacturer does not accept any liability

for injury or warranty.

OPERATE LOADER SAFELY

——————————————————

• Adjust the spacing of the forks so they engage the pal-

let or load at its maximum width and then approach the

load in such a fashion that the weight will be centered

between the fork tines. The heaviest side should be

closest to the fork frame and not near the tips of the

fork tines.

• Before lifting make certain the fork tines are complete-

ly under the load and level. (Fork length should be at

least two-thirds of load length).

• Lift the load slightly to make sure the load is stable. If

load appears unstable, lower and reposition the tines

to achieve full stability.

• Raise the load to the MINIMUM height required for the

terrain.

• During transportation; keep the fork tines level, gradu-

ally accelerate and brake, slow down before turning

and avoid any obstacles, bumps or holes. Check load

frequently to ensure stability.

• Start lifting slowing and smoothly. Lift speeds can be

slightly increased once the load has started moving

and appears to be stable.

• If the load starts to lean or move, lower to the ground

and reposition.

• Lower the load gently until the weight of the load is

securely resting on the landing point and the forks are

free to be retracted from under the load.

• Make sure weight of load is centered between the

forks.

When traveling on public roads, whether at night or

during the day, use accessory light and devices for

adequate warnings to operators of other vehicles.

Comply with all federal, state and local laws.

■■Always stop the tractor or skid steer, set brake,

shut off engine, remove key, and lower loader to

ground before attempting to service. Never leave

equipment unattended with engine running.

■■Do not work under a raised loader unless it is

securely blocked or held in position. Do not depend

on the hydraulic system to hold loader and attach-

ment in place.

■■Keep all persons away from operator control area

while performing adjustments, service, or mainte-

nance.

Transport the loaded pallet fork at a slow speed and

with the loader at the lowest transport position to

avoid tipping or upsetting, which could result in seri-

ous injury or death.

MAINTENANCE & STORAGE

——————————————————

Replace any worn or damaged parts immediately. Do

not use attachment with any damaged parts.

Smearing a light coat of grease on the main frame rails

will make adjusting the fork width easier.

Storage location should be level and solid to make

hitching and unhitching easy. Store in a clean, dry loca-

tion away from children and livestock.

IMPORTANT: Keep forklift tines adjusted to maximum

width for better load stability.

OPERATING INSTRUCTIONS (continued)

OPERATION (continued)

—————————————————— TRANSPORTING

——————————————————

Allow for additional length of loader and attachment on

power unit while turning.

Check visibility. If visibility is impaired, reduce speed or

consider other means of transport.

Read all the safety warnings in the front of this manu-

al and in the manual of power unit.

WARNING

CAUTION

Operate up and down slopes with the heavy end of

the machine uphill. Carrying a load with the pallet

fork attachment will make the front end heavy.

When going up or down hill, the machine could

overturn if the heavy end is toward the downhill side.

Someone may be pinned or seriously injured if the

machine overturns.

WARNING

10 19

SAFETY INSTRUCTIONS (continued)

Following operation or when unhooking, stop the tractor, set the brakes, shut off the engine, relieve all hydraulic

pressure and remove the ignition keys.

Store the unit in an area away from human activity. Do not permit children to play on or around the stored unit.

Do not park equipment where it will be exposed to livestock for long periods of time. Damage and livestock

injury could result.

Make sure all parked machines are on a hard, level surface and engage all safety devices. Storage location

should be level and solid to make connecting and unconnecting to power unit easy.

If blocking is used, make sure it is solid and secure before leaving area.

STORAGE SAFETY

Keep safety signs clean and legible at all times.

Replace safety signs that are missing or have become illegible.

Replaced parts that displayed a safety sign should also display the current sign.

Safety signs are available from your Distributor or Dealer Parts Department or the factory.

Be sure that the installation area is clean and dry. Be sure temperature is above 50°F (10°C).

Decide on the exact position before you remove the backing paper.

Remove the smallest portion of the split backing paper. Align the sign over the specified area and carefully

press the small portion with the exposed sticky backing in place.

Slowly peel back the remaining paper and carefully smooth the remaining portion of the sign in place. Small

air pockets can be pierced with a pin and smoothed out using the piece of sign backing paper.

How to Install Safety Signs:

SAFETY SIGNS

Safety is a primary concern in the design and

manufacture of our products. Unfortunately, our

efforts to provide safe equipment can be wiped out

by an operator’s single careless act.

In addition to the design and configuration of

equipment, hazard control and accident prevention

are dependent upon the awareness, concern, judge-

ment, and proper training of personnel involved in the

operation, transport, maintenance and storage of

equipment.

It has been said “The best safety device is an

informed, careful operator.” We ask you to be that

kind of operator.

The operator is responsible for the safe operation of

this equipment. The operator must be properly trained.

Operators should be familiar with the equipment, the

tractor, and all safety practices before starting operation.

Read the safety rules and safety decals on pages 3

through page 11.

OPERATING INSTRUCTIONS

■■Do not operate this product until you have posi-

tive indication that this attachment is securely

mounted to the loader. Failure to install lock pins or

have the latching mechanism engaged could result

in injury or death.

■■Power unit must be equipped with ROPS or

ROPS cab and seat belt. Keep seat belt securely fas-

tened. Falling off power unit can result in death from

being run over or crushed. Keep foldable ROPS sys-

tems in “locked up” position at all times.

■■Pallet Forks are NOT to be used for large round

bales, as this would create a hazardous condition.

■■Do NOT exceed loader or attachment lift capacity.

■■Rear ballast is required to ensure 25% of gross

vehicle weight is transferred to the rear axle.

Attachment and load must be included as weight.

Adequate rear weights are required to counterbal-

ance maximum loader capacity and safe loader oper-

ation. Weight can be added as rear tire liquid, rear

wheel weights, rear axle weights and/or three point

hitch mounted ballast or implement. Ballasting will

vary with tractor and loader attachment. Refer to the

Tractor manual for recommended ballasting.

■■Never allow children or untrained persons to

operate equipment.

■■Keep bystanders away from equipment.

■■

Never allow riders on power unit or attachment.

Beware of low electrical wires when loader is

raised. Serious injury or death can result if contact is

made.

Do not leave the operator’s seat if any part of the

power unit, loader or attachment contacts electric

lines.

■■Avoid carrying loose or shiftable loads. Falling

items could cause injury.

■■Beware of lift clearance when raising loader to

maximum height.

■■Always stop the power unit, set brake, shut off

engine, remove key, and lower loader to ground

before attempting to service. Never leave equipment

unattended with engine running.

OPERATION

——————————————————

Be sure tractor or skid steer is properly counter-

balanced with weights before attempting to lift any load.

Make sure fork latch is properly engaged.

Using the bucket tilt cylinders, adjust the angle of the

fork tines so they are parallel with the ground.

Adjust height of fork tines to enter the pallet to be

handled. Always keep the load or pallet as close to the

forklift main frame as possible.

Make sure weight of load is centered between the

forks.

Make sure all operators have read the Owner’s

Manual and are familiar with the instructions and the safe-

ty rules of operation.

WARNING

CAUTION

DANGER

18 11

SAFETY SIGNS

REMEMBER:

If Safety Signs have been dam-

aged, removed, become illegible or

parts replaced without Signs, new

Safety Signs must be applied. New

Safety Signs are available from your

authorized distributor or factory.

Above Safety Sign ONLY for

Models JDPF-5442, JDPF-5448 & JDPF-5460

BE CAREFUL!

Use a clean, damp cloth to clean

safety decals. Avoid spraying too

close to decals when using a pres-

sure washer; high-pressure water

can enter through very small

scratches or under edges of decals

causing them to peel or come off.

MODELS JDPF-H48048 & H48060

——————————————————

These two models are designed for the John Deere

H480 loader.The Model JDPF-H48048 has 48" long fork

tines and the Model JDPF-H48060 has 60" long fork

tines.Both models are rated at 7,500 Ib. with the load 24"

in front of the fork frame and evenly distributed on the two

fork tines.

The connection to the loader is the Global Series II.

The forks are 1.75" x 4.75" width Class Ill solid type

forks that are sliding adjustable on a 50" wide carriage.

Connection instructions for the JDPF-H480 Models are

similar to the ones for the standard Euro or Global units.

(See page 16.)

INSTRUCTIONS (continued)

MODEL JDPF-6748/6760

ATTACHMENT TO PRIME MOVER

——————————————————

The Model JDPF-6748 and JDPF-6760 Pallet Forks are

specifically designed for John Deere 600 and 700 series

loaders with quik-change latches. It has a load rating of

up to 5,500 lbs.

NOTE: Procedure is the same for all attachments.

Bucket attachment shown.

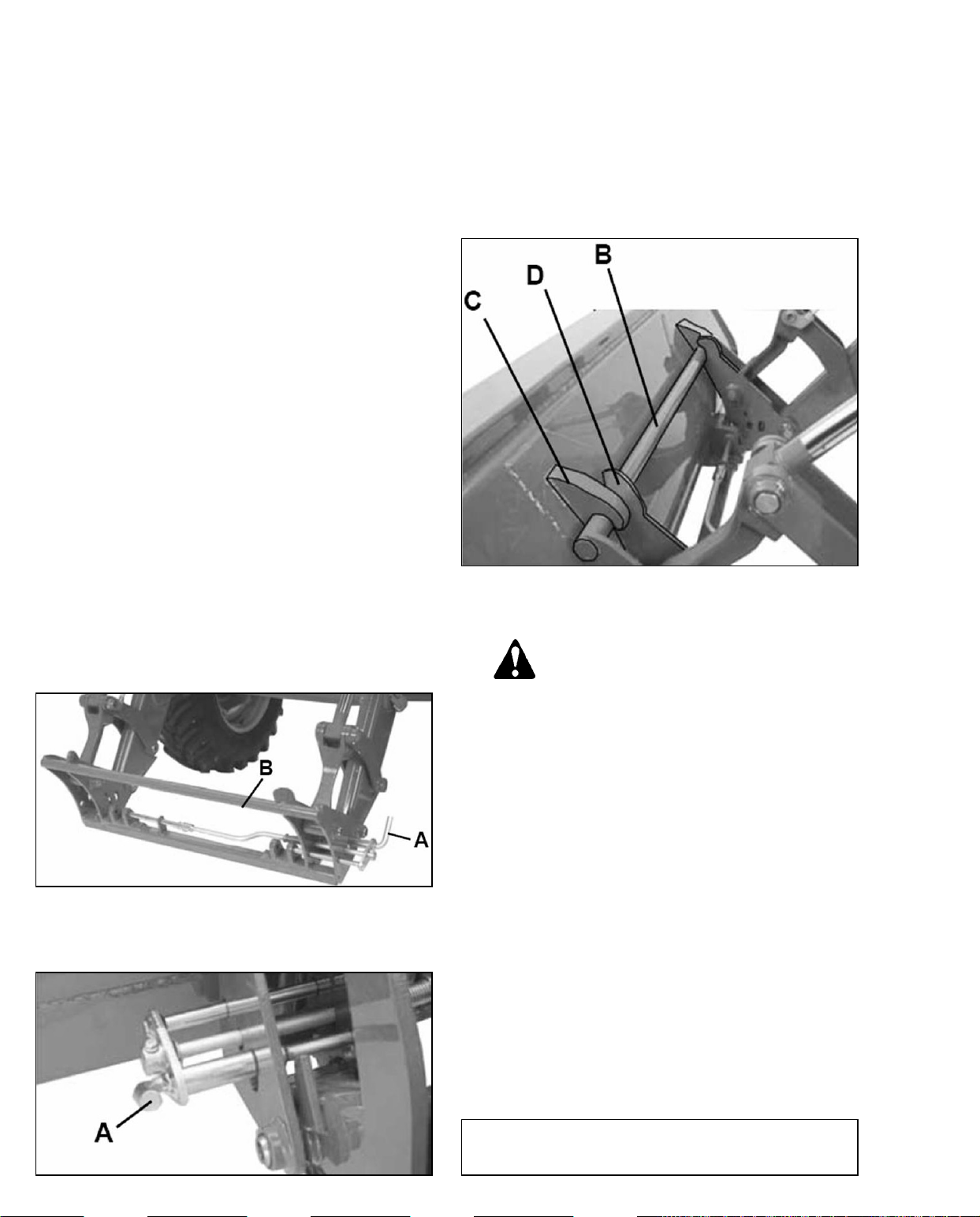

ATTACHING

1. Extend bucket tilt cylinders to angle attaching brackets

forward.

NOTE: Angle must be greater than that of the

brackets on the rear of the pallet fork.

2. 600/700 – Drive forward, adjusting loader height and

position until the top of the bracket is aligned with the

pins (A).

3. Raise loader to engage hooks and retract attachment

cylinders quickly.

4. 600/700 – Raise loader until you can check that pins

(D) on both sides have fully dropped.

5. Lower attachment, shut off engine and remove key.

DETACHING

1. Lower pallet fork to ground. Place the transmission in

PARK and shut off engine and remove key.

2. Lift and rotate latches (A) up on both sides of attach-

ment.

3. Start tractor and lower attachment to ground. Slowly

extend bucket tilt cylinders until loader brackets clear

the latch pin pockets. Lower loader until holder clears

the pins.

4. Drive tractor in reverse until loader is clear of the

attachment.

700 SERIES

700 SERIES BOLT-ON LATCH SHOWN

CAUTION! ALWAYS CHECK LATCH PINS

BEFORE TILTING OR OPERATING

ANY ATTACHMENT.

12 17

MODEL

PF-448

SSPF-3748

SSPF-3755

SSPF-3760

SSPF-442

SSPF-448

SSPF-5548

SSPF-5560

GLPF-442

GLPF-448

GLPF-5548

GLPF-5560

JDPF-5442

JDPF-5448

JDPF-5460

JDPF-6748

JDPF-6760

JDPF-H48048

JDPF-H48060

CAPACITY

4,000#

5,500#

4,000#

5,500#

4,000#

5,500#

4,000#

5,500#

7,500#

FORK LENGTH

48”

60”

42”

48”

60”

42”

48”

60”

42”

48”

60”

48”

60”

48”

60”

The operator is responsible for the safe operation of

this equipment. The operator must be properly trained.

Operators should be familiar with the power unit, loader

and loader attachment, and all safety practices before

starting operation.Read the safety rules and safety signs

on pages 3-11.

NOTE: Loose items such as logs can slide sideways,

thus putting all their weight on one fork. This can

bend forks.

WARRANTY DOES NOT COVER

BENT FORKS.

INSTRUCTIONS

TRACTOR AND LOADER/SKID

STEER REQUIREMENTS AND

PREPARATION

——————————————————

The required size of the tractor and front loader or skid

steer will be determined by the weight of the load to be

handled.

Always use a tractor and front loader or skid steer large

enough to safely handle the load.

Check your tractor and front loader or skid steer to

make sure they are in good working condition. Check all

frame mounting bolts to make sure they are tight.

Loaders that attach to the tractor frame rails should

have a cross-tie installed for stability.

Check the hydraulic system. Be sure the hydraulic oil

and filter have been serviced according to the manufac-

turer’s recommendations.

Be sure tires and rims are in good condition. Inflate

tires to the proper recommended air pressure.

When lifting loads with a tractor front loader, it is always

best to have a heavy implement or weight box connected

to the rear 3 pt. hitch.

The load rating of all pallet forks is figured with the load

24” in front of the fork lift frame and evenly distributed

between the two fork tines.

NEVER put load at the ends of the fork tines – the lift

capacity at the ends of the forks is only about 1/3 of the

total lift capacity.

■■Power unit must be equipped with ROPS or ROPS

cab and seat belt. Keep seat belt securely fastened.

Falling off power unit can result in death from being

run over or crushed. Keep foldable ROPS systems in

“locked up” position at all times.

■■A heavy load can cause instability in driving a

power unit. Make sure the rear of the tractor is

properly counter-balanced with weights. Always

drive slowly – especially around turns. An unstable

unit could steer badly and possibly tip over, causing

injury or death.

■■Do not exceed the maximum recommended

weight listed for the pallet fork. Damage to the equip-

ment or serious personal injury could result.

WARNING

The JDPF-6748 and the units above that have Class II

rail mounted forks.The JDPF-H48048 and JDPF-H48060

models have Class 3A forks. The load rating for all units

is with the load halfway in front of the pallet fork frames

(ie - 24” on 48” forks).

PALLET FORK LOAD RATING

INSTRUCTIONS (continued)

MODELS JDPF-5442/5448/5460

ATTACHMENT TO PRIME MOVER

——————————————————

The Pallet Fork Models JDPF-5442, JDPF-5448, and

JDPF-5460 are specifically designed for John Deere 400

and 500 series loaders. They are rated for loads up to

4,000 lbs.Note that the JDPF-5460 forks are rated above

the loader capacity.

NOTE: Procedure is the same for all attachments.

Bucket attachment shown.

ATTACHING

1. Extend bucket tilt cylinders to angle attaching brackets

forward.

NOTE: Angle must be greater than that of the

brackets on the rear of the pallet fork.

2. Drive forward, adjusting loader height and position

until the top of the loader bracket engages the hooks

3. Slowly retract the bucket tilt cylinders and raise the

loader so the lower lock pins (F) engage the hole in

the holder strap (E).

4. Continue to retract the tilt cylinders and raise the

loader until the main frame of the pallet fork is vertical.

5. Engage tractor parking brake and/or place transmis-

sion in PARK. Shut off tractor engine and remove key.

6. Install the quick-lock-pin (A) into the pins (F) on each

side of the pallet fork.

Installation is now complete.

NOTE: On attachments with two pins (F), the 400

series loaders will utilize the upper pin and the 500

series loader will utilize the lower pin.

DETACHING

1. Engage tractor parking brake and/or place transmis-

sion in PARK. Shut off tractor engine and remove key.

2. Remove the quick lock-pin (A) from each side of

attachment. Store pins in storage position (B).

3. Start engine and lower the pallet fork to the ground.

Extend bucket tilt cylinders until pin (F) releases from

holder strap (E) on each side of attachment.Lower the

loader until holder brackets are free from the hooks.

Back tractor away from attachment.

4. Set parking brake and/or place transmission in PARK.

Shut off engine and remove key.

■■Always install the quick lock pins on the John

Deere 400, and 500 series loaders. Failure to install

the lock pins may cause injury or death caused by

falling attachment.

■■Do not exceed loader or attachment lift capacity.

WARNING

16 13

INSTRUCTIONS (continued)INSTRUCTIONS (continued)

MODEL PF-448

——————————————————

The Universal model PF-448 Pallet Fork attachment is

designed to fit most double-cylinder front end loaders

with a load-arm center distance of 52 inches or less.

Optional brackets are available to fit both pin-on and

some popular quick coupler front-end loaders. Brackets

must be ordered with the pallet fork attachment to mount

on your loader.

The Universal Pallet Fork can also be used on the rear

3 pt. Cat. II hitch with pin-on brackets and the Optional

#831815 Toplink Bracket.

With the optional #830358 Bushing Kit, a Cat. II Quick

Hitch may be used. (Pin-on brackets and toplink bracket

required.)

The model PF-448 with 48” solid pallet forks can han-

dle loads up to 4,000 lbs.Load ratings are figured with the

load about 24” in front of the fork lift frame and evenly

distributed between the two fork tines.

Install the two backstop weldments on the top crossbar

(see page 21).

ASSEMBLY – TRACTOR LOADERS

PIN ON ATTACHMENT

——————————————————

Preview the assembly instructions and the exploded

views of the pallet fork in your operator’s manual and

become familiar as to how the parts or assemblies go

together. For model PF-448, see page 21.

Assemble the two lift brackets on the main frame with

the 5/8” x 3” I.D. U-bolts. Leave the U-bolts loose.

NOTE: The optional lift channel brackets are supplied

with 1” diameter pins to fit your loader. If your loader

requires 11/8” pins, it will be necessary for the hole diam-

eter in the channel brackets to be drilled out to 15/32”

(1.156”) and ask your dealer to order 11/8” diameter pins.

The 11/8” pins are part #830318. Be sure to indicate if two

or four 11/8” pins are required.

If your loader requires 11/4” diameter pins, please ask

your dealer to order adapter bushings (part #830319).Be

sure to indicate how many adapter bushings are required.

NOTE: The Ford (New Holland) models 7109, 7209,

7210, 7309, 7310 and 7410 Pin Type Loaders require

special brackets.Also, Rhino (Alamo) models 2410Q and

2491Q. Order #830330 bracket kit.

NOTE: For loaders that require brackets that provide

additional roll back, order #830335 (1” pins).

Connect the above assembly to the loader arms using

the bottom hole in the channel and attach the upper con-

trol cylinder to the top hole in the lift channels.Center the

main frame (side to side) with your loader arms and

tighten the four (4) 5/8” x 3” U-Bolts.

The lower hole positions in the lift channels can be used

to obtain more angle movement. However, if the frame

becomes too parallel with the loader lift arms, the loader

may not have enough power (mechanical advantage) to

bring the frame back.

NOTE: Generally, it is not recommended to have the tilt

cylinders located any closer than 10-12 inches to the

main loader lift arms. Check the spacing of mounting

pins on your loader bucket and use this as a guide.

NOTE: If tilt cylinders are located too close to the loader

arms, they may go “over center” when fully extended. If

this happens, damage may occur to the cylinders and/or

mounting brackets.

For first time installation, read the instructions for

mounting your pallet fork attachment on your front loader

or skid steer. (See pages 13-16.)

Remove the bucket from your front end loader. Check

your loader to make sure it is in good working order.

FORK TINE INSTALLATION

——————————————————

With loader arms lowered and completely rolled back,

shut down the power unit following the safety shutdown

procedure for your unit. Ensure that the locking assembly

on the tine is in the unlocked (UP) position. Place the top

of the fork on the top rail in the middle of the frame and

then rotate down. Slide the fork to the side to seat it on

the frame and, using the locking assembly that is on your

tine, lock in place. Install the following tine(s) in the same

fashion. Make sure the locking assembly has been set

into a notch on the top rail and therefore securing the tine

to the frame.

NOTE: Smearing a light coat of grease on the main frame

rails will make adjusting the fork width easier.

IMPORTANT: Keep forklift tines adjusted to maximum

width for better load stability.

MODELS GLPF-442/448/5548/5560

ATTACHMENT TO PRIME MOVER

——————————————————

The Models GLPF-442, GLPF-448, GLPF-5548, and

GLPF-5560 are specifically designed for tractor front

loaders with the Euro or Global bucket quick-change

system.

The Models GLPF-442/448 have a load rating of 4,000

lbs.

The Models GLPF-5548 and GLPF-5560 have a load

rating of 5,500 lbs.

NOTE:

The instructions for the JDPF-H480 Models are similar

to the Euro/Global ones.

ATTACHING

1. To prepare the loader for attachment, pull and rotate

handle to open latch (A).

2. Extend attachment cylinders to angle attaching

brackets forward.

3. Drive forward, adjusting loader height and position

until the bar (B) is under hooks (C) and tabs (D) are

on the center side of the hooks.

4. Raise loader and retract tilt cylinders until latch

closes.

5. Lower attachment and shut off engine. Installation is

now complete.

DETACHING

1. Lower pallet fork to ground. Place the transmission in

PARK and shut off engine and remove key.

2. Pull and rotate handle to open latch (A).

3. Start tractor and lower attachment to ground. Slowly

extend bucket tilt cylinders until loader clears the latch

plate. Lower loader until bar clears the hooks.

4. Drive tractor in reverse until loader is clear of the

attachment.

OBEY ALL SAFETY WARNINGS!

CAUTION! ALWAYS CHECK LATCH PINS

BEFORE TILTING OR OPERATING

ANY ATTACHMENT.

NOTE: Latch automatically closes on some global

carrier. Always check latch pins.

14 15

MODELS SSPF-3748, SSPF-3755,

SSPF-3760, SSPF-442 / 448,

SSPF-5548 & SSPF-5560

——————————————————

The Skid Steer Pallet Fork Models SSPF-3748, SSPF-

3755, SSPF-3760, SSPF-442/448, SSPF-5548, and

SSPF-5560 are designed for skid steer power units or

tractor loaders having the universal bucket quick attach

system.

The Models SSPF-3748, SSPF-442 and SSPF-448 pal-

let forks can handle loads up to 4,000 lbs. The Models

SSPF-5548/5560 and SSPF-3755/3760 are rated for

loads up to 5,500 lbs.These models are for the standard

size skid steer units and tractors above 40 hp. Load rat-

ings are figured at half the length of the tines.

The Models SSPF-3748, SSPF-3755 and SSPF-3760

have a bolt-in center section creating a one piece back-

stop. This center section maybe removed to convert the

frame to a step through design.

Make sure latch pins engage slots to lock the frame in

place.

Connection instructions are on page 15.

MODEL PF-448

ASSEMBLY – QUICK ATTACH

——————————————————

If your tractor loader has a bucket Quick Attach feature,

check with your dealer on the availability of adapter

brackets for your brand and model loader.

Measure the width of the front adapter on your loader

and locate the Quick Attach brackets on the main frame.

Locate these brackets so the main frame will be centered

on your loader.

Tighten the U-bolts that connect the brackets to the

main frame.

Parts drawing for the PF-448 is on page 21.

Install the two backstop weldments on the top crossbar.

INSTRUCTIONS (continued) INSTRUCTIONS (continued)

MODELS SSPF-442/448 &

SSPF-3748/3755/3760

ATTACHMENT TO PRIME MOVER

——————————————————

3. Enter the prime mover. Fasten seatbelt, start engine.

Disengage the parking brake.

4. Follow the attaching procedure in the prime mover

owner's manual. Align the attachment mechanism

with the mounting on the pallet fork, attach to the

prime mover on loader.

5. Engage the parking brake and shut down the prime

mover. Be sure to relieve pressure to the auxiliary

hydraulic lines.

6. Unfasten safety restraints and exit the prime mover.

7. Engage the latching mechanism to secure attachment

to loader. The lockpins must be completely extended

and secured into the retaining slots.

8. Re-enter the prime mover. Fasten seatbelt and re-

start engine.

1. Position the attachment on a level surface.

2. The quick attach coupler handles should be in the

unlocked position with lock pins retracted, Figure 2.

Improper attachment of the Pallet Fork could result

in injury or death. Do not operate this product until

you have positive indication that the attachment is

securely mounted.

Attachment coupler handles must always be

rotated to LOCK POSITION to prevent coupler latch

from disengaging and attachment from falling off.

Figure 2. Quick Attach Coupler Handles - Unlocked

Figure 3. Attachment Coupler Handles - Locked

9. Carefully raise the loader and cycle the rollback/tilt

cylinders to check clearances and to ensure that the

attachment is securely mounted.

REMOVING THE PALLET FORK

1. If possible, find a level solid location to place the

attachment. This makes it easier to disconnect and

re-connect later on.

2. Lower the attachment to the ground.

3. Engage the parking brake and shut down the prime

mover. Be sure to relieve pressure to the auxiliary

hydraulic lines.

4. Unfasten safety restraints and exit prime mover.

5. Disengage attachment-locking mechanism (mechan-

ical type).

6. Enter prime mover, fasten safety restraints and start

the prime mover.

7. Disengage attachment-locking mechanism (hydraulic

type).

8. Disengage the parking brake, and back away from

the attachment.

WARNING

OBEY ALL

SAFETY

WARNINGS!

MODELS GLPF-442/448/5548/5560

ATTACHMENT TO PRIME MOVER

——————————————————

The Models GLPF-442, GLPF-448, GLPF-5548, and

GLPF-5560 are specifically designed for tractor front

loaders with the Euro or Global bucket quick-change

system.

The Models GLPF-442/448 have a load rating of 4,000

lbs.

The Models GLPF-5548/5560 have a load rating of

5,500 lbs.

Connection instructions are on page 16.

MODELS JDPF- 5442/5448/5460

ATTACHMENT TO PRIME MOVER

——————————————————

The Pallet Fork Models JDPF-5442, 5448, and 5460 are

specifically designed for John Deere 400 and 500 series

loaders.They are rated for loads up to 4,000 lbs.

Connections instructions are on page 17.

MODEL JDPF-6748 & JDPF-6760

ATTACHMENT TO PRIME MOVER

——————————————————

The Models JDPF-6748 and JDPF-6760 pallet forks are

specifically designed for John Deere 600 and 700 series

loaders with quik-change latches.They have a load rating

of up to 5,500 lbs.

Connections instructions are on page 18.

MODELS JDPF-H48048 & H48060

——————————————————

These two models are designed for the John Deere

H480 loader.The Model JDPF-H48048 has 48" long fork

tines and the Model JDPF-H48060 has 60" long fork

tines.Both models are rated at 7,500 Ib. with the load 24"

in front of the fork frame and evenly distributed on the two

fork tines.

The connection to the loader is the Global Series II.

The forks are 1.75" x 4.75" width Class Ill solid type

forks that are sliding adjustable on a 50" wide carriage.

Connection instructions for the JDPF-H480 Models are

similar to the ones for the standard Euro or Global units.

(See page 16.)

14 15

MODELS SSPF-3748, SSPF-3755,

SSPF-3760, SSPF-442 / 448,

SSPF-5548 & SSPF-5560

——————————————————

The Skid Steer Pallet Fork Models SSPF-3748, SSPF-

3755, SSPF-3760, SSPF-442/448, SSPF-5548, and

SSPF-5560 are designed for skid steer power units or

tractor loaders having the universal bucket quick attach

system.

The Models SSPF-3748, SSPF-442 and SSPF-448 pal-

let forks can handle loads up to 4,000 lbs. The Models

SSPF-5548/5560 and SSPF-3755/3760 are rated for

loads up to 5,500 lbs.These models are for the standard

size skid steer units and tractors above 40 hp. Load rat-

ings are figured at half the length of the tines.

The Models SSPF-3748, SSPF-3755 and SSPF-3760

have a bolt-in center section creating a one piece back-

stop. This center section maybe removed to convert the

frame to a step through design.

Make sure latch pins engage slots to lock the frame in

place.

Connection instructions are on page 15.

MODEL PF-448

ASSEMBLY – QUICK ATTACH

——————————————————

If your tractor loader has a bucket Quick Attach feature,

check with your dealer on the availability of adapter

brackets for your brand and model loader.

Measure the width of the front adapter on your loader

and locate the Quick Attach brackets on the main frame.

Locate these brackets so the main frame will be centered

on your loader.

Tighten the U-bolts that connect the brackets to the

main frame.

Parts drawing for the PF-448 is on page 21.

Install the two backstop weldments on the top crossbar.

INSTRUCTIONS (continued) INSTRUCTIONS (continued)

MODELS SSPF-442/448 &

SSPF-3748/3755/3760

ATTACHMENT TO PRIME MOVER

——————————————————

3. Enter the prime mover. Fasten seatbelt, start engine.

Disengage the parking brake.

4. Follow the attaching procedure in the prime mover

owner's manual. Align the attachment mechanism

with the mounting on the pallet fork, attach to the

prime mover on loader.

5. Engage the parking brake and shut down the prime

mover. Be sure to relieve pressure to the auxiliary

hydraulic lines.

6. Unfasten safety restraints and exit the prime mover.

7. Engage the latching mechanism to secure attachment

to loader. The lockpins must be completely extended

and secured into the retaining slots.

8. Re-enter the prime mover. Fasten seatbelt and re-

start engine.

1. Position the attachment on a level surface.

2. The quick attach coupler handles should be in the

unlocked position with lock pins retracted, Figure 2.

Improper attachment of the Pallet Fork could result

in injury or death. Do not operate this product until

you have positive indication that the attachment is

securely mounted.

Attachment coupler handles must always be

rotated to LOCK POSITION to prevent coupler latch

from disengaging and attachment from falling off.

Figure 2. Quick Attach Coupler Handles - Unlocked

Figure 3. Attachment Coupler Handles - Locked

9. Carefully raise the loader and cycle the rollback/tilt

cylinders to check clearances and to ensure that the

attachment is securely mounted.

REMOVING THE PALLET FORK

1. If possible, find a level solid location to place the

attachment. This makes it easier to disconnect and

re-connect later on.

2. Lower the attachment to the ground.

3. Engage the parking brake and shut down the prime

mover. Be sure to relieve pressure to the auxiliary

hydraulic lines.

4. Unfasten safety restraints and exit prime mover.

5. Disengage attachment-locking mechanism (mechan-

ical type).

6. Enter prime mover, fasten safety restraints and start

the prime mover.

7. Disengage attachment-locking mechanism (hydraulic

type).

8. Disengage the parking brake, and back away from

the attachment.

WARNING

OBEY ALL

SAFETY

WARNINGS!

MODELS GLPF-442/448/5548/5560

ATTACHMENT TO PRIME MOVER

——————————————————

The Models GLPF-442, GLPF-448, GLPF-5548, and

GLPF-5560 are specifically designed for tractor front

loaders with the Euro or Global bucket quick-change

system.

The Models GLPF-442/448 have a load rating of 4,000

lbs.

The Models GLPF-5548/5560 have a load rating of

5,500 lbs.

Connection instructions are on page 16.

MODELS JDPF- 5442/5448/5460

ATTACHMENT TO PRIME MOVER

——————————————————

The Pallet Fork Models JDPF-5442, 5448, and 5460 are

specifically designed for John Deere 400 and 500 series

loaders.They are rated for loads up to 4,000 lbs.

Connections instructions are on page 17.

MODEL JDPF-6748 & JDPF-6760

ATTACHMENT TO PRIME MOVER

——————————————————

The Models JDPF-6748 and JDPF-6760 pallet forks are

specifically designed for John Deere 600 and 700 series

loaders with quik-change latches.They have a load rating

of up to 5,500 lbs.

Connections instructions are on page 18.

MODELS JDPF-H48048 & H48060

——————————————————

These two models are designed for the John Deere

H480 loader.The Model JDPF-H48048 has 48" long fork

tines and the Model JDPF-H48060 has 60" long fork

tines.Both models are rated at 7,500 Ib. with the load 24"

in front of the fork frame and evenly distributed on the two

fork tines.

The connection to the loader is the Global Series II.

The forks are 1.75" x 4.75" width Class Ill solid type

forks that are sliding adjustable on a 50" wide carriage.

Connection instructions for the JDPF-H480 Models are

similar to the ones for the standard Euro or Global units.

(See page 16.)

16 13

INSTRUCTIONS (continued)INSTRUCTIONS (continued)

MODEL PF-448

——————————————————

The Universal model PF-448 Pallet Fork attachment is

designed to fit most double-cylinder front end loaders

with a load-arm center distance of 52 inches or less.

Optional brackets are available to fit both pin-on and

some popular quick coupler front-end loaders. Brackets

must be ordered with the pallet fork attachment to mount

on your loader.

The Universal Pallet Fork can also be used on the rear

3 pt. Cat. II hitch with pin-on brackets and the Optional

#831815 Toplink Bracket.

With the optional #830358 Bushing Kit, a Cat. II Quick

Hitch may be used. (Pin-on brackets and toplink bracket

required.)

The model PF-448 with 48” solid pallet forks can han-

dle loads up to 4,000 lbs.Load ratings are figured with the

load about 24” in front of the fork lift frame and evenly

distributed between the two fork tines.

Install the two backstop weldments on the top crossbar

(see page 21).

ASSEMBLY – TRACTOR LOADERS

PIN ON ATTACHMENT

——————————————————

Preview the assembly instructions and the exploded

views of the pallet fork in your operator’s manual and

become familiar as to how the parts or assemblies go

together. For model PF-448, see page 21.

Assemble the two lift brackets on the main frame with

the 5/8” x 3” I.D. U-bolts. Leave the U-bolts loose.

NOTE: The optional lift channel brackets are supplied

with 1” diameter pins to fit your loader. If your loader

requires 11/8” pins, it will be necessary for the hole diam-

eter in the channel brackets to be drilled out to 15/32”

(1.156”) and ask your dealer to order 11/8” diameter pins.

The 11/8” pins are part #830318. Be sure to indicate if two

or four 11/8” pins are required.

If your loader requires 11/4” diameter pins, please ask

your dealer to order adapter bushings (part #830319).Be

sure to indicate how many adapter bushings are required.

NOTE: The Ford (New Holland) models 7109, 7209,

7210, 7309, 7310 and 7410 Pin Type Loaders require

special brackets.Also, Rhino (Alamo) models 2410Q and

2491Q. Order #830330 bracket kit.

NOTE: For loaders that require brackets that provide

additional roll back, order #830335 (1” pins).

Connect the above assembly to the loader arms using

the bottom hole in the channel and attach the upper con-

trol cylinder to the top hole in the lift channels.Center the

main frame (side to side) with your loader arms and

tighten the four (4) 5/8” x 3” U-Bolts.

The lower hole positions in the lift channels can be used

to obtain more angle movement. However, if the frame

becomes too parallel with the loader lift arms, the loader

may not have enough power (mechanical advantage) to

bring the frame back.

NOTE: Generally, it is not recommended to have the tilt

cylinders located any closer than 10-12 inches to the

main loader lift arms. Check the spacing of mounting

pins on your loader bucket and use this as a guide.

NOTE: If tilt cylinders are located too close to the loader

arms, they may go “over center” when fully extended. If

this happens, damage may occur to the cylinders and/or

mounting brackets.

For first time installation, read the instructions for

mounting your pallet fork attachment on your front loader

or skid steer. (See pages 13-16.)

Remove the bucket from your front end loader. Check

your loader to make sure it is in good working order.

FORK TINE INSTALLATION

——————————————————

With loader arms lowered and completely rolled back,

shut down the power unit following the safety shutdown

procedure for your unit. Ensure that the locking assembly

on the tine is in the unlocked (UP) position. Place the top

of the fork on the top rail in the middle of the frame and

then rotate down. Slide the fork to the side to seat it on

the frame and, using the locking assembly that is on your

tine, lock in place. Install the following tine(s) in the same

fashion. Make sure the locking assembly has been set

into a notch on the top rail and therefore securing the tine

to the frame.

NOTE: Smearing a light coat of grease on the main frame

rails will make adjusting the fork width easier.

IMPORTANT: Keep forklift tines adjusted to maximum

width for better load stability.

MODELS GLPF-442/448/5548/5560

ATTACHMENT TO PRIME MOVER

——————————————————

The Models GLPF-442, GLPF-448, GLPF-5548, and

GLPF-5560 are specifically designed for tractor front

loaders with the Euro or Global bucket quick-change

system.

The Models GLPF-442/448 have a load rating of 4,000

lbs.

The Models GLPF-5548 and GLPF-5560 have a load

rating of 5,500 lbs.

NOTE:

The instructions for the JDPF-H480 Models are similar

to the Euro/Global ones.

ATTACHING

1. To prepare the loader for attachment, pull and rotate

handle to open latch (A).

2. Extend attachment cylinders to angle attaching

brackets forward.

3. Drive forward, adjusting loader height and position

until the bar (B) is under hooks (C) and tabs (D) are

on the center side of the hooks.

4. Raise loader and retract tilt cylinders until latch

closes.

5. Lower attachment and shut off engine. Installation is

now complete.

DETACHING

1. Lower pallet fork to ground. Place the transmission in

PARK and shut off engine and remove key.

2. Pull and rotate handle to open latch (A).

3. Start tractor and lower attachment to ground. Slowly

extend bucket tilt cylinders until loader clears the latch

plate. Lower loader until bar clears the hooks.

4. Drive tractor in reverse until loader is clear of the

attachment.

OBEY ALL SAFETY WARNINGS!

CAUTION! ALWAYS CHECK LATCH PINS

BEFORE TILTING OR OPERATING

ANY ATTACHMENT.

NOTE: Latch automatically closes on some global

carrier. Always check latch pins.

12 17

MODEL

PF-448

SSPF-3748

SSPF-3755

SSPF-3760

SSPF-442

SSPF-448

SSPF-5548

SSPF-5560

GLPF-442

GLPF-448

GLPF-5548

GLPF-5560

JDPF-5442

JDPF-5448

JDPF-5460

JDPF-6748

JDPF-6760

JDPF-H48048

JDPF-H48060

CAPACITY

4,000#

5,500#

4,000#

5,500#

4,000#

5,500#

4,000#

5,500#

7,500#

FORK LENGTH

48”

60”

42”

48”

60”

42”

48”

60”

42”

48”

60”

48”

60”

48”

60”

The operator is responsible for the safe operation of

this equipment. The operator must be properly trained.

Operators should be familiar with the power unit, loader

and loader attachment, and all safety practices before

starting operation.Read the safety rules and safety signs

on pages 3-11.

NOTE: Loose items such as logs can slide sideways,

thus putting all their weight on one fork. This can

bend forks.

WARRANTY DOES NOT COVER

BENT FORKS.

INSTRUCTIONS

TRACTOR AND LOADER/SKID

STEER REQUIREMENTS AND

PREPARATION

——————————————————

The required size of the tractor and front loader or skid

steer will be determined by the weight of the load to be

handled.

Always use a tractor and front loader or skid steer large

enough to safely handle the load.

Check your tractor and front loader or skid steer to

make sure they are in good working condition. Check all

frame mounting bolts to make sure they are tight.

Loaders that attach to the tractor frame rails should

have a cross-tie installed for stability.

Check the hydraulic system. Be sure the hydraulic oil

and filter have been serviced according to the manufac-

turer’s recommendations.

Be sure tires and rims are in good condition. Inflate

tires to the proper recommended air pressure.

When lifting loads with a tractor front loader, it is always

best to have a heavy implement or weight box connected

to the rear 3 pt. hitch.

The load rating of all pallet forks is figured with the load

24” in front of the fork lift frame and evenly distributed

between the two fork tines.

NEVER put load at the ends of the fork tines – the lift

capacity at the ends of the forks is only about 1/3 of the

total lift capacity.

■■Power unit must be equipped with ROPS or ROPS

cab and seat belt. Keep seat belt securely fastened.

Falling off power unit can result in death from being

run over or crushed. Keep foldable ROPS systems in

“locked up” position at all times.

■■A heavy load can cause instability in driving a

power unit. Make sure the rear of the tractor is

properly counter-balanced with weights. Always

drive slowly – especially around turns. An unstable

unit could steer badly and possibly tip over, causing

injury or death.

■■Do not exceed the maximum recommended

weight listed for the pallet fork. Damage to the equip-

ment or serious personal injury could result.

WARNING

The JDPF-6748 and the units above that have Class II

rail mounted forks.The JDPF-H48048 and JDPF-H48060

models have Class 3A forks. The load rating for all units

is with the load halfway in front of the pallet fork frames

(ie - 24” on 48” forks).

PALLET FORK LOAD RATING

INSTRUCTIONS (continued)

MODELS JDPF-5442/5448/5460

ATTACHMENT TO PRIME MOVER

——————————————————

The Pallet Fork Models JDPF-5442, JDPF-5448, and

JDPF-5460 are specifically designed for John Deere 400

and 500 series loaders. They are rated for loads up to

4,000 lbs.Note that the JDPF-5460 forks are rated above

the loader capacity.

NOTE: Procedure is the same for all attachments.

Bucket attachment shown.

ATTACHING

1. Extend bucket tilt cylinders to angle attaching brackets

forward.

NOTE: Angle must be greater than that of the

brackets on the rear of the pallet fork.

2. Drive forward, adjusting loader height and position

until the top of the loader bracket engages the hooks

3. Slowly retract the bucket tilt cylinders and raise the

loader so the lower lock pins (F) engage the hole in

the holder strap (E).

4. Continue to retract the tilt cylinders and raise the

loader until the main frame of the pallet fork is vertical.

5. Engage tractor parking brake and/or place transmis-

sion in PARK. Shut off tractor engine and remove key.

6. Install the quick-lock-pin (A) into the pins (F) on each

side of the pallet fork.

Installation is now complete.

NOTE: On attachments with two pins (F), the 400

series loaders will utilize the upper pin and the 500

series loader will utilize the lower pin.

DETACHING

1. Engage tractor parking brake and/or place transmis-

sion in PARK. Shut off tractor engine and remove key.

2. Remove the quick lock-pin (A) from each side of

attachment. Store pins in storage position (B).

3. Start engine and lower the pallet fork to the ground.

Extend bucket tilt cylinders until pin (F) releases from

holder strap (E) on each side of attachment.Lower the

loader until holder brackets are free from the hooks.

Back tractor away from attachment.

4. Set parking brake and/or place transmission in PARK.

Shut off engine and remove key.

■■Always install the quick lock pins on the John

Deere 400, and 500 series loaders. Failure to install

the lock pins may cause injury or death caused by

falling attachment.

■■Do not exceed loader or attachment lift capacity.

WARNING

18 11

SAFETY SIGNS

REMEMBER:

If Safety Signs have been dam-

aged, removed, become illegible or

parts replaced without Signs, new

Safety Signs must be applied. New

Safety Signs are available from your

authorized distributor or factory.

Above Safety Sign ONLY for
