OWNER’S/
OPERATOR’S
MANUAL
MODEL NO.’s
HPD-16 HSS/P
(S/N 4215 and above)
HPD-22Q HSS/P
(S/N 5501 and above)
HPD-26Q HSS/P
(S/N 1501 and above)
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SI NO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
Safety Instructions Assembly & Mounting
Tractor Preparation Maintenance
Operating Instructions Repair Parts
CAUTION
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator’s
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator’s manual.
8. Before operating, read the maintenance section of your
operator’s manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
SKID STEER MOUNTED
HYDRAULIC POST DRIVERS
w/ Hydraulic Power Package

1
TABLE OF CONTENTS
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
SAFETY SIGNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12
PREPARATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . 13-18
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . 19-21
SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . 21-25
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-27
PARTS LISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-40
TO THE OWNER:
Read this manual before using your Hydraulic Post Driver. This manual is provided to give you the necessary
operating and maintenance instructions for keeping your Hydraulic Post Driver in top operating condition. Please
read this manual thoroughly. Understand what each control is for and how to use it. Observe all safety signs on
the machine and noted throughout the manual for safe operation of implement. Keep this manual handy for ready
reference.
Like all mechanical products, it will require cleaning and upkeep. Lubricate the Post Driver as specified.
Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet stan-
dards required for safe and satisfactory operation. Record the model and serial number of your Post Driver here:
Model:________________________________________ Serial Number:_______________________________
RETAIL CUSTOMER’S RESPONSIBILITY
It is the Retail Customer and/or Operator’s responsibility to read the Operator’s Manual, to operate, lubri-
cate, maintain, and store the product in accordance with all instructions and safety procedures. Failure
of the operator to read the Operator’s Manual is a misuse of this equipment.
It is the Retail Customer and/or Operator’s responsibility to inspect the product and to have any part(s)
repaired or replaced when continued operation would cause damage or excessive wear to other parts or
cause a safety hazard.
It is the Retail Customer’s responsibility to deliver the product to the authorized Worksaver Dealer, from
whom he purchased it, for service or replacement of defective parts which are covered by warranty.
Repairs to be submitted for warranty consideration must be made within forty-five (45) days of failure.
It is the Retail Customer’s responsibility for any cost incurred by the Dealer for traveling to or hauling
of the product for the purpose of performing a warranty obligation or inspection.
SI NO LEEINGLES, PIDA AYUDA A
AIGUIEN QUE SI LO LEA PARA QUE
LE TRADUZCA LAS MEDIDAS DE
SEGURIDAD.
STATEMENT
OF POLICY
It is the policy of Worksaver,
Inc. to improve its products where
it is possible and practical to do
so. Worksaver, Inc. reserves the
right to make changes or
improvements in design and con-
struction at any time, without
incurring the obligation to make
these changes on previously
manufactured units.

2
LIMITED WARRANTY
✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯
Worksaver warrants to the original purchaser of any new Hydraulic Post Driver, that the equipment be free from
defects in material and workmanship for a period of twelve (12) months for non-commercial, state, and
municipalities. Use ninety (90) days for commercial use from date of retail sale.
Replacement or repair parts installed in the equipment covered by this warranty are warranted for ninety (90)
days from the date of purchase of such part or to the expiration of the applicable new equipment warranty
period, whichever occurs later.
Such parts shall be provided at no cost to the user during regular working hours. Worksaver reserves the right
to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
DISCLAIMER OF IMPLIED WARRANTIES & CONSEQUENTIAL DAMAGES
Worksaver’s obligation under this warranty, to the extent allowed by law, is in lieu of all warranties, implied or
expressed, including implied warranties of merchantability and fitness for a particular purpose and any liabili-
ty for incidental and consequential damages with respect to the sale or use of the items warranted. Such
incidental and consequential damages shall include but not be limited to: transportation charges other than
normal freight charges; cost of installation other than cost approved by Worksaver; duty; taxes; charges for
normal service or adjustments; loss of crops or any other loss of income; rental of substitute equipment,
expenses due to loss, damage, detention or delay in the delivery of equipment or parts resulting from acts
beyond the control of Worksaver.
THIS WARRANTY SHALL NOT APPLY:
1. To vendor items which carry their own warranties, such as hydraulic motors, valves, and hydraulic cylinders.
2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident.
3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judge-
ment of Worksaver such use affects its performance, stability, or reliability.
4. If the unit has been altered or repaired outside of an authorized Worksaver dealership in a manner which,
in the sole judgement of Worksaver affects its performance, stability or reliability.
5. To normal maintenance service and normal replacement items such as gearbox lubricant, hydraulic fluid,
worn blades, or to normal deterioration of such things as belts and exterior finish, due to use or exposure.
6. To expendable or wear items such as slide blocks, bumpers, springs and other items that in the company’s
sole judgement is a wear item.
NO EMPLOYEE OR REPRESENTATIVE OF WORKSAVER IS AUTHORIZED TO CHANGE THIS
WARRANTY IN ANY WAY OR GRANT ANY OTHER WARRANTY UNLESS SUCH CHANGE IS MADE IN
WRITING AND SIGNED BY WORKSAVER’S SERVICE MANAGER, POST OFFICE BOX 100, LITCHFIELD,
ILLINOIS 62056-0100.
✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯ ✯

3
To the Owner/Operator/Dealer
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera-
tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this
implement to be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFORE YOU START!!
Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
THIS SAFETY ALERT SYMBOL IDENTIFIES IMPORTANT
SAFETY WARNING MESSAGES. CAREFULLY READ EACH
WARNING MESSAGE THAT FOLLOWS. FAILURE TO
UNDERSTAND AND OBEY A SAFETY WARNING, OR
RECOGNIZE A SAFETY HAZARD, COULD RESULT IN AN
INJURY OR DEATH TO YOU OR OTHERS AROUND YOU.
THE OPERATOR IS ULTIMATELY RESPONSIBLE FOR THE
SAFETY OF HIMSELF, AS WELL AS OTHERS, IN THE
OPERATING AREA OF THE TRACTOR AND ATTACHED
EQUIPMENT.
THIS SYMBOL MEANS
– ATTENTION!
– BECOME ALERT!
– YOUR SAFETY IS INVOLVED!
IMPORTANT SAFETY INFORMATION!
Working with equipment can lead to injuries. Read this manual, and the manual for your power unit, before assembly
or operating, to acquaint yourself with the machines. It is the Post Driver owner’s responsibility, if this machine is used
by any person other than yourself, is loaned or rented, to make certain that the operator, prior to operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
The use of this equipment is subject to certain hazards which cannot be protected against by mechanical
means or product design. All operators of this equipment must read and understand this entire manual, pay-
ing particular attention to safety and operating instructions, prior to using. If there is something in this manual
you do not understand, ask your supervisor, or your dealer, to explain it to you.
Keep all helpers and bystanders twenty-five feet (25’) from an operating driver. Only properly trained people
should operate this machine. It is recommended the power unit be equipped with a Rollover Protection System
(ROPS) and a seat belt that is used. Always engage parking or place transmission in “Park” before dismount-
ing. Never leave equipment unattended with the power unit running.
UNDERSTAND SIGNAL WORDS
Indicates an imminently hazardous situation that, if not avoided, WILL result in
DEATH OR VERY SERIOUS INJURY.
Indicates a imminently hazardous situation that, if not avoided, COULD result in
DEATH OR SERIOUS INJURY.
Indicates a imminently hazardous situation that, if not avoided, MAY result in
MINOR INJURY.
NOTE: Identifies points of particular interest for more efficient and convenient operation or repair.
If you have questions not answered in this manual or require additional copies or the manual is damaged, please
contact your dealer or the manufacturer directly.
WARNING
DANGER
CAUTION

4
SAFETY INSTRUCTIONS (continued)
Safety of the operator is one of the main concerns in designing and developing a new piece of equipment.
Designers and manufacturers build in as many safety features as possible. However, every year many
accidents occur which could have been avoided by a few seconds of thought and a more careful approach to
handling equipment.You, the operator, can avoid many accidents by observing the following precautions in this
section. To avoid personal injury, study the following precautions and insist those working with you, or for you,
follow them.
In order to provide a better view, certain photographs or illustrations in this manual may show an assembly with
a safety shield removed. However, equipment should never be operated in this condition. Keep all shields in
place. If shield removal becomes necessary for repairs, replace the shield prior to use.
To prevent injury or death, use a power unit equipped with a Roll-Over Protective System (ROPS). Keep fold-
able ROPS systems in “locked up” position at all times. Keep seat belt fastened.
Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely, is in question –
DON’T TRY IT.
Do not modify the equipment in any way. Unauthorized modification may impair the function and/or safety and
could affect the life of the equipment.
In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment,
hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper
training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also
to Safety Messages and Operation Instructions in each of the appropriate sections of the power unit and imple-
ment manuals. Pay close attention to the Safety Signs affixed to the power unit and the implement.
Replace any CAUTION, WARNING, DANGER or instruction safety sign that is not readable or is missing. Do
not paint over, remove or deface any safety signs or warning signs on your equipment. Observe all safety signs
and practice the instruction on them. Review the safety instructions with all users annually.
Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating this
equipment. Consult your doctor about operating this machine while taking prescription or over the counter
medications.
This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a
responsible adult familiar with farm machinery and trained in this equipment’s operations. Do not allow per-
sons to operate or assemble this unit until they have read this manual and have developed a thorough
understanding of the safety precautions and of how it works.
EQUIPMENT SAFETY GUIDELINES
Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended
during assembly, installation, operation, adjustment, maintaining, repairing, removal, or moving the implement.
Do not allow long hair, loose fitting clothing or jewelry to be around moving parts.

5
SAFETY INSTRUCTIONS (continued)
Never operate the power unit and post driver until you and the operator have read and completely understand
this manual, the power unit operator’s manual, and each of the safety messages found on the safety signs on
the power unit and post driver.
Make sure that all operating and service personnel know that in the event hydraulic fluid penetrates the skin,
it must be surgically removed within a few hours by a physician familiar with this form of injury, or gangrene
may result.
Always use two people or a mechanical lift device to handle heavy, unwieldy components during assembly,
installation, removal, or moving the driver.
Never place any part of your body where it would be in danger if movement should occur during assembly,
installation, operation, maintaining, repairing, removal, or moving the driver.
Before you operate the driver, check over all pins, bolts and connections to be sure all are securely in place.
Replace any damaged or worn parts immediately.
Consult local utility companies (Call 811) to make certain there are no buried gas lines, electrical cables, etc.,
in the work area before beginning operation.
Do not allow anyone who is not familiar with the safety rules and operation instructions to use this Post Driver.
Never allow children to operate or be around this Post Driver.
Clear the work area of objects which might cause operator to trip or fall.
Make sure that all operating and service personnel know that in the event hydraulic fluid penetrates the skin,
it must be surgically removed within a few hours by a doctor familiar with this form of injury, or gangrene may
result.
Ensure post driver is properly mounted, adjusted and in good operating condition.
Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended
during assembly, installation, operation, adjustment, maintaining, repairing, removal, or moving the implement.
Do not allow long hair, loose fitting clothing or jewelry to be around moving parts.
PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS!
Power units with or without attachments can often be noisy enough to cause permanent, partial hearing loss.
We recommend that you wear hearing protection on a full-time basis if the noise in the Operator’s position
exceeds 80db. Noise over 85db on a long-term basis can cause severe hearing loss. Noise over 90db adja-
cent to the Operator over a long-term basis may cause permanent, total hearing loss. NOTE: Hearing loss from
loud noise (from tractors, chain saws, radios, and other such sources close to the ear) is cumulative over a life-
time without hope of natural recovery.
PREPARATION

6
SAFETY INSTRUCTIONS (continued)
OPERATIONAL SAFETY
Never operate the power unit and post driver until you have read and completely understand this manual, the
power unit operator’s manual, and each of the safety messages found on the safety signs on the power unit and
post driver.
The use of this equipment is subject to certain hazards which cannot be protected against by mechanical
means or product design. All operators of this equipment must read and understand this entire manual, pay-
ing particular attention to safety and operating instructions, prior to using. If there is something in this manual
you do not understand, ask your supervisor, or your dealer, to explain it to you.
Know your controls and how to stop the power unit and engine quickly in an emergency. READ THIS MANUAL
AND THE ONE PROVIDED WITH YOUR POWER UNIT.
Start power unit only when properly seated in the operator’s seat. Starting a power unit in gear can result in
injury or death. Do not mount or dismount the power unit while moving. Mount or dismount the power unit only
when the power unit and all moving parts are completely stopped.
Do not allow riders on the driver or
power unit at any time. There is no safe place for any riders.
Do not walk or work under a raised driver ram unless it is securely blocked or held in position. Do not depend
on the tractor hydraulic system to hold the driver ram in place.
Never leave post driver ram in the raised position. Always lower ram to the ground or to the transport position
and install the transport lock pin before transporting or storing.
Do not operate post driver on steep hillsides. When installing posts on uneven or hilly terrain, position the power
unit with the post driver uphill. This way if any movement of the power unit should occur, it will be away from
the post driver operator.
Never position the post by hand. Always use Post Holder Tool or Post Holder Attachment.
Watch out for low overhead electrical wires and limbs when operating or transporting the post driver. Check
clearance of doorways when entering a building.
Be sure post is cut “SQUARE” on top. Angle cut post can “KICK OUT” of driver and injure the operator.

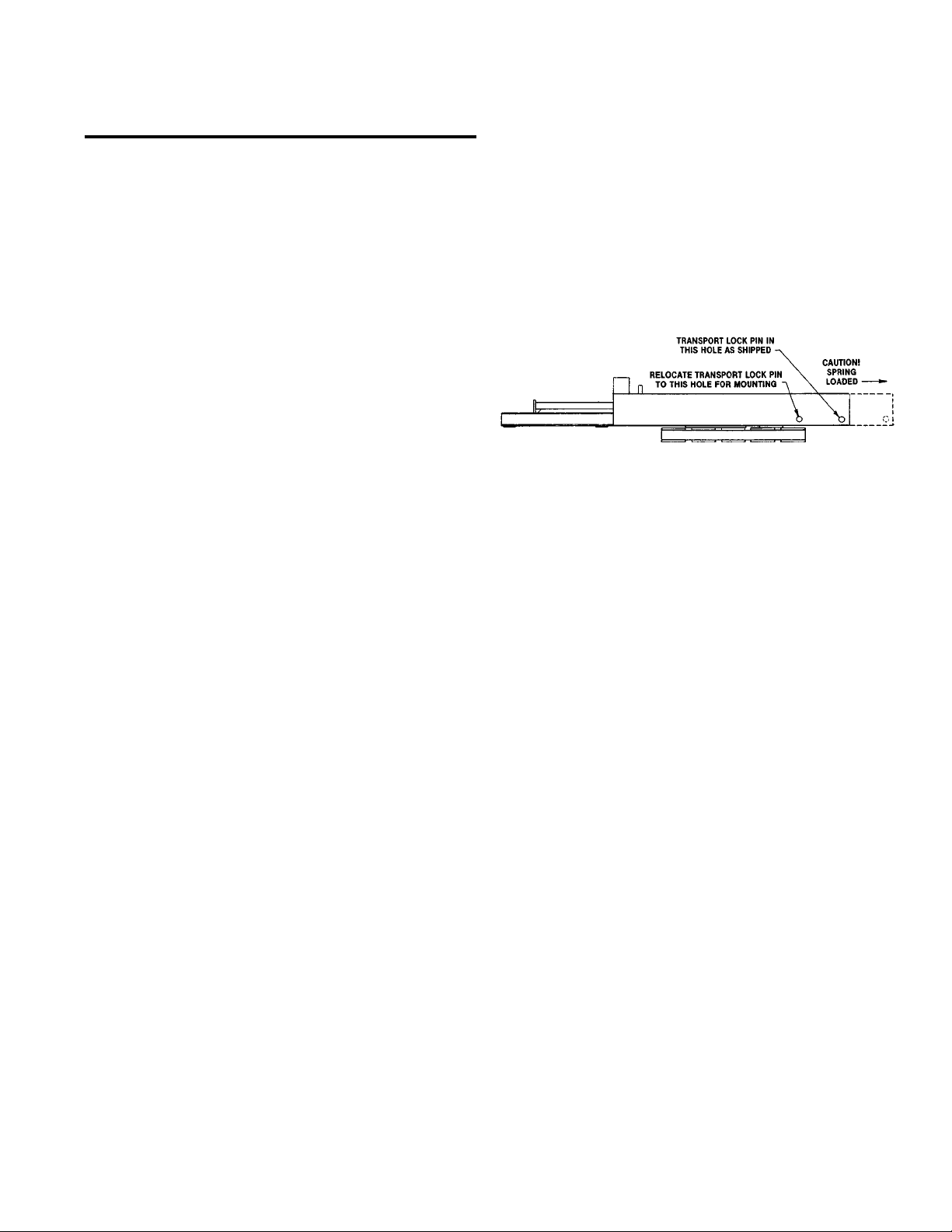

Install transport lock pin and pin clip before transporting or storing the post driver. NEVER INSERT FINGER
IN TRANSPORT PIN HOLE TO CHECK ALIGNMENT. Finger could be sheared off if driving ram moves.
Keep hands, feet, hair, jewelry, and clothing, away from all moving parts.
Do not operate the Post Driver without all safety shields and guards in place.

7
SAFETY INSTRUCTIONS (continued)
OPERATIONAL SAFETY (continued)
Check that this attachment is securely mounted to the loader. Failure to install lock pins or have the latching
mechanism engage could result in injury or death.
Do not allow children or others to ride on the power unit with an operator. Riders are subject to injury such as
being struck by foreign objects or being thrown off. Riders obstruct the operator’s view resulting in unsafe oper-
ation. Never allow anyone to ride on the implement!
For operator safety, always keep load in front of power unit. NEVER position load back over operator. ALWAYS
BE CAREFUL!
Keep alert and watch the rear as well as the front when working with the loader.
Beware of low electrical wires when loader is raised. Serious injury or death can result if contact is made.
Operate loader from operator’s seat only. Remain at controls until operating cycle is complete.
Do not walk or work under a raised driver ram unless it is securely blocked or held in position. Do not depend
on the hydraulic system to hold the driver ram in place.
Never leave post driver ram in the raised position. Always lower ram to the ground or to the transport position
and install the transport lock pin before transporting or storing.
A heavy load can cause instability of the skid steer unit. Use extreme care during travel. Slow down on turns
and watch out for bumps.
Observe safety recommendations in loader instruction manual. Always use care when operating a post driver.
Carry the post driver slowly and as low as possible to the ground. Avoid excessive speed during operation.
Always shut off power unit and shift to “Park” or set brakes when leaving unit. Always lower bucket or
attachment to ground, relieve all hydraulic pressure. Remove key when leaving equipment unattended. Park in
level area.

8
SAFETY INSTRUCTIONS (continued)
Comply with state and local laws governing highway safety and movement of machinery on public roads.
The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use.
Local laws should be checked for all highway lighting and marking requirements.
When driving the skid steer unit and equipment on the road or highway under 20 mph (32 kph) at night or
during the day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem.
Reduce speed on rough roads and surfaces.
Watch out for low overhead electrical wires and limbs when operating or transporting the post driver. Check
clearance of doorways when entering a building.
When maneuvering close to buildings or passing through narrow areas, be sure to allow sufficient clearance
for the skid steer, loader, and post driver. Drive slowly.
Always be sure the implement is in the proper raised position for transport.
Reduce speed when transporting mounted implements to avoid bouncing and momentary loss of steering
control.
Plan your route to avoid heavy traffic.
Always install transport locks, pins or brackets before transporting.
Do not drink and drive!
Watch for traffic when operating near or crossing roadways.
Turn curves or go up or down hills only at a low speed and at a gradual steering angle. Slow down on rough
or uneven surfaces, and loose gravel.
Use extreme care and maintain minimum ground speed when transporting on hillside, over rough ground and
when operating close to ditches or fences. Be careful when turning sharp corners.
Never allow riders on either skid steer or implement. Falling off can kill.
Be a safe and courteous driver. Always yield to oncoming traffic in all situations, including narrow bridges, inter-
sections, etc.
TRANSPORT SAFETY

9
SAFETY INSTRUCTIONS (continued)
MAINTENANCE SAFETY
Good maintenance is your responsibility. Poor maintenance is an invitation to trouble.
Before working on this machine, drive to a level area, disengage the PTO, lower implement (or if working
underneath, raise and block securely), shut off the engine, set the brakes, and remove the ignition keys.
Remove hydraulic pressure prior to doing any maintenance. Operate the remote hydraulic control lever in and
out several times to relieve hydraulic pressure.
Be certain all moving parts on attachments have come to a complete stop before attempting to perform
maintenance.
Never work under equipment unless it is blocked securely. Never depend on hydraulic system to keep imple-
ment in raised position.
Always use personal protection devices such as eye, hand and hearing protectors, when performing any
service or maintenance.
Keep all persons away from operator control area while performing adjustments, service, or maintenance.
Periodically tighten all bolts, nuts and screws and check that all cotter pins are properly installed to ensure unit
is in a safe condition.
When completing a maintenance or service function, make sure all safety shields and devices are installed
before placing unit in service.
Never use your hands to locate a hydraulic leak on attachments. Use a small piece of cardboard or wood.
Hydraulic fluid escaping under pressure can penetrate the skin.
Openings in the skin and minor cuts are susceptible to infection from hydraulic fluid. If injured by escaping
hydraulic fluid, see a doctor at once. Gangrene and death can result. Without immediate medical treatment,
serious infection and reactions can occur.
Check to ensure all safety signs are installed and in good condition.
Where replacement parts are necessary for periodic maintenance and servicing, genuine factory replacement parts
must be used to restore your equipment to original specifications. The manufacturer will not claim responsibility for use
of unapproved parts and/or accessories and other damages as a result of their use.
If equipment has been altered in any way from original design, the manufacturer does not accept any liability for injury
or warranty.

10
SAFETY INSTRUCTIONS (continued)
Following operation, or when unhooking, stop the power unit, set the brakes, lower ram to lowest position and
engage transport lock pin, shut off the engine, relieve hydraulic pressure and remove the ignition keys.
Store the unit in an area away from human activity.
Do not park equipment where it will be exposed to livestock for long periods of time. Damage and livestock
injury could result.
Do not permit children to play on or around the stored unit.
Make sure all parked machines are on a hard, level surface and engage all safety devices.
If blocking is used, make sure it is solid and secure before leaving area.
STORAGE SAFETY
Keep safety signs clean and legible at all times.
Replace safety signs that are missing or have become illegible.
Replaced parts that displayed a safety sign should also display the current sign.
Safety signs are available from your Distributor or Dealer Parts Department or the factory.
How to Install Safety Signs:
• Be sure that the installation area is clean and dry.
• Be sure temperature is above 50°F (10°C).
• Decide on the exact position before you remove the backing paper.
• Remove the smallest portion of the split backing paper.
• Align the sign over the specified area and carefully press the small portion with the exposed sticky backing in place.
• Slowly peel back the remaining paper and carefully smooth the remaining portion of the sign in place.
• Small air pockets can be pierced with a pin and smoothed out using the piece of sign backing paper.
SAFETY SIGNS

11

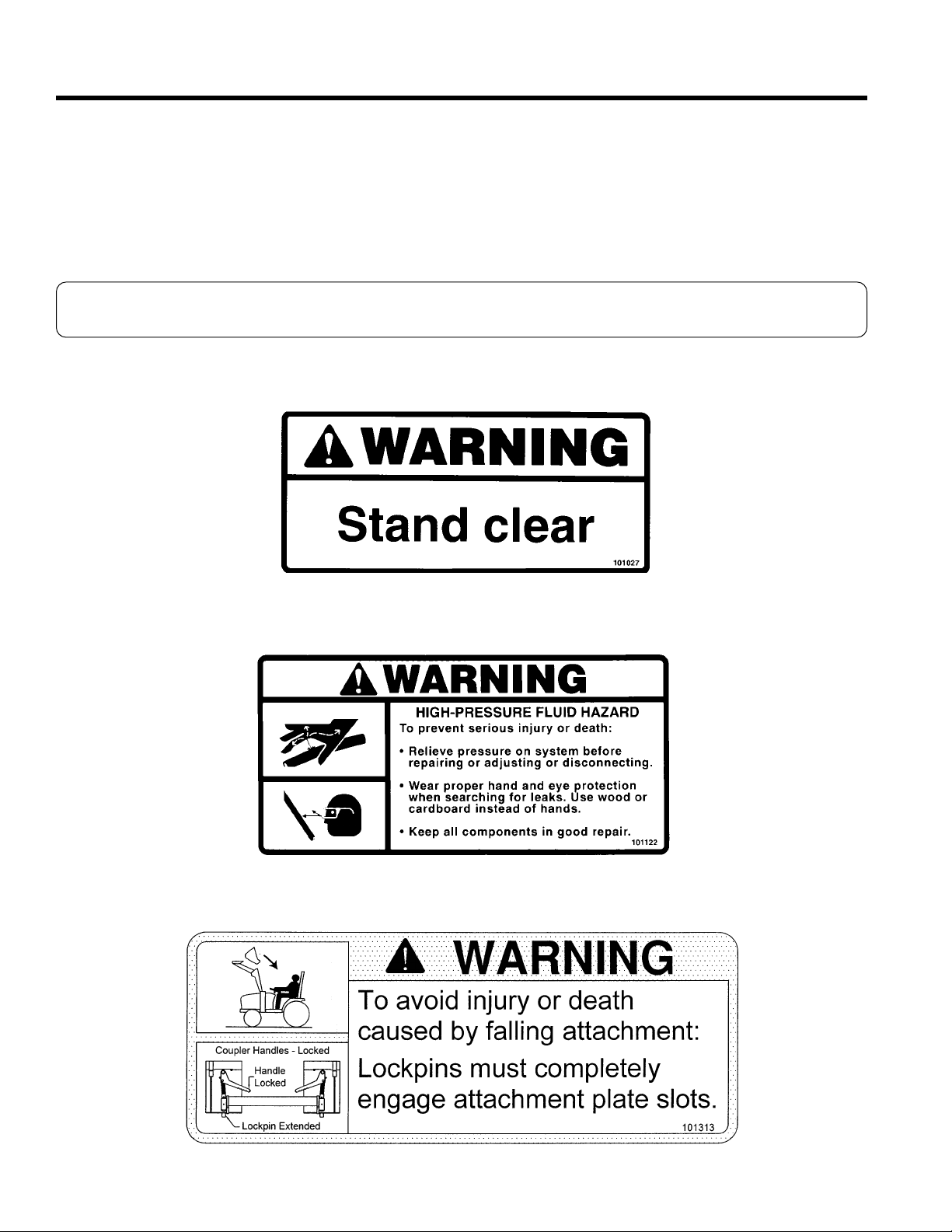

SAFETY SIGNS
101202
Cylinder Locking Strap - Remove before using Post Driver
BE CAREFUL!
Use a clean, damp cloth to clean safety decals. Avoid spraying to close to decals when using a pressure
washer; high-pressure water can enter through very small scratches or under edges of decals causing them
to peel or come off.

12
SAFETY SIGNS
101358
NOTE: If Safety Sign is
missing or damaged,
replace immediately.
REMEMBER:
If Safety Signs have been damaged, removed, become illegible or parts replaced without Signs, new
Safety Signs must be applied. New Safety Signs are available from your authorized distributor or factory.

13
SKID STEER REQUIREMENTS
AND PREPARATION
Both the manual and hydraulic positioning skid steer
post driver mounts are designed to fit skid steer units
with the “Universal” (Bobcat) style quick-attach loaders.
The model 16, 22Q, and 26Q post drivers vary as to the
size post they can drive and the amount of impact force
they can strike a post with. (Refer to Specifications.)
A larger size skid steer unit is required in relation to the
size of driver used. A general rule is that the skid steer
specified operation lift capacity should be at least 1.25
times the weight of the post driver attachment.
A post driver is equipped with adjustable legs which
should be adjusted to the proper height and have the
weight of the driver on them while driving the post. This
makes the driver a more stable unit and eliminates shock
loads on the skid steer loader.
Be sure that the skid steer unit is in good working order,
particularly the hydraulic system, prior to using the post
driver. Be sure the skid steer hydraulic oil and filter have
been serviced according to the skid steer manufacturer’s
recommendations.
■ Be sure your skid steer and loader is in good
condition. Read all the safety precautions and
make sure all operators are familiar with the safety
rules of operation.
■Post drivers are tall and visibility of the top of the
post driver may be obstructed by the top of the
skid steer unit operators cab. Always be aware of
low doorways, low limbs, and especially low hang-
ing wires.
A heavy load can cause instability in driving a skid
steer unit. Always drive slowly – especially around
turns. An unstable skid steer unit could steer badly
and possibly tip over, causing damage, injury or even
death.
INSTRUCTIONS
These instructions are for the models HPD-16 HSS/P,
HPD-22Q HSS/P, and HPD-26Q HSS/P skid steer
mounted hydraulic post drivers.
The model 16, 22Q, and 26Q HSS/P post drivers have
a hydraulic motor with a self-contained hydraulic system.
The hydraulic system of the skid steer unit powers the
motor only.
The Models HPD-16 HSS/P has the Quick Change
Cylinder Cap.
The models HPD-16 MSS and HPD-22Q MSS are
manually adjusted post drivers. The manual adjusting
base have two threaded cranks to set the side to side
and front to back positioning of the driving ram.
Models HPD-22Q and HPD-26Q have both the Quick
Change Cap and the new longer lasting Quick Change
spring assemblies.
The models HPD-16 HSS/P, HPD-22Q HSS/P, and
HPD-26Q HSS/P have the driving ram positioning con-
trolled hydraulically. A two spool hydraulic valve controls
the front to back and side to side movement for aligning
to a vertical ram position. A separate single spool valve
controls the raising and lowering of the driving ram.
The hydraulic valve that operates the driving ram is a
convertible valve and is shipped ready for OPEN center
hydraulic systems. Do not change this valve to a closed-
center valve. This convertible feature is only required for
some farm tractor applications.
Post drivers are a tall attachment to your skid steer unit.
Always watch for low clearance problems such as low
tree limbs, doorways, or low hanging wires.
WARNING
CAUTION
PACKAGING
The Post Driver is shipped as bundles.
1. The hydraulic base mount unit, partially pre-plumbed.
2. The driving ram assembly, on a pallet.
3. A hydraulic package for the ram, in a carton.
4. A package for the hydraulic base, in a carton.
5. Post Holder, in a carton.
Please inspect these bundles for any obvious signs of
damage before attempting to assemble the Post Driver.
Unpack all the bundles and lay out the various parts.

14
INSTRUCTIONS (continued)
ASSEMBLY & MOUNTING
The following procedure is recommended for assem-
bling the Skid Steer Mounted Post Driver.
Carefully follow instructions for final assembly.
Before attempting assembly check the following items.
Having all the needed parts and equipment readily at
hand will speed up your assembly task and will make the
job as safe as possible.
• Check for fasteners and pins that were shipped with
the post driver. Some hardware coming from the fac-
tory has been installed in the location where it will be
used. If a part or fastener is temporarily removed for
assembly reasons, remember where it goes. Keep the
parts separated.
• Have a fork lift or loader along with chains and safety
stands that are sized for the job ready for the
assembly task.
• Have a minimum of 2 people at hand during assembly.
• Check to see that all nuts are properly tightened.
Refer to the “exploded view” of the skid steer mounted
post driver on pages 25 thru 35 of this manual. Become
familiar with the relationship of the various components
and parts shown.
1. Connect the post driver base mount (manual or
hydraulic) to the “universal” quick-attach plate on
your skid steer loader. Flip the spring loaded latch
pins to the “latch lock” position and check to see they
are properly latched.
Raise the unit about 21/2ft. from the ground and
lower the adjustable stabilizer legs on each side of
the mounting frame. Pin each leg into position.
Operate the bucket tilt cylinders until the mounting
frame is vertical and then lower until the legs are
supporting the unit.
2.
The hydraulic base mount is shipped with the
hydraulic system partially plumbed and ready to
accept the driving ram assembly. The multi-spool
valve and mounting plate may be detached and shrink
wrapped in place. Simply remove the shrink wrapping,
swing the mounting plate into position and install the
mounting bolts.
3. Prepare the driving ram for attaching to the hydraulic
base mount. To do this, first lower the driving ram to
its lowest transport position. The driving ram is
shipped in the upper transport position for compact-
ness. To lower the ram, pull the transport lock pin,
allow the ram to lower (approximately 10 inches) and
replace the transport lock pin. This should be done
with the Driver laying on the shipping pallet. The ram
is spring loaded downward. Stand clear of the ram
when the pin is removed (see Figure A).
NOTE: This step of repositioning the driving ram is
necessary in order to make the mounting bolts at the
correct height when the unit is stood upright for the
next step.
FIG. A
4. Attach the driving ram assembly to the hydraulic
base mount. A chain hoist or forklift can be used to
stand the driving ram assembly to its normal
(vertical) working position. Take care not to damage
the hydraulic cylinder or carriage when lifting the
unit. Once the ram assembly is upright, remove the
six (6) nuts and lock washers from the mounting
bolts.
Align the mounting bolts with the six (6) holes in
the mounting channel and secure with the nuts and
lock washers. The mounting channel on the hydraulic
base mount will probably have to be positioned by
hand to get the mounting channel and carriage lined
up.
NOTE: The mount is shipped with straps that lock the
hydraulic cylinders. To assemble the unit, it may be
necessary to remove the straps. It is important to re-
install the straps once the unit is assembled.
NOTE: The driving ram assembly will be unstable
until the hydraulic cylinders are filled with oil once all
plumbing is completed.
NOTE: One mounting bolt goes into a blind hole and
does not get a nut and lock washer. Due to trapped
air, it may be necessary to operate the control levers
on the multi-spool valve to position the mounting
channel on the hydraulic base unit. Plastic hose end
caps may have to be removed to allow trapped air in
the hydraulic cylinders to escape. DO NOT
ATTEMPT TO CONNECT THE VALVE TO THE SKID
STEER AND OPERATE IT AT THIS TIME. When
properly mounted, the bottom of the driving ram
should be resting on the same level surface as the
mounting base.

15
INSTRUCTIONS (continued)
ASSEMBLY (continued)
FIG. B
RAM CONTROL VALVE
5. Install the hydraulic package. Refer to Figure B for
correct location and orientation of components.
Some of the hydraulic fittings on the new post drivers
have O-ring type connections.
Do NOT use thread sealant on O-ring fittings.
Connect the 3/4” I.D. x 24” long hose from the control
valve work port to the Post Driver hydraulic cylinder
port.
NOTE: The port and end of the 24” hose has a NPT
(pipe thread) type connection. Use a good grade of
thread sealant at this connection. (Do NOT use
Teflon tape.)
MAKE SURE THAT ALL OPERATING AND SERVICE
PERSONNEL KNOW THAT IN THE EVENT
HYDRAULIC FLUID PENETRATES THE SKIN, IT
MUST BE SURGICALLY REMOVED WITHIN A FEW
HOURS BY A DOCTOR FAMILIAR WITH THIS FORM
OF INJURY, OR GANGRENE MAY RESULT.
WARNING
HYDRAULIC CONNECTIONS
Check all hose and fitting connections. Make sure the
hoses are not twisted or kinked and that they will not be
pinched during operation of the post driver or the skid
steer unit.
MOUNT ASSEMBLY: Connect a 3/8” I.D. x 36” long hose
from the inlet side of the ram control valve to the 90°
elbow (#27) in the 2 spool valve.
Refer to Figure C and assemble the swivel tee (#31)
and the 3/4” to 1/2” reducer bushing (#30) to the 90° outlet
port fitting in the single spool ram control valve. Then
connect a 3/8” I.D. x 36” long hose (#32) from the reducer
bushing to the 90° elbow (#33) that is connected to the
two spool valve.
Connect the 3/4” I.D. x 48” long return line from the bot-
tom of the 3/4” tee (Ref. #31) on the ram control valve to the
hydraulic tank.
Pour 5 gallons of good quality hydraulic oil in the reser-
voir (this will temporarily fill tank above sight glass).
Operate unit and cycle each hydraulic cylinder to fill with
oil. Then check sight glass and add oil if necessary.
FIG. C
See Figure C for a view of the hoses and fitting to cor-
rectly orient them to the valves.

INSTRUCTIONS (continued)
LUBRICATION
The Post Driver is designed with “SPECIAL” polyethylene
slide blocks for long, trouble-free operation.
• Oil or grease applied to the slide channel will make the
operation smoother and if applied after use will help
keep rust from forming in the channel.
• There are grease fittings on the large side to side pivot
tube. A few shots of grease at the beginning of the
work day is recommended.
• Smear grease over the exposed portion of the plated
hydraulic cylinder rod after use to help prevent pitting
and rust from forming. If Post Driver is going to be
stored outside this is very important.
• The hydraulic control base has a grease fitting on the
large, side to side, pivot tube and one on the lower,
front to rear, pivot pin.
REPLACE
SAFETY SIGNS
IF DAMAGED
OR MISSING.
Keep children away from
danger all day, every day!
ASSEMBLY (continued)
NOTE: Route the hoses to the skid steer so that they
will not be pinched or caught by the movement of the
positioning mount
6. Stand clear of the driving ram assembly and raise the
completely assembled unit approximately 6 inches
with the skid steer loader. The driving ram assembly
will probably lean out of its normal position. Operate
the hydraulic valve so that oil flows from the skid steer
to the multi-spool valve and ram control valve and
returns to the hydraulic reservoir. The skid steer
engine should be operated at an idle until the system
is charged with oil. Remove the two cylinder locking
straps from the positioning cylinders. Now operate the
hydraulic levers on the multi-spool valve. This should
cause the driving ram assembly to pivot, side to side
and front to rear. The cylinders will have to be cycled
several times to remove all the air from the cylinders
and lines. Be sure to check the skid steer hydraulic oil
level after charging the system. Special orifice fittings
have been installed at the hydraulic cylinder ports to
restrict the flow and cause the cylinders to operate in
a slow, smooth manner.

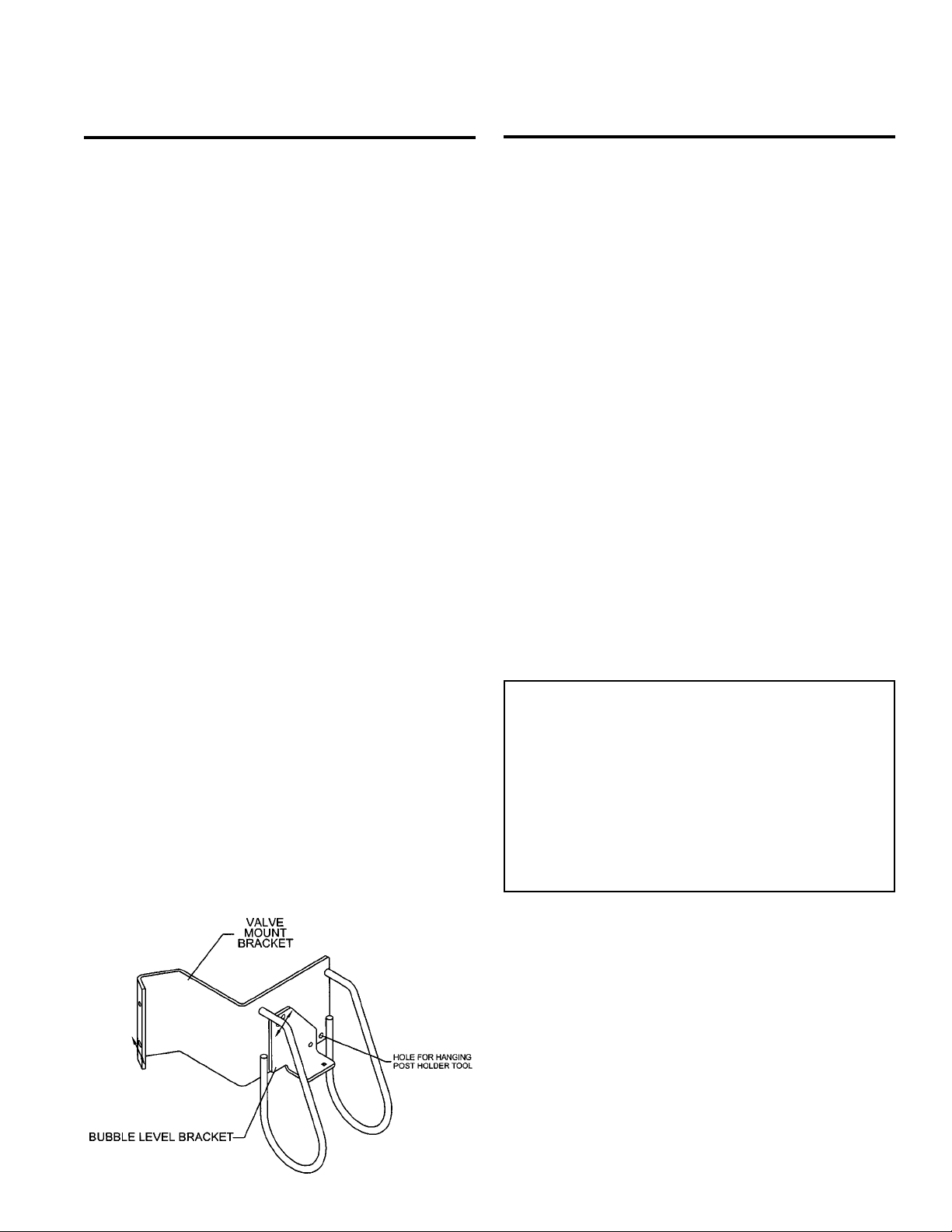

7. Attach the circular (bulls-eye) level as shown in the
parts illustration. Adjust the alignment of the level as
follows: using a 2’ or longer carpenter’s level, adjust
the driving ram with the alignment cranks until the ram
is plumb front to back and side to side. Tilt the top of
the driving ram slightly to the rear to allow for recoil
when the ram drops. Now adjust the valve mounting
bracket and the bubble level bracket so the level bub-
ble is centered in the level circle (see Figure D), then
tighten all bolts.
FIG. D
16

17
PLEASE WORK, DRIVE, PLAY AND LIVE EACH DAY
WITH CARE AND CONCERN FOR YOUR SAFETY
AND THAT OF YOUR FAMILY AND FELLOW CITIZENS.
INSTRUCTIONS (continued)
LUBRICATION
• The Post Driver is designed with “special” polyethyl-
ene slide blocks for long trouble-free operation.
• Oil or grease applied to the slide channel will make
the operation smoother and if applied after use will
help keep rust from forming in the channel.
• There are grease fittings on the large side to side pivot
tube and on all the threaded tilt adjustment nuts. A few
shots of grease at the beginning of the work day is
recommended.
• It is recommended to apply grease or oil to the
threaded portion of the tilt adjustment cranks before
storage to help prevent rust from forming.
• Smear grease over the exposed portion of the plated
hydraulic cylinder rod after use to help prevent pitting
and rust from forming. If Post Driver is going to be
stored outside this is very important.
• The hydraulic control base has a grease fitting on the
large, side to side, pivot tube and one on the lower,
front to rear, pivot pin.
POST HOLDER MOUNTING
Refer to page 28 and become familiar with the parts of
the Post Holder and the description of parts.
Locate the two holes in the left side of the support
channel. These holes are directly opposite the valve
mount bracket holes.
Bolt the Post Holder Mount weldment to the support
channel with the two 3/8”x1
1/2” hex bolts. (See photo J.)
Assembly the remaining parts of the Post Holder refer-
ring to photo K.
Using the vertical handle on the arm weldment, swing
the Post Holder away from the ram and to the left. The
arm will go over center and remain to the left side of the
post driver.
PHOTO J
PHOTO K

INSTRUCTIONS (continued)
MODELS HSS ATTACHMENT TO
PRIME MOVER
——————————————————
3. Enter the prime mover. Fasten seatbelt, start engine.
Disengage the parking brake.
4. Follow the attaching procedure in the prime mover
owner's manual. Align the attachment mechanism
with the mounting on the post driver, attach to the
prime mover on loader.
5. Engage the parking brake and shut down the prime
mover. Be sure to relieve pressure to the auxiliary
hydraulic lines.
6. Unfasten safety restraints and exit the prime mover.
7. Engage the latching mechanism to secure attachment
to loader. The lockpins must be completely extended
and secured into the retaining slots.
8. Re-enter the prime mover. Fasten seatbelt and re-
start engine.
1. Position the attachment on a level surface.
2. The quick attach coupler handles should be in the
unlocked position with lock pins retracted, Figure 2.
Improper attachment of the post driver could result
in injury or death. Do not operate this product until
you have positive indication that the attachment is
securely mounted.
Attachment coupler handles must always be
rotated to LOCK POSITION to prevent coupler latch
from disengaging and attachment from falling off.
Figure 2. Quick Attach Coupler Handles - Unlocked
Figure 3. Attachment Coupler Handles - Locked
9. Carefully raise the loader and cycle the rollback/tilt
cylinders to check clearances and to ensure that the
attachment is securely mounted.
REMOVING THE POST DRIVER
1. If possible, find a level solid location to place the
attachment. This makes it easier to disconnect and
re-connect later on.
2. Lower the attachment to the ground.
3. Engage the parking brake and shut down the prime
mover. Be sure to relieve pressure to the auxiliary
hydraulic lines.
4. Unfasten safety restraints and exit prime mover.
5. Disengage attachment-locking mechanism (mechan-
ical type).
6. Enter prime mover, fasten safety restraints and start
the prime mover.
7. Disengage attachment-locking mechanism (hydraulic
type).
8. Disengage the parking brake, and back away from
the attachment.
WARNING
WARNING
18

19
BEFORE YOU START
Review the assembly instructions to be sure the Driver
is properly assembled and plumbed correctly for your
skid steer hydraulic system. Be sure the skid steer unit’s
hydraulic oil and filter have been serviced according to
the skid steer units manufacturer’s recommendations
before using the Post Driver.
OPERATING INSTRUCTIONS
PRE-OPERATION CHECKLIST
(OWNER/OPERATOR RESPONSIBILITY)
____ Review and follow safety rules and safety signs on
pages 3 through 12.
