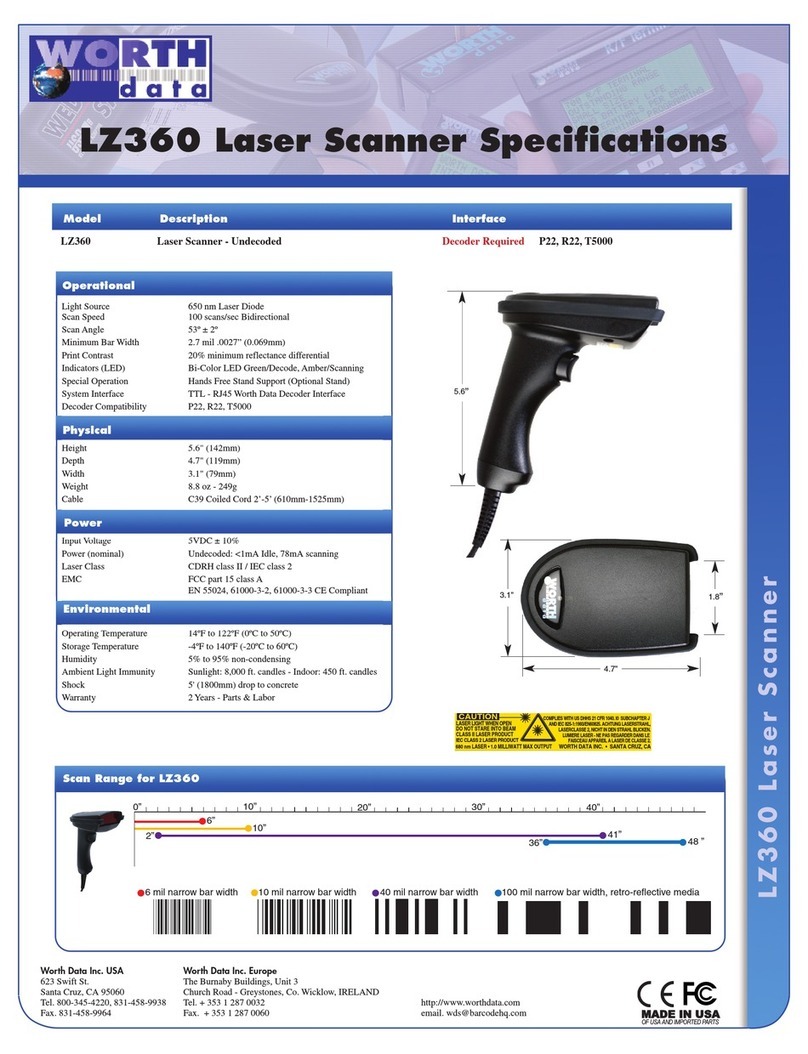

Worth Data LZ360-USB User manual

Light Source 650 nm Laser Diode
Scan Speed 100 scans/sec Bidirectional
Scan Angle 53º ± 2º
Minimum Bar Width 2.7 mil .0027” (0.069mm)
Print Contrast 20% minimum reflectance differential
Indicators (LED) Bi-Color LED - Green/Decode Orange/Scan
Beeper Operation 5 Tones plus OFF
System Interface(s) USB ID Keyboard or Keyboard Wedge
Operating System Windows® 7, Vista, XP, NT, 2000, 98SE, Mac OS
Bar Codes Supported Code 39, Full ASCII Code 39, UPC-A, UPC-E,
EAN-13, EAN-8, ISBN, Code 93, 2 of 5 Standard,
Interleaved 2 of 5, Codabar, Code 128, RSS-14
UCC/EAN 128, MSI, Plessey
eight 5.6" (142mm)
Depth 4.7"(119mm)
Width 3.1" (79mm)
Weight 8.8 oz - 249g
Cables C40 USB 6’ (1800mm) Straight Cable or
C41 Keyboard Wedge 6’ (1800mm) Y-Cable
Input Voltage 5VDC ± 10%
Power (nominal) 25mA Idle, 93mA scanning
Laser Class CDR class II / IEC class 2
EMC FCC part 15 class A
EN 55024, 61000-3-2, 61000-3-3 CE Compliant
Operating Temperature 14ºF to 122ºF (-0ºC to 50ºC)
Storage Temperature -4ºF to 140ºF (-20ºC to 60ºC)
umidity 5% to 95% non-condensing
Ambient Light Immunity Sunlight: 8,000 ft. candles - Indoor: 450 ft. candles
Shock 6' drop to concrete
Warranty 2 Years - Parts & Labor
LZ360-USB/WDP Laser Sca er Specificatio s
Model Descriptio I terface Cable
LZ360-USB Integrated USB La er Scanner USB HID Keyboard C40 USB Cable
LZ360-WDP Integrated Keyboard La er Scanner Keyboard 6-Pin Mini Din C41 Keyboard Y-Cable
Physical
Power
E viro me tal
Worth Data Inc. USA Worth Data Inc. Europe
623 Swift St. The Burnaby Buildings, Unit 3
Santa Cruz, CA 95060 Church Road - Greystones, Co. Wicklow, IRELAND
Tel. [phone] Tel. + 353 1 287 0032 http://www.worthdata.com
Fax. [phone] Fax. + 353 1 287 0060 email. [email protected]
LZ360 Integrated USB/Keyboard Laser Scanner
CAUTION
DO NOT STARE INTO BEAM
CLASS II LASER PRODUCT
LASER LIGHT WHEN OPEN
680 nm LASER • 1.0 MILLIWATT MAX OUTPUT
IEC CLASS 2 LASER PRODUCT
COMPLIES WITH US DHHS 21 CFR 1040. I0 SUBCHAPTER J 
AND IEC 825-1:1993/EN60825. ACHTUNG LASERSTRAHL,
LASERCLASSE 2, NICHT IN DEN STRAHL BLICKEN.
LUMIERE LASER - NE PAS REGARDER DANS LE 
FAISCEAU APPAREIL A LASER DE CLASSE 2.
WORTH DATA INC. • SANTA CRUZ, CA
0” 10” 20” 30” 40”
6 mil narrow bar width 10 mil narrowbar width 40 mil narrowbar width 100 mil narrow bar width, retro-reflective media
6” 10”
2” 41” 48 ”
36”
1.8”
4.7”
3.1”
5.6”
Operatio al
Sca Ra ge for LZ360-USB & LZ360-WDP
MMAADDEE IINN UUSSAA
C41 6 pin mini-din
PC Keyboard Y Cable
C40 USB Cable
for PC or Mac
OF USA AND IMPORTED PARTS
