Thank you for purchasing a Worx ACS.
Support
www.worx-europe.com/support
Landroid Owner’s Site
https://account.worxlandroid.com/login
We’re here to help:

Safety first EN
4
WARNING: Read all safety warnings and all
instructions
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Carefully read the instructions for the safe operation of the machine.
Save all warnings and instructions for future reference.
Symbols
Warning
Read the operator’s manual.
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authorities or retailer for recycling advice.

Get familiar with EN
WHAT’S IN THE BOX
5
ACS module
1 allen key
2 screws
A
B
C
1x
2x
A B
C

EN
HOW IT WORKS
6
The ACS option allows Landroid to detect obstacles such as trees and furniture and steer accordingly in order to avoid them.
It gives “eyes” to your Landroid.
Landroid uses automotive-grade ultrasonic sensors to detect obstacles and avoid them. ACS detects objects taller than 20 cm
and thicker than 25 mm. Please note that in case the height of the grass is higher than 20 cm, ACS will detect it as an obstacle,
therefore the grass will not be cut. If this is the case, It is recommended to disable ACS function (via display or via App).
ACS gets deactivated when:
- Landroid is lifted or trapped
- Landroid starts, ACS is deactivated for few seconds
- Landroid is running back to the charging base on the boundary wire
- Landroid is on its way to a mowing zone
- Landroid meets the boundary wire and bounces back, ACS is deactivated for 2 - 8 seconds
- it rains (as large drops might be recognized as obstacles)
- there’s heavy dew in the morning
- the robot is raised
- the sensors are dirty (please remember to clean them regularly).
Also, be aware that ACS is not compatible with ultrasonic devices like pet repellers – they emit ultrasounds which interfere with
the sensors.
Get familiar with
IMPORTANT NOTE: Even though the ACS can potentially improve safety, it must not be used as a safety feature. Do not
leave Landroid equipped with ACS to operate unattended if you know that there are children, pets or people in the vicinity.

Getting started EN
7
INSTALLATION
Installing the ACS accessory is straightforward. Landroid automatically recognizes the new module and behaves accordingly - no manual
settings needed. Once the ACS module is correctly installed, it’s displayed both on the app’s home screen or on Landroid’s display.
Here below the steps to follow to install ACS into different Landroid models.
Before proceeding with the installation please make sure your Landroid’s firmware is updated to the last version. For more information on
firmware upgrade please refer to the “Maintenance” section of the Landroid-o-pedia (https://support.worx-europe.com).
1. Turn off Landroid 2. Use a screwdriver to remove the cover
3. Remove Landroid connector’s inner protection 4. Plug ACS connectors into Landroid’s connectors
5. Insert ACS into the slot 6. Arrange cables and connectors tidily
(as shown in the image)
4
3
5 6
OK
START
SET
1 2
Landroid S 300 (WR130E)

EN
8
7. Secure ACS with the provided screws
7
www.worx.com/landroid/support
VIDEO
Getting started

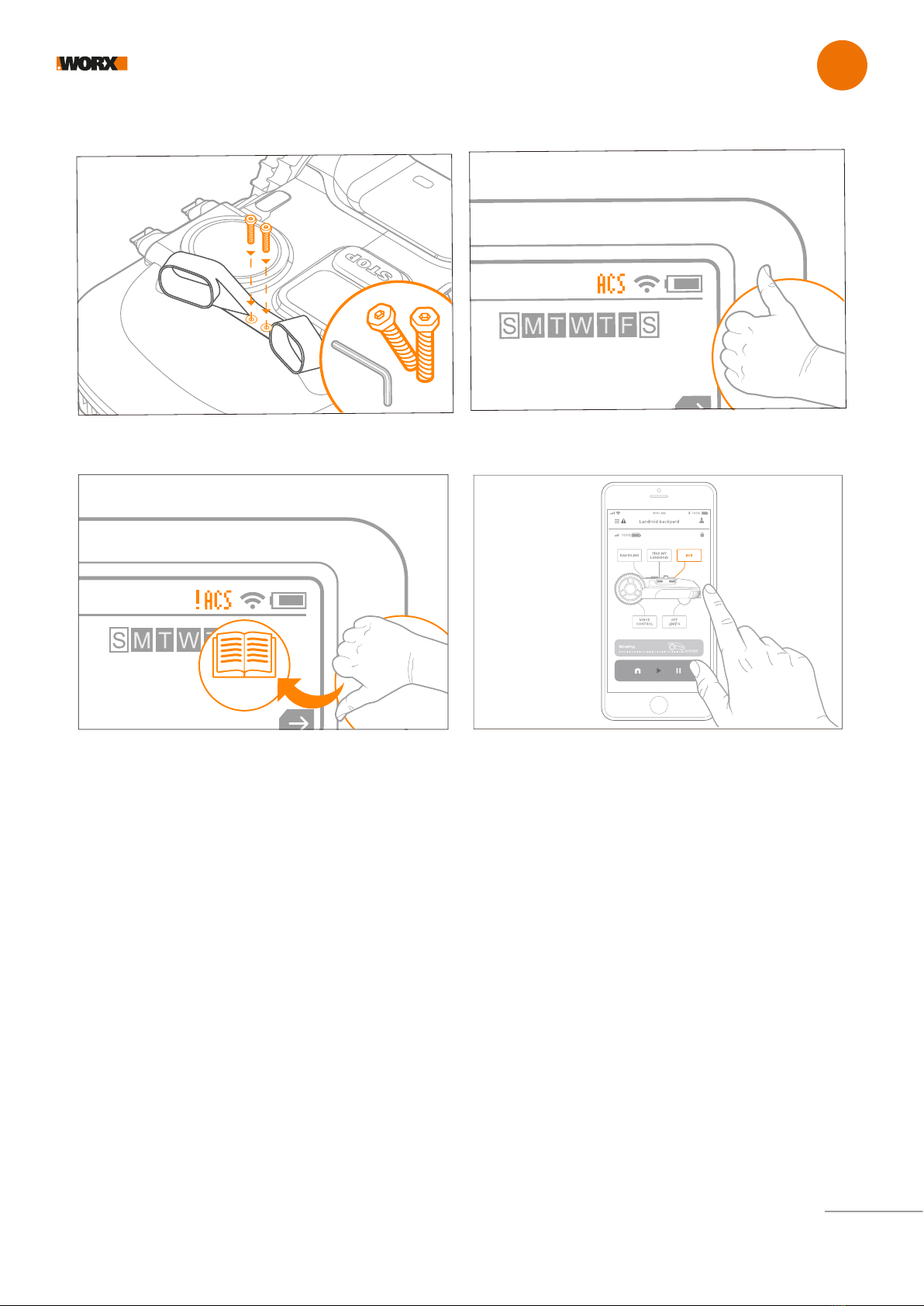

8. The ACS icon is now active. Touch it to see the status and to
activate/disactivate the option. If the Status shows “error” contact
our support team at https://support.worx-europe.com
8

EN
1.Turn off Landroid
3. Remove Landroid blades using a screwdriver – wear gloves
to avoid injury
2. Turn Landroid upside down
9
6
5
5. Gently push in order to open the housing on
the other side of Landroid
6. Close the ap
OK
START
SET
1
Landroid M 500 (WR141E)
4. Open the small ap as shown in the picturet
Getting started
2
34

EN
10
7. Screw Landroid blades back in
87
8. Turn Landroid back to its position
910
9. Remove the cover slot 10. Remove Landroid connector’s inner protection
11 12
11. Plug ACS connectors into Landroid’s connectors 12. Insert ACS into the slot
Getting started

EN
13. Secure ACS with the provided screws
11
Getting started
13
14. The ACS icon is now active. Touch it to see the status and to
activate/disactivate the option. If the Status shows “error” contact
our support team at https://support.worx-europe.com
14

EN
12
1.Turn off Landroid
3
4
4. Open the small ap as shown in the picturet
6
5
5. Gently push in order to open the housing on the other side
of Landroid
6. Close the ap
START OK
A
BC D
Power OFF
Goodbye
1
2
Landroid M 700 (WR142E)
Landroid M 1000 (WR143E)
2. Turn Landroid upside down
3. Remove Landroid blades using a screwdriver – wear gloves
to avoid injury
Getting started
2
3

EN
13
887
7. Screw Landroid blades back in 8. Turn Landroid back to its position
910
9. Remove the slot cover 10. Remove Landroid connector’s inner protection
11 12
11. Plug ACS connectors into Landroid’s connectors 12. Insert ACS into the slot
Getting started

EN
13. Secure ACS with the provided screws
Mon 11/07
Work done today
Charging 50%
00:00
13 14
Mon 11/07
Work done today
Charging 50%
00:00
MANUAL
15
14. “ACS” appears on Landroid screen: ACS
is installed correctly
15. “!ACS” appears on Landroid screen: please double check that
ACS sensors are clean - if not proceed to clean them with a soft
cloth. If the issue persists, please go to
https://account.worxlandroid.com/,
access your prole and open a ticket using the form.
14
Getting started
16. The ACS icon is now active. Touch it to see the status and to
activate/disactivate the option. If the Status shows “error” contact
our support team at https://support.worx-europe.com
16

15
Getting started EN
OK
START
SET
1
2
Landroid L1000 (WR147E)
1.Turn off Landroid
3 4
4. Open the small ap as shown in the picturet
6
5
5. Gently push in order to open the housing on the other side
of Landroid
6. Close the ap
2. Turn Landroid upside down
2
3. Remove Landroid blades using a screwdriver – wear gloves
to avoid injury

7. Screw Landroid blades back in
87
EN
8. Turn Landroid back to its position
910
9. Remove the slot cover 10. Remove Landroid connector’s inner protection
11 12
11. Plug ACS connectors into Landroid’s connectors 12. Insert ACS into the slot
16
Getting started

EN
13. Secure ACS with the provided screws
Mon 11/07
Work done today
Charging 50%
00:00
13
14
Getting started
17
14. The ACS icon is now active. Touch it to see the status and to
activate/disactivate the option. If the Status shows “error” contact
our support team at https://support.worx-europe.com
14

EN
1.Turn off Landroid 2. Turn Landroid upside down
3 4
4. Open the small ap as shown in the picturet
6
5
5. Gently push in order to open the housing on the other side
of Landroid
6. Close the ap
18
START OK
A
BC D
Power OFF
Goodbye
1
2
Landroid L1500 (WR153E)
Landroid L 2000 (WR155E)
Getting started
2
3. Remove Landroid blades using a screwdriver – wear gloves
to avoid injury

7. Screw Landroid blades back in
87
EN
8. Turn Landroid back to its position
910
9. Remove the slot cover 10. Remove Landroid connector’s inner protection
11 12
11. Plug ACS connectors into Landroid’s connectors 12. Insert ACS into the slot
19
Getting started

EN
13. Secure ACS with the provided screws
Mon 11/07
Work done today
Charging 50%
00:00
13 14
Mon 11/07
Work done today
Charging 50%
00:00
MANUAL
15
14. “ACS” appears on Landroid screen: ACS
is installed correctly
15. “!ACS” appears on Landroid screen: please double check that
ACS sensors are clean - if not proceed to clean them with a soft
cloth. If the issue persists, please go to https://account.worxlan-
droid.com/, access your prole and open a ticket using the form.
20
Getting started
16. The ACS icon is now active. Touch it to see the status and to
activate/disactivate the option. If the Status shows “error” contact
our support team at https://support.worx-europe.com
16
