Worx WG708E User manual

WG708E
P07
P17
P28
P38
P49
P60
P71
P82
P92
P102
P112
P122
P132
P143
EN
D
F
I
ES
PT
NL
DK
FIN
NOR
SV
TR
GR
RU
Electric lawn mower
Rasenmäher
Tondeuse à gazon
Tosatrice per giardini
Cortadora de césped
Cortador de relva
Grasmaaier
Gressklipper
Ruohonleikkuri
Plæneklipper
Gräsklippare
Çim biçme makinesi



Original instructions EN
Übersetzung der Originalanleitung D
Traduction des instructions initiales F
Traduzione delle istruzioni originali I
Traducción de las instrucciones originales ES
Tradução das instruções originais PT
Vertaling van de oorspronkelijke instructies NL
Oversættelse af de oprindelige instruktioner DK
Alkuperäisten ohjeiden käännös FIN
Oversettelse av de opprinnelige instruksjonene NOR
Översättning av originalinstruktionerna SV
 TR
 GR
 RU

1
2
3
4
5
6
7
8
9
10
11
15

7
Front Part
Back Part
1
2
3
12
a
A1 A2 A3
A4 A5 B1
B2 B3 C1
C2 C3 C4
D1 D2 D3

14
13
15
a
b
12
E1 E2 F
G H I
J K1 K2
L

7
Electric lawn mower EN
1. SWITCH LEVER
2. CABLE CLIP
3. GRASS BAG FILLING INDICATOR
4. GRASS COLLECTION BAG
5. SAFETY BUTTON
6. UPPER HANDLE
7. LOCK CAM LEVER
8. LOWER HANDLE
9. SAFETY FLAP
10. CARRY HANDLE
11. MOTOR COVER
12. MULCH PLUG (See G)
13. BLADE BOLT (See K1)
14. BLADE (See K1)
15. WORK MODE DIAL (See I)
* Not all the accessories illustrated or described are included in standard delivery.

8
Electric lawn mower EN
TECHNICAL DATA
Rated voltage 220-240V~50Hz
Rated power 1600W
Cutting diameter 40cm
Cutting height 20-70mm
Cutting height positions 6
Grass collection capacity 50L
Protection class /II
Machine Weight 14.5kg
NOISE AND VIBRATION DATA
A weighted sound pressure LPA: 82.4dB(A)TURBO mode KPA : 3dB(A)
LPA: 72.8dB(A) QUIET mode KPA : 3dB(A)
A weighted sound power LWA: 96dB(A)
Wear ear protection when sound pressure is over 80dB(A)
Typical weighted vibration
3.16m/s2TURBO mode
2.05m/s2QUIET mode
K=1.5m/s2
ACCESSORIES
Spanner 1
Grass collection bag 1
Mulch plug 1
Lock cam levers 2
Cable clips 2
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according
to the work you intend to undertake. Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.

9
Electric lawn mower EN
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING: Read all safety warnings
and all instructions. Failure to follow
the warnings and instructions may result in
electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND
INSTRUCTIONS FOR FUTURE
REFERENCE.
- This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
- Children should be supervised to ensure
that they do not play with the appliance.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard.
TRAINING
a) Read the instructions carefully. Be familiar
with the controls and the proper use of the
equipment;
b) Never allow children or people unfamiliar
with these instructions to use the
lawnmower. Local regulations can restrict
the age of the operator;
c) Never mow while people, especially
children, or pets are nearby;
d) Keep in mind that the operator or user
is responsible for accidents or hazards
occurring to other people or their property.
PREPARATION
a) While mowing, always wear substantial
footwear and long trousers. Do not operate
the equipment when barefoot or wearing
open sandals;
b) Thoroughly inspect the area where the
equipment is to be used and remove
all objects which can be thrown by the
machine;
c) Before using, always visually inspect to
see that the blades, blade bolts and cutter
assembly are not worn or damaged.
Replace worn or damaged blades and bolts
in sets to preserve balance;
OPERATION
a) Mow only in daylight or in good artificial
light;
b) Avoid operating the equipment in wet
grass, where feasible;
c) Always be sure of your footing on slopes;
d) Walk, never run;
e) For wheeled rotary machines, mow across
the face of slopes, never up and down;
f) Exercise extreme caution when changing
direction on slopes;
g) Do not mow excessively steep slopes;
h) Use extreme caution when reversing or
pulling the lawnmower towards you;
i) Stop the blade(s) if the lawnmower has to
be tilted for transportation when crossing
surfaces other than grass, and when
transporting the lawnmower to and from
the area to be mowed;
j) Never operate the lawnmower with
defective guards, or without safety devices,
for example deflectors and/or grass
catchers, in place;
k) Switch on the motor carefully according to
instructions and with feet well away from
the blade(s);
l) Do not tilt the lawnmower when switching
on the motor, except if the lawnmower has
to be tilted for starting In this case, do not
tilt it more than absolutely necessary and
lift only the part which is away from the
operator;
m)Do not put hands or feet near or under
rotating parts. Keep clear of the discharge
opening at all times;
n) Never pick up or carry a lawnmower while
the motor is running;
o) Stop the motor and disconnect the plug
from the mains
- Before clearing blockages or unclogging
chute;
- Before checking, cleaning or working on
the lawnmower;
- After striking a foreign object, inspect
the lawnmower for damage and make
repairs before restarting and operating the

10
Electric lawn mower EN
lawnmower;
- If lawnmower starts to vibrate abnormally
(check immediately);
p) Stop the motor, -whenever you leave the
lawnmower;
q) Go slow when using a trailing seat.
MAINTENANCE AND STORAGE
a) Keep all nuts, bolts and screws tight to
be sure the equipment is in safe working
condition;
b) Check the grass catcher frequently for wear
or deterioration;
c) Replace worn or damaged parts for safety;
WARNING:
- Not to use the lawnmower if the cords are
damaged or worn.
- Not to connect a damaged cord to the
supply or touch a damaged cord before it is
disconnected from the supply. A damaged
cord can lead to contact with live parts.
- Not to touch the blades before the machine
is disconnected from the supply and the
blades have come to a complete stop.
- To keep extension cords away from the
blades.The blades can cause damage to
the cords and lead to contact with live
parts.
- To disconnect the supply (i.e, pulling the
plug from the socket)
- Whenever leaving the machine unattended,
- Before clearing a blockage,
- Before checking, cleaning or working on
the machine,
- After striking a foreign object,
- Whenever the machine starts vibrating
abnormally.
- To carefully read the instructions for the
safe operation of the machine;
- Recommendations:
- To connect the machine only to a supply
circuit protected by a residual current
device (rcd ) with a tripping current of not
more than 30mA.
SYMBOLS
Read instruction handbook before
operation this machine
Keep bystanders away.
Beware of sharp blades. Blades
continue to rotate after the motor is
switched off.
Remove plug from mains before
maintenance or if cord is damaged.
Keep the supply flexible cord away
form the blades.
Blade continues to rotate after
the machine is switched off. Wait
until all machines components
have completely stopped before
touching them.
Double Insulation
Waste electrical products should
not be disposed of with household
waste. Please recycle where
facilities exist. Check with your
Local Authority or retailer for
recycling advice.

11
Electric lawn mower EN
INTENDED USE
This product is intended for domestic lawn
mowing.
ASSEMBLY
IMPORTANT!Before you assemble
the lawn mower, check the accessories
according above information, make sure the
accessories are completed.

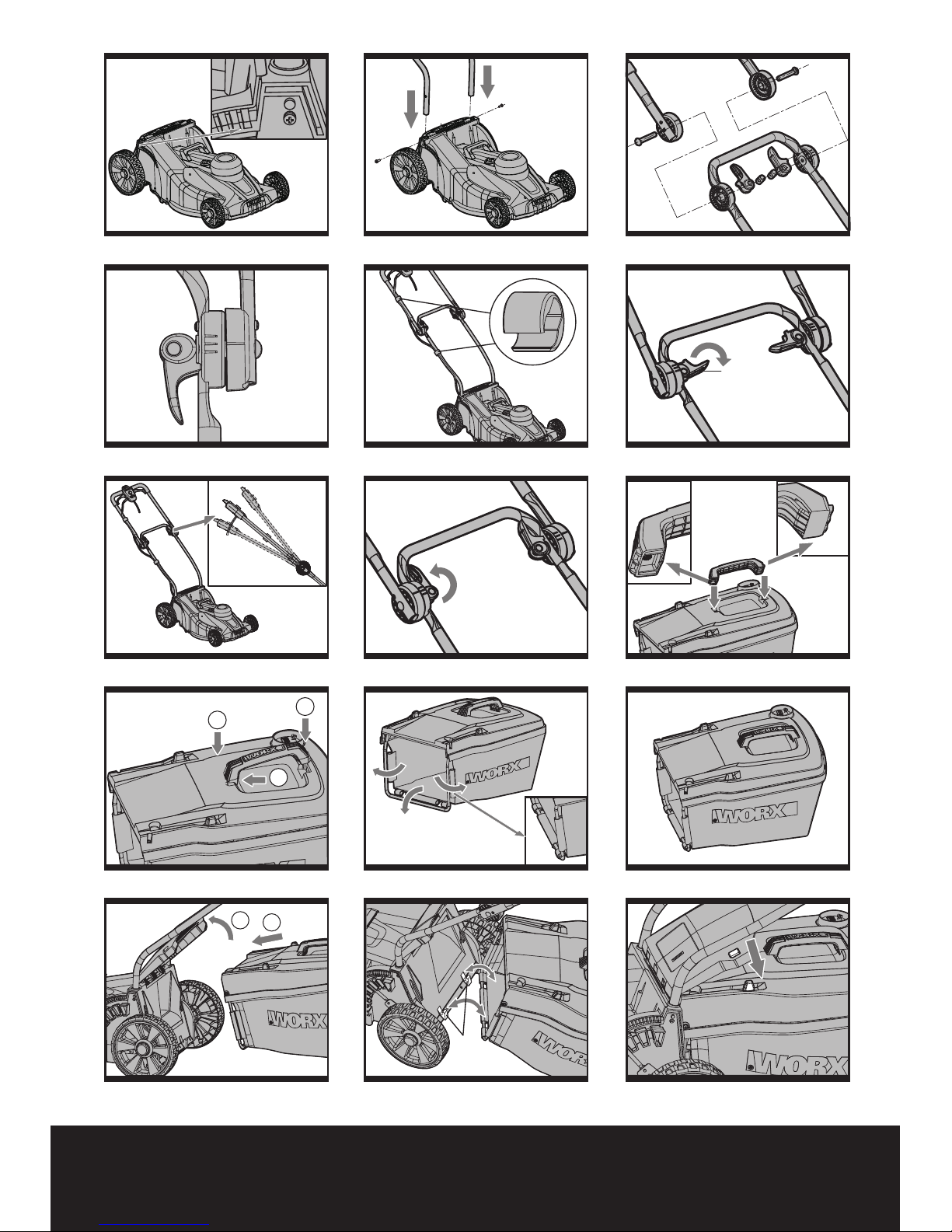

1. FITTING THE HANDLE (See A1- A5)
1) Remove the screws (X 2) on the both side
of deck. (Fig A1)
2) Insert the lower handle (8) into the holes on
the deck provided.(Fig A2)
3) Secure with the screws provided.(Fig A2)
4) Attach the upper handle (6) with the bolts
and lock cam lever (7) to the lower handle
(8). (Fig A3)
5) Tightening the two Lock cam levers. Check
that the handle is FULLY secured.
The cam lever pressure can be adjusted by
adjusting the lock cam lever (7) clockwise/
counter-clockwise. DO NOT OVERTIGHTEN.
(Fig A4)
NOTE: Ensure the bolts are fully inserted
through the handles before fitting the handle
knobs.
6) Attach the cable clips (2) provided, to the
upper and lower handle. Insert the cable
into the clips ensuring there is enough
cable slack. (Fig A5)
2. HANDLE ADJUSTMENT (See B1,B2,
B3)
The upper handle can be adjusted to 3
different height positions. Release the locking
cam lever (7), set the upper handle to one of
the three height positions, and make sure to
insert the pin into the hole. Then reset the
locking cam lever (7).
NOTE: Always check that the upper handle is
fixed firmly.
3. GRASS COLLECTION BAG ASSEMBLY
Connect the grass box handle to the box top
as shown in F ig C1-C4.
Step 1. Press the front of the handle briefly.
(Fig C2)
Step 2.Then push it forward. (Fig C2)
Step 3. Push down the back of the handle. (Fig
C2)
Step 4. Finally, clip the plastic clips over the
metal frame. (Fig C3)
WARNING: Don’t fit the handle in
reversed direction. Fit the handle as
shown in Fig C1.
4. GRASS COLLECTION BAG FITTING
(See D1, D2, D3)
1) Unplug tool, and wait for blade to come to
a complete stop.
2) Raise the safety flap (9) and hold it up,
ensure that the mulching plug has been
removed.
3) Pick up the grass bag by the handle, and
position grass bag on the lower hooks (a)
on the mower deck (Fig. D2).
4) Release the safety guard to lock the grass
bag into position. Ensure the grass bag is
installed securely (Fig. D3).
NOTE: Depress the grass bag slightly to
ensure that it is completely installed.
5. REMOVING/EMPTYING
Hold the grass bag, lift the safety flap (9) and
hold up. Remove grass bag (4).
WARNING: Always check the safety
flap can close the discharge outlet tightly
before using. Never lift the safety flap (9)
when the lawn mower is being used without
fitted grass bag.
OPERATION
1. STARTING AND STOPPING (See E1, E2)
STARTING
Connect the plug to the mains and switch ON.
The switch box is provided with a lock-
off button to prevent accidental starting.
With one hand press and hold the safety
button (5), with the other hand squeeze the
switch lever (1) towards the handle, and
release the safety lock off button.The machine
is now started; wait until the product is at full
speed before cutting the grass.Then use both
your hands to hold the switch lever to keep it
running.

12
Electric lawn mower EN
STOPPING
Release the switch lever.
2. HOW TO MOW
For cutting convenience, it may be best to start
mowing at a point close to the power supply
and to work your way away from the supply.
Mow the lawn at a right angle from the power
supply and place the power cable to side
which has already been cut.
NOTE: The motor is protected by a safety
cut out which is activated when the
blade becomes jammed or if the motor is
overloaded.
When this occurs stop, remove the plug
from the power supply.
Release the switch lever,
Clear any obstruction, then restart it.
If the mower cuts out again increase the
height of cut to reduce the load on the
motor.
WARNING! When mowing do not allow
the motor to labor particularly in heavy
conditions. When the motor labors the speed
of the motor drops and you will hear a change
in the motor sound, when this occurs, stop
mowing, release the switch lever and raise the
height of cut. Failure to do so could damage
the machine.
3. GRASS BAG FILLING INDICATOR (See
F)
To remind you immediately to empty when
the grass bag is full, the mower provides
an indicator on the top of bag to show the
collection status. And you can follow as
below:
Empty status: flap float (a)
Fully status: flap fall down (b)
4. INSTALLING MULCH PLUG (See G)
1) Unplug tool, and wait for blade to come to
a complete stop.
2) Raise the safety guard and hold it up.
3) Slide the mulching plug (12) into the
discharge opening until it is firmly in
contact with the deck.
4) Release safety guard and ensure it is
properly closed.
5. REMOVING MULCH PLUG (See G)
To remove the mulching plug so that you can
collect the grass follow the steps listed below:
1) Unplug tool, and wait for blade to come to
a complete stop.
2) Raise the safety guard and hold it up.
3) Grasp the middle of the plug, lift and pull
out the mulching plug completely.
4) The safety guard is spring loaded. When
you release it, the guard will return to the
closed position.
6. REAR DISCHARGE (See H)
The mower provides a rear discharge function,
so that you can mower without bag collection.
The debris will be discharged from the rear
chute.
7. WORK MODE DIAL (See I)
Status1: QUIET mode
Select QUIET mode when mowing in everyday
conditions, removing approximately 20mm of
grass at a time.
Status2: TURBO mode
Set the dial toTURBO mode when cutting
dense or overgrown grass.
8. ADJUSTING THE CUTTING HEIGHT
(See J)
WARNING! STOP REALEASETHE
SWITH LEVER, UNPLUGTOOL, AND
WAIT FOR BLADETO COMETO A COMPLETE
STOP .The blades continue to rotate after the
machine is switched off, a rotating blade can
cause injury.
CAUTION: Do not touch rotating blades.
The lawn mower can be set to 6 cutting
heights between 20mm and 70mm. For this
purpose, move the cutting height adjustment
lever outwards then adjust to the preferred
position.

13
Electric lawn mower EN
9. MULCHING MOWING TIPS
While mulching, your new mower is designed
to cut the grass clippings into small pieces
and distribute them back into the lawn. Under
normal conditions, the mulched grasses will
biodegrade quickly to provide nutrients to the
lawn.
Please review the following recommendations
for optimum mulching performance.
1) Avoid mowing when the grass is wet from
rain or dew. Wet grass may form clumps
which interfere with the mulching action
and reduce runtime. The best time to mow
grass is in the late afternoon when the
grass is dry and the newly cut area will not
be exposed to direct sunlight.
2) For best mulching performance, set the
cutting height to remove about one third
of the grass blade length, ideally no more
than 38mm at one time. If the lawn is
overgrown, it may be necessary to increase
the cut height to reduce the pushing effort
and prevent overloading the motor. For
extremely heavy mulching, it is advisable
to first cut at a high cut height setting,
and then re-cut to the final cut height.
Otherwise, make narrower cuts and mow
slowly.
3) For best performance, keep the mower
housing free of built-up grass. From time
to time turn off mower and wait for the
blade to come to a complete stop. Using
an object such as a stick, wipe out any
accumulation of grass in the blade area.
Be careful of the sharp edges of the blade.
Clean often in wet, new grass, and always
after every use.
4) Certain types of grass or grass conditions
may require that an area be mulched a
second time to fully disperse the grass
throughout the lawn. If cutting a second
time, it is advisable to cut perpendicular
(across) the first cut pattern. DO NOT
CHANGE CUT PATTERN IN ANY WAYTHAT
WOULD CAUSE MOWING DOWN A HILL.
5) Change your cutting pattern from week to
week.This will help prevent matting and
graining of the lawn.
MAINTENANCE
WARNING: Stop the mower and
unplug the tool before performing
any maintenance.
NOTE: To ensure long and reliable service,
perform the following maintenance
procedures regularly. Check for obvious
defects such as a loose, dislodged or a
damaged blade, loose fittings and hardware,
and worn or damaged components. Check
that the covers and guards are all undamaged
and are correctly attached to mower. Carry
out any necessary maintenance or repairs
before operating mower. If the mower should
happen to fail despite regular maintenance,
please call our customer helpline for advice.
BLADE MAINTENANCE (See K1, K2)
WARNING: Never carry out any
assembly operations or adjustments
with the power connected to the mower.
Always ensure that the power button is in
the off position and that the power plug is
disconnected from the supply.
Always handle the blade with care-sharp
edges could cause injury use gloves.
Follow these procedures to remove and
replace the blade.You will need garden
gloves (not provided) and a spanner wrench
to remove the blade. Hold the blade (14) and
unscrew the blade bolt (13) anticlockwise
using a spanner wrench. Remove blade and
attach a new one to the blade bolt.
Ensure that the blade is properly positioned as
seen in Fig.K1, then firmly tighten the bolt. Do
not over tighten.
Renew your metal blade after 50hrs mowing
or 2 years, which ever is the sooner-regardless
of condition.
If the blade is cracked or damaged
replace it with a new one.
STORAGE: (See L )
Stop the mower and unplug the tool.
Clean the exterior of the machine thoroughly
using a soft brush and cloth. Do not use water,
solvents or polishes. Remove all grass and
debris, especially from the ventilation slots.

14
Electric lawn mower EN
Turn the machine on its side and clean the
blade area. If grass cuttings are compacted
in the blade area, remove with a wooden or
plastic implement.
Store the machine in a dry place. Do not place
other objects on top of the machine.
To aid storage, release the handle cam lever,
and rotate or fold the upper handle.
You could carry the mover by carry handle
(10).
Ensure cables are not stuck or entangled when
folding or unfolding upper handles. do not
drop the handles.

15
Electric lawn mower EN
TROUBLE SHOOTING
Symptom Possible cause Remedy
Machine fails to
operate
Power turned off
Mains socket faulty
Extension cable damaged
Fuse faulty/blown
Mower in long grass
Motor protector has
activated
Turn power on
Use another socket
Inspect cable, replace if damaged
Replace fuse
Increase height of cut and tilt mower
Release the switch lever, Clear any
obstruction, increase height of cut,
then restart it
Machine functions
intermittently
Extension cable damaged
Machines internal wiring
damaged
Motor protector has
activated
Inspect cable, replace if damaged
Contact Service Agent
Release the switch lever, Clear any
obstruction, increase height of cut,
then restart it
Machine leaves
ragged
Finish or motor
labours
Height of cut too low
Cutting blade blunt
Underside of machine badly
clogged
Blade fitted upside down
Increase height of cut (see
“ADJUSTING THE CUTTING
HEIGHT ”)
Replace blade
(see “Blade Maintenance”)
Clean machine (see “Storage”)
Refit blade correctly (see “Blade
Maintenance”)
Cutting blade not
rotating
while machine
switched on
Cutting blade obstructed
Blade nut/bolt loose
Clear obstruction
Tighten blade nut/bolt
Excessive vibration/
noise
Blade nut/bolt loose
Cutting blade damaged
Tighten blade nut/bolt
Replace blade
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.

16
Electric lawn mower EN
PLUG REPLACEMENT
(UK & IRELAND ONLY)
If you need to replace the fitted plug then
follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in
accordance with the following code:
Blue – Neutral
Brown – Live
As the colors of the wires in the mains lead of
this appliance may not correspond with the
coloured markings identifying the terminals
in your plug, proceed as follows.The wire
which is coloured blue must be connected to
the terminal which is marked with N.The wire
which is coloured brown must be connected to
the terminal which is marked with L.
WARNING: Never connect live or neutral
wires to the earth terminal of the plug. Only
fit an approved 13A BS1363/A plug and the
correct rated fuse.
NOTE:If a moulded plug is fitted and has to
be removed take great care in disposing of the
plug and severed cable, it must be destroyed
to prevent engaging into a socket.
Connect
Blue to N
(neutral)
Outer sleeve
firmly clamped
Cable grip
Brown L (live)
13 Amp fuse approved
to BS1362
EC DECLARATION OF
CONFORMITY
We,
POSITEC Germany GmbH
Neuer Höltigbaum 6
22143 Hamburg
Declare that the product,
Description WORX Electric lawn mover
Type WG708E
Function Mowing grass
Complies with the following Directives,
EC Machinery Directive 2006/42/EC
EC Low Voltage Directive 2006/95/EC
EC Electromagnetic Compatibility Directive
2004/108/EC
Noise Emission in the Environment by
Equipment for Use Outdoors Directive
2000/14/EC amended by 2005/88/EC
Conformity assessment procedure as per
Annex VI.
Measured Sound Power Level
94.8dB(A) TURBO mode
84.1dB(A) QUIET mode
Declared Guaranteed Sound Power Level
96dB(A)
The notified body involved
Name: Intertek Testing & Certification Ltd
Address: Davy Avenue, Knowlhill, Milton
Keynes, MK5 8NL
Standards conform to,
EN 60335-1 EN 60335-2-77
EN 62233 EN ISO 3744
EN 55014-1 EN 55014-2
EN 61000-3-2 EN 61000-3-3
The person authorized to compile the technical
file,
Name Russell Nicholson
Address Positec Powertools (Europe) LTD
Pinewood, Chineham Business Park,
Basingstoke, Hampshire, RG24 8AL,
United Kingdom
2010/10/28
Jacky Zhou
POSITEC Quality Manager

17
Rasenmäher D
1. SCHALTBÜGEL
2. KABELKLEMMEN
3. GRASBEHÄLTERFÜLLSTANDANZEIGE
4. GRASBEHÄLTER
5. SICHERHEITSKNOPF
6. GRIFFOBERTEIL
7. HALTENOCKEN-HEBEL
8. GRIFFUNTERTEIL
9. SICHERHEITSKLAPPE
10. TRAGEGRIFF
11. MOTORABDECKUNG
12. MULCH-EINSATZ (Siehe G)
13. MESSERSCHRAUBE (Siehe K1)
14. MESSER (Siehe K1)
15. BETRIEBSMODUSWÄHLER (Siehe I)
* Abgebildetes oder beschriebenes Zubehör gehört teilweise nicht zum
Lieferumfang.

18
Rasenmäher D
TECHNISCHE DATEN
Nennspannung 220-240V~50Hz
Nennleistung 1600W
Schnittbreite 40cm
Schnitthöhe 20-70mm
Schneidehöhen-Positionen 6
Grasfangkorb 50L
Schutzisolation /II
Gewicht 14.5kg
LÄRMPEGEL UND VIBRATIONEN
Gewichteter Schalldruck LPA: 82.4dB(A) Turbomodus KPA: 3dB(A)
LWA: 72.8dB(A) Leiser Modus KPA: 3dB(A)
Gewichtete Schallleistung LWA: 96dB(A)
Tragen Sie bei einem Schalldruck über einen
Gehörschutz
80dB(A)
Typischer gewichteter Vibrationswert
3.16m/s2Turbomodus
2.05m/s2Leiser Modus
K=1.5m/s2
ZUBEHÖRTEILE
Schraubenschlüssel 1
Grasbehälter 1
Mulch-Einsatz 1
Haltenocken-Hebel 2
Kabelklemmen 2
Wir empfehlen Ihnen, sämtliche Zubehörteile beim selben Fachhändler zu beziehen, bei dem
Sie auch Ihr Elektrowerkzeug gekauft haben. Verwenden Sie nur hochwertige Zubehörteile von
namhaften Herstellern. Weitere Informationen finden Sie auf derVerpackung der Zubehörteile.
Auch Ihr Fachhändler berät Sie gerne.

19
Rasenmäher D
ALLGEMEINE
SICHERHEITSHINWEISE
FÜR ELEKTROWERKZEUGE
WARNUNG: Lesen Sie alle
Sicherheitshinweise und
Anweisungen. Versäumnisse bei der
Einhaltung der Sicherheitshinweise und
Anweisungen können elektrischen Schlag,
Brand und/oder schwere Verletzungen
verursachen.
BEWAHREN SIE ALLE
SICHERHEITSHINWEISE UND
ANWEISUNGEN FÜR DIE ZUKUNFT AUF.
- Dieses Gerät ist nicht zur Verwendung
durch Personen (einschließlich Kindern)
vorgesehen, die über reduzierte körperliche
Eignung,Wahrnehmung oder geistige
Fähigkeiten, Mangel an Erfahrung und
Wissen verfügen, sofern diese Personen
nicht von einer verantwortlichen Person
beaufsichtigt oder in der Verwendung des
Gerätes unterwiesen wurden.
- Kinder sollten grundsätzlich beaufsichtigt
werden, damit sie nicht mit dem Gerät
spielen.
Lassen Sie ein beschädigtes Netzkabel
vom Hersteller, von einem Fachhändler
oder von einer ähnlich qualifizierten Person
austauschen, um eine Gefährdung zu
vermeiden.
TRAINING
a) Die Anweisungen aufmerksam durchlesen.
Machen Sie sich mit den Bedienelementen
und dem vorschriftsmäßigen Gebrauch des
Rasenmähers vertraut.
b) Niemals Kindern oder mit diesen
Anweisungen nicht vertrauten Personen
erlauben, den Rasenmäher zu benutzen.
Nationale Vorschriften können das Alter
der Bedienperson möglicherweise
beschränken.
c) Niemals mähen, während sich Personen,
insbesondere Kinder, oderTiere in
unmittelbarer Nähe aufhalten.
d) Die Bedienperson bzw. der Benutzer ist
für Unfälle oder Schäden an anderen
Menschen oder deren Eigentum
verantwortlich.
VORBEREITUNG
a) Ragen Sie beim Mähen stets festes
Schuhwerk und eine lange Hose. Den
Rasenmäher nicht barfuß oder mit offenen
Sandalen benutzen;
b) Tragen Sie beim Mähen stets festes
Schuhwerk und eine lange Hose. Den
Rasenmäher nicht barfuß oder mit offenen
Sandalen benutzen;
c) Vor der Benutzung immer durch
Augenschein prüfen, ob Messer,
Messerschrauben und Schneidbalken
abgenutzt oder beschädigt sind.
Abgenutzte Messer und Schrauben nur im
ganzen Satz auswechseln, um Unwuchten
zu vermeiden;
BETRIEB
a) Nur beiTageslicht oder gutem künstlichen
Licht mähen;
b) Nach Möglichkeit nicht in nassem Gras
arbeiten;
c) Auf schrägen Flächen stets auf sicherenTritt
achten;
d) gehen Sie, laufen Sie nicht;
e) Mähen Sie bei Rotormaschinen mit Rädern
Abhänge niemals auf hinaus oder hinab,
sondern immer seitlich am Hang entlang;
f) Beim Richtungswechsel an Abhängen
äußerst vorsichtig sein;
g) Keine besonders steilen Abhänge mähen;
h) Beim Rückwärtsgehen oder Ziehen des
Rasenmähers äußerst vorsichtig sein;
i) Die Messer müssen stehen, wenn der
Rasenmäher für denTransport gekippt
werden muss, wenn nicht mit Gras
bepflanzte Flächen überquert werden
und beimTransport vom und zu dem zu
mähenden Bereich;
j) Den Rasenmäher auf keinen Fall mit
defekten Schutzvorrichtungen oder
Schutzblechen, oder ohne ordnungsgemäß
montierte Sicherheitseinrichtungen
wie z. B. Prallbleche und/oder
Grasfangvorrichtung betreiben;
k) Den Motor wie in den Anweisungen
beschrieben starten und dabei darauf
achten, dass die Füße ausreichend weit von

20
Rasenmäher D
den Messern entfernt sind;
l) Den Rasenmäher beim Starten des Motors
nicht kippen, es sei denn, es ist für das
Anlaufen erforderlich. In diesem Fall nur
so weit wie nötig und nur auf der Bediener
abgewandten Seite kippen;
m)Hände und Füße nicht in die Nähe
oder unter rotierendeTeile bringen. Bei
Rotormäher die Austragsöffnung unbedingt
freihalten;
n) Niemals den Rasenmäher bei laufendem
Motor anheben oder tragen;
o) Ziehen Sie den Stecker aus der Steckdose:
- Ehe Sie eine Blockierung beseitigen;
- Vor Wartungs-, Reinigungs- oder sonstigen
Arbeiten an der Maschine;
- Nach der Kollision mit einem Fremdkörper.
Den Rasenmäher auf Beschädigungen
untersuchen und wenn notwendig instand
setzen lassen;
- Falls der Rasenmäher plötzlich
ungewöhnlich stark zu vibrieren beginnt
(sofort prüfen);
p) Stoppen Sie die Maschine immer
- Wenn Sie die Maschine verlassen
q) Wählen Sie eine langsame
Geschwindigkeit, wenn Sie einen
nachlaufenden Sitz benutzen.
WARTUNG UND AUFBEWAHRUNG
a) Den Festsitz aller Schrauben, Muttern und
Bolzen sicherstellen, um zu gewährleisten,
dass sich der Rasenmäher in einem
betriebssicheren Zustand befindet ;
b) Den Grasfangkorb regelmäßig auf
Abnutzung überprüfen;
c) Abgenutzte oder beschädigteTeile
sicherheitshalber auswechseln;
WARNUNG
- Benutzen sie den Rasenmäher nicht, wenn
Kabel beschädigt der abgenutzt sind.
- Stecken Sie beschädigte Kabel nicht in die
Steckdose und berühren Sie beschädigte
Kabel nicht, bevor es von der Steckdose
getrennt wurde. Ein beschädigtes Kabel
kann zu einem Kontakt mit stromführenden
Teilen führen.
- Berühren Sie nicht die Schneidblätter,
bevor die Maschine von der
Stromversorgung getrennt wurde und die
Schneidblätter vollständig ruhen.
- Halten Sie Verlängerungskabel immer
von den Schneidblättern entfernt. Die
Schneidblätter können Kabel beschädigen
und einen Kontakt mit stromführenden
Teilen hervorrufen.
- Unterbrechen Sie die Stromversorgung
(indem Sie z.B. den Stecker aus der
Steckdose ziehen)
- Sie die Maschine unbeaufsichtigt lassen,
- Sie ein Hindernis wegräumen,
- Sie die Maschine überprüfen, säubern oder
an der Maschine arbeiten,
- Nach dem Zusammenstoß mit einem
unbekannten Objekt,
- wenn die Maschine ungewöhnlich stark
vibiriert.
- Lesen Sie die Gebrauchsanweisung,
um den sicheren Betrieb des Geräts zu
gewährleisten;
- Empfehlungen:
- Schließen Sie die Maschine nur an einen
Stromkreis, der mit einem Fehlerstrom-
Schutzschalter ausgestattet ist, und dessen
Auslösestrom nicht mehr als 30mA beträgt.
