Worx WG776E.9 Installation manual

Cordless lawn mower WG776E WG776E.9
SAFETY AND OPERATING MANUAL

2
Cordless lawn mower WG776E WG776E.9
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING Read all safety warnings
and all instructions. Failure to follow
the warnings and instructions may result in
electric shock, fire and/or serious injury.
Carefully read the instructions for the safe
operation of the machine.
Save all warnings and instructions for
future reference.
- This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
- Children should be supervised to ensure
that they do not play with the appliance.
TRAINING
a) Read the instructions carefully. Be familiar
with the controls and the proper use of the
equipment;
b) Never allow children or people unfamiliar
with these instructions to use the
lawnmower. Local regulations can restrict
the age of the operator;
c) Never mow while people, especially
children, or pets are nearby;
d) Keep in mind that the operator or user
is responsible for accidents or hazards
occurring to other people or their property
PREPARATION
a) While mowing, always wear substantial
footwear and long trousers. Do not operate
the equipment when barefoot or wearing
open sandals;
b) Thoroughly inspect the area where the
equipment is to be used and remove
all objects which can be thrown by the
machine;
c) Before using, always visually inspect to
see that the blades, blade bolts and cutter
assembly are not worn or damaged.
Replace worn or damaged blades and bolts
in sets to preserve balance;
d) On multi-bladed machines, take care as
rotating one blade can cause other blades
to rotate.
OPERATION
a) Mow only in daylight or in good artificial
light;
b) Avoid operating the equipment in wet
grass, where feasible;
c) Always be sure of your footing on slopes;
d) Walk, never run;
e) For wheeled rotary machines, mow across
the face of slopes, never up and down;
f) Exercise extreme caution when changing
direction on slopes;
g) Do not mow excessively steep slopes;
h) Use extreme caution when reversing or
pulling the lawnmower towards you;
i) Stop the blade(s) if the lawnmower has to
be tilted for transportation when crossing
surfaces other than grass, and when
transporting the lawnmower to and from
the area to be mowed;
j) Never operate the lawnmower with
defective guards, or without safety devices,
for example deflectors and/or grass
catchers, in place;
k) Switch on the motor carefully according to
instructions and with feet well away from
the blade(s);
l) Do not tilt the lawnmower when switching
on the motor, except if the lawnmower has
to be tilted for starting In this case, do not
tilt it more than absolutely necessary and
lift only the part which is away from the
operator;
m) Do not put hands or feet near or under
rotating parts. Keep clear of the discharge
opening at all times;
n) Not to touch the blades before the
disabling device has been removed and the
blades have come to a complete stop;
o) To remove the disabling device
– Whenever leaving the machine unattended,
– Before clearing a blockage,
– Before checking, cleaning or working on
the machine,
– After striking a foreign object,
– Whenever the machine starts vibrating
abnormally.

3
Cordless lawn mower WG776E WG776E.9
MAINTENANCE AND STORAGE
a) Keep all nuts, bolts and screws tight to
be sure the equipment is in safe working
condition;
b) Check the grass catcher frequently for wear
or deterioration;
c) Replace worn or damaged parts for safety;
SYMBOLS
Read instruction handbook before
operation this machine
Keep bystanders away
Beware of sharp blades. Blades
continue to rotate after the motor
is switched off- Remove disabling
device before maintenance
RCM approval mark

4
Cordless lawn mower WG776E WG776E.9
16
7
8
9
10
11
12
13
2
3
4
5

5
Cordless lawn mower WG776E WG776E.9
1. SWITCH LEVER
2. CABLE CLIP
3 GRASS BAG FILLING INDICATOR
4. GRASS COLLECTION BAG
5. WORK MODE DIAL
6. SAFETY KEY
7. UPPER HANDLE
8. HANDLE KNOB, UPPER
9. MIDDLE HANDLE
10. SAFETY FLAP
11. HANDLE KNOB, LOWER
12. LOWER HANDLE
13. BATTERY PACK*
14. BLADE BOLT (See Fig. M1)
15. BLADE (See Fig. M1)
* Not all the accessories illustrated or described are included in standard delivery.

6
Cordless lawn mower WG776E WG776E.9
TECHNICAL DATA
Voltage 40V Max*
Cutting diameter
33cm
Cutting height 20-60mm
Cutting height positions 5
Grass collection capacity 30L
Battery capacity 2Ah
Battery type Lithium-Ion
Battery model WA3536
Charging time 1hr
Charger model WA3735
Charger rating Input AC 100-240V, 50/60Hz
Output 40Vdc, 2.0A
Machine weight 12Kg
*Voltage measured without workload. Initial battery voltage reaches maximum of 40
volts. Nominal voltage is 36 volts.
ACCESSORY
WG776E WG776E.9
Battery pack 1 /
Charger 1 /
Grass collection bag 1 1
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according
to the work you intend to undertake. Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.
INTENDED USE
This product is intended for domestic lawn mowing.

7
Cordless lawn mower WG776E WG776E.9
ASSEMBLY
IMPORTANT! Before you assemble the
lawn mower, check the accessories according
above information, make sure the accessories are
completed.

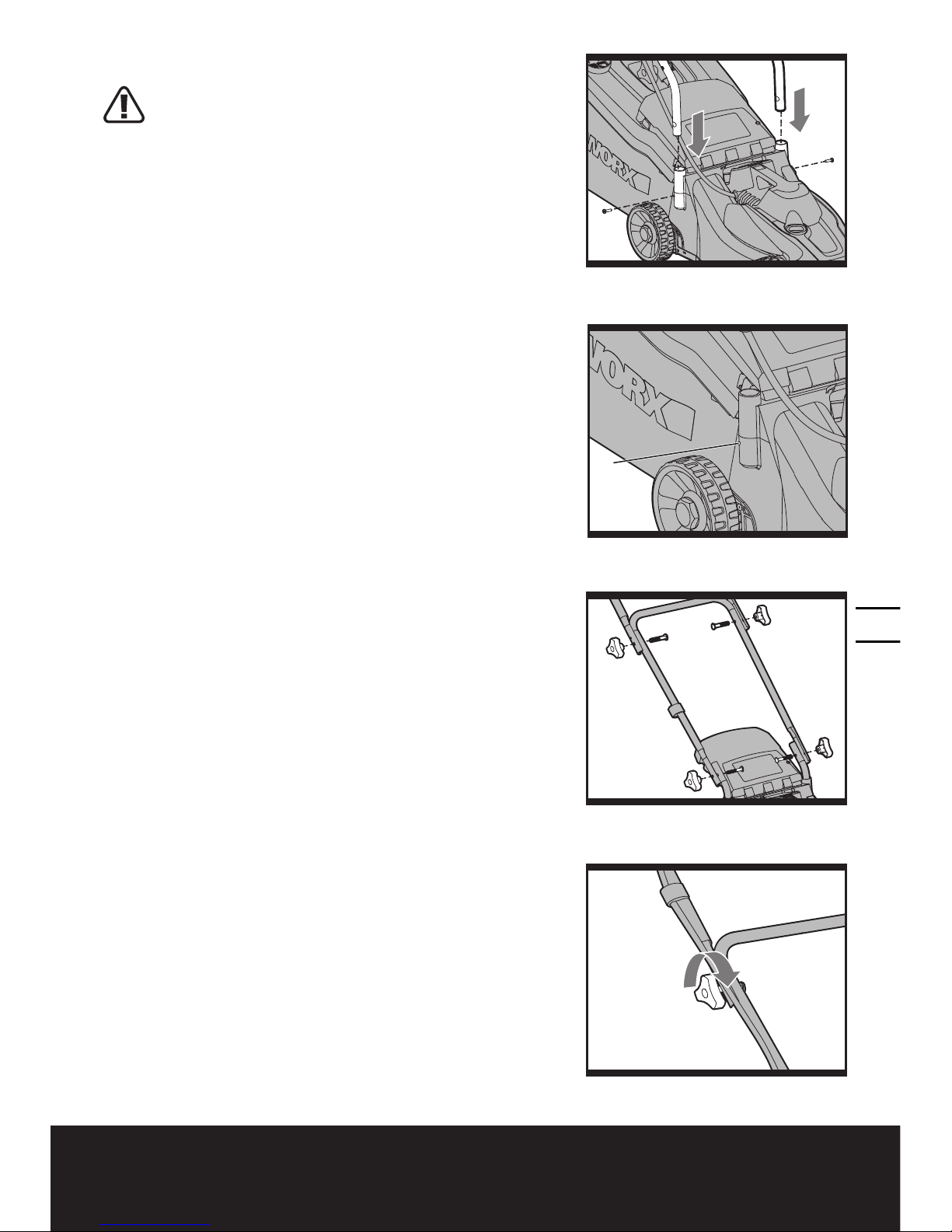

1. FITTING THE HANDLE (see Fig.A1- A5)
1) Remove the screws (a) on the both side of deck.
(see Fig A1)
2) Insert the Lower Handle Bar into the holes on the
deck. Be sure to carefully align the screw holes
found on the Lower Handles with the screws holes
found on the deck (a). (See Fig. A1 A2)
3) Secure the Lower Handle Bars to the deck with the
screws provided (See fig A2) .
4) Attach the Middle Handle (9) to the Lower Handle
with the Handle Knobs Assembly (8). After this
is complete, attach the Upper Handle (1) to the
Middle Handle with the upper Handle Knobs
Assembly (7) (See Fig. A3).
5) Tightening the two Handle Knobs. Check that the
handle is FULLY secured.
The cam lever pressure can be adjusted by rotating
the upper or the lower Handle Knobs clockwise/
counterclockwise (See Fig. A4). DO NOT OVER
TIGHTEN.
NOTE: Ensure that the bolts are fully inserted through
the handles before adjusting or tightening the Handle
Knobs.
A1
A5 B4
a
A2
Front Part
Back Part
B1
1
2
C1
A3
1
2
3
B2
b
C2
A4
B3 C3

8
Cordless lawn mower WG776E WG776E.9
6) First, insert the cable into the Cable Clips (3)
provided ensuring there is enough slack cable to
allow the handlebars to collapse for storage. After
inserting the cable, attach the Cable Clips to the
Upper and Middle Handle bars (See Fig. A5).
NOTE: Make sure the cable is routed underneath the
Middle Handle Bar (See Fig.A5) .

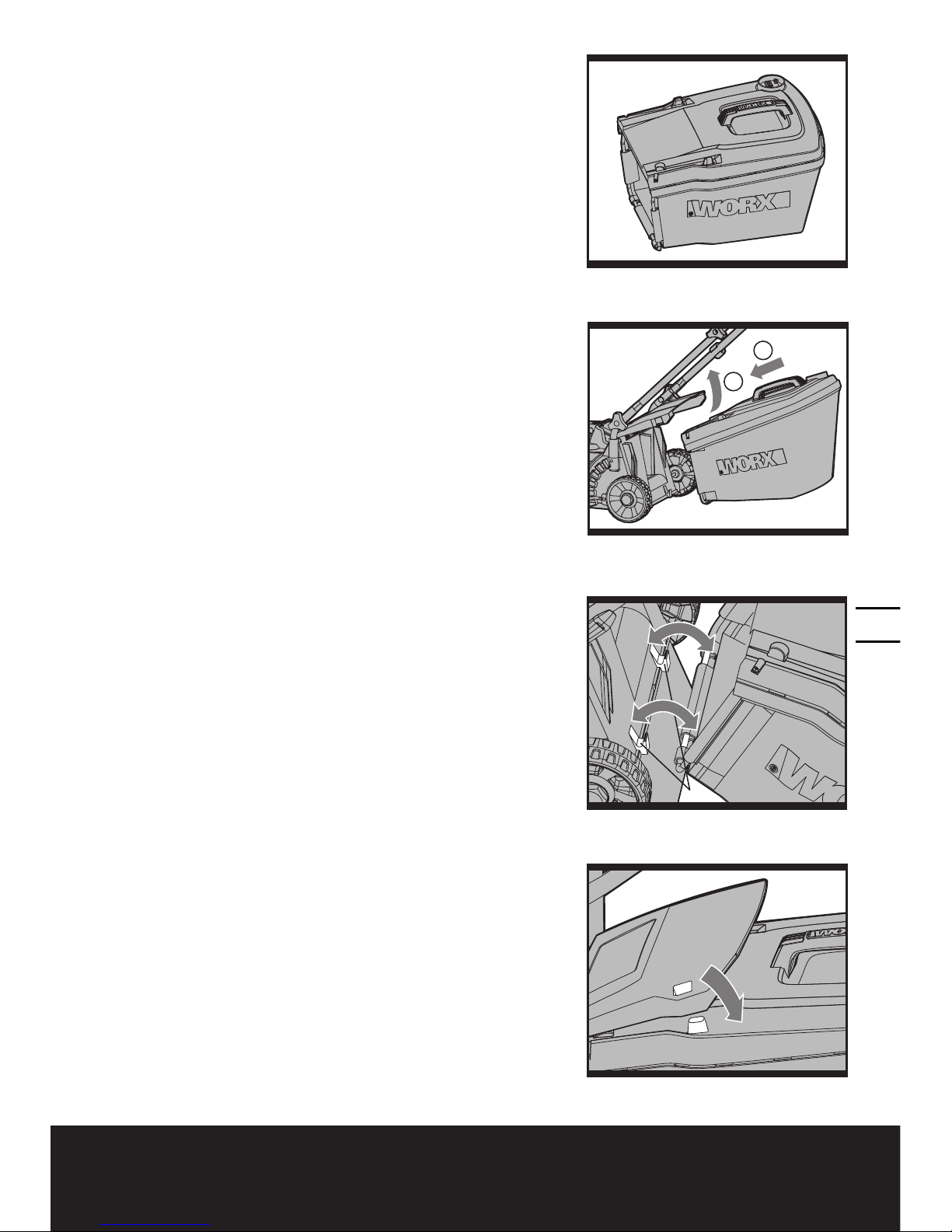

2. GRASS COLLECTION BAG ASSEMBLY
Connect the grass box handle to the box top as shown
in F ig B1-B4.
Step 1. Press the front of the handle briefly. (See Fig. B2)
Step 2. Then push it forward. (See Fig. B2)
Step 3. Push down the back of the handle. (See Fig. B2)
Step 4. Finally, clip the plastic clips over the metal
frame. (See Fig. B3)
WARNING:Don’t fit the handle in reversed
direction. Fit the handle as shown in Fig B1.
A1
A5
B4
a
A2
Front Part
Back Part
B1
1
2
C1
A3
1
2
3
B2
b
C2
A4
B3
C3

9
Cordless lawn mower WG776E WG776E.9
3. GRASS COLLECTION BAG FITTING (See Fig
C1, C2, C3)
1) Turn the mower off, wait until blade stops and
remove safety key (6).
2) Pick up the grass collection bag by the handle, and
position grass collection bag on the lower hooks
(b) on the mower deck (See Fig.C2).
3) Release the safety guard to lock the grass bag
into position. Ensure the grass collection bag is
installed securely (See Fig. C3).
NOTE: Depress the grass collection bag slightly to
ensure that it is completely installed.
A1 A5
B4
a
A2
Front Part
Back Part
B1
1
2
C1
A3
1
2
3
B2
b
C2
A4 B3
C3

10
Cordless lawn mower WG776E WG776E.9
4. REMOVING/EMPTYING
Hold the grass collection bag, lift the safety flap (10)
and hold up. Remove grass collection bag (4).
WARNING! Always check the safety flap can
close the discharge outlet tightly before using.
Never lift the safety flap (10) when the lawn mower is
being used without fitted grass collection bag.
5. FITTING/REMOVING BATTERY (See Fig. D1,
D2)
Depress the battery release button to release battery
pack from your mower (See Fig.D1). After recharging,
insert the battery pack into mower’s battery port (See
Fig.D2). A simple push and slight pressure will be
sufficient.
NOTE: When removing the battery pack, hold it firmly
to avoid dropping and injury.
OPERATION
1. STARTING AND STOPPING (See Fig E1, E2)
WARNING! The blade continues to rotate for
a few seconds after the machine is switched
off. Allow the motor/blade to stop rotating before
switching “on” again. Do not rapidly switch off and on.
STARTING
1) Insert safety key into the housing of the switch box.
2) Slide the key to the right and hold in position.
3) Pull the lever bar towards the handle and the
mower will start.
4) Release the safety key.
STOPPING
Release the switch lever.
1
2
E2
a
b
I
14
15
M1
D1
F J M2
D2
G
K-1
K-2
K-3
KN1
1
E1
1
2
3
4
5
H
L-1
L-2
L-3
LN2

11
Cordless lawn mower WG776E WG776E.9

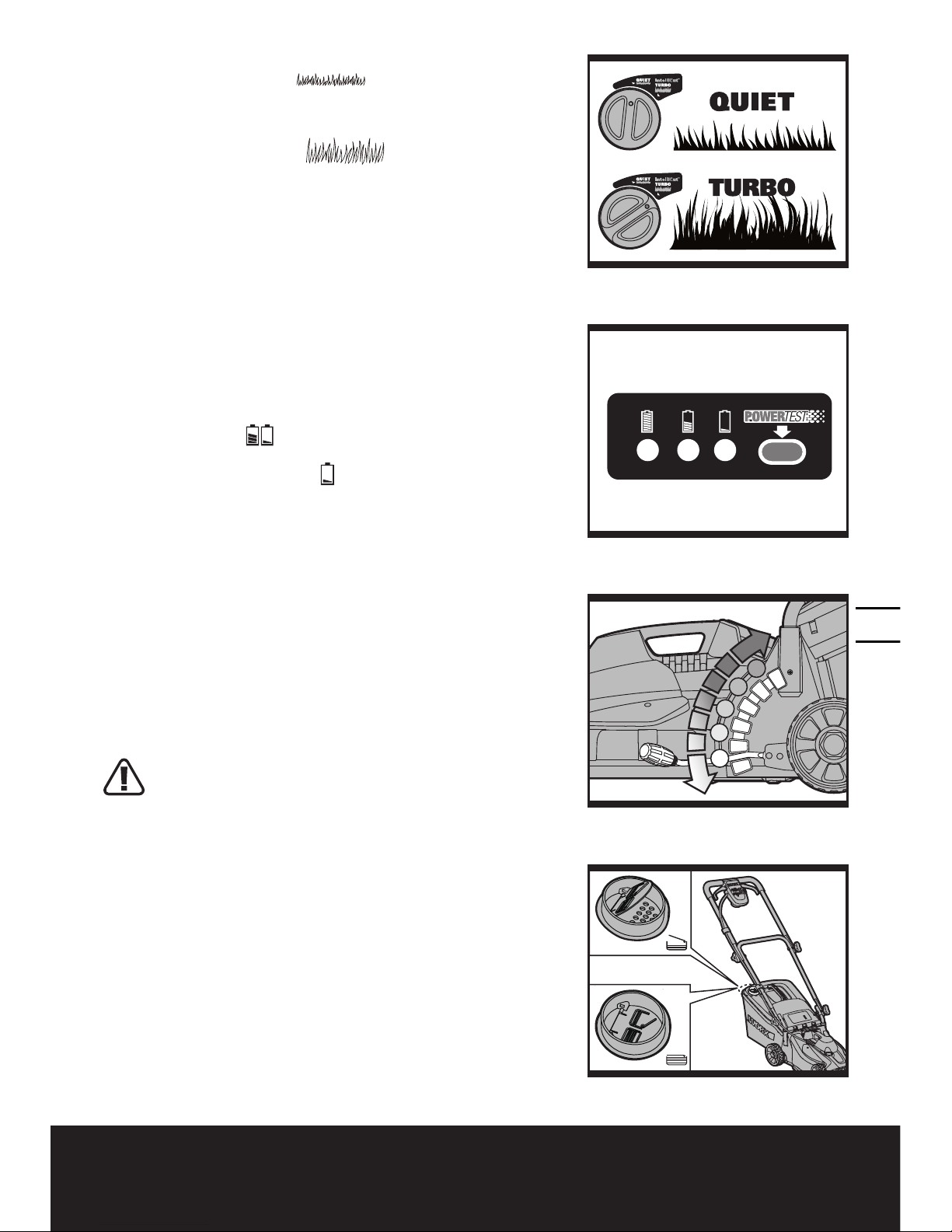

2. WORK MODE DIAL (See Fig. F)
Status1: QUIET mode
Select QUIET mode when mowing in everyday
conditions, removing approximately 20mm of grass
at a time.
Status2: TURBO mode
Set the dial to TURBO mode when cutting dense or
overgrown grass.
3. BATTERY STATUS LED’S (See Fig. G)
NOTE: The Status LED’s will indicate the
battery condition when the button on the
battery is pressed.
The LED’s constantly senses and displays the battery
condition as follows:
Press the button “POWERTEST”, the light button is
illuminated.
When the three green lights are illuminated, the
battery is in a highly charged condition.
When two lights ( ) are illuminated, the battery is
in a moderately charged condition.
When only one green light ( ) is illuminated, the
battery charge is depleted.
Before using your new mower for the first time, it is
recommended that the unit be charged overnight to
ensure that the battery is fully charged.
IMPORTANT
When only one light is illuminated, your
battery is overly discharged, even though
the mower may still be capable of cutting
grass. Continuing to operate your lawnmower
with the battery in this discharged condition
may reduce the life and performance of your
battery.
4. ADJUSTING THE CUTTING HEIGHT (See Fig. H)
WARNING! Stop, release switch lever and wait
until the motor stops before adjusting height.
The blades continue to rotate after the machine is
switched off, a rotating blade can cause injury.
CAUTION: Do not touch rotating blades.
For the first cutting of the season, a high cutting
adjustment should be selected. The lawnmower can
be set to 5 cutting heights between 20mm and 60mm.
For this purpose, move the cutting height adjustment
lever outwards then adjust to the preferred position..

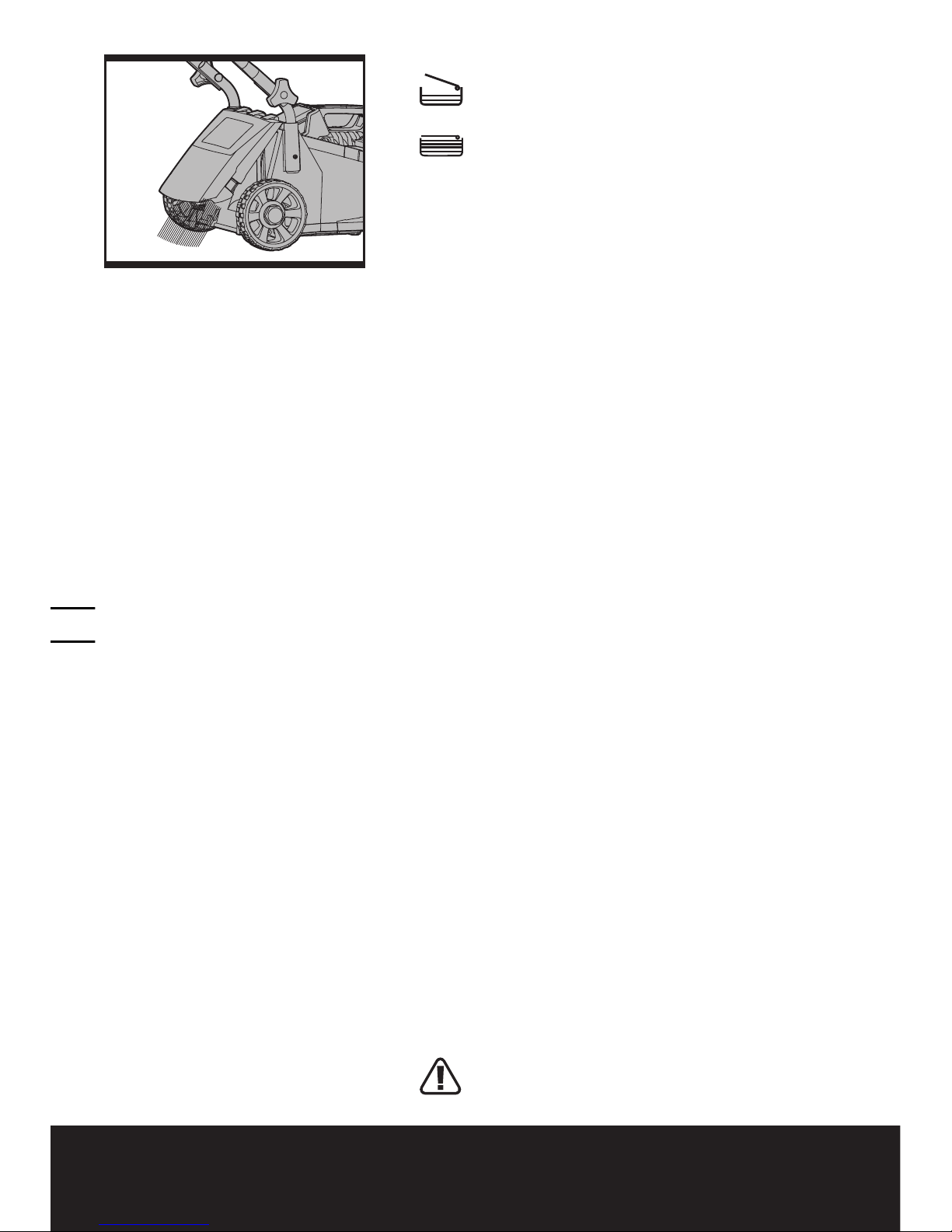

5. GRASS BAG FILLING INDICATOR (See Fig. I)
To remind you immediately to empty when the grass
collection bag is full, the mower provides an indicator
on the top of bag to show the collection status. And
you can follow as below:
1
2
E2
a
b
I
14
15
M1
D1
F
JM2
D2
G
K-1
K-2
K-3
KN1
1
E1
1
2
3
4
5
H
L-1
L-2
L-3
LN2

12
Cordless lawn mower WG776E WG776E.9
Empty status: flap floats (a)
Fully status: flap falls down (b)
6. REAR DISCHARGE (See Fig. J)
The mower provides a rear discharge function, so that
you can mower without bag collection. The debris will
be discharged from the rear chute.
7. MOWING TIPS
NOTE: ALWAYS INSPECT AREA WHERE MOWER
IS TO BE USED AND REMOVE ALL STONES,
STICKS, WIRE, METAL AND OTHER DEBRIS
WHICH MIGHT BE THROWN BY THE ROTATING
BLADE.
1. Mow across the face of slopes, never up-and-
down. Exercise extreme caution when changing
direction on slopes. Do not mow excessively steep
slopes. Always maintain good footing.
2. Release switch lever to turn mower “OFF” when
crossing any graveled area (stones can be thrown
by the blade).
3. Set mower at highest cutting height when mowing
in rough ground or in tall weeds. Removing too
much grass at one time can cause circuit breaker to
trip, which stops mower.
4. If a grass bag is used during the fast growing
season, the grass may tend to clog up at the
discharge opening. Release switch lever to turn
mower “OFF” and remove the safety key. Remove
the grass bag and shake the grass down to the
back end of the bag. Also clean out any grass or
debris which may be packed around the discharge
opening. Replace the grass collection bag.
5. If mower should start to vibrate abnormally,
release switch lever to turn mower “OFF” and
remove safety key. Check immediately for cause.
Vibration is a warning of trouble. Do not operate
mower until a service check has been made.
6. ALWAYS RELEASE SWITCH LEVER TO TURN
MOWER “OFF” AND REMOVE SAFETY KEY WHEN
LEAVING IT UNATTENDED EVEN FOR A SHORT
PERIOD OF TIME.
MAINTENANCE
WARNING: Stop the mower and remove the
safety key before removing the grass bag.
1
2
E2
a
b
I
14
15
M1
D1 F J M2
D2 G
K-1
K-2
K-3
KN1
1
E1
1
2
3
4
5
H
L-1
L-2
L-3
LN2

13
Cordless lawn mower WG776E WG776E.9
NOTE: To ensure long and reliable service, perform
the following maintenance procedures regularly.
Check for obvious defects such as a loose, dislodged
or a damaged blade, loose fittings, and worn or
damaged components. Check that the covers and
guards are all undamaged and are correctly attached
to mower. Carry out any necessary maintenance or
repairs before operating mower. If the mower should
happen to fail despite regular maintenance, please
call our customer helpline for advice.
BLADE SHARPENING
KEEP BLADE SHARP FOR BEST MOWER
PERFORMANCE.
WEAR PROPER EYE PROTECTION WHILE REMOVING,
SHARPENING, AND INSTALLING BLADE. ENSURE
THAT SAFETY KEY IS REMOVED.
Sharpening the blade twice during a mowing season
is usually sufficient under normal circumstances.
Sand causes the blade to dull quickly. If your lawn
has sandy soil, more frequent sharpening may be
required.
REPLACE BENT OR DAMAGED BLADE IMMEDIATELY.
WHEN SHARPENING THE BLADE:
1. Make sure blade remains balanced.
2. Sharpen blade at the original cutting angle.
3. Sharpen cutting edges on both ends of blade,
removing equal amounts of material from both
ends.

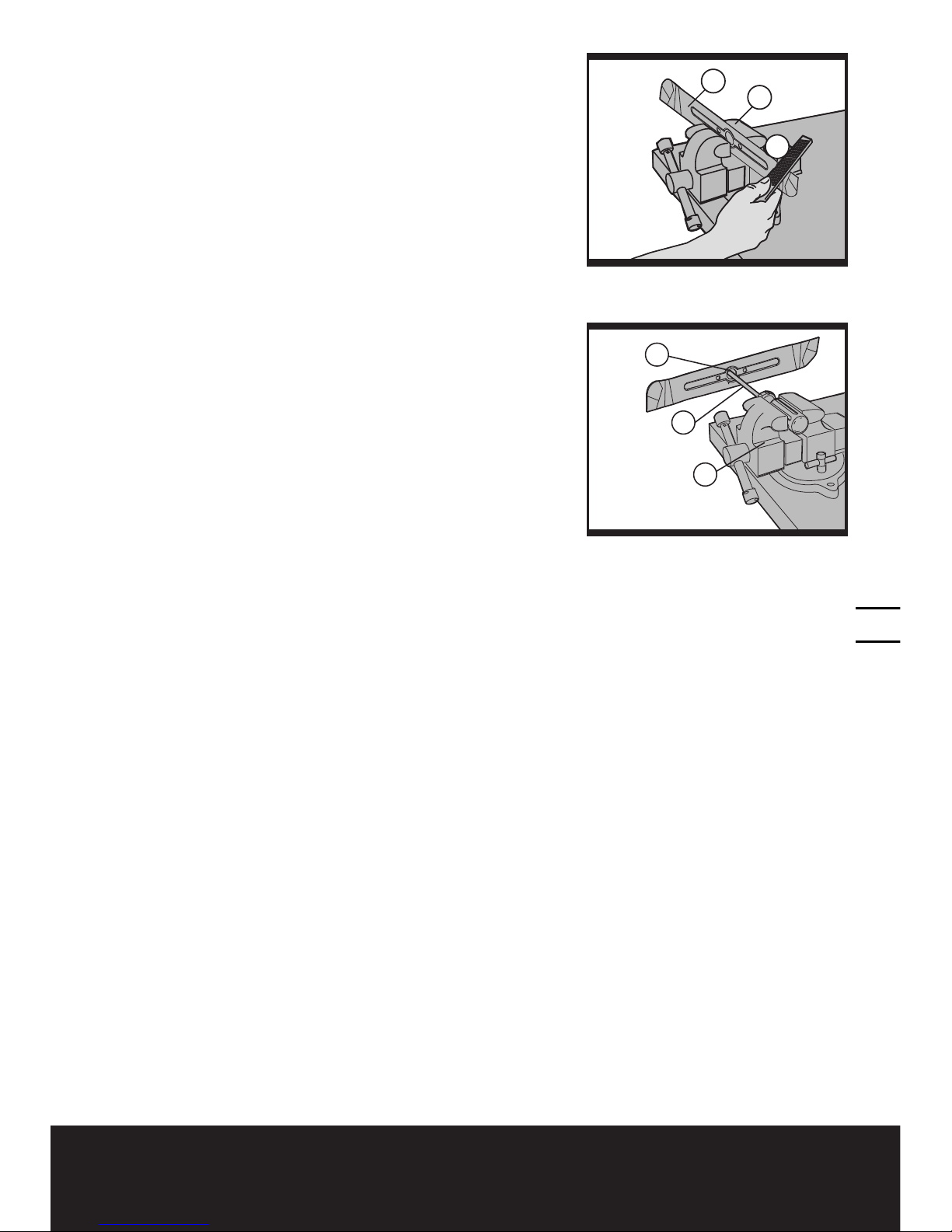

TO SHARPEN BLADE IN A VISE (See Fig. K)
1. Be sure the switch lever is released, the blade
has stopped and the safety key removed before
removing the blade.
2. Remove blade from mower. See instructions for
removing and attaching blade.
3. Secure blade K-1 in a vise K-2.
4. Wear safety glasses and be careful not to cut
yourself.
5. Carefully file the cutting edges of the blade with a
fine tooth file K-3 or sharpening stone.
6. Check balance of blade. See instructions for blade
balancing.
7. Replace blade on mower and tighten securely.
Refer to instructions below.
BLADE BALANCING (See Fig. L)
Check balance of blade by placing center hole in blade
L-1 over a nail or screwdriver shank L -2, clamped
horizontally in a vise L-3. If either
end of the blade rotates downward, file that end.
Blade is properly balanced when neither end drops.
1
2
E2
a
b
I
14
15
M1
D1 F J M2
D2 G
K-1
K-2
K-3
K
N1
1
E1
1
2
3
4
5
H
L-1
L-2
L-3
L
N2

14
Cordless lawn mower WG776E WG776E.9

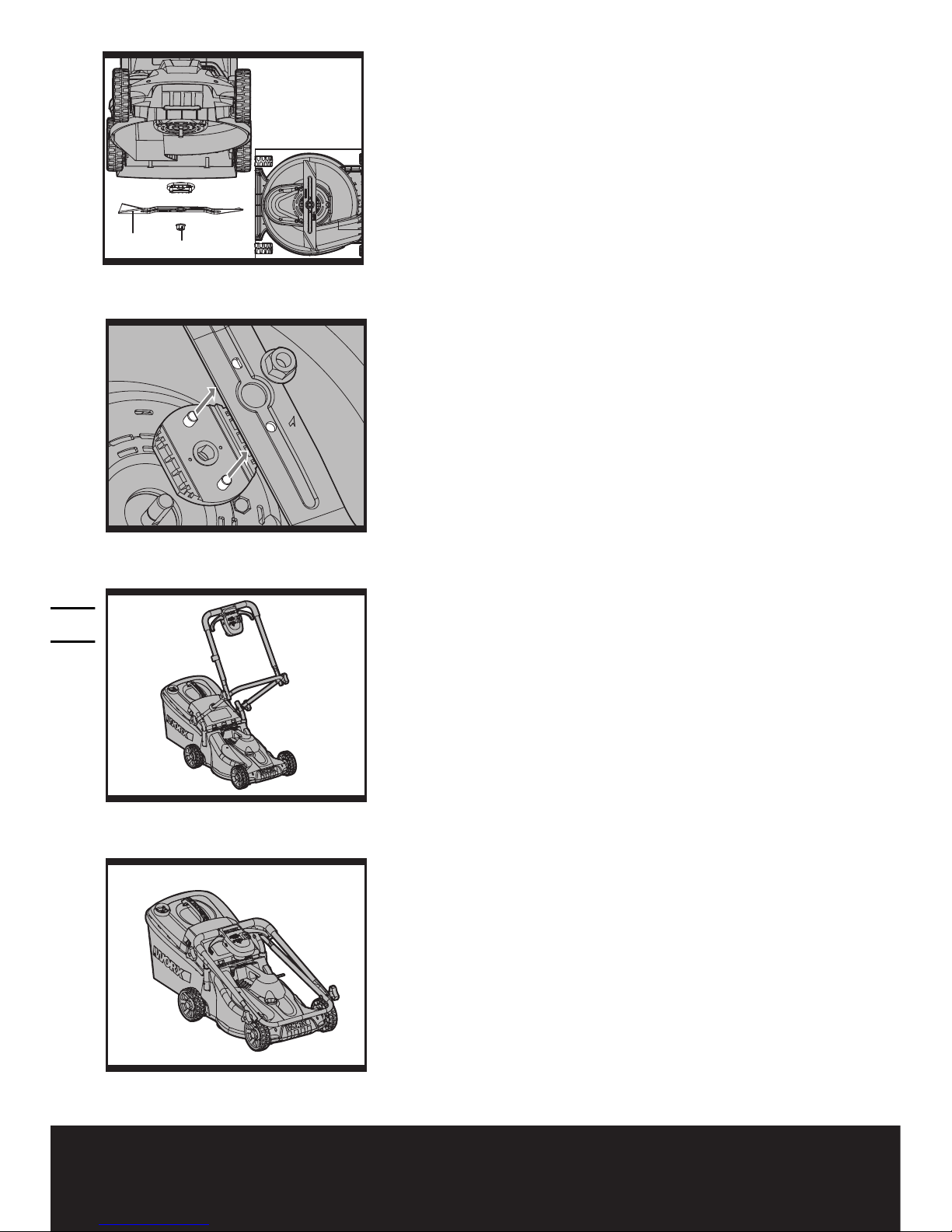

BLADE MAINTENANCE (See Fig. M1,M2)
Renew your metal blade after 50 hours mowing
or 2 years, which ever is the sooner-regardless of
condition.
Follow these procedures to remove and replace the
blade. You will need garden gloves (not provided) and
a spanner wrench (not provided) to remove the blade.
Hold the blade (15) and unscrew the blade bolt (14)
counter-clockwise using a spanner wrench, and then
remove blade.
To re-assemble, position the blade (15) with the
cutting edges towards the ground. Then securely
tighten the blade bolt (14).
STORAGE: (See Fig. N1N2 )
Stop the mower and always remove the safety key.
Clean the exterior of the machine thoroughly using
a soft brush and cloth. Do not use water, solvents or
polishes. Remove all grass and debris, especially from
the ventilation slots.
Turn the machine on its side and clean the blade area.
If grass cuttings are compacted in the blade area,
remove with a wooden or plastic implement.
Store the machine in a dry place. Do not place other
objects on top of the machine.
To aid storage, release the handle cam lever, and
rotate or fold the upper handle.
.
1
2
E2
a
b
I
14
15
M1
D1 F J M2
D2 G
K-1
K-2
K-3
KN1
1
E1
1
2
3
4
5
H
L-1
L-2
L-3
LN2
1
2
E2
a
b
I
14
15
M1
D1 F J
M2
D2 G
K-1
K-2
K-3
K
N1
1
E1
1
2
3
4
5
H
L-1
L-2
L-3
L
N2

Copyright © 2013, Positec. All Rights Reserved.
2CLM08BPK11001A0
