Worx WG927E User manual

User Manual of Product 1:
WORX WG927E Dual 20V Battery 34cm Cordless Lawn Mower
& 18V (20V MAX) Cordless Grass Trimmer

WG779E WG779E.1
WG779E.2 WG779E. 9
CordlessLawnMower
SchnurloserRasenmäher
T
ondeuseàgazonsansfil
T
osaerbasenzafili
Cortacéspedabatería
Snoerlozegraasmaaier
Bezprzewodowakosiarkadotrawników
Vezetékmentes fűnyíró
Maşină de tuns iarba fără fir
Bezdrátová travní sekačka
Akumulátorová kosačka na trávu
Corta-relva sem fios
Sladdlös gräsklippare
Brezžična kosilnica
P09
P19
P30
P40
P50
P61
P71
P82
P92
P102
P112
P122
P133
P142
EN
D
F
I
ES
NL
PL
HU
RO
CZ
SK
PT
SV
SL

Original instructions EN
Originalbetriebsanleitung D
Notice originale F
Istruzioni originali I
Manual original ES
Oorspronkelijke gebruiksaanwijzing NL
Instrukcja oryginalna PL
Eredeti használati utasítás HU
Instrucţiuni originale RO
Původní návod k používání CZ
Pôvodný návod na použitie SK
Manual original PT
Bruksanvisning i original SV
Izvirna navodila SL

2
3
4
5
14
11
10
9
7
8
13
12
6
1

Front Part
Back Part
1
2
A5 B1
A1 A2
A4
A3

1
3
1
2
2
C2 C3
B2 B3
C1
B4

100%
0%
15
12
FG1
C4 D1
D2 E

a
b
1——20mm
2——30mm
3——40mm
4——50mm
5——60mm
6——70mm
ECO
ECO
TURBO
ECO
TURBO
TURBO
2
1
1
1
2
2
3
4
56
I2
J
I1
HG2
K2
K

N-1
N-2
N-3
17 16
M-1
M-2
M-3
K2
L2
L
M
O1
N
O2
L
L1

9
Cordless Lawn Mower EN
*Not all the accessories illustrated or described are included in standard delivery.
1. SAFETY KEY
2. SWITCH LEVER
3. CABLE CLIP
4. UPPER HANDLE
5. LOWER HANDLE
6. BATTERY POWER INDICATOR
7. BATTERY PACK COVER
8. WORK MODE DIAL
9. CUTTING HEIGHT ADJUSTMENT KNOB
10. HANDLE BAR
11. HANDLE KNOB, LOWER
12. SAFETY FLAP
13. GRASS COLLECTION BAG
14. HANDLE KNOB, UPPER
15. BATTERY PACK*(SEE FIG. E)
16. BLADE BOLT (SEE FIG. O1)
17. BLADE (SEE FIG. O1)

10
Cordless Lawn Mower EN
TECHNICAL DATA
Type WG779E WG779E.1 WG779E.2 WG779E.9 (770-794 - designation of machinery, representative of
Cordless Lawn Mower)
WG779E WG779E.1 WG779E.2 WG779E.9
Rated voltage 20V Max**
No load speed 3300 / 3500/min
Cutting diameter 34cm
Cutting height 20-70mm
Cutting height positions 6
Grass collection capacity 30L
Battery capacity 2.5Ah 4.0Ah 2.0Ah /
Battery type Lithium-Ion /
Charging time(approx)
Battery pack:
2.0Ah (1pc) Approx. 1hr
/
2.0Ah (2pcs) Approx. 2hrs
2.5Ah (1pc) Approx. 1.25hrs
2.5Ah (2pcs) Approx. 2.5hrs
4.0Ah (1pc) Approx. 2hrs
4.0Ah (2pcs) Approx. 2hrs
Charger rating
Input: AC 100-
240V, 50/60Hz,
Output: 20V
DC, 2.0A
Input: AC 100-
240V, 50/60Hz,
Output: 20V
DC, 4.0A
Input: AC 100-
240V, 50/60Hz,
Output: 20V DC,
2.0A
/
Machine Weight 12.1kg 12.6kg 11.9kg 11.2kg
** V
oltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.
NOISE DATA
A weighted sound pressure LpA : xxdB (A)
KpA=3dB(A)
A weighted sound power LwA: xxdB (A)
Wear ear protection.

11
Cordless Lawn Mower EN
VIBRATION INFORMATION
Typical weighted vibration ah=xx m/s2
uncertainty K=1.5m/s²
WARNING:The vibration emission value during actual use of the power tool can differ from the
declared value depending on the ways in which the tool is used dependant on the following examples
and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained
Using the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also
take account of all parts of the operating cycle such as the times when the tool is switched off and when
it is running idle but not actually doing the job.This may significantly reduce the exposure level over the total
working period.
Helping to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate)
If the tool is to be used regularly then invest in anti vibration accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSORY
WG779E WG779E.1 WG779E.2 WG779E.9
Grass collection bag 1111
Cable clip 2222
Roller for stripe / / 1 /
Battery pack (WA3572) 2 / / /
Battery pack (WA3553) / 2 / /
Battery pack (WA3551) / / 2 /
Charger (WA3869) 1/1/
Charger (WA3876) / 1 / /
We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the
accessory packaging for further details. Store personnel can assist you and offer advice.

12
Cordless Lawn Mower EN
PRODUCT SAFETY
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING! Read all
safety warnings and all
instructions. Failure to follow
the warnings and instructions
may result in electric shock,
fire and/or serious injury.
Carefully read the
instructions for the safe
operation of the machine.
Save all warnings and
instructions for future
reference.
- This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities,
or lack of experience
and knowledge, unless
they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
- Children should be
supervised to ensure that
they do not play with the
appliance.
- The appliance is only to be
used with the power supply
unit provided with the
appliance.
IMPORTANT
READ CAREFULLY BEFORE
USE
KEEP FOR FUTURE
REFERENCE
Safe operation practices
TRAINING
a) Read the instructions
carefully. Be familiar with
the controls and the proper
use of the equipment;
b) Never allow children or
people unfamiliar with
these instructions to use
the lawnmower. Local
regulations can restrict the
age of the operator;
c) Never mow while people,
especially children, or pets
are nearby;
d) Keep in mind that the
operator or user is
responsible for accidents or
hazards occurring to other
people or their property.
PREPARATION
a) While mowing, always
wear substantial footwear
and long trousers. Do not
operate the equipment
when barefoot or wearing
open sandals;
b) thoroughly inspect the
area where the equipment
is to be used and remove
all objects which can be
thrown by the machine;
c) Before using, always
visually inspect to see that

13
Cordless Lawn Mower EN
the blades, blade bolts
and cutter assembly are
not worn or damaged.
Replace worn or damaged
blades and bolts in sets to
preserve balance;
d) On multi-bladed machines,
take care as rotating one
blade can cause other
blades to rotate.
OPERATION
a) mow only in daylight or in
good artificial light;
b) avoid operating the
equipment in wet grass,
where feasible;
c) always be sure of your
footing on slopes;
d) walk, never run;
e) for wheeled rotary
machines, mow across the
face of slopes, never up and
down;
f) exercise extreme caution
when changing direction on
slopes;
g) do not mow excessively
steep slopes;
h) use extreme caution when
reversing or pulling the
lawnmower towards you;
i) stop the blade(s) if the
lawnmower has to be
tilted for transportation
when crossing surfaces
other than grass, and
when transporting the
lawnmower to and from the
area to be mowed;
j) never operate the
lawnmower with defective
guards, or without safety
devices, for example
deflectors and/or grass
catchers, in place;
k) switch on the motor
carefully according to
instructions and with
feet well away from the
blade(s);
l) do not tilt the lawnmower
when switching on the
motor, except if the
lawnmower has to be tilted
for starting In this case,
do not tilt it more than
absolutely necessary and
lift only the part which is
away from the operator;
m) do not put hands or feet
near or under rotating
parts. Keep clear of the
discharge opening at all
times;
n) not to touch the blades
before the disabling device
has been removed and
the blades have come to a
complete stop;
o) Do not start the lawnmower
when standing in front of
the discharge opening.
p) Do not transport the
lawnmower while the
power source is running.
q) Stop the lawnmower,
and remove the disabling

14
Cordless Lawn Mower EN
device. Make sure that all
moving parts have come to
a complete stop.
– whenever leaving the
machine unattended,
– before clearing a blockage,
– before checking, cleaning or
working on the machine,
– after striking a foreign
object. Inspect the machine
for damage and make
repairs before restarting
and operating the
lawnmower
If the lawnmower starts to
vibrate abnormally (check
immediately)
– inspect for damage.
– replace or repair any
damaged parts.
– check and tighten any loose
parts.
MAINTENANCE AND
STORAGE
a) Keep all nuts, bolts and
screws tight to be sure
the equipment is in safe
working condition;
b) Check the grass catcher
frequently for wear or
deterioration;
c) Replace worn or damaged
parts for safety. Use only
genuine replacement parts
and accessories.
d) Be careful during adjusting
of the lawnmower to
prevent entrapment of the
fingers between moving
blades and fixed parts of
the lawnmower.
e) Always allow the
lawwnmower to cool down
before storing.
f) When servicing the blades
be aware that, even though
the power source is
switched off, the blades can
still be moved.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open
or shred cells or battery
pack.
b) Do not short-circuit a
battery pack. Do not
store battery packs
haphazardly in a box or
drawer where they may
short-circuit each other
or be short-circuited by
conductive materials.
When battery pack is not
in use, keep it away from
other metal objects, like
paper clips, coins, keys,
nails, screws or other small
metal objects, that can
make a connection from
one terminal to another.
Shorting the battery
terminals together may
cause burns or a fire.
c) Do not expose battery
pack to heat or fire.
Avoid storage in direct
sunlight.

15
Cordless Lawn Mower EN
d) Do not subject battery
pack to mechanical
shock.
e) In the event of battery
leaking, do not allow
the liquid to come into
contact with the skin
or eyes. If contact
has been made, wash
the affected area with
copious amounts of
water and seek medical
advice.
f) Seek medical advice
immediately if a cell or
battery pack has been
swallowed.
g) Keep battery pack clean
and dry.
h) Wipe the battery pack
terminals with a clean
dry cloth if they become
dirty.
i) Battery pack needs to
be charged before use.
Always refer to this
instruction and use
the correct charging
procedure.
j) Do not maintain battery
pack on charge when
not in use.
k) After extended periods
of storage, it may be
necessary to charge and
discharge the battery
pack several times
to obtain maximum
performance.
l) Battery pack gives its
best performance when
it is operated at normal
room temperature
(20°C±5°C).
m)When disposing of
battery packs, keep
battery packs of
different electrochemical
systems separate from
each other.
n) Recharge only with the
charger specified by
WORX. Do not use any
charger other than that
specifically provided for
use with the equipment.
A charger that is suitable
for one type of battery pack
may create a risk of fire
when used with another
battery pack.
o) Do not use any battery
pack which is not
designed for use with
the equipment.
p) Keep battery pack out
of the reach of children.
q) Retain the original
product literature for
future reference.
r) Remove the battery
from the equipment
when not in use.
s) Dispose of properly.

16
Cordless Lawn Mower EN
SYMBOLS
Read instruction handbook
before operation this machine
Keep bystanders away
Beware of sharp blades. Blades
continue to rotate after the
motor is switched off- Remove
disabling device before
maintenance.
Do not expose to rain or water
Do not burn
Do not dispose of batteries.
Return exhausted batteries to
your local collection or recycling
point.
Wear protective gloves
Remove battery from the
socket before carrying out
any adjustment, servicing or
maintenance.
Blade continues to rotate after
the machine is switched off. Wait
until all machine components
have completely stopped before
touching them
Remove the key
Waste electrical products
must not be disposed of with
household waste. Please recycle
where facilities exist. Check with
your local authorities or retailer
for recycling advice.

17
Cordless Lawn Mower EN
OPERATION INSTRUCTION
NOTE: Read instruction handbook
before operation this machine.
INTENDED USE
This product is intended for domestic lawn mowing.
ASSEMBLY AND OPERATION

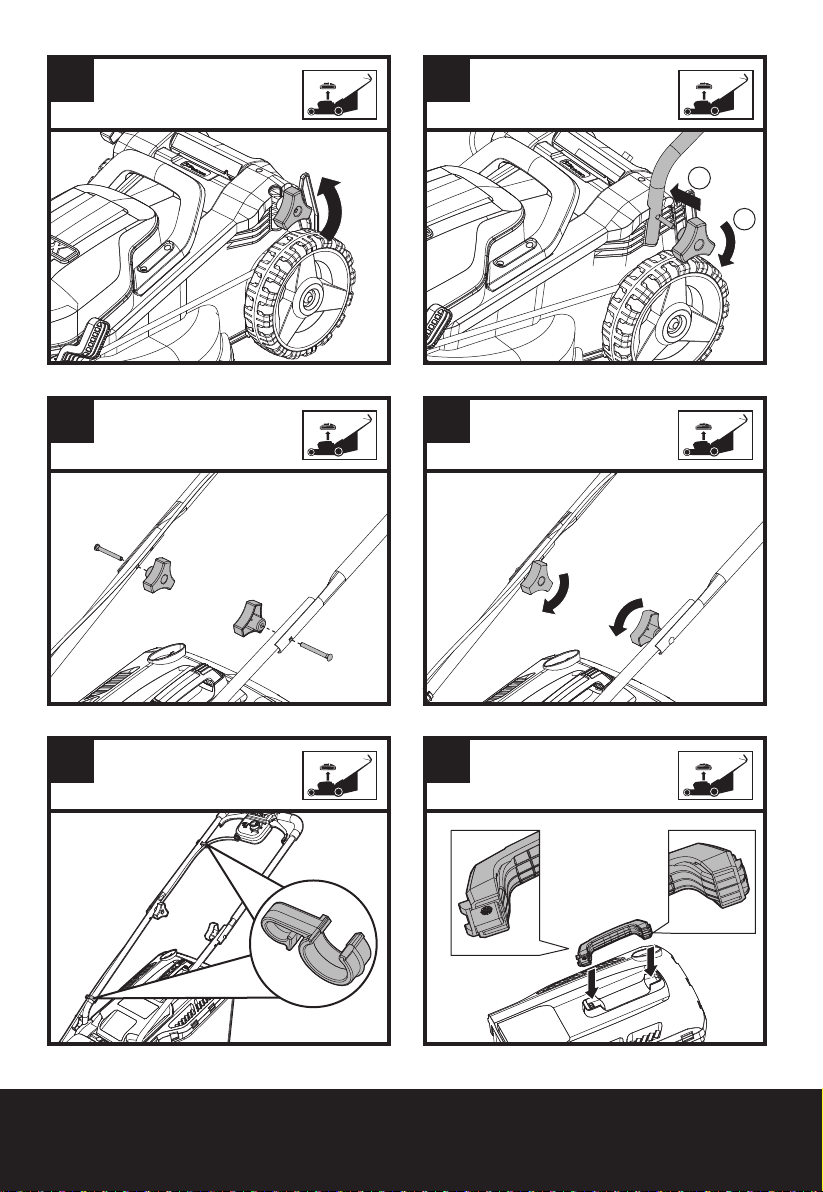

ACTION FIGURE
ASSEMBLY
Assembling the handle bar See Fig. A1, A2,
A3, A4, A5
Assembling grass collection
bag
See Fig.B1, B2,
B3, B4
Fitting grass collection bag to
the lawn mower
NOTE: Depress the grass
collection bag slightly to
ensure that it is completely
installed.
See Fig C1, C2,
C3
Removing/Emptying Grass
Collection Bag
WARNING! Always
check the safety flap
close the discharge outlet
before using. Never lift the
safety flap when the lawn
mower is being used without
fitted grass collection bag.
See Fig C4

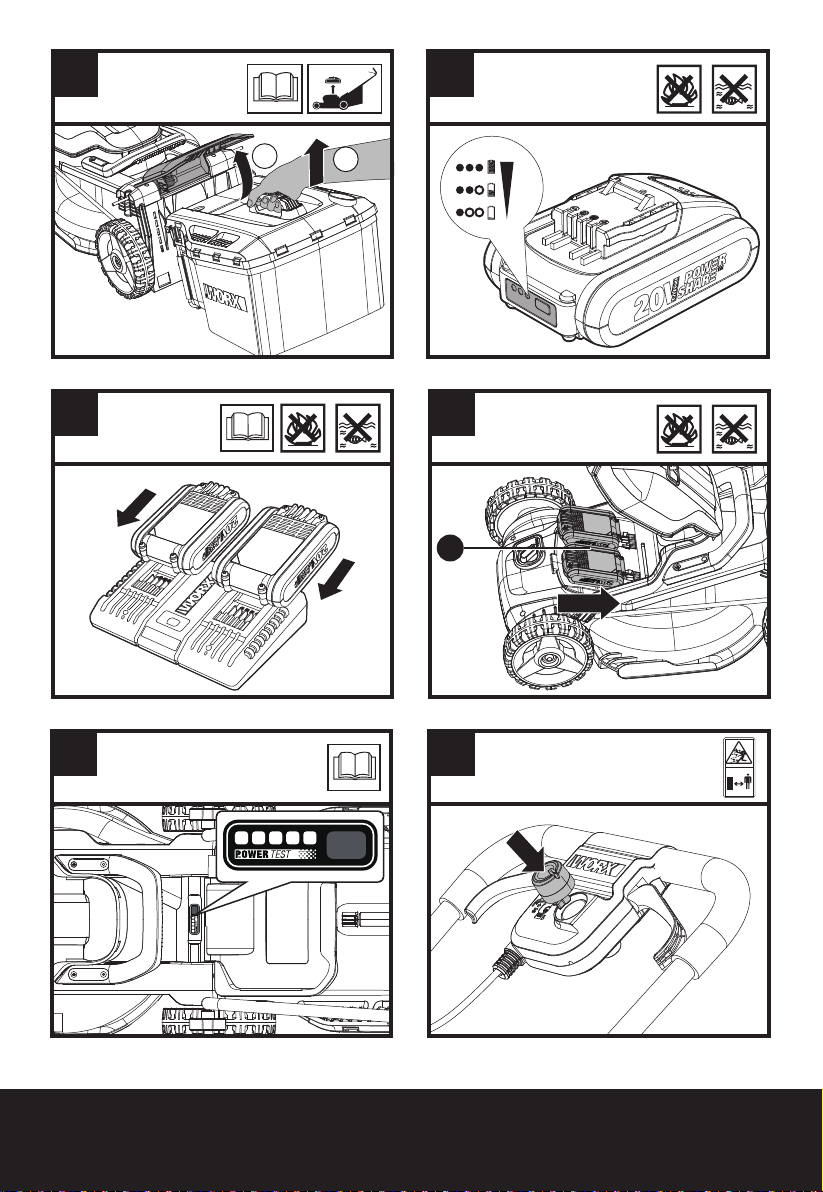

Checking the battery charge
condition See Fig. D1
Charging the battery pack
Always fully charge the
two batteries at same time,
More details can be found in
charger’s manual
See Fig. D2
Fitting/Removing Battery
NOTE:This mower will
only run with 2 batteries are
installed. Please always use the
same two batteries and charge
the two batteries at the same
time.
See Fig. E
OPERATION
Battery power indicator on the
machine
See details in BATTERY
STATUS part
IMPORTANT
When only one light is
illuminated, at least one
battery is depleted and
needs to be charged, even
though the mower may still
be capable of cutting grass.
Continuing to operate
your lawnmower with the
battery in this discharged
condition may reduce the
life and performance of
your battery.
When no light is
illuminated, at least one
battery is not fully installed
or battery is defective,
please double check the
batteries are fully seated
into position.
See Fig. F

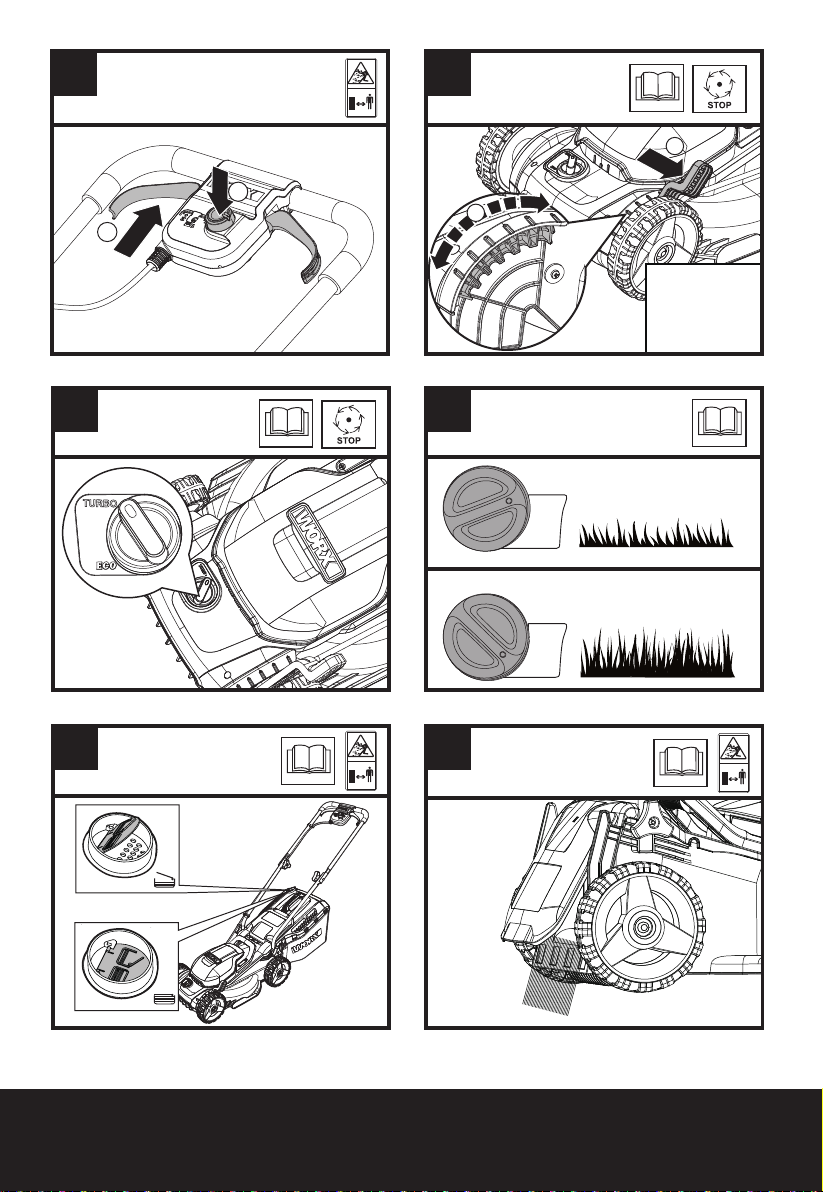

Starting & Stopping See Fig. G1, G2
Adjusting the Cutting Height
WARNING! Stop,
release switch lever and
wait until the motor stops
before adjusting height.The
blades continue to rotate after
the machine is switched off, a
rotating blade can cause injury.
Do not touch rotating blades.
See Fig. H
Selecting the work mode dial
ECO mode
Select ECO mode when
mowing in everyday
conditions, removing
approximately 20mm of grass
at a time.
TURBO mode
Set the dial toTURBO mode
when cutting dense or
overgrown grass.
See Fig. I1, I2
Grass Bag Filling Indicator
Empty status: flap floats (a)
Fully status: flap falls down (b)
See Fig. J
Rear discharge See Fig. K
STORAGE See Fig. L1, L2

18
Cordless Lawn Mower EN
CUTTING AREA
The cutting area can be affected by several factors,
such as cutting height, lawn humidity, grass length
and density. Besides, starting and stopping the mower
too many times during operation will reduce the
cutting area.
The table below gives the relationship between cutting
conditions and cutting area.
Cutting conditions Cutting area (maximum)
Grass
conditions
Cutting
height WG779E WG779E.1 WG779E.2
Very thin,
dry grass
cut 8cm
to 6cm 280m2*460m2*230m2*
Thin, dry
grass cut 8cm
to 4cm 140m2*230m2*11 5 m 2*
* Used with two fully charged battery packs.
TIPS:
1) It is recommended to mow your lawn more
frequently, walk at normal pace, and not to start/
stop the mower too often during operation. Please
always use the same two batteries and charge the
two batteries at same time.
2) For best performance, please ensure use a fully
charged battery pack and always cut off 1/3 or less
of the grass height.
3) Walk slowly when cutting long grass, so as to have
more effective cutting and properly discharge the
clippings.
4) Avoid cutting wet grass, otherwise it will stick to
the underside of the deck and the clippings cannot
be collected or discharged properly.
5) A higher cutting height shall be applied to new or
thick grass and it will extend the battery duration.
BATTERY STATUS (See Fig. F)
Before starting or after use, press the button
“POWERTEST” on the machine to check the battery
capacity. During operation, the battery capacity will be
indicated automatically by the battery power indicator.
The indicator constantly senses and displays the
battery condition as follows:
Battery power
indicator status Battery condition
Five green lights
() are
illuminated.
The two batteries are in a
highly charged condition.
Two, three or four
green lights are
illuminated.
The two batteries have a
remaining charge.The more
lights are illuminated, the
more battery capacity.
Only one green
light ( )
is illuminated.
At least one battery is deplet-
ed and needs to be charged.
No light is
illuminated.
At least one battery is not
fully installed or battery is
defective.
Only one light
() is
flashing twice per
cycle.
At least one battery is over
discharged, please recharge
the two batteries at once be-
fore use again or storage.
Only one light
() is
flashing three
times per cycle.
At least one battery is hot,
wait for them cool down
before start again.
Only one light
() is
flashing four
times per cycle.
The machine is over load.
Raise the cutting height or
push slowly.
MOWING TIPS
NOTE: ALWAYS INSPECT AREA WHERE MOWER
IS TO BE USED AND REMOVE ALL STONES,
STICKS, WIRE, METAL AND OTHER DEBRIS
WHICH MIGHT BE THROWN BY THE ROTATING
BLADE.
1. Mow across the face of slopes, never up-and-
down. Exercise extreme caution when changing
direction on slopes. Do not mow excessively steep
slopes. Always maintain good footing.
2. Release switch lever to turn mower “OFF” when
crossing any graveled area (stones can be thrown
by the blade).
3. Set mower at highest cutting height when mowing
in rough ground or in tall weeds. Removing too
much grass at one time can cause circuit breaker
to trip, which stops mower.
4. If a grass bag is used during the fast growing
season, the grass may tend to clog up at the
discharge opening. Release switch lever to turn
mower “OFF” and remove the safety key. Remove
the grass bag and shake the grass down to the
back end of the bag. Also clean out any grass or
debris which may be packed around the discharge
opening. Replace the grass collection bag.
5. If mower should start to vibrate abnormally,
release switch lever to turn mower “OFF” and
remove safety key. Check immediately for cause.
Vibration is a warning of trouble. Do not operate
mower until a service check has been made.

19
Cordless Lawn Mower EN
6. ALWAYS RELEASE SWITCH LEVER TO TURN
MOWER “OFF” AND REMOVE SAFETY KEY
WHEN LEAVING IT UNATTENDED EVEN FOR
A SHORT PERIOD OF TIME.
MAINTENANCE
WARNING: Stop the mower and remove
the safety key before removing the grass
bag.
Note: To ensure long and reliable service, perform
the following maintenance procedures regularly.
Check for obvious defects such as a loose, dislodged
or a damaged blade, loose fittings, and worn or
damaged components. Check that the covers and
guards are all undamaged and are correctly attached
to mower. Carry out any necessary maintenance or
repairs before operating mower. If the mower should
happen to fail despite regular maintenance, please call
our customer helpline for advice.
BLADE SHARPENING
KEEP BLADE SHARP FOR BEST MOWER
PERFORMANCE.
WEAR PROPER EYE PROTECTION WHILE REMOVING,
SHARPENING, AND INSTALLING BLADE. ENSURE
THAT SAFETY KEY IS REMOVED.
Sharpening the blade twice during a mowing season
is usually sufficient under normal circumstances.
Sand causes the blade to dull quickly. If your lawn
has sandy soil, more frequent sharpening may be
required.
REPLACE BENT OR DAMAGED BLADE IMMEDIATELY.
WHEN SHARPENING THE BLADE:
1. Make sure blade remains balanced.
2. Sharpen blade at the original cutting angle.
3. Sharpen cutting edges on both ends of blade,
removing equal amounts of material from both
ends.
Note: 1. Be sure the mower is turned off and remove
the key.
2. Place the mower in stand up storage mode.
TO SHARPEN BLADE IN A VISE (SEE Fig. M)
1. Be sure the switch lever is released, the blade
has stopped and the safety key removed before
removing the blade.
2. Remove blade from mower. See instructions for
removing and attaching blade.
3. Secure blade M-1 in a vise M-2.
4. Wear safety glasses and be careful not to cut
yourself.
5. Carefully file the cutting edges of the blade with a
fine tooth file M-3 or sharpening stone.
6. Check balance of blade. See instructions for blade
balancing.
7. Replace blade on mower and tighten securely.
Refer to instructions below.
BLADE BALANCING (SEE Fig. N)
Check balance of blade by placing center hole in blade
N-1 over a nail or screwdriver shank N-2, clamped
horizontally in a vise N-3. If either end of the blade
rotates downward, file that end. Blade is properly
balanced when neither end drops.
BLADE MAINTENANCE (See Fig. O1, O2)
Renew your metal blade after 50 hours mowing or 2
years, whichever is the sooner-regardless of condition.
Follow these procedures to remove and replace the
blade.You will need garden gloves (not provided) and
a spanner wrench (not provided) to remove the blade.
Hold the blade (16) and unscrew the blade bolt (15)
counter-clockwise using a spanner wrench, and then
remove blade.
To re-assemble, position the blade (16) with the
cutting edges towards the ground.Then securely
tighten the blade bolt (15).
STORAGE (See Fig. L1, L2)
Stop the mower and always remove the safety key.
Clean the exterior of the machine thoroughly using
a soft brush and cloth. Do not use water, solvents or
polishes. Remove all grass and debris, especially from
the ventilation slots.
Turn the machine on its side and clean the blade area.
If grass cuttings are compacted in the blade area,
remove with a wooden or plastic implement.
Store the machine in a dry place. Do not place other
objects on top of the machine.
To aid storage, release the handle knob, and fold the
upper handle as shown in Fig. L1 & L2.
ENVIRONMENTAL
PROTECTION
Waste electrical products must not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authorities
or retailer for recycling advice.
