Wouxun KG-805G User manual

ank you for purchasing the Wouxun KG-805G portable GMRS radio.
Your feedback makes our products better. Please share your thoughts.
[e-mail]
www.buytwowayradios.com

2
Contents
Safety Information������������������������������������������������������������������������������������6
FCC Licensing Information...........................................................................9
Getting Started��������������������������������������������������������������������������������������� 10
Feature Summary..........................................................................................10
Front Panel Guide ........................................................................................11
Right / Left Side Guide ...............................................................................12
Display Guide...............................................................................................13
Dust and Water Protection...........................................................................14
e Battery ...................................................................................................15
e Antenna .................................................................................................16
e Belt Clip ................................................................................................16
Operation����������������������������������������������������������������������������������������������� 17
Introducing GMRS and the KG-805G........................................................17
Power On/O and Adjusting Volume ..........................................................18

3
Your First Transmit.......................................................................................18
Channels and Privacy Codes.........................................................................20
Using the Repeater Channels .......................................................................21
Channel Scan................................................................................................23
Priority Channel Scan ..................................................................................24
Key Lock ......................................................................................................25
Stopwatch Timer ..........................................................................................26
Menu Functions ������������������������������������������������������������������������������������� 27
[01: SQL-LE] Squelch Level.......................................................................27
[02: SAVE] Power Save................................................................................27
[03: ROGER] Roger Beep ...........................................................................27
[04: TOT] Timout Timer.............................................................................28
[05: VOX] Voice Activated Transmit............................................................28
[06: TOA] Transmit Overtime Alarm ..........................................................29

4
[07: VOICE] Voice Prompt..........................................................................29
[08: BEEP] Button Beeps.............................................................................30
[09: PONMSG] Power On Message............................................................30
[10: BCL] Busy Channel Lockout ...............................................................30
[11: AUTOLK] Auto Lock..........................................................................31
[12: R-CTC] Receive CTCSS Tone ............................................................31
[13: T-CTC] Transmit CTCSS Tone...........................................................31
[14: R-DCS] Receive DCS Code.................................................................32
[15: T-DCS] Transmit DCS Code...............................................................32
[16: SC-REV] Scan Mode...........................................................................32
[17: PF1] Side Key PF1 Assignment............................................................33
[18: PF2] Side Key PF2/Alarm Button........................................................34
[19: CH-MDF] Channel Display Mode......................................................34
[20: WT-LED] Standby Backlight ..............................................................34

5
[21: RX-LED] Receive Backlight.................................................................35
[22: TX-LED] Transmit Backlight...............................................................35
[23: CH-NAME] Channel Name................................................................35
Troubleshooting ������������������������������������������������������������������������������������� 37
Technical Information ���������������������������������������������������������������������������� 39
Specications ................................................................................................39
Standard CTCSS and DCS Tones ...............................................................40
Default GMRS Channels and Frequencies ..................................................42
Optional Accessories������������������������������������������������������������������������������� 44
Limited Warranty ����������������������������������������������������������������������������������� 45

6
Safety InformationSafety Information
e KG-805G is an electrical apparatus, as well as a generator of RF (Radio Frequency)
energy, and you should exercise all safety precautions as are appropriate for this type of
device.
Please read the suggestions and warnings below before using the transceiver.
⚠ Keep the transceiver and accessories out of the reach of children.
⚠ Do not disassemble the transceiver.
⚠ Only use the supplied battery pack and charger or genuine Wouxun branded
replacements purchased from an authorized dealer. Using improper batteries and
charging accessories can damage the transceiver.
⚠ e supplied antenna is tuned for the frequencies supported by this transceiver.
Using an aftermarket antenna can damage the transceiver.
⚠ Do not leave the transceiver exposed to direct sunlight or in overheated areas for an
extended period of time.
⚠ Keep the transceiver away from dusty or humid areas.

7
Safety InformationSafety Information
Notice
▪ ese tips are important for safe operation of your KG-805G
radio and its accessories. If the transceiver does not function
normally, please get in touch with your dealer immediately.
▪ If you use components or accessories not produced by the
Wouxun Company, Wouxun will not guarantee the safety and
usability of the transceiver.
⚠ e transceiver should be cleaned with mild detergents and a soft brush or cloth.
Avoid cleaning with agressive chemicals.
⚠ NEVER transmit without a properly connected antenna.
⚠ If an abnormal odor or smoke is detected from the transceiver, power it o immedi-
ately, then remove the battery pack. Contact your dealer for further assistance.

8
Safety Information
Caution
Please read this manual before using the radio, as it includes important instructions for
the safe handling, use and operation of your radio.
FCC Compliance
is device complies with Part 15 of the FCC Rules. Operation is subject to the follow-
ing two conditions:
(1) is device may not cause harmful interference, and
(2) is device must accept any interference received, including interference that may
cause undesired operation.
WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR
RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC
RULES AND US FEDERAL LAW.

9
Safety InformationSafety Information
Radio Operation and EME Exposure
Use only an antenna designed for use with this radio and its operating frequencies. Un-
authorized modications or attachments may damage the radio and violate FCC rules.
DO NOT hold the antenna while the radio is in use.
DO NOT attempt to use the radio with a damaged antenna.
FCC Licensing Information
e Wouxun KG-805G is FCC Part 95E type accepted for use on the GMRS. e
KG-805G operates on General Mobile Radio Service (GMRS) frequencies according
to the Federal Communications Commission (FCC) Rules in the United States. As
such, a GMRS license is required to transmit on these frequencies. To obtain an FCC
license for the GMRS, please go to the FCC’s web site and complete the online appli-
cation or request FCC Form 605.

10
Getting StartedGetting Started
Feature Summary
▪ 22 GMRS Channels
▪ 8 Built-In GMRS Repeater Channels
▪ Up to 5 Watts Output Power
▪ Up to 128 Custom Channels
▪ 155 CTCSS/DCS Tones
▪ Superheterodyne Receiver
▪ 3-Color Backlit Display
▪ Multi-Display Modes
▪ Backlit Keys
▪ Channel Scan
▪ VOX Transmit
▪ Split CTCSS/DCS Tone Support
▪ Alarm Function
▪ Busy Channel Lockout
▪ High/Low Power Selectable
▪ Receive (RX) Frequency Range:
400-479.995 MHz
▪ Transmit (TX) Frequency Range:
462.550-462.725MHz (GMRS
Channels 1-7 and 15-22)
467.550-467.725MHz (GMRS
Channels 8-14 & Repeater 23-30)
▪ FM Radio
▪ English Voice Prompts
▪ 2 Congurable Side Keys
Key Lock
▪ PC Programming Software Support
▪ IP55 Water Resistant

11
Getting StartedGetting Started

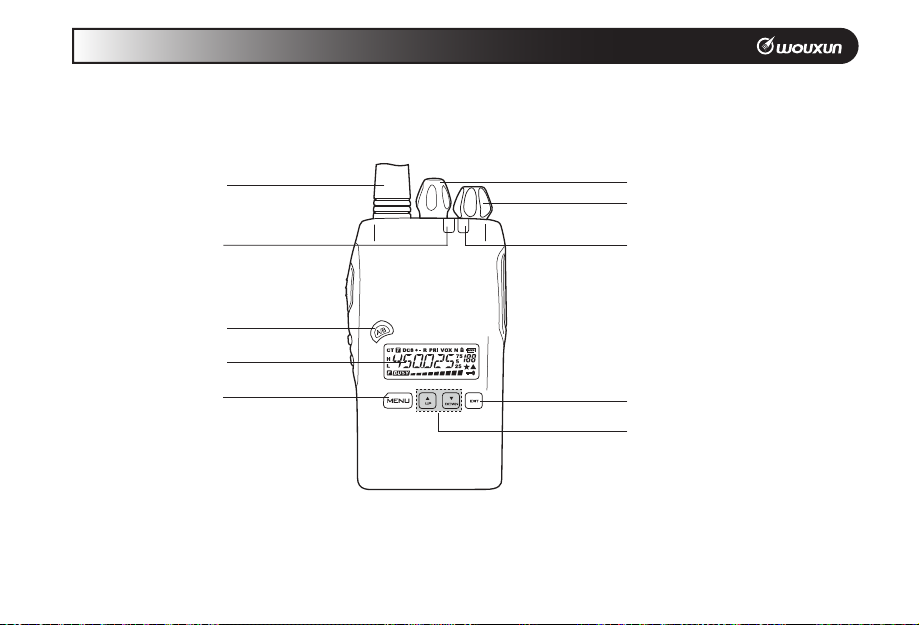

Front Panel Guide
Antenna Channel Knob
Power/Volume Knob
RX LED
Exit/Cancel
Up/Down Keys
LCD
Menu/Confirm
TX LED
A/B Button

12
Getting Started

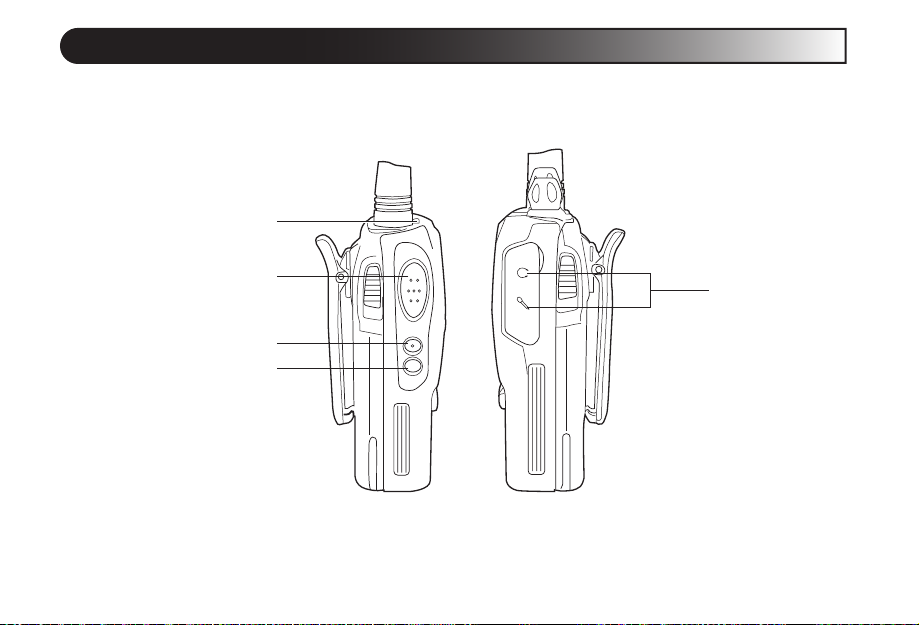

Right / Left Side Guide
Earphone Jack
PTT
Note: Default is shown for PF1.
This button can be assigned different
functions in the radio menu.
Monitor Button
PF1 (FM Radio)
PF2 (Alarm Button)

13
Getting StartedGetting Started
Display Guide
Repeater Channel
DCS
CTCSS
High Power Transmit
Low Power Transmit
Menu Mode
BCL Indicator
VOX Transmit
Bandwidth Indicator
Battery Status
Menu/Channel Number
Memory Channel
Key Lock
FM Radio Activated
Full Battery
Low Battery
Exhausted Battery
RX Signal Strength
Priority Scan

14
Getting Started
Dust and Water Protection
e KG-805G is waterproof to IP55 standards. It is dust resistant and rated to with-
stand water projected by a nozzle (6.3 mm) against enclosure from any direction for a
limited period. is radio is resistant to dust and water only while the battery is proper-
ly installed and locked in place with no gaps and the accessory port is completely sealed
with the accessory port cover. Use of a headset or other accessory will negate the dust
and waterproong features of this radio. e KG-805G is NOT submersible. Do not
attempt to operate this radio if it has been submerged.
▪ e radio charger is NOT dust or waterproof.
▪ Charge the radio only under dry conditions.
▪ DO NOT charge the radio when it is wet.
▪ DO NOT expose the radio and charger to wet environments when charging.

15
Getting StartedGetting Started
e Battery
Installing the Battery
To install the Lithium-ion battery pack:
1. Be sure the radio is o.
2. Slide the battery pack down the back o the radio until the three tabs on the bottom
of the battery slide into the slots at the bottom of the radio.
3. Push forward on the battery until it is securely locked in place on both sides.
Removing the Battery
To remove the battery pack:
1. With your thumb and forenger, slide down the latches on each side of the battery
near the top of the battery pack simultaneously
2. While holding down the latches, pull the battery pack away from the radio.

16
Getting Started
e Antenna
e KG-805G includes an antenna with an SMA female connector that is tuned for
the GMRS frequency range of your radio. Aftermarket antennas may be used, provided
they are tuned for the GMRS.
Warning: To avoid injury, DO NOT attempt to operate your radio if the antenna is
damaged or defective.
DO NOT attempt to operate your radio without an antenna connected to the radio.
Transmitting without an antenna or a correctly tuned antenna directly and properly
connected to the radio may damage the radio and void the warranty.
e Belt Clip
e belt clip attaches to the back of the battery pack on the radio. To install the belt
clip, simply slide it down onto the back of the battery until it snaps in place. To remove
the belt clip, depress the lock release on the back of the belt clip, and while holding it
down, slide the belt clip up and away from the battery.

17
OperationOperationOperationOperation
Introducing GMRS and the KG-805G
e General Mobile Radio Service (GMRS) is a two way radio service that oers some
powerful benets. Users are allowed to transmit at high power, up to 50 watts, and use
advanced equipment, such as repeaters that enable you to transmit over large areas. e
GMRS requires the user to purchase a license, and a single license covers the user and
their extended family for 10 years.
e KG-805G was designed to allow you to take advantage of all that GMRS has to
oer and more. Right out of the box this radio is congured to allow you to transmit on
the 15 high powered GMRS simplex channels, 8 low powered simplex channels, and
the 8 repeater channels.
Read this chapter to learn the basics of using your new KG-805G radio, such as select-
ing a channel, transmitting and receiving, and scanning.

18
Operation
Power On/O and Adjusting Volume
Rotate the volume knob clockwise to power on the radio. To power o the radio, rotate
the volume knob counter-clockwise until a click is felt.
To adjust the volume, use the volume knob when the radio is powered on. Turning the
knob clockwise increases the volume, counter-clockwise decreases it.
Your First Transmit
Selecting a Channel
When you power on your KG-805G for the rst time, the display will likely show
“CH01” on the left with “01” on the right. CH01 is the name of the currently selected
channel and 01 is the channel number. Turn the Channel Knob or press the [UP] /
[DOWN] arrow keys to navigate through the list of channels.
As a licensed GMRS user you are allowed to use any of the channels. e channel you
choose isn’t as important as making sure it’s the same channel the rest of your group is
using. Be sure the channel you select is also supported by the equipment everyone else

19
OperationOperation
in your group is using.
Most rules for GMRS are the same for all channels, but there are a few dierences,
particularly concerning output power. e GMRS channels on the KG-805G consist of
4 groups, with the following dierences:
▪ Transmitting on GMRS channels 1-7 is limited to 5 watts of output power. ese
channels can transmit at High power on the KG-805G.
▪ Transmitting on channels 8-14 are limited to a half watt of output power and are
for use on Low power only. Prior to FCC changes made in 2017, these channels
were part of the FRS service only and were not available for GMRS.
▪ Transmitting on channels 15-22 is allowed at High power on the KG-805G. ese
channels are authorized for up to 50 watts of output power. Prior to FCC changes
made in 2017, this group was exclusive to GMRS (not part of FRS).
▪ Transmitting on channels 23-30 receive on the same frequencies as channels 15-
22, but transmit on a special oset frequency set aside for repeaters. See page 21
for more information about using the KG-805G with repeaters.

20
Operation
Transmitting and Receiving
With a channel selected, the radio is actively “listening” for an incoming signal on that
channel. When a signal is detected, the transmission will be heard through the radio’s
speaker. Please note, the Squelch setting (page 27) determines how strong a signal
needs to be in order to be detected.
To transmit, rst be sure the channel is clear and then hold the radio a few inches from
your mouth. Hold down the PTT button on the side while talking and release the PTT
when nished.
For best performance and clarity of transmission, position the radio upright with the
front of the radio facing you, hold it several inches away from your mouth and speak
directly into the microphone during transmission.
Channels and Privacy Codes
e KG-805G supports 30 built-in GMRS channels and 155 privacy tones and codes.
To successfully communicate between your stations or members of your group, all the
connecting radios must be using the same channel and privacy (CTCSS or DCS) code.
