Wow DTV-BX1 User manual

DTV-BX1

Sleep
Installing the Batteries
3
Using the Remote Control
Connecting to a Television

Recording
TV
Parental Guidance
Digital Audio
Warranty Terms And Conditions
19
19

For Your Safety
To avoid electric shock, do not open the housing of the receiver. Only qualified personnel are allowed to service
the receiver.
Keep the receiver away from flower vases, tubs, sinks, etc., to avoid damage and electric shock.
Do not expose the receiver under direct sunlight and keep it away from any heat source.
Do not block the venlaon holes of the receiver to allow air circulaon and prevent overheang.
When the receiver is operang abnormally, unplug it from the power outlet immediately.
Do not touch the receiver during thunderstorms as this might cause electric shock.
Switch off and unplug the receiver from the power outlet when it will not be used for extended periods of me.
Unplug the receiver from the power outlet before cleaning its housing. If the housing is dirty, wipe it clean with
damp cloth, then wipe it again with dry cloth.
Important Safety Instrucons
1. Read all instrucons carefully.
2. Keep this user’s manual at a safe place for future reference.
3. Do not use the receiver near water.
4. Clean only with damp or dry cloth.
5. Do not install the receiver near any heat sources such as radiators, heat registers, stoves or other
equipment/apparatus (including amplifiers) that produce heat.
6. Operate this product only with the type of power source indicated on the label. If you are not sure of
the type of power connected to your home, consult your local power company. Disconnect the receiver
from the power outlet before any maintenance or installaon procedure.
7. Protect the power cord from damage and stress.
8. Only use aachments/accessories specified by the manufacturer.
9. Unplug the receiver during lightning storms or when unused for extended periods of me.
10. Refer all servicing only to qualified service personnel. Servicing is required when the receiver has been
damaged in any way, including damage to the power cord and/or plug; if the receiver has been exposed
to liquid or moisture; has been dropped; or is not operang correctly.
11. Do not impede the airflow into the receiver by blocking the venlaon slots.
12. Aenon should be drawn to the environmental hazards of baery disposal.
13. Use the receiver only indoors and in moderate temperature.
WARNING:
To reduce the risk of fire or electric shock, do not expose the receiver to rain or moisture.
The baeries shall not be exposed to excessive heat such as direct sunlight, fire, etc.
●
●

This symbol indicates that dangerous voltages constung a risk of electric shock are present
within the receiver.
This symbol indicates that there are important operang and maintenance instrucons in the
user’s manual accompanying the receiver.
This symbol indicates that this product incorporates double insulaon between hazardous power
supply voltage and user accessible parts. Use only idencal replacement parts when servicing.
This symbol on the product or in the instrucons means that your electrical and electronic
equipment should be disposed at the end of its service life separately from household waste.
There are separate collecon systems for recycling.
Package Contents
Before installaon, please check the contents of the package:
DTV-BX1HD ISDB-T Receiver x 1 pc
Remote Control x 1 pc
Indoor Mini Antenna x 1 pc
User’s Manual x 1 pc
AAA Baery x 1 pair
RCA A/V Cable x 1 pc

1
1. Front Panel
1. POWER BUTTON: Press to turn on or turn off the receiver.
2. CHANNEL DOWN: Press to go to a lower channel.
3. CHANNEL UP: Press to go to an upper channel.
4. LED DISPLAY SCREEN: Displays current channel and me.
5. REMOTE CONTROL SENSOR: Receives signal from the remote control
6.
6
USB: Used for mulmedia playback or soware update from USB flash drive or hard drive.
2. Rear Panel
1. RF IN: This input connects to your indoor mini antenna (included in the box) or aerial/outdoor
antenna.
2. RF OUT: This output will feed the RF signal to either your TV or another video system.
3. COAXIAL: Output to TV/amplifier for digital audio.
4. HD A/V OUT: Output to TV for high-definion audio and video.
5. CVBS/R/L: Output for standard definion audio and video.
Front and Rear Panel
THROUGH
RF L
OOP
RF IN
COAXIAL
～100-240V
50/60Hz
ISDB-T RECEIVER
~
100-240V 50/60Hz
STANDBY CONSUMPTION:<1W
POWER CONSUMPTION:<10W
VIDEO R-AUDIO L-AUDIO
YPb/Cb Pr/Cr
WO W! D TV- BX 1
45 2 3 1
4321 5

2
Remote Control
1
5
3
6
8
10
15
17
18
21
23
29
31
27
33
11
13
25
2
4
9
14
16
19
24
26
28
30
32
34
12
20
22
7

3
Remote Control
1.POWER:Switches between standby and power on modes.
2.MUTE:Disables/enables audio output.
3.CC: Displays Subtle Language Opons interface
4.LANG: Selects the language during media playback.
5.EPG:Opens the EPG(Electronic program Guide)interface.
6.GOTO: Goto desired me in mulmedia file
7.PAGE+: Navigates through the channel list; selects the previous page
8.TTX:Displays Teletext interface
9.PAGE-: Navigates through the channel list; selects the next page
10.Repeat: Repeat play mulmedia file
11.MENU:Opens MENU interface.
12.EXIT:Exits from the current menu or returns to the previous menu.
13.OK:Confirm an entry or selecon.
14:UP/CH+:Navigates through the menus;selects the previous channel.
15:LEFT/VOL-:Navigates through the menus; decreases volume level
16:RIGHT/VOL+:Navigates through the menus; increases volume level
17:DOWN/CH-: Navigates through the menus;selects the next channel.
18.FAV: Displays Favorite Program list interface
19.TV/RADIO:Switches between TV and radio funcons.
20.RECALL:Switches between the last two channels that have been viewed.
21.0-9:Numerical channel or seng selector.
22.INFO:Displays addional channel informaon.
23.FB:Fast backward/rewind during media playback.
24.NEXT: Skips to the next track during media playback.
25.FF:Fast forward during media playback.
26.PREV: Skips to the previous track during media playback.
27.PLAY:Resumes media playback.
28.REC: Records the program during media playback or live TV broadcast.
29.PAUSE: Pauses media playback.
30.STOP: Stops media playback.
31.PVR: Use to access recorded content in USB drive.
32.TIMER:Turn on Schedule Control interface.
33.V-FORMAT: Sets HDMI output.
34.ASPECT: Switches between 16:9 and 4:3 video outputs.

4
Installing the Baeries
Remote the baery cover from the rear panel of the remote control and place 2 x AAA baeries inside the
compartment. Please make sure that the baery polaries match the polarity markings inside the
compartments.
Using the Remote Control
To use the remote control, point it towards the front panel of the receiver. The remote control has a range of
up to 7 meters from the receiver at an angle of up to 60 degrees.
NOTE: The remote control will not operate if its path is blocked.
Sunlight of very bright light will decrease the sensivity of the remote control.

5
Connecng to a Television
It is recommended to use the HDMI connecon to experience the highest video output performance out of
your receiver. Connect one end of the HDMI cable* to the receiver, and then connect the other end to the TV
as displayed on the illustraon below. Alternavely, you can use the component video output of the receiver to
allow HD video and audio via analog connecon.
* HDMI cable is not included in the package. Please acquire this cable separately.
For basic connecon from the receiver to the TV, you can use RCA (composite) connecon as displayed below.
To connect the receiver to an external audio system like an amplifier, you can use the coaxial output of the
receiver as displayed below.

6
First Time Installaon
Aer all connecons have been made properly, make sure that the receiver is connected to the power outlet.
Aer checking connecon to power outlet, turn on TV and press the Power buon on the receiver. If you are
using the receiver for the first me or if it the receiver was restored to factory default sengs, the Installaon
Guide menu will appear on your screen.
1. OSD Language: Press LEFT/RIGHT on your remote to select language.
2. Country: Press LEFT/RIGHT on your remote to select the country where you are seng up the receiver.
3. Channel Search: Press RIGHT or OK on your remote to begin automac channel search.
4. Once channel tuning is complete, you can start watching TV programs.
Note on Automac Channel Search:
For best results, if you are using the included indoor mini antenna, please place it near an open window.
Basic Operaon
1. Program Sengs
To access this menu, press the MENU buon on your remote control and select “Program” on the
screen by using the RIGHT/LEFT buons on the remote control. Select an opon on the Program
Sengs menu and press OK or RIGHT buon on your remote control to adjust a seng on this menu.
Press the EXIT buon on your remote control to exit the menu.

7

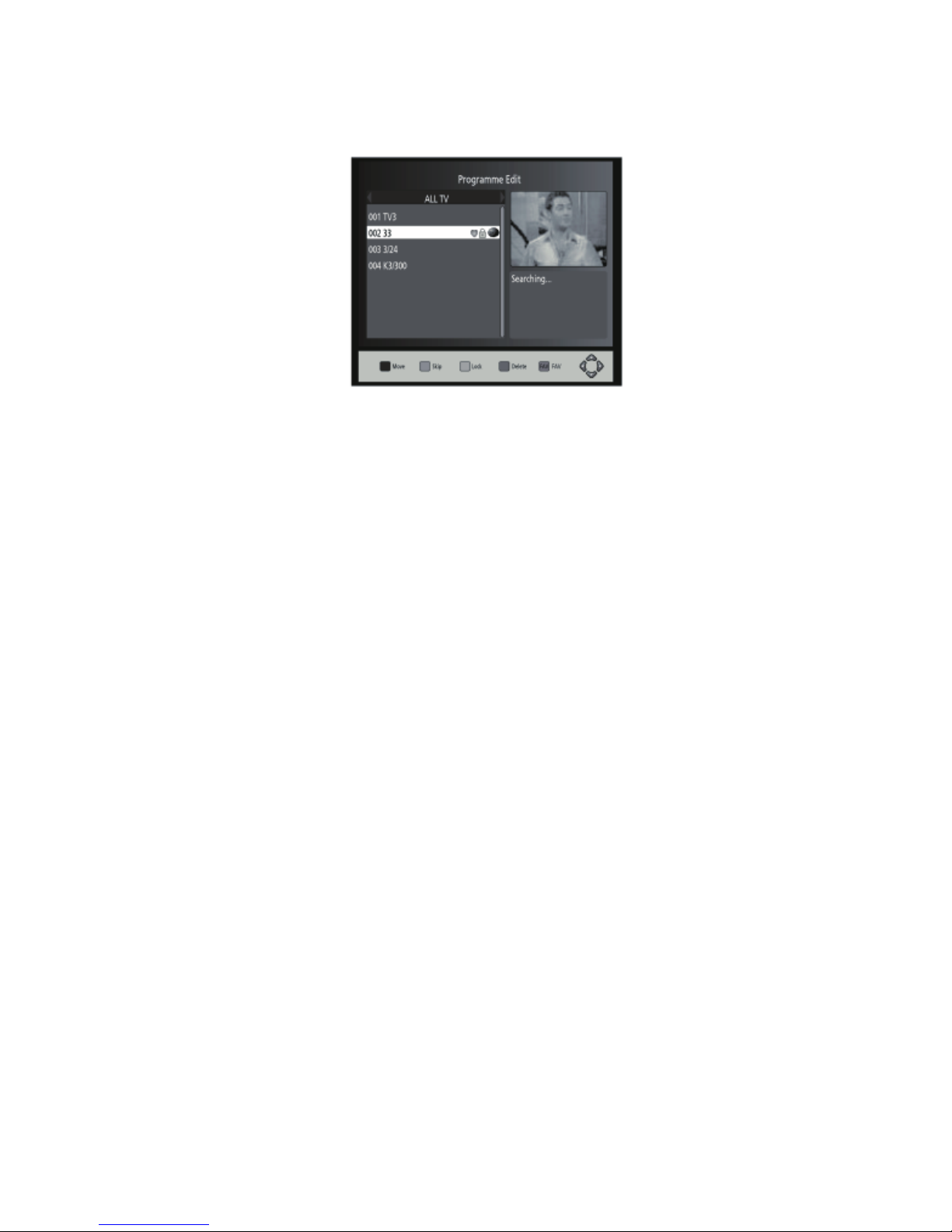

a. Program Edit
To edit the program preferences (lock, skip, favorite, move or delete), please enter this menu
selecon. This menu selecon requires a password for access. The default password is 000000.
The master unlock password is 888888.
Set Favorite Channels
You can create a shortlist of favorite programs that you can easily access from the Favorite
Program menu. To set a favorite TV or radio program:
1. Select your desired channel, and then press the FAVORITE buon on your remote control. A
heart-shaped symbol will appear and the channel will be marked as a favorite.
2. Repeat the previous step to select more favorite channels.
3. To confirm and exit the menu selecon, press the EXIT buon on your remote control.
Disable Favorite TV or Radio Channel
Select the favorite channel and press the FAVORITE buon on the remote control.
View Favorite Channel
1. While in normal viewing mode, press the FAVORITE buon on the remote control and the
Favorite Menu will appear on your screen.
2. Press UP/DOWN to browse through your favorite channels, and then press OK to select a
favorite channel.
Delete a TV or Radio Program
1. Select a Program and then press the BLUE funcon buon on your remote control. A warning
message will appear. Press OK to confirm deleon.
2. Repeat the previous step to delete more channels.
Skip a TV or Radio Channel
1. Select the channel you intend to skip and press the GREEN funcon buon on the remote
control. A skip symbol will be displayed on the screen, which signifies that the selected
channel would be skipped.
2. Repeat the previous step to skip more channels.
3. To save your sengs and exit the menu, press the EXIT buon on the remote control.
Disable Skip on TV or Radio Channel
Select the skipped channel, and then press the GREEN funcon buon on the remote control.

8
Move a TV or Radio Program
1. Select the preferred channel to be moved, and then press the RED funcon on the remote
control. A move symbol will appear on the screen.
2. Press the UP/DOWN buons on the remote control to move the channel.
3. Press OK on the remote control to confirm movement of channel.
4. Repeat the steps above to move more channels.
Lock Program
You can lock selected channels to restrict viewing. This is also known as the child-lock funcon.
1. Select the preferred channel to lock, and then press the YELLOW funcon buon on the
remote control. A lock symbol will be displayed on screen to signify that the selected
channel has been locked.
2. Repeat the previous step to select more channels to lock.
3. To confirm changes and exit the menu, press the EXIT buon on the remote control.
4. Press the YELLOW funcon buon on the remote control to unlock a locked channel.
5. To view the locked channels, you will be required to enter either the default password
000000 or your last set password. The master unlock password is 888888.
b. Electronic Program Guide (EPG)
The EPG is an on-screen TV guide that shows scheduled programs seven (7) days in advance for
every tuned channel. Press the EPG buon on the remote control to access the guide.
You can use the UP/DOWN buons on the remote control to select a program that you prefer
to check. If there is more than one page of informaon, use the BLUE funcon buon on the
remote control for page up and the YELLOW funcon buon for page down.
You can select another channel’s EPG through the LEFT/RIGHT funcon buons on the remote
control, view details of each EPG event through the INFO buon, and schedule a recording by
pressing the OK buon. (Please see page 13 of this user manual for details on the recording
funcon.)

9
c. Sorng
You can sort channels through the following opons:
1. By LCN: Sort the channels by ascending order.
2. By Service Name: Sort the channels in alphabecal order.
3. By Service ID: Sort the channels according to the staon.
4. By ONID: Sort the channels according to ONID.
d. LCN (Logical Channel Number)
Set LCN on if you want the channels to be sorted in ascending order, or off when you want to
sort the channels manually.

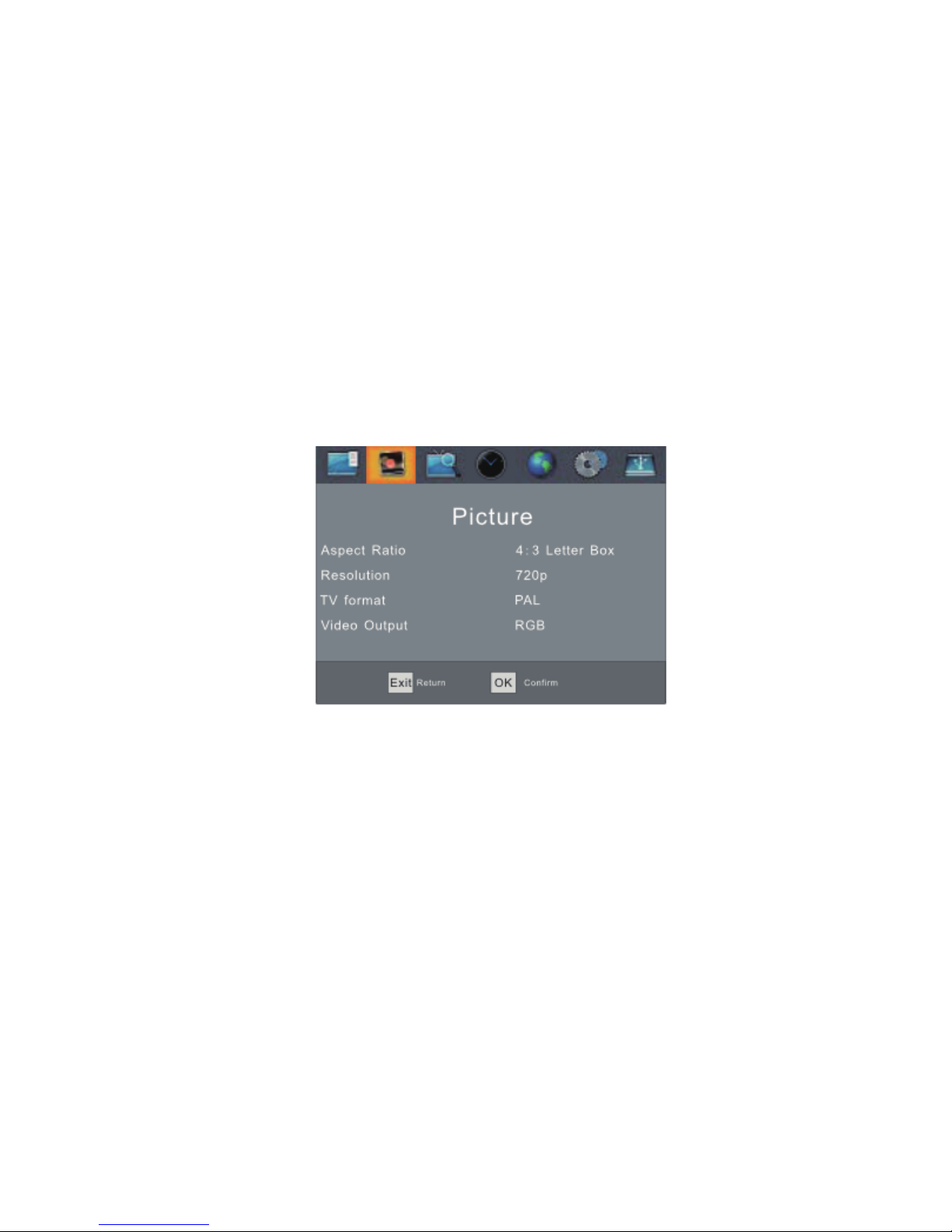

2. Picture Seng
To access the Picture Seng menu, press MENU on the remote control and select “Picture” using the
RIGHT/LEFT buons on the remote control. The menu provides opons to adjust the video sengs.
Press the UP/DOWN buons on the remote control to select the seng that you would like to change,
then press the RIGHT/LEFT buons to adjust the said seng. Press EXIT on the remote control to exit
the menu.
a. Resoluon
You can change this seng if the picture resoluon does not appear to be correct. This seng is
used to match the most common sengs for HDMI video output.
●480i / 480p: For standard-definion NTSC TV system
●576i / 576p: For standard-definion PAL TV system
●720p / 1080i / 1080p: For high-definion NTSC and PAL TV systems
b. TV Format
If the picture does not appear to be correct, you can change this seng. The opons on this seng
should match the most common TVs in your country.
●NTSC: For NTSC TV system.
●PAL: For PAL TV system.

10
3. Channel Search
To access the Channel Search menu, press the MENU buon on the remote control and select “Search
Channel” using the RIGHT/LEFT buons on the remote control. This menu provides opons to adjust the
channel search sengs. Press the UP/DOWN buons on the remote control to select an opon and
press the RIGHT/LEFT buons to adjust the sengs. Press EXIT to exit the menu.
a. Auto Search
This opon will automacally search for channels and save them once scanning is complete. All
previously saved channels and sengs will be deleted.
1. Select “Auto Search” and press OK or RIGHT on the remote control to start channel search.
2. To cancel channel search, press EXIT on the remote control. Any channels that have been found
will be saved.
b. Manual Search
This opon allows you to scan for new channels without deleng previously saved channels and
sengs.
1. Select “Manual Search” then press OK or RIGHT on the remote control. The channel search
screen will appear as seen below.

11
2. Press the RIGHT/LEFT buons on the remote control to select the channel frequency.
3. Press OK on the remote control to start searching channels.
4. If a channel is found, it would be saved and added to the channels list. If channels are not found
during searching, the receiver would exit the menu automacally.
c. Country
Select the country where you are seng up the receiver.
d. Antenna Power
Enable antenna power if an external acve (powered/amplified) antenna is connected to the
receiver.
4. Time
To access the Time menu, press the MENU buon on the remote control then select “Time” using the
RIGHT/LEFT buons on the remote control. The menu provides opons to adjust the me sengs of the
receiver. Press the UP/DOWN buons on the remote control to select an opon and press RIGHT/LEFT on
the remote control to adjust sengs on the selected opon. Press the EXIT buon on the remote control to
exit the menu.
a. Time Offset
Select Auto or Manual for GMT offset adjustments.
b. Country Region
Select the country region when Time Offset is set to Auto.
c. Time Zone
Select the me zone offset when Time Offset is set to Manual.
d. Sleep
Setsleep mer. The receiver will enter standby mode aer the set me has elapsed.
5. Opon
To access the Opon menu, press MENU on the remote control and select “Opon” using the RIGHT/LEFT
buons on the remote control. The menu provides opons to adjust OSD Language, Subtle Language and
Audio Language. Select an opon and press RIGHT/LEFT on the remote control to adjust the sengs of the
opon. Press EXIT on the remote control to exit the menu.

12
a. OSD (On-screen Display) Language
Select an OSD language.
b. Subtle Language
Select the preferred subtle language.
c. Audio Language
Select the preferred audio language for TV channels. If the language selected is not available,
the default channel language will be used.
d. Digital Audio
If no sound is coming out from the external audio amplifier, which is connected to the
receiver’s coaxial audio output jack, use this opon to change or fix the audio sengs.
4. System Seng
To access the System Seng menu, press MENU on the remote control and select “System” using the
RIGHT/LEFT buons on the remote control. The menu provides opons to adjust the system sengs. Press
the UP/DOWN buons on the remote control to select an opon and press the RIGHT/LEFT buons on the
remote control to adjust the sengs on the opons. Press EXIT on the remote control to exit the menu.
a. Parental Guidance
Set the age for parental control.
b. Set Password
Set or change the password for locked programs. Enter the old password or the default password
000000 to access this menu. You will then be asked to enter a new password. Press the OK buon on
the remote control to confirm entry of new password. Once it is confirmed, press the EXIT buon on the
remote control to exit the menu. The master unlock password is 888888.

13
c. Restore Factory Default
Reset your receiver to the default factory sengs. You must enter the password you have set or the
default password 000000 to enter this menu. This opon will delete all preset channels and sengs.
The master unlock password is 888888.
d. Informaon
View the receiver’s model, hardware and soware informaon.
5. USB
To access the USB menu, press the MENU buon on the remote control and select “USB” using the
RIGHT/LEFT buons on the remote control. The menu provides opons to playback mulmedia files such as
videos, music and photos. Supported formats are: MKV, AVI, XVID, MOV, VOB, FLV, DAT, MPEG, MPG, MP4,
TS, MP3, WMA, WAV, AAC, JPEG, BMP and PNG.
a. Mulmedia
When a USB device (flash drive or hard drive) is aached to the receiver, you can enter the Music,
Photo, Movie or PVR menu using the RIGHT/LEFT and OK buons on the remote control. If a USB device
is not connected, the message “No USB device is found” will be displayed.

14
b. Photo Configure
●Slide Time: Adjust slideshow interval to 1-8 seconds.
●Slide Mode: Adjust slideshow effect to modes 0-59 or random.
●Aspect Rao:
oKeep: Play picture in its original aspect rao.
oDiscard: Play picture in full screen mode.
c. Movie Configure
●Subtle Specific: Select the subtle size to small, normal or big.
●Subtle BG: Select the background color of the subtle to transparent, gray, yellow green or
white.
●Subtle Font Color: Select the subtle font color to white, black, red, blue or green.
d. USB PVR Configure (TV Recorder with Scheduling)
●Record Device: Displays informaon of the connected USB device.
●Format: Formats the connected USB device. (NOTE: This will delete all data!)
The most unique feature of the receiver is its ability to record live TV. There are two ways to do this. The
first way is to simply connect a USB storage device to the receiver and press the REC buon on the
remote control. The second way is to schedule a program to record using the BLUE funcon buon on
the remote control or from within the EPG menu.
To schedule a recording, follow the steps below:
●Press the BLUE funcon buon on the
remote control.
●Press the RED funcon buon on the
remote control to add a schedule.
●Adjust the sengs according to the
schedule of the event: Start Time, End
Time, Record/View, etc.
●Press the OK buon on the remote control
to confirm sengs.
●Press the EXIT buon on the remote
control to exit menu.

15
●
●
●
●
●
Deleng Scheduled Event
If at any me you wish to delete a scheduled event for recording, press the BLUE funcon buon to
view the list of scheduled events. Use the arrow keys on the remote control to highlight the event you
wish to delete, and then press the BLUE funcon buon again to delete it.
Deleng Recorded TV Programs
You can delete recorded files directly from the receiver. Go to the PVR menu, use the arrow keys on the
remote control to select the video that you intend to delete, and then press the YELLOW funcon
buon to delete it.
Playback of Recorded TV Programs
TV programs are recorded in .PVR format, which may be played back using a PC with a suitable player.
Playback on DVD players is not guaranteed.
Recording High-Definion (HD) TV Programs
For recording high-definion TV programs, the version of the USB device should be 2.0 or above as
these versions support higher write speeds required for recording data-heavy high-definion content.
Acvang Recording Mode Aer USB Device Inseron
Aer inserng a USB flash drive or hard drive to the receiver, do not acvate recording immediately.
Please wait for a few seconds to let the receiver read the USB flash drive or hard drive first. This is to
avoid the receiver from freezing due to data read error. If in case the receiver froze, please turn the
receiver off, reconnect the USB device, and then turn the receiver back on.
Note:
We cannot guarantee compability (in terms of operaon and/or bus power) with all USB mass
storage devices and assume no responsibility for any loss of data that may occur on the USB device
when it is connected to the receiver.
With large amounts of data recorded, it may take longer for the receiver to read the contents of a
USB device.
Some USB devices may not be properly recognized.
Even when the TV recordings are in a supported format, some files may not play or display on an
external player such as in PCs, mobile devices and DVD players.
You may need to use an external AC/DC power adapter if the USB devices power consumpon is
larger than 500 mA. This is usually true on USB hard drive enclosures that run desktop hard drives.
Please consult your USB device’s user manual to confirm use of external AC/DC power adapter.
e. Timeshi
Press TIMESHIFT/PAUSE buon first on the remote control first, then
at any me press the PLAY buon on the remote control. The receiver
will start playing the recorded program from the start.
