GRAVITY® Titanium Suture Anchors are designed to provide optimal stability,
while reducing the number of steps required for implantation. All anchors
feature an internal square drive and suture eyelet, allowing for pre-loaded
suture that is protected during insertion. GRAVITY® Titanium Suture Anchors
are available in 2.7, 3.5, and 5.5mm diameters. GRAVITY® Titanium Suture
Anchors may be used to address a variety of applications that span the
forefoot, midfoot, and hindfoot.
System Benefits
»High-strength Force Fiber® surgical suture maximizes construct stability
»Fully-threaded titanium anchor design increases pull-out strength
»Aggressive, self-tapping cutting flutes ease anchor insertion
»Silicone-Free Force Fiber® suture features a low-profile design, minimizing
soft-tissue irritation by reducing knot size and allowing for contiguous
placement of multiple knots*
»Suture organization helps save time and streamlines the procedure
»Pre-loaded anchor design eliminates the need for intraoperatively threading
suture through the anchor eyelet or needle, reducing the number of
procedural steps

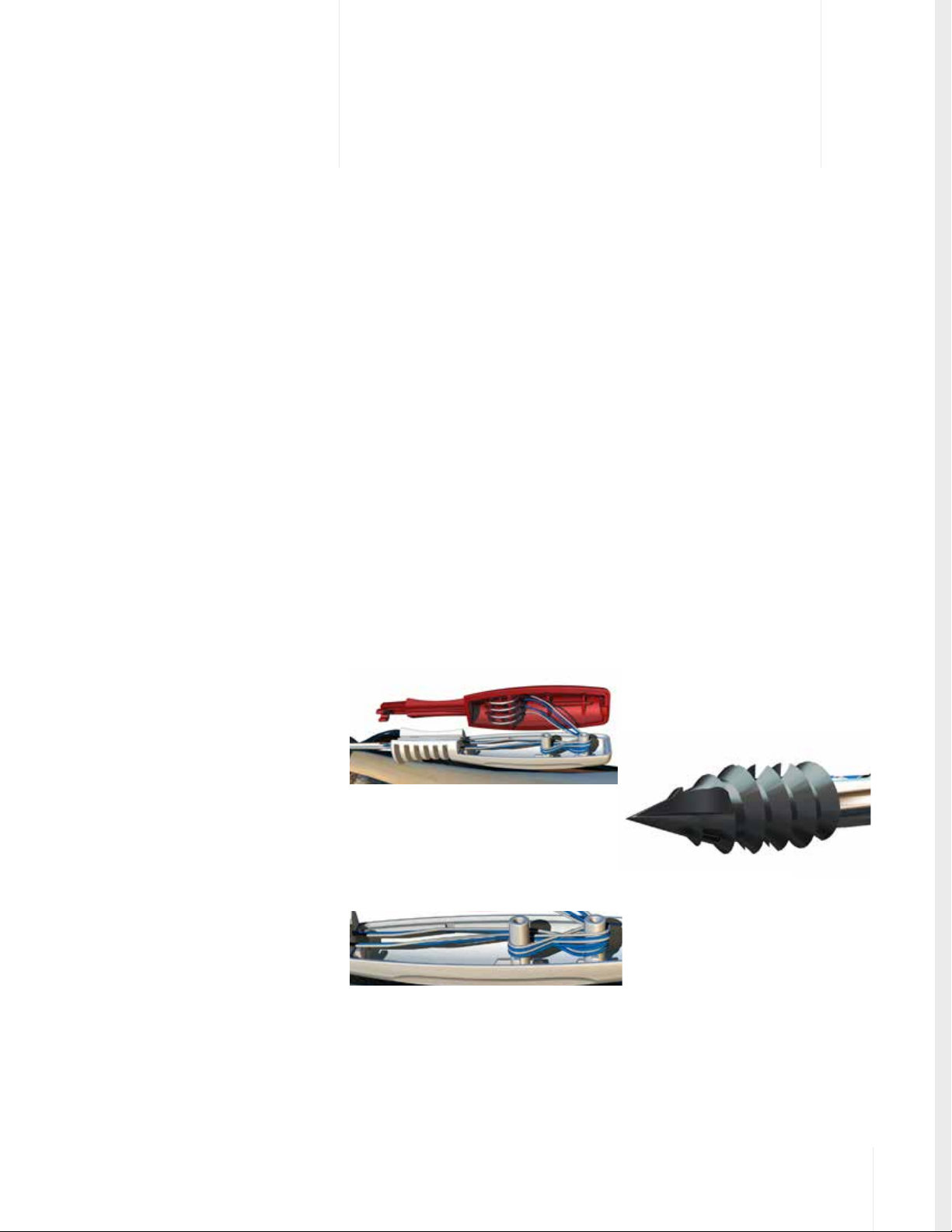

Modular handle design allows for organized
suture & needle deployment.
Silicone-free Force Fiber® braid configuration
enhances suture strength and handling
characteristics.
Self-tapping and self-drilling
cutting flutes ease anchor insertion.
*Force Fiber® is a registered tradmark of Teleflex
* Data on file at Teleflex
chapter
4
Headline
Headline
Chapter 1 Description of Chapter
2
Intended Use
Description
The GRAVITY® Titanium Suture Anchor System features sterile, single-use
devices for use in soft tissue fixation procedures. The implants are available in a
range of sizes and feature anchors threaded with braided polyethylene sutures.
Indications
The GRAVITY® Titanium Suture Anchor System is indicated for use:
»In the repair of shoulder instability, secondary to Bankart lesion, rotator cu
tear, slap lesion, acromioclavicular separation, biceps tenodesis, deltoid tear/
separation, or capsular shift or capsulolabral reconstruction
»In the repair of elbow instability, secondary to biceps tendon detachment,
tennis elbow, or tear. Separation or tear of the ulnar collateral ligament, or
radial collateral ligament.
»In the repair of hand/wrist instability, secondary to tear or separation of the
scapholunate ligament, ulnar collateral ligament, or radial collateral ligament
»In the repair of knee instability, secondary to tear or separation of the medial
collateral ligament, lateral collateral ligament, patellar tendon, or posterior
oblique ligament, or secondary to iliotibial band tenodesis
»In the repair of foot/ankle instability, secondary to tear or separation
of the Achilles tendon, lateral stabilization tendons/ligaments, medial
stabilization tendons/ligaments, midfoot tendons/ligaments,or metatarsal
tendons/ligaments, tendon transfers, tendon reattachments, and ligament
reconstructions of the midfoot, forefoot, and hindfoot procedures associated
with flatfoot reconstruction, hindfoot deformity, midfoot reconstruction,
lateral/medial ankle reconstruction or instability, Hallux Valgus or Varus, and
MTP instability including:
»Achilles reattachment/reconstruction
»Flexor digitorum longus transfer
»Flexor hallucis longus transfer
»Extensor hallucis longus transfer
»Brostrom procedures
»Peroneal tendon relocation
»Capsule repair
»Deltoid reconstruction / reattachment
»Plantar plate repair
»Spring ligament repair
Chapter 2 Intended Use
chapter
5
3
Chapter 3 Surgical Technique
Surgical
Technique
GRAVITY® Titanium Suture Anchor Size Assessment
The GRAVITY® Titanium Suture Anchor System features multiple anchor
diameters and suture options. The surgeon’s final decision on anchor size and
suture should be based on the procedure’s requirement of the device, the
degree of soft-tissue tension involved, and the patient’s anatomy.
Suture Anchor Sizing Matrix
Pre-Drilling
In most cases, the design of the GRAVITY® Titanium Suture Anchor allows it
to be inserted without tapping or pre-drilling. The surgeon may choose to use
a pre-drill to ease the insertion torque required to insert the anchor. When
needed, choose the appropriate drill as indicated below.
Part Number Description Pre-drill Diameter Drill Bit Part
Number
86TA2027 2.7mm Anchor 2.0mm 58850020
86TAN035 3.5mm Anchor 2.5mm 58850025
86TAN255 5.5mm Anchor 3.5mm 58850035
Part Number Anchor Size
(Diameter/Length) Suture Size / Type Suture Quantity
86TA2027 2.7 x 7.6mm 2-0 Force Fiber® 1
86TAN035 3.5 x 9.6mm #0 Force Fiber® 2
86TAN255 5.5 x 12.7mm #2 Force Fiber® 2
Note: GRAVITY® Titanium Suture Anchors do not come with pre-drills. If a pre-drill is requested,
the sales representative is responsible for suppling the appropriate size.
6CROSSCHECK® Plating System
Anchor Seating
Advance the anchor until the optimal depth has been reached. A driver shaft
depth marker is located 1mm above the anchor and may be used as a reference
during insertion.
Suture Deployment
All anchors are loaded with ForceFiber® sutures which pass through the anchor,
up the driver shaft, and wrap inside the suture cartridge. Upon final seating of
the anchor, release the suture cartridge by pulling back on the cartridge’s driver

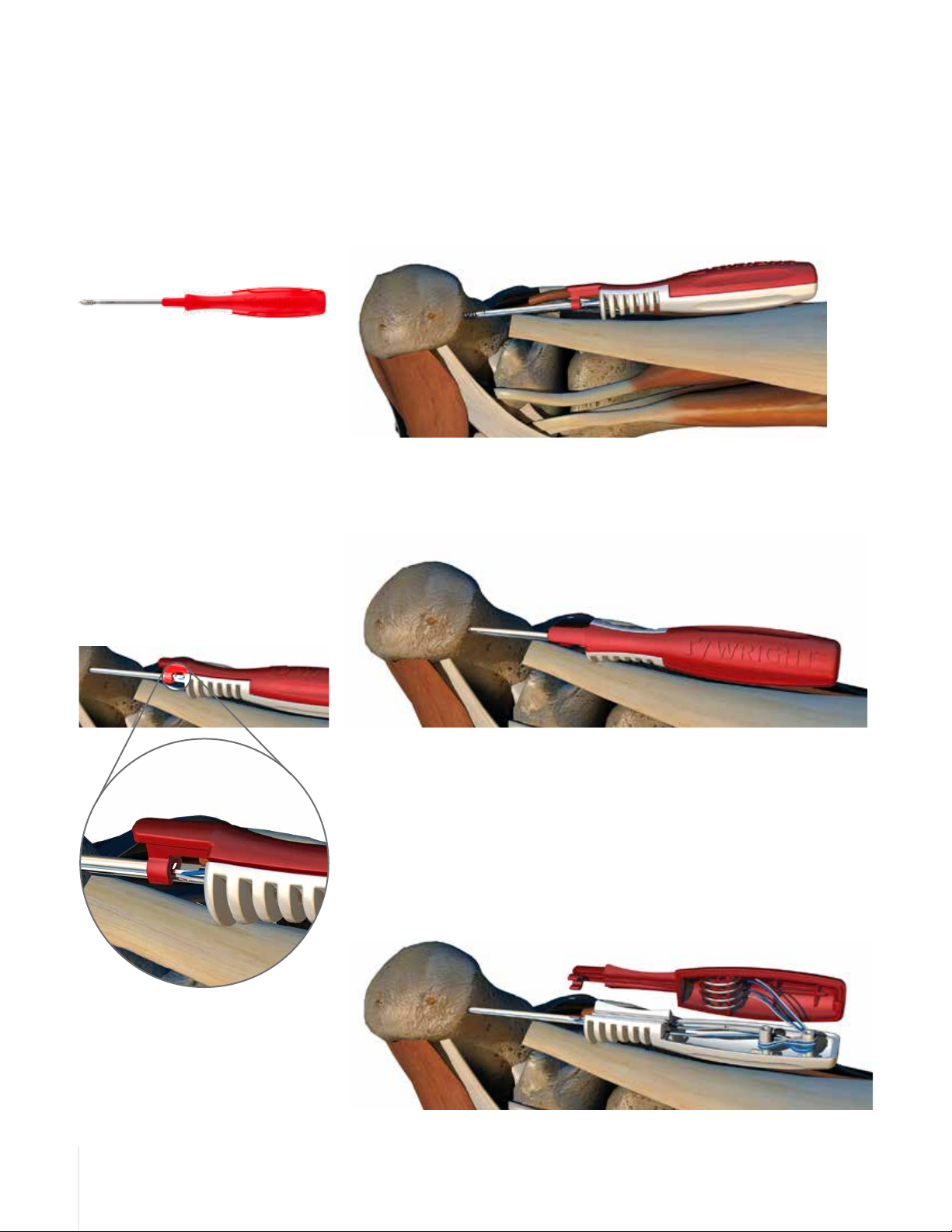

shaft clasp and disengaging it from the driver shaft. | Figure 1 When the suture
cartridge is fully disengaged from the handle, gently pull back on the driver
handle to release the driver tip from the suture anchor. | Figure 2
Set aside the driver handle and maintain possession of the suture cartridge.
Chapter 3 Surgical Technique
Anchor Positioning
Prior to insertion, position the driver tip to achieve the desired trajectory. While
maintaining slight pressure and ensuring that the anchor is free of soft-tissue,
rotate the handle clockwise to begin advancement.
| Figure 1
| Figure 2

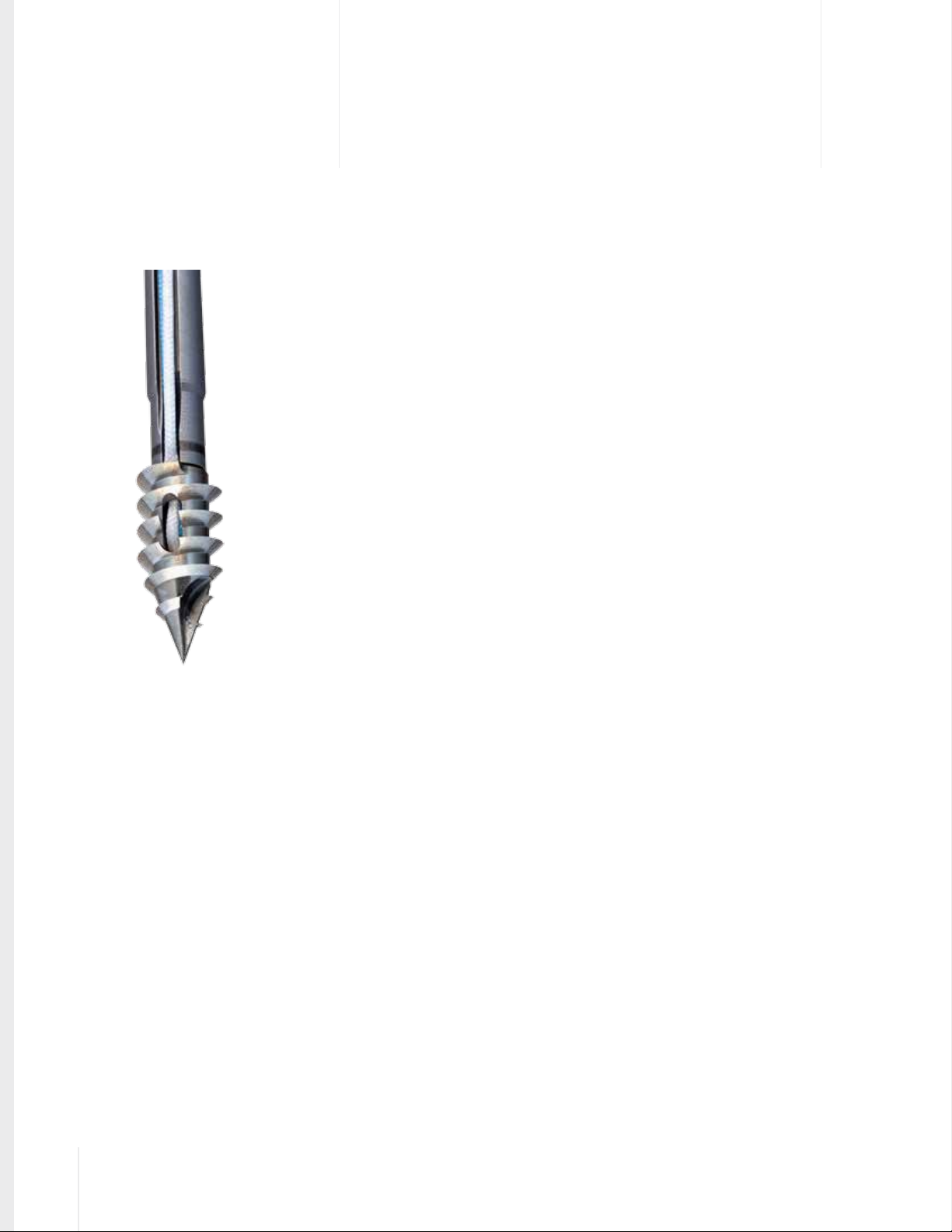

GRAVITY® Titanium Suture Anchor 5.5mm
(P/N 86TAN255)
7Chapter 3 Surgical Technique
Soft-tissue Fixation
Using a needle driver, hemostat, or forceps, remove each needle from the
cartridge and drive them through the desired soft-tissue, tensioning the tissue
as needed. Secure the soft-tissue to the bone by tying knots with the suture. It
may be helpful to use the suture cartridge to organize the needles and suture
during soft-tissue fixation.
Explant Information
The implant can be removed if needed. To re-engage the anchor, utilize the
handle and driver shaft of the appropriate size driver (see sizing chart). Insert
the driver tip into the anchor and rotate the handle counterclockwise to
remove the implant.
Postoperative Management
If the removal of the implant is required due to revision or failure of the device,
the surgeon should contact the manufacturer using the contact information
located on the back cover of this surgical technique to receive instructions for
returning the explanted device to the manufacturer for investigation.
Postoperative Care
Postoperative care is the responsibility of the medical professional.
Part Number Description
86TA2027 2.7mm TI ANCHOR WITH 2-0 SUTURE
86TAN035 3.5mm TI ANCHOR WITH #0 SUTURE
86TAN255 5.5mm TI ANCHOR WITH #2 SUTURE
58850020 2.0mm Drill
58850025 2.5mm Drill
58850035 3.5mm Drill
Ordering Information
