Wyco screed king User manual

Single and Double Head Powered Screed
Screed King
SCR-UM-00364-EN-02 (February 2016) User Manual

Single and Double Head Powered Screed, Screed King
Page ii February 2016SCR-UM-00364-EN-02
CONTENTS
Scope of This Manual � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Unpacking and Inspection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Safety � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Terminology and Symbols� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
General Safety � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Operating safety� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Storage safety � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Refueling Safety � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Introduction� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Oil Level Check � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Power Unit Assembly � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Handle Assembly � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Throttle Assembly � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Weight Adjustment � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
Throttle Cable Adjustment � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
Attaching The Screed Bar � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
Serial Number Location � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
Specications � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13
Power Head #1 Model
Power Head # 1 Serial Number
Power Head #2 Model
Power Head # 2 Serial Number
Screed Bar Model
Screed Bar Serial Number
Date Purchased

Scope of This Manual
Page 3February 2016 SCR-UM-00364-EN-02
SCOPE OF THIS MANUAL
This manual takes you step-by-step through your working day and alerts you to all good
safety practices that should be adhered to while operating the screed�
MPORTANTI
Read this manual carefully before attempting any installation or operation. Keep the manual
accessible for future reference.
UNPACKING AND INSPECTION
Upon opening the shipping container, visually inspect the product and applicable
accessories for any physical damage such as scratches, loose or broken parts, or any other
sign of damage that may have occurred during shipment�
OTE:N If damage is found, request an inspection by the carrier’s agent within 48 hours of
delivery and file a claim with the carrier� A claim for equipment damage in transit
is the sole responsibility of the purchaser�
SAFETY
Terminology and Symbols
Indicates a hazardous situation, which, if not avoided, is estimated to
be capable of causing death or serious personal injury�
Indicates a hazardous situation, which, if not avoided, could result in
severe personal injury or death�
Indicates a hazardous situation, which, if not avoided, is estimated to
be capable of causing minor or moderate personal injury or damage
to property�
Make sure that everyone operating this equipment is familiar with the recommended
operating and maintenance procedures and follows all of the safety precautions�
• Screed owners must give operating instructions to operators or employees before
allowing them to operate the machine, and at least annually thereafter�
• The most important safety device on this equipment is a safe operator� It is the
operator’s responsibility to read and understand all safety and operating instructions
in this manual, and to follow them� All accidents can be avoided�
• A person who has not read and understood all operating and safety instructions is
not qualified to operate the machine� Untrained operators expose themselves and
bystanders to possible serious injury or death�
• Do not modify the equipment in any way� Unauthorized modification may impair the
function and/or safety and could affect the life of the equipment�

Introduction
Page 4 February 2016SCR-UM-00364-EN-02
General Safety
• Only trained competent persons shall operate the screed� An untrained operator is not
qualified to operate the machine�
• Have a first aid kit available, and know how to use it�
• Have a fire extinguisher available, and know how to use it�
• Wear appropriate protective gear� This list includes but is not limited to:
◊ A hard hat
◊ Protective boots with slip-resistant soles
◊ Protective goggles
◊ Heavy gloves
◊ Hearing protection
• Stop engine, disconnect spark plug wire and wait for all moving parts to stop before
servicing, adjusting, repairing or cleaning�
• Wear appropriate hearing protection when operating for long periods of time�
• Review safety related items with all personnel annually�
Operating safety
• Read and understand the operators manual and all safety signs before operating,
servicing, adjusting or cleaning the screed�
• Clear the area of all bystanders before starting�
• Keep hands, feet, hair and clothing away from moving parts�
• Stay away from hot engine components during operation�
• Do not run the screed in an explosive atmosphere, a poorly ventilated or
enclosed area�
• Do not smoke when refueling the gas engine�
Storage safety
• Store the unit in an area away from human activity�
• Do not permit children to play around the stored screed�
Refueling Safety
• Handle the fuel with care� It is highly flammable�
• This is a four cycle engine, use non-mixed gasoline of no less than 87 octane�
• Allow the engine to cool for 5 minutes before refueling� Clean up spilled fuel before
restarting the engine�
• Do not refuel the machine while smoking or when near open flame or sparks�
• Always use an approved fuel container�
• Fill the fuel tank outdoors�
• Prevent fires by keeping the machine clean of accumulated trash, grease and debris�
INTRODUCTION

Oil Level Check
Page 5February 2016 SCR-UM-00364-EN-02
The Screed King power screed is designed and manufactured to meet the needs of a
discriminating buyer for the efficient finishing of concrete�
The directions left, right, front and rear as mentioned throughout this manual, are as seen
from behind the machine, standing between the handles�
OIL LEVEL CHECK
OIL FILLER CAP/DIPSTICK
LOWER LIMIT
OIL FILL HOLE
(bottom edge)
Figure 1: Oil filler hole location
It is important that the engine oil level be maintained at the correct level� High or low oil
levels cause permanent damage to the engine requiring replacement� To check the oil level:
1� Place the screed board on a at level surface to perform an oil level check�
2� Carefully unscrew the oil ller cap/dipstick and wipe it clean�
3� Insert and remove the oil ller cap/dipstick without screwing it into the oil reservoir
neck, to check the oil level shown on the dipstick�
4� If the oil level is near or below the lower limit mark on the dipstick, ll the reservoir to
the bottom edge of the oil ll hole with the recommended oil� See the Honda engine
owners manual for more information�
5� To avoid overlling or underlling, make sure the engine is in a level position when
adding oil�
6� Reinstall the oil ller cap/dipstick and tighten securely�
MPORTANTI
Running the engine with a low oil level can cause engine damage. This type of damage is not
covered by the warranty.

Power Unit Assembly
Page 6 February 2016SCR-UM-00364-EN-02
POWER UNIT ASSEMBLY
The tools required for assembly are:
• (1) 7/16 in� (11 mm) open or box end wrench
• (1) 11/16 in� (17 mm) open or box end wrench
• (1) #2 Flathead screwdriver
• (1) Slip joint pliers
Figure 2: Required tools
Handle Assembly
1� Remove the handles from their shipping position by removing the two top 7/16 in�
(11 mm) nuts, the quick release levers and the top handle cap�
Figure 3: Handle plate positioning
2� Insert the bottom of the handles into the back of the handle plate and replace the top
handle cap over the handle�
3� Thread on the two top 7/16 in� (11 mm) nuts�
4� Install the quick release levers on the top of each bracket� Placing the black hand levers
in the lower position will result in handlebar movement�
5� With the lever in the open position, thread it through the cap, handle plate and quick
release nut� Continue threading until tight�
6� When hand-tight, place the handles at the appropriate height and close the lever�

Power Unit Assembly
Page 7February 2016 SCR-UM-00364-EN-02
7� Add the upper handle sections to the lower handle section�
Figure 4: Upper handle insertion
8� Secure the upper handle with the two supplied 5/16 in� (7 mm) fasteners�
Figure 5: Fastening upper handle

Power Unit Assembly
Page 8 February 2016SCR-UM-00364-EN-02
Throttle Assembly
Figure 6: Throttle assembly location
1� Place the throttle lever on the left handle just below the hand grip�
2� Position the lever so it clears the handle guard in all positions�
3� Place the lever ring clamp around the handle bar and tighten with a athead
screwdriver and adjustable pliers�
4� Use the zip ties provided to keep the throttle cable tight to the handle bars�
5� Check to make sure the cable stop for the throttle adjustment cable is fully seated into
the throttle adjustment linkage on the carburetor� Make sure the metal cable stop is
completely inside the throttle adjustment linkage, as shown below�
Correct
Figure 7: Throttle assembly detail
a� If the cable stop is not fully seated, loosen the throttle control adjustment
screw and grab the end of the adjustment cable with the slip joint pliers�
6� Pull gently on the cable until the cable stop is completely within the throttle
adjustment linkage�

Power Unit Assembly
Page 9February 2016 SCR-UM-00364-EN-02

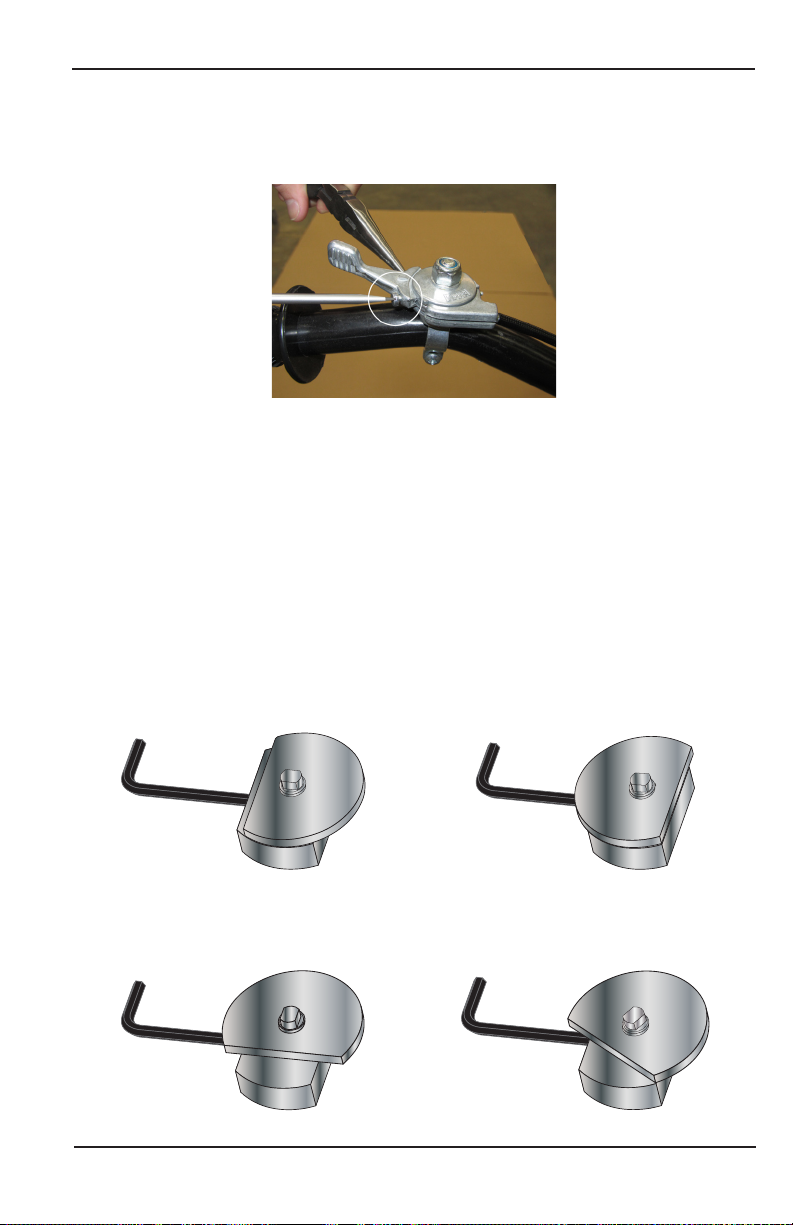

7� With the throttle lever pushed to the far right, hold the throttle adjustment cable so
there is no slack and then tighten the throttle control adjustment screw to clamp the
cable in place�
Figure 8: Throttle assembly connection
Weight Adjustment
The eccentric weight on the power head is factory set to its maximum force� This setting
settles concrete with a 2…8 in� (50…203 mm) slump� The weight needs to be adjusted only
when the screed is going to be used on unusually high slump concrete�
To change the force of vibration, adjust the position of the eccentric weight as follows:
1� Using a 1/4 in� (6 mm) Allen key, loosen the set screw on the thicker weight�
2� While holding the thick weight stationary with the Allen key, turn the thin weight by
hand to the required position�
Turning the thin weight set screw clockwise decreases the force to zero when the flat edge
of the thin weight is parallel to the flat edge of the thick weight�
Figure 9: Least vibration Figure 10: Maximum vibration (factory setting)
Turning the thin weight counter clockwise increases the force of vibration until the flat
edge of the thin weight is flush with the opposite edge of the thick weight�
Figure 11: 3/4 vibration Figure 12: 1/2 vibration

Power Unit Assembly
Page 10 February 2016SCR-UM-00364-EN-02
Throttle Cable Adjustment
The throttle cable comes pre-assembled for your convenience� Over time you may notice
that it takes more clicks on the throttle to reach the optimum RPM level than when you first
ran the screed� This is normal as the throttle cable stretches over time�
Figure 13: Throttle cable adjustment
To adjust your throttle cable to compensate for this stretching:
1� Locate the barrel adjuster where the cable runs into the underside of the engine�
2� Turn the barrel adjuster counterclockwise with an 8 mm wrench�
3� Tighten the locknut to hold it in the desired position�
Attaching the Screed Bar
1� Locate the threaded studs on the screed bar and loosen the locking handles�
2� Slide the power head of the screed over the threaded studs�
3� Fasten the power head to the bar using the locking handles and washers provided,
as shown below� The washer and lock-washer should contact the silver handles when
installing the power unit�
Figure 14: Attaching the screed bar
4� Make sure to fully tighten the bolts so they do not come loose during use�

Power Unit Assembly
Page 11February 2016 SCR-UM-00364-EN-02
Serial Number Locations
Always give your dealer, distributor or factory the serial numbers for your screed bar and
power head when ordering parts or requesting service or other information�
The board serial number is stamped above the CENTER sticker�
Figure 15: Screed bar serial number location
The power head serial number is stamped in the casting as shown below� Record both serial
numbers on the inside of the front cover in the space provided�
Figure 16: Power unit serial number location

Single and Double Head Powered Screed, Screed King
®
A S
C C
Trademarks appearing in this document are the property of their respective entities�
Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specications without notice,
except to the extent an outstanding contractual obligation exists� © 2016 Badger Meter, Inc� All rights reserved�
Wyco Tool | 8635 Washington Avenue | Racine, WI 53406-3738 USA
[email protected]om | www.wycotool.com
Phone: [phone] | Fax: [phone]
Legacy Document Number: 01-SCR-UM-00442
SPECIFICATIONS
Engine GX35 Mini 4-Stroke
Starting Mechanism Recoil
Maximum Power Output 1�5 HP @ 7000 RPM
Handle Design Vibration reducing, quick adjusting
Fuel Capacity 0�17 U�S� gallon (0�644 liter)
Oil Capacity 3�4 ounce U�S� liquid (0�1 liter)
Sound Pressure 87…90 dB(A) @ 5500 RPM
Vibration (m/sec2) 7�4 m/sec @ 5500 RPM in 4 in� (101�6 mm) slump concrete
Power Head Weight Single powerhead alone 27 lb (12�25 kg)
Dual powerhead alone 54 lb (24�25 kg)
Screed Bar Weight
4 ft (1�22 m) screed bar 8 lb (3�63 kg)
5 ft (1�52 m) screed bar 10 lb (4�54 kg)
6 ft (1�83 m) screed bar 12 lb (5�44 kg)
8 ft (2�44 m) screed bar 15 lb (6�80 kg)
10 ft (3�05 m) screed bar 19 lb (8�62 kg)
12 ft (3�66 m) screed bar 22 lb (9�98 kg)
14 ft (4�27 m) screed bar 26 lb (11�79 kg)
16 ft (4�88 m) screed bar 29 lb (13�15 kg)
16 ft (4�88 m) screed bar (double power unit) 31 lb (14�10 kg)
18 ft (5�49 m) screed bar (double power unit) 33 lb (14�97 kg)
20 ft (6�1 m) screed bar (double power unit) 37 lb (16�78 kg)
