Wynn's ZW03005 User manual

©2021 ITW PROFESSIONAL AUTOMOTIVE PRODUCTS •3606 CRAFTSMAN BLVD, LAKELAND, FL 33803 REV.00 Pg 1 of 3
ZW03005 COMPLETE CABIN
ATOMIZER SERVICE JOB AID
Technical Support: 800-255-8138 Option #4
Safety Recommendations:
• Safety glasses and gloves should be worn during the service.
• Use in well ventilated area.
• Verify machine and all components are in good working
condition.
Complete Atomizer Machine and Components:
• Complete Cabin Atomizer Machine
• Power Supply Cable
• Conveyor Tube
Approved Wynn’s®HVAC Products:
• Airco-Clean (#ZW30208)
• Air Purier (#ZWA1601)
• MB-10 Tablet Kit (#ZW90010)
Preparing the Complete Cabin Atomizer Machine:
• Connect the power cable to the socket on the front of the
Complete Cabin Atomizer Machine.
• Connect the other end of the power cable into a
110-volt outlet.
Preparing the Complete Cabin Atomizer Machine
(continued):
• Fill the Complete Cabin Atomizer Machine’s reservoir
with Approved Wynn’s® HVAC products only.
• The green READY/ON LED light will begin to ash.

©2021 ITW PROFESSIONAL AUTOMOTIVE PRODUCTS •3606 CRAFTSMAN BLVD, LAKELAND, FL 33803 REV.00 Pg 2 of 3
ZW03005 COMPLETE CABIN
ATOMIZER SERVICE JOB AID
Technical Support: 800-255-8138 Option #4
Preparing the Complete Atomizer Machine (continued):
• Insert the conveyor tube into the Cabin Atomizer Machine’s
reservoir opening.
Preparing the Vehicle for Service:
• Start the vehicle’s engine.
• Place the lled Complete Cabin Atomizer Machine on the
passenger front oor area.
• Position the conveyor tube to the inlet opening of the air
recirculation vent (under dash).
• Pass the power cable through the passenger front door upper
door jamb near the B-Pillar.
• Close all other windows and doors of the vehicle.
NOTE: It is not necessary to remove the cabin air lter.
Preparing the Vehicle for Service (continued):
• Set the vehicle’s air conditioning to o.
• Set the temperature control to minimum temperature level.
• Select air recirculation to on.
• Set fan speed to minimum setting.
Preparing the Vehicle for Service (continued):
• Select front ventilation.
• Direct the ow of vents upwards.
• Open all air deectors on front vents.

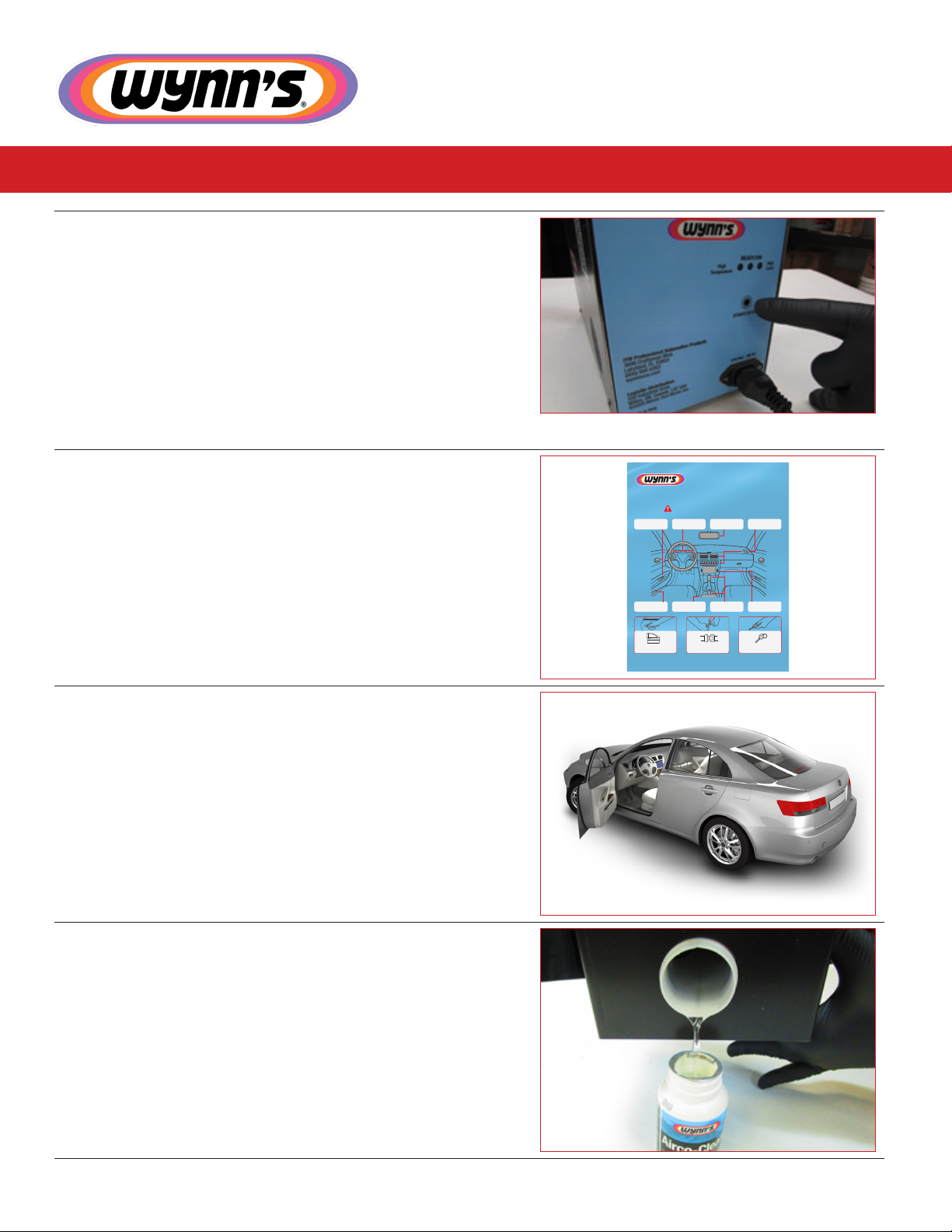

©2021 ITW PROFESSIONAL AUTOMOTIVE PRODUCTS •3606 CRAFTSMAN BLVD, LAKELAND, FL 33803 REV.00 Pg 3 of 3
ZW03005 COMPLETE CABIN
ATOMIZER SERVICE JOB AID
Technical Support: 800-255-8138 Option #4
Performing the Service:
• Press the ON/OFF button on the Complete Cabin Atomizer
Machine’s front panel.
• Check to ensure vapor is emitting from conveyor tube and
being drawn into the air recirculation vent.
• Exit the vehicle and close all doors.
• The Complete Cabin Atomizer Machine will automatically shut
o when service is complete.
NOTE: The Cabin Atomizer Service will run for approx.
10−25 minutes depending on which Wynn’s® approved
HVAC product is used.
Additional Service if Using MB-10 Solution:
The following high touch areas will need to be treated with a High
Volume Low Pressure (HVLP) sprayer to be most eective.
• Outside door handles
• Inside door handles
• Steering wheel
• Gearshift
• Front seats
• Rear seats
• Control knobs
AREAS OF GREATEST RISK
©2020ITW PROFESSIONAL AUTOMOTIVE PRODUCTS INC. ALL RIGHTS RESERVED • 3606 CRAFTMAN BLVD.• LAKELAND, FL. 33803 • WYNNSUSA.COM• [phone] REV.00
HIGH TOUCH
VEHICLE DISINFECTING
Backrest Lever Armrest Gear Shift and
Handbrake
Radio, Touchscreen
and Control Buttons
External Surfaces Such As
Window Frames and Handles Safety Belt Car Key
Door Handle and
Window Buttons
Steering Wheel,
Switches & Ignition Key
Button/Wheel of HVAC
Vent Controls
Rear-View Mirror
Completing the Service:
• Remove the Complete Cabin Atomizer Machine form the
vehicle when the service has completed.
• Open all vehicle doors.
• Turn o the vehicle’s engine.
• Allow 5-10 minutes for the vehicle’s cabin to ventilate.
Maintenance for the Complete Cabin Atomizer Machine:
• Disconnect the power cable from the front of the Complete
Cabin Atomizer Machine.
• Remove the conveyor tube.
• Pour any remaining product from the Complete Cabin
Atomizer Machine and discard.
• Rinse the Complete Cabin Atomizer Machine’s reservoir with
tap water and dispose of mixture from machine.
