Installation Guide
SW-0501-HDBT
Document Revision:
v2.0
Document Date:
March 6th 2018
Supported Firmware:
V1.0.0 or higher

© Copyright 2018 WyreStorm Technologies | wyrestorm.com
SW-0501-HDBT Installation Guide | 180306
2 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]
IMPORTANT! Safety Information
Note:
Provides special information for installing, configuring, and operating the equipment.
IMPORTANT!
Provides special information that is critical to installing, configuring, and operating
the equipment.
CAUTION!
Provides special information on avoiding situations that may cause damage to
equipment.
WARNING!
Provides special information on avoiding situations that may cause physical danger
to the installer, end user, etc.
ELECTRIC SHOCK!
The source power poses an electric shock hazard that has the potential to cause
serious injury to installers and end users.
ELECTRICAL DISCONNECT:
The source power outlet and power supply input power sockets should be easily
accessible to disconnect power in the event of an electrical hazard or malfunction.
WEIGHT INJURY!
Installing some of the equipment requires two installers to ensure safe handling
during installation. Failure to use two installers may result in injury.
Safety Statements
1. Read these instructions in their entirety and retain a copy for later reference.
2. Follow all instructions and heed all warnings.
3. Do not expose this apparatus to rain, moisture, sprays, drips or splashes and ensure that no objects containing
liquids are placed on the apparatus, including cups, glasses and vases.
4. Do not place this unit in a confined space such as enclosed shelving, cabinets or bookshelves. Ensure the unit
is adequately ventilated.
5. To prevent the risk of electric shock or fire hazard due to overheating, do not cover the unit or obstruct
ventilation openings with material, newspaper, cardboard or anything that may restrict airflow into the unit.
6. Do not install near external heat sources such as radiators, heat registers, boilers or any device that produces
heat such as amplifiers or computers and do not place near sources of naked flame.
7. Unplug apparatus from power supply during lightning storms or when unused for long periods of time.
8. Protect the power cable from being walked on, pinched or restricted in any way, especially at plug connections.
9. Only use attachments/accessories specified by the manufacturer.
10. Units contain non-serviceable parts - Refer all servicing to qualified service personnel.
IMPORTANT!
Do Not hot swap HDMI or HDBaseT connections - Insert and extract cables carefully with the power SWITCHED OFF.
Power is passed along transmissions so connecting and disconnecting cables while powered can result in damage to
circuitry or possible injury.

© Copyright 2018 WyreStorm Technologies | wyrestorm.com
SW-0501-HDBT Installation Guide | 180306
3 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]
Contents
IMPORTANT! Safety Information.................................................................................................... 2
Product Overview ...........................................................................................................................4
In the Box................................................................................................................................................................................................ 4
Front Panel ............................................................................................................................................................................................. 4
Rear Panel............................................................................................................................................................................................... 5
Specifications......................................................................................................................................................................................... 6
Wiring and Connections ................................................................................................................. 7
Audio/Microphone Wiring.................................................................................................................................................................... 7
IMPORTANT! IR TX/RX Guidelines .................................................................................................................................................... 7
Remote I/O Control Device Wiring ..................................................................................................................................................... 7
RS-232 Wiring........................................................................................................................................................................................ 8
Installation ...................................................................................................................................10
Using the Table Mounting Bracket ..................................................................................................................................................10
Setup and Configuration ..............................................................................................................12
First Time Configuration ....................................................................................................................................................................12
Accessing the Web UI (Web-UI).......................................................................................................................................................12
ScreenLink Presentation Software ..................................................................................................................................................12
Configuring EDID Operation ..............................................................................................................................................................12
Configuring the Audio Output ...........................................................................................................................................................13
Display Power Management Configuration ...................................................................................................................................13
Troubleshooting ...........................................................................................................................14
Contacting Technical Support ......................................................................................................15
Revision History ...........................................................................................................................15
Publication Disclaimer .................................................................................................................15

© Copyright 2018 WyreStorm Technologies | wyrestorm.com
SW-0501-HDBT Installation Guide | 180306
4 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]
Product Overview
In the Box
1x SW-0501-HDBT Presentation Switcher/Scaler
1x AC Power Cord
1x 11-pin Screw Down Phoenix Connector
1x 5-pin Screw Down Phoenix Connector
2x 4-pin Screw Down Phoenix Connector
4x 3-pin Screw Down Phoenix Connector
2x Mounting brackets
1x Quickstart guide

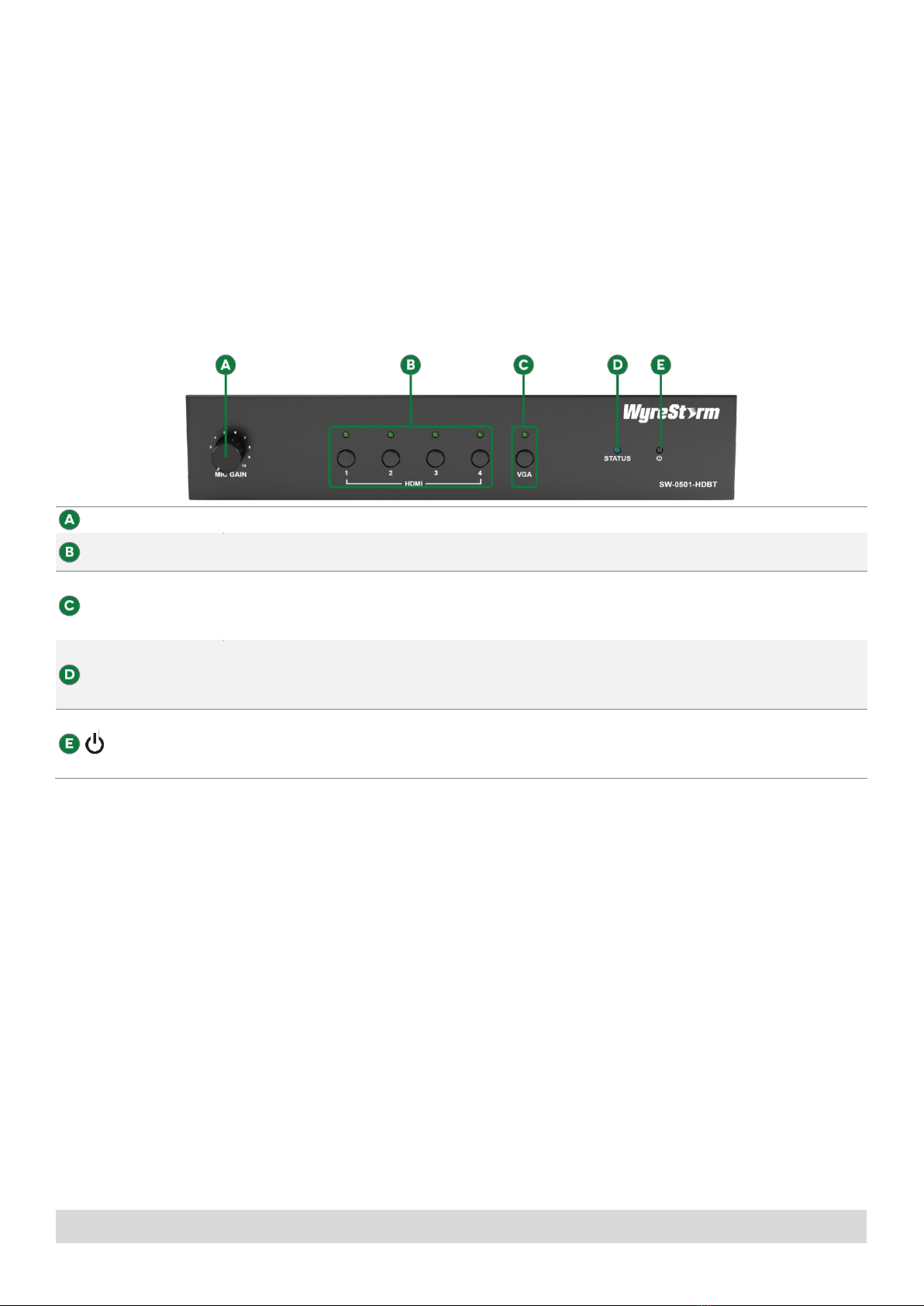

Front Panel
Mic Gain
Adjusts the gain of the Mic Input from 0 to 40db.
HDMI Input 1-4
Selection
Press to select an HDMI input as the current source. An illuminated LED indicates the currently selected
HDMI source.
VGA Input Selection
Press to select VGA input as the current source. An illuminated LED indicates the currently selected
source is VGA.
Status
Flashing (at 2 second intervals): The SW-0501-HDBT is operating normally.
(Power)
Solid: TheSW-0501-HDBT is powered On.

© Copyright 2018 WyreStorm Technologies | wyrestorm.com
SW-0501-HDBT Installation Guide | 180306
5 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]
Rear Panel
AC Power
Connect to a 100~240V AC 50/60Hz AC mains outlet.
Phantom Power
On: Provides 48V DC 100mA to a microphone connected to Mic In
Off: No power supplied –Use this setting for dynamic (passive) microphones.
Mic In
3-pin Screw Down Phoenix Connector
Connect to a microphone to allow for combining with selected source audio.
IMPORTANT! Verify that Phantom Power switch on the rear panel is set to Off before
connecting dynamic (passive) microphones.
Audio In
3-pin Screw Down Phoenix Connector
Connect to the analog audio output of the VGA source connected to the VGA In. Audio signal received on
this port is played only when the VGA input is selected.
Audio Out
3-pin Screw Down Phoenix Connector
Connect to the line level input of an audio pre-amplifier or powered speaker for audio output from
selected sources.
Contact In/
LED Out
11-pin Screw Down Phoenix Connector
Connect to a remote I/O control device such as a panel switch for selecting inputs remotely.
RS-232 1-2
4-pin Screw Down Phoenix Connector
RS-232 1 is used for controlling the SW-0501-HDBT via an external control system.
RS-232 2 is used for controlling local devices such as connected sources.
Refer to RS-232 Wiring for more details.
IR
5-pin Screw Down Phoenix Connector
Used to send and receive IR signals to/from the remote display location via HDBaseT.
RS-232
3-pin Screw Down Phoenix Connector
Used to send RS-232 signals to/from devices connected to an HDBaseT receiver via the HDBaseT Out
port. Refer to RS-232 Wiring for more details.
Reset
Press and hold for 5 seconds while the SW-0501-HDBT is powered on to restore factory default settings.
HDMI In 1-4
19-pin type A HDMI female digital video/audio input.
Supports HDMI and DVI/D (requires adapter-not included).
VGA In
15-pin VGA VESA (DSUB 15)
Connect to DSUB 15 VGA output of device such as a computer
15-pin VGA cable is required.
HDMI Out
19-pin type A HDMI female digital video/audio input.
Supports HDMI and DVI/D (requires adapter-not included).
HDBaseT Out
8-pin RJ-45 female
Connect to an HDBaseT receiver.
LAN
8-pin RJ-45 female | 10/100 Mbps auto-negotiating
Connect to a network router or switch for accessing the Web UI or IP Control.

© Copyright 2018 WyreStorm Technologies | wyrestorm.com
SW-0501-HDBT Installation Guide | 180306
6 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]
Specifications
Audio and Video
Inputs
4x HDMI 19-pin type A | 1x VGA 15-pin DSUB15 VGA
1x Audio In (VGA Audio) 3-pin Screw Down Phoenix Connector | 1x Audio Out 3-pin Screw Down Phoenix
Connector
Outputs
1x HDMI 19-pin type A | 1x HDBaseT 8-pin RJ-45 female
Audio Formats
2ch PCM
Video Resolutions (Max)
HDMI: 1920x1200p @60Hz 12bit (15m/50ft) | 16bit (7m/23ft)
Cat6: 1920x1200p @60Hz 12bit (100m/328ft) | @60Hz 16bit (70m/230ft)
Cat6a/7: 1920x1200p @60Hz 12bit (100m/328ft)
Color Depth
1080p: 16bit
Maximum Pixel Clock
HDMI: 194MHz | HDBaseT: 194MHz
Communication and Control
HDMI
HDCP 1.4 compliant | DVI/D supported with adapter (not included)
HDBaseT
HDCP 1.4 compliant | EDID | 1-way PoH | Bidirectional IR and Ethernet
Ethernet
1x 8-pin RJ-45 female | Web UI | IP Control | Bidirectional over HDBaseT
IR
5-pin Phoenix (1x IR TX / 1x IR RX) | Bidirectional over HDBaseT
RS-232
Matrix Control | Firmware Updates
3-pin Phoenix | Bidirectional over HDBaseT
Power
Power Supply
Input: 100~240V AC 50/60Hz
PoH
48V 15.4W
Max Power
Consumption
88.6W
Environmental
Operating Temperature
32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing
Storage Temperature
-4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing
Maximum BTU
302.3 BTU/hr
Dimensions and Weight
Rack Units/Wall Box
1U
Height with | without
feet
51.3mm/2.02in | 43.5mm/1.72in
Width | without Rack
Ears
N/A | 220mm/8.67in
Depth | without Handles
297.8mm/11.73in | 280mm/11.03in
Weight
2.3kg/5.07lbs
Regulatory
Safety and Emission
CE | FCC | RoHS

© Copyright 2018 WyreStorm Technologies | wyrestorm.com
SW-0501-HDBT Installation Guide | 180306
7 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]
Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the
switcher. Read through this section in its entirety before running or terminating the wires to ensure proper operation
and to avoid damaging equipment.
IMPORTANT! Wiring Guidelines
•The use of patch panels, wall plates, cable
extenders, kinks in cables, and electrical or
environmental interference will have an adverse
effect on signal transmission which may limit
performance. Steps should be taken to minimize
or remove these factors completely during
installation for best results.
•WyreStorm recommends using pre-terminated
HDMI and VGA cables due to the complexity of
these connector types. Using pre-terminated
cables will ensure that these connections are
accurate and will not interfere with the
performance of the product.

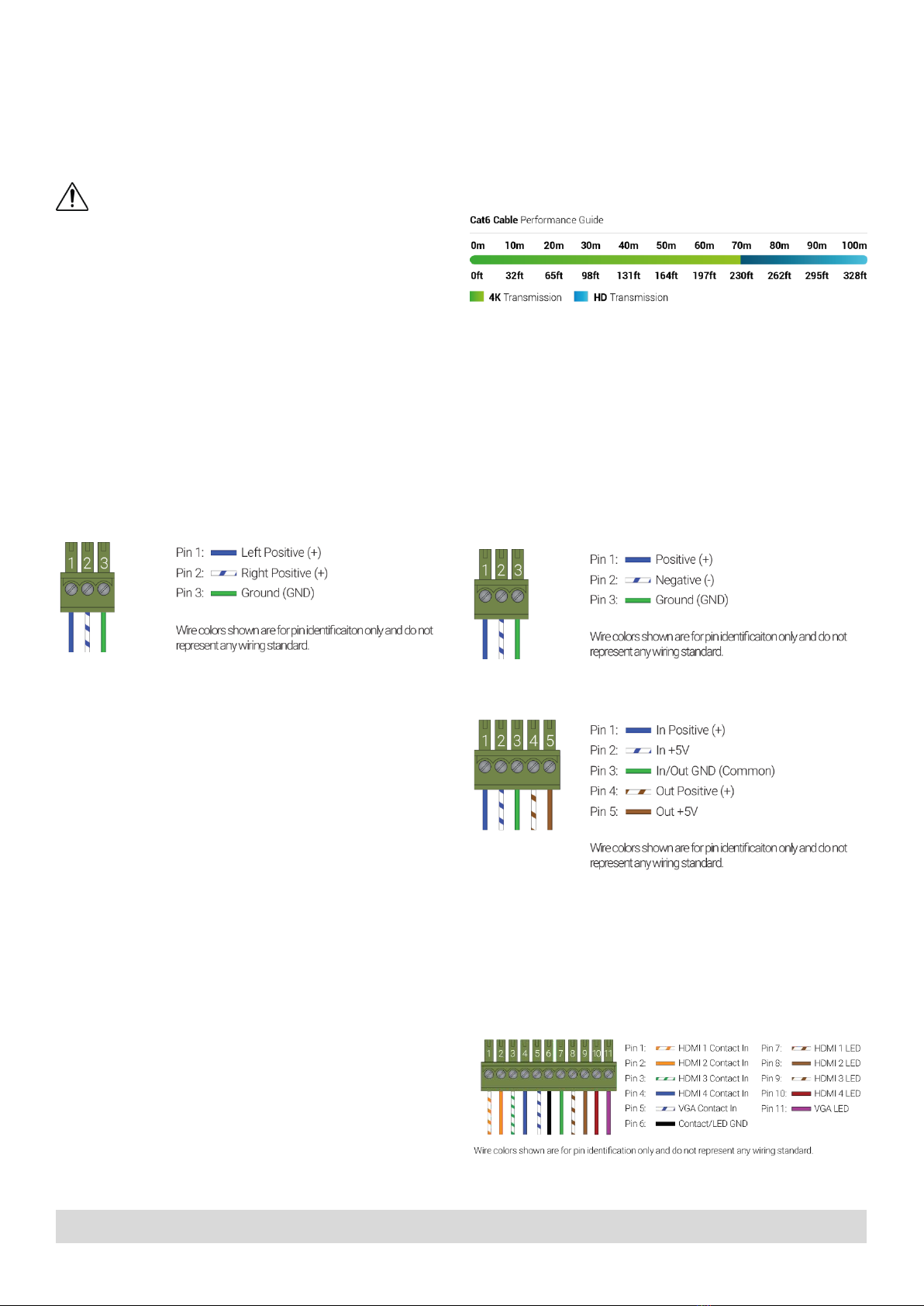

Audio/Microphone Wiring
Audio In/Out
Microphone
IMPORTANT! IR TX/RX Guidelines
Using WyreStorm infrared emitters and receivers is the
best way to ensure that most IR coding formats are
transmitted and received by the SW-0501-HDBT. Other
3rd party emitters and receivers can be used; however,
these devices must operate in the same manner as the
WyreStorm devices.
Due to differences in IR across 3rd party control systems
their IR ports should never be connected directly to the
switcher as an incompatibility may exist. WyreStorm
offers a cable that compensates for voltage differences as
well adjusts for differences in the pins used within the
port. Refer to the CAB-IR-LINK product page for more
information.
Remote I/O Control Device Wiring
The SW-0501-HDBT may be controlled using a contract
closure remote I/O device. Connection uses an 11-pin
phoenix connector that also provides LED feedback to the
device for all 5 inputs.

© Copyright 2018 WyreStorm Technologies | WyreStorm.com
[Document Title] | 180306
8 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]

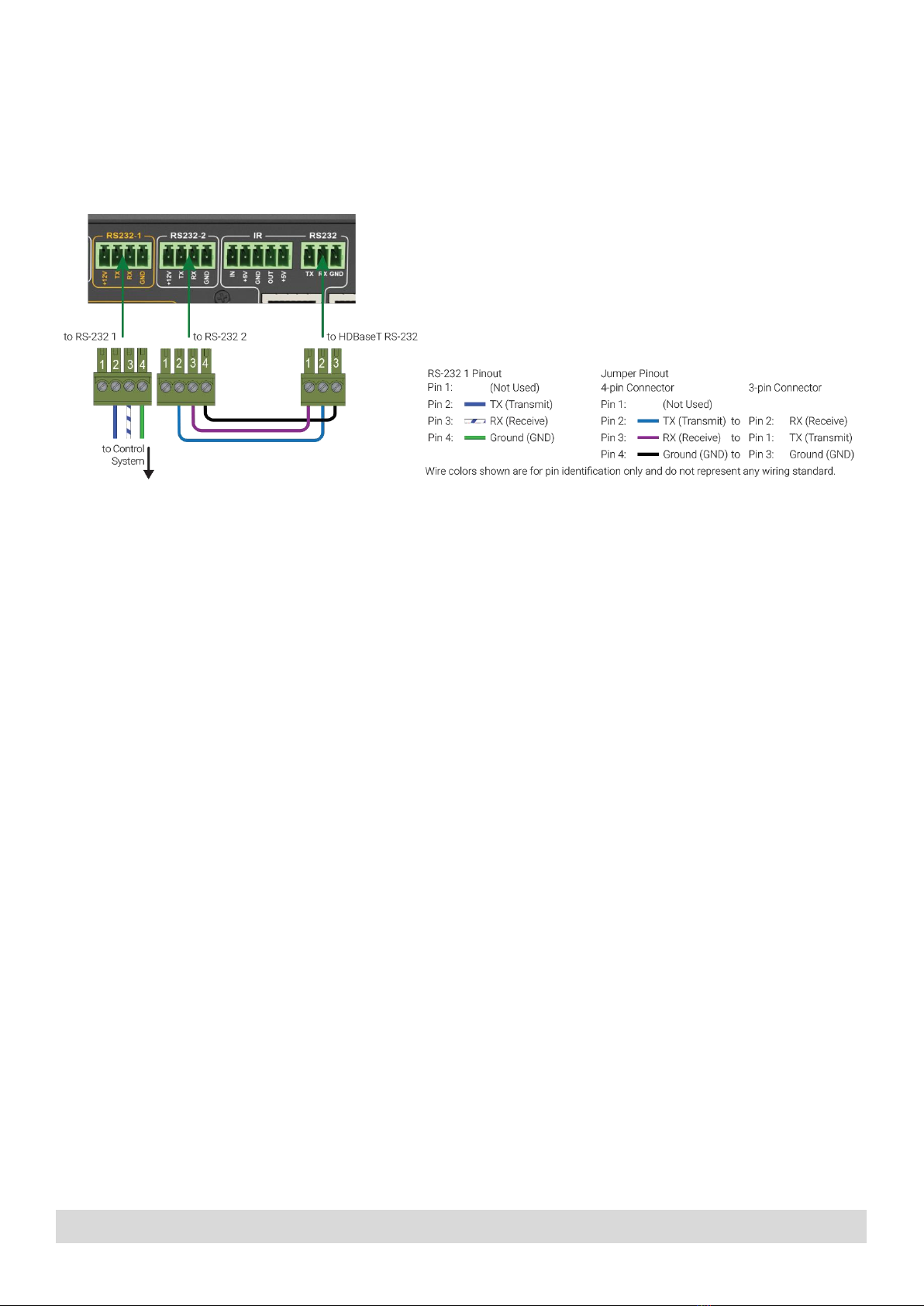

RS-232 Wiring
There are 3 different RS-232 connections on the SW-0501-HDBT that use 2 different connectors.
•RS-232 1 - Control of the SW-0501-HDBT using a 4-pin phoenix connector.
•RS-232 2 - Control of local devices using a 4-pin phoenix connector.
•RS-232 - Control of devices in a remote location by sending control signals via HDBaseT using a 3-pin phoenix
connector.
RS-232 Connection Guidelines
The following wiring diagrams show the pinouts for the switcher. While not shown, connect the TX (transmit) to RX
(receive) pins at the control system or PC side of the cable. Most control systems and computers are configured for
Digital Terminal Equipment (DTE) where pin 2 is RX and pin 3 is TX This can vary from device to device, refer to the
documentation for the connected device for pin functionally to ensure that the connect connections can be made.
Method 1 - Individual Ports for Switcher and Device Control
This is the preferred method for switcher, local, and remote device control when there are multiple ports available on the
control system.
Use Method 2 - Shared Port for Switcher and Remote Device Control to control the switcher and remote devices via a
single RS-232 port on the control system.

© Copyright 2018 WyreStorm Technologies | wyrestorm.com
SW-0501-HDBT Installation Guide | 180306
9 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]
Method 2 - Shared Port for Switcher and Remote Device Control
Use this method for switcher and remote device control when there is a single port available on the control system.
Use Method 1 - Individual Ports for Switcher and Device Control to control the switcher, local, and remote devices via
multiple RS-232 ports on the control system.
Note: This method can only be used if the switcher will not be controlling a local device using RS-232 2 as the port will
be used to jump the signal to the HDBaseT RS-232.

© Copyright 2018 WyreStorm Technologies | wyrestorm.com
SW-0501-HDBT Installation Guide | 180306
10 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]
Installation
Using the Table Mounting Bracket
The SW-0501-HDBT Presentation Switcher is supplied with a bracket to install under a table or shelf allowing for the
unit to hidden out of site in a conference where access is not required.
Bracket Parts Included
2x Mounting Brackets
1x Installation Alignment Plate
2x Switcher Mounting Ears
4x Switcher Mounting Ear Screws
4x Switcher Bracket Screws
IMPORTANT! Screws to mount the bracket to the table or shelf are not included. Consider the weight of the
switcher when selecting these screws in order to avoid the unit from becoming loose. WyreStorm
assumes no responsibility for units that are improperly mounted.

© Copyright 2018 WyreStorm Technologies | wyrestorm.com
SW-0501-HDBT Installation Guide | 180306
11 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]
Bracket Installation
Before the bracket can be mounted to the table/shelf, it must be assembled using the alignment plate. This allows for
the bracket to be installed prior to installing the switcher.
1. Install the Alignment Plate onto the brackets using the 4 supplied Switcher Bracket Screws.
2. Once assembled, install the brackets under the table or shelf.
3. After installing the bracket to the table or shelf, remove the alignment plate and retain the screws for mounting
the switcher later.
4. Attach the supplied Mounting Ears to the switcher using the supplied Mounting Ear Screws.
5. Install the switcher into the bracket that was mounted to under the table or shelf in step 2 using the 4 supplied
Switcher Bracket Screws.
The installation is now complete and the switcher can be connected to the system.

© Copyright 2018 WyreStorm Technologies | wyrestorm.com
SW-0501-HDBT Installation Guide | 180306
12 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]
Setup and Configuration
First Time Configuration
By default, the switcher is set to a static IP that must be changed before using the switcher to a network. Due to various
versions in firmware, there are 2 specific IP addresses and the steps are different for each. Follow these steps to set the
switcher to an appropriate IP address for the network.
1. Connect the PC ethernet port directly to the switcher or connect them to the same network.
2. Set the PCs IPv4 address based on the unit’s firmware version:
Firmware Version
IP Address
Subnet Mask
Gateway
v2.9.0 or below
192.168.1.xxx
255.255.255.0
Leave Blank
v3.0.7 or above
192.168.11.xxx
255.255.0.0
Leave Blank
3. Once saved, open any browser and enter the IP address based on the unit’s firmware version:
Firmware v2.9.0 or below
192.168.1.1
Firmware v3.0.7 or above
192.168.11.243
4. In the open dialog, enter the Username and Password. Default- Username: admin / Password: admin
5. In the open window, navigate to System > Network.
6. Set the parameters for IP address to either DHCP or static for an IP address that is within the range of the
connected network and save the parameters.
7. Set the PCs IPv4 address back to the values used before configuring the switchers IP address.
Accessing the Web UI (Web-UI)
Before accessing the Web-UI, perform the steps under First Time Configuration to ensure that the default IP address of
the switcher has been changed. Leaving the default IP address set can prevent the switcher from being seen on a
network or create an IP address conflict.
1. Enter the IP address of the switcher in any web browser address bar. If DHCP was used, scan the network using an
IP scanner before attempting to access the web UI.
2. In the open dialog enter the Username and Password.
Default- Username: admin / Password: admin
ScreenLink Presentation Software
WyreStorm’s ScreenLink is a free firmware update that enables wireless connection to the presentation software. It is a
powerful collaboration tool that is ideally suited for the corporate and educational environment. This feature was not
always available on the SW-0501-HDBT v1 and units with firmware v2.8.5.1 or lower require that new firmware is
installed in order to take advantage of ScreenLink within an installation.
Refer to the SW-0501-HDBT ScreenLink Installation App Note located on WyreStorm.com for details on installing
ScreenLink before proceeding with using ScreenLink.
Configuring EDID Operation
By default, the switcher resolution output to the display will be based on the display’s Extended Display Identification
Data (EDID). However, should the need arise, a specific output resolution can be used if the other connected display
only supports a lower resolution.
1. Open the Web-UI by following the steps under Accessing the Web UI (Web-UI)
2. Navigate to: Functions > Output Timing
3. To set the output resolution using the displays EDID:
a. Select Auto in the Output Timing drop down list to set the output resolution using the displays EDID.
b. Select the resolution in the Output Timing drop down list that matches the lowest resolution supported by both
displays.
4. Click Apply to save the changes.

© Copyright 2018 WyreStorm Technologies | wyrestorm.com
SW-0501-HDBT Installation Guide | 180306
13 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]
Configuring the Audio Output
The Audio Out is disabled by default and the output level can be adjusted to suit the environment.
Enabling / Disabling the Audio Output
1. Open the Web-UI by following the steps under Accessing the Web UI (Web-UI)
2. Navigate to: Functions > Audio
3. Select Enable in the Mute drop down list to turn on the audio out.
Select Disable to turn off the audio out (default setting).
4. Click Apply to save the changes.
Adjusting the Audio Output Level
1. Open the Web-UI by following the steps under Accessing the Web UI (Web-UI)
2. Navigate to: Functions > Audio
3. Move the slider left to decrease the audio output level and right to increase the level testing the level as it is
adjusted. Adjustment Range: -100dB to +12 dB
4. Click Apply to save the changes.
Tip: WyreStorm recommends setting the audio output level to 0dB to start as the output will be at an average level
for most environments.
Display Power Management Configuration
The switcher can provide power management of the displays to ensure that they are powered On during presentations.
While there are multiple methods available, there are limitations to the combinations based on the displays being used.
Using CEC for Display Power Management
CEC is a function of HDMI where commands to power On (wake up) or power Off (sleep / standby) display devices
based on the current switcher input selection, source power state and the displays power state. When the switcher is
powered Off, all connected displays will also power Off.
In order to use CEC, the devices used in the system (sources and displays) must be CEC enabled. Refer to the
documentation from the manufacturer for verification of CEC operation.
Within the switcher, CEC is always enabled, the only configuration required is the timeout to allow for display devices to
power On and Off correctly.
1. Access the Web-UI. See Accessing the Web User Interface (Web-UI)
2. Navigate to: Functions > Sink Power Management
3. Enter a time to delay power On and Off commands to the displays.
Default: 120sec (2min) | Range: 0 to 3600sec (60min)
4. Click Apply to save the changes.
Using RS-232 for Display Power Management
If CEC is not available on the display devices, RS-232 can be used as alternative should it be available on the device.
RS-232 commands for power On and Off are entered and sent in ASCII format. If the devices being controlled use HEX
commands, these commands can be used as well.
1. Access the Web-UI. See Accessing the Web User Interface (Web-UI)
2. Navigate to: Functions > Sink Power Management
3. In the RS-232 Parameter field, enter the COM port settings for the device in the following format:
[Baud Rate]-[Data Bits][Parity][Stop Bits] | Example: 15200-8n1
4. In the RS-232 Standby field, enter the RS-232 command string to power Off (standby) the display.
5. In the RS-232 Wakeup field, enter the RS-232 command string to power On (wakeup) the display.
6. In the RS-232 Hex String Enable field, select Enable to use Hex string commands for RS-232 control.
7. Click Apply to save the changes.
Changing Web-UI Login Password
1. Access the Web-UI. See Accessing the Web User Interface (Web-UI)
2. Navigate to: System > Password
3. In the New Password field, enter the new password ranging from 4 to 16 alphanumeric characters.
Note: Password is case sensitive.
4. Click Apply to save the changes.

© Copyright 2018 WyreStorm Technologies | wyrestorm.com
SW-0501-HDBT Installation Guide | 180306
14 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]
Rebooting and Restoring Factory Defaults
To Reboot the Switcher
1. Access the Web-UI. See Accessing the Web User Interface (Web-UI)
2. Navigate to: System > Commands
3. Select Reboot to reboot the switcher.
4. Click Apply to save the changes.
To Restore Factory Defaults
1. Access the Web-UI. See Accessing the Web User Interface (Web-UI)
2. Navigate to: System > Commands
3. Select Reset to Factory Defaults to restore defaults for the switcher.
Note: Resetting defaults will erase all configured settings and return the switcher to the factory settings including
the login password.
4. Click Apply to save the changes.
Viewing Switcher Information
The current use status and version information of the switcher can be viewed through the Web –UI.
1. Access the Web-UI. See Accessing the Web User Interface (Web-UI)
2. Navigate to: System and scroll down to view the various sections.
Status & Statistics
displays the latest source and display information
Version Info
current firmware version installed in the switcher
Log
displays the last 100 recorded operations
Troubleshooting
No or Poor-Quality Picture (snow or noisy image)
•Verify that sources are powered On and playing content.
•Verify that power is connected to the switcher and HDBaseT receiving device. If using a display with a built in
receiver, verify that the device is powered On.
•Verify that the switcher supports the output resolution of the source.
•Verify that the receiving device and display support the output resolution of the source. If the output resolution of
one of the connected displays is lower than the other, follow the step outlined in the ScreenLink Presentation
Software
WyreStorm’s ScreenLink is a free firmware update that enables wireless connection to the presentation software. It is a
powerful collaboration tool that is ideally suited for the corporate and educational environment. This feature was not
always available on the SW-0501-HDBT v1 and units with firmware v2.8.5.1 or lower require that new firmware is
installed in order to take advantage of ScreenLink within an installation.
Refer to the SW-0501-HDBT ScreenLink Installation App Note located on WyreStorm.com for details on installing
ScreenLink before proceeding with using ScreenLink.
•Configuring EDID Operation section.
•Verify that the HDBaseT cable is properly terminated.
•Verify that all source and HDBaseT connections are not loose and are functioning properly.
No or Poor Quality Audio
•Verify that sources are powered On and playing content.
•Verify that all source and HDBaseT connections are not loose and are functioning properly.
•Verify that all cables are properly terminated per the appropriate wiring section:
Tip: WyreStorm recommends using a cable tester or connecting the cable to others devices to verify functionality.

© Copyright 2018 WyreStorm Technologies | wyrestorm.com
SW-0501-HDBT Installation Guide | 180306
15 of 16
Outside UK: 844.280.WYRE (9973) | UK: [phone]
[e-mail]
Contacting Technical Support
Should further clarification of the content of this manual or assistance on troubleshooting be required, please contact
WyreStorm technical support.
Phone: UK: [phone] | ROW: 844.280.WYRE (9973)
Contact Request: http://wyrestorm.com/contact-tech-support
Revision History
v2.0 –March 2018
Section
Update
First Time Configuration
Updated to contain information due to changes in default IP address.
Accessing the Web UI (Web-UI)
Updated to contain information due to changes in default IP address.
Using the Table Mounting Bracket
Added section to explain the use of the included bracket.
Publication Disclaimer
The material contained in this document consists of information that is the sole property of WyreStorm. This document
is intended to provide information to allow interfacing to the relevant WyreStorm equipment by third party products.
WYRESTORM IS NOT RESPONSIBLE FOR MALFUNCTIONS AND/OR THE IN-OPERABILITY WHICH MAY BE CAUSED BY
THE APPLICATION OF THIS INFORMATION, WHETHER EXPECTED OR NOT.
WyreStorm reserves the right to change software, control codes and specifications without notice.
WyreStorm will not be liable for any use of this information or any changes it may make to those products. The use of
this information constitutes an agreement by the user to these limitations and exclusions.

WyreStorm Technical Support
UK:- [phone]
US/ROW: +1 844-280-WYRE (9973)
Email: [e-mail]
WyreStorm Offices
North America: 23 Wood Road, Round Lake, NY 12151
Tel: [phone]
UK/EMEA: Unit 22, Ergo Business Park, Swindon, Wiltshire, SN3 3JW, UK
Tel: [phone]
WyreStorm Technologies reserves the right to change the physical appearance or technical specification of this product at any time.
Visit wyrestorm.com for the latest product information.
