xanigo XF102 User manual
Cordless Atomizer for Disinfecting
INSTRUCTIONS FOR HVLP CORDLESS ATOMIZER (XF102)
Before using the atomizer, read this manual thoroughly.
Any improper use can cause damage or serious injury including death.
Freedom XF102- User Manual
Disinfecting Log Sheet
Area Disinfected
Chemical Used
Date
Time
Freedom XF102- User Manual
SAFETY GUIDELINES FOR XANIGO ATOMIZERS, BATTERY PACKS and CHARGERS
Before using this atomizer, battery pack and charger, it is important to read and understand this manual. The information it
contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. Improper use can cause damage or serious injury
including death.
The labels below are used to help you recognize this information.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may
result in property damage.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS - To reduce the risks of fire or explosion, electrical shock and the injury to persons, read and
understand all instructions included in this manual. Be familiar with the controls and the proper usage of the equipment.
WARNING: FIRE OR EXPLOSION HAZARD. Only use Xanigo approved chemicals. Other chemicals may have solvents which
can generate spray material fumes that can explode or ignite. Severe injury or property damage can occur. Only clean up with
water or soap & water.
To avoid these risks, take the following preventions:
• Exhaust and fresh air introduction must be provided to keep the air within the spray area free from accumulation of
flammable vapors.
• Keep spray area well ventilated
• Avoid all ignition sources such as static electricity sparks, open flames, pilot lights, hot objects, lit tobacco products,
and sparks from connecting and disconnecting power cords or working light switches.
• Fire extinguisher equipment shall be present and working.
• Keep area clean and free of paint or solvent containers, rags, and other flammable materials.
• Follow the disinfectant manufacturer’s safety precautions and warnings.
• Do not spray flammable or combustible materials.
• Know the contents of the spray materials and their cleaning chemicals. Read all Material Safety Data Sheets (MSDS)
and container labels provided with the disinfectant materials. Follow the disinfectant manufacturer’s safety instructions.
WARNING: EXPLOSION HAZARD DUE TO INCOMPATIBLE MATERIALS. Severe injury or property damage can occur.
To avoid these risks, take the following preventions:
• Do not use paint.
• Do not use solvents.
• Do not use bleach.
• Do not use halogenated hydrocarbon solvents such as methylene chloride and 1,1,1 - trichloroethane. They are not
compatible with aluminum and may cause an explosion. If you are unsure of a material’s compatibility with
aluminum, contact your disinfectant supplier.
Freedom XF102- User Manual
WARNING: HAZARDOUS VAPORS. Spray materials, solvents, and other materials can be harmful
if inhaled or come in contact with the body. Vapors can cause severe nausea, fainting, or poisoning.
To avoid these risks, take the following preventions:
• Keep spray area well ventilated.
• Use a respirator or mask as vapors can be inhaled. Read all instructions supplied with the mask to ensure proper use.
• Wear protective eyewear.
• Wear protective clothing as required by disinfectant manufacturer.
WARNING: ELECTRIC SHOCK HAZARD. May cause severe injury.
To avoid these risks, take the following preventions
• Keep charger electrical cord plug free from spray material and other liquids. Never hold cord at plug
connections to support cord or product. Failure to observe may result in an electrical shock and death.
• Never immerse electrical parts in water or any other liquid.
• Do not expose atomizer, charger or battery pack to rain or wet conditions.
•Unplug battery charger before cleaning.
• Do not abuse the cord. Never use the cord to carry the charger or pull the plug from an outlet. Keep cord away from heat,
oil, sharp edges or moving parts. Replace charger if cord is damaged.
WARNING: SKIN INJECTION HAZARD. May cause severe injury.
To avoid these risks, take the following preventions
• NEVER aim the atomizer at any part of the body.
• Do not aim the atomizer at or spray any person or animal.
• NEVER allow any part of the body to come in contact with the fluid stream.
• NEVER put your hand in front of the atomizer.
- ALWAYS wear gloves while operating the unit; however, gloves will not provide protection against an injection injury.
• Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with any part of the body.
• Always remove battery from the atomizer before servicing, cleaning tip guard or leaving unattended.
• Always use the nozzle tip guard. Do not operate atomizer without nozzle tip guard in place.
• Only use a nozzle tip specified by the manufacturer.
• Use caution when cleaning nozzle tips.
• High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the event that injection
occurs, seek medical attention immediately.
• Verify that all connections are secure before operating the unit.
Freedom XF102- User Manual
WARNING: FIRE OR EXPLOSION HAZARD. Do not charge or use batteries in explosive atmospheres.
Xanigo battery packs are only compatible with Xanigo battery chargers. Xanigo battery chargers are only compatible with
Xanigo battery packs. Other uses can result in fire or explosion. Severe injury or property damage can occur.
To avoid these risks, take the following preventions:
•Do not attempt to open any Xanigo battery pack or charger. There are no serviceable parts inside.
•Only use Xanigo battery packs with Xanigo chargers. Only use Xanigo chargers for Xanigo battery packs.
•Damaged battery packs and/or chargers should be removed from service and recycled.
•Do not incinerate Xanigo Li-Ion battery packs. This could result in an explosion and/or the release of toxic fumes and
materials.
•Battery liquid is flammable if exposed to spark or flame.
•If battery liquid comes in contact with skin, wash with mild soap and water. If battery liquid gets into the eye, flush with
water for 15 minutes or until irritation ceases. If irritation continues seek medical attention.
GENERAL SAFETY WARNINGS
WARNING: GENERAL.
To reduce the risk of severe injury or property damage, take the following actions:
• Always wear appropriate gloves, eye protection, and a respirator or mask when disinfecting.
• Do not aim the atomizer at, or spray any person, including self, or animal.
• Do not spray outdoors on windy days
• Wear protective clothing to keep spray material off skin and hair.
• Follow all appropriate local, state, and national codes governing ventilation, fire prevention, and operation.
• Always use appropriate gloves, eye protection and a respirator or mask when spraying, thinning, mixing, pouring, or
cleaning.
• Do not operate or spray near children. Keep children away from equipment at all times. Keep atomizer out of the
reach of children.
• Do not overreach or stand on an unstable support. Keep effective footing and balance at all times.
• Stay alert and watch what you are doing.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Read all instructions and safety precautions for equipment and spray material before operating any equipment.
• Hearing protection is recommended.
WARNING: Some spray materials contain chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm. To reduce your exposure wear appropriate safety equipment such as face masks,
gloves, and other appropriate protective equipment. Please review and follow the safety precautions on the
disinfectant/chemical container.
Freedom XF102- User Manual
Freedom XF102- User Manual
I Exploded view:
1
ST2.9*10 Screw
18
O-ring
35
Lock catch
2
Rear cover
19
22 Needle spring
36
Switch, DC micro
3
Cotton filter
20
Needle set
37
Battery pack, XB104-20P
4
Right cover
21
GUN
38
Battery pack pin
5
Switch plunger spring
22
Pipette
39
Left cover
6
Switch plunger
23
Cup-ring
40
Gun ring
7
Right side cover
24
Suction pipe splint
41
Stopper
8
ST3.5*10 Screw
25
Cup
42
Motor cover
9
Big nut
26
Φ3 flat gasket
43
550 motor
10
Air cap
27
Short pin
44
Diffuser
11
Spray nozzle
28
Adjusting knob
45
M4*8 SCrew
12
Barge board
29
Trigger
46
Motor gasket
13
Nozzle seal
30
Spray a knob
47
Fan
14
Needle
31
Left side cover
48
Fan cover
15
Needle insert
32
O-ring
49
Damping ring
16
Needle seat
33
Atomization circle
50
Battery Charger, XC101
17
bowl seals
34
Vent spring
II Technical parameters:
Model: XF102
Rated power: 120W
Atomized particle size: nominal 90-120 microns when
used with water-thin disinfectant
Rated voltage: 20V Peak
Battery capacity: 2000mAh
Charger Voltage & Frequency: 120VAC 50/60HZ
Spraying distance: Up to 8 feet
Rated speed: 30000RPM
Spray envelope: 30 degrees
Air flow: 160L/MIN
Viscosity: Water-thin viscosity
Disinfectant flow: 100-150 ml/min
Disinfectant capacity: 800ml
III Function:
Product is suitable for spraying disinfectant only. Other uses are not approved.
Freedom XF102- User Manual
IV Operating Instructions
1. NOTE- Before operation, review the battery and charger information, Section VI of this user manual.
2. Ensure disinfectant is prepared as per manufacturer’s instructions and atomizer battery pack is removed.
3. Unscrew disinfectant container from atomizer.
4. Adjust suction tube orientation to match atomizer angle in use.
a. If spraying upward, the angled end of the suction tube should be pointing toward the rear of the atomizer.
b. If spraying downward, the angled end of the suction tube should be pointing toward the front of the
atomizer
c. Do not operate nor store atomizer on its side or inverted when liquid is in the canister.
d. The suction tube in the canister should always be submerged in the liquid in the canister when in use. Do
not operate the atomizer in a manner/attitude that allows the suction tube to become unsubmerged.
Examples of improper use include (but are not limited to) use while inverted or use while being held
sideways. Bubbling of the liquid in the canister indicates improper use.
Pour prepared disinfectant into the container. Do not exceed the maximum capacity mark on the container.
Freedom XF102- User Manual

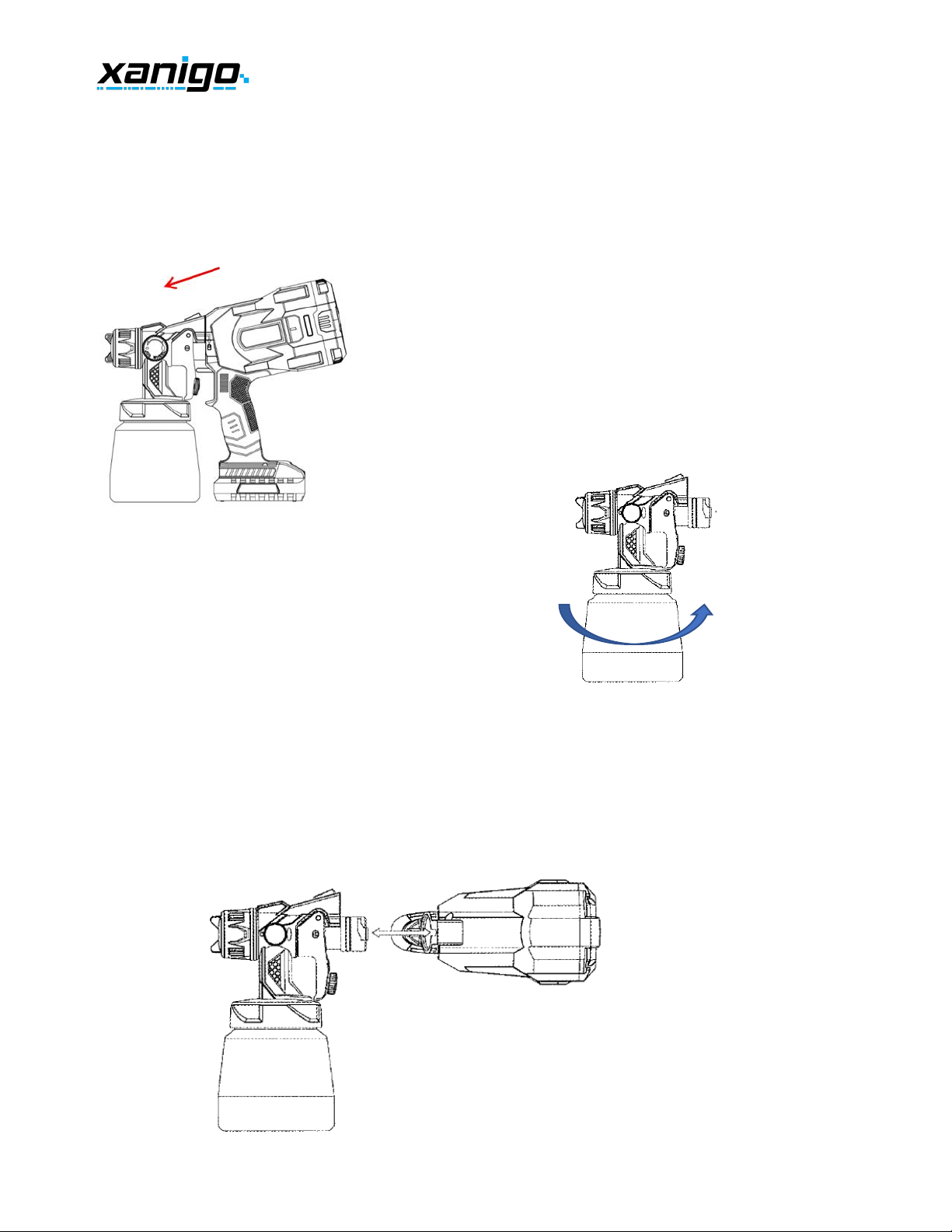

5. Remove motor/blower assembly from the atomizer.
a. Hold the atomizer in your left hand and press the latch in the direction of the arrow.
b. At the same time hold the motor/blower handle assembly with your right hand and rotate it
counterclockwise 90 degrees.
c. Pull out to remove the motor/blower from the atomizer.
6. Screw filled disinfectant container onto the atomizer.
7. Connect atomizer body with motor/blower.
a. Hold atomizer body in your left hand and align the slot on the atomizer with the slot on the motor/blower
and insert (as shown in the figure).
b. Rotate the motor/blower 90 degrees clockwise.
c. When the atomizer and motor/blower are parallel, the latch button will engage.
Freedom XF102- User Manual
8. Adjust the needle adjusting screw to meet your desired level of disinfectant coverage
a. Adjust the screw to the left to decrease coverage
b. Adjust the screw to the right to increase coverage
9. Spray pattern adjustment. Turn the knob to adjust from round pattern to fan pattern.
Freedom XF102- User Manual
10. Adjusting spray pattern orientation
a. The fan pattern can be adjusted from horizontal to vertical by adjusting the air cap.
b. Slightly loosen the air cap retaining nut and rotate air cap to desired position.
c. Retighten the air cap retaining nut.
11. Plug charged battery into atomizer. Pull trigger and disinfectant will spray from the nozzle.
12. Application distance and speed are important. Atomizer should be 4 feet or greater from the surface being
disinfected. Surfaces being sprayed should be completely dry within 5-10 minutes of spraying. Wiping wet
disinfectant off the surfaces should not be required. However, the surfaces should remain wet long enough (dwell
time) for the disinfectant to be effective, at least one minute. See disinfectant manufacturer’s recommendations
for dwell time for the specific disinfectant being applied.
a. If surfaces remain wet longer than 5-10 minutes, increase movement speed of the atomizer to produce a
lighter coating.
b. If surfaces are not fully wetted, slow down movement speed of the atomizer.
Freedom XF102- User Manual
V Maintenance
1. Cleaning-
a) Remove battery from atomizer.
b) Separate atomizer from motor/blower assembly
c) Remove disinfectant container from atomizer
d) Remove any remaining disinfectant from disinfectant container and dispose of as per disinfectant manufacturer’s
recommendations.
e) Add approximately 200 mL of water to disinfectant container. A few drops of liquid soap or dishwashing liquid can
also be added.
f) Reassemble container to atomizer, then assemble atomizer with motor/blower.
g) Swish water in container to wet the interior of the container (and to mix in soap, if used).
h) Reattach battery pack.
i) Turn on atomizer and run until container is empty.
j) Repeat steps above one additional time with water only.
NOTE- Cleaning should be done daily/before storing the unit. Do not store unused chemicals in the canister.
Freedom XF102- User Manual
VI Battery Pack and Charger
1. NOTE- Battery pack is shipped approximately 30% charged. Please charge battery before using in the atomizer.
2. Charging procedure
a. Plug charger into appropriate outlet. The green LED will illuminate. Then slide battery pack onto charger.
b. The green LED on the charger will go out and the red LED on the charger will indicate charging is in
progress.
c. When charge is complete, the green LED on the charger will illuminate.
NOTE- IF THE BATTERY PACK IS TOO COLD TO CHARGE, THE GREEN LED ON THE CHARGER WILL REMAIN LIT UNTIL THE
BATTERY PACK REACHES A SAFE CHARGING TEMPERATURE. CHARGING WILL START AUTOMATICALLY AND IS
INDICATED BY THE GREEN LED TURNING OFF AND THE RED LED ILLUMINATING. THE CHARGING PROCESS CAN BE
SPEEDED UP BY ENSURING THE PACK AND CHARGER ARE IN A NORMAL INDOOR ROOM TEMPERATURE
ENVIRONMENT, IDEALLY 60°F TO 80°F.
NOTE- IF THE BATTERY PACK IS TOO HOT TO CHARGE, THE GREEN LED ON THE CHARGER WILL REMAIN LIT UNTIL THE
BATTERY PACK REACHES A SAFE CHARGING TEMPERATURE. CHARGING WILL START AUTOMATICALLY AND IS
INDICATED BY THE GREEN LED TURNING OFF AND THE RED LED ILLUMINATING. THE CHARGING PROCESS CAN BE
SPEEDED UP BY ENSURING THE PACK AND CHARGER ARE IN A NORMAL INDOOR ROOM TEMPERATURE
ENVIRONMENT, IDEALLY 60°F TO 80°F.
3. Battery pack fuel gauge
a. The battery pack has a fuel gauge to help the user understand approximately how much capacity is left in
the battery charge. Push the button on pack to light the indicators.
i. 3 LEDs indicates the pack is above 40% charged
ii. 2 LEDs indicates the pack is between 5 and 40% charged
iii. 1 LED indicates low battery and the pack should be charged. If the 1 LED is flashing, battery
shutdown is imminent.
4. Battery Use
a. Remove battery pack from charger
b. Slide battery pack onto foot of atomizer. When a click is heard, the pack is locked onto the atomizer.
c. To remove battery from atomizer, depress button on battery pack and pull pack toward the rear of the
atomizer.
5. Battery tips
a. For optimal performance, always use a freshly charged battery.
b. Charge only between 40°F and 105°F. If pack is too hot or too cold, the charging process will be delayed
until it is within the proper temperature range.
c. Do not store a completely discharged battery for long periods of time. The pack should be charged before
storing. Do not store the pack in an unplugged charger.
d. Storing a battery pack in an active (powered) charger is acceptable.
e. Batteries are best stored in a cool, dry atmosphere. Avoid direct sunlight.
f. Do not force pack into charger or tool.
Freedom XF102- User Manual
VII Troubleshooting
Problem
Cause
Solution
A. little or no material flow
1. nozzle clogged
2. suction tube clogged
3. material volume setting turned too far to the right
4. suction tube loose
5. container is loose
1. clean
2. clean
3. turn to the left
4. insert
5. tighten the container
B. material leaking
1. nozzle loose
2. nozzle worn
3. nozzle seal worn
4. material build-up on spray pattern dial and nozzle
5. atomizer used or stored in an inverted or sideways
orientation
1. tighten
2. replace
3. replace
4. clean
5. disassemble atomizer from motor/blower
assembly and used compressed air to remove liquid
from atomizer assembly. If liquid has entered motor
/blower used compressed air to remove all liquid and
allow to dry overnight. Replace motor/blower
assembly if erratic operation occurs after drying
overnight.
C. atomization is too coarse
1. material volume setting too far to the left
2. nozzle clogged
3. too little pressure build-up in container
1. turn to the right
2. clean
3. tighten container
D. spray jet pulsates
1. material in container is depleted
1. refill
E. pattern runs, sags or remains wet
1. applying too much material
1.adjust material flow or increase movement of
atomizer
F. too much over-spray
1. atomizer too far from target area
2. too much material applied
1. reduce distance
2. turn material volume setting to right
G. pattern is very light and splotchy
1. moving the atomizer too fast
1. adjust material flow or decrease movement of
atomizer
H. large cloud of disinfectant
1. atomizer too close to target area
1. move atomizer away from target area
and reduce disinfectant flow
I. disinfectant not drying
1. atomizer too close to target area
1. move further away (4 feet or greater)
J. disinfectant drying too quickly
1. atomizer too far away from target area
1. move closer
K. battery pack not charging
1. charger not plugged into live outlet
2. pack too cold to charge, green LED on charger is on
3. pack too hot to charge, green LED on charger is on
4. defective pack
5. defective charger
1. plug charger into outlet and ensure green LED is on
2. move pack and charger to warm location, 60-80°F.
Pack will charge upon reaching a safe temperature.
3. move pack and charger to cool location, 60-80°F.
Pack will charge upon reaching a safe temperature.
4. try another charger. If still not charging, replace
pack
5. try another pack. If still not charging, replace
charger
Table of contents
Other xanigo Electronic Cigarette manuals
