Xantech 490-85 KITRP User manual

- 1 -
490-85 KITRP

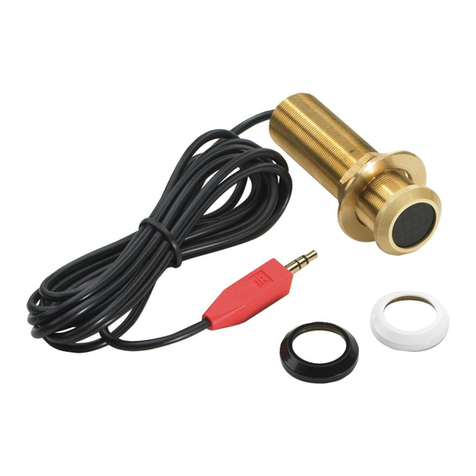

LCD/CFL Friendly Micro-Link IR Receiver
DESCRIPTION
The 490-85 KITRP comes with everything needed for a complete IR repeater system. The 490-85 IR
receiver is designed to reject interference from CFL and LCD Displays from entering the IR signal
line. These small IR Receivers are intended to be mounted in panels, doors, cabinets, etc. for control
of A/V equipment behind closed doors or any IR Repeater System that is in close proximity of a CFL

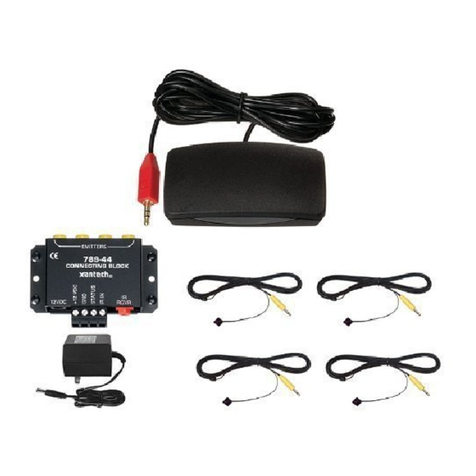

and LCD Displays. INCLUDED ITEMS
ITEM A: (1) 490-85 LCD/CFL Friendly IR Receiver ITEM B: (1) 784-44 Connecting Block
ITEM C: (4) 283M Mouse Emitters ITEM D: (1) 781RG Power Supply

- 2 -
INSTALLATION INSTRUCTIONS
STEP 1:
Plug in the 2.1mm Coaxial power plug of the 781RG Power Supply (ITEM D) into the jack labeled
12VDC on the 789-44 Connecting Block (ITEM B).
Plug the AC end of the 781RG Power Supply (ITEM D) into an ‘un-switched’ 120V AC Line outlet.
STEP 2:
Plug the 3.5mm stereo mini plug from the 490-85 (ITEM A) into the IR RCVR input on the 789-44
Connecting Block (ITEM B).
STEP 3:
Plug in the 283M Emitters 3.5mm mono mini plug (ITEM C) into the jacks labeled EMITTERS on the
789-44 (ITEM B) and affix the opposite end of the IR Sensor Window of the controlled equipment.
490-85
Micro Link
LCD/CFL Friendly
IR Receivers
To 120 V AC
(Unswitc ed)
781RG
Power Supply
789-44
Connecting Block
283M
Blink-IR
283M Blink-IR
MAIN ROOM
Hand Held
Remote
Satellite Receiver
AV Receiver
VCR
283M Blink-IR
Mouse Emitter
12VDC
+12 VDC
GND
STATUS
IR IN
EMITTERS
IR
RCVR

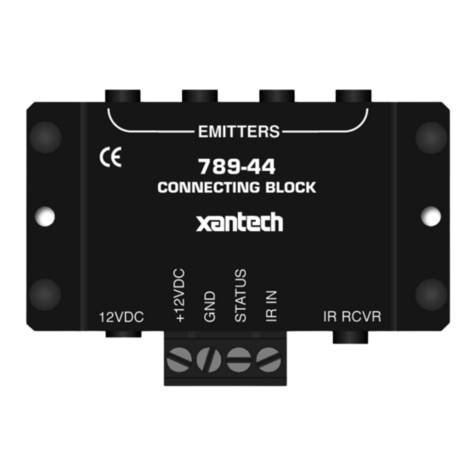

789-44
CONNECTING BLOCK
®
Adjusting the IR Carrier Frequency
Refer to the 490-85 instruction manual for more details. The 490-85 is factory set to an IR carrier
repeat frequency of 38kHz. This will be correct for the majority of installations.
Clock-wise (CW) will increase the carrier frequency.
Counter-Clock-wise (CCW) will decrease the carrier frequency.
XANTECH CORPORATION
13100 Telfair Avenue
Sylmar, CA 91342
Phone [phone] Fax [phone]
www.xantech.com Part No. 08905114 Rev A 04-26-07
© 2007 Xantech Corporation
