Xantrex APG-HPD User manual

Operating Manual
Internal APG (Analog
Programming) Interface
for XT/HPD Series
Programmable DC
Power Supply
APG-XT
APG-HPD

Operating Manual for
Internal APG (Analog
Programming) Interface
for XT 60 Watt and
HPD 300 Watt Series
Programmable DC
Power Supply

ii Operating Manual for APG for XT/HPD Series Power Supply
Limited
Warranty
What does this warranty cover and how long does it last?
This Limited Warranty is provided by Xantrex Technology, Inc. (“Xantrex”) and
covers defects in workmanship and materials in your Internal APG Interface card.
This warranty lasts for a Warranty Period of 5 years from the date of purchase at
point of sale to you, the original end user customer.
What will Xantrex do?
Xantrex will, at its option, repair or replace the defective product free of charge,
provided that you notify Xantrex of the product defect within the Warranty Period,
and provided that Xantrex through inspection establishes the existence of such a
defect and that it is covered by this Limited Warranty.
Xantrex will, at its option, use new and/or reconditioned parts in performing
warranty repair and building replacement products. Xantrex reserves the right to use
parts or products of original or improved design in the repair or replacement. If
Xantrex repairs or replaces a product, its warranty continues for the remaining
portion of the original Warranty Period or 90 days from the date of the return
shipment to the customer, whichever is greater. All replaced products and all parts
removed from repaired products become the property of Xantrex.
Xantrex covers both parts and labor necessary to repair the product, and return
shipment to the customer via a Xantrex-selected non-expedited surface freight
within the contiguous United States and Canada. Alaska and Hawaii are excluded.
Contact Xantrex Customer Service for details on freight policy for return shipments
outside of the contiguous United States and Canada.
How do you get service?
If your product requires troubleshooting or warranty service, contact your merchant.
If you are unable to contact your merchant, or the merchant is unable to provide
service, contact Xantrex directly at:
Phone: [phone]
Toll Free North America: 1 800 667 8422
Fax: [phone]
Email: [email protected]

Release 1.0 iii
Direct returns may be performed according to the Xantrex Return Material
Authorization Policy described in your product manual. For some products, Xantrex
maintains a network of regional Authorized Service Centers. Call Xantrex or check
our website to see if your product can be repaired at one of these facilities.
In any warranty claim, dated proof of purchase must accompany the product and the
product must not have been disassembled or modified without prior written
authorization by Xantrex.
Proof of purchase may be in any one of the following forms:
•The dated purchase receipt from the original purchase of the product at point of
sale to the end user, or
•The dated dealer invoice or purchase receipt showing original equipment
manufacturer (OEM) status, or
•The dated invoice or purchase receipt showing the product exchanged under
warranty
What does this warranty not cover?
This Limited Warranty does not cover normal wear and tear of the product or costs
related to the removal, installation, or troubleshooting of the customer’s electrical
systems. This warranty does not apply to and Xantrex will not be responsible for any
defect in or damage to:
a. the product if it has been misused, neglected, improperly installed, physically
damaged or altered, either internally or externally, or damaged from improper
use or use in an unsuitable environment;
b. the product if it has been subjected to fire, water, generalized corrosion,
biological infestations, and high input voltage from lightning strikes;
c. the product if repairs have been done to it other than by Xantrex or its authorized
service centers (hereafter “ASCs”);
d. the product if it is used as a component part of a product expressly warranted by
another manufacturer;
e. the product if its original identification (trade-mark, serial number) markings
have been defaced, altered, or removed.

iv Operating Manual for APG for XT/HPD Series Power Supply
Disclaimer Product
THIS LIMITED WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED
BY XANTREX IN CONNECTION WITH YOUR XANTREX PRODUCT AND IS, WHERE
PERMITTED BY LAW, IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS,
GUARANTEES, REPRESENTATIONS, OBLIGATIONS AND LIABILITIES, EXPRESS
OR IMPLIED, STATUTORY OR OTHERWISE IN CONNECTION WITH THE
PRODUCT, HOWEVER ARISING (WHETHER BY CONTRACT, TORT, NEGLIGENCE,
PRINCIPLES OF MANUFACTURER’S LIABILITY, OPERATION OF LAW, CONDUCT,
STATEMENT OR OTHERWISE), INCLUDING WITHOUT RESTRICTION ANY
IMPLIED WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE TO THE EXTENT
REQUIRED UNDER APPLICABLE LAW TO APPLY TO THE PRODUCT SHALL BE
LIMITED IN DURATION TO THE PERIOD STIPULATED UNDER THIS LIMITED
WARRANTY.
IN NO EVENT WILL XANTREX BE LIABLE FOR ANY SPECIAL, DIRECT, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSSES, COSTS OR EXPENSES
HOWEVER ARISING WHETHER IN CONTRACT OR TORT INCLUDING WITHOUT
RESTRICTION ANY ECONOMIC LOSSES OF ANY KIND, ANY LOSS OR DAMAGE TO
PROPERTY, ANY PERSONAL INJURY, ANY DAMAGE OR INJURY ARISING FROM OR
AS A RESULT OF MISUSE OR ABUSE, OR THE INCORRECT INSTALLATION,
INTEGRATION OR OPERATION OF THE PRODUCT.
Exclusions If this product is a consumer product, federal law does not allow an exclusion of
implied warranties. To the extent you are entitled to implied warranties under federal
law, to the extent permitted by applicable law they are limited to the duration of this
Limited Warranty. Some states and provinces do not allow limitations or exclusions
on implied warranties or on the duration of an implied warranty or on the limitation
or exclusion of incidental or consequential damages, so the above limitation(s) or
exclusion(s) may not apply to you. This Limited Warranty gives you specific legal
rights. You may have other rights which may vary from state to state or province to
province.

Release 1.0 v
Information WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, UNLESS
SPECIFICALLY AGREED TO BY IT IN WRITING, XANTREX
a. MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY
OF ANY TECHNICAL OR OTHER INFORMATION PROVIDED IN MANUALS OR
OTHER DOCUMENTATION PROVIDED BY IT IN CONNECTION WITH THE
PRODUCT; AND
b. ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES,
COSTS OR EXPENSES, WHETHER SPECIAL, DIRECT, INDIRECT,
CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF
SUCH INFORMATION.
THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USER’S RISK.
WARNING:
Limitations
on Use
Please refer to your product user manual for limitations on uses of the product.
Specifically, please note that this power supply is not intended for use in connection
with life support systems and Xantrex makes no warranty or representation in
connection with any use of the product for such purposes.
Xantrex Technology, Inc.
8999 Nelson Way
Burnaby, British Columbia
Canada V5A 4B5
Information
About Your
Power
Supply
Please record the following information when you first open your Power Supply
package:
Release Release 1.0 (2002-07)
Copyright © 2002 Xantrex Technology Inc. All rights reserved.
Printed in Canada
Model Number ______________________________________________
Serial Number ______________________________________________
Purchased From ______________________________________________
Purchase Date ______________________________________________

vi Operating Manual for APG for XT/HPD Series Power Supply
Warnings
and
Cautions
Warnings and cautions are defined and formatted in this manual as shown below.
Power
Supply
Safety
WARNING
Describes a potential hazard which could result in injury or death, or, a procedure
which, if not performed correctly, could result in injury or death.
!
CAUTION
Describes a procedure which, if not performed correctly, could result in damage
to data, equipment, or systems.
WARNING—High Energy and High Voltage
Exercise caution when using and calibrating a power supply. High energy levels
can be stored at the output voltage terminals on a power supply in normal
operation. In addition, potentially lethal voltages exist in the power circuit and on
the output and sense connectors of a power supply with a rated output greater
than 40 V. Filter capacitors store potentially dangerous energy for some time after
power is removed.
!
CAUTION
Operate the power supply in an environment free of flammable gases or fumes. To
ensure that the power supply’s safety features are not compromised, use the
power supply as specified in this manual and do not substitute parts or make any
unauthorized modifications. Contact the service technician for service and repair
help. Repairs must be made by experienced service technicians only.

Release 1.0 vii
About This Manual
This manual is for the internal APG (Analog Programming) interface card for the XT
and HPD Series DC output power supplies. This manual provides you with
descriptions and specifications, user options, and configuration instructions which
enable you to manage the power supply from an external source.
This manual is designed for the user who is familiar with basic electrical theory
especially as it applies to the operation of power supplies. This implies a recognition
of Constant Voltage and Constant Current operation modes and the control of input
and output power, as well as the observance of safe techniques while effecting
supply or pin connections and any changes in switch settings.
Refer to your power supply manual for installation, configuration, and operating
procedures for your power supply.
Main Sections
Section 1 Features and Specifications Describes the power supply and lists
its features and specifications.
Section 2 Installation and Configuration Goes through basic setup
procedures. Describes inspection, and cleaning procedures. Includes additional
options for calibration adjustment.
Section 3 Operation Details information on remote programming, indicators
and protections.
Manual Revisions
The current release of this manual is listed below. Updates may be issued as an
addendum.
Release 1.0 (2002-07)

About This Manual
viii Operating Manual for APG for XT/HPD Series Power Supply

Release 1.0 ix
Contents
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Section 1.
Features and
Specifications
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Section 2.
Installation
and
Configuration
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Initial Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Configuring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Front panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

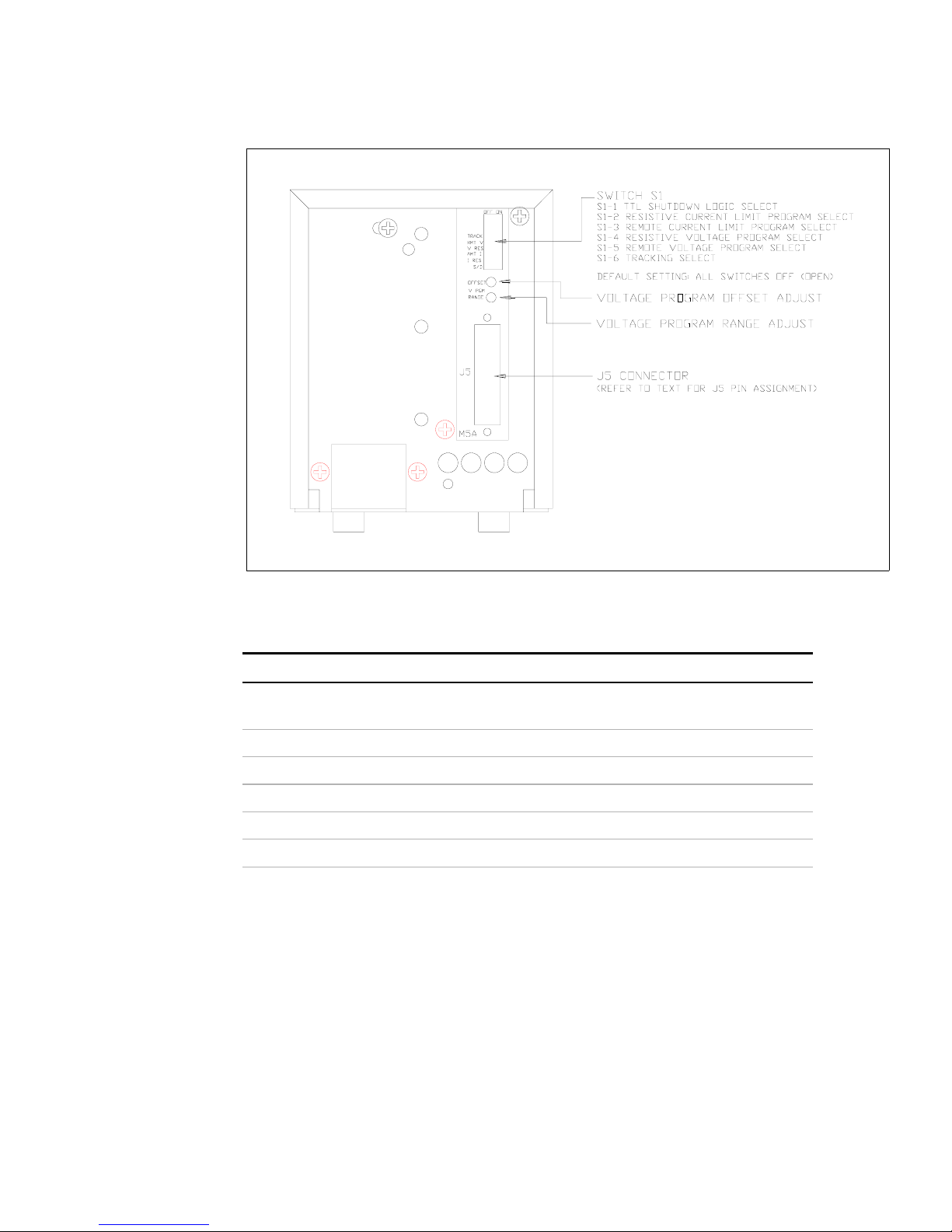

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Rear Panel Switch (S1) Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Rear Panel J5 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
J5 Connector Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Calibration Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Section 3.
Operation
Remote Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Programming Output Voltage with a 0-10Vdc Voltage Source . . . . . . . . . . . . . 19
Programming Output Voltage with a 0-10k Resistance . . . . . . . . . . . . . . . . . . . 20
Programming Output Current with a 0-10 Vdc Voltage Source . . . . . . . . . . . . . 20
Programming Output Current with a 0-10k Resistance . . . . . . . . . . . . . . . . . . . 21
Programming with a Fixed +10V Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Readback and Status Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Voltage and Current Readback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Operating Mode Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Remote Programming Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Output Fail Flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Overvoltage Protection (OVP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
OVP Flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setting the OVP Trip Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
TTL Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Contents
x Operating Manual for APG for XT/HPD Series Power Supply

Release 1.0 11
Section 1. Features and Specifications
Description
The Analog Programming (APG) Interface is an internal option card for analog
programming of XT and HPD Series DC power supplies with a 0-10Vdc
programming source or a 0-10kΩresistance. A 25-pin female DSUB connector on
the unit's rear panel enables connections to the card.
Features
•Programming output voltage and/or current limit using a 0-10Vdc programming
source or a 0-10kΩresistance. Externally adjustable offset and range.
•Fixed programming of output voltage and/or current limit using an available
10V reference (10mA max source)
•0-10V readback of output voltage and current with externally adjustable offset
and range
•Status signals for programming mode, operating mode, OVP (over voltage
protection) flag, and output fail flag
•Adjustable OVP with reset and flag
•TTL shutdown with selectable positive or negative logic
•Tracking for multiple supplies of the same output
Specifications
Remote Analog Programming 0-10Vdc for 0-100% of rated voltage or current ±0.1%
0-10kΩfor 0-100% of rated voltage or current ±0.1%
OVP Trip Range 3V to full output + 10%
Remote ON/OFF 2 to 25Vdc high. <0.8Vdc low. User-selectable logic
Tracking Accuracy ±1%

Section 1. Features and Specifications
Specifications
12 Operating Manual for APG for XT/HPD Series Power Supply

Release 1.0 13
Section 2. Installation and Configuration
Introduction
We usually install the APG interface in a power supply at the factory. Your local
distributor or service center can also install the interface, especially for use in a
previously-purchased supply already on site.
Initial Inspection
On first receiving your unit, perform a quick physical check.
•Ensure each package contains a power supply with its APG interface board
installed, and manuals for the power supply and the APG interface. Any
additional parts shipped with the power supply will be identified in the supply's
documentation.
•Inspect the unit for any signs of physical damage such as scratches, cracks, or
broken switches, connectors, or displays.
•Check the printed circuit board and components if you suspect internal damage.
If the unit is damaged, save all packing materials and notify the carrier immediately.
For additional information, please see the section titled, “Returning Power Supplies
to the Manufacturer” in the manual shipped with your complete unit.
!
CAUTION
If you remove the unit's cover, use proper static control techniques to avoid damage
to static-sensitive components on the printed circuit board.
!
CAUTION
Use proper static control techniques to avoid damage to static-sensitive components
on the printed circuit board.

Section 2. Installation and Configuration
Configuring
14 Operating Manual for APG for XT/HPD Series Power Supply
Configuring
Configure and adjust the analog programming interface installed in your XT or HPD
DC power supply as indicated in this section. The front panel LEDs indicate when
V or I programming is selected (PGM), when TTL shutdown has occurred (S/D), and
when the supply exceeds the voltage trip point OVP). You can adjust the OVP right
at the front panel. You will find the main programming option switch and connector
on the unit's rear panel, see Figure 2.2.
Front panel
Figure 2.1 XT/HPD Front Panel with APG Interface Installed
(typical configuration)

Section 2. Installation and Configuration
Configuring
Release 1.0 15
Rear Panel
Figure 2.2 XT/HPD Rear Panel with APG Interface
Rear Panel
Switch (S1)
Defaults
Table 2.1 Rear Panel Switch S1 Default Settings
Default: Local control (all switches OPEN).
Setting Function
S1-1 TTL Shutdown Logic Select
(OPEN=negative logic, CLOSED=positive logic)
S1-2 Resistive Current Program Select
S1-3 Remote Current Program Select
S1-4 Resistive Voltage Program Select
S1-5 Remote Voltage Program Select
S1-6 Tracking Select

Section 2. Installation and Configuration
Rear Panel J5 Connector
16 Operating Manual for APG for XT/HPD Series Power Supply
Rear Panel J5 Connector
Make analog interface connections via the rear panel 25-pin female DSUB connector
designated J5. To provide the lowest noise performance, we recommend you use
shielded-twisted pair wiring for making connections from external circuits to the J5
connector. Use the shortest leads possible. Ground the shield to pin 6 (auxiliary
ground) on the J5 connector or to the chassis via one of the J5 connector screws.
Note:In order to maintain isolation of power supply output, any programming
source must also be an isolated source.
J5 Connector
Pin
Assignments
Table 2.2 J5 Connector Pin Assignments
* Negative Logic: LOW = ACTIVE
Pin Function
1 Over Voltage Protection Flag
2 TTL Shutdown Return
3 Not Used
4 Program Return
5 Program Return
6 Auxiliary Ground
7 Remote Voltage Program Select*
8 Remote Current Program Select*
9 Voltage/Current Limit Mode Indicator
10 + OUT
11 + OUT
12 RTN
13 RTN
14 Not Used
15 TTL Shutdown
16 Current Limit Program
17 Voltage Program
18 Current Readback
19 Voltage Readback
20 +10 V Reference OUT (10 mA max.)
21 Output Fail Flag*
22 + SNS
23 + OUT
24 RTN
25 RTN SNS

Section 2. Installation and Configuration
Calibration Adjustment
Release 1.0 17
Calibration Adjustment
You can access most calibration potentiometers through the top of the unit, see
Figure 2.3. The exceptions are Voltage Program OFFSET and RANGE which are
on the unit's rear panel which can be seen on Figure 2.2.
Figure 2.3 APG Interface Calibration Adjustment Locations

Section 2. Installation and Configuration
Calibration Adjustment
18 Operating Manual for APG for XT/HPD Series Power Supply
