Xceed C6 User manual

INTRODUCTION
INTRODUCTION
Thank you for purchasing the C6 Intelligent Balance Charger by XCEED-RC. This product is a
rapid charger with a high performance microprocessor and specialized operating software.
Please read this operating manual completely before using this product.
Specifications
Operating voltage range:
Circuit power:
Charge current range:
Discharge current range:
Current drain for balancing Li-po:
NiCd/NiMH battery cell count:
li-ion/Polymer cell count:
Pb battery voltage:
Dimensions:
DC11.0~18.0 Volt
AC to DC adaptor (DC11.0~18.0V/5A)
Max. charge power 50W
Max. discharge power5W
0.1~5.0A
0.1~1.0A
300mAh/cell
1~15cell
1~6 series
2V~20V
133×87×33mm
01

SPECIAL FEATURES
SPECIAL FEATURES
Optimized operating softwareThe C6 charger features an automatic charging function that sets
the operating current during the process of charging or discharging. This can prevent
overcharging of lithium batteries which may lead to a battery fire and explosion. It will
disconnect the circuit automatically and alarm the user once a malfunction is detected. All
programs of this charger are controlled through two-way communication, achieving maximum
safety and easy to use. All settings are user configurable.
Internal independent lithium battery balancer
C6 employs an individual-cell voltage balancer. It isn't necessary to connect an external
balancer for balance charging.
Balancing individual cells battery discharging
During the process of discharging, C6 can monitor and balance each cell of the battery
individually. If the charger detects that the voltage of any single cell is abnormal, an error
message will be displayed and the process will be ended automatically.
Adaptable to various type of lithium battery
C6 can charge various types of lithium batteries including Li-ion, LiPo and the new LiFe
batteries.
0202
Fast and storage mode of lithium battery
The 'fast' mode is used to reduce the charge duration, whereas the 'storage' mode can control
the final voltage of the battery. This will allow long-term storage of the battery and protect the
useful life of the battery.

Maximum safety
Delta-peak sensitivity: The automatic charge termination is based on the principle of the delta-
peak voltage detection. When the battery's voltage exceeds the threshold, the process will be
terminated automatically.
SPECIAL FEATURES
Automatic charging current limit
You can set up the upper limit of the charging current when charging NiCd or NiMH batteries.
This is useful for NiMH batteries of low impedance and capacity when using the 'AUTO' charging
Capacity limit
The charging capacity is calculated as the charging current multiplied by time. If the charging
capacity exceeds the limit, the process will be terminated automatically when the maximum
value you have set is reached.
Temperature threshold*
The battery's internal chemical reaction will cause the temperature of the battery to rise.
If the temperature limit is reached, the process will be terminated automatically.*
* This function is available by connecting the optional temperature probe, which is not included.
Processing time limit:
You can also limit the maximum process time to avoid overcharging the battery.
Input power monitoring
To protect the car battery from being damaged when used as DC power input, the voltage is
continuously monitored. If it drops below the lower limit, the process will be ended automatically.
Data store/load
Data for a maximum five batteries can be stored for your convenience. You can store data
pertaining to program settings of the battery for continuous charging or discharging. Users can
recall this data at any time without any special program setting.
03

Cyclic charging/discharging
One to five cycles and continuous process of charge<>discharge is for balancing and stimulate
the battery's activity.
SPECIAL FEATURES
04

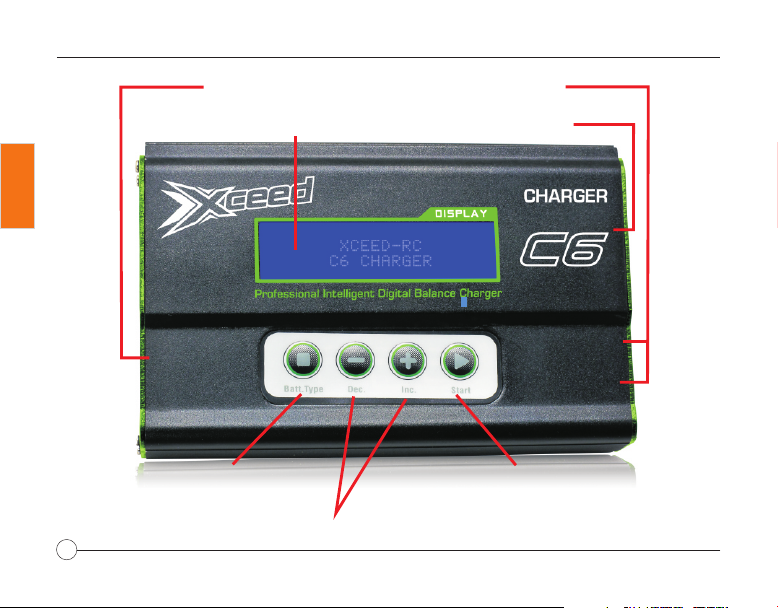

.Scroll through the Main Menu
.Stop any charge processes
Alter values
cells in balance charge mode
See the status of individual
LCD screen Balance lead sockets
JST-XH ports
.Resume or start charge processes
.Confirm an action
Input power cable
11-18V DC
Output charge lead
4mm banana plug
05

Failure to connect as shown in this diagram will damage this charger.
WARNING:
The main battery leads must be connected along with the balance lead connector as shown before charging
your battery ..
If using crocodile clips, make sure they are unable to touch together!
WARNING:

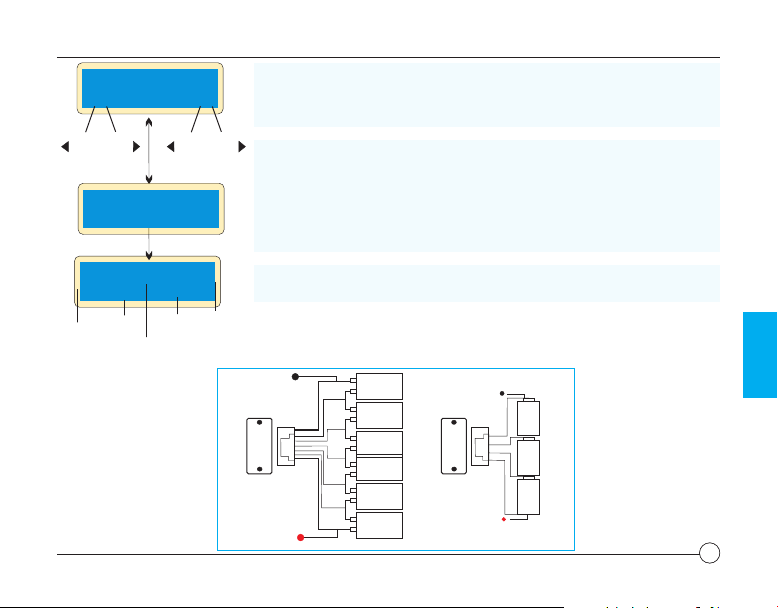

LITHIUM POLYMER BALANCE CHARGE PROGRAM
CONNECTION DIAGRAM
LITHIUM POLYMER BALANCE CHARGE PROGRAM
CONNECTION DIAGRAM

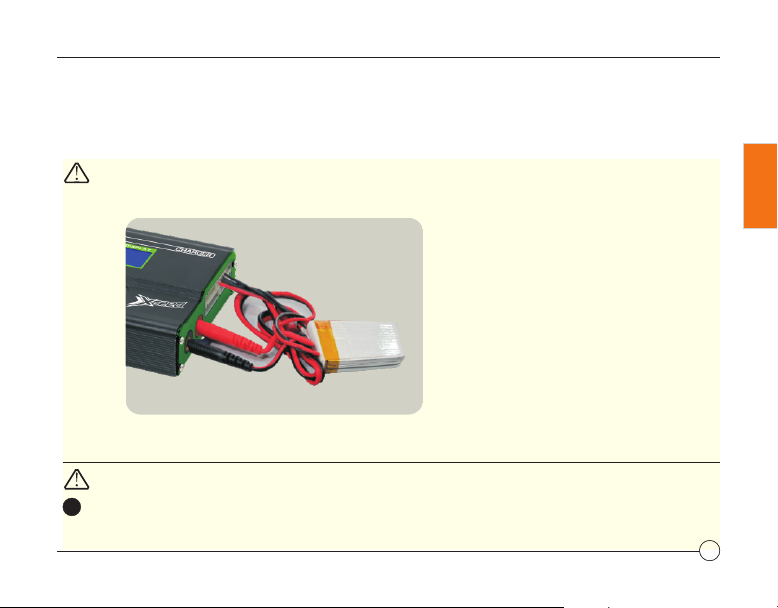

This diagram shows the correct way to connect your battery to the C6charger while charging in
the balance charge program mode only.
!
06

WARNING AND SAFETY NOTES
WARNING AND SAFETY NOTES
These warnings and safety notes are particularly important.Please follow the instructions
for maximum safety; otherwise the charger and the battery can be damagedor at worst it
can cause a fire.
Never leave the charger unattended when it is connected to its power supply. If any
malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the operation
manual.
Keep the charger well away from dust, damp, rain, heat, direct sunshine and
vibration. Never drop it.
The allowable input voltage is 11-18V DC
This charger and the battery should be placed on a heat-resistant, non-flammable and
Non-conductive surface. Never place them on a car seat, carpet or similar surface.
Keep all flammable and volatile materials away from operating area.
Make sure you know the specifications of the battery to be charged or discharged to
ensure it meets the requirements of this charger. If the program is set up incorrectly,
the battery and charger may be damaged .It can cause fire or explosion due to
overcharging. This warranty is not valid for any damage or subsequent damage
arising as a result of a misuse or failure to observe the procedures outlined in this
manual.
!
!
!
!
!
07

NiCd/NiMH
Voltage level: 1.2V/cell
Allowable fast charge current: 1C-2C (depends on the performance of cell)
Discharge voltage cut off level: 0.85V/cell (NiCd), 1.0V/cell(NiMH)
Li-ion Voltage level: 3.6V/cell
Max. charge voltage: 4.1V/cell
Allowable fast charge current: 1C or less
Discharge voltage cut off level: 2.5V/cell or higher
LiPo Voltage level: 3.7V/cell
Max. charge voltage: 4.2V/cell
Allowable fast charge current: 1C or less
Discharge voltage cut off level: 3.0V/cell or higher
LiFe Voltage level: 3.3V/cell
Max. charge voltage: 3.6V/cell
Allowable fast charge current: 4C or less
Discharge voltage cut off level: 2.0V/cell or higher
Pb Voltage level: 2.0V/cell
Max. charge voltage: 2.46V/cell
Allowable fast charge current: 0.4C or less
Discharge voltage cut off level: 1.75V/cell or higher
WARNING AND SAFETY NOTES
08

WARNING AND SAFETY NOTES
To avoid short circuit between the charge lead always connect the charge cable to the
charger first, then connect the battery. Reverse the sequence when disconnecting.
!
!
!
Do not connect more than one battery pack to this charger at any one time.
Never attempt to charge or discharge the following types of batteries.
09
A battery pack which consists of different types of cells (including different
manufacturers)
A battery that is already fully charged or just slightly discharged.
Non-rechargeable batteries (Explosion hazard).
Batteries that require a different charge technique from NiCd, NiMh, LiPo or Gel cell
(Pb, Lead acid).
A faulty or damaged battery.
A battery fitted with an integral charge circuit or a protection circuit.
Batteries installed in a device or which are electrically linked to other components.
Batteries that are not expressly stated by the manufacturer to be suitable for the
currents the charger delivers during the charge process.

WARNING AND SAFETY NOTES
!
!
Please bear in mind the following points before commencing charging:
Charging
While charging, a specific quantity of electrical energy is fed into the battery. The charge
quantity is calculated by multiplying charge current by charge time. The maximum permissible
charge current varies depending on the battery type or its performance. Check with
manufacturer for the battery specifications you are using. Only batteries that are expressly
stated to be capable of quick-charge are allowed to be charged at rates higher than the
standard charge current.
Connect the battery to the terminal of the charger (red is positive and black is negative). Use
conductors with adequate cross-section and high quality connectors, normally gold-plated, to
meet the charging and discharging purpose.
10
Did you select the appropriate program suitable for the type of battery that you are
charging?
Did you set up adequate current for charging or discharging?
Have you checked the battery voltage? Lithium battery packs can be wired in
parallel and in series, i.e. a 2 cell pack can be 3.7V (in parallel) or 7.4V (in series).
Have you checked that all connections are firm and secure? Make sure there are no
intermittent contacts at any point in the circuit.

WARNING AND SAFETY NOTES
Always refer to the recommendations by battery manufacturer for charging current and time.
This is strictly important for lithium batteries.
Attention should be paid to the connection of Lithium battery especially.
Do not attempt to disassemble batteries.
Please get highlighted that Lithium battery packs can be wired in parallel and in series. In the
parallel connection, the battery’s capacity is calculated by multiplying single battery’s
capacity by the number of cells with total voltage stay the same. The voltage’s imbalance may
cause fire or explosion .Lithium battery is recommended to charge in series.
!Discharging
The main purpose of discharging is to clear capacity of the battery and to reduce the battery's
voltage to a defined level. The same attention should be paid to the discharging process as
charging. The final discharge voltage should be set up correctly to avoid over-discharging the
battery. Lithium battery cannot be discharged to lower than the minimum voltage without
rapidly reducing capacity and risk to failure. Generally, lithium batteries do not need to be
discharged. Please pay attention to the minimum voltage of lithium battery in order to protect
the battery.
Some rechargeable batteries have a memory effect. If they are partially discharged and then
recharged, those charges will be limited to reduced capacity. This is a memory effect. The
NiCd and NiMH batteries are sensitive to memory effect as NiCd has more expose to this.
Lithium batteries are recommended to be discharged partially. Frequent full discharging
should be avoided. You should charge the battery more often or use a battery of higher
capacity. The charge and discharge cycle will optimize the capacity of battery pack.
11

WARNING AND SAFETY NOTES

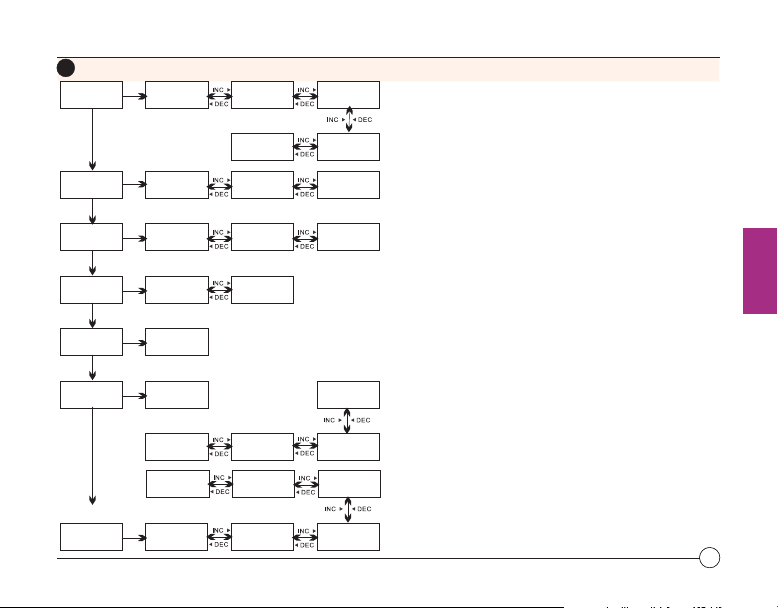

!Program flow chart
LiXX Cha rge
Progra m Select
Lithiu m Battery
LiXX
Fast Cha rge
LiXX Bal ance
NiMH Charge
+Aut/Man-
Progra m Select
NiMH Bat tery
NiMH
Cycle
NiMH
Discha rge
LiXX
Storag e
LiXX
Discha rge
NiCd Charge
+Aut/Man-
Progra m Select
NiCd Bat tery
NiCd
Cycle
NiCd
Discha rge
Pb Charg e
Progra m Select
Pb Batte ry
Pb
Discha rge
Save Dat a
Progra m Select
Save Dat a
Capaci ty
Cut-off
Safety Ti mer Key Beep
Buzzer
Temp Cut-o ff
USB Enab le
Chg>Dc hg
Waster Time
NiCd D.P eak
Sensit ivity
User Set
Progra m
LiPo/L ilo/LiFe
Chk Time
LiXX V.Type NiCd D.P eak
Sensit ivity
LoadDa ta
Progra m Select
Load Dat a
Input Po wer Low
Cut-off
Bat. Type
Stop
Bat. Type
Stop
Bat. Type
Stop
Bat. Type
Stop
Bat. Type
Stop
Bat. Type
Stop
Start
Enter
Start
Enter
Start
Enter
Start
Enter
Start
Enter
Start
Enter
Start
Enter
Start
Enter
12

WARNING AND SAFETY NOTES

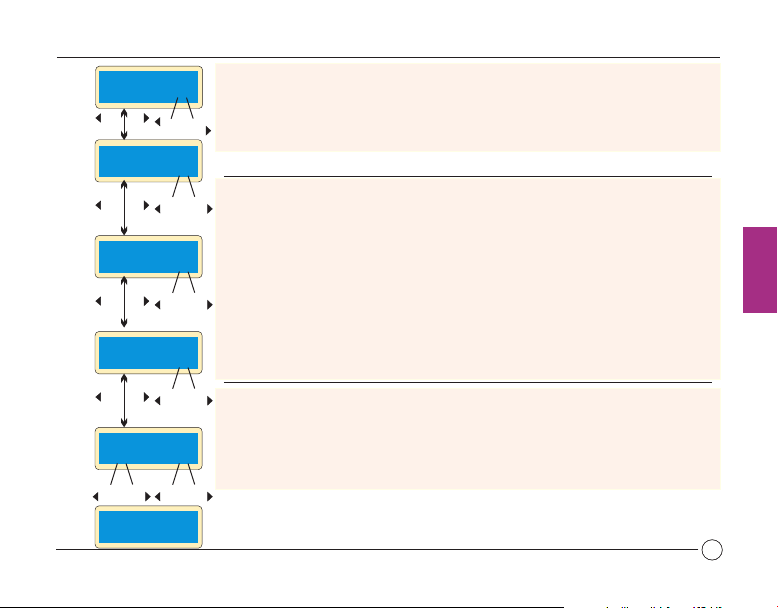

This charger will use for default settings when it is connected to a 12V power supply. The
screen displays the information on the following pages in sequence and the user can change
the parameter on each screen.
If you need to alter the parameter value in the program, press 'Start/Enter' key to make it
blink then change the value with '+' or '-' key. The value will be stored by pressing the
'Start/Enter' key once.
13

LiFe
V.Type 3.3V
LiFe
V.Type 3.3V
LiPo/LiIo/LiFe
CHK Time 10 min
NiCd Sensitivity
D.Peak Default
NiCd Sensitivity
D.Peak Default
LiFe
V.Type 3.3V
LiPo/LiIo/LiFe
CHK Time 10 min
NiMH Sensitivity
D.Peak Default
NiCd Sensitivity
D.Peak Default
USB/Temp Select
Temp Cut-Off 80C
INC
INC
INC
INC
INC
INC
INC
INC
DEC
DEC
DEC
DEC
DEC
DEC
DEC
DEC
-
-
-
-
+
+
+
+
The C6 detects the cell count of lithium battery automatically at the
beginning of charge or discharge process. A battery might not be
detected if it has been over-discharged. You can set the time limit to
verify the cell count by the processor. Normally, 15 seconds are enough
to detect the cell count correctly. You have to extend the time term limit
for batteries of large capacity. If the cell count is wrong or you set too
long of a time limit the charge or discharge process may come to an end
within the time limit. This may cause a fatal error. You have to extend the
time term if the processor detect the cell count incorrectly at the
beginning of charge or discharge process. Otherwise, use the default
value.
This shows the trigger voltage for automatic charge termination of NiMH
and NiCd batteries. The valid value ranges from 5 to 20 mV per cell.
Setting the trigger voltage higher may lead to overcharging, whereas
setting it lower brings a premature termination. Please refer to the
technical specification of the battery-(NiCd default:12mV, NiMH
default:7mV).
The screen shows the nominal voltage of lithium battery. There are
three types of lithium batteries: LiFe (3.3V), Li-ion (3.6V) and LiPo
(3.7V). It is critically importance that you set the charger in order to
check the type of battery you have. It will lead to damage the battery
and cause fire or explosion if failure to do so.
-- ++
WARNING AND SAFETY NOTES
14
INCINC DECDEC
NiCd Sensitivity
D.Peak Default
USB/Temp Select
USB Enabled

WARNING AND SAFETY NOTES
There is a 3-pin port on the left of the charger used as USB interface or temperature sensor port.
When the screen displays temperature, you can display the surface temperature of the battery
by using the optional temperature probe. You can set the maximum temperature of the battery
while charging. The process will be terminated automatically to protect the battery once it
reaches this temperature. This feature requires the temperature probe (optional). If the port is
set as a USB port, you can connect and monitor the charger with your PC using the optional USB
cable and software.
INC
INC
INC
INC
INC
INC
INC
INC
INC
INC
DEC
DEC
DEC
DEC
DEC
DEC
DEC
DEC
DEC
DEC
-
-
-
-
-
-
+
+
+
+
+
+
LiFe
V.Type 3.3V
LiFe
V.Type 3.3V
LiFe
V.Type 3.3V
Waste time
CHG/DCHG 5min
Capacity Cut-Off
ON 5000mAh
Safety timer
ON 120min
INC INC
DEC DEC
-+
LiFe
V.Type 3.3V
Key Beep ON
Buzzer ON
LiFe
V.Type 3.3V
Input power low
Cut-Off 10.0V
-+
INC
DEC
The battery becomes warm after cycles of charge and discharge. The
program will insert a time delay after each charge/discharge process to allow
the battery have enough time to cool down before starting the next cycle. The
valid value ranges from 0 to 60 minutes.
When charging begins, the integrated safety timer starts. If an error is
detected or the termination circuit cannot detect whether the battery is fully
charged or not, the program will help to prevent overcharging. Please refer to
the page below to calculate safety timer duration.
When the delta-peak voltage cannot be detected or the safety timer times
out, the capacity cutoff feature protects against overcharging the battery.
When the battery reaches the maximum capacity that the user set, charging
will be automatically terminated.
The charger beeps each time when you press a button. The beep or melody
sounds are to confirm different mode changes during operation. These
functions can be switched on or off.
This function monitors the voltage of the input battery used to power the
charger. If the voltage is lower than the value set by user, the program will be
automatically terminated to protect the input battery.
15

When charging NiCd or NiMH batteries, divide the capacity by current, then divide the result by
11.9. Use this as the number of minutes for safety timer setting. If the charger stops at this time,
threshold about 140% of the capacity will have been fed into the battery.
For example:
Capacity Current Safety Time
2000mAh 2.0A (2000/2.0=1000)/11.9=84 minutes
3300mAh 3.0A (3300/3.0=1100)/11.9=92 minutes
1000mAh 1.2A (1000/1.2=833)/11.9=70 minutes
Safe timer Calculation
Safe timer Calculation
The program is only suitable for charging/discharging lithium-polymer batteries with a nominal
voltage of 3.3/3.6/3.7V/cell. Different batteries have different charge technique. There are two
methods of charging, constant voltage and constant current. The charge current varies
according to battery capacity and specification. The final voltage is very important; it should
precisely match the voltage of the battery: LiPo is 4.2V, Lilo is 4.1V and LiFe is 3.6V. The current
and voltage of the battery should be correctly set.
When you want to change the values of parameters, press 'START/ENTER' key to make it blink
and then use '+' or '-' keys to change the value. Then press the 'START/ENTER' key again to
store the value.
Lithium（ Lilo/LiPo/LiFe）program
16

NiMH Sensitivity
D.Peak Default
NiMH Sensitivity
D.Peak Default
LiPo BALANCE
2.0A 11.1V(3S)
R:3SER S:3SER
CONFIRM(ENTER)
INC
INC DEC
DEC -
-+
+
Start
Enter
Batt type
Stop '>3 seconds'
Start
Enter
NiMH Sensitivity
D.Peak Default
Li3s 1.2A 12.59V
BAL 022:43 00682
Charged
capacity
Number
of
cells
Charging
time
Charging
current
Battery
voltage
The left side of the first line shows the type of battery you have
selected.The value on the left of the second line is the current user
s e l e c te d . A f t e r s e t ti ng t h e c u r r e n t an d v o l t ag e , p r e s s
'START/ENTER' key for more than three seconds to start the
process (charge current: 0.1-5.0A, voltage: 3.7-22.2V).
This screen shows the number of cells in the battery. “R” shows
the number of cells detected by the charger and “S” is the number
of cells selected by you on the previous screen. If both numbers
are identical you can start charging by pressing'START/ENTER'
key. If not, press 'BATT TYPE/STOP' key to go back to previous
screen. Check the number of cells of the battery pack carefully
before proceeding.
This screen shows the real-time status while charging. Press the
'BATT TYPE/STOP'key once to stop charging.
Charging of Lithium battery
Charging of Lithium battery
This function allows voltage balancing of the cell of lithium-polymer batteries while charging. In
the balance mode, the battery balance leads must be connected to appropriate balance port at
the right side of the charger. The battery power plug must be connected to the output leads of the
charger.
This charge mode utilizes built-in processor to monitor the voltage of individual cells and control
input current fed into each cell to normalize the voltage.
Charging lithium battery in the balance mode
17

NiCd Sensitivity
D.Peak Default
NiCd Sensitivity
D.Peak Default
LiPo FAST CHG
2.0A 11.1V(3S)
Li3S 2.0A 12.59V
FAS 022:43 00682
INCINC DECDEC
-- ++
Start
Enter
Start
Enter
Batt type
Stop '>3 seconds'
Current
voltage
battery
Suppiled
capacity
Charge
current
Charging
time
Number
of
cells
The value on the left side of the second lines sets the charge
current. The value on the right side of the second lines sets the
battery pack's voltage. After setting current and voltage, press
STAR/ENTER for more than 3 seconds to start the process.
This displays the number of cells you set up and the processor
detects. “R” shows the number of cells detected by the charger and
“S” is the number of cells set by you at the previous screen. If both
nu mb e rs a re i de nt i ca l yo u ca n st ar t c ha rg in g b y pr es s
START/ENTER button. If not, press BATT TYPE/STOP button to go
back to previous screen to carefully check the number of cells of
the battery pack before going ahead.
This screen shows the real-time status during charge process.
Press BATT TYPE/STOP key once to stop the charge process.
R:3SER S:3SER
CONFIRM(ENTER)
Charging of Lithium battery
+
+
LiPo 6S
-+
-
+
-
+
-
+
LiPo 5S
+3S
-
+Indi vi dual
bal. po rt
Indi vi dual
bal. po rt
LiPo 4S
-
1cel l
2cel l
3cel l
4cel l
5cel l
6cel l
1cel l
2cel l
3cel l
4cel l
5cel l
6cel l
+ +
2S
LiPo 3S
+
-
- -
LiPo 2S
-
+1S
Top Vi ew
Top Vi ew
+-
LiPo 1S
-
-
Individual Cell Connection Diagram (pin-assignment of 8-pin)
18

Fast charging of Lithium battery
Fast charging of Lithium battery
Number
of
cells
DEC
LiPo FAST CHG
2.0A 11.1V(3S)
Li3S 2.0A 12.59V
FAS 022:43 00682
-
Batt type
Stop
Elapsed
time
INC
+
Charge
current
Supplied
capacity
DEC
Start
Enter
-
’>3 seconds’
INC
+
Current
voltage
battery
When the charger reaches the end of charging, the charging current
will drop. A specific CV process will be reduced to end the charging
process earlier. In fact, the charging current will drop to 1/5 when
the charging process comes to 1/10. Charging capacity will be less
than normal charging, but charging time will be shortened
accordingly.
You can set up the charging current and voltage of the battery pack.
Press 'START/ENTER' key to display voltage confirmation. Then
press 'START/ENTER' key again to confirm and begin charging.
This screen shows the real-time status of fast charging. Press
'BATT TYPE/STOP' key once to stop charging.
This function is for charging/discharging lithium batteries which will not be used immediately.
This program is designed for charging or discharging of batteries to a state suitable for extended
storage. The following voltages are recommended for extended storage: 3.75V Lilo, 3.85V LiPo
and 3.3V LiFe. The program will begin to discharge if the original state of the battery exceeds the
voltage level of storage.
Storage control of Lithium battery
19
