XFPS PC Magic box 2 manual
XFPS PC Magic box 2
Usage manual
Before using this product, please read this manual carefully and retain it for
future reference.
Function and Feature:
The XFPS PC Magic Box 2 allows you to use an Xbox 360TM (wired/wireless) and
PS3TM controllers with PC games. Although the Xbox 360TM controller can be
used on the PC but due to lack of keys remapping function, gamers may find the
gaming controllers quite difficult to use on some PC games. The XFPS PC Magic
Box 2 compliments this need. You're now able to remap any key on the keyboard
to the game controller, using the right buttons/triggers to shoot, the right button
for punch or kick etc. and many more with the XCM PC Magic Box 2. This device
is user friendly and also adds auto fire function. Let’s start to play the PC games
in another mode!
Function and feature:
1. Supports both Xbox 360TM (wired/wireless) and PS3TM controllers with
PC games. *NOTE: if using with Xbox 360 wireless controller, the Xbox 360TM PC
Wireless Gaming Receiver must be required.
2. Supports rumble function.
3. Supports Xbox 360TM wired or wireless headset.
4. Supports PS3™ SixAxis tilt function
5. 8 built-in independent auto fire buttons
6. You are able to re-map the keys on keyboard to the Xbox 360TM or
PS3TM controller.
7. PC will recognize PS3TM controller as Xbox 360TM controller, so the
PS3TM controller can be able to use on all PC games. *NOTE: most PC games
won't recognize PS3TM controller but XCM PC Magic Box 2 will trick PC into

thinking a Xbox 360TM controller is plugged in. Xbox 360TM controller has
better compatibility with PC.

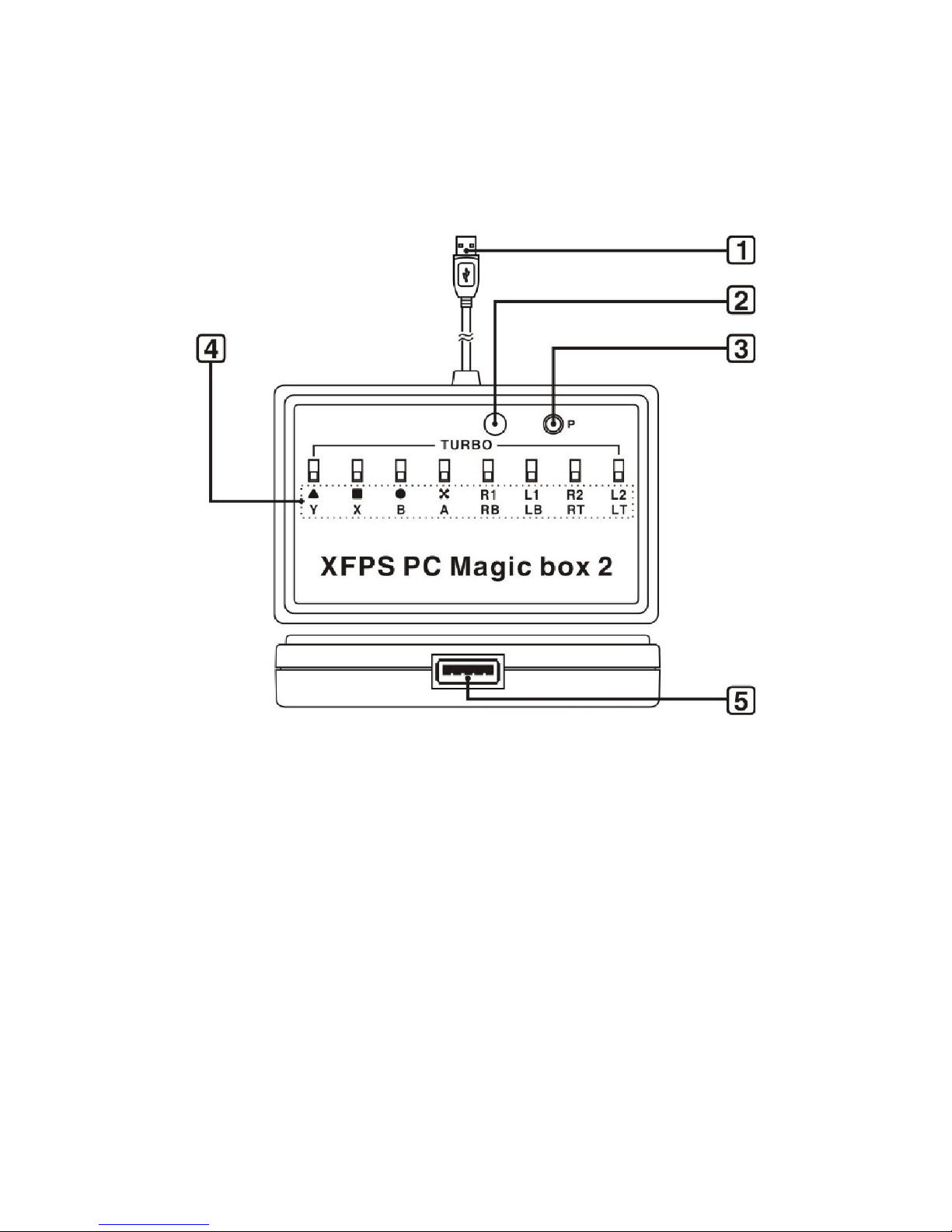

Layout:
< 1>----USB plug
Connect to PC.
< 2>----Status indicator
< 3>----Programming button (P)
< 4>----Auto fire ON/OFF
< 5>---- USB port
Connect the Xbox 360™/PS 3™ wired controller or the Xbox 360™ PC Wireless
Gaming Receiver
Install the driver:

If you want to connect the Xbox 360™ wired controller via XFPS PC Magic Box 2
to PC, you have to install the Xbox 360 Controller for Windows software and
driver. To download the software and driver, visit Microsofts official web site
http://www.microsoft.com/hardware/en-us/p/xbox-360-controller-for-windows#support
If you want to connect the Xbox 360™ PC Wireless Gaming Receiver via XFPS PC
Magic Box 2 to PC, you have to install its driver, please check it from the Xbox
360™ PC Wireless Gaming Receiver user manual.
After you installed the Xbox 360 Controller for Windows software and driver,
you are able to use the PS3 controller on PC as well.

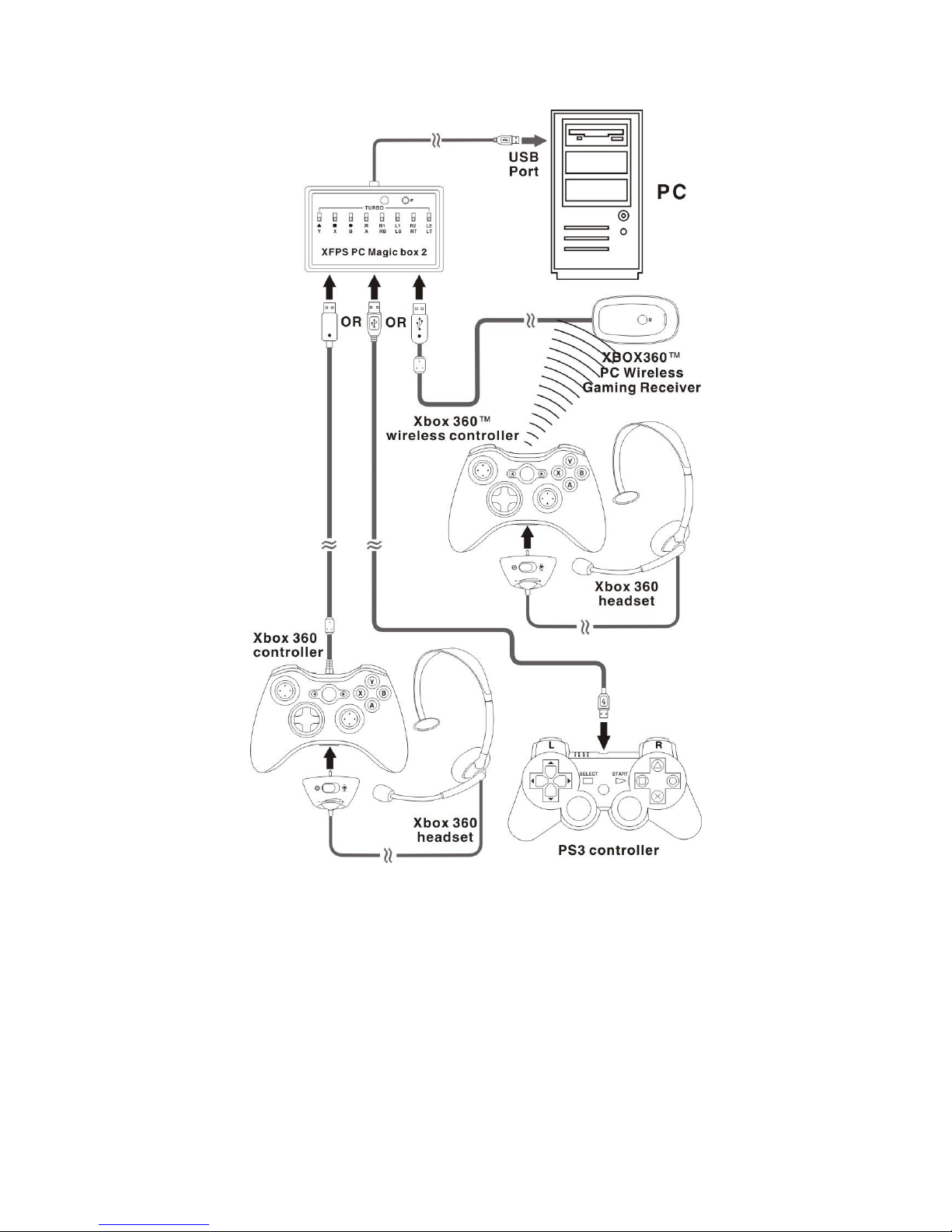

Connect to PC

1. Connect the Xbox 360™ wired controller via XFPS PC Magic Box 2 to PC.
Firstly plug in the Xbox 360™ wired controller to XFPS PC Magic Box 2, then plug
the XFPS PC Magic Box 2 to the PC USB port, wait until the Status indicator <2>
will light up GREEN. This means the connection is successful. The Xbox 360™
wired controller can be used with the Xbox 360™ headset and the rumble
function also been functioning.
2. Connect the Xbox 360™ wireless controller via XFPS PC Magic Box 2 to PC.

Firstly plug the Xbox 360™ PC Wireless Gaming Receiver to XFPS PC Magic Box
2,then plug the XFPS PC Magic box 2 to the PC USB port, wait until the Status
indicator <2> will light up RED. This means the connection is successful. The
Xbox 360™ wireless controller can be used with the Xbox 360™ headset and the
rumble function also been functioning.
3. Connect the PS3™ wired controller via XFPS PC Magic Box 2 to PC
Firstly plug in the PS3™ wired controller to XFPS PC Magic Box 2, then plug the
XFPS PC Magic Box 2 to the PC USB port, wait until the Status indicator <2> will
light up BLUE. This means the connection is successful. The PS3 ™ wired
controller rumble function also been functioning.
The Compatibility keys table between 2 controllers is as below:

Most of the PC game is compatible with the Xbox 360™ controller. The XFPS PC
Magic Box 2 also has a built-in function that tricks the PC into thinking that a
Xbox 360TM controller is plugged in when a PS3 controller is actually plugged in.
Therefore the PS3 controller can be used on all PC games, the operating
procedure are as below:
* Press and hold the “HOME” button on PS3™ wired controller for 5 seconds and
wait for the Status indicator <2> to turn GREEN. The PC now treats the PS3™
controller as Xbox 360™ wired controller, and this setting will be saved on the
XFPS PC Magic Box 2 for your next gameplay.

If you are now holding the “HOME” button on PS3™ wired controller for 5
seconds and wait for the Status indicator <2> to turn BLUE. The PC will
recognize the controller as the PS3™ controller again.
Rapid fire function
XFPS PC Magic Box 2 has 8 built-in Turbo/Rapid Fire switches. The rapid fire
speed is 20 shots per seconds.
Custom setting.

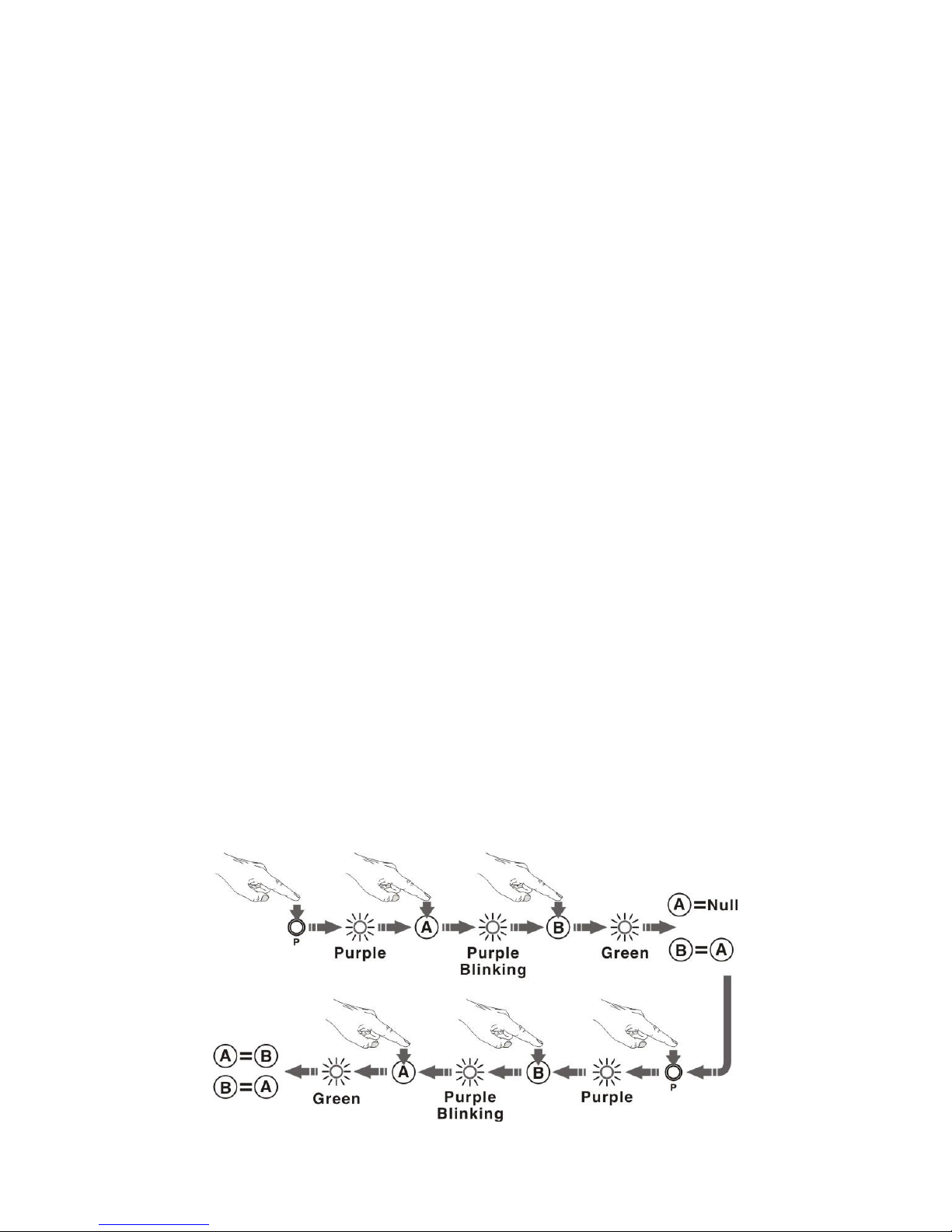

Through XFPS PC Magic Box 2, you are able to remap the keys on your gamepad,
for instance if you want to swap the “A” key to “B” key, the steps are as below:
1. Press once on the XFPS PC Magic Box 2 Programming button <3> key. The
Status indicator <2> will turn from GREEN to PURPLE.
2. Now press the Xbox 360™ “A” key. The Status indicator will blink Purple. Press
the “B” key on Xbox 360™ controller and the Status indicator will turn back to
GREEN.
3. Press again the XFPS PC Magic box 2 Programming button <3>, the Status
indicator < 2> turns GREEN to PURPLE.
4. Press the Xbox 360™ “B” key again and the Status indicator will blink a Purple
light. Finally press the Xbox 360™ “A” key. The Status indicator <2> turns back to
GREEN. The programming procedure is completed.

Note: the UP, DOWN, RIGHT and LEFT direction on both Left and Right analog
sticks can’t be programmed.
How to swap the 2 analog sticks
You are able to swap the function of 2 analog sticks, the steps are as below:
Press XFPS PC Magic Box 2 Programming Button <3> once. The Status indicator
<2> will turn from GREEN to PURPLE.
Now push the Right or Left analog sticks to the left end, the Status indicator <2>
will blink PURPLE, then press down the Right or Left analog sticks. The Status
indicator <2> will turn GREEN. The programming procedure is completed.
NOTE: the swap of 2 analog sticks only effect on UP, DOWN, RIGHT and LEFT
function, but not included the MIDDLE key function. If you want to swap the
MIDDLE key function on 2 sticks, please refer to the 6-1-4 Custom setting.
PS3 controller tilt function setting
XFPS PC Magic Box 2 can set the tilt function onto the RIGHT or LEFT analog
stick, for instance, if you want to set the tilt function on the LEFT analog stick, the
steps are as below:
Press XFPS PC Magic Box 2 Programming button <3> once. The Status indicator
<2> will turn from BLUE to PURPLE.

Now push the LEFT analog to the RIGHT end. The Status indicator <2> will blink
PURPLE. Press the middle key on the LEFT analog stick and the Status indicator
< 2> will turn BLUE. The programming procedure is completed.
How to erase the custom setting.
Press and hold the Programming button <3> for 5 seconds, the Status indicator <
2> turns to PURPLE then blinks and finally turns back to its status. Now all the
custom setting (included the setting of swap of 2 analog sticks and the tilt
function) are reset. The controller is back to its default function.
* The XFPS PC Magic Box 2 can be upgraded via further firmware update.
