Xenosys L2S15 User manual

L2S15
(Portable LED Headlight System)
User Manual
Optical Device Medical Device System Engineering
XENOSYS CO., LTD.
2, Venture-ro, 100 beon-gil, Yeonsu-gu, Incheon 406-840, Korea
TEL. [phone]~2 FAX. [phone]
www.xenosys.co.kr / [email protected]

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
2
Table of Contents
INTRODUCTION .........................................................................................................................3
SAFETY & PRECAUTIONS .........................................................................................................4
FEATURES..................................................................................................................................7
COMPONENTS............................................................................................................................8
FUCNTIONS................................................................................................................................9
OPERATING INSTRUCTION......................................................................................................14
BASIC TROUBLESHOTTING.....................................................................................................19
SPECIFICATIONS......................................................................................................................20
ELECTROMAGNETIC COMPATIBILITY ....................................................................................24
TRANSPORATION.....................................................................................................................24
STORAGE..................................................................................................................................25
CLEANING INSTRUCTION........................................................................................................26
SERVICE & WARRANTY ...........................................................................................................26

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
3
INTRODUCTION
Portable LED Headlight System: L2S15 is the medical device with lithium-ion battery and LED
light source which is suitable for flashing on to watch the wound or surgery spot. As a portable
device, it does not need supplementary holder and fiber optic cable. By the help of co-axial &
shadow-free illumination, L2S15 provides you the excellent color rendering with consistent
brightness. This product is the medical device and KFDA approval & registration is described like
below table.
Registration No.
1909
Certificate No.
Gyeongin Jesin 07-86
Product Category I
(A) General
Instruments
Class
Class 1
Product Category II
A03000 Medical Light
and Lamps
Product
Category III
A03030.01 Operating
Headlamp
Product Model No.
L2S15
Manufacturer
Xenosys Co., Ltd.
Country of Origin
Republic of Korea

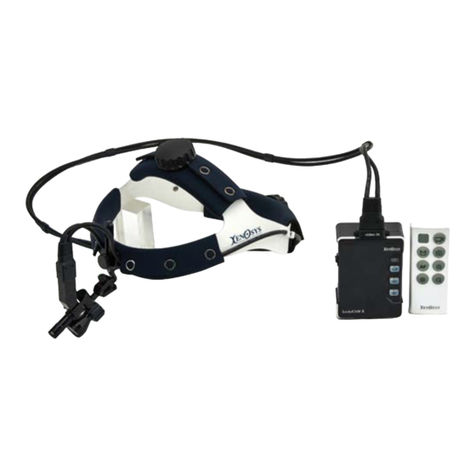

The external figure of product is like below pictures. Please refer to components on page 8 ~ 9.
Isometric View
Front View
Rear View
Table A describes features of L2S15 and detail specifications are described from page 19 to 21.
Model
Power
Spectrum
Lamp Type
L2S15
Portable Battery
Visible
LED
Table A: Features of L2S15 (Portable LED Headlight System)

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
4
SAFETY & PRECAUTIONS
Before the usage, you should read the manual & precautions carefully and use it properly. You
should follow next procedures and warnings about the battery & other components to prevent
any fire, injury, or damage to human body.
WARNING for Safety:
1. Do not heat the product with microwave machine or oven.
2. Do not dispose the battery into a fire.
3. Do not make direct connection between ‘+’and ‘-‘of the battery terminal (both edge of
battery) simultaneously by the conductor (any metallic object, coin, or clip) which will cause
the short-circuit to occur fire or injury to human body. Thus the charged battery should be
handled with care.
4. The product is not waterproof (Ordinary equipment, IPX0), so avoid the humidity and water.
5. Do not use in the presence of a flammable anesthetic mixture with air, oxygen, or nitrous
oxide.
WARNING for Power Unit:
1. Do not use any undesignated charger by Xenosys. If any damage or unexpected hazard
happens by the usage of undesignated charger, the manufacturer is free from the
responsibility.
2. In case of any oil spillage or liquid to inside of the product may cause fire or electric shock.
Then turn off the power immediately and disconnect the power cord.
3. Do not bend or twist the power cord excessively. It may cause fire or electric shock.
4. Do not touch the power cord with wet hand which may cause electric shock or equipment
damage.
5. Do not use L2S15 with connecting directly to the battery pack during the operation or
medical practice.

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
5
WARNING for Main Body:
1. Never disassemble or undertake modification of the equipment.
2. Do not put any metal or flammable object into the main body. It may cause fire or electric
shock.
3. Any drop or hard shock may cause the potential damage to the equipment.
4. Do not use or store the equipment in the area where get the direct ray of light, humidity, dust
or soot.
5. Clean up with a dry and soft cloth.
6. Do not use the detergent or chemical fluid to clean which may cause discoloration.
7. Avoid the reach of children or pets.
8. Maintain the following conditions for storing the product.
Environment for Storage & Transportation
Ambient Temperature
10℃~ 40℃(50℉~ 104℉)
Relative Humidity
30 ~ 85% @ 10℃~ 40℃(50℉~ 104℉)
Pressure
860 hPa ~ 1060 hPa

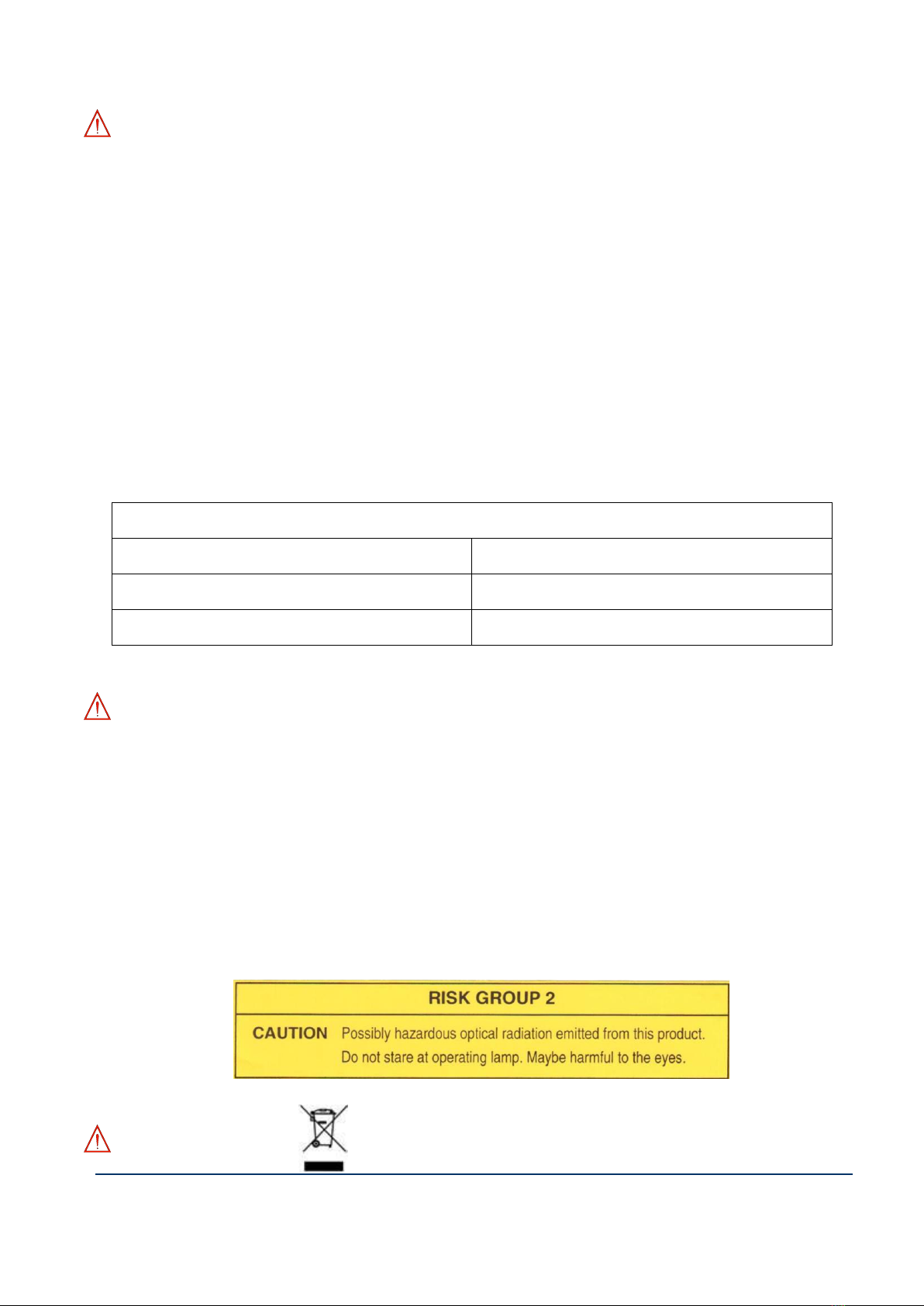

WARNING for LED Lens Module:
1. Do not drop, crush, or put a high pressure on LED lens module.
2. Clean LED lens surface with dipped alcohol or methanol in dry cloth softly.
3. Do not bend or twist the connection cable between the main body and LED lens module
which may cause the defective.
4. LED optic outside emits heat, so be careful on touching.
5. Do not look directly into LED lens module or some one’s eyes to avoid the risk of permanent
eye damage
WARNING for Battery:

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
6
1. At the first installation, make sure to check the external figure of battery. If there is any spill,
swollen, stink, or unusual found, then do not use the product and contact the dealer. If it’s
normal, then charge the battery fully and use it.
2. The battery is lithium-ion rechargeable one.
3. When transporting only battery, make sure to keep it in soft case. Do not make any
conductor to connect the battery charging point.
4. The battery operating time may shorten using in the cold place (below (-10℃) even fully
charged one. In that case, warm up the battery within the pocket before using L2S15. Do
not heat up the battery with microwave or any heater.
5. Use only the charger which is provided by Xenosys.
6. Charger battery in the range of +10℃~ +35℃. It may take longer to charger the battery out
of this temperature range.
7. Provided battery can be charged and discharged about 300 times at room temperature.
Lithium-ion battery is expendables, thus if the operating time is shortened after full charge,
we recommend exchanging new battery.
8. Be careful on benzene, thinner, alcohol (volatile & flammable fluid) and water. If those
chemicals penetrate the battery, it may cause the trouble in circuit and any accident.
9. If there is any swollen battery, spill, emit, or fire, stop using immediately and contact the
distributor (dealer) or the manufacturer.
10. Never use any damaged battery and charger.
11. In case of the first installation or unused long time, then charge the battery fully before
using.
WARNING for Charger:
1. Do not connect any metallic objects between the cradle connector and battery. This may
cause the defective on the charger and charger cradle.
2. Use only the charger which is provided by Xenosys on the phone jack. This may cause the
defective on the charger and charger cradle.
WARNING for Disposal:

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
7
1. In case of careless disposal, it may pollute the environment, so make sure to separate
collection.
FEATURES
1. Operating Principle
L2S15 adopts the way to deliver DC voltage from the battery to LED device through STEP-
Down circuit and generate light speed through the lens. Even though battery voltage is
reduced, L2S15 allows LED to provide consistent brightness.
2. Electrical Rating
1) Battery pack: DC3.7V 5200mAh (Lithium Ion)
2) LED Control Unit: DC 3.7V 70mA (: This means Direct Current)
3) Charger: Input-DC5V, 2000mA / Output-DC4.2V, 1500mA
4) Power supply: Input-AC100~240V, 50~60Hz, 0.3A / Output-DC5V, 2000mA
3. Protection Classification & Type against Electric Short
1) Protection Classification:
①Battery operated equipment
②Charger, Charger Cradle: Class II device
2) Protection Type: N/A
4. Safety Circuit: L2S15 contains Latching Power Switch circuit and protection circuit for over
current & overvoltage to keep the charging quantity.

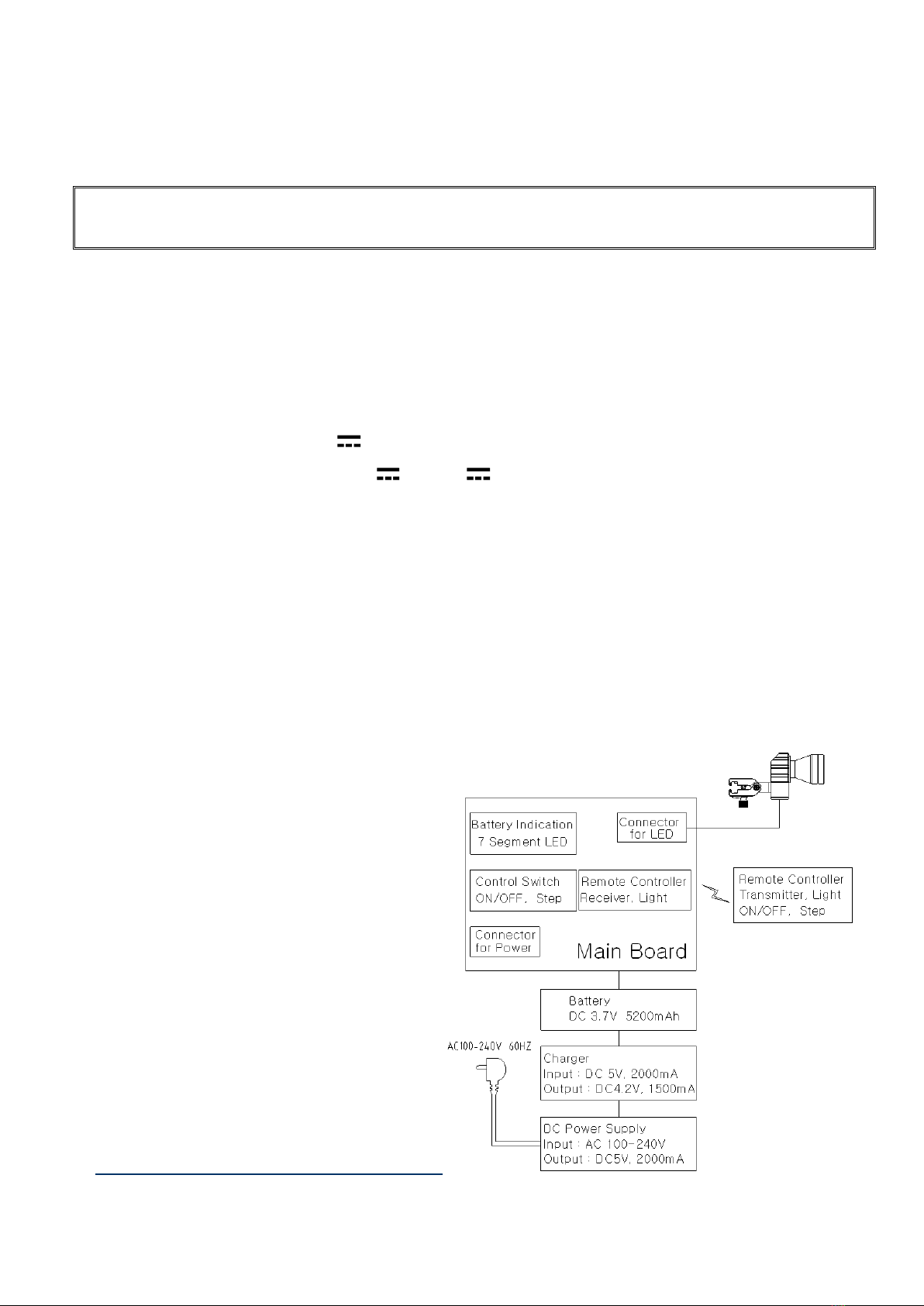

5. Block Diagram: Refer to below figure.

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
8

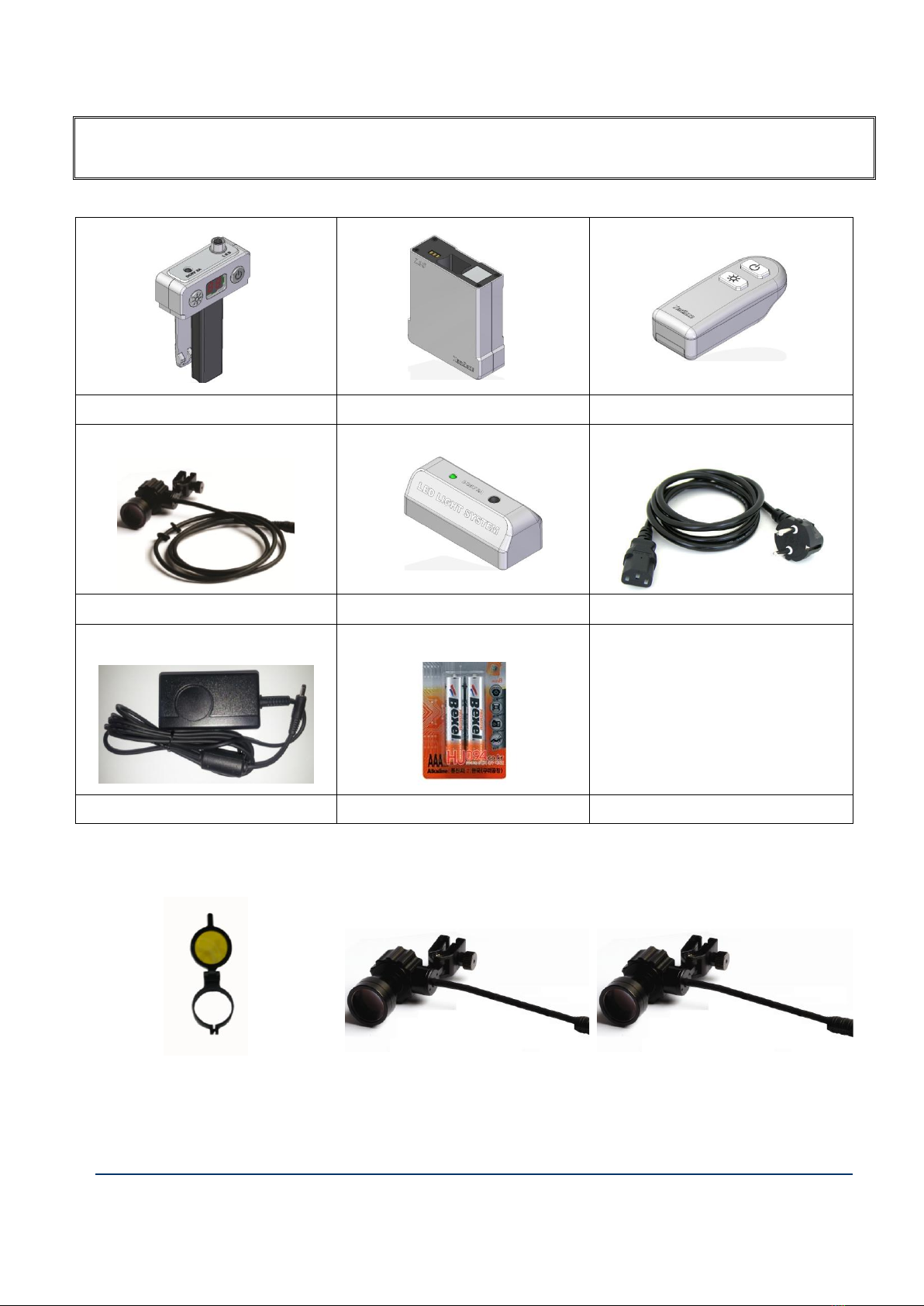

COMPONENTS
1. Basic Components
①LED Control Unit (LCU15)
②Battery Pack (2 EA, BTP15)
③Remote Controller (RC15)
④LED Lens Module (LLM1582)
⑤Charger (LCH15)
⑥Power Cord (LPC)
⑦Power Supply (BPM010S05)
⑧Battery for RC15 (AAA)
2. Optional
⑨Dental anti-curing filter
(Only for LLM1574, LLM1582)
⑩LED Lens Module (LLM1574)
⑪LED Lens Module (LLM1566)

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
9
Front View
3. List of Components
No.
Components
Main function & Page
Qty.
Reference
①
LED Control Unit (LCU15)
Refer to page 9
1
②
Battery Pack (BTP15)
Refer to page 10
2
Expendables
③
Remote Controller (RC15)
Refer to page 11
1
④
LED Lens Module (LLM1582)
Refer to page 12
1
⑤
Charger (LCH15)
Refer to page 12
1
⑥
Power Supply (BPM010S05)
Refer to page 13
1
⑦
Power Cord (LPC)
-
1
⑧
Battery (AAA)
Battery for remote controller
2
Expendables
⑨
Anti-curing Filter
Anti-curing for photo polymerization(Only for 74 & 82mm)
1
Optional
⑩
LED Lens Module (LLM1574)
Field of View: Ø74 mm @WD400mm
1
Optional
⑪
LED Lens Module (LLM1566)
Field of View: Ø66 mm @WD400mm
1
Optional

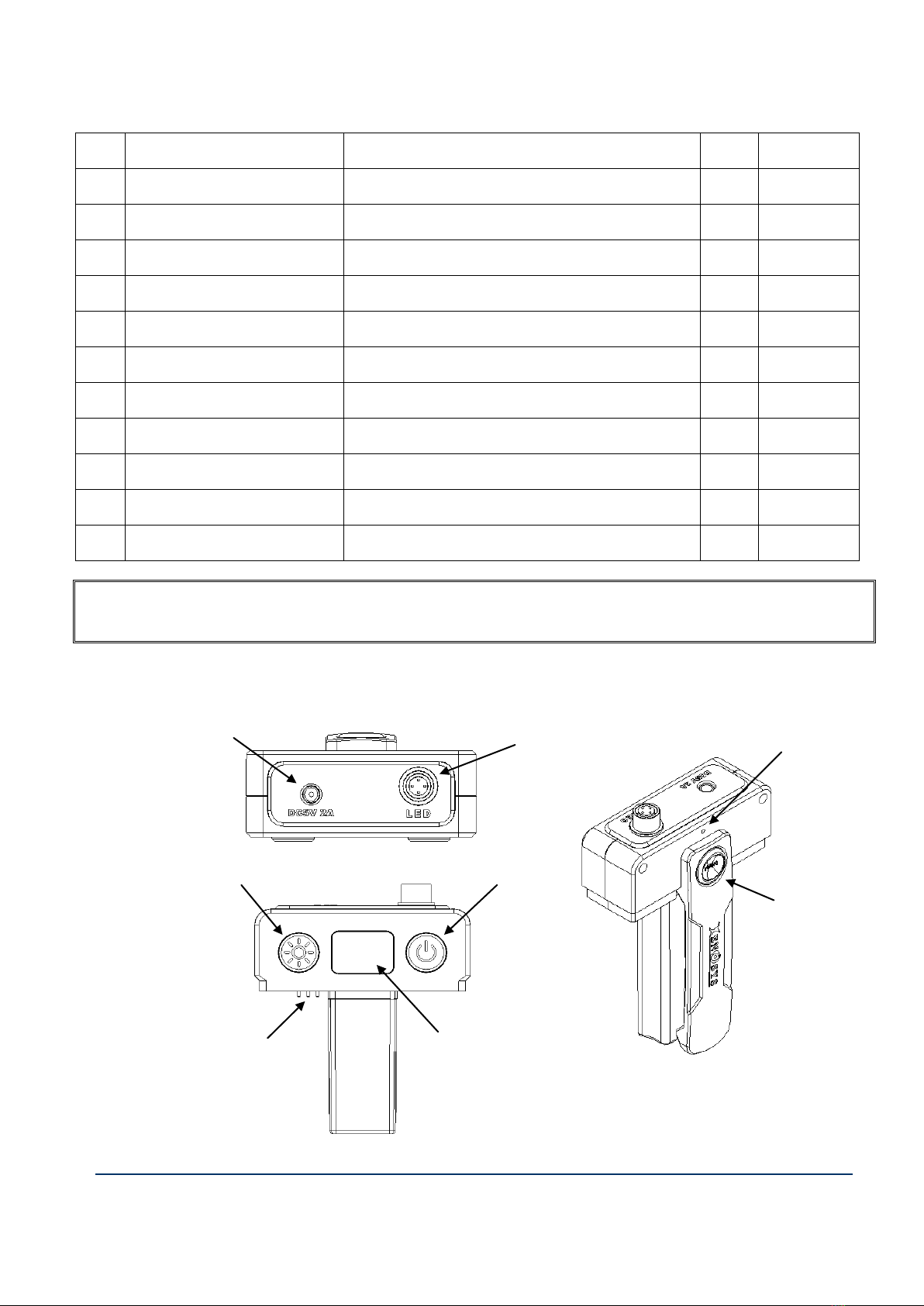

FUCNTIONS

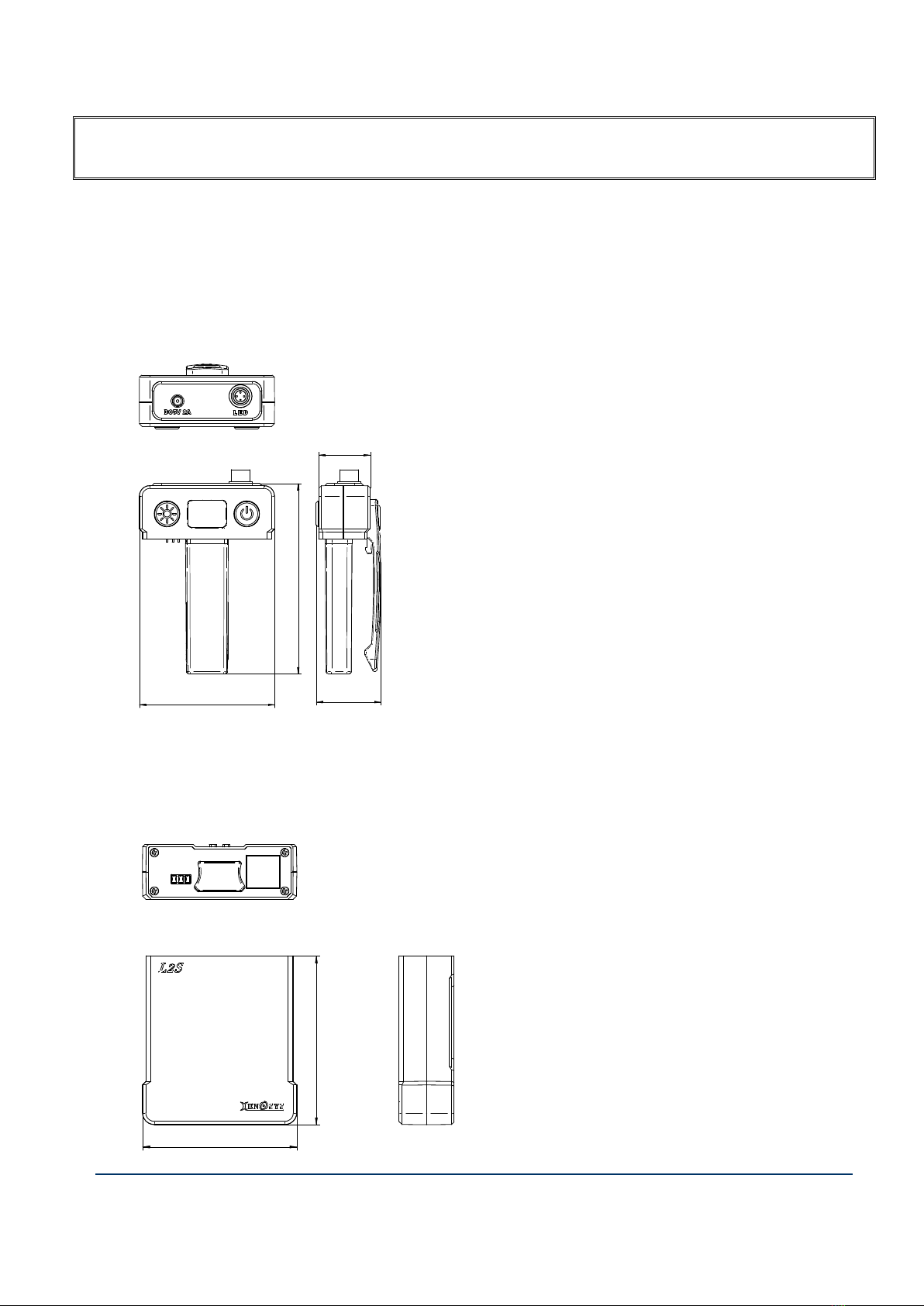

1. Main Body (LED Control Unit, LCU15)
Top View
Isometric View
④
⑤
⑥
⑦
⑧
③
②
①

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
10
Front View
Top View
①Battery remaining LED signal: Shows how much battery remains.
Example) Number from 0 to 99, FU (FULL)
②Power ON/OFF button: Press the button to turn ON/OFF of LED lens module.
③Intensity change button: To change the intensity of light from1 to 4.
④Power input jack: Connect directly to power supply without using the charger to use &
charge at the same time.
⑤LED lens module connecting jack: To connect LED lens module
⑥Battery pack release button: To exchange the used battery from the control unit.
⑦Pairing switch: The switch to set up the pairing between the control unit and remote
controller
(Refer to page 11 for setting up the pairing)
⑧Charging terminals

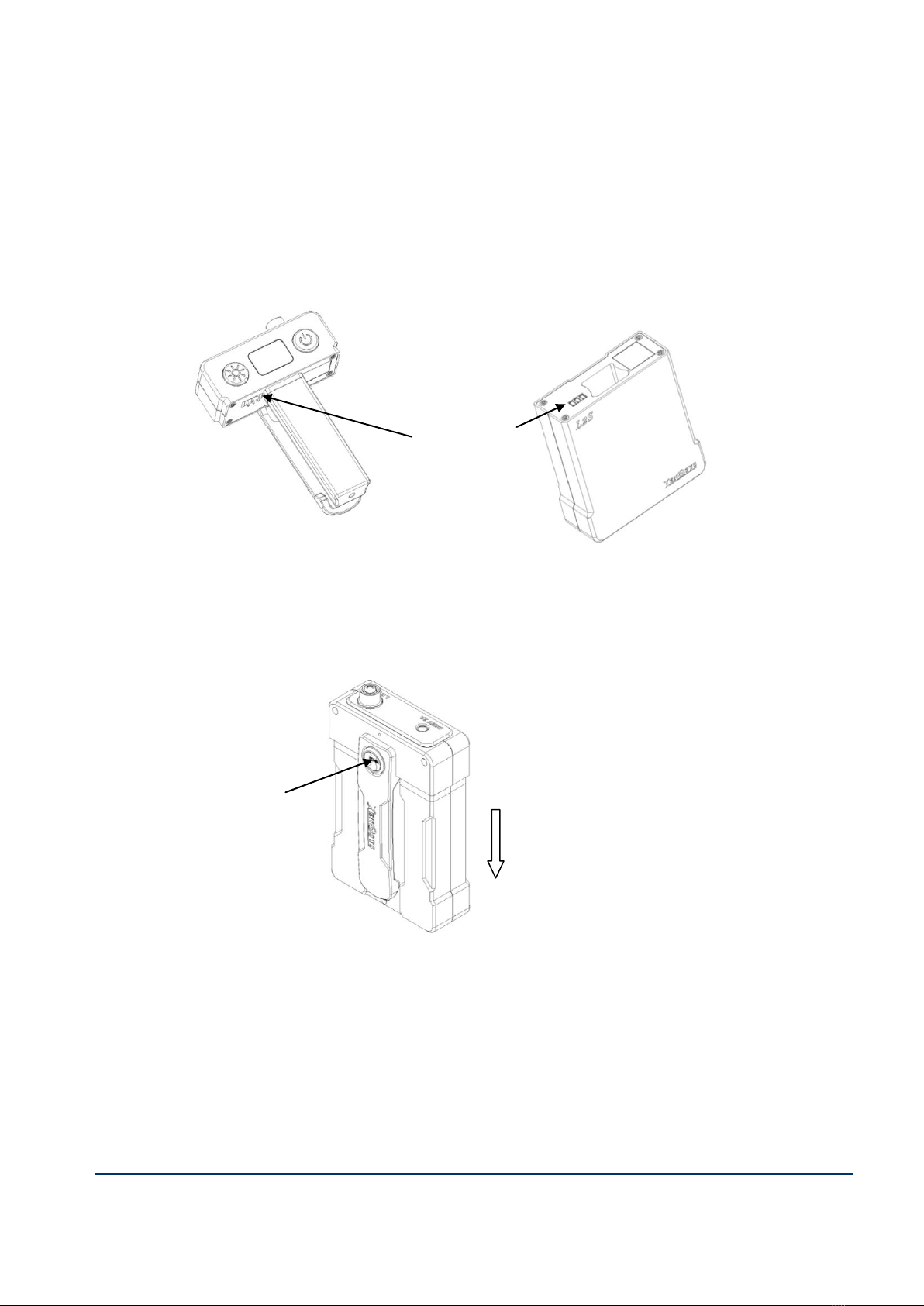

2. Battery Pack (BTP15)
①Battery: 3.7V / 5200mAh Li-ion
Warning –Read the warning for battery from page 5 to 6 before usage.
Isometric View
①Charging terminal

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
11
3. Remote Controller (RC15)
1) ①Power On/Off button: Press the button to turn ON/OFF of LED lens.
2) ②Battery entrance: 1.5V (2 EA), AAA size.
3) ③Intensity change button: Possible to change LED intensity from 1 to 4.
WARNING: To prevent the loss of battery power, the stand-by power of remote controller will be shut
down after turn-off by the remote controller (RC15). If you want to use remote controller again, turn on the
button of the control unit (main body).
WARNING: Control unit and remote controller will be provided with pairing. To set up & release
the pairing is as follows.
How to set up the pairing
1. Turn on the control unit (LCU15)
2. Push the pairing switch for one second and release -> Blue
light blinking
3. Push & release On/Off button of remote controller -> Blue
light will linger and off
4. Pairing complete.
A. If the pairing is released, it
can be controlled by other
remote controllers.
How to release the pairing
1. Turn on the control unit (LCU15)
2. Push & hold the pairing switch more than 5 seconds -> Blue
light blinking
3. Push & release On/Off button of remote controller -> Blue
light will linger and off
4. Release pairing complete.
LED(Blue)
①Pairing Switch
①Power On/Off button
③Intensity Change Button
②Battery Entrance

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
12
Front View
Bottom View

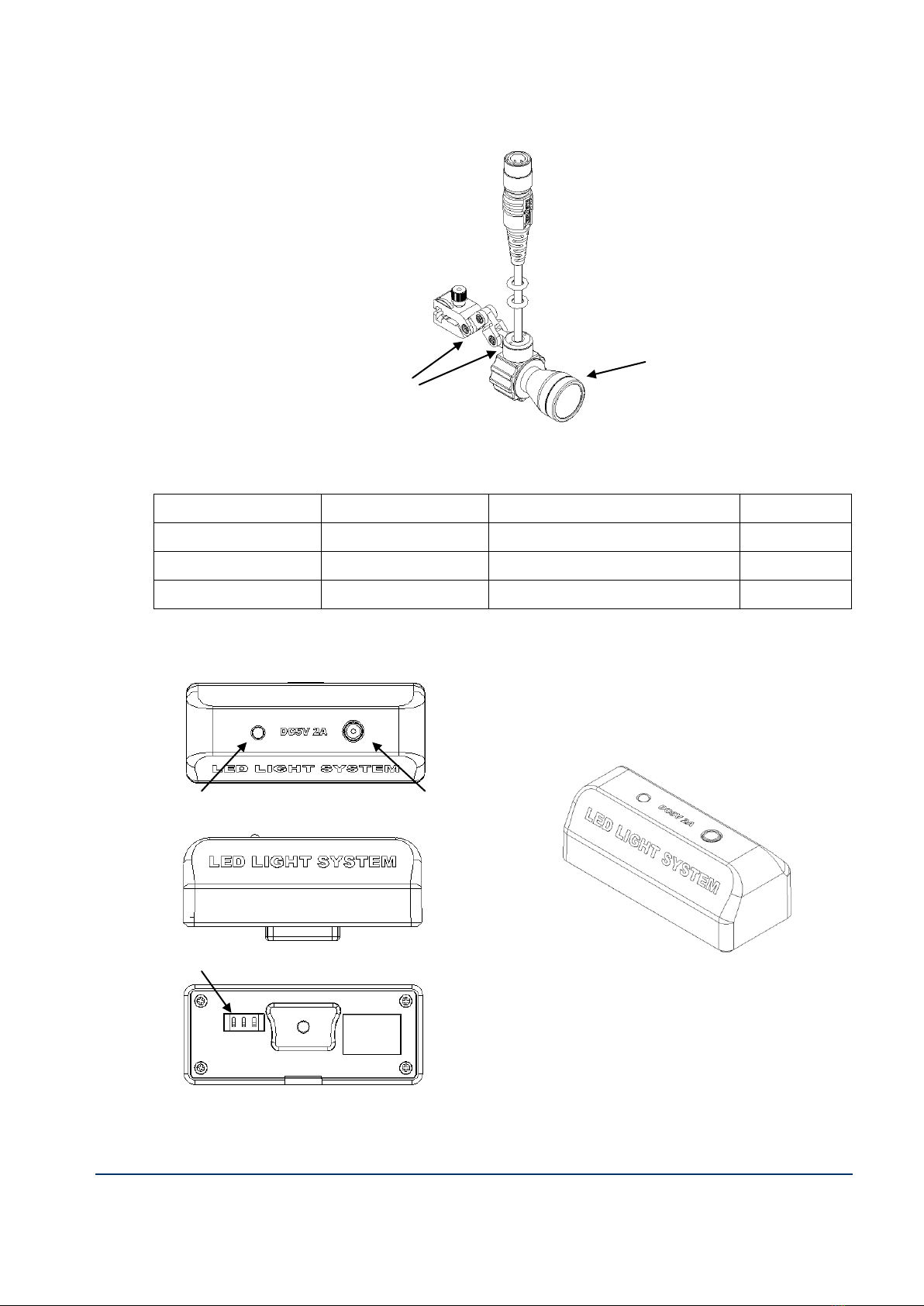

4. LED Lens Module (LLM1582)
①Adjustable link: LED Lens module can move up-down, and left-right side.
②3 types of LED Lens Module available (Choose one)
Class
Type
Feature (Field of View)
Reference
Standard
LLM1482
Ø82mm@WD400mm
Basic
Option 1
LLM1474
Ø74mm@WD400mm
Option 2
LLM1466
Ø66mm@WD400mm
5. Charger (LCH15)
Isometric View
③
①
②
Top View
①
②

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
13
①Charging Signal LED: Orange –Charging, Green –Finished charging.
②DC5V Connecting Jack: DC5V power supply connecting jack.
③Charging terminals: Assemble the battery pack (BTP15) and connect power supply
to start charging the battery.
WARNING:
- Do not connect any metallic objects to the charging terminal except the battery.
- Charging terminal is weak at external shock, so be careful on assembling the battery pack. If
the charging terminal is broken, it is out of order.
Warning –Do not use non-Xenosys supplied power supply. This will cause severe damage
to the cradle & main body which is also excluded from the under warranty.

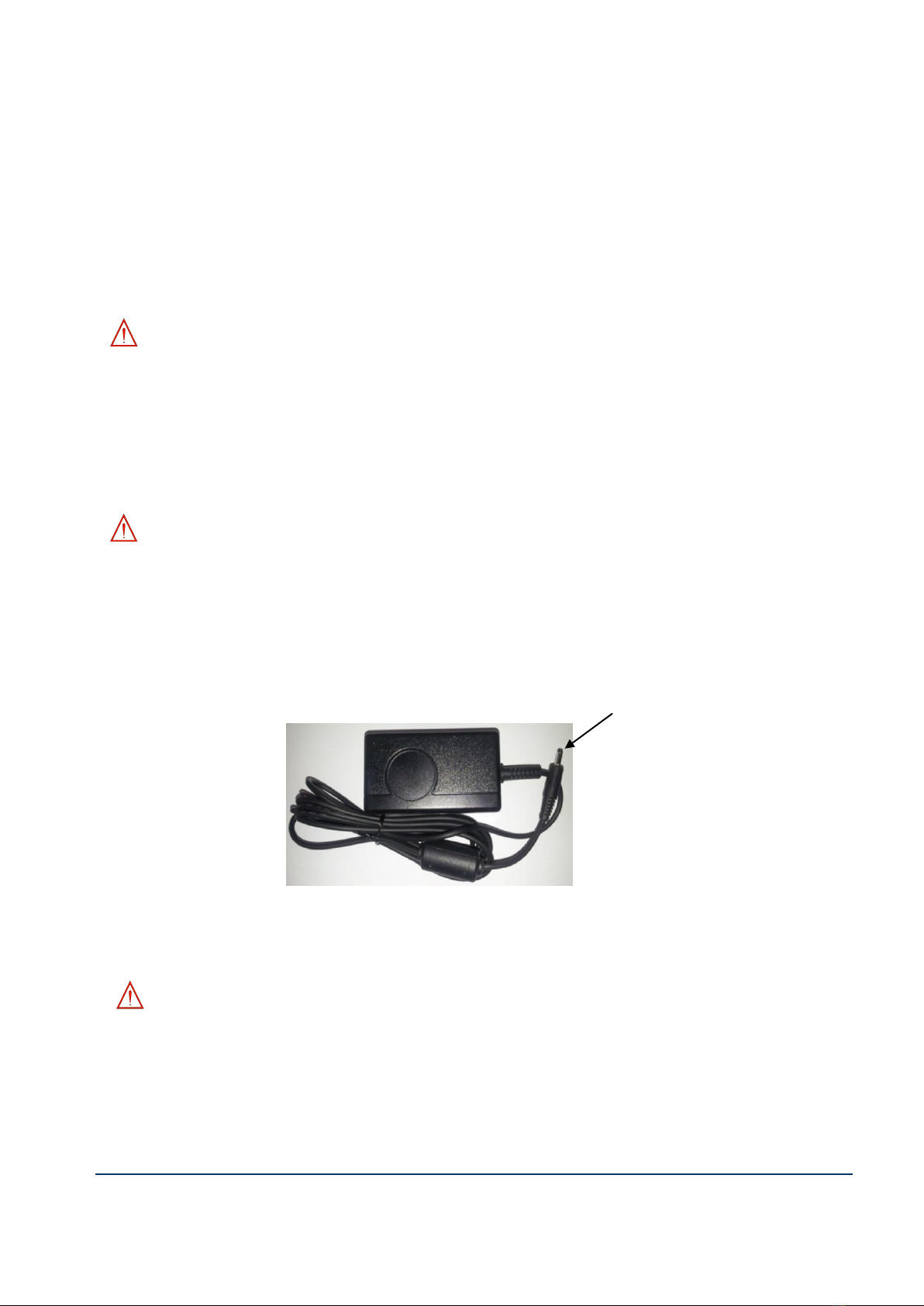

6. Power Supply
①Charging plug: To supply the power to DC5V connecting jack.
Warning –Do not use any other device randomly which may cause the defective reason.
In case of using non-Xenosys-supplied charger with higher voltage (over 5V), it will cause the
severe damage to main body. Please check if its Xenosys supplied charger and the serial
number. If it’s Xenosys supplied one, then stop using and contact the distributor (dealer) or
the manufacturer. If not, make sure to use Xenosys DC5V power supply.
①

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
14
OPERATING INSTRUCTION
A. Preparation before usage
1. Check components
Components are shown on page 8~9. They can differ from the picture and replace or
delete with new parts for better performance.
2. Charging battery & Assembling components
The battery is not completely charged, so charge them fully before the first-time usage.
①Connect power supply & charger to supply the power.
②If the battery is fully charged, it will show green light on charger LED.
③Assemble the control unit & fully charged battery, then connect LED lens module wire
to the circular connector of the control unit.
B. Operating Instructions
1. Finish the preparation and put the main body to waist belt or inside of pocket.
2. When using headband, connect LED lens module to headband attachment and adjust to
your head. When using surgical telescope, connect LED lens module to glasses nose
bridge part.
3. Use gown clips to fix the wire and remove the protection cap of LED lens module.
4. Turn on the button of control unit to start the light operating and change the position of
lens module to your own needs
5. Press the intensity change button either control unit or remote controller to match your own
needs of light intensity.
WARNING –On turn-on LED, do not look directly into LED lens module or some one’s
eyes to avoid the risk of permanent eye damage.
C. Maintenance & Storage after use
1. If the usage is done, press the power ON/OFF button to turn off. Then store it to the case
after cleaning dirt or bloods for further use.
Caution –When no-use for long time, make sure to remove the battery from the battery pack.

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
15
2. Store LED light in the place free from the air with pressure, temperature, humidity, wind, ray
of light, dirt, salinity, and ion.
3. Store L2S15 in the place free from the declination, shack, and shock.
4. Store L2S15 in the place free from gas, smoke, and chemical fluid.
5. Clean up & wash for next time use.
Caution –External can be cleaned with soft cloth. In case of heavy pollution, try with a bit of
neutral detergent and make sure to NO water or electrolyte flow into the main body.
6. In case of malfunctioning, stop using immediately and contact the dealer.
7. Do not disassemble, repair, or modify the equipment by unauthorized personnel.
Caution- Unauthorized disassemble, repair, or modification are out of warranty.
8. The way to maintain the battery lifespan longer is to exchange fully charged battery before
“beep”sound and the battery alarm sign, and recharge the used battery.
9. Warning for storage of battery pack
As Li-ion battery is small-sized with high power, if it is stored fully charged condition for a
long time, the battery lifespan can be reduced.
(1) Store it under half-charged condition in case of non-use immediately.
(2) Store the battery with separated from the main body in case of long-time no use.
(3) Recommend to keep it in the dry condition with ambient temperature range of 6℃ ~ 40℃.
Keep away from too hot or extremely cold places.
10. Battery Service Life
Provided battery can be charged and discharged about 300 times at room temperature.
Lithium-ion battery is expendables, thus if the operating time is shortened after full charge,
we recommend exchanging new battery.

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
16
Battery Remaining LED Signal
Power On/OFF button
②
①
③
Intensity Change Button
D. Turn on light & Intensity change
1. Assemble the control unit & battery pack, then press power ON/OFF button to start.
①Check the light comes out from LED lens module.
②Check the battery remaining signal on front of control unit. (It will show with the unit
of % for remaining value)
③If fully-charged battery installed, it will show “FU”. As battery will be exhausted, the
remaining value will show “99”~ “0”. “Beep”alarm sound will come on less than
“10”, and we recommend recharging the battery. After “Beep”sound, the power will
shut down after 10 minutes.
Caution –Please exchange fully charged battery or recharge when hearing “beep”
sound and only a few moments light come which means the battery is not charged.
2. Press the intensity change button to adjust desired brightness.
One press will apply to change one step each (STEP 1st, 2nd, 3rd, 4th).
Below table will indicate LED lens module brightness (lx@WD400mm) & operating time.
Illumination
STEP
Brightness(lx) @WD400mm
Operating
Time (hr)
LLM0982
LLM0974
LLM0966
1st
12,000
13,000
17,000
23
2nd
22,000
24,000
32,000
11
3rd
30,000
32,000
44,000
8
4th
39,000
43,000
59,000
5

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
17
3. Adjust LED lens module up-down or left-right to locate the desired position. External
LED lens module’s temperature will go up to 54℃(max.) during usage, so be careful.
4. After finishing the usage, press the power ON/OFF button to turn off.
E. How to release the battery pack
1. Mach two charging terminals of control unit and battery pack to assemble.
2. One hand of index finger will be on the battery release button, and another hand to hold
sides of battery pack. Then press the battery release button and pull out the battery pack to
downward at the same time to disassemble the battery.
①Battery Release Button
①Charging
Terminal

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
18

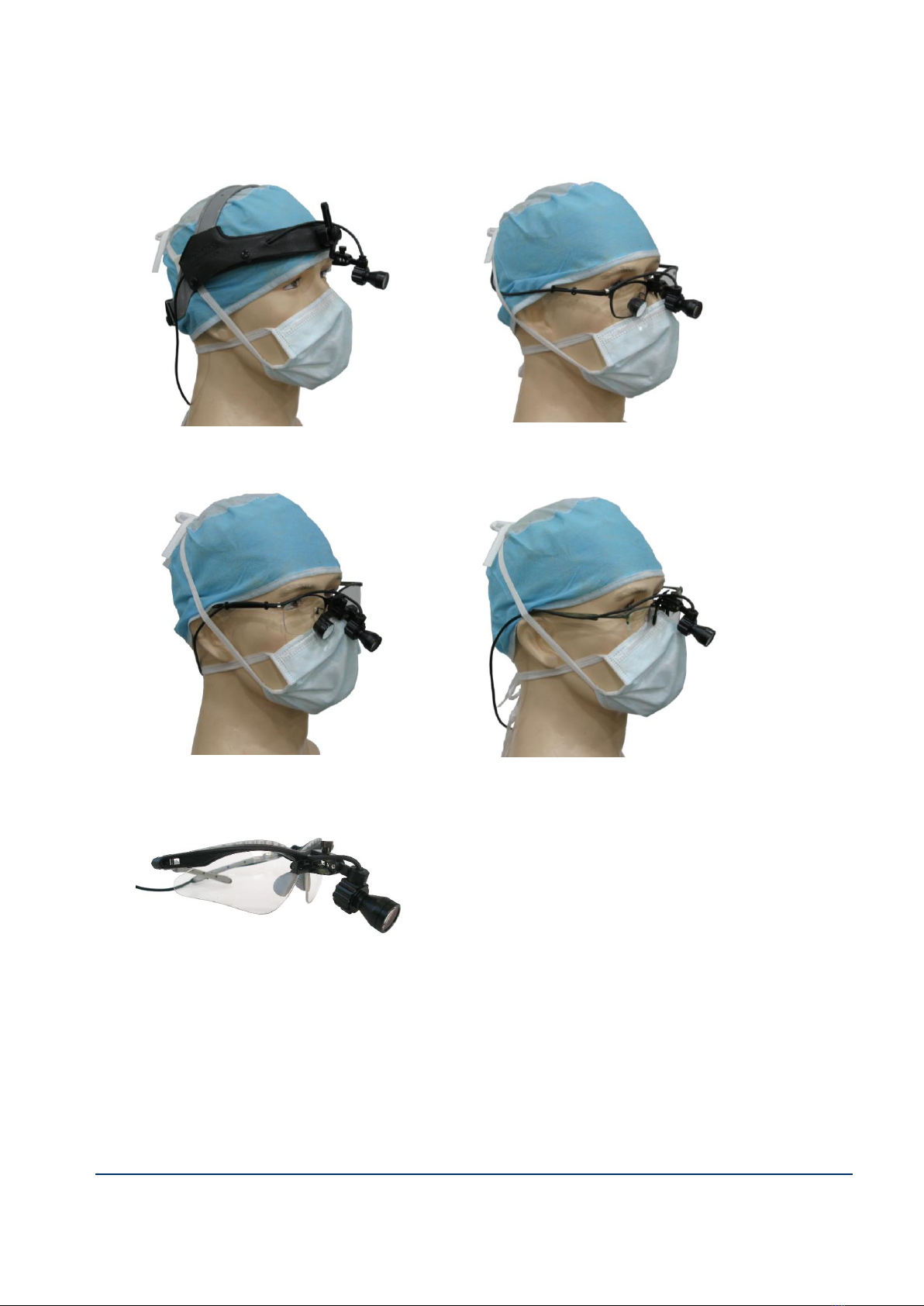

F. LED Lens Module attachment examples
①Headband
②TTL Loupe
③Flip-up Loupe
④Usual Glasses
⑤Protective Goggle

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
19
BASIC TROUBLESHOTTING
Symptom
Check Point
Troubleshooting
No light comes from LED
lens module
Check if the battery pack is
properly installed.
Assemble the battery pack
properly to charging terminal.
Check if the battery is
discharged.
Recharge the battery.
Check if the cable
connection is properly
installed.
Connect properly again.
Light comes on a few
moments and turn off
Check the battery remaining
quantity
Recharge the battery
After exchange of
battery, the light intensity is
not enough
Check the intensity is
properly adjusted.
Adjust the intensity step.
Discharging time is too fast
Check if the battery is fully
charged. (Check the battery
remaining LED)
If the battery running time
Is too short even fully
charged, we recommend
exchanging with new battery
as it is expendables.
Light flickers intermittently
Check the wire connection
part –loose contact or not.
Contact the distributor or
manufacturer

Portable LED HeadLight System (L2S15) www.xenosys.co.kr
20
SPECIFICATIONS
1. Measurement & Weight
A. LED Control Unit (LCU15)
①Size: Refer to below photo
②Weight: 45 g
64,5
90,7
24,5
30,846
B. Battery Pack (BTP15)
①Size: Refer to below photo
②Weight: 130 g
64,5
71
