XERO2 FLY-R 2022 User manual

OWNER’S MANUAL
Product Information

2
GUIDE SYMBOLS
Electric Bicycle Classication (USA)
WARNING
Cautions, operating risks,
and general warnings
IMPORTANT
Important information
VIDEO CONTENT
Video content available on the
XERO2 website
WEBSITE CONTENT
Further information found on
the XERO2 website
READ THIS BEFORE USING YOUR XERO2 PRODUCT.
eBike classications may vary by state. Check local laws
for age requirements and regulations.
CLASS 1
Pedal-assist only up to 20mph.
CLASS 2
Throttle only up to 20mph.
CLASS 3
Pedal-assist up to 28mph.
This guide contains information related to the safe and lawful use of this product. Failure to understand and
comply with the information contained within this guide may result in nes, serious injury, or death.
USER AGREEMENT
Read through and fully understand the
entirety of this manual before assembly
and operation of any Xero2 product.
Any altercation of Xero2 components will
void warranty. Any use of aftermarket
components or non Xero2 supplied
components will void warranty.
Maintaining Xero2 products properly
will reduce risk of serious and/or fatal
injuries but does not eliminate risks.
Use of Xero2 products have inherent
risks that are unforeseen or unavoidable.
Xero2 is not responsible for any
associated risks that may cause serious
and/or fatal injuries.

3
Table of Contents
1 GETTING STARTED
1.1 Unboxing 4
1.2 Pedal Installation 5
1.3 Handlebar Installation 6
1.4 Charging 7
2 PRODUCT OPERATION
2.1 Product Control Overview 8
2.2 Powering On & O 9
2.3 Throttle 9
2.4 Before Every Ride 10
3 CARE & MAINTENANCE 11
4 PRODUCT WARRANTY 12
5 PRODUCT SPECIFICATIONS 15
OWNER’S MANUAL
www.xero2.com

4
1 Getting Started \\ / / 1.1 Unboxing
AXERO2 eBike B1 x Left Pedal C1 x Right Pedal D1 x XERO2 Charger
E2 x Keys F1 x 8mm Allen Key G1 x 15mm Wrench H1 x Owner’s Guide
B
C
D E FGH
A
WARNING - OVERSIZED/HEAVY CARTON
Xero2 recommends at least two people for lifting the carton and unboxing the
product. Xero2 products come partially assembled in box. We recommend
seeking professional help to setup your eBike as it may require additional
professional tuning.

5

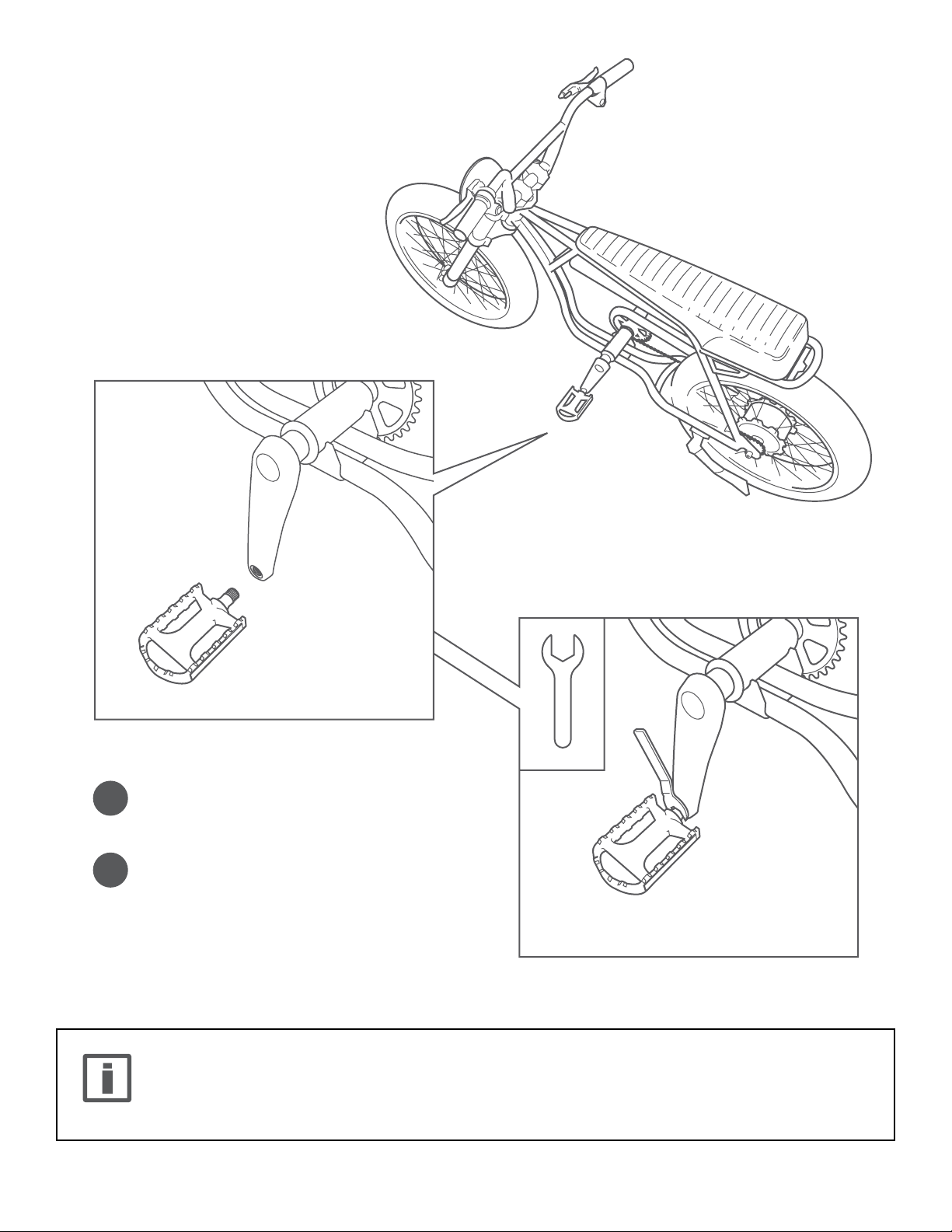

1.2 Pedal Installation \\
INSERT PEDAL INTO THE CRANK ARM.
TIGHTEN WITH INCLUDED WRENCH
UNTIL SNUG.
Do not over-tighten.
Pedals are directional (left and right) and must be installed on the corresponding crank arm.
If you are uncertain about assembly procedures, contact a professional to have your eBike
professionally assembled.
1
2

6
/ / 1.3 Handlebar Installation
REMOVE THE TWO BOLTS LOCATED
ON THE UNDERSIDE OF THE
HANDLEBAR MOUNTING PLATE
USING THE INCLUDED ALLEN KEY.
POSITION HANDLEBAR ASSEMBLY ON
THE HANDLEBAR MOUNTING PLATE
AND ALIGN CLAMP SCREW HOLES WITH
THE MOUNTING PLATE SCREW HOLES.
REPLACE THE REMOVED BOLTS AND
TIGHTEN HANDLEBAR CLAMPS TO THE
HANDLEBAR MOUNTING PLATE.
If you are uncertain about
assembly procedures,
contact a professional
to have your eBike
professionally assembled.
1
2
3

7
Fully charge your Xero2 eBike for at least 4 hours prior to rst use. Use only the XERO2 charger
included with your eBike.
LED COLOR CODES
BATTERY CARE
RED - Charging
GREEN - Fully Charged
Observing the following guidelines can help extend the life of
your XERO2 battery.
- When eBike is fully charged, disconnect from power supply.
- Avoid charging for more than 8 hours.
- Avoid allowing battery to fully discharge to empty.
1.4 Charging \\
THE CHARGING PORT IS LOCATED
ON THE FRONT-RIGHT SIDE OF
THE BATTERY.

8
2 Product Operation \\
B
E
C
A

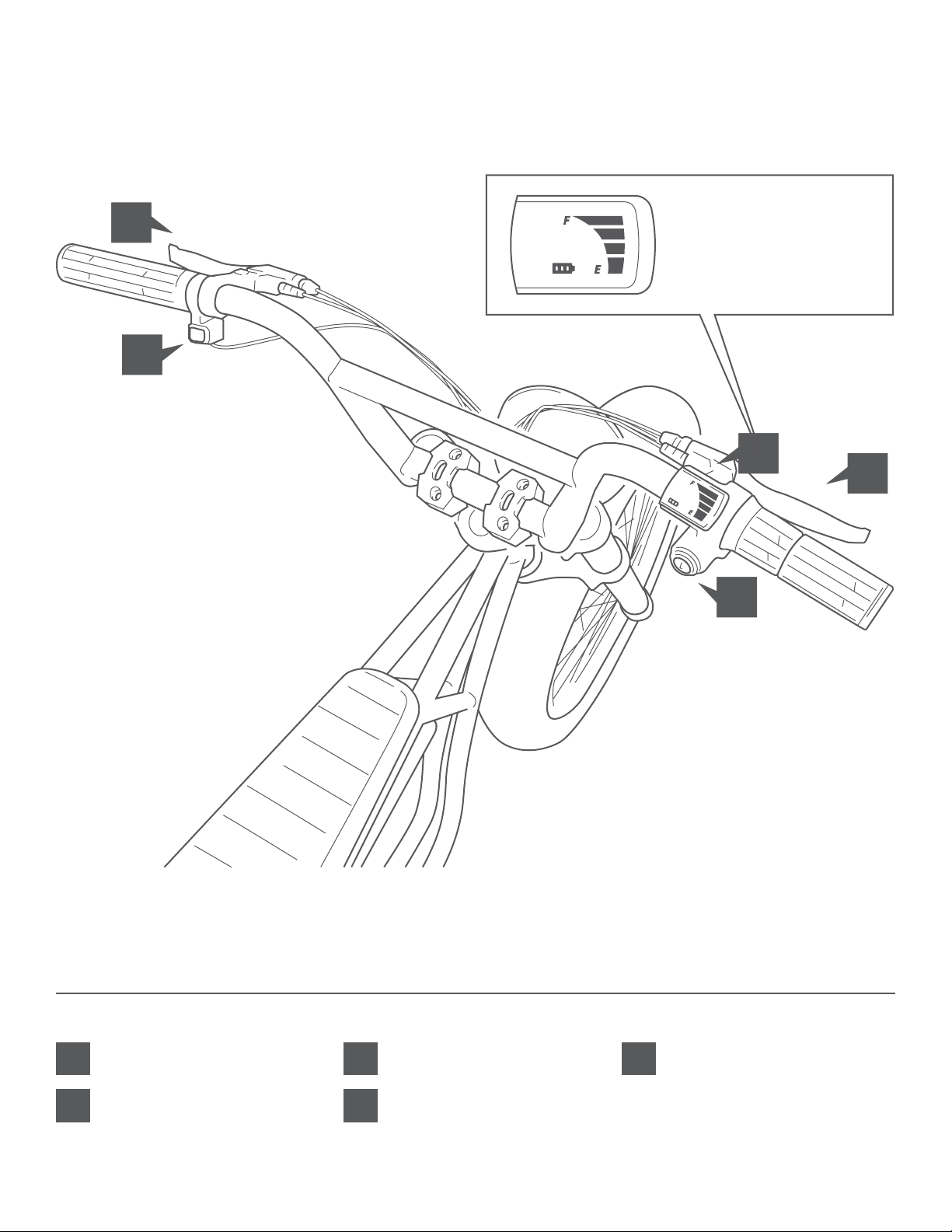

/ / 2.1 Product Control Overview
A
Front Hand Brake
B
Rear Hand Brake
CController/Power Switch
DBattery Level Display EHeadlight Switch
BATTERY LEVEL CODES
F - Fully Charged
E - Empty/Fully Discharged
D

9
There is a 0.5 second start-up throttle delay when turning on the eBike.
Xero2 eBikes use a half-twist throttle. Be familiar with the throttle operation before riding.

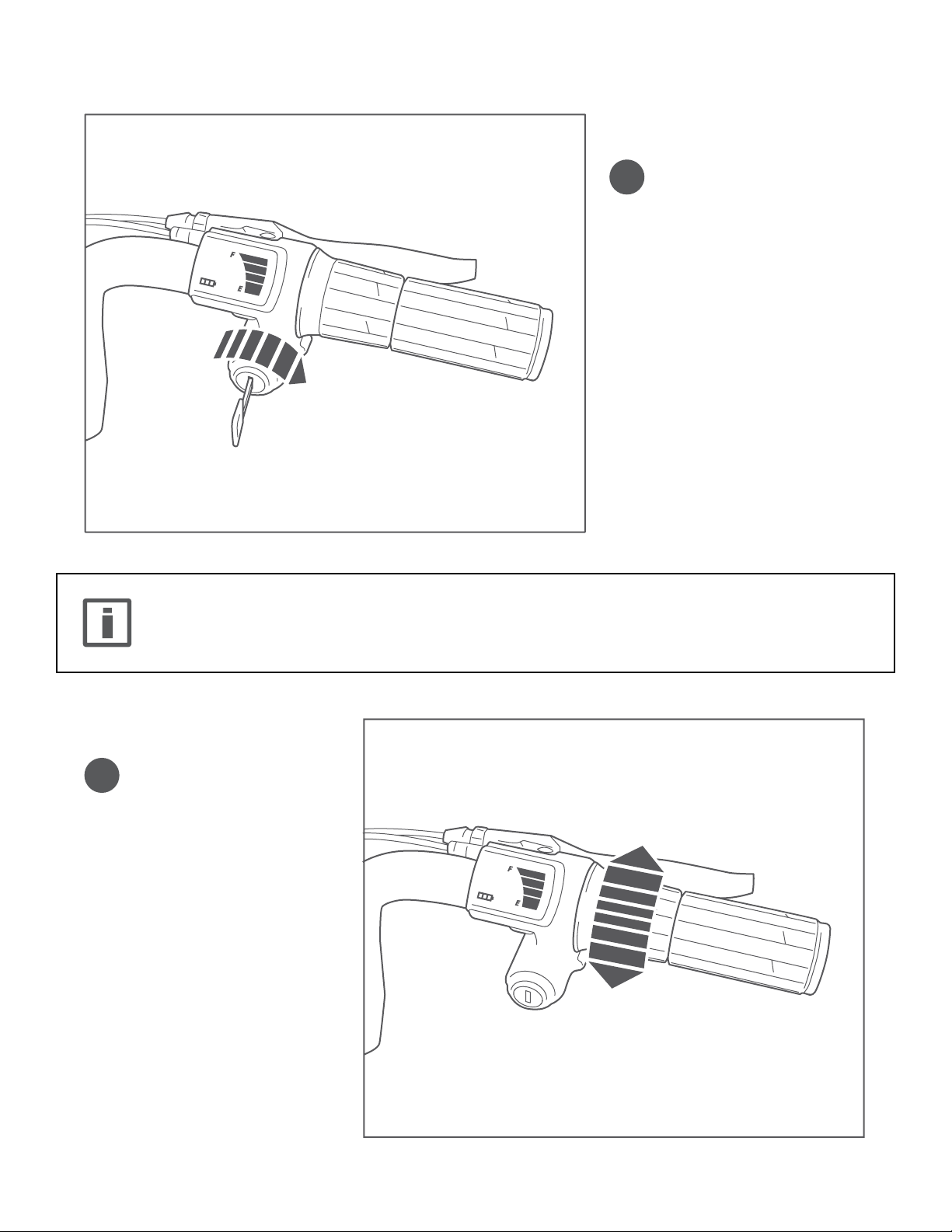

POWERING ON
- USE THE INCLUDED KEYS
TO POWER ON YOUR
EBIKE BY TURNING
CLOCKWISE (RIGHT).
- TURNING KEY
COUNTERCLOCKWISE
(LEFT) WILL POWER OFF
YOUR EBIKE.
1
2
/ / 2.2 Powering On/O // 2.3 Throttle Control
THROTTLE OPERATION
- TO POWER THE EBIKE
FORWARD, TWIST
THE THROTTLE BACK
TOWARD THE RIDER.
- TO DISENGAGE POWER
FORWARD, RELEASE
THE THROTTLE.
POWER RELEASE
POWER FORWARD

10
2.4 Before Every Ride
EBIKE INSPECTION CHECKLIST
TIRE PRESSURE AND WEAR
Make sure tires are inated properly. Over-ination and/or under-ination of tires can cause damage
or dangerous riding circumstances. Tires have a maximum rated psi rating located on side wall of
tires, do not inate past this level. Xero2 recommends 25-30psi for both front and rear.
1
SPOKES
Spokes should be tight and straight. Loose or bent spokes can indicate a damaged wheel. If a tire is
damaged, do not ride the eBike and replace the tire immediately.
2
FRONT AND REAR BRAKES
Test front and rear brakes to ensure the brakes engage when levers are pulled. If the brakes are
unresponsive or worn, do not ride the eBike and have brakes serviced immediately.
3
FRONT AND REAR WHEEL ALIGNMENT
Both wheels should be in straight alignment. If the wheel is angled or o-axis, check the mounting
bolts to ensure the axle is properly seated. If the wheel is bent or damaged, do not ride the eBike and
have the wheels serviced immediately.
4
HANDLEBAR CLAMPS
The handlebars should be rmly secured in position. If the handlebars rotate forward or backward,
the clamps are loose and require tightening.
5
HEADLIGHT
Vibrations from road travel can lead to parts becoming loose. Check to headlight to ensure it is
securely fastened.
6
WIRES, CABLES, AND LEVERS
Vibrations from road travel can lead to parts becoming loose. Check to all wires, cables, and levers to
ensure they are securely fastened.
7
BIKE CHAIN
Weather, moisture, and dirt can lead to rust and other blockages that can seize the chain resulting
in the dislodgement and even breakage of the chain and its links. Ensure the bike chain is properly
lubricated before use.
8
WARNING - ALWAYS PERFORM AN INSPECTION BEFORE USE
To ensure a safe and enjoyable ride on your eBike, it is important to become familiar with and
perform routine inspections prior to every ride. Poorly maintained parts and/or non-functioning
features can lead to injury or possible death.

11
AT EVERY 150 MILES
BATTERY CARE
Observing the following guidelines can help extend the life of your XERO2 battery.
- When eBike is fully charged, disconnect from power supply.
- Avoid charging for more than 8 hours.
- Avoid allowing battery to fully discharge.
- Use only the XERO2 charger included with your eBike.
- For long-term storage, check the battery health periodically and charge if necessary.
- The optimal temperature for battery storage is 550to 750 Fahrenheit.
WASHING
Observing the following guidelines can preserve the nish and function of your eBike.
- Use a damp cloth to wipe down dirt and residue.
- Do not use harsh chemicals.
- Dry your eBike thoroughly after washing.
- Lubricate parts as necessary after washing.
HEADTUBE CHECK
Make sure headtube is rmly secure. Inspect for looseness.
1
BRAKE WEAR CHECK
Check discs and pads for wear. Replace as necessary.
2
FORKS AND WHEELS CHECK
Check for cracks or damage. Repair as necessary.
3
GENERAL WEAR CHECK
Check for wear on overall eBike system. Replace as necessary.
4
3 Care & Maintenance \\
When washing your eBike, do not spray directly onto eBike to avoid damaging sensitive electrical
components.

12
4 Product Warranty \\
LIMITED WARRANTY POLICY
Xero2 bikes provides a limited warranty to the original purchaser. Proof of purchase is a requirement when
validating warranty coverage. Warranty coverage is only applied to the original purchaser of product.
Please follow owner’s manual for proper use and operation. Xero2 warrants manufacturer defects for 6 months
from purchase date. Defects or damage caused from misuse will not be covered under warranty. Certain
components of Xero2 bikes are considered wear items and will not be covered under warranty. Any damage to
Xero2 products by the consumer which are caused by accidents will not be covered under warranty. Customer/
Original purchaser is responsible for shipping charges relating to warranty work. Xero2 reserves the right to
change or modify what is included under limited warranty.
WHATS COVERED UNDER LIMITED WARRANTY BY MANUFACTURER DEFECT:
. Frame . Forks . Stem . Handlebar . Headset . Brake disc . Lights . Rims . Hub . Bottom bracket . Pedals
. Crank arms . Motor . Controller . Kickstand . Display . Throttle . Battery (battery damage is not covered by
power surges, shorts, misuse, improper charging habits, use of improper chargers, water damage)
WHATS NOT COVERED UNDER LIMITED WARRANTY:
General wear components are not covered under warranty. Wear components include:
. Tires . Chain . Spokes . Grips . Seat . Brake pads . Bearings . Cables . Brake lines
General wear and tear of product is not covered under warranty. This includes the following:
. Paint damage or rust . Battery degradation . Loose components
Additional exclusions include:
. Misuse of product . Damage due to stunt riding . Damage due to jumping . Damage from o road use
. Altercation of components . 3rd party components . Modication of controller . Modication of hub motor
. Modication of battery . Modication to other electronic components on bike . Maintenance neglect
. Damage caused from exceeding weight limits of the product
NEED HELP TROUBLESHOOTING?
We’re always happy to help. Let us know about your eBike issue at [email protected] and we’ll help
determine the cause and solution for any issues you may be having with your XERO2 eBike.
For the most up-to-date information regarding your eBike:
1. Visit us online at xero2.com.
2. Download the most recent owner’s manual from your products webpage.
3. Sign up for updates.
CONTACT
For warranty services, contact [email protected] for more information.

13
[ Intentionally Left Blank ]

14
[ Intentionally Left Blank ]

15
GENERAL INFORMATION
Classication Class 2
Frame Steel
Weight 70 Lbs.
Weight Limit 250 Lbs.
Seat Height 28.5 in.
Seat Type Single Passenger
Headlight Included
Tail Light Included
Brakes TEKTRO Mechanical Disc
Brakes
Tires 20 x 4 in
Rims 20 in. x 100 mm
Gearing Single Speed 16/36 Gearing
Rear Derailleur Single Speed 16/36 Gearing
Cranks 152 mm
Front Hub 15 x 150mm Thru-Axle
Aluminum Alloy
Bottom Bracket 164mm
DRIVE
Motor XOFO 750w Rear Hub Motor
Controller 22a controller
Controller
Display
LED Battery Level Display
Throttle Half Twist
Top Speed 20 mph
POWER
Battery 48v 19.2ah 921.6wh
(Samsung cells)
DC/DC
Converter 48v to 12v (120 watt)
Charger 100v-240v 2.0a charger
Range 30 miles
5 Product Specications \\
