USER’S MANUAL
X-FIT 7 MOTORIZED TREADMILL
MODEL NUMBER: X-FIT 7
USER WEIGHT LIMITATION: 136kgs. (300lbs.)
SERIAL NUMBER (found on frame):
2r
d
Edition

X-FIT 7 MOTORIZED TREADMILL
2
PRECAUTIONS
Precautions:
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important
precautions and information before operating the treadmill. It is the responsibility of the owner to ensure that all
users of this treadmill are adequately informed of all warnings and precautions.
•Use the treadmill only as described in this manual.
•Place on a level surface, with 2 meters (6 feet) of clearance behind it. Do not place the treadmill on any
surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the
treadmill.
•When choosing a location for the treadmill make sure that the location and position permit access to a plug.
•Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered
patio, or near water.
•Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
•Keep children under the age of 12 and pets away from the treadmill at all times.
•The treadmill should not be used by persons weighing more than 136kgs. (300lbs.)
•Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support
clothes are recommended for both men and women. Always wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in sandals.
•When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should
be on the same circuit.
•Always straddle the belt and allow it to start moving before stepping onto the belt.
•Always examine your treadmill before using to ensure all parts are in working order.
•Allow the belt to fully stop before dismounting.
•Never insert any object or body parts into any opening.
•Follow the safety information in regards to plugging in your treadmill.
•Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill.
Do not operate the treadmill with a damaged or frayed power cord.
•Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be
performed by an authorized service representative, unless authorized and/or instructed by the
manufacturer. Failure to follow these instructions will void the treadmill warranty.
•Never leave the treadmill unattended while it is running.

X-FIT 7 MOTORIZED TREADMILL
3
POWER REQUIREMENTS
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF AN
ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS
TO WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH
THE PRODUCT, IF IT WILL NOT FIT THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED
ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage
spikes, surges and noise interference can result from weather conditions or from other appliances being turned on or
off. To reduce the possibility of treadmill damage, always use a surge protector (not included) with your treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge
protector with a UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage
rating of 400V or less and an electrical rating 120VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance
for electric current, should the treadmill malfunction. This treadmill comes with an electrical cord having an
equipment-grounding conductor and a grounding plug. Always plug the power cord into a surge protector, and plug
the surge protector into an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in the
drawing below.

X-FIT 7 MOTORIZED TREADMILL
4
PREASSEMBLY
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are
included in the boxes. Check the Hardware Comparison Chart for a full count of the number of parts included for this
product to be assembled properly. If you are missing any parts or have any assembly questions call the
manufacturer.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require
to assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly
quick and hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is
free from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a
comfortable amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another
person when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 136kgs (300lbs.) it is not
recommended that you use this product. Serious injury may occur if the user’s weight exceeds the limit
shown here. This product is not intended to support users whose weight exceeds this limit.

X-FIT 7 MOTORIZED TREADMILL
5
HARDWARE COMPARISON CHART
Hardware chart:

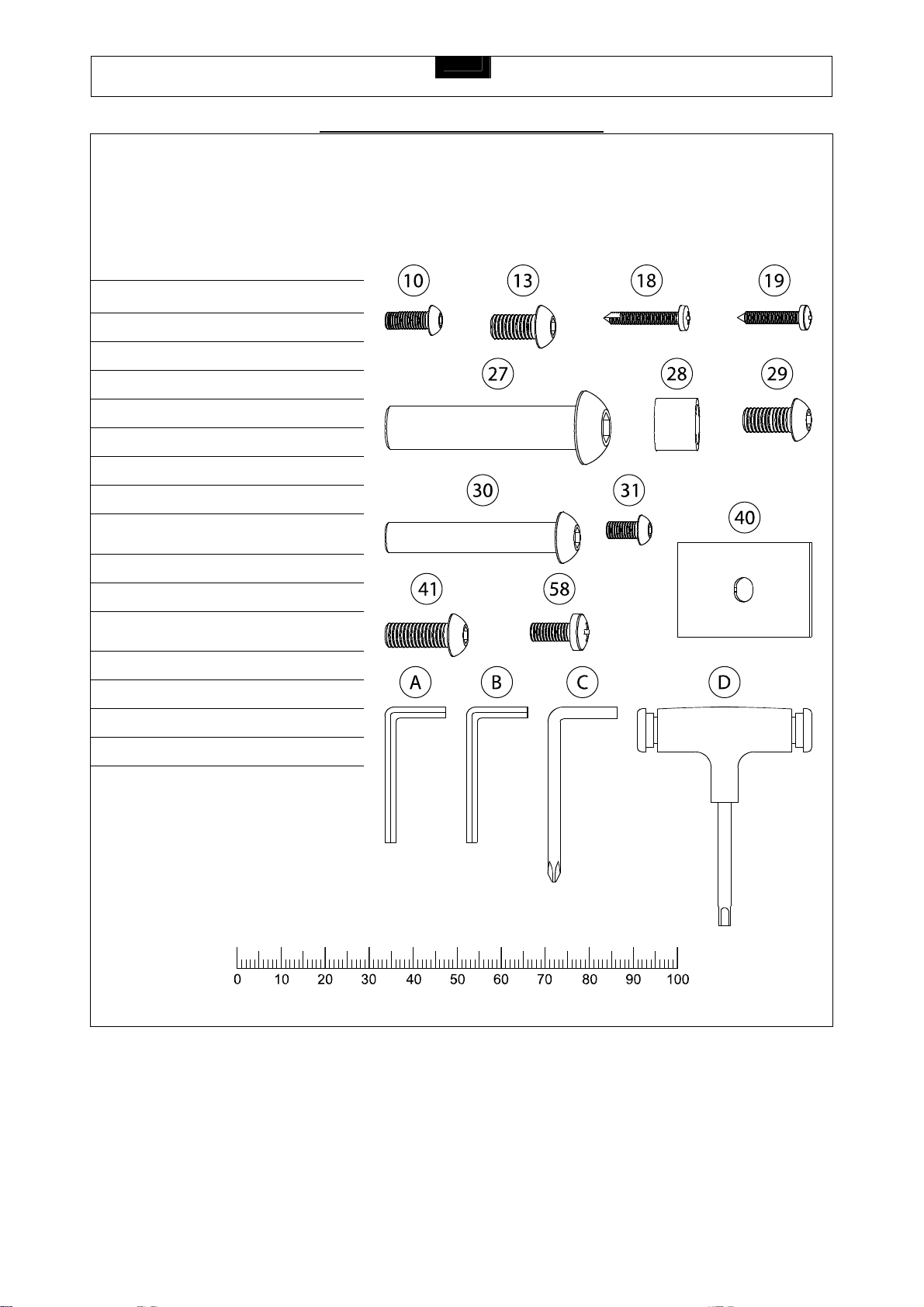

For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to
help you identify those items that may be unfamiliar to you.
NOTE: After assembly there will be a few spare parts (2 part #19 and 4 part #10 pieces) to be used if needed.
NO. DESCRIPTION QTY.
10 M6 x 20mm Allen Head Bolt 4
13 M8 x 10mm Bolt 4
18 #8 x 25mm Screw 14
19 #8 x 19mm Screw 12
27 1/2" x 68mm Bolt 2
28 Plastic Spacer 4
29 M8 x 16mm Allen Bolt 6
30 Upright Support Lock Pin 2
31 M6 x 15mm Allen Head Screw 2
40 Plastic Cover 2
41 M8 x 25mm Allen Bolt 2
58 M6 x 15mm Phillip Head Screw 2
A 4mm Allen Wrench 1
B 5mm Allen Wrench 1
C Wrench 1
D 6mm Allen Wrench 1
MILIMETERS

X-FIT 7 MOTORIZED TREADMILL
6
PARTS LIST
NO. DESCRIPTION QTY. ORDER NO. NO. DESCRIPTION QTY. ORDER NO.
1 Console 1 XFIT7-01 30 Upright Support Lock Pin 2 XFIT7-30
2 Top Console Housing 1 XFIT7-02 31 M6 x 15mm Allen Head
Screw 2 XFIT7-31
3 Bottom Console Housing 1 XFIT7-03 32 Left Upright 1 XFIT7-32
4 Bottle Bracket 2 XFIT7-04 33 Right Upright 1 XFIT7-33
5 Decoration Strap 1 XFIT7-05 34
Suspension System
Hardware Assembly 2 XFIT7-34
6 Glove Compartment 1 XFIT7-06 35 N/A
7 Safety Key 1 XFIT7-07 36
Upright Support Tube -
Upper 2 XFIT7-36
8 M4 x 12mm Console
Screw 14 XFIT7-08 37 Connector Bolt 2 XFIT7-37
9 M4 x 12mm Screw 2 XFIT7-09 38 M12 Nut 2 XFIT7-38
10 M6 x 20mm Allen
Head Bolt 4 XFIT7-10 39
Upright Support Tube -
Bottom 2 XFIT7-39
11 Console Support
Tube 1 XFIT7-11 40 Plastic Cover 2 XFIT7-40
12 M5 x 12 Screw 3 XFIT7-12 41 M8 x 25 Allen Bolt 2 XFIT7-41
13 M8 x 10mm Bolt 4 XFIT7-13 42 M14 x 113 Bolt 2 XFIT7-42
14 Handlebar Rear End
Cap - Left #1 1 XFIT7-14 43 Bushing 4 XFIT7-43
15 Handlebar Rear End Cap - Left #2 1 XFIT7-15 44 Power Switch Set 1 XFIT7-44
16 Handlebar Rear End Cap - Right #2 1 XFIT7-16 45 M5 x 10mm Screw 2 XFIT7-45
17 Handlebar Rear End
Cap - Right #1 1 XFIT7-17 46 Base Frame 1 XFIT7-46
18 #8 x 25mm Screw 16 XFIT7-18 47 Running Deck Fixed
Tube Sleeve 2 XFIT7-47
19 #8 x 19mm Screw 14 XFIT7-19 48 Level Adjuster 2 XFIT7-48
20 Motion Control
Sensor 2 XFIT7-20 49 Cushion 4 XFIT7-49
23 Hand Pulse Sensor 2 XFIT7-23 50 6 x 13mm Washer 13 XFIT7-50
24 Handlebar Front End Cap 2 XFIT7-24 51 #8 x 15mm Screw 51 XFIT7-51
25 M8 x 15mm Screw 2 XFIT7-25 52 Upright Plastic Shroud -
Left #1 1 XFIT7-52
26 #4 x 19 Screw 4 XFIT7-26 53 Upright Plastic Shroud -
Left #2 1 XFIT7-53
27 1/2" x 68mm Bolt 2 XFIT7-27 54 Upright Plastic Shroud - Right #2 1 XFIT7-54
28 Plastic Spacer 4 XFIT7-28 55 Upright Plastic Shroud - Right #1 1 XFIT7-55
29 M8 x 16mm Allen
Bolt 10 XFIT7-29 56 Side Cover - Left 1 XFIT-56

X-FIT 7 MOTORIZED TREADMILL
7
PARTS LIST
NO. DESCRIPTION QTY. ORDER NO. NO. DESCRIPTION QTY. ORDER NO.
57 Side Cover - Right 1 XFIT7-57 84 Clip 2 XFIT7-84
58 M6 x 15mm Phillip
Head Screw 2 XFIT7-58 85 M10 x 63mm Bolt 1 XFIT7-85
59 Front Foot Platform 1 XFIT7-59 86 Front Roller 1 XFIT7-86
60 #8 x 50mm Screw 2 XFIT7-60 87 Front Roller Shaft 1 XFIT7-87
61 Motor Hood 1 XFIT7-61 88 Motor Drive Belt 1 XFIT7-88
62 Aluminum Side Rail 2 XFIT7-62 89 M10 x 35mm Bolt 1 XFIT7-89
63 Running Belt 1 XFIT7-63 90 Deck Frame 1 XFIT7-90
64 Rear Foot Platform 1 XFIT7-64 91 Motor Hood Side Cover -
Left 1 XFIT7-91
65 Rubber Spacer - Left 1 XFIT7-65 92 Motor Hood Side Cover - Right 1 XFIT7-92
66 Rubber Spacer -
Right 1 XFIT7-66 93 Micro Switch 1 XFIT7-93
67 Running Deck Rear
Cover 1 XFIT7-67 94 M8 x 70mm Bolt 3 XFIT7-94
68 M8 Nut 10 XFIT7-68 95 M8 x 40mm Bolt 8 XFIT7-95
69 Running Deck 1 XFIT7-69 96 Elevation Support Tube
Clamp - upper 2 XFIT7-96
70 Deck Rubber
Cushion 10 XFIT7-70 97 Elevation Support Tube
Clamp - Bottom 2 XFIT7-97
71 Spring Washer 12 XFIT7-71 98 Clamp Bracket 2 XFIT7-98
72 M10 x 15mm Screw 9 XFIT7-72 99 M8 x 25mm Bolt 4 XFIT7-99
73 M10 Nylon Nut 5 XFIT7-73 100 Deck Frame Side Cover
- Left #1 1 XFIT7-100
74 Washer 2 XFIT7-74 101
Deck Frame Side Cover
- Right #1 1 XFIT7-101
75 Rubber Cushion 1 XFIT7-75 102 Rear Roller 1 XFIT7-102
76 M10 x 135mm Bolt 1 XFIT7-76 103 Rear Roller Shaft 1 XFIT7-103
77 Driving Motor Bracket 1 XFIT7-77 104
Deck Frame Side Cover
- Left #2 1 XFIT7-104
78 8 x 16mm Washer 2 XFIT7-78 105 Deck Frame Side Cover - Right #2 1 XFIT7-105
79 M8 x 15mm Screw 2 XFIT7-79 106 Rear Frame 1 XFIT7-106
80 M10 x 136mm Bolt 1 XFIT7-80 107 Foot Platform Support
Frame 1 XFIT7-107
81 Driving Motor 1 XFIT7-81 108 M8 x 43mm Bolt 2 XFIT7-108
82 Elevation Motor 1 XFIT7-82 109 Wheel 2 XFIT7-109
83 M5 x 12mm Screw 2 XFIT7-83 110 Running Deck Fixed
Tube 1 XFIT7-110

X-FIT 7 MOTORIZED TREADMILL
8
PARTS LIST
NO. DESCRIPTION QTY. ORDER NO. NO. DESCRIPTION QTY. ORDER NO.
111 M8 Nylon Nut 2 XFIT7-111 138 Transformer 1 XFIT7-138
112
Elevation Support
Tube Side Cover -
Left 1 XFIT7-112 139 Mat 1 XFIT7-139
113
Elevation Support
Tube Side Cover -
Right 1 XFIT7-113 140 Rubber Dot 1 XFIT7-140
114 Elevation Support
Tube 1 XFIT7-114 141 Shock Top Cover 2 XFIT7-141
115 Motor Belly Pan 1 XFIT7-115
116 #8 x 35mm Screw 4 XFIT7-116
117 Anti-Static Brush 2 XFIT7-117
118 Brush Fixing Bracket
- Upper 2 XFIT7-118
119 Transport Wheel 2 XFIT7-119
120 M10 x 60mm Bolt 2 XFIT7-120
121 Brush Fixing Bracket
- Bottom 1 XFIT7-121
122 #4 x 19mm screw 6 XFIT7-122
123 M6 x 15 Screw 6 XFIT7-123
124 Spring Washer 6 XFIT7-124
125 4mm Washer 2 XFIT7-125
126 Front Handlebar Grip 2 XFIT7-126
127 Emergency Stop -
Bottom 1 XFIT7-127
128 Emergency Stop - Upper 1 XFIT7-128
129 Emergency Stop Bottom 1 XFIT7-129
130 Front Handlebar 1 XFIT7-130
131 M8 x 15mm Bolt 2 XFIT7-131
132 Handlebar Grip 2 XFIT7-132
133 Handlebar 2 XFIT7-133
134 Steel Sheet 1 XFIT7-134
135 MCB Cooling Fan 1 XFIT7-135
136 Motor Control Board 1 XFIT7-136
137 Transfer Board 1 XFIT7-137

X-FIT 7 MOTORIZED TREADMILL
9
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

X-FIT 7 MOTORIZED TREADMILL
10
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

X-FIT 7 MOTORIZED TREADMILL
11
ASSEMBLY
STEP 1:

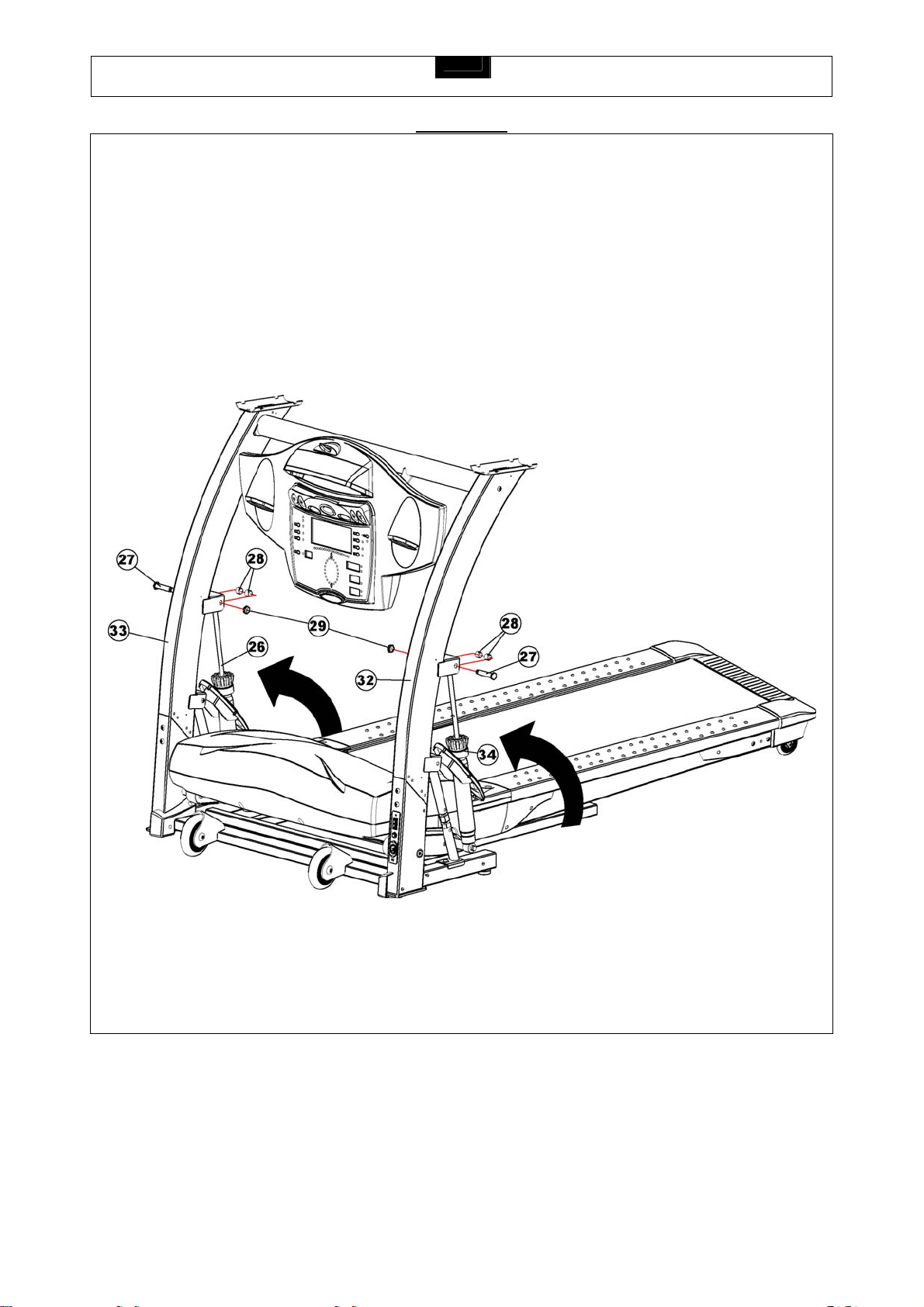

Remove your treadmill from the carton and place it on the floor in an open area as shown in FIG-1.
Rotate the Left Upright (32) and Right Upright (33) up to the correct position as shown and secure in place using four
M8 x 16mm Allen Bolts (29).

X-FIT 7 MOTORIZED TREADMILL
12
ASSEMBLY

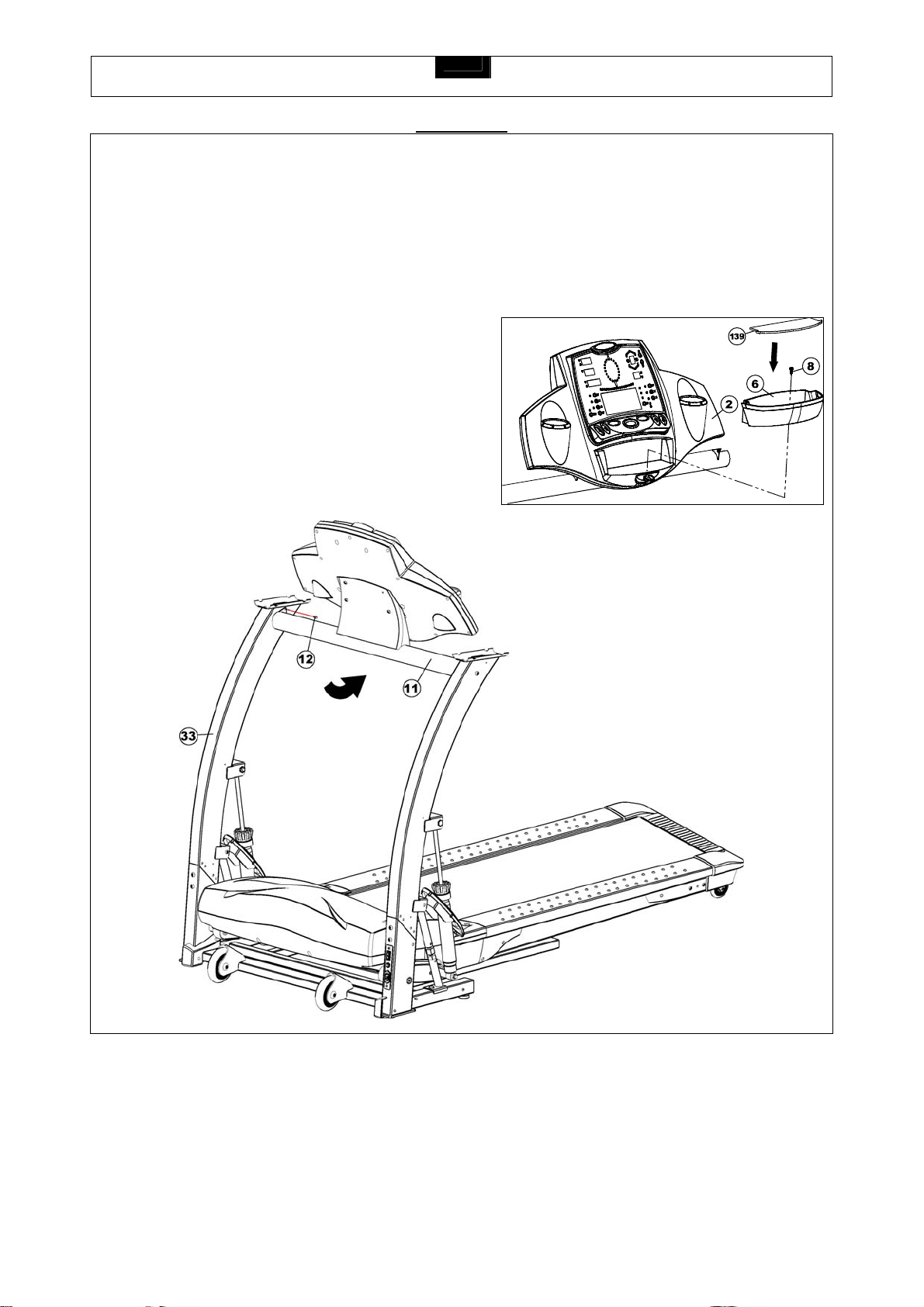

STEP 2:
Remove the four M6 x 20mm Allen Head Bolts (10) from the back of the Bottom Console Housing (3), they have
been preassembled by the factory. Then secure the Bottom Console Housing (3) to the Console Support Tube (11)
using the four M6 x 20mm Allen Head Bolts (10).

X-FIT 7 MOTORIZED TREADMILL
13
ASSEMBLY

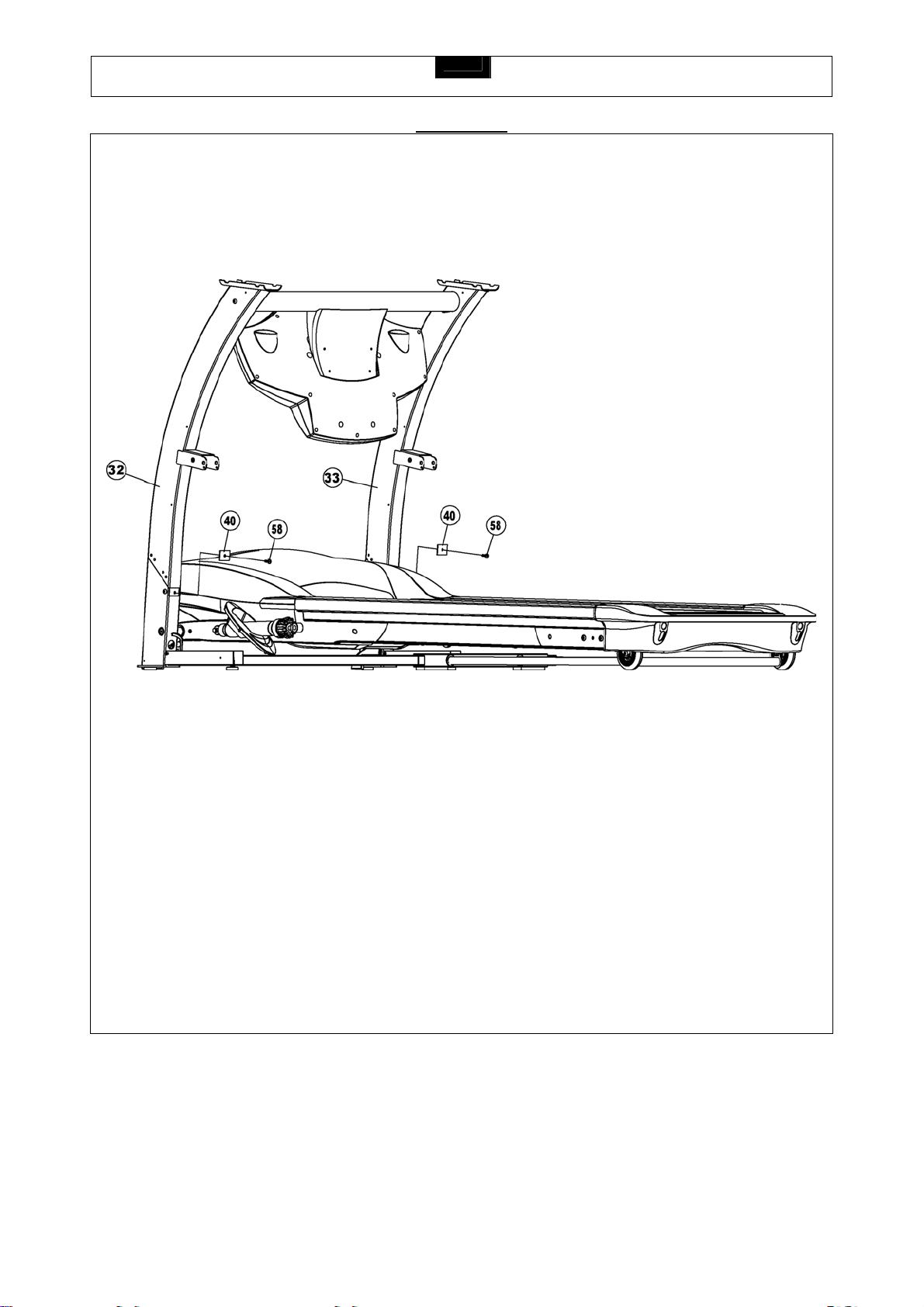

STEP 3:
Attach a Plastic Cover (40) to the Left Upright (32) and to the Right Upright (33) then secure each in place using one
M6 x 15mm Phillip Head Screw (58).

X-FIT 7 MOTORIZED TREADMILL
14
ASSEMBLY
STEP 4:

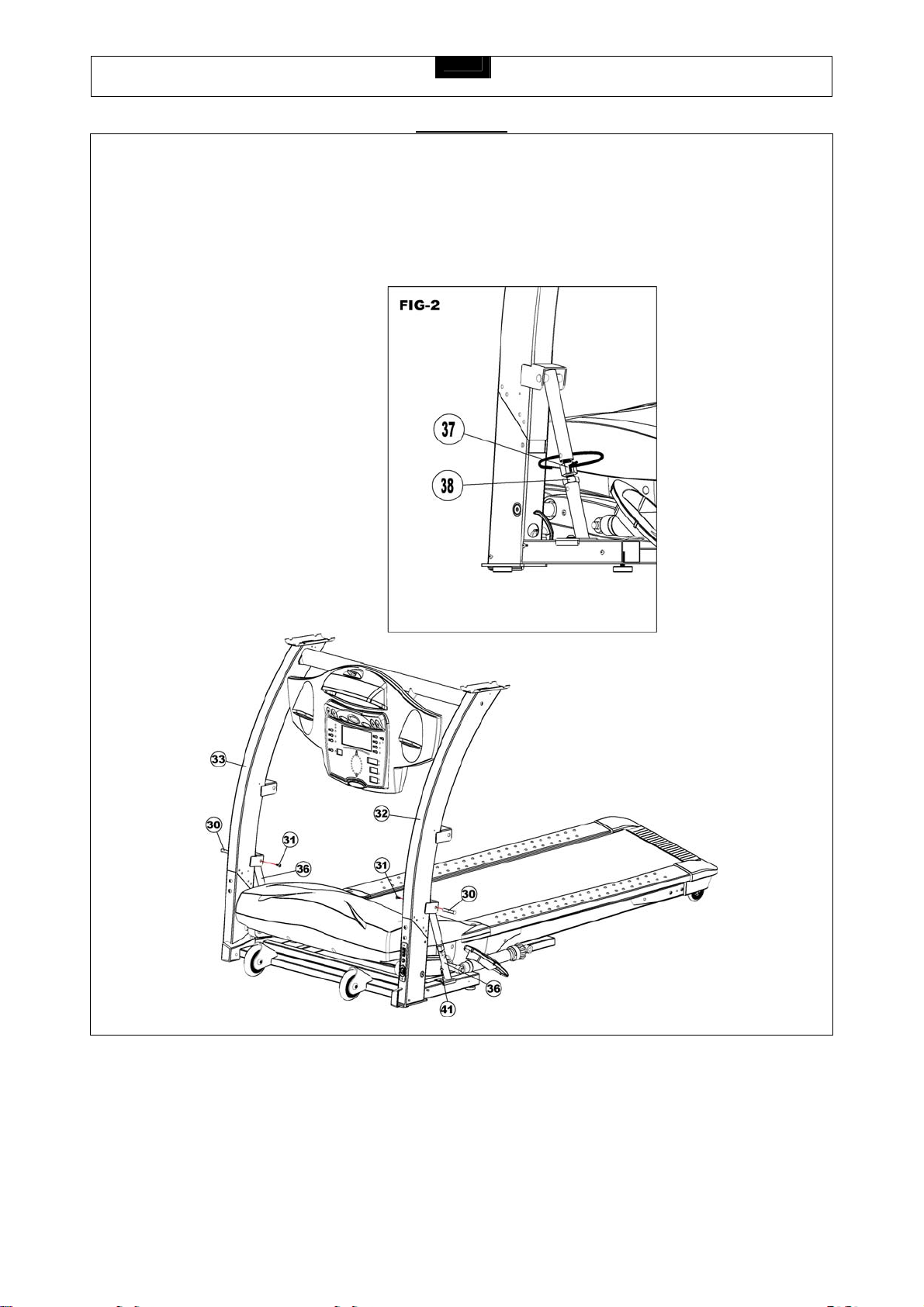

Attach the Upright Support Tube Assembly (36) to the Left Upright (32) and secure with Upright Support Lock Pin
(30) and M6 x 15 Allen Head Screw (31). Repeat the procedure on the Right Upright (33).
Note: Turn the Connector Bolt (37) as shown until fully tightened, turn the M12 Nut (38) as shown until fully
tightened.

X-FIT 7 MOTORIZED TREADMILL
15
ASSEMBLY
STEP 5:
Rotate up the Suspension System Hardware Assembly (34) and secure to the Left Upright (32) using Bolt (27),
Rubber Spacers (28) and Nut (29). Repeat this procedure on the Right Upright (33).

X-FIT 7 MOTORIZED TREADMILL
16
ASSEMBLY
STEP 6:
Remove the M5 x 12 Screw (12) from the Console Support Tube (11) then rotate the Console Support Tube (11) up
to the correct position as shown and secure it in place using the M5 x 12 Screw (12).
Attach the Glove Compartment (6) to the Top Console Housing (2) and secure with M4 x 12mm Console Screw (8).
Place the Mat (139) into the Glove Compartment (6), as shown in FIG 4.
FIG. 4

X-FIT 7 MOTORIZED TREADMILL
17
ASSEMBLY
STEP 7:
Attach the Upright Plastic Shroud - Left #1 (52) to the Upright Plastic Shroud - Left #2 (53) and Left Upright (32) using
six #8 x 25mm Screws (18) and four #8 x 19mm Screws (19).
Attach the Upright Plastic Shroud - Right #1 (55) to the Upright Plastic Shroud - Right #2 (54) and Right Upright (33)
using six #8 x 25mm Screws (18) and four #8 x 19mm Screws (19).

X-FIT 7 MOTORIZED TREADMILL
18
ASSEMBLY
STEP 8:

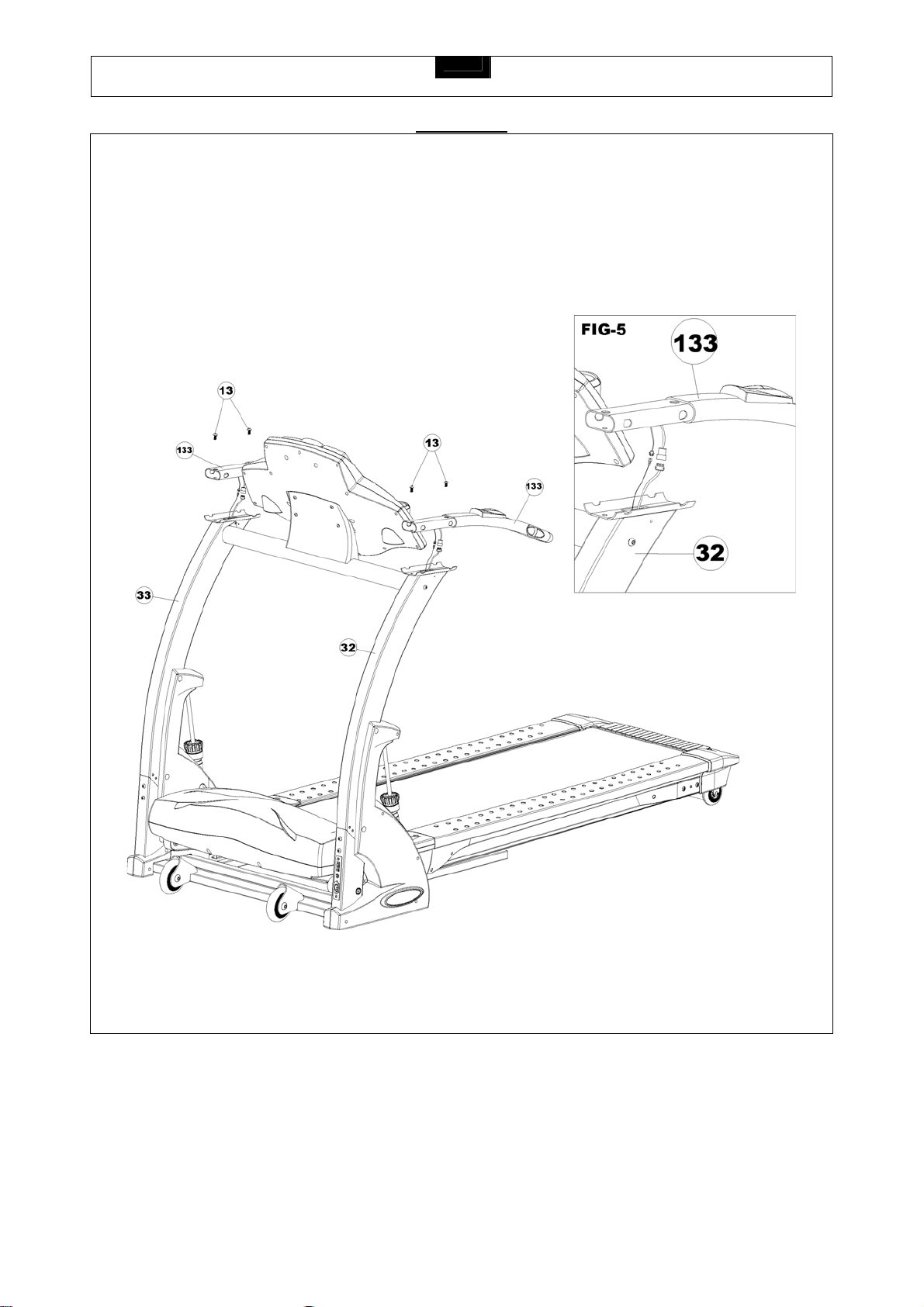

Connect the two sets of wires between the Handlebar (133) and the Left Upright (32) as shown in FIG 5. Attach the
Handlebar (133) to the Left Upright (32) using two M8 x 10mm Bolts (13).
Repeat this procedure on the other side. Attach the Handlebar (133) to the Right Upright (33)

X-FIT 7 MOTORIZED TREADMILL
19
ASSEMBLY
STEP 9:

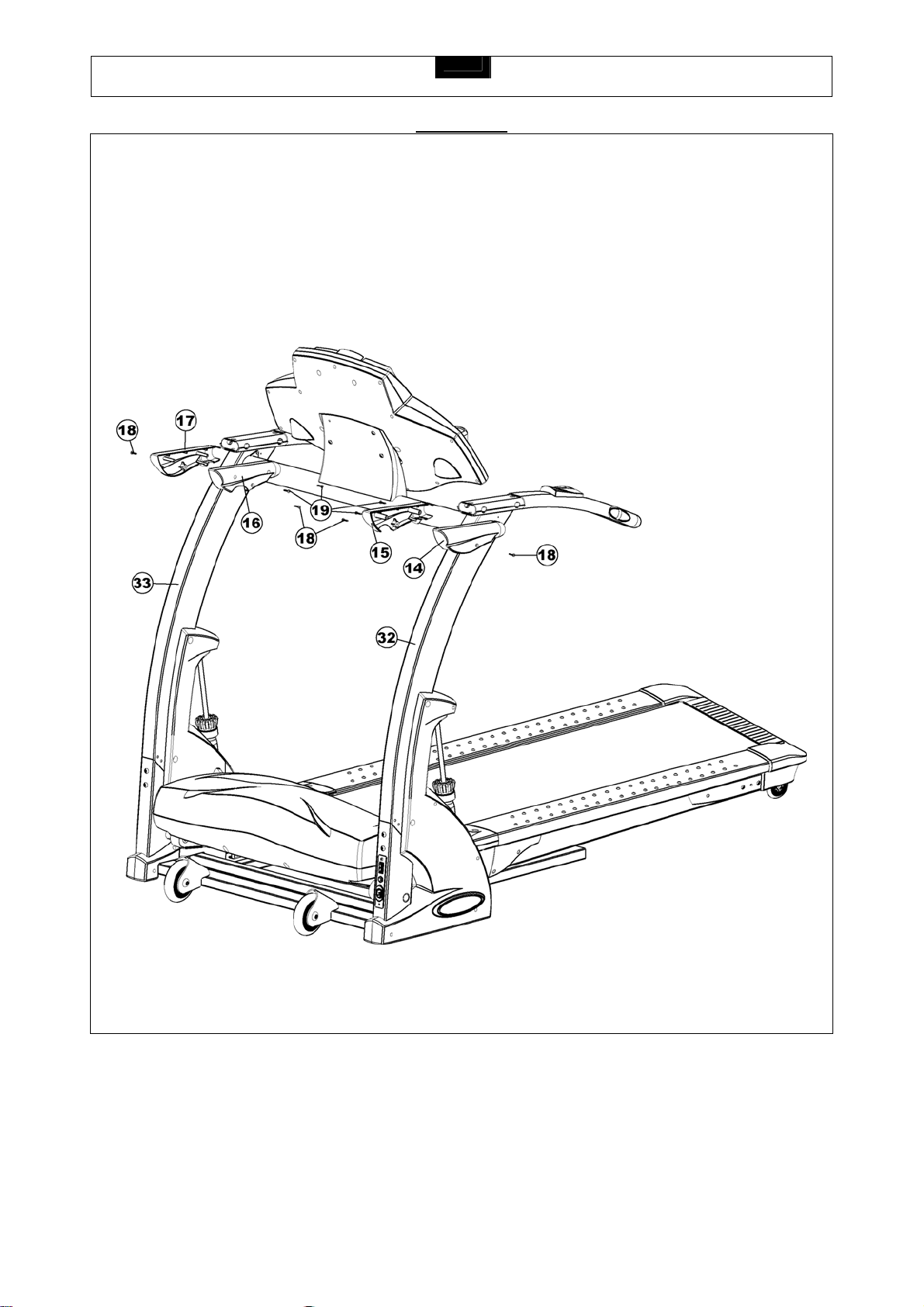

Attach the Handlebar Rear End Cap - Left #1 (14) and Handlebar Rear End Cap - Left #2 (15) to the top of the Left
Upright (32) using two #8 x 25mm Screws (18) and two #8 x 19mm Screws (19).
Attach the Handlebar Rear End Cap - Right #2 (16) and Handlebar Rear End Cap - Right #1 (17) to the top of the
Right Upright (33) using two #8 x 25mm Screws (18) and two #8 x 19mm Screws (19).

X-FIT 7 MOTORIZED TREADMILL
20
ASSEMBLY
STEP 11:
Attach the Front Handlebar (130) to the Console Support Tube (11) and secure with two M8 x 25mm Bolts (99).
Your X-Fit 7 treadmill is now fully assembled.
NOTE: Please make sure the Safety Key is inserted (it is located below the Emergency Stop Button), or the treadmill
will not operate.
