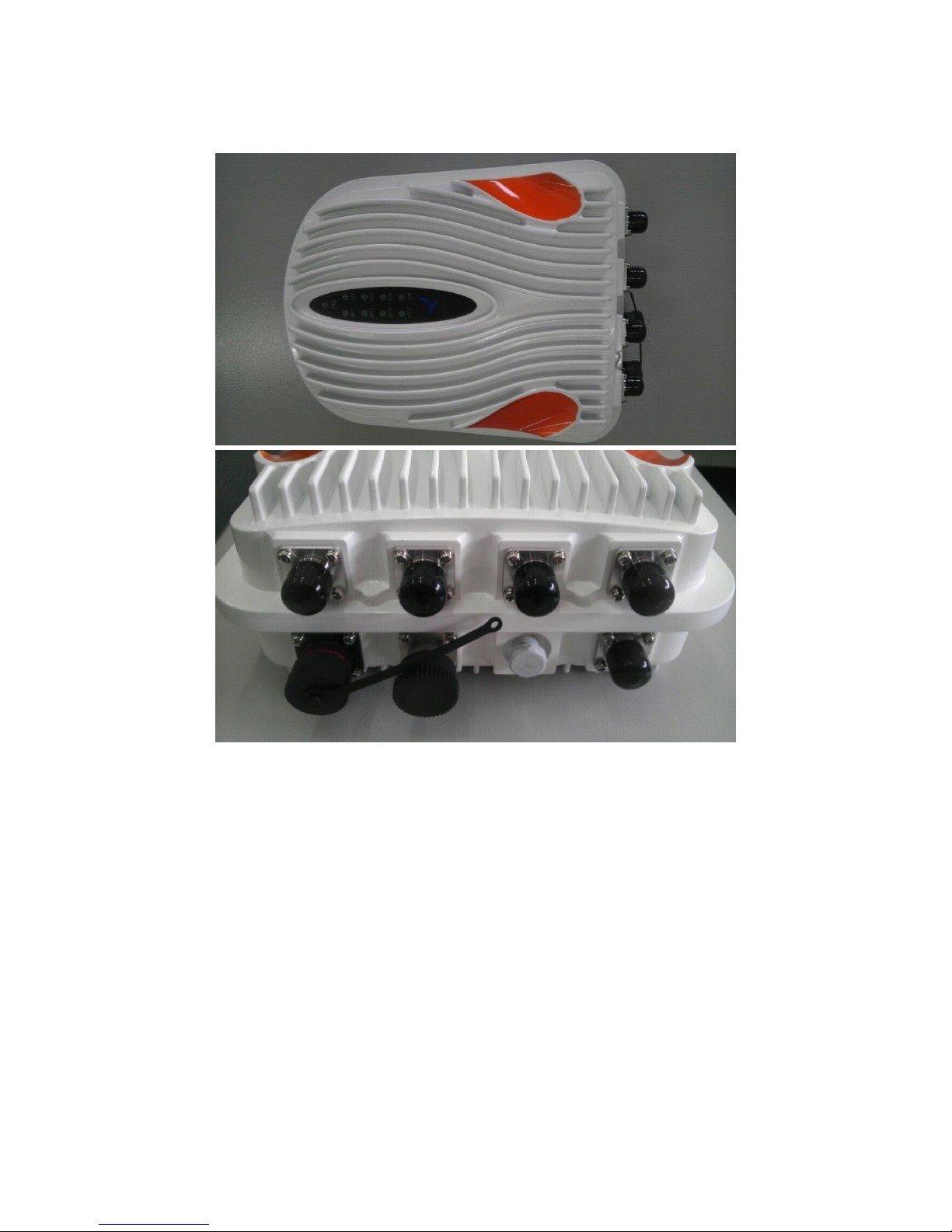

Xiamen Xindeco XDUR-840 User manual

RFID Device Manual
Model：XDUR-840
Size：295mmx245mmx110.3mm
General description
Xiamen Xindeco IOT Technology Ltd.’s XDUR-840 is a high-performance UHF RFID
reader based on the Impinj R2000 chip. It is compliant with EPC C1 Gen2 / ISO
18000-6C and FCC modular approval requirements.
XDUR-840 has four (N type) antenna connectors thatcan be configured as four

mono-static antennas. It also supportsdense reader mode (DRM), anti-collision,
and Listen-Before-Talk (LBT) features. XDUR-840 has a long operating distance of
up to 9 meters when its adjustable TX power is set to 20 dBm with a 12 dBi
antenna. XDUR-840 is ideal for adding UHF RFID read/write capabilities to a wide
range of solutions, such as logistics, access control, anti-counterfeit and
industrial production process control systems.
XDUR-840uses Ethernet interfaces to connect to an external processor board or
PC host. Xiamen Xindeco IOT Technology Ltd. offers a starter kit to enable you to
design XDUR-840into your application quickly and easily.
This kit includes SDK, demo code,and documentation. With its excellent operating
range, and high quality UHF RFID technology, XDUR-840is the perfect solution for
RFID applications.
Features
ØComplaint with EPC C1 Gen2 / ISO 18000-6Cand FCC modular approval
requirements
ØSupporting Dense Reader Mode (DRM) and Listen-Before-Talk (LBT) features
ØMeeting worldwide regulatory: FCC (US), SRRC (China), TELEC (Japan), NCC
(Taiwan)
ØFour (N type) antenna connectors that can be configured as four mono-static
antennas
ØAdjustable transmit output level control from 10 dBm to 33 dBm in 0.5 dB step

ØMaximum tag read rate of over 100 tags per second
ØMaximum tag read distance of 27 feet (9 m) with 12 dBi antenna
ØEasy to use Starter Kit to shorten product development time
Specifications
Protocol
RFID EPCglobalGen 2 (ISO 18000-6C), DRM
Architecture
RFIDASIC IMPINJ R2000
Power
Voltage 100~240V~50/60Hz
Current Consumption Scan Mode : 0.3A (Max),
Idle Modes : 84mA (Typical)
Interface
Ethernet 100/100Mbps with speed and duplex auto negotiation
RF
AntennaConnector 4 N type antenna ports support antenna auto-tuning and
antenna failure checking, with VSWR less than 2:1
Frequency FCC (US) 902 - 928 MHz
SRRC (China) 920.5 - 924.5 MHz
TELEC (Japan) 916.8 - 923.4 MHz
NCC (Taiwan) 922 - 928 MHz

TX power Adjustable from 10 dBm to 20 dBm
FrequencyStability ±20 ppm
ModulationDepth 90% nominal
DataEncoding FM0 or Miller code
BitRate Supports uplink data rates of up to 640 Kbps
Performance
Tag Read Rate Over 100 tags/second
Inventory Reliability Through anti-collision
Tag Read Distance 27 feet (9m) with a 12 dBi antenna (36 dBm EIRP)
Compliance
Regulatory FCC 47 CFR Ch.1 Part15,SRRC,TELEC,NCC
Environmental Compliance
Temperature Range Operating:-30 to +65 degree C,
Storage: -40 to + 80 degree C
Humidity 10% ~ 85% Non-condensing
Electrostatic
Discharge
10 KV to antenna conductor with the antenna attached
Physical
Dimensions 295mm L x245mm W x110.3mm H
Software
Platformsupport PC Windows OS SDK
Development Tools Visual studio with C#/C++.NET

Package Content
Check the package before connecting and operating the XDUR-840. If one or more
items in this
package are lost, contact your local dealer.
Quick Start
Connecting the XDUR-840 to a PC
Before operating the DEMO software for development of the RFID device, follow
the steps
made below to connect the RM300 to a PC.
1.Copy the demoto your PC.
2.Connect the interface to a PC by using anethernet cable.

3.Insert the power connector into the powerinlet on the interface, and then plug
the power adapter into an electrical socket.
4.Insert the connector of antenna into one of the four antenna ports of the
XDUR-840 UHF RFID Reader. You can connect at most four antennae at the same
time.

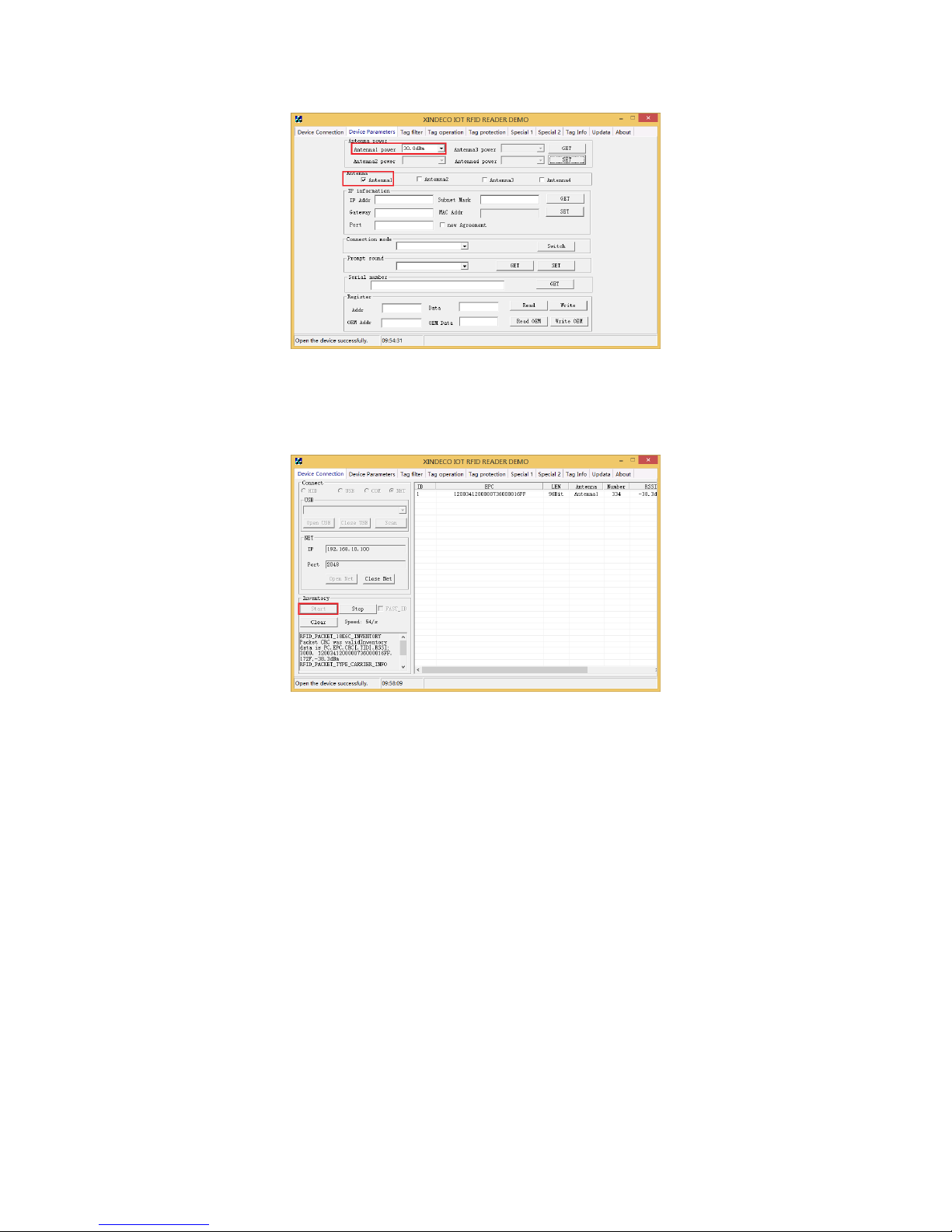

5.Operate the configuration of antenna port by demo.

6.Open the demo. Click Startto scan RFID tags by using the XDUR-840UHF RFID
Reader.
The FCC federal communications commission interference statement
Note:
1, don't put it on the microwave.
2, cannot and oil organic liquid contact.
3, device has to be loaded (antenna) when working.

FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body
