xmartO WOS1388 User manual

Wireless NVR System User Manual
1
User Manual
xmartO Wireless NVR System
Ver. 1.4

Wireless NVR System User Manual
1
Preface
Thank you for purchasing xmartO products! This user manual is to introduce the operations of
xmartO wireless camera systems in more details. If there is any other question which is not covered in
this user manual, please contact xmartO support.
Statement
·Though we apply all efforts to make the manual complete and accurate, there could still be
some discrepancies due to products’ timely update.
·The products and manual are subject to change without previous notification.
·The content in this manual is only for users’ reference. We don’t promise it’s exactly the same
with the products you purchase. Detailed information is in accordance with the final products.
·The accessories and parts mentioned in this manual are only for product using guide purpose
and not necessarily to be included in your purchased item.
Special Statement
Please comply with local laws and regulations when you use the surveillance devices.
About default settings
·The default user account ID is super administrator ID: admin.
·The default password for account ‘admin’ is empty.
·The default IPv4 address of device is: 192.168.1.114
·The default setting of NVR is to overwrite earliest recorded videos when hard drive is
full.
·The device will start Setup Wizard by default when NVR is powered on.

Wireless NVR System User Manual
2
Content
Preface……………………………………………………………………………………………………………………………………………….1
CONTENT……………………………………………………………………………………………………………………………………………2
1. Product features overview……………………………………………………………………………………………………………4
1.1 Product introduction………………………………………………………………………………………………………………4
1.2 Product Specifications…………………………………………………………………………………………………………….4
1.3 Product Key Features……………………………………………………………………………………………………………...5
2. Operating instructions………………………………………………………………………………………………………………….6
2.1 Front panel………………………………………………………………………………………………………………………..…..6
2.2 Rear panel………………………………………………………………………………………………………………………………6
2.3 Mouse operation…………………………………………………………………………………………………………………...7
2.4 Input method…………………………………………………………………………………………………………………………7
2.5 User Interface…………………………………………………………………………………………………………………………8
2.5.1 User Interface element…………………………………………………………………………………………………..8
2.5.2 Frequently-used buttons……………………………………………………………………………………………..…8
2.6 Menu Introduction……………………………………………………………………………………………………………….…8
3. Installation and connection…………………………………………………………………………………………………….…….8
3.1 Installation precautions………………………………………………………………………………………………….….…..8
3.2 Install hard drive……………………………………………………………………………………………………………………..9
3.3 Preparations before installation………………………………………………………………………………………………9
3.4 Camera mounting spots…………………………………………………………………….………………………………….10
3.5 Antenna mounting tips………………..……………………….……………………………………………………..……….10
4. Operation system introduction…………………………………………………………………………………………………..11
4.1 Starting up/ log in/ log out/ restart…………………………………………………………………………………..…..11

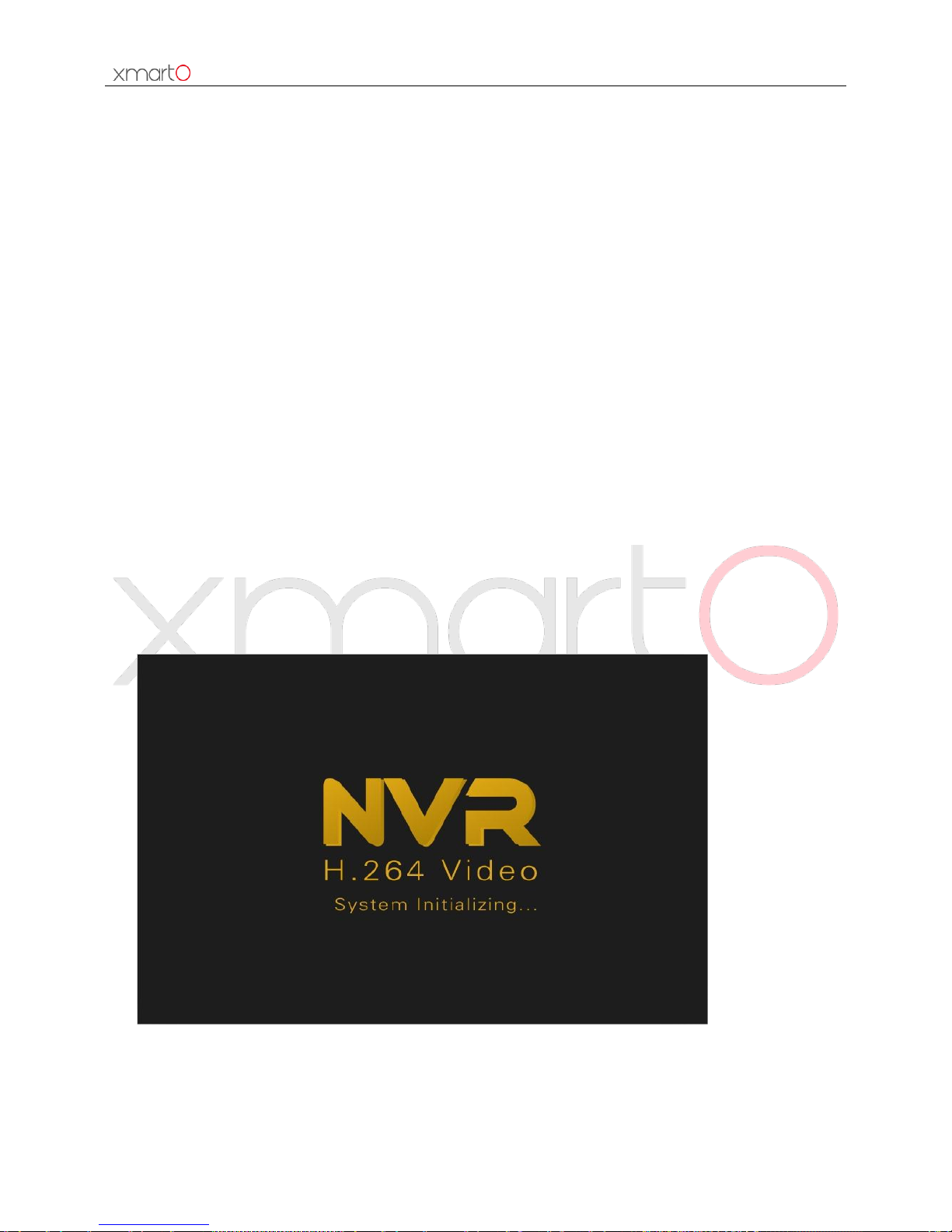

4.1.1 Starting up…………………………………………………………………………………………………………………...11

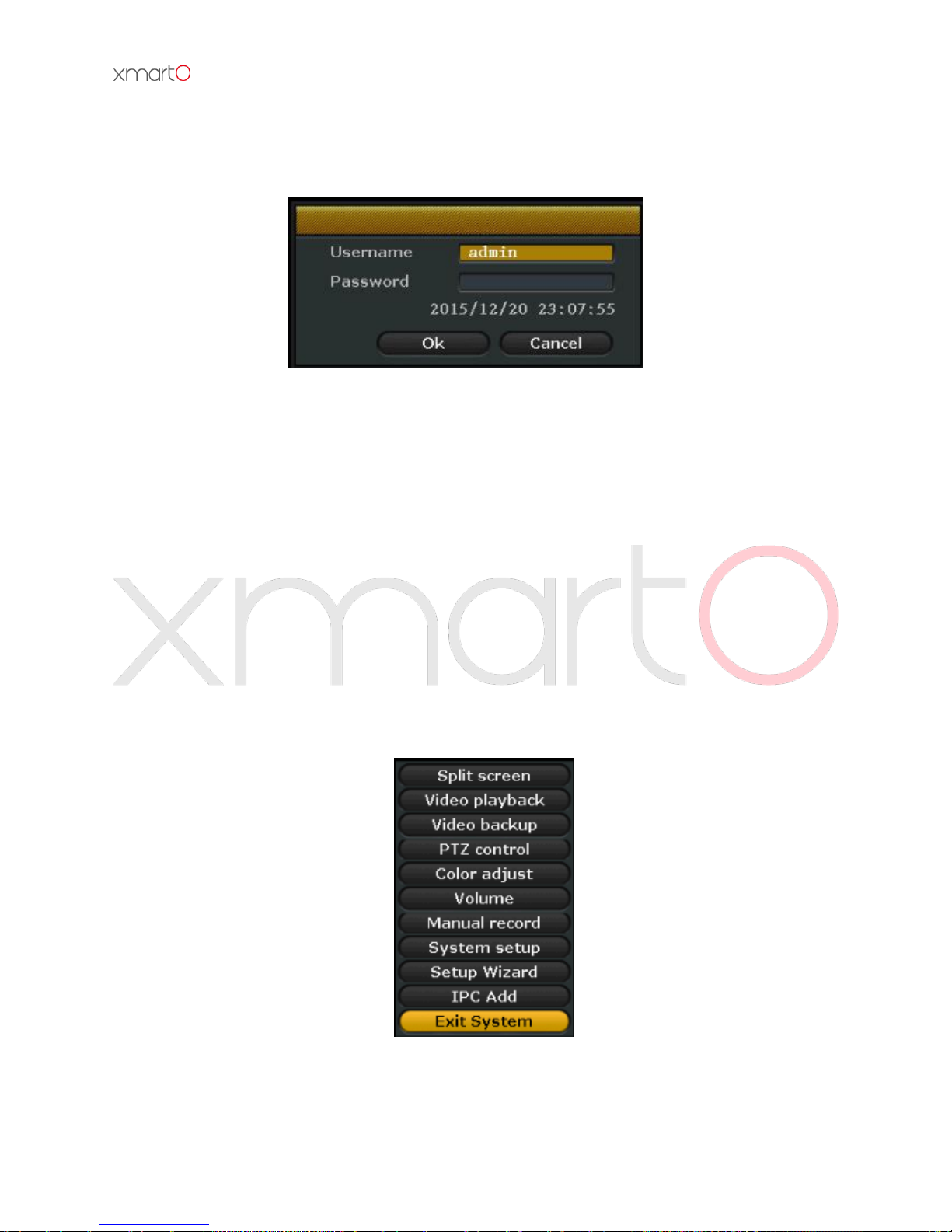

4.1.2 Login………………………………………………………………………………………………………………………….…12
4.1.3 Logout…………………………………………………………………………………………………………………….……12
4.1.4 System restart………………………………………………………………………………………………………….…..13
4.2 Setup Wizard………………………………………………………………………………………..………………….…………..13
4.3 Video management……………………………………………………………………………………………………………...15
4.3.1 Search device……………………………………..…………………………………………………………………….….15
4.3.2 Add device……………………………………………………………………………………………………………..…….16
4.3.3 Delete device……………………………………………………………………………………………………..………..18

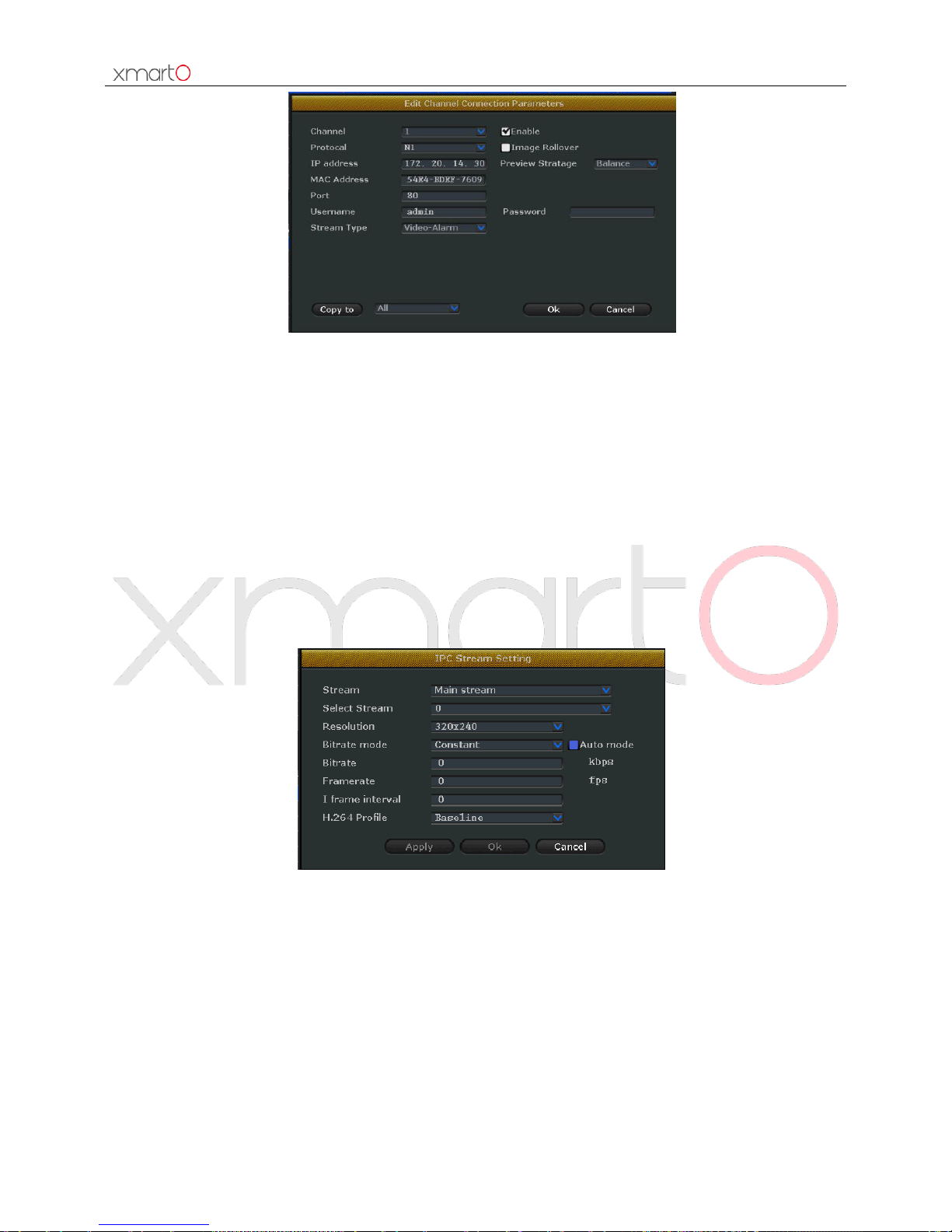

4.3.4 Edit channel………………………………………………………………………………………………………………….18
4.3.5 Stream setting……………………………………………………………………………………………………………..19
4.4 Network setting…………………………………………………………………………………………………………….………20
4.4.1 Network settings……………………………………………………………………………………………………..…..20
4.4.2 Dynamic domain name server (DDNS)…………………………………………………………………….……21
4.4.3 FTP……………………………………………………………………………………………………………………….………21
4.4.4 Email………………………………………………………………………………………………………………………..….22
4.4.5 PPPoE…………………………………………………………………………………………………………………………..23
4.4.6 3G…………………………………………………………………………………………………………………………..……24
4.4.7 Wireless (Wi-Fi) settings………………………………………………………………………………………………25
4.5 Pan & Tilt setting………………………………………………………………………………………………………………….26
4.5.1 Pan & Tilt parameter setting………………………………………………………………………………………..26
4.5.2 Pan & Tilt control…………………………………………………………………………………………………..…….26

Wireless NVR System User Manual
3
4.5.3 Pan & Tilt auto cruise setting…………………………………………………………………………………….…27
4.6 Record………………………………………………………………………………………………………………………………….28
4.6.1 Manual record……………………………………………………………………………………………………….….…28
4.6.2 Time-scheduled record…………………………………………………………………………………………….….28
4.6.3 Motion detection record………………………………………………………………………………………………29
4.6.4 Alarm triggered record………………………………………………………………………………………………...30
4.7 Video playback……………………………………………………………………………………………………………………..31
4.7.1 Quick playback…………………………………………………………………………………………………………..…31
4.7.2 Regular playback……………………………………………………………………………………………………..…..31
4.8 Video backup……………………………………………………………………………………………………………..………..32
4.9 Alarm……………………………………………………………………………………………………………………………..…….34
4.9.1 Motion detection alarm………………………………………………………………………………………….……34
4.9.2 Video loss alarm…………………………………………………………………………………………………….…….35
4.10 General settings………………………………………………………………………………………………………………….35
4.10.1 General settings………………………………………………………………………………………………………35
4.10.2 Time settings………………………………………………………………………………………………………….36
4.10.3 Screen settings………………………………………………………………………………………………………..37
4.10.4 Hard drive settings…………………………………………………………………………………………….……38
4.11 Device maintenance and management………………………………………………………………………..……39
4.11.1 System information…………………………………………………………………………………………….…..39
4.11.2 User management…………………………………………………………………………………………………..41
4.11.3 Restore factory settings…………………………………………………………………………………………..44
4.11.4 System maintenance……………………………………………………………………………………………….45
5. Access system from webpage……………………………………………………………………………..……………………..46
5.1 Brief introduction………………………………………………………………………………….………………….…………..46
5.2 Access from LAN (local area network)…………………………………………………………………………….…….46
5.2.1 Login……………………………………………………………………………………………………………….….……….46
5.2.2 Live view……………………………………………………………………………………………………………………...48
5.2.3 Playback……………………………………………………………………………………………………………………….49
5.2.4 Configure…………………………………………………………………………………………………………..…………50
5.3 Access from remote PC……………………………………………………………………………………………….……..…50
5.3.1 Login e-seenet with device ID…………………………………………………………………….……………..…50
5.3.2 Login with user ID………………………………………………………………………………………………………..52
6. Access from smartphone………………………………………………………………………………………………………………52
7. Appendix………………………………………………………………………………………………………………………………….…..55
7.1 Hard drive capacity calculation……………………………………………………………………………………………….55
7.2 Recording capacity calculation………………………………………………………………………………………………..55
Tips: If you don’t find your answer here, please logon http://www.xmarto.com/support/ for FAQ; or
contact [e-mail]

Wireless NVR System User Manual
4
1. Product features overview
1.1 Product introduction
The xmartO WNO series network video recorder is our new generation of NVR. It supports wireless
WiFi network video input, real time live view, video codec and video playback. The NVR system can
be widely used for surveillance of home, business, office and villa.

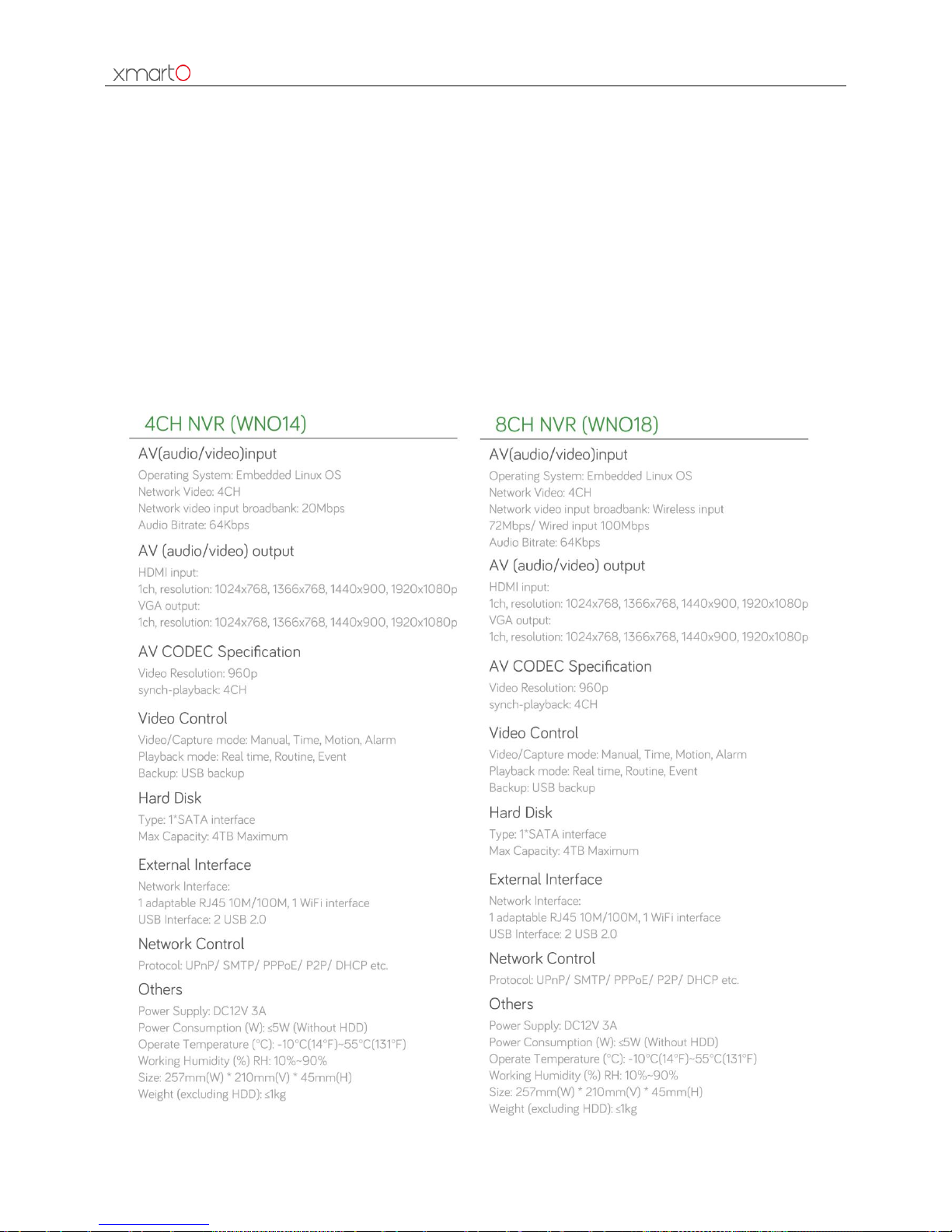

1.2 Product Specifications
NVR

Wireless NVR System User Manual
5

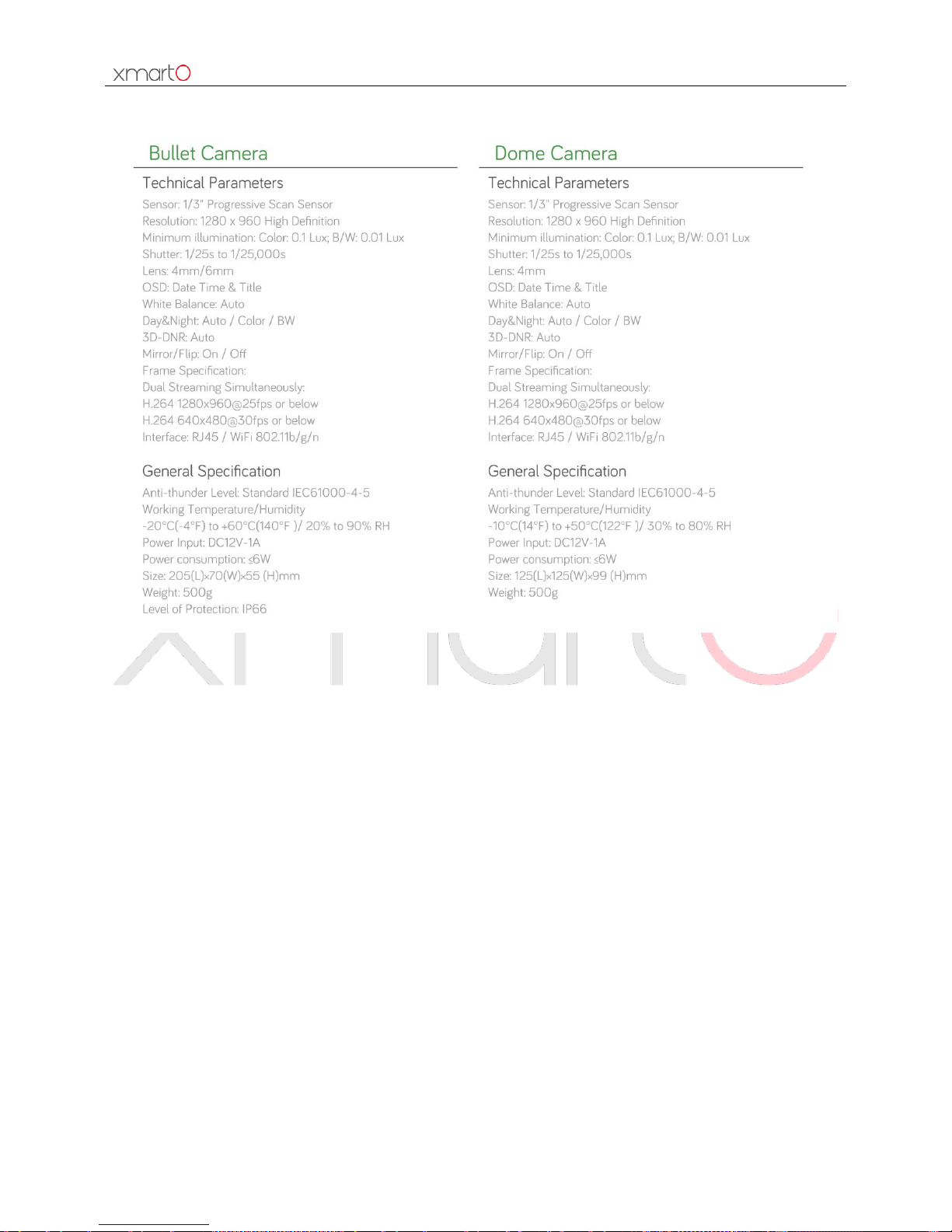

Camera
1.3 Product Key Features
•H.264, 720p/ 960p/ 1080p wireless network video recorder
•Built-in high-performance high-stability Wi-Fi router module; 720p & 960p NVRs support
802.11b/g/n protocol, 1080p NVRs support 802.11a/n protocol.
•Add Wi-Fi IP network camera to NVR by auto match-code.
•Video live view/ record/ playback/ backup
•Easy usability (wireless easy pairing, setup wizard, frequently used function menu, e-seenet)
•Support IPC with ONVIF & N1 protocol
•Network services supported: P2P, DHCP, DDNS, PPPoE, E-Mail, FTP etc.
•Multiple alarm trigger (video loss/ motion detection) and alarm output (buzzer/E-Mail/FTP etc.)
•Support access and control from Android/ Apple phones (or tablets)
•Support access and control from PC via PC client software and IE.
•Support IP camera settings (codec, image adjustment, OSD display etc.)
•Support motion detection with IPC
•Support video cover with IPC
•Support user authority management.

Wireless NVR System User Manual
6
2. Operation Instructions
2.1 Front Panel
Image 1
1．POWER：Power Indicator
2．HDD：Hard Drive Indicator
3．Operation Indicator –When IPC is connected to the NVR, this indicator will blink green
2.2 Rear Panel
Image 2
1. VGA: VGA Video Output
2. HDMI: HDMI Output
3. USB: USB Ports

Wireless NVR System User Manual
7
4. DC12V: Power Input
5. WAN: Connect your NVR to router for Internet connection
6. LAN1 –LAN3: IPC video inputs (only when necessary)
7. Wi-Fi Antenna connectors
2.3 Mouse Operations
Button
Operation
Effect
Example
Left button
Single click
Choose object
1. Choose button, drop-down box, list box, check box
Double click
Zoom window
1. Switch between multiple view mode and single view
mode
2. Add device
Drag
Set zone
1. Set motion detection zone
2. Choose digital zoom zone
Middle button
Scroll
Change contents
1. Change drop-down box content
2. Switch channels under single view mode
Right button
Single click
Exit
1. Exit the interface
2. Enter quick menu
2.4 Input Method
Image 3
Name
Buttons
Function
Number
0~9
Type in number 0~9
Character
- / . _ * # @
Type in symbols
Caps
caps
Switch capital and small letter
Back space
←
Delete the character ahead of cursor

Wireless NVR System User Manual
8

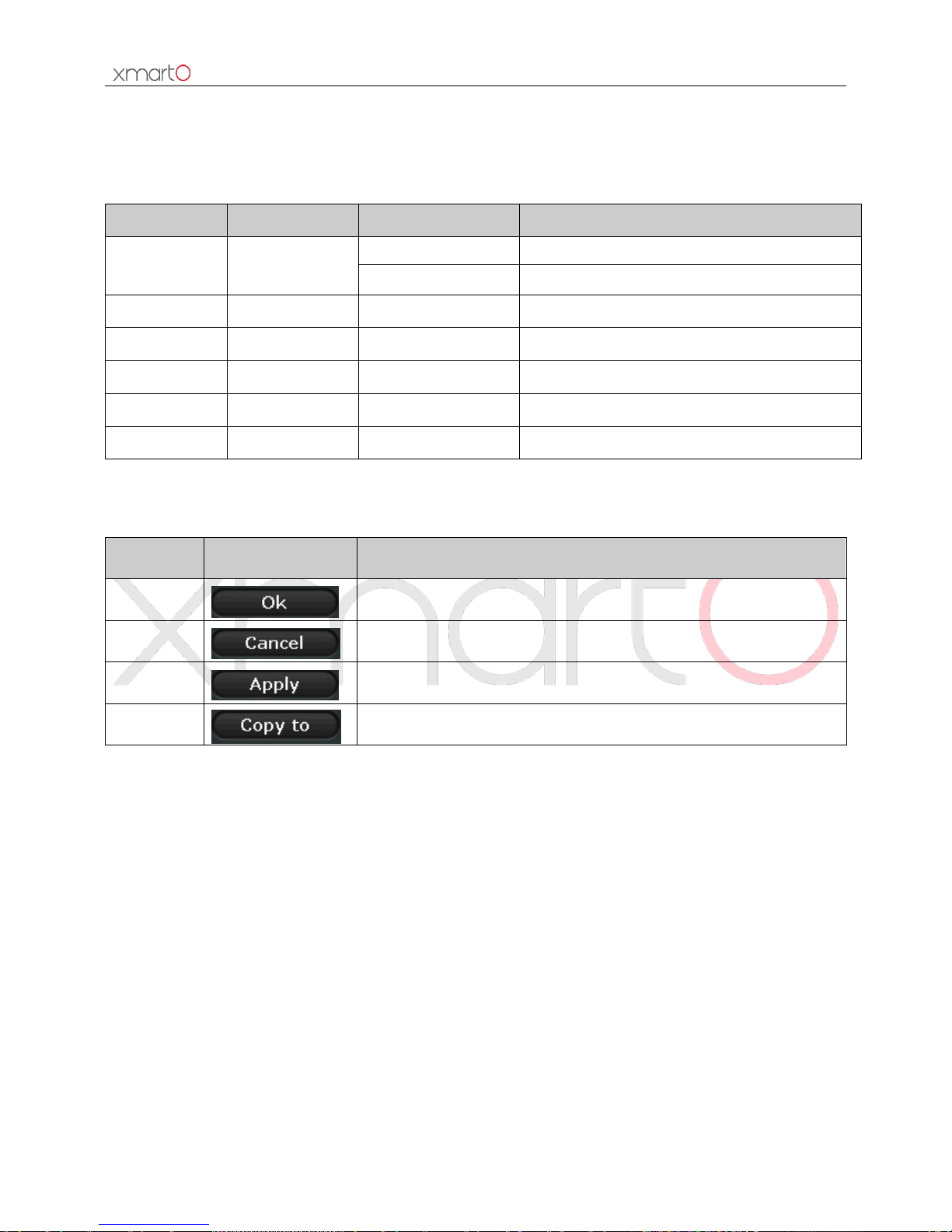

2.5 User Interface Introduction
2.5.1 User Interface Element Description
Name
Operation
Effect
Example
Button
Left click mouse
Save or cancel
Apply, confirm, cancel
Open sub interface
Edit, setting
Edit box
Left click mouse
Edit
Edit password
Drop-down box
Left click mouse
Select
Choose language
List box
Left click mouse
View
Channel information
Check box
Left click mouse
Select or cancel
Setup wizard display, display e-seenet at preview
Text
None
Instructions
Title, name
2.5.2 Frequently-used Button Description
Name
Icon
Explanation
Confirm
Save and apply operation, close window
Cancel
Cancel the operation
Apply
Save and apply operation, stay at the window
Copy to
Copy the settings of this channel to other or all channels
2.6 Menu Introduction
System setup: General setup, Record setup, Network setup, System Admin.
Right-click Menu: Split screen, Video playback, Video backup, PTZ control, Color adjust, Volume,
Manual record, System setup, Setup Wizard, IPC Add, Exit System.
3. Installation and Connection
3.1 Installation Precautions
Please refer to below tips while install and use the device:

Wireless NVR System User Manual
9
1. To extend the life of the device, please keep the device away from water, high temperature, and
dust. Use it in a well-ventilated place.
2. Please use SATA hard drive, USB devices and mouse purchased from authentic channels.
3. Before use, please ensure the NVR has correct ground connection. Power source should not exceed
the indicated normal working voltage range in the specs sheet.
3.2 Install Hard Drive
Image 4

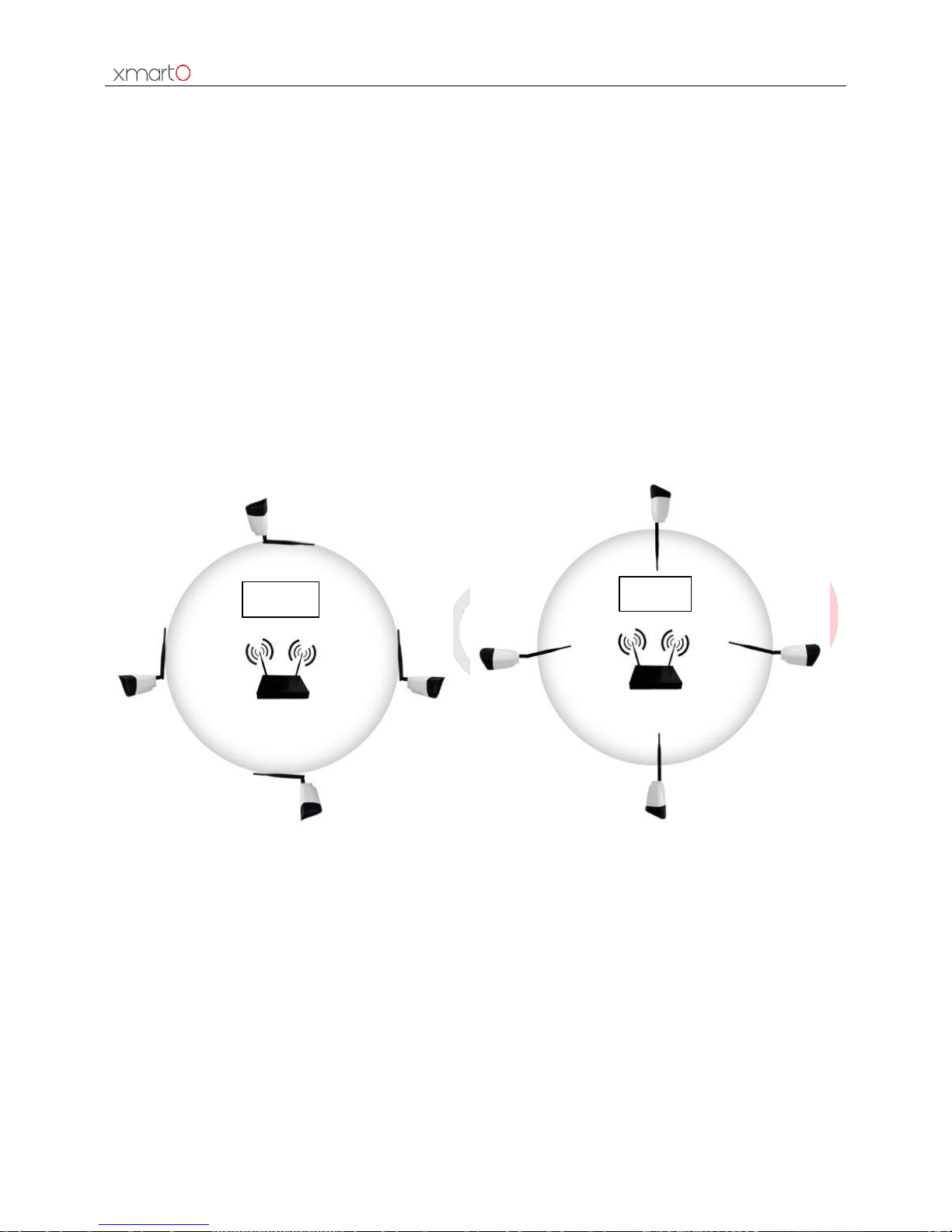

3.3 Preparations before installation
1. Decide the location of NVR. It is suggested to place the NVR at the center of monitoring area. Avoid
any avoidable obstacle between the cameras and the NVR.
1) When there is no obstacle, cameras can be mounted about 60m away from the NVR (approx.
200ft);
2) When there is one wall in between, reduce the distance to 30m (approx. 100ft);
3) When there are 2 walls in between, reduce the distance to 15m (approx. 50ft);
4) When there are more than 2 walls between camera and NVR, we suggest using extendable
antennas to bring camera’s antenna inside walls while leaving camera out; or use network cable to
connect the camera to NVR.
* (The Wi-Fi range mentioned above vary in different environments; data only for reference)
