XMax V3 PRO User manual

INSTRUCTION
MANUAL
XMAX V3 PRO
PLANET OF THE VAPES

BATTERY HEALTH NOTE:
PLEASE DO NOT PUT THIS PRODUCT AWAY
OR LEAVE IT FOR EXTENDED PERIODS OF TIME
WITH A LOW CHARGE. IF THE BATTERY FALLS
BELOW 2% FOR AN EXTENDED PERIOD OF
TIME IT MAY NO LONGER ACCEPT A CHARGE.
ENGLISH

DISCLAIMER
Thank you for purchasing the XMAX V3 PRO ×
PLANET OF THE VAPES EDITION vaporizer. To
ensure the best experience, please read and
understand the instructions fully before your first
use of the V3 PRO. Please keep these
instructions for future reference.
We hope you enjoy the excellent quality and
performance of your new V3 PRO vaporizer.
You must be of legal age within any given
jurisdiction to purchase or use the V3 PRO. Use
this product in moderation. This product should
not be used while driving or operating heavy
machinery, or by women who are pregnant
and/or breast feeding, by children or minors,
and those with life threatening illnesses without
first consulting a doctor.
1

2
California Prop 65 WARNING: This product
contains chemicals known by the state of
California to cause cancer, birth defects or other
reproductive toxicity. The vaporized aerosol of
chemicals are known to cause respiratory or
other diseases and in some cases are
irreversible. If needed contact your local poison
control center, USA: AAPCC 1-800-222-1222.
Note that the V3 PRO is not a medical device
and is not intended to administer medicinal or
illegal substances of any kind, diagnose, cure,
treat or prevent any diseases or other conditions.
Any illegal use of this device could subject the
user to severe fines, penalties and/or
imprisonment under the laws of their (and/or
other) jurisdictions.
THIS PRODUCT DOES NOT CONTAIN ANY
BOTANICAL MATERIAL.

XMAX V3 PRO ×POTV EDITION
OVERVIEW
3
Dimpled glass
mouthpiece
Accessory
attachment
OLED Display
18650
removable
battery
Battery lid
(back side)
(+) Temp
(−) Temp
USB-C
Port
Power Button
Metal screen
Scraping tool
Air Intake
(on side)

XMAX V3 PRO ×POTV EDITION
CONTENTS
4
USB-C cable 4× Alcohol
Cotton Pads
Dosing Capsule
Dimpled Glass
Mouthpiece
3× Mesh
Screens
Brush
3× Cotton
Swabs

SPECIFICATIONS
Size
Battery Capacity
Charging Voltage /
Current
Working Voltage
On / Off
Temperature Range
Oven Material
Display Screen
Session Time
On-demand Single
Holding Time
26mm × 48mm × 150mm
1" × 1" × 6"
OLED
4 minutes / 6 minutes
30s
Stainless Steel
3.2-4.2V
Click the button 3 times
consecutively
100°C-220°C
212°F-428°F
5V / 1A
18650 3.7V 3200mAh
5

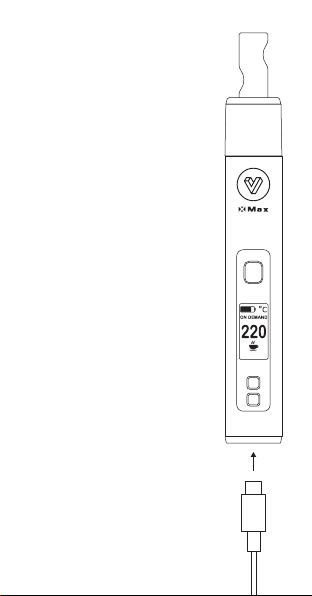

Fully charge the V3 PRO
before the first use. Please use
the provided USB-C cable to
charge it.
The display screen will indicate
charging, and will remain on
when fully charged.
1. CHARGE
NOTICE: PLEASE REMOVE
THE PROTECTION TAB IN
THE BATTERY COMPARTMENT
BEFORE USING.
OPERATION GUIDE
6

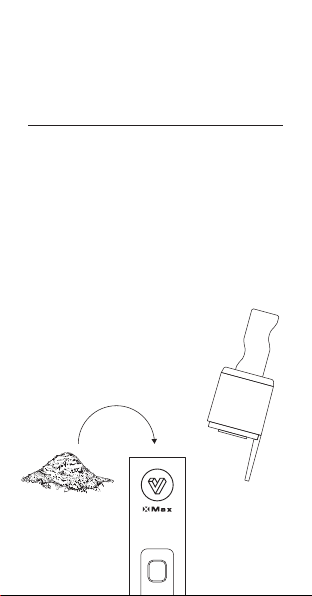

HOW TO FILL THE OVEN WITH DRY HERBS:
Prepare your dry herbs. We suggest a medium
to coarse grind with the V3 PRO vaporizer.
Remove the Accessory Attachment.
Loosely fill the oven with ground herbs. Tap
the sides of the V3 PRO to shake loose herbs
from the loading area down into the oven.
Gently tamp the herbs into the oven.
DO NOT OVERFILL OR OVERTAMP.
Attach the Accessory Attachment.
1.
2.
3.
4.
5.
2. LOAD THE OVEN
7

You can pre-pack V3 PRO Dosing Capsules to
quickly reload, and keep the oven cleaner. Each
Dosing Capsule comes with a pressure fit lid. To
use, simply remove the lid, fill the capsule, and
replace the lid. The V3 PRO comes with one
Dosing Capsule, with more available separately.
CAUTION: DOSING CAPSULES ARE HOT
AFTER USE. LET THEM COOL DOWN BEFORE
HANDLING.
8

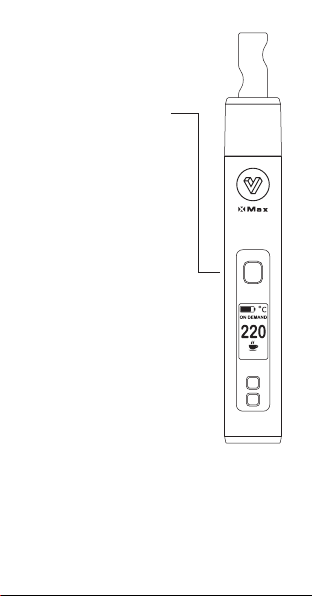

3. POWER ON/OFF
Click the power button
three times quickly to turn
the V3 PRO on. It will
vibrate and begin to heat
up with the settings from
your last session.
In ”ON DEMAND” Mode,
the V3 PRO will go into
“STANDBY” Mode if not
used within 30 seconds,
and then automatically
power off if not used within
120 seconds.
When you’re finished, click
the power button three
times quickly and the
V3 PRO will vibrate and
shut down.
9

Two different heat Modes are available with the
V3 PRO: Session and On Demand. Press the (+)
or (−) buttons together to toggle between the
modes. When heating up in either mode, the
OLED display temperature will increase, and the
” ” will flash.
SESSION MODE:
The V3 PRO will automatically begin to heat up
when switched to Session Mode. It will vibrate
when it’s ready to vaporize, and the session
timer will start. Inhale through the glass for fresh
vapor.
ON DEMAND MODE:
Press and hold the “power button” to engage
the heater., The V3 PRO will vibrate when it’s
ready. Inhale fresh vapor, and release the button
when done. The hit length is limited to 30
seconds, at which point the V3 PRO will vibrate
three (3) times and the heater will shut off. Press
and hold the power button again to re-engage
the heater. In On Demand Mode, the V3 PRO
will shut off automatically after it’s been idle for
120 seconds.
4. USING THE XMAX V3 PRO
×POTV EDITION
10

Temperature Range:
212°F-428°F
100°C-220°C
Start at temperatures lower than 370°F (188°C)
for intense flavors, and above 400°F (205°C)
for strong effects.
(+) Temp
(−) Temp
5. TEMPERATURE SETTINGS
The V3 PRO has full digital temperature control
for precise heat. Click the (+) or (−) button to
increase or decrease the temperature in single
degree increments. Press and hold to rapidly
increase or decrease the temperature.
11

4 minutes 6 minutes
To toggle the session timer between 4 and 6
minutes,, hold the “power button” and “(+)
button” at the same time for 2 seconds.
(+) Temp
Power
button
Hold 2 sec
220
4:00
220
220
6:00
220
The V3 PRO has two session timer lengths:
4 and 6 minutes.
6. SESSION TIMER
12

Celsius Fahrenheit
220
4:00
220
428
4:00
428
(−) Temp
Power
button
Hold 2 sec
7. FAHRENHEIT AND
CELSIUS TEMPERATURE SCALES
The V3 PRO can display the vape temperature in
Fahrenheit or Celsius. Hold the “power button”
and “(−) button” at the same time for 2 seconds
to toggle between the two scales.
13

Target
temperature
Temperature
scale
Battery level
Session
Heating
Current
temperature
220
SESSION
220
The V3 PRO displays all the info you need at a
glance: battery level, temperature scale, Session
or On Demand Mode, target temperature,
heating icon, and current temperature.
8. OLED DISPLAY
14

9. ACCESSORY ATTACHMENT
The V3 PRO vaporizer comes with an Accessory
Attachment to use different glass pieces and
customize your vape experience.
Attach the Accessory Attachment
to the V3 PRO
Insert the glass piece designed for
the V3 PRO
Enjoy vaping with glass!

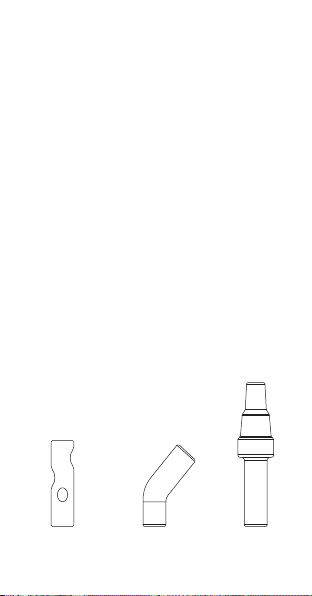

Bent TubeDimpled Glass Water Pipe
Adapter
1.
2.
3.
15

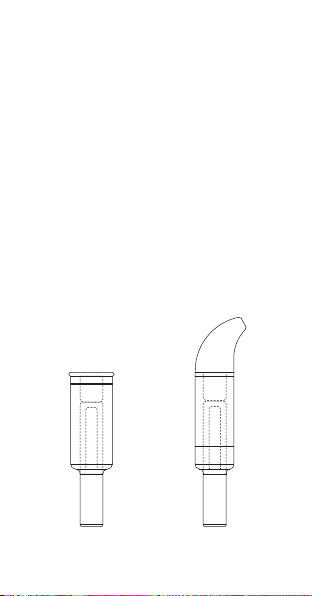

Mini Bubbler Curved
Mini Bubbler
Besides the included dimpled glass mouthpiece,
we designed three different glass pieces so you
can vape true to your style:
Bent Tube: For a cool, relaxed draw.
Water Pipe Adapter: To vape with
your favorite glass.
Mini Bubbler: For water-cooled vapor
on-the-go.
Curved Mini Bubbler: Smoothest vapor
with a relaxed style.
1.
2.
3.
4.
16

Dimpled Glass Mouthpiece
Metal Screen
Accessory Attachment
Silicone Gasket
10. CLEANING & MAINTENANCE
We recommend you regularly clean and
maintain your V3 PRO for the best performance.
Remember to empty and brush out the oven
when the herbs are spent, and brush off the
Metal Screen.
In time, the removable parts should be
disassembled for a deeper clean.
ACCESSORY ATTACHMENT & FILTER
Gently pull apart the accessory attachment
pieces as shown below.
