Xomax XM-CDB617 User manual

CONTENTS
Precautions..................................................................................................................1
How to Handle Discs...................................................................................................1
Precautions & Warnings..............................................................................................1
Lithium Battery Cell Warnings.....................................................................................1
Drivers and Connections.............................................................................................1
Other Warnings..........................................................................................................1
Installation....................................................................................................................2
Installation Procedures...............................................................................................2
Important...................................................................................................................2
To Install the Car Radio............................................................................................2-3
Wiring Connections....................................................................................................3
Removal of the Main Unit ............................................................................................3
Control Panel Button Locations.......................................................................................4
General Operation.........................................................................................................5
Turn Unit On/Off.........................................................................................................5
Adjust Volume (VOL)..................................................................................................5
Adjust Menu Options (SEL)......................................................................................5-6
Set the Clock (CLK)....................................................................................................6
Change the Source (SRC)...........................................................................................6
Mute on/off................................................................................................................6
USB Port...................................................................................................................6
Built-in Microphone....................................................................................................6
AUX input Connector..................................................................................................6
Reset System (RESET)...............................................................................................6
Radio Operation............................................................................................................7
Change Bands (BAND)................................................................................................7
Manual Tuning ( / ).............................................................................................7
Auto Seek Tuning ( / )........................................................................................7
To Store/Recall Preset Stations (1 - 6)...........................................................................7
Disc/USB/Micro SD Card Operation................................................................................8
To Insert Disc/USB/Micro SD Card................................................................................8
Eject Disc/USB/Micro SD Card.....................................................................................8
Play/Pause.................................................................................................................8
Next/Previous Track....................................................................................................8
Fast Forward/Backward...............................................................................................8
Introduction Scan........................................................................................................8
Repeating the same track...........................................................................................8
Playing All Tracks in Random.......................................................................................8
Track/Folder Navigation..............................................................................................8
Remote Control...........................................................................................................11

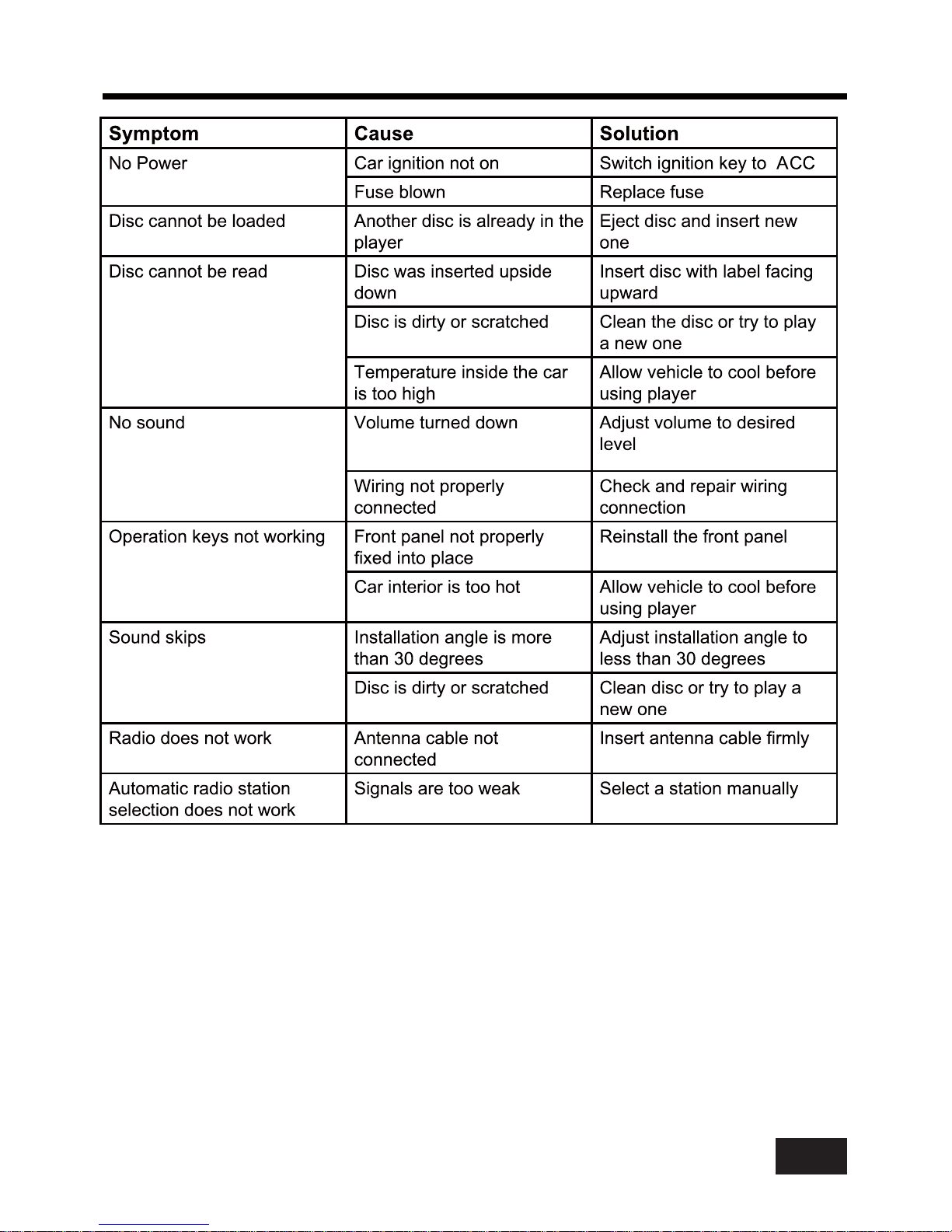

Troubleshooting...........................................................................................13
Automatic Store / Preset scan (AMS)............................................................................7
Stereo/Mono...............................................................................................................7
Using the PTY search function......................................................................................7
Pair and Connect.......................................................................................................10
Make a Call...............................................................................................................10
Redial Last Dialed Number.........................................................................................10
Answer a Call / Reject a Call / End a Call.....................................................................10
Switch Audio Between Car and Phone.........................................................................10
Adjust Talk Volume....................................................................................................10
Audio Streaming (A2DP)............................................................................................10
Specifications.............................................................................................................12
Select the track or file for playback in MP3 format...........................................................9
Auxiliary Input operation................................................................................................9
Bluetooth Operation.....................................................................................................10

How to Handle Discs
Lithium Battery Cell Warnings
Drives and connections
Others Warnings
• Handle a disc by its edges. Do not touch the playing side
• Before inserting a disc, wipe the disc outward from the disc center with a
clean, soft, dry and lint-free cloth. Do not use solvents or thinners such a
petrol/benzene or cleaners.
• After removing a disc from the disc slot, place the disc in a sleeve or case
to keep it clean and prevent scratches.
• Do not stick paper or tape on the disc surface. If there is glue (or adhesive)
on the disc surface, remove it before using the disc.
• Cell leakage may cause damage to the remote control
• Do not throw cells into as this may cause an explosion.
• Keep battery cells out of reach of children.
Never place any foreign objects into the openings of the car radio (disc compartment, USB
jack, card slot, AUX IN connection). Otherwise you might damage the slots and connections.
Do not switch on the car radio for long periods of time when the motor is switched off.
This could cause the car battery to discharge and the vehicle can no longer be started.
Precautions & Warnings
• To reduce the risk of fire, electric shock, and interfer-ence, do not attempt to repair this
unit yourself. Refer all service to a qualified technician.
• Some MP3/WMA files may not be playable.
• Keep the volume at a reasonable level to avoid distracted driving. High volume levels
may make it difficult to concentrate on traffic and road conditions while driving.
• If the car has been in direct sunlight for an extended period, you may need to reduce the
temperature inside the car before turning on and using the unit.
• If the battery is disconnected, discharged, or changed, the preset memory of the unit will
be lost and require reprogramming.
• The unit is designed to be installed in a level,horizontal position.
For optimal performance, avoid installing the unit at an angle.
• Never use excessive force when removing or attaching the faceplate.
Do not tightly grip the display and buttons to avoid damage.
PRECAUTIONS
1

INSTALLATION
Installation Procedures
Installation Opening
To Install the Car Radio
First complete the electrical connections and then check for correctness.
This unit can be installed in any dashboard Having
an opening as shown the right figure.
Be sure you test all connections first, and then follow these steps to install this unit.
1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery’s
negative (-) terminal.
2. Disconnect the wire harness and the antenna.
3. Lift the left or right top corner of the plastic outer trim ring then pull it out to remove it.
4. Insert the two bracket keys into the left and right side of the chassis, as shown the below
figure to separate the chassis from the housing.
5. Insert mounting sleeve into the dashboard and bend the mounting tabs out with a screw-
driver. Make sure that the lock lever is flush with the mounting sleeve and is not projecting
beyond.
6. Insert car radio into the mounting sleeve.
7. Use a metal strap to secure the rear part of the chassis using the hardware indicated.
8. Make wiring connections, as illustrated in the “Wiring Diagram.”
9. Install the plastic outer trim ring.
Important:
Remove the transport CD deck screws before use.
2
Bracket key
Plastic outer trim ring
Bracket key
182 mm
53 mm

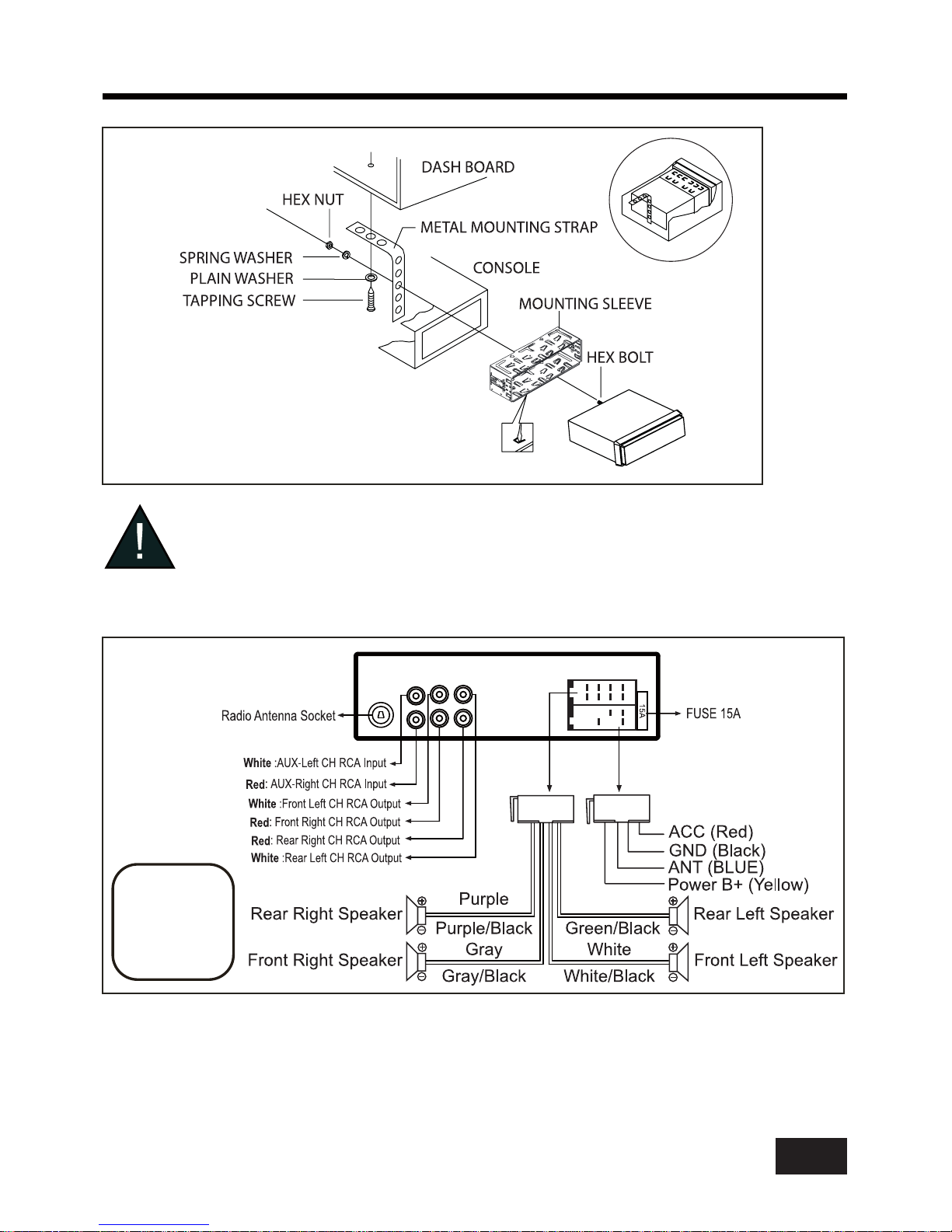

INSTALLATION(CONT.)
INSTALLATION
DIAGRAM
- Only use speakers with 4 ohms impedance.
- Do not attach the control panel to the chassis before wiring is complete.
- The maximum current of the auto antenna is 200mA.
WIRING
DIAGRAM
CAUTION
+12V DC
NEGATIVE
GROUND
3
Removal of the Main Unit
1. Remove the metal strap from the main unit.
2. Remove the plastic trim out from the main unit.
3. Insert a bracket key into the left and right side of the main unit and draw the unit out of
the mounting sleeve.
Wiring Connections

CONTROL PANEL BUTTON LOCATIONS
1. (power)/SRC (source) button
2. SEL (select/menu) button and VOL (volume) knob
3. BND(band) button,
4. (pause/play), Preset station1 button
5. INT (intro) 2 button
6. RPT (repeat) 3 button
7. RDM (random) 4 button
8. -10(previous 10 tracks) 5 button
9. +10(next 10 tracks) 6 button
10. CLK (clock setting) button, button
11. (tune down, seek down,track down, fast reverse) button
12. (tune up, seek up, track up, fast forward)button
13. MUTE button, PTY (Program Type) button
14.
AMS (automatic music search) button, button
, Preset station
, Preset station
, Preset station
, Preset station
, Preset station
(eject) button
15. Disc slot
16. IR remote control sensor
17. LCD Display
18. USB port & Micro SD Card Slot
19. MIC hole(built-in Microphone)
20. AUX IN (auxiliary input) jack
21. RESET button
4
19
20
21
Bluetooth
B

GENERAL OPERATION
Turn Unit On/Off
Adjust Volume (VOL)
VOL VOL+ VOL-
Adjust Menu Options (SEL)
Press the power ( ) /SRC button on the front panel to turn on the unit, and long press it
again to turn off the unit.
Press the power ( ) button on the remote control to turn the unit on or off.
Rotate the knob on the front panel or press the / button on the remote
control to increase or decrease the volume level.
• Press
repeatedly to cycle through the following adjustable audio functions: BASS,
TREBLE, BALANCE, FADER, EQ FLAT/POP/ROCK/CLASS/OFF, LOUD ON/OFF,
, DX, STEREO and VOLUME.
Rotate
• Press and hold the
•
•
LED AUTO
/ COLOR 1(Red) / COLOR 2 (Green) / COLOR 3 (Blue)
• the knob on the front panel or press the / button on the remote
control to adjust the selected item.
- BASS/TREBLE:-07,-06, ~, -01,00,+01,~, +06,+07
- BALANCE:L07,L06,~, L01, 00, R01,~,R06,R07
- FADER:R07,R06~,R01,00,F01,~,F06,F07
- EQ(Equalizer) Setting:OFF, FLAT, POP, ROCK, CLASS
- Loudness: LOUD ON/OFF
- LED AUTO / COLOR 1(Red) / COLOR 2 (Green) / COLOR 3 (Blue):
This unit is equipped Red, Green and Blue 3 colors illumination.
You can preset color 1 (Red), color 2 (Green), color 3 (Blue) or LED auto illumi-
nation. When you select the LED AUTO, the red, green and blue color illumination
will be automatically switched in sequence every 3 seconds.
- DX/LOCAL: Enables or disables the local broadcast mode (LOCAL).
- Stereo/Mono: Switches between MONO and STEREO reception mode for radio
frequencies.
- Volume level:00,01,~,40
AF ON/OFF, TA ON/OFF, TA VOL, REG ON/OFF, EON ON/OFF
- :This option allows you to preset a volume level as the power-on
memory volume level.
- VOL LAST: In this mode,the unit switches on at the actual volume it had when it
was last switched off.
- VOL ADJ: In this mode, the unit power on at the actual volume that you preseted a
constant switch-on volume level.
Press the button to enter the constant switch-on volume adjusting mode and
the “A-VOL XX” will be shown on the LCD display.
Then you can adjust a constant switch-on volume level by rotating the knob.
-:
This unit is equipped with two types of clock display formats, 24 and 12 hours.
Rotate the volume knob to choose 24 hours format or 12 hours format.
- :Enables or disables the “BEEP” signal to confirm use.
- AF ON/OFF: Enables or disables the alternative frequency search mode (AF).
the button on the front panel or press the button on the remote
control
button on the front panel or press the button on the
remote control to access these additional functions:VOL(LAS/ADJ), CLOCK 24/12,
BEEP ON/OFF, .
VOL(LAS/ADJ)
CLOCK 24/12
BEEP ON/OFF
SEL SELECT
SEL SELECT
VOL VOL+ VOL-
SEL
VOL
5

This function is used for maintaining a program being listened to during a trip if its
frequency changes.
- TA ON/OFF: Enables or disables the TA function (traffic information). When this
function is enabled, the tuner will periodically scan received frequencies and play
any traffic information message that may be broadcast.
-
Enables or disables
Enables or disables
• Rotate the knob on the front panel or press the / button on the remote
control to adjust the selected item.
1. To display clock time, press the button.
2. To set clock time, press and hold the button and the hour will flash.
3. Press the or button on the front panel or on the remote control to adjust the hour.
4. Press the button and the minutes will flash.
5. Press the or button on the front panel or on the remote control to adjust the minute.
6. Note: During Bluetooth mode, the clock can not be adjusted.
Press the button to switch between RADIO, BT(Bluetooth), DISC(with a CD/MP3 disc
inside the disc slot), USB(with USB device inserted), CARD(with Micro SD card inserted) and
AUX-IN(auxiliary input) modes.
The muted state
will be also released when the volume knob is used.
To receive your voice when you calling by using this bluetooth handsfree system.
The 3.5mm auxiliary input stereo connection is designed for deiveces with 3.5mm line-out or
headphone output.
The RESET button is used to reset all parameters to factory default settings.
This function may be used when the LCD does not display normally or sound is distorted, or
when any of the controls are disabled. To reset your system, use a thin object with a pointed
end to press the button .
VOL VOL+ VOL-
Set the Clock (CLK)
CLK
CLK
CLK
Change the Source (SRC)
SRC
Built-in Microphone
Aux input connector
Reset System (RESET)
RESET
TA VOL (traffic announcement volume): This function allows you to define the
minimum volume for the traffic announcements. The adjustable range is 0~43.
The defaulted value is 26. Rotate the knob to adjust the volume of the traffic
announcements.
- REG ON/OFF:
- EON ON/OFF:
VOL
the region mode.
Some broadcasting stations change their program from normal broadcasting to
regional broadcasting for a certain time period. When region is on, the current
listening program remains unchanged. When region is off, it allows the reception
moved to the regional station.
the EON (Enhanced other network).
In power on mode, briefly press the button to toggle mute on or off.
Mute on/off
MUTE
The USB port of this car radio is designed for media playback from flash memory devices.
Note: This USB port is not designed to charge high-power devices.
USB port
GENERAL OPERATION (CONT.)
6

RADIO OPERATION
Change Bands (BAND)
BAND
Manual Tuning ( / )
Auto Seek Tuning ( / )
STEREO/MONO
Press the button to switch between the FM1, FM2 and FM3 band.
Each band stores up to six preset stations.
Press and hold the or button on the front panel or on the remote control to enter manual
tuning mode. In manual tuning mode, press the or button to move the radio frequency
number up or down one step.
In standby mode or while not in manual tuning mode, quickly press the or button to
move to the next/previous available station automatically.
or .
FM station is received in stereo mode. However, if the signal weak or reception is not as
good as you would like, switching to MONO mode usually improves the overall sound quality.
tuner
To Store / Recall Preset Stations
To memorize a station:
- To recall a preset station:
Automatic Store / Preset scan (AMS)
AMS
AMS
ST
Using the PTY seach function
PTY/
MUTE
The radio can be stored 6 preset stations for each band (FM1, FM2, FM3) for a total of 18
preset stations.
- Turn the radio on and select the desired band and station.
- Select a station by button
- Press and hold the desired preset button (numbered 1-6 on the face of the radio) for more
than 2 seconds to save the station to that preset number.
- Select the desired band.
- Briefly press a preset button (numbered 1-6) to recall the corresponding preset station.
Press and hold the button for more than 2 seconds to select six strong stations and store
them in the current band. The radio will automatically scan the current frequency and enter
the six strongest stations into the preset memory positions for that band.
Briefly press the button on the remote control to scan each preset station that saved in
the memories in each band.
is
Press the button on the remote control to choose FM STEREO or MONO audio effect.
Press and hold the
button on panel or press the PTY button on the remote control can switch between PTY
speech group and PTY music group. “NEWS”(speech) or
When PTY group is on, pressing one of 6 numbered (1~6) buttons can select
one of typed program.
The PTY function allows you to search for a particular program type.
“POP M” (music) will appear on the
LCD display.
When you select the speech/ music pty group, the numbered (1~6)
buttons are shared as follows RDS station programs:
When you select a program type, the will search for a station broadcasting this type of
program. The tuner will stop searching if it finds the relevant program type. If the radio does
not find a station broadcasting the type of program selected, the text “NO PTY ” be shown on
the LCD displaty and return back to the previous station. 7
Music PTY Group
POP M, ROCK M
EASY M, LIGHT M
CLASSICS, OTHER M
JAZZ, COUNTRY
Numeric key Speech PTY Group
1NEWS, AFFAIRS, INFO
2SPORT, EDUCATE, DRAMA
3CULTURE, SCIENCE, VARIED
4WEATHER, FINANCE, CHILDREN
NATION(national), OLDIES
FOLK M
5SOCIAL, RELIGION, PHONE IN
6TRAVEL,LEISURE, DOCUMENT

8
DISC / USB / MICRO SD CARD OPERATION
To insert DISC / USB / Micro SD CARD
• To play files on a disc, insert a disc with the label surface facing upward into the disc slot.
Playback will begin automatically.
• To play files in a USB device or a Micro SD card, open the USB port cover and insert the USB
storage device into the USB port or a Micro SD card into the Micro SD card slot.
Playback will beginautomatically.
Label surface up
Eject Disc/USB/SD
Play/Pause
Next/Previous Track
Fast Forward/Backward
Introduction Scan
INT
Repeating the same track
RPT
Playing all tracks in random
RDM
Track/Folder Navigation
5/-10
6/+10
5/-10
6/+10
• To eject a disc, press the button to stop playback. Press the (eject) button to eject the
disc and then remove it
• To eject a USB device, press the button to stop playback, then remove the USB device.
• To eject a micro SD card, press the button to stop playback, and press the micro SD card,
to eject the micro SD card thenremove the SD card from the micro SD card slot.
Press the (play/pause) button to pause or resume playback.
• To play the next track, press the button.
• To play the previous track, press the button.
• To fast forward, press and hold the button.
• To fast backward, press and hold the button.
Press thebutton to play the first 10 seconds of each track, press again to stop the
introduction scan, and play the current track.
Press thebutton to repeat the current track, press again to stop repeat plaback and
resume normal playback.
Press thebutton to play all tracks in random order, press again to cancel thisfunction.
•During a disc, USB or SD card mode, press thebutton to go backward 10 tracks.
Press thebutton to jump forward 10 tracks.
•During a MP3 disc,USB or SD card mode, press and hold thebutton to go back the
previous folder. Press and hold thebutton to go to the next folder.
You can repeat this function depending on the number and level of folders.
•These buttons have no this function if the USB device or SD card has no folders.
XM-CDB617
Bluetooth
B

Select the track or le for playback in MP3 format
Press thebutton repeatedly to select one of the following 3 search modes:
NUM SCH (Searching by track or file serial number)
DIR SCH (Searching by folder serial number)
FILE SCH (Searching by track or file name)
a) In playback of files with MP3 format, press thebutton once to access the track or file
number searching mode which allow you to quickly find a specific MP3 track or file by its serial
dna,ecneuqes”***MUN“dna”HCSMUN“ehtdna,rebmun
thefirst symbol“*”will blink
Rotate theknob to select the serial number of your favorite file with high speed.
c) Finally press thebutton to confirm and play the selected file.
the“DIR SCH”
bRotate the VOLknob
Rotate the VOLknob
space”
This car radio has an external auxiliary input jack, it is
compatible with audio output from an MP3 music player.
So you can listen to sounds and music from external devices,
if you have plugged such a player intotheAUX IN jack with a
audio cable. Press thebutton to switch to the
AUX input mode on or off.
AMS
Searching by track or le serial number:
AMS
VOL
SEL
Searching by track or le name:
SRC/MODE
+
*------
will appear on the LCD display in
.
b)
The folder search mode allows you to quickly find an MP3 track or file under a specific group
folder.
a) In playback of files with MP3 format, press thebutton twice,will be
shown on the LCD display.
,csid3PMehtniredloFtooroneraerehtfI.redlofderisedatcelesot)
USB or SD card, the LCD will display“ROOT”)
c) Press thebutton to play the first track or file of the selected folder.
This track or file name search functionrequires only the first few character as search keyword,
it will allow you to quickly find an MP3 title by its name.
a) Press thebutton three times, the“FILE SCH”and“ ”will be shown on the LCD
display in sequence, and the first character“*”will blink.
morfdegnahcebll
iwretcarahcehT.)*(retcarahctsrifehtegnahcot)b
“A”to“Z”,“0”to“9”and“_”,“-”, “, ”,“ . Press thebutton to confirm the character
entered and the next character will blink for setting. Press thebutton to delete the
incorrect character.
c) When mached files was found, press thebutton to start play the searched file.
If the file was not found,“NO FOUND”message will be visible on the display.
Searching by folder serial number:
AMS
SEL
AMS
SEL
AMS
SEL
DISC / USB / CARD OPERATION (CONT.)
AUXILIARY INPUT OPERATION
9
Bluetooth
B

10
BLUETOOTH OPERATION
Pair and Connect
Make a Call
DEL
Redial Last Dialed Number
Answer a Call
Reject a Call
End a Call
Switch Audio Between Car and Phone
VOL
Adjust Talk Volume
VOL
MUTE
Audio Streaming (A2DP)
SRC
Prior to using the Bluetooth device as a handsfree system for a Bluetooth-enabled mobile
phone for the first time, you must pair and connect the two devices as follows:
1. In any mode, prior to pairing and connecting, the BT logo in the LCD indicating that no
device is connected. To begin pairing, enable BT mode on your mobile phone.
2. When the phone the car audio system,the XOMAX XM-CDB617 name will be displayed.
3. Choose the XOMAX XM-CDB617 from the device list to pair and connect with the car audio
system. Upon confirming, the BT logo will stop flashing.
4. When pairing is complete, the mobile phone audio will automatically transfer to the car
audio system whenever a call is made or received, or when the mobile phone plays music.
• To make a call, dial the call directly from the paired mobile phone.
• To make a call with this bluetooth handsfree system:
a) When linking up the Bluetooth-enabled mobile phone to this bluetooth handsfree system,
press the button to access the dial telephone number mode, then press the “0~9”, *
and # button on remote control to input the telephone number, and the entered number
will be shown on the LCD.
b) If a number has been incorrectly inputted, press the button or button to delete it.
c) Press the button to make outgoing call.
Press and hold the button on the control panel to redial the last dialed phone number.
• When the mobile phone is called, the incoming telephone number displays in the LCD.
• To receive the call, press the button on the control panel.
To reject the call, press the button on the control panel.
To end an active call, press the button.
During a call, press the knob/button to switch the audio source from the car audio system
back to your mobile phone.
• During a call, use knob or button to adjust the volume level.
• Use the button to mute sound.
1. Press the / button to enter BT mode and display media in the LCD.
2. When a mobile device is paired, music played through that device will automatically be
heard through the car audio system.
3. Press the or button to play the next or previous on the mobile phone.
4. Press the button to pause or resume music playback.
VOL+ VOL-/

REMOTE CONTROL
Remove Insulating Sheet
Replace Lithium Battery Cell
Remote Control Operation
The remote control comes with an insulating sheet
attached to the underside of the remote control, as
illustrated on the right. The remote control will not
work until the insulating sheet is removed.
1. When the lithium cell battery becomes weak,
replace it as illustrated on the right.
2. Press and hold the movable block in the direction
indicated by arrow 1. At the same time, pull the cell
holder out of the remote control in the direction
indicated by arrow 2.
3. Replace the old cell with a new one, making sure the
(+) polarity is facing upward.
4. Re-insert the cell holder into the remote control.
- Cell leakage may cause damage to the remote control.
- Do not throw cells into as this may cause an explosion.
- Keep battery cells out of reach of children.
Position the emitting window of the remote control toward the sensor window of the unit.
• The operation angle for front panel remote control reception is about 30 degrees.
• The distance between the emitting window of the remote control and the sensor window
of the unit should remain less 5 meters.
Button Names and Locations
1. (Power on/off) button
2.
3.
4.
5.
8.
9.
10.
11.
16.
17.
18.
19.
20
VOL+/VOL-(volume increase/decrease) button
Band button, button
Tune down, seek down; Track down, fast reverse
SEL(selection) button
6. button:tune up, seek up; Track up, fast forward
7. Mute button, DEL(Delete) button
CLK(clock setting) button, button
INT(intro) 2 button,keypad 2
RPT(repeat) 3 button, keypad 3
12. RDM (random) 4 button, keypad 4
13. -10(previous 10 tracks) 5 button, keypad 5
14. +10(next 10 tracks) 6 button, keypad 6
15. ST (stereo) button, keypad 7
MODE button, keypad 8
AMS (automatic music search) button, keypad 9
AF(list of alternative frequency) button, keypad
PTY(program type) button, keypad 0
. TA (traffic announcement) button, keypad #
Note: When using the remote control for the first time, you
must pull out the portective plastic tab from the battery compartment
found on the back of the remote control.
button, preset station 1 button, keypad 1
button, preset station
button, preset station
, preset station
, preset station
, preset station
11
2
10
4
12
15
9
18
19
20
13
8
14
6
7
5
17
16
11
13

SPECIFICATIONS
General
Radio
Chassis Dimensions...............................................................178(W) x 160(D) x 50(H) mm
Power Supply Requirement ..................................................................................DC 12V
Current Consumption ................................................................................................10A
MAXMaximum Power Output ...........................................................................W x 4CH
Frequency Range...............................................................87.5 - 108.0 MHz (50KHz/Step)
Usable Sensitivity .................................................................................................30 dBu
I.F. Frequency ..................................................................................................10.7 MHz
Usable Audio Formats ................................................................................CD/MP3/WMA
Pre-amp Output .........................................................................................Front and Rear
Frequency Response .................................................................................20 Hz - 20 KHz
S/N Ratio ................................................................................................................60dB
FM
CD/USB/Card
BT
BT Profile supports ......................................................................A2DP, AVRCP,HSP, HFP
Range of frequency ...............................................................................2.4GHz spectrum
12

TROUBLESHOOTING
13
