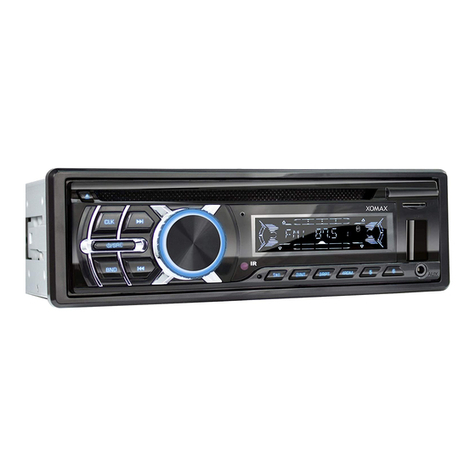

Xomax XM-RSU262BT User manual

Thank you for purchasing one of our XOMAX products! We appreciate your confi-
dence. Enjoy your brand new multimedia unit!
Please read the following manual carefully before you install and use the unit.
Please save this manual in case you will need to clarify further possible ques-
tions regarding installation and usage of our product.
We are constantly trying to keep our online-library of user's manuals for our
products up-to-date. In case you miss some information or if something should
be unclear, please visit our homepage www.xomax.de for a current version of
user's manual or contact our customer service.
i
XM-RSU262BT
Version 1.0
Last update 17..201
Manual's version
We appreciate our environment, so to keep it safe and clean, we
do not print our manuals on paper but provide our products with
manuals in digital version created in *.pdf format.
You can find and download them anytime on our homepage
www.xomax.de, view them on your mobile devices and print
them for yourself if needed.
Please note: Any alternations and changes of technical data or/and design
due to technical update of some models need no advertisement.
XOMAX

Describtion of the
problem
Cause and solution
The remote control
is without function.
Solution 1:
usage.
Solution 2:
The battery could be empty. Please replace it if required.
Solution 3:
Please make sure that the infrared receiver (labelled with IR)
on the control panel is not blocked.
Note:
You can test the functionality of the remote control as follows:
please hold the IR transmitter towards a camera (e.g. a cell
phone camera) and press any button on the remote control. If
the remote control is operative you can see the infrared signal
on the display of the used camera device.
Radio stations are
lost:
As soon as the unit
will be turned off all
the stored stations
and user's settings will
be lost.
This problem is caused due to a wrong connection of the ISO
cable.
Please interchange the cables for ignition plus and for steady
plus.
Caution:
If these wires have fuses, the latter should be interchanged as
well.
Common solutions
The following advices are generally valid and refer to diverse Xomax models with
the similar characteristics. Please note that some articles may refer not to your
model exactly and may contain the describtion of features and functions that your
model does not support.

Poor radio recep-
tion:
no broadcaster or the
reception is poor.
For problem-solving regarding the radio reception it is
important to know the type of the antenna of your vehicle.
Here are the possible solutions for each type of the antenna:
Type 1 – passive antenna:
We recommend you to substitude the existing antenna by the
-
cient.
Type 2 – active antenna:
The vehicle provides no current for the active antenna. In this
case a phantom power is required, which provides the active
antenna with the external power supply.
Type 3 – active antenna with diversity system:
The unit provides no current for the active antenna and has
no diversity support. For this type of antenna is required the
phantom power with an integrated diversity system.
Note:
A phantom power is not to be confused with an antenna
The unit does not
turn on.
This problem is in most cases caused due to a wrong connec-
tion of the ISO cable.
Please review the pin assignments of the ISO plug and ISO
socket. Pay attention to the proper connection of the ignition-
and steady plus and correct the discrepancy if required.
Note:
Though the design of ISO port is standardized, it's pin
assigment is not and may vary. Thus in case of mismatch
of connections due to different pin assignments a simple
plug'n'play connection may lead to grievous errors.

Disposal of an old unit
User information regarding disposal of
electric and electronic devices (private
households)
This symbol on products or in their
manuals implies that electric and
electronic devices at the end of their
service life should be separated from
the domestic waist.
Please hand these products for recy-
cling at municipal collection points free
of charge.
The proper disposal of these products
contributes to environment protection.
or recycling yard please consult your
municipal administration.
Disposal of the battery
According to the battery decree we
make you aware of your obligation to
dispose of empty batteries at municipal
collection points.
Batteries that contain pollutants
(e.g. Hg = mercury, Pb = lead, Cd =
cadmium) are labelled with the symbol
pictured above.
At our place you can free dispose of the
empty batteries purchased at our store.
Disposal/recyclinginformation
