Blaupunkt IVMS-5802 User manual

In Car Video
http://www.blaupunkt.com
IVMS-5802
IVMS-6502
Operating and installation instructions

14

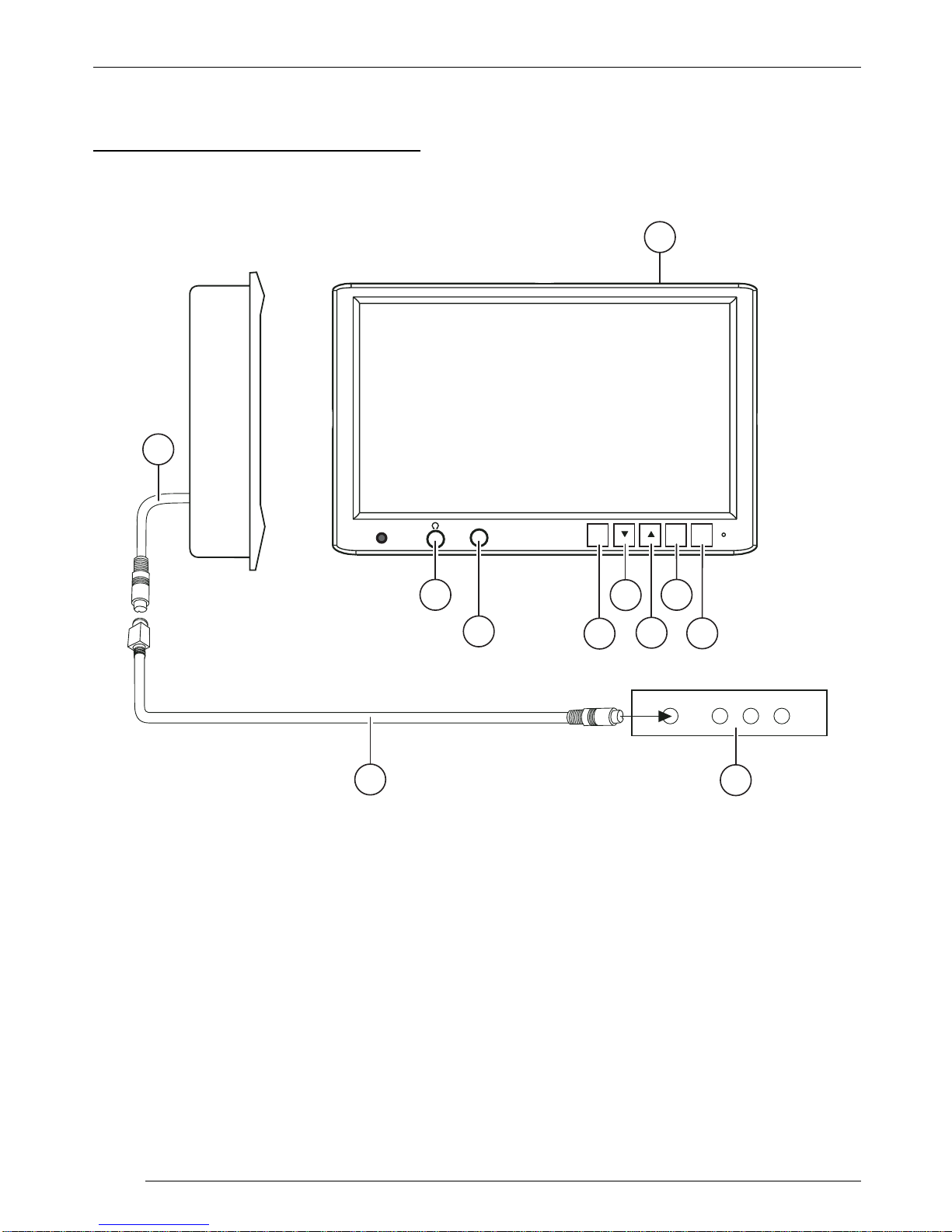

DEVICE OVERVIEW
Device overview
5.8" and 6.5" TFT-LCD screen
15.8"/ 6.5" TFT LCD screen for
headrests
2On/off switch
3Key for screen menu display
(OSD menu)
4Up menu
5Down menu
6AV channel setting
(AV1 -AV2 - ...)
7Headphone socket
8Video input (internal)
9Connecting cable
:Interface cable
;AV signal converter unit
ON MENÜ
I
7
VDEO CH
2
3
5
9
1
4
11
10
86

DANSK
15
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
TABLE OF CONTENTS
Device overview ..................... 14
5.8" and 6.5" TFT-LCD screen ...... 14
General information ............... 16
Important notes ............................. 16
Safety notices ............................... 16
Accessories............................ 17
Accessories supplied .................... 17
Available accessories .................... 17
Fitting ..................................... 17
Monitor installation ......................... 17
Prepare the working area .............. 17
Mark out the dimensions ................ 17
Carefully cut open the headrest
cover ............................................. 18
Open the headrest and remove
filling and other items ..................... 18
Lay the cable through the headrest . 19
Insert the mounting frame in the
headrest ........................................ 19
Inserting the monitor ...................... 19
Check and adjust the monitor then
apply the Velcro strips ................... 20
Example of a direct connection to a
DVD player .................................... 20
Positive connection ....................... 20
Negative (ground) connection ........ 21
Removal ................................. 21
OSD menu ............................. 22
Operation ...................................... 22
IR remote control ................... 23
Functions ...................................... 23
Specifications ........................ 24
5.8" screen ................................... 24
6.5" screen ................................... 25

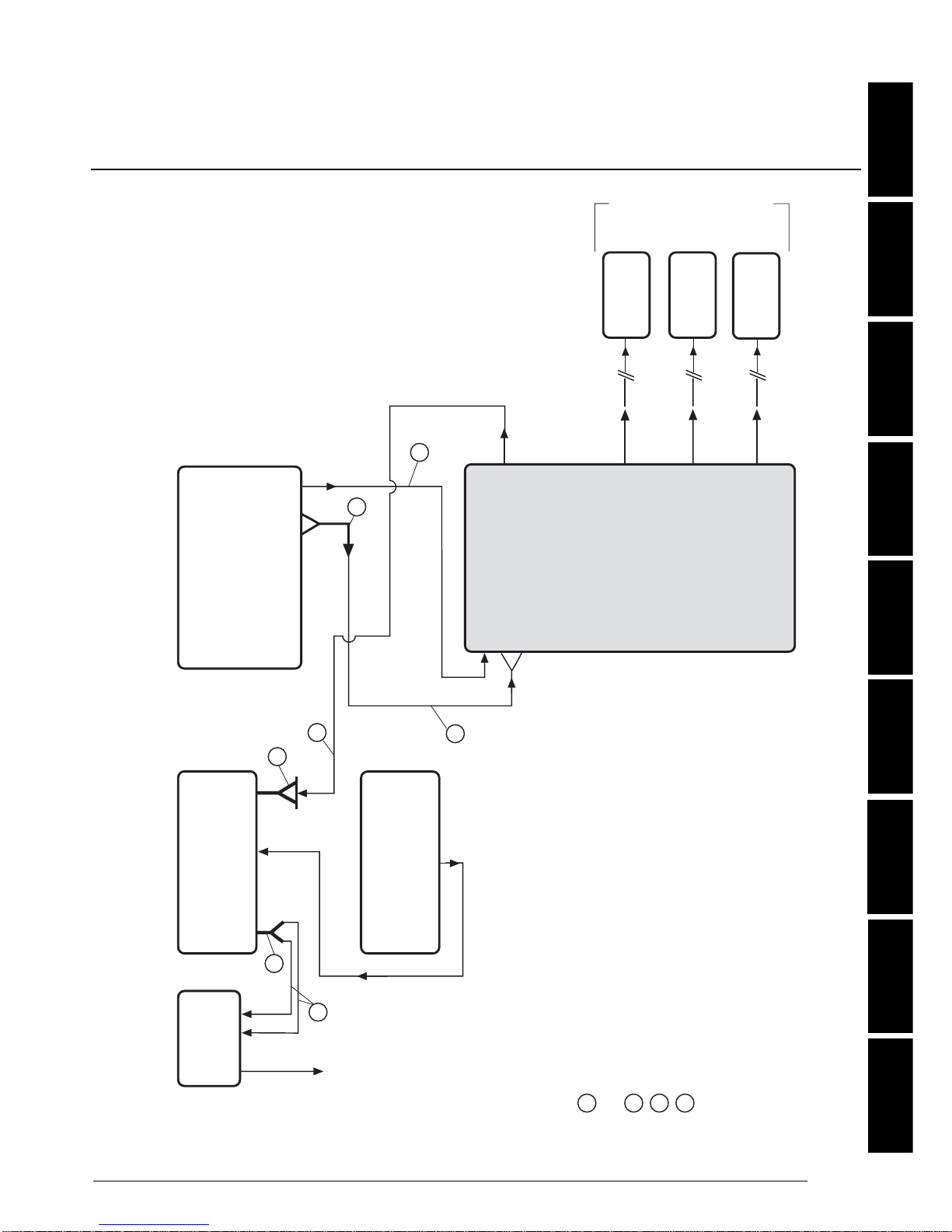

Connection diagram ............ 109

16
General information
Thank you for choosing a Blaupunkt
product. We hope you enjoy using this
new piece of equipment.
Please read these operating instruc-
tionsbefore usingthe equipmentfor
the first time.
The Blaupunkt editors are constantly
working on making the operating in-
structions clearer and easier to under-
stand. However, if you still have any
questionsonhowtooperatethedevice,
please contact your dealer or the tele-
phone hotline for your country. You will
findthetelephonenumberprintedatthe
back of this booklet.
We provide a manufacturer guarantee
for our products bought within the Eu-
ropean Union. You can view the guar-
anteeconditionsatwww.blaupunkt.de
or ask for them directly at:
Blaupunkt GmbH
Hotline
Robert Bosch Str. 200
D-31139 Hildesheim
Important notes
This device is not intended for fitting in
the forward section of the passenger
compartment where it could also be
seen by the driver. Fitting this device in
any part of the vehicle where it could
interfere with or distract the driver’s at-
tention is dangerous and is not permit-
ted. The manufacturer cannot accept
responsibility for any damage caused
as a result of improper fitting of this de-
vice.
NOTES
To avoid the risk of electrical
shock,thedevicemustbeprotected
from water and moisture, and must
not be opened. Dangerously high
voltages are generated inside the
device.
We wish to point out that the right to
claimagainstwarrantyis invalidated by
any changes or modifications to the
device that have not been explicitly ap-
proved by the manufacturer.
Long-termoperation orstorageoutside
thespecifictemperaturerangecanlead
to a shortening of the useful life of the
LC display.
Safety notices
Please observe the following safety
noticesduringinstallationand whilst
making the connections.
-Disconnect the negative and positi-
ve terminals of the battery.
-When doing so, please observe the
safetynoticesprovidedbythevehicle
manufacturer.
-Before drilling the holes necessary
for mounting the equipment and for
layingcables,pleasemakesurethat
concealed cables, the fuel tank and
fuel lines cannot be damaged in the
process!

DANSK
17
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Accessories
Accessories supplied
-Connecting cable
-Extraction tool
-Operating instructions
-Mounting plate
-Adapter cable for a direct connection
to anAV source
-IR remote control IVRC-06
Available accessories
-Monitor bracket 7608009300
Theinstallationinstructionsareincluded
with the bracket.
Note regarding VIDEO IN/AUX:
Only use original Blaupunkt accessory
7 607 001 510.
Or else use a mono plug.
Fitting
Monitor installation
Note:
Itisrecommended thatthefittingis car-
ried out at a specialist workshop.
Prepare the working area
➮Remove the headrest, and place it
on a working surface that has been
cleared and cleaned, where the fur-
ther assembly procedures may be
carried out.
Note:
Take appropriate action to ensure that
the headrest is not damaged while fit-
ting the monitor.
Mark out the dimensions
➮Feel the covering of the headrest
carefully to ensure that there are no
invisiblepartsthatwouldpreventthe
monitor from being fitted.
Mark out the surface that needs to be
cut out - its size must match that of the
installation frame.
ACCESSORIES FITTING

18
FITTING
Carefully cut open the headrest
cover
Use a knife with an adjustable cutting
depth to cut out the planned area.
➮Make the first cut inside the marked
areaatapointabout0.5 cmfromone
of the corners, then make a diago-
nal cut to a point about 0.5 cm from
the opposite corner.
➮Make a similar cut between the oth-
er two diagonally opposed corners.
Open the headrest and remove
filling and other items
➮Carefully lift the covering material
away from the cut area.
➮Adjust the cutting depth of the knife
to about 2.5 cm, and cut into the he-
adrest following a line about 0.5 cm
inside the marked edge.
➮Carefullyliftthefillingmaterialatone
corner, and cut deeper into the ma-
terial with the knife.
➮Remove the filling material in small
pieces.
➮As you do this, lift one piece of the
filling material, and ensure that the
cut is being made to an even depth.
To remove other pieces, use a Dremel
saw or another suitable tool.
➮Insertthemonitortocheckthatitwill
fit into the cut area, and make ad-
justments if necessary.

DANSK
19
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
FITTING
Lay the cable through the
headrest
➮Nowpassthesuppliedcablesthrou-
gh the opening so that they emerge
fromtheunderneathoftheheadrest.
➮Ifpossible,coverthecablewithaca-
ble tunnel.
➮Now connect the power supply,
ground and video signal cables, to
check that the monitor is working.

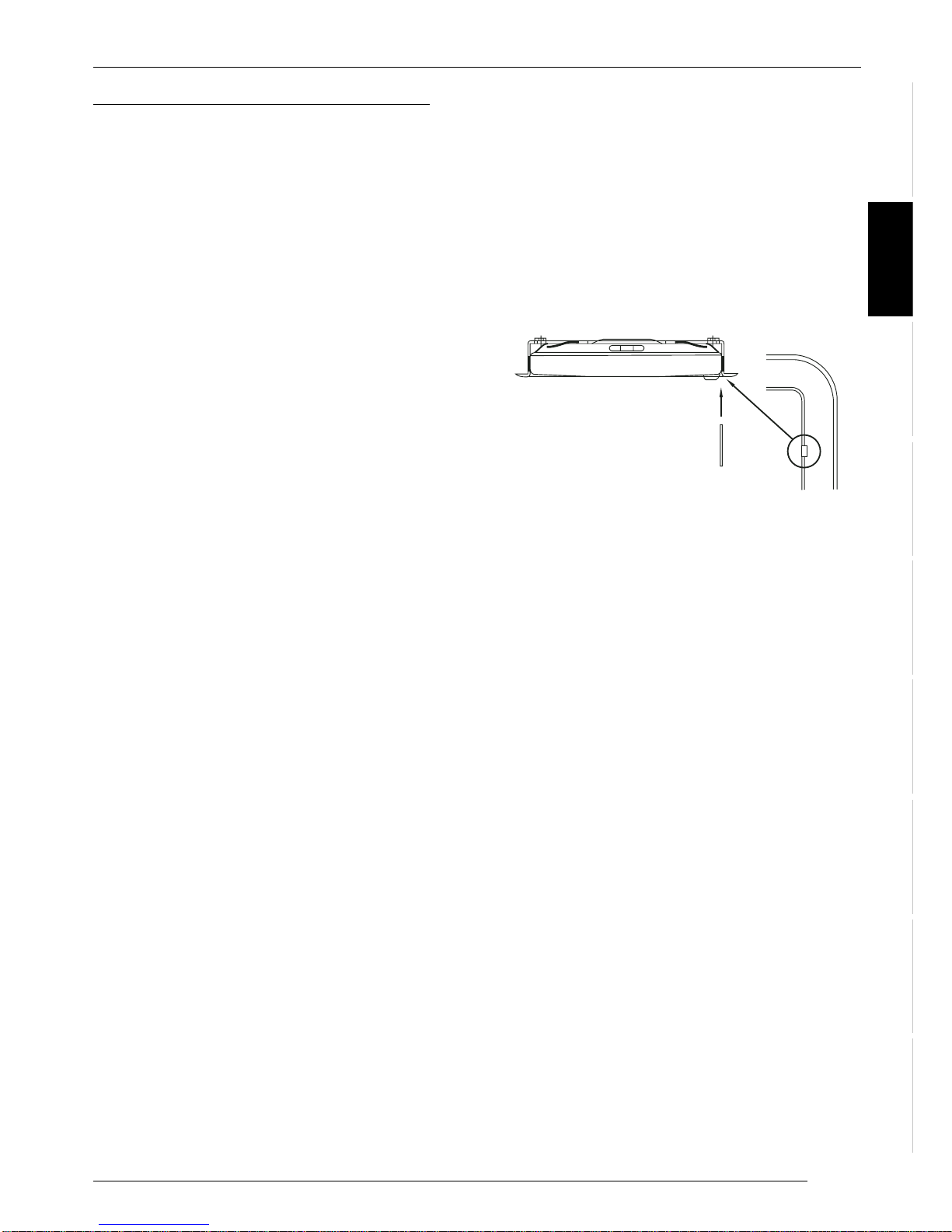

Insert the mounting frame in the
headrest
➮Beforeconnectingthemonitor,pass
the connecting cables through the
holes provided in the mounting pla-
te, as shown in the illustration.
➮Insert the mounting plate into the
area that has been cut out, and fix it
inplace withappropriatefastenings.
Inserting the monitor
➮Beforeconnectingthemonitor, pass
the connecting cables through the
holes provided in the mounting pla-
te, as shown in the illustration.
➮Insert the monitor into the mounting
plate, and attach it with appropriate
fastenings.
Monitor
Mounting plate

20
FITTING
Check and adjust the monitor
then apply the Velcro strips
➮Connectthe monitor,place ittempo-
rarily in the cut-out, and place the
headrest into position.
➮Check the various monitor settings
suchasbrightness,headphonefunc-
tion, volume control and so on.
➮Then attach the Velcro strips to the
rearof themonitor,andpushthefra-
me onto the headrest.
Takecarenottopressthescreenits-
elf, and apply pressure only in the
region of the frame.
Example of a direct connection to
a DVD player
○○○○○○○○○○○○○
Adapter cable for a
direct connection to an
AV source
/GND
DVD - Player (IVDP-01)
Video out
AV
in
Digital
out
Audio L out Audio R out
IVMS 5802/6502
Masse
+12V
Positive connection
Connect the fuse holder to protect the
positive cable (+12 V). The fuse holder
shouldbeconnectedto thepositiveter-
minal at a distance of max. 30 cm from
the vehicle battery (if necessary, drill a
hole in the bulkhead and use the ap-
propriate cable grommets).

DANSK
21
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
FITTING
Negative (ground) connection
Attach the negative cable (earth/GND)
directly to the vehicle body using a
screw. Scratch the surface down to the
bare metal at the point at which the
ground is made.
•Iftheinstallationrequiresholestobe
drilled or any other changes to be
made to the vehicle, please contact
a specialist workshop in your area.
Removal
➮To remove the screen, insert the ex-
tractiontoolbetweenthescreenand
the mounting plate.
➮Inserttheextractiontoolat the place
where a slot has been provided be-
tween the screen and the mounting
plate.
REMOVAL
Extraction tool

22
OSD MENU
OSD menu
Operation
➮Pressthe “MENU”buttononthedis-
playorontheremotecontroltoopen
the OSD menu.
●Use the arrow buttons /to sel-
ect the options and after you press
the MENU button you can use the
arrow buttons / to change the
settings.
➮Press the “EXIT” option to close the
OSD menu again.
ZOOM
BRIGHTNESS
CONTRAST
COLOR
TINT
REVOLVE LEFT-RIGHT
UP-DOWN
RESET PICTURE
EXIT
●ZOOM (picture size):
Change the picture height/width
- FULL
- NORMAL
- WIDE
●BRIGHTNESS
To adjust the brightness
●CONTRAST:
To adjust the contrast
●COLOR:
To adjust the colour
●TINT:
To adjust the picture shade (only
for NTSC)
●REVOLVE:
To revolve the screen display
-LEFT - RIGHT
Horizontally mirrored
-UP - DOWN
Vertically mirrored
●RESET PICTURE:
To reset the configured parameters
to the factory default settings.
●EXIT:
To close the OSD menu

DANSK
23
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
IR REMOTE CONTROL
IR remote control
Functions
The supplied remote control is suitable
for operating the following monitors:
IVMS-5802 and IVMS-6502.
1POWER
On/off button for the monitor.
2TV/VIDEO
No function.
3VOL • arrow button
Increase the volume for the sel-
ected monitor.
VOL • arrow button
Decrease the volume for the sel-
ected monitor.
4MUTE
Mute the volume of the loudspea-
kers inside the monitor.
5CH • arrow button /
Channel selection if the monitor is
connected to a signal controller
IVSC-3302 or IVSC-5502.
Caution:
The way the CH /buttons
function depends on the monitor
selection (which is made using
the signal controller’s remote con-
trol).
6Menu
See OSD menu, operation (page
22).
IVRC-06
MUTETV/VIDEOPOWER
VOL CH
1
4
5
23
MENÜ
6

24
SPECIFICATIONS
Specifications
5.8" screen
System: NTSC/PAL auto switch
Power supply / consumption: 12 V direct current, ±10%,
<900 mA
Standby: < 1 mA
Video input level: 1 Vpp, 75 ohms
Audio input level: 0 - 0.3 Vrms, 20 Hz - 20 kHz
Operating temperature: -20°C to +60°C
Storage temperature: -30°C to +80°C
Screen size (diagonal): 5.8" (14.7 cm)
Contrast ratio: 60
Power consumption: < 11 W
Brightness: 300 cd/m2
Display technology: TFT active matrix system
Resolution (pixels): 1200 (H) x 234 (W) = 280,800 pixels
Visible screen area: 127.20 (W) x 71.84 (H) mm
Viewing angle: From the left and right: 60°,
From above: 60°,
From below: 30°
Total monitor dimensions: 165 (W) x 122 (H) x 26.7 (D) mm
Monitor weight: < 400 g

DANSK
25
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
6.5" screen
System: NTSC/PAL auto switch
Power supply / consumption: 12 V direct current, ±10%,
<900 mA
Standby: < 1 mA
Video input level: 1 Vpp, 75 ohms
Audio input level: 0 - 0.3 Vrms, 20 Hz - 20 kHz
Operating temperature: -20°C to +60°C
Storage temperature: -30°C to +80°C
Screen size (diagonal): 6.5" (16.5 cm)
Contrast ratio: 60
Power consumption: < 10 W
Brightness: 280 cd/m2
Display technology: TFT active matrix system
Resolution (pixels): 1200 (H) x 234 (W) = 280,800 pixels
Visible screen area: 142.80 (W) x 87.70 (H) mm
Viewing angle: From the left and right: 60°,
From above: 60°,
From below: 30°
Total monitor dimensions: 176.0 (W) x 122 (H) x 26.7 (D) mm
Monitor weight: < 400 g
SPECIFICATIONS
Subject to changes!

DANSK
109
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Anschlussbild • Connection diagram • Schéma de connexion
• Schema di allacciamento • Bedradingsschema •
Anslutningsschema • Cuadro de conexiones • Esquema de
ligação • Tilslutningsbillede
Speakers
Video 1
Audio L 1
Audio R 1
Video 2
Audio L 2
Audio R 2
Video 3
Audio L 3
Audio R 3
Signal Controller IVSC-3302
Preamp
out
Car Radio
2x Aux-in
Amplifier
Anschlusskabel/Additional Cables:
1
RCA-Cable 7 607 885 093 (1,3m)
7 607 886 093 (5m)
2
RCA-Y-Cable 7 607 001 507
3
C1-4x Cinch 7 607 893 093 (0,35m)
4
AUX 2-in 7 607 001 508
1
1
in
4
3
1
AUX 2
CDC
in
Audio
out
D 3
D 2
D 1
DVD - Player (IVDP-01)
Video out
AV
in
Digital
out
Audio L out
Audio R out
CDC-A08
IDC-A09
CDC
out
2
1
Right
Monitor
Left
Monitor
IVMS 5802/6502
Front
Monitor
Beispielanschluss mit verschiedenen Komponenten /
Connection example with various components

07/03 CM/PSS2 - 8 622 403 803
Blaupunkt GmbH
Service-Nummern / Service numbers / Numéros du service après-
vente / Numeri del servizio di assistenza / Servicenummers /
Telefonnummer för service / Números de servicio / Número de
serviço / Servicenumre
Country: Phone: Fax: WWW:
Germany (D) 0180-5000225 05121-49 4002 http://www.blaupunkt.com
Austria (A) 01-610 390 01-610 393 91
Belgium (B) 02-525 5454 02-525 5263
Denmark (DK) 44 898 360 44-898 644
Finland (FIN) 09-435 991 09-435 99236
France (F) 01-4010 7007 01-4010 7320
Great Britain (GB) 01-89583 8880 01-89583 8394
Greece (GR) 210 57 85 350 210 57 69 473
Ireland (IRL) 01-4149400 01-4598830
Italy (I) 02-369 6331 02-369 6464
Luxembourg (L) 40 4078 40 2085
Netherlands (NL) 023-565 6348 023-565 6331
Norway (N) 66-817 000 66-817 157
Portugal (P) 01-2185 00144 01-2185 11111
Spain (E) 902-120234 916-467952
Sweden (S) 08-7501500 08-7501810
Switzerland (CH) 01-8471644 01-8471650
Czech. Rep. (CZ) 02-6130 0441 02-6130 0514
Hungary (H) 01-333 9575 01-324 8756
Poland (PL) 0800-118922 022-8771260
Turkey (TR) 0212-3350677 0212-3460040
USA (USA) 800-2662528 708-6817188
Brasil
(Mercosur) (BR) [phone] [phone]
Malaysia
(Asia Pacific) (MAL) [phone] [phone]
