Important Notice
It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped
with a television viewer or screen that is located in the motor vehicle at any point forward of
theback ofthe driver’sseat,orthatisvisible,directlyorindirectly,to thedriver whileoperating
the vehicle. In the interest of safety, the VOH704 should never be installed where it will be
visible, directly or indirectly, by the operator of the motor vehicle.
WARNINGS
vDo not use any solvents or cleaning materials when cleaning the video system.
vDo not use any abrasive cleaners, they may scratch the screen. Use only a lightly
dampened lint free cloth to wipe the screen if it is dirty.
vLock the LCD screen in the fully closed position when not in use.
vBefore putting on headphones always adjust the volume setting to the lowest position.
vRemember to leave the dome light switch in the off or auto positions when the vehicle
is unattended, as the dome lights, if left on, can drain the vehicle’s battery.
vDo not put pressure on the screen.
vCaution children to avoid touching or scratching the screen, as it may become dirty or
damaged.
Safety Precaution
For safety reasons, when changing video tapes it is recommended that the vehicle is not in
motion and that you do not allow children to unfasten seatbelts to change tapes or make any
adjustments to the system. System adjustments can be accomplished using the remote
controlunit,while seatbeltsremainfastened. Enjoy your Audiovoxentertainmentsystem but
remember-safety of all passengers remains the number one priority.

-3-
128-6117
3 of 16
Congratulations on your purchase of the Audiovox
VOH704drop-down TV/ VideoMonitor. TheVOH704
has been designed to give you and your family many
yearsof videoentertainmentin amobileenvironment.
Please read the directions that follow to familiarize
yourselfwith theproductandtoensure thatyou obtain
the best results from your equipment.
Please note: Installation options vary, see the
individual owner’s manuals for each component in
your system to obtain a full understanding of each
component’s operation.
Features
v7” TFT (Thin Film Transistor) Active Matrix LCD
(Liquid Crystal Display) Monitor (4:3 and 16:9
AspectRatio)
vOSD (On Screen Display) for Control of Picture
QualityandFunctions
vFullFunctionRemoteControl
vTelevisionTuner
vFMRadio
vDualChannelInfraredTransmittersforIRWireless
Headphones
vTwoAudio/VideoSources(inputs)
vHeadphone/SpeakerAmplifier
vHeadphoneJacks(MonitorandRadio)
vForwardandSideRemoteSensor
vDomeLightswithSwitch
vBacklitControlsforLowLightOperation
vDualChannelWirelessHeadphones
Television Reception
This entertainment system is designed primarily for
viewing prerecorded movies or playing video games.
Televisionreception inamoving vehiclewill be limited
and in some areas will not be possible due to weak
and variable signal strength. Television viewing in a
stationary vehicle will result in an improvement, but
maystillbemarginalduetosignalstrength. The quality
of the picture will not be consistent with home TV
reception. Reception may be affected by weather
and distance from TV station. A weak signal may
cause the picture to roll, be snowy, or cause some
color loss.

-4-
128-6117
4 of 16
3
8A
10
12
1
5
6
7
9
11
13
4
14
16
15
17
8B
2
18

-5-
128-6117
5 of 16
Front Panel
1. Dual Channel Infrared Transmitter – Used to
transmit audio to wireless headphones.
TV/Video Controls
2. Power Button – Bright red when system is On,
dim when Off.
3. Screen Select – Used to select between 4:3 or
16:9 screen viewing aspect ratio.
4. Channel Up/Down – Changes the TV channel.
5. Volume Up/Down – Controls volume to
headphonejack(TV EAR) andexternalspeakers
if connected.
6. Auto Program – Used to program local channels
into the TV memory.
7. Source Select – Used to select A/V sources (TV,
VCP, DVD or Game).
8A.Forward Sensor Eye – Allows the remote control
to operate the VOH704’s OSD (On Screen
Display),control volumeto wiredheadphone jacks
(and optional external speakers), and to control
theVideoCassette Playerandother accessories.
8B. Side Remote Sensor Eye – Allows the remote
controlto operatetheVOH704’s OSD(On Screen
Display),control volumeto wiredheadphone jacks
(and optional external speakers), and to control
theVideoCassette Playerandother accessories.
FM Radio Controls
9. Power Button for FM Radio – Bright red when
system is On, dim when Off).
10. Recall Button – Used to access and display the
preset radio channels in memory.
11. Memory Button – Used to store the desired
channel into memory.
12. LCD Display Window – Used to display the FM
radio station frequency.
13. SearchUp/Down –Used to searchfor the desired
FM radio station frequency.
14. Three position Dome Light Switch
• Auto – Automatically switches on the dome
lights in conjunction with the vehicle’s interior
illumination.
• Off – Turns off dome lights and prevents them
from lighting when the switch is in the off
position.
• On – Turns on the dome lights.
15. Dome lights – provide additional interior vehicle
illumination.
16. Screen Release – Slides in the direction of the
arrow to release the drop down screen.
17. TV EAR Jack-Headphone Jack – Allows plug-in
of wired headphones with 1/8” stereo plug for
monitoring the video program audio.
18. RADIOEAR Jack-HeadphoneJack –Allowsplug-
in of wired headphones with 1/8” stereo plug for
monitoring the radio program audio.
NOTE: Audiovox recommends the use of the
AudiovoxHP275Headphones.

-6-
128-6117
6 of 16

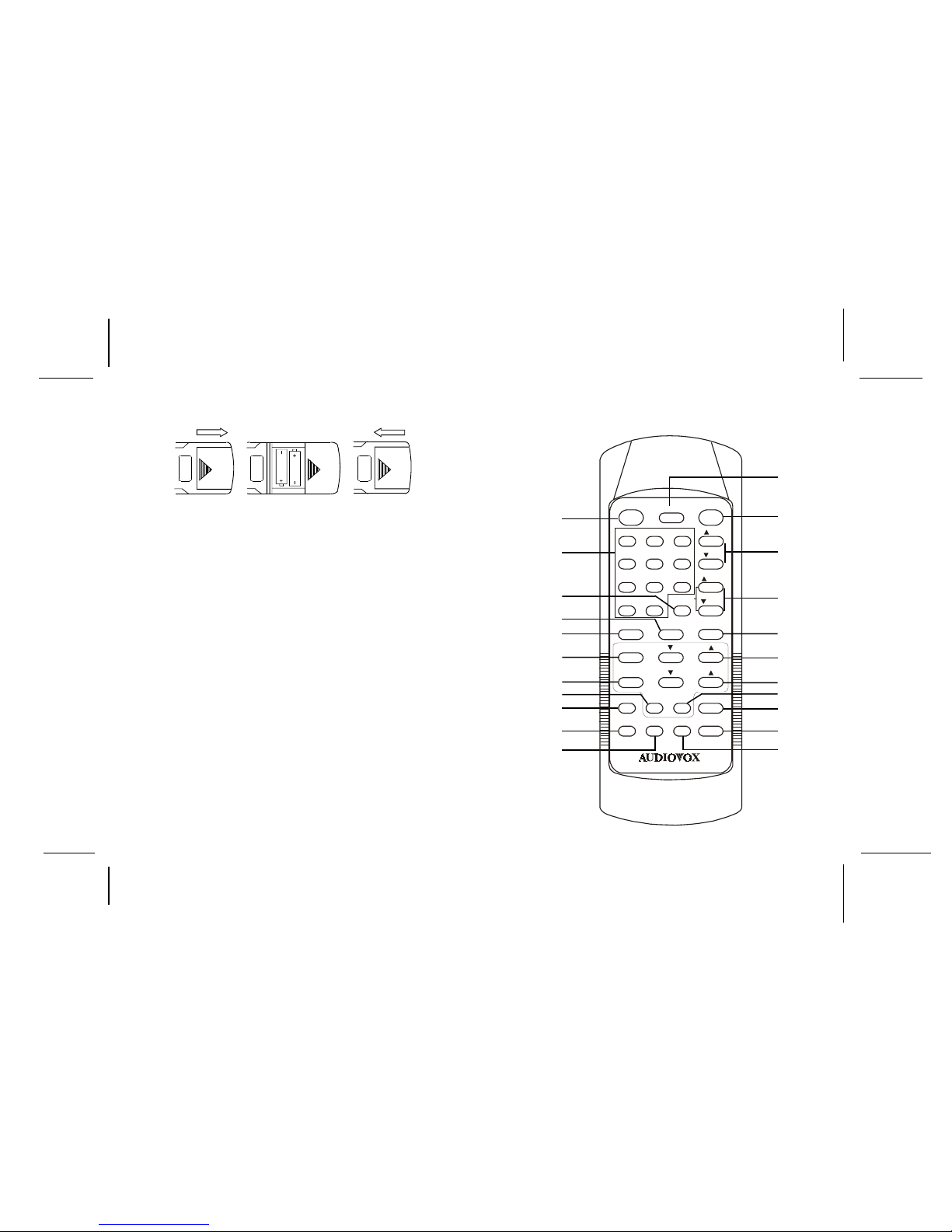

BATTERY INSTALLATION
Before attempting to operate your Remote Control,
install the batteries as described below.
1) Turnthe Remote Control facedown. Pressdown
ontheridged area ofthebattery cover and slideit
off.
2) Install two “AAA” batteries as shown. Make sure
that proper polarity (+ or -) is observed.
3) Slide the cover back until it clicks.
Theremote controlwilloperatetheVOH704, Audiovox
Televisions and Video Cassette Players. It is not a
universalremote controlandwillnotcontrolequipment
from other manufacturers.
If a universal remote control is to be used with the
VOH704, choose the remote encoding scheme for
AudiovoxTelevisionswhen programmingtheremote.
REMOTE CONTROL OPERATION
-4-
1
2
9
11
10
12
14
7
6
3
4
8
5
13 16
15
TV/VIDEO MUTE
12 3 CH
CH
45 6
78 9VOL
VOL
01--
SELECT
AUTO
MEMORY
ERASE/
WRITE
SKIP/SEARCH
PLAY
STOPREPLAYF. F W DREW
®
TV POWER
VCP POWER
RADIO POWER
MUTE VOLUME
TUNING
RECALL MEMORY
17
18
19
20 22
21

-7-
128-6117
7 of 16
Remote Controlled TV/Monitor
Functions
1. POWER ON/OFF
Press this button to turn the VOH704 On. The
channel number or current video source will be
displayedonscreen andthepicture willappearin a
few seconds. Press the button again to turn the
VOH704Off.
2. DIRECT ACCESS (O-9) BUTTONS
Use these buttons to make a direct channel
selection. The channel number chosen will be
displayed on the screen for about 4 seconds. The
direct access is carried out with 0-9 keys (0-69ch).
3. CHANNEL UP/DOWN BUTTONS
Use these buttons to advance to the next higher or
lower channel. See also: SKIP / SEARCH
BUTTON.
4. VOLUME UP/DOWN BUTTONS
Use these buttons to increase or decrease the
volume level of the headphone jacks or external
speaker if installed. They are also used to make
picture adjustments in picture select mode.
Note: These buttons will not affect the volume of
wireless headphones or a wired RF modulator.
When using these devices the volume must be
adjusted with the headphone volume control or
with your radio’s volume control (see page 12,
Headphones, or page 13, Wired FM Modulator).
5. PICTURE SELECT BUTTON
Each time this button is pressed, the on screen
picture adjustment display cycles through
“adjustment bars” for CONTRAST,
BRIGHTNESS, COLOR and TINT. Once the
desired adjustment bar is displayed, use the
VOLUMEUP/DOWN buttonstoadjust thesetting.
The display will automatically turn off if no
adjustments are made within 6 seconds, or if any
other button is depressed.
6. MUTE BUTTON
Press this button to remove the sound at the
headphone stations. The screen will display the
volume adjustment bar for 6 seconds, indicating
that the sound has been turned off. Pressing the
button again restores sound to the previously set
level. The mute feature may also be released by
pressing the VOLUME UP/DOWN BUTTONS.
7. TV/VIDEO BUTTON
Any video equipment connected to the AUDIO/
VIDEO inputs can be viewed with the TV by
pressing
this button. Each time the button is pressed, the
Audio / Video source will change in the following
sequence VIDEO 1, VIDEO 2 and TV.

-8-
128-6117
8 of 16
8. AUTO MEMORY BUTTON
When the AUTO MEMORY button is pressed, all
channels in TV or CATV mode are searched and
tuned; all the channels with signals detected are
automatically stored. Please refer to page 2 for
more information on TV reception.
9. SKIP/SEARCH BUTTON
This button selects between SKIP and SEARCH
mode. In “SKIP mode” the TV only stops on
channelsthat areprogrammedinto memorywhen
the CHANNEL UP/DOWN buttons are used.
When the SKIP mode is off, the TV will stop on
all active channels.
10. ERASE/WRITE BUTTON
Whentuned toachannel pressthis buttonto store
or erase the channel from memory. The stored
channel numbers are displayed in “GREEN” on
the screen and the non-stored channel numbers
are in “RED”. When the skip mode is on, the
VOH704willtunetoonly thestored channelswhen
using the CHANNEL UP/DOWN buttons.
Remote Controlled Radio Functions
11. FM RADIO POWER ON/OFF
Press this button to turn the FM Radio On. The
radio station frequency will be displayed on LCD
display window. Press the button again to turn
the FM Radio Off.
12. MUTE BUTTON (FOR FM RADIO)
Press this button to remove the sound at the
headphonestation fortheFMradioonly. Pressing
the button again restores sound to the previously
setlevel.
13. RECALL BUTTON
Press the recall button to recall channel 1 to 6
from memory. Each press of the recall button
will advance the channel number. Stop pressing
the RECALL button when the desired channel
number is displayed on the LCD display.
14. TUNING UP/DOWN BUTTONS
Press the tuning UP/DOWN button to tune the
radio frequency from a low to high frequency
channel. The radio is tuned in 200 kHz step size.
Pressing and holding the tuning buttons for more
than two seconds will result in rapid radio tuning
as displayed on the LCD window.
15. VOLUME UP/DOWN BUTTONS
Press the volume UP/DOWN button to increase
or decrease the volume levels of the headphone
jack.
16. MEMORY BUTTON
Tune tothe desiredradio stationfrequency. Press
the memory button repeatedly until the desired
preset number is displayed. Press and hold the
memorybutton. MEM0 willappear in the display.
The radio station frequency is now stored in the
preset number.

-9-
128-6117
9 of 16
Remote Controlled VCP Functions
These features can only be used with an Audiovox
VideoCassette Player,if this optionwas installedwith
your video package.
17. POWER BUTTON
This button is used to turn the VCP on and off.
18. “REW” REWIND BUTTON
If this button is pushed while the tape is stopped,
thetapewill rewind. If this button ispushedwhile
the tape is playing, the VCP will go into rewind
search mode. For more information consult the
Audiovox VCP owner’s manual.
19. PLAY BUTTON
Press this button to activate play mode while a
tapeisloaded into theVCP. Thisbuttonmay also
be used to disengage search and pause modes.
For more information, consult the VCP owner’s
manual.
20. “F.FWD.” FAST FORWARD BUTTON
If this button is pushed while the tape is stopped,
tapewill fastforward. Ifthisbuttonis pushedwhile
thetape isplaying,theVCPwill gointo fastforward
search mode. For more information on the
search feature of the VCP, consult the VCP
owner’s manual.
21. REPLAY BUTTON
Pressing this button will rewind tape and
immediatelybeginplayback when thetape is fully
rewound.
22. STOP BUTTON
Press this button to stop the tape.
CHANNEL SET UP
In order to easily access all available TV channels, it
may be necessary to perform channel auto-
programming whenever the vehicle’s geographic
locationhas changed,i.e. cityto city,weaksignal area.
1. Pressthe AUTOMEMORYbutton ontheRemote
Control Unit or the AUTO PROGRAM button on
the drop down video unit. You will see the TV
cycle through all its channels. The built-in
microprocessor will automatically note each
channelthatis actively broadcastingin your area.
2. (A) To tune only strong clear channels with the
CHANNEL UP/DOWN buttons, press the SKIP/
SEARCHbuttonon theRemoteControl Unit until
“SKIP MODE ON” is displayed on the bottom of
the screen. The TV will now tune only to strong
active channels when the UP or DOWN buttons
are used on the monitor or remote control.
3. (B) To tune weak or marginal channels with the
CHANNEL UP/DOWN buttons , press the SKIP/
SEARCHbuttonon the Remote ControlUnituntil
“SKIP MODE OFF” is displayed on the bottom of
the screen. Tune to the desired channel using
the CHANNEL UP/DOWN buttons or go directly
to the channel by using the 0-9 buttons on the
Remote Control.

-10-
128-6117
10 of 16
Turning the VOH704 On or Off
1. Sliding the screen release lock forward will
unlock the LCD screen and it will drop down
slightly. Pivot the screen downward until a
comfortable viewing angle is reached. The
internal friction detent will hold the screen in
position while the system is in use.
2. Pressing the power button on the pod or the
remote will turn the system on or off alternately.
When in use the internal backlighting will
illuminate the controls.
3. After the unit has been turned on and is
displaying a picture, adjust the viewing angle,
by pivoting the screen to optimize the picture
quality.
4. Rememberto turn theunitoff and pivottheLCD
to the locked position when not in use.
6. Pressing the Recall button will scroll through the
six presets.
7. Pressing the Volume UP or DOWN button in the
remote control unit will set the desired volume
level in the headphones.
8. Press the Mute button on the remote control unit
to mute the sound in headphone and press Mute
button again, to restore the sound to the original
level.
FM Radio Operation
1. Ifusing wired headphones, inserttheheadphone
setplugintothe headphone jack on therightside
of the LCD pod labelled RADIO EAR. If using a
wireless headset, switch the Channel A/B switch
to channel B for the FM radio. Channel A is used
for the video audio.
2. Press the Radio power on button. The LCD
window will display the FM station frequency and
memory channel number.
3. Press the tuning UP or DOWN button to select
the desired radio station.
4. If the radio station is broadcasting in stereo, then
LCD window will display STEREO.
5. Press the Memory button and select the preset
number you wish to assign. The number can be
selected from 1 to 6 sequentially. The selected
number will flash. Press and hold the memory
buttonuntilthe display stops flashing. Thepreset
then be displayed continuously.
4. To ERASE a channel, press the ERASE/WRITE
buttonon the RemoteControl Unituntil“MANUAL
MEMORY XX ERASE” is displayed on screen.
To STORE a channel, press the button until the
MANUAL MEMORY XX ADD is displayed on
screen.
Note : Please refertopage 2 for moreinformationon
TV reception.

-11-
128-6117
11 of 16
Operation
Overhead Dome Lights
The lights integrated into the VOH704 are controlled
by a three position slide switch. Sliding the switch to
the on position will turn the lights on. The off position
willprevent thelights from turning on atalltimes and
theautoposition will allow thelightsto turn onandoff
with the vehicle’s interior lighting. Do not leave the
vehicle unattended with the dome light switch in the
onposition, asthis couldresult ina dischargedbattery.
Dome
Light
Switch

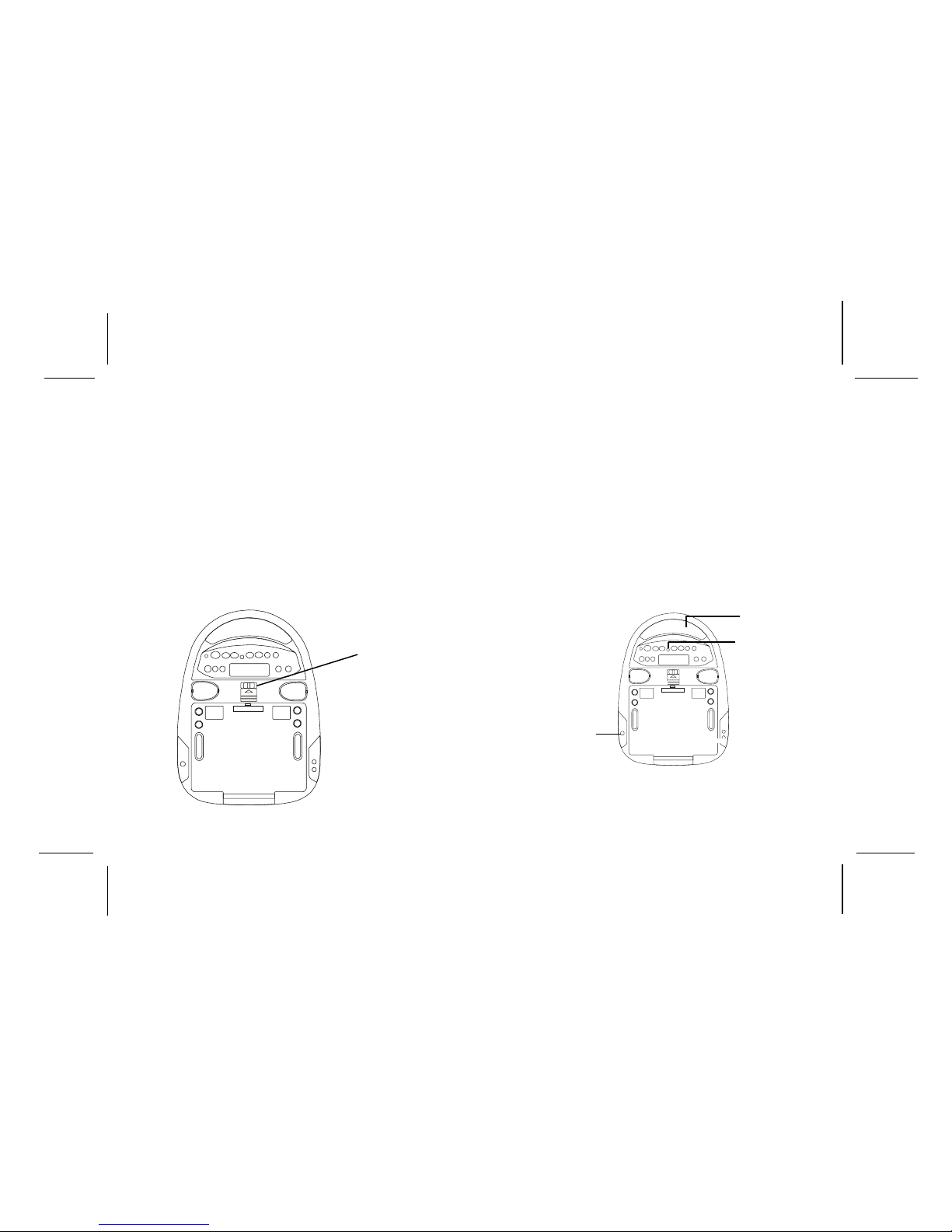

Remote Sensor
The VOH704 incorporates an Infrared sensor which
relays signals from the remote control to allow the
VOH704andVCP to be controlledsimplyby pointing
its remote control at the remote sensor eye. This
provides control of auxiliary equipment such as an
AudiovoxVideo Cassette Player. Theinfrared sensor
can relay signals from any manufacturer’s remote
controls to the component connected to the Video 1
and 2 inputs, such as a DVD player. In this case you
must use the remote control supplied with
the DVD player.
Remote
Sensor Eye
Remote
Sensor Eye
Infared
Transmitters

-12-
128-6117
12 of 16
Accessories
Wireless Headphones
The VOH704 includes a built-in infrared transmitter
and Audiovox wireless headphones (Part Number
IR2CHS-(TwoChannel). Thevolume can beadjusted
with the control on each headset. The wireless
headphones must be used within a line of sight from
thetransmitter,as infrared transmissions, likevisible
light travel only in a straight line.
Headset Special Features
-Dual Channel.
-Automatic Level Control prevents input
signal over loading.
-Useshighfrequency infrared lighttoassure
a clean signal for clear reception.
1. INFRARED PICKUP SENSORS – (Receives
signals from transmitter)
2. BATTERY COVER
3. VOLUME CONTROL
4. POWER SWITCH
5. POWER INDICATOR LED
6. CHANNELA/B SWITCH
7. AUTO ON/OFF MICRO SWITCH

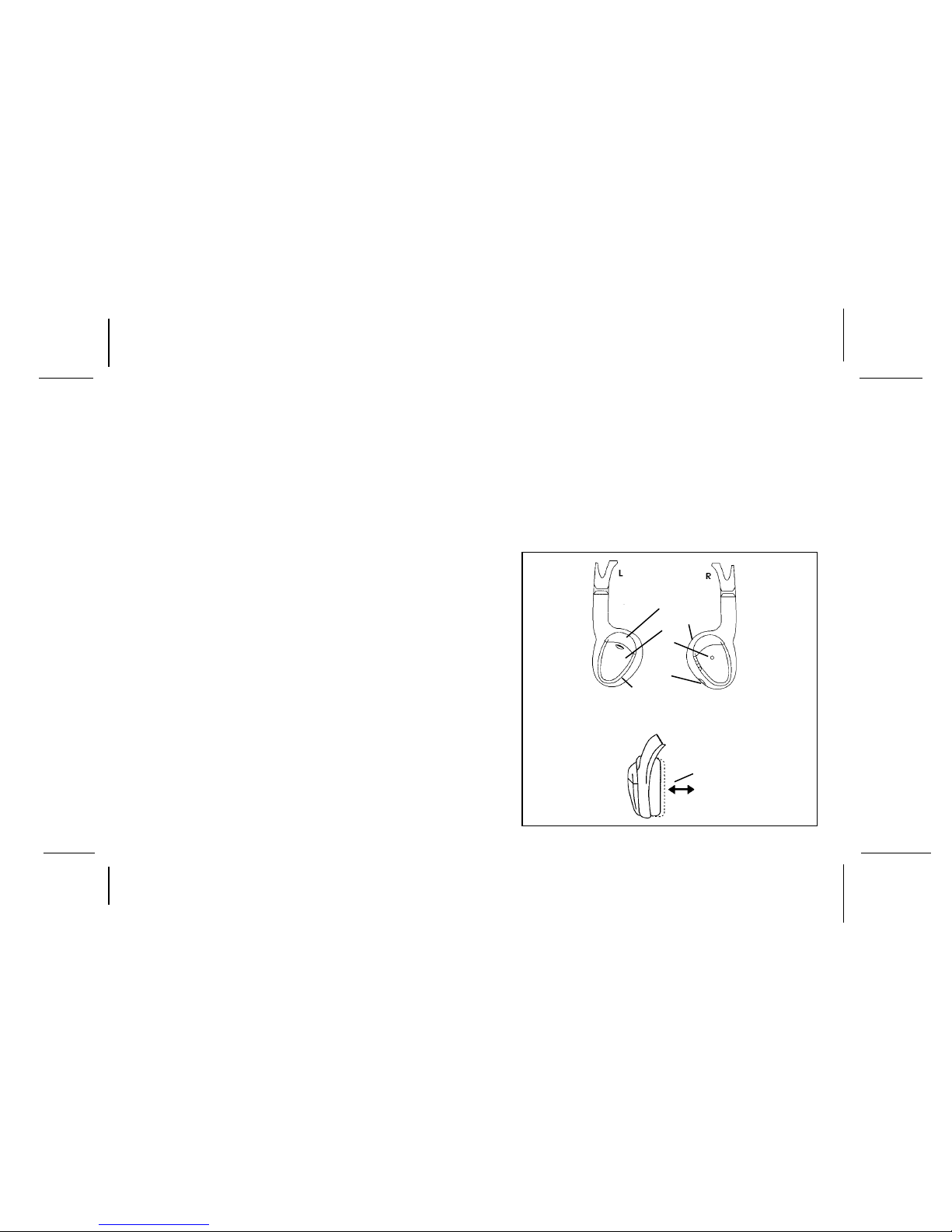

Controls and Indicators (Fig.1)
Auto ON/OFF Micro Switch is activated when headphones are
placed on head (shown below)
1
2
5
3
L
R
4
6
7
Fig. 1

-13-
128-6117
13 of 16
Battery Installation (Fig.2)
1. Place two alkaline AAA batteries in the
Headphone’s battery compartment making sure
that the battery polarity is correct.
2. Replace the battery cover.
HEADPHONE OPERATION
IMPORTANT: To prevent possible ear damage,
ReadthefollowingCarefully!
1. Turn the headphone volume down before turning
onthepower. Turnon theheadphonepower then
increasetheheadphone volume to acomfortable
level.
2. Before switching between channels A and B,
remove headphones and turn the volume down
because the signal of channel could be louder
than the other.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
aredesigned toprovidereasonableprotectionagainst
harmful interference in a residential installation. This
equipment generates, uses and radiate radio
frequency energy and, if not installed and used in
accordancewiththeinstructions, may cause harmful
interference to radio communications.
Optional Accessories
Wired Headphone
There are two 1/8” headphone jacks on the VOH704
that can be used with any standard stereo
headphones. The jack, TV EAR, is used to listen to
the video program audio. The audio volume is
controlled by theTV VOLUME up/down buttons. The
jack, RADIO EAR, is used to listen to the FM
broadcast. The audio volume is controlled by the
RADIO VOLUME up/down buttons. Remove the
protective plastic cover to access the jacks.
Remember to replace the cover when the jacks are
not in use.
Product Specifications:
Operating range : up to 25 Ft.
Frequency Response : 35 – 18,000Hz
S/N ratio : 60 dB
Channel Separation : 45 dB
Fig. 2

-14-
128-6117
14 of 16
Aux Video 2
The second video input may be connected to a DVD
player,video gamesystem, orother audio/videoinput.
To play the Video 2 source, turn the VOH704 on and
press the source button on the VOH704 or the TV/
Video button on the remote control until “Video 2” is
displayedonthe screen. Turnthe sourcecomponent
on with its power button or remote control. The
VOH704 is now ready to play the audio and video
signals from the source connected to video 2 inputs.
Audiovox Video Cassette Player (Aux Video 1)
In most installations a VCP will be connected to the
“Video 1” input. To view a video cassette, turn the
VOH704On andpress thesourcebutton onits control
panel or the TV / Video button on the remote control
until “Video 1” is displayed on the screen. The VCP
may also be operated with the remote or the buttons
Wired FM Modulator
Your video system may be equipped with an RF
modulator, that allows you to listen to the VOH704’s
video audio signal by tuning your vehicle’s radio to
the selected frequency, (88.7 or 89.1 - Check with
your installer) and turning on the remote mounted
RF modulator switch. (In most cases this toggle
switch will be located underneath the driver’s side of
the dash, check with your installer for the exact
location.) Whenever the RF modulator is on,
broadcast radio reception of the vehicle’s radio will
be diminished. Setting the remote mounted toggle
switch off will allow normal radio reception.
Video Output
TheVOH704provides a video output foranoptional
video monitor(s). (Refer to page 7 of the installation
guide for more details.) This output will provide a
video signal that duplicates the signal displayed by
theVOH704 toanadditional monitoror videodisplay.
Please see your installer for more information.
on its face. The VOH704 is now ready to play the
audioand videosignals fromthe VCPif itis connected
to the “Video 1” input. Inserting a tape into the VCP
willturn iton andautomatically activatethe playmode.
If a rewound tape had already been loaded into the
VCP, prior to its activation press play on the VCP or
on the remote control to view the tape. For more
informationsee theoperator’smanualaccompanying
yourVCP.

-15-
128-6117
15 of 16
10,000Hours
35db
NTSC
0.6W @ 16 Ohms
LCDBacklighting
Resolution
Pixels
OperationTemperature
StorageTemperature
BacklightLife
Sensitivity
Video Display System
AudioOutput
Replacement Parts
Specifications
1440(RGB) x 234
336,960
Troubleshooting
PROBLEM
Poorin-dash
radioreception
(FMmodulator
installed)
IRsensor
inoperative
PoorTV
reception •Performautoprogrammingofthetuner.
•Verifyantennacondition.
•Note: Due to the nature of TV signals,
vehicle motion, direction the vehicle is
facing, distance from the transmitter,
nearby surroundings and weather may
adversely affect TV reception. These
conditions may result in the following:
pictureroll,"snowy"picture,ormomentary
loss of color.Please refer to page 2 for
moreinformationon TV reception.
•Checktheconditionofthevehicle’sradio
antenna.
•Verifythat theantenna isfully raised.
•IfawiredRFmodulatorhasbeeninstalled,
verify that its switch is turned to the off
position.
•Verifythatthebatteriesintheremoteare
fresh.
•Verify that the remote sensor eye is not
obstructed.
•Verifythattheinfraredtransmitterisaffixed
overthesensoreyeofthecomponentto
becontrolled.
SOLUTION RemoteControl 136B2063
IR SensorCover 102B3596
Headphone JackCover 102B3597
EdgeLightTube
ColdCathodeFluorescent
Light(CCFL)
0 - 40 °C
32 - 104 °F
-20- 80°C
4 - 176 °F

128-6117
16 of 16
128-6117
© Copyright 2001 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788
AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any
part thereof, under normal use and conditions, be proven defective in material or workmanship within 36 months from the date of original
purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair
labor.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty coverage (e.g. dated
bill of sale), specification of defect(s), transportation prepaid, to the Company at the address shown below.
This Warranty does not extend to the elimination of externally generated static or noise, to correction of antenna problems, to costs incurred
for installation, removal or reinstallation of the product, or to damage to tapes, discs, speakers, accessories, or vehicle electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through
alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar code
label(s). THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
PROVIDEDABOVEAND,INNOEVENT,SHALLTHECOMPANY'SLIABILITYEXCEEDTHEPURCHASEPRICEPAIDBYPURCHASERFOR
THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY
OFMERCHANTABILITY,SHALL BE LIMITEDTOTHEDURATION OFTHISWRITTENWARRANTY. ANY ACTION FORBREACHOF ANY
WARRANTYHEREUNDERINCLUDINGANYIMPLIEDWARRANTYOFMERCHANTABILITYMUSTBEBROUGHTWITHINAPERIODOF48
MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or
representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage
so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
U.S.A.: AUDIOVOXELECTRONICS CORPORATION,150MARCUSBLVD.,HAUPPAUGE, NEWYORK 11788 l1-800-645-4994
CANADA : CALL1-800-645-4994 FORLOCATION OFWARRANTY STATIONSERVING YOURAREA
36 MONTH LIMITED WARRANTY
Applies to Audiovox Mobile Video Products
